Hard Side & Hard Side High Wall Series

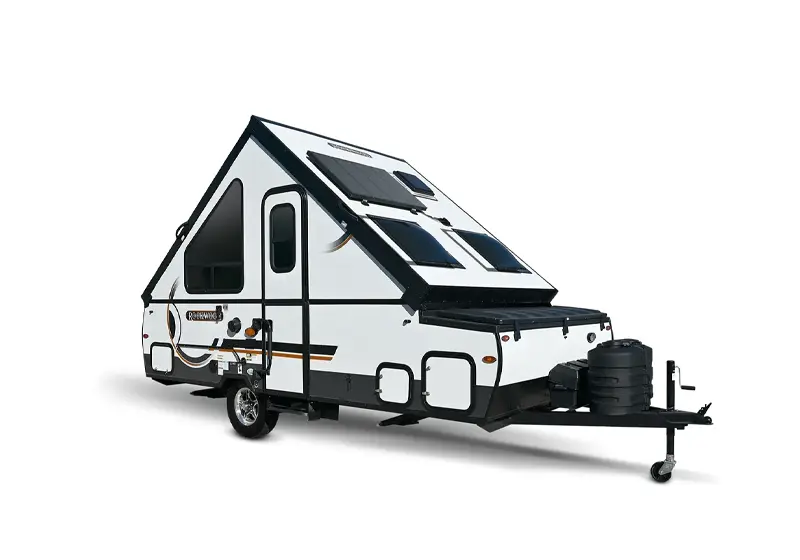

When you combine the solid exterior of a travel trailer with a Premier tent camper, you get the Rockwood Hard Side Series, giving your camping experience the best of both worlds. Bringing a smooth, fiberglass vacuum bonded exterior with a quick, easy set up, while retaining the towing and storage advantages of a tent camper, the Hard Side camper is the perfect blend.

Ever get more than you expect? That is what you get with the Rockwood Hard Side High Wall Series. What appears to be another easy to tow, convenient to store camping trailer transforms into a fully equipped camper with many of the amenities commonly found in today’s travel trailers.

Filter

Select filters below and then click the Filter Results button to remove non-matching Floorplans and their Specifications
















to

to

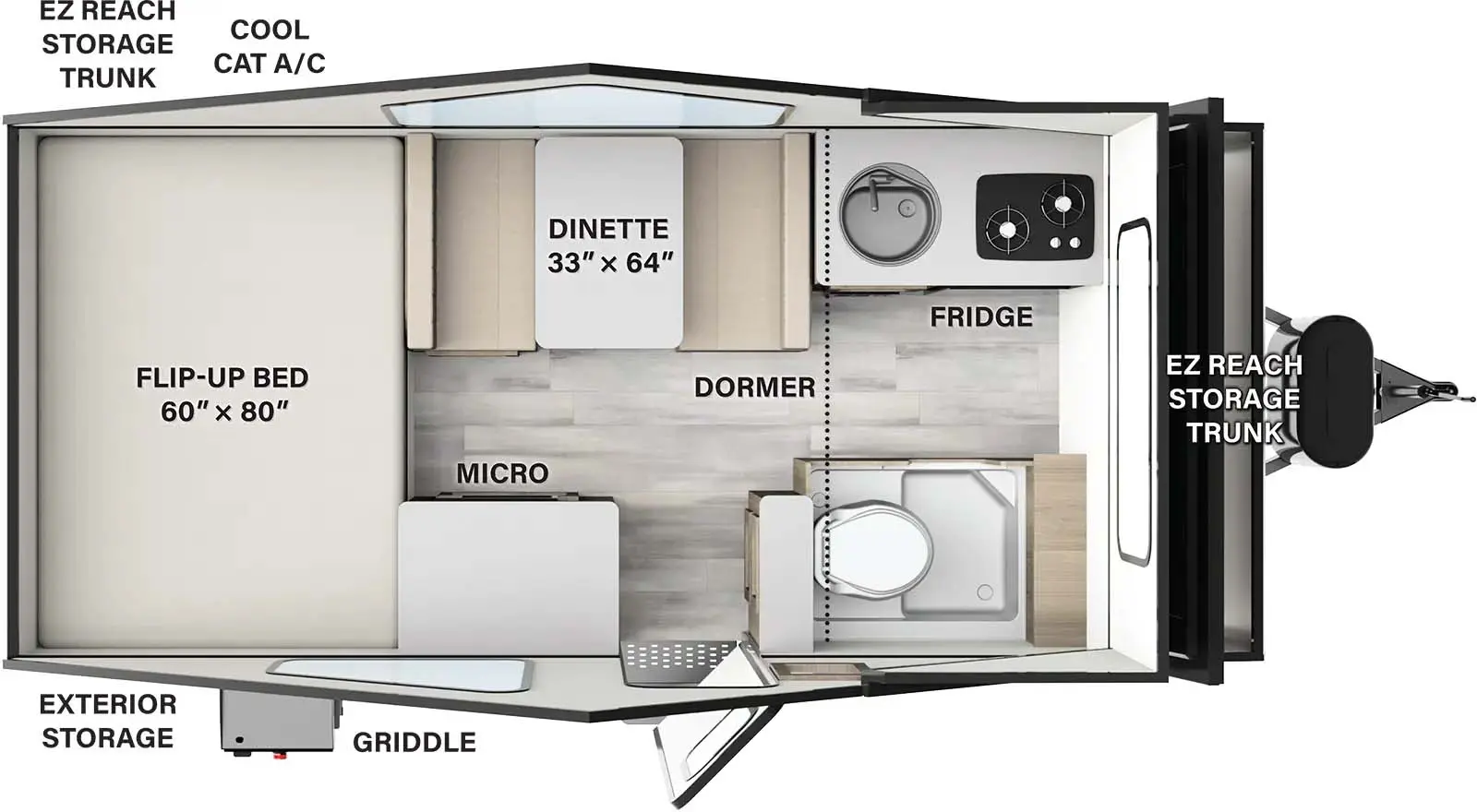

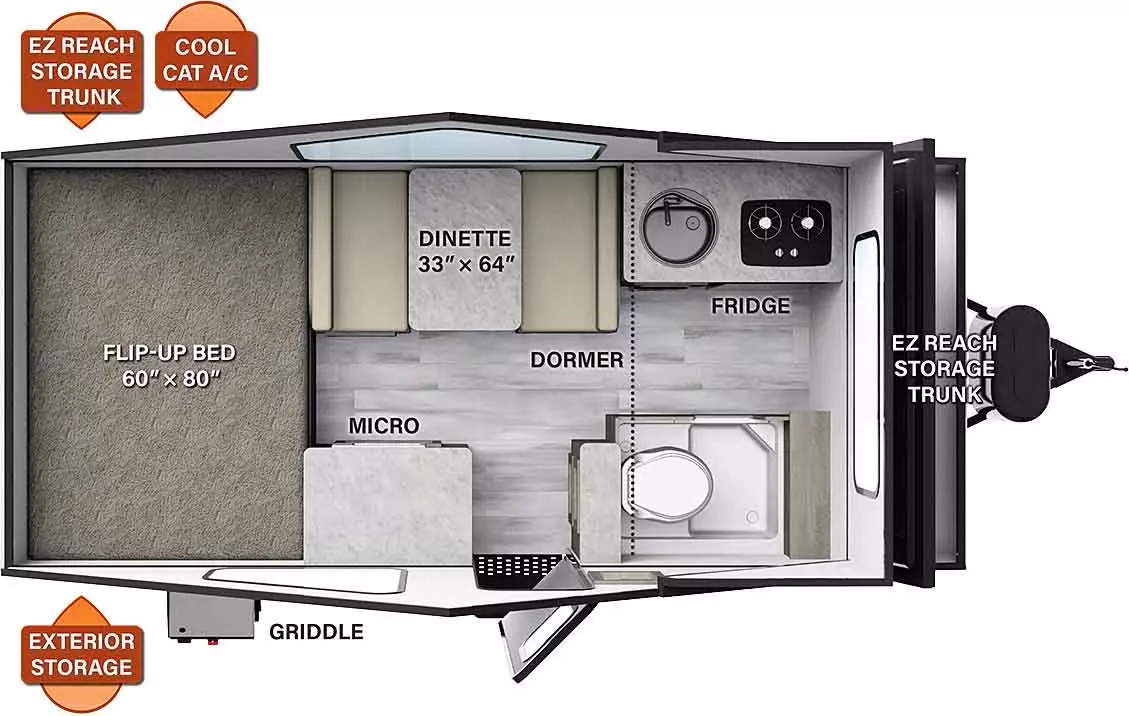

Floorplans

Print


Hard Side Series

Hard Side High Wall Series



Specifications

Print


Hitch Weight:
GVWR:
UVW:
CCC:
Exterior Open Length:
Exterior Closed Height:
Exterior Closed Length:
Exterior Width:
Box Size:
222 lb.
TBD
2014 lb.
1208 lb.
17' 1"
5' 1"
17' 1"
84"
12.00'
284 lb.
TBD
2120 lb.
1164 lb.
18' 10"
5' 1"
18' 10"
84"
12.00'
311 lb.
TBD
2526 lb.
785 lb.
20' 10"
5' 8"
20' 10"
84"
14.00'
372 lb.
TBD
2670 lb.
702 lb.
20' 10"
5' 8"
20' 10"
84"
14.00'
353 lb.
TBD
2700 lb.
653 lb.
20' 10"
5' 8"
20' 10"
84"
14.00'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Features & Options

Print
  • Slatewood Interior
  • Wood Look Flooring (Select Floorplans)
  • “Leather Appearance” Seating
  • Stainless Steel Look Appliances and Sink
  • Electric Water Pump
  • Hot Water Package (Incl. Water Filter, Outside Shower, Six Gallon DSI Hot Water Heater, Demand Water Pump)
  • Port-a-Potty (A122, A122S, A122BHESP, A212HW)
  • Residential Flush Toilet in Cabinet (A213HW)
  • Shower and Cassette Toilet Package Incl. Cabinet w/Shower, Cassette Toilet and Shower Curtain (Select Floorplans)
  • Hard Wall Shower w/ Residential Flush Toilet (A214HW)
  • Antifreeze Inlet to Bypass Fresh Water Tanks When Winterizing
  • Permanently Mounted 3-Burner Indoor Range w/Glass Stove Top Cover
  • Three Burner Glass Top Stove with Oven (A212HW, HW296, HW276, HW277)
  • Microwave
  • 3 Way Refer 2.5 cu. ft.
  • Extra Large 3 Way Refer (A212HW, A213HW, A214HW)
  • Residential Style Cabinet Doors
  • Wood Drawers w/ Full Extension Metal Guides
  • Large Clothes Bar
  • USB Charging Ports
  • Digital Media Receiver w/ AM/FM Stereo, Bluetooth, MP3 Player, USB & Aux. Ports
  • TV Outlet with Cable and Satellite Hook Up
  • 30 Amp Detachable Power Cord w/ Storage Bag
  • 35 Amp Converter w/ Built in Battery Charger
  • Three Speed Ventilation Fan
  • 10k BTU Cool Cat Heat Pump
  • Interior Floor Lights
  • Ceiling LED Lights (Hard Sides)
  • LP Leak/Carbon Monoxide Detector
  • Privacy Curtains
  • Deluxe Memory Foam Quilted Top Bed Mattresses (A213HW, A213HWSE Twin Beds Converts to King)
  • Quilted Top Memory Foam Mattresses (A122, A122S)
  • Quilted Top 60” x 80” Memory Foam Mattresses (A212HW, A214HW)
  • Thermostatically Controlled Heated Mattresses (A122, A122S, A212HW, A214HW)
  • Independent Torsion Axles
  • Easy Lube Axles
  • Spare Tire, Cover and Mount
  • 13” Radial Tires w/ Aluminum Wheels (N/A A212HW, A213HW, A214HW)
  • 14” Radial Tires w/ Aluminum Wheels (Std. A212HW, A213HW, A214HW)
  • Electric Brakes
  • EZ Reach Storage with Sliding Tray All Front Trunk Models and Rear O/D Under Bed Storage (A212HW, A214HW)
  • 28.5” Front Storage Deck w/ 200 # Weight Capacity (A122BHESP)
  • Gas Strut Lift Assist (HS: N/A HW Models)
  • Power Roof Lift Assist (A212HW, A213HW, A214HW)
  • Front Dormer (A214HW, A213HW)
  • Built-in A-Frame Mounting Provision for Equalizer Hitch Bar Installation
  • Double Battery Box and Wiring Kit
  • Solar Panel Prep on Frame
  • Dual 20 lb. LP Bottles with Molded Hard Cover and Automatic LP Regulator
  • Diamond Plated Lower Front Cap
  • Outdoor Gas Grill w/ Worktable
  • Outside Speaker
  • Patio Light
  • Courtesy Light on Front
  • 110V Exterior Outlet
  • Single Entry Step (Select Floorplans)
  • Double Door Step (A212HW, A213HW, A214HW)
  • Vented Entrance Door Window w/ Screen
  • Folding Grab Handle
  • Exterior Graphic Design
  • Completely Enclosed Living Area
  • One Piece Vacuum Bonded Fiberglass Roof with Metal Interior Ceiling
  • Large Rear Roof Tinted Sky Light with Shade
  • Two Front Roof Tinted Windows with Shades
  • Smooth White two Tone Fiberglass Vacuum Bonded Exterior w/ Black Accents
  • Large, Opening Picture Window
  • One Piece Undercoated Structure Wood Floor
  • E-Coated Tubular Steel Frame
  • (4) E-Z Crank-Down Stabilizer Jacks w/ Sand Pads
  • Under Floor 20 Gallon Fresh Water Tank
  • 2000 lb. Tongue Jack w/ Swivel Whee
  • 7-Way Pigtail Plug
  • WiFi Ranger WiFi Booster SKY 4
  • Hanging Wardrobe
  • 20k BTU Forced Air Furnace w/ Electric Ignition
  • (4) Bike Rack (Note: HS: A122 - 2 Bikes only)
  • ProRac Systems Permanent Mount Cross bars (N/A on Dormer Units)
  • ProRac Systems Upright Bike Carrier
  • ProRac Systems Kayak Carrier
  • ProRac Systems Load Stops
  • ProRac Systems Tie Downs
  • 40 Watt Solar Panel
  • Awning/Screen Room
  • Power Front Jack

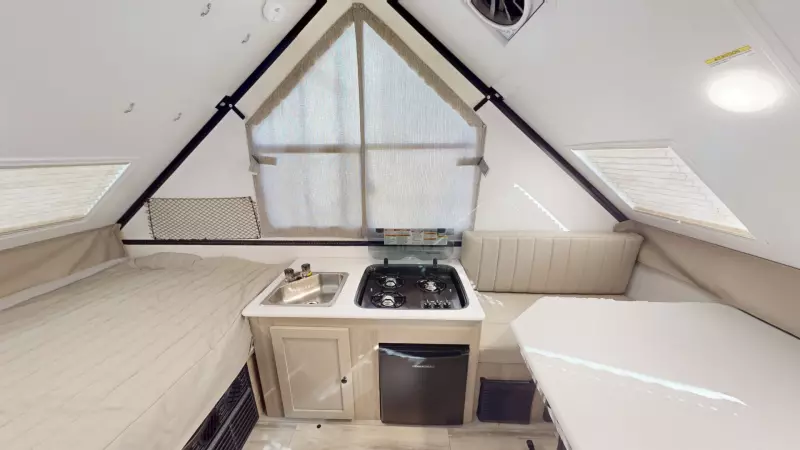

Virtual Tours

A122

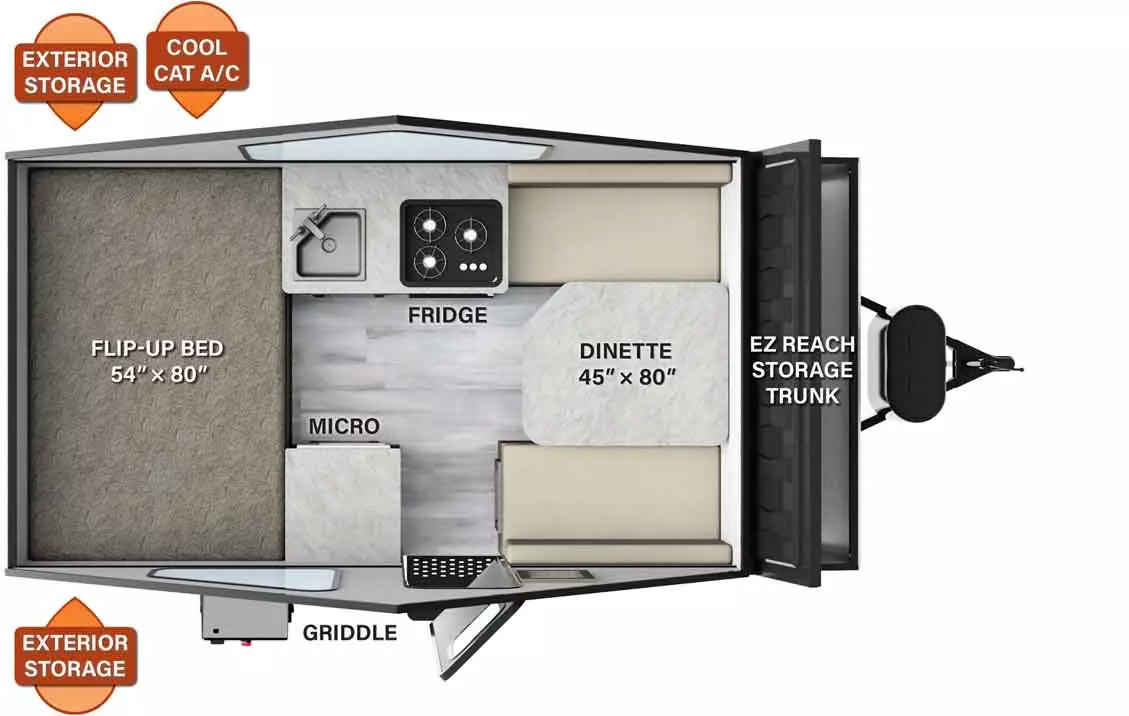

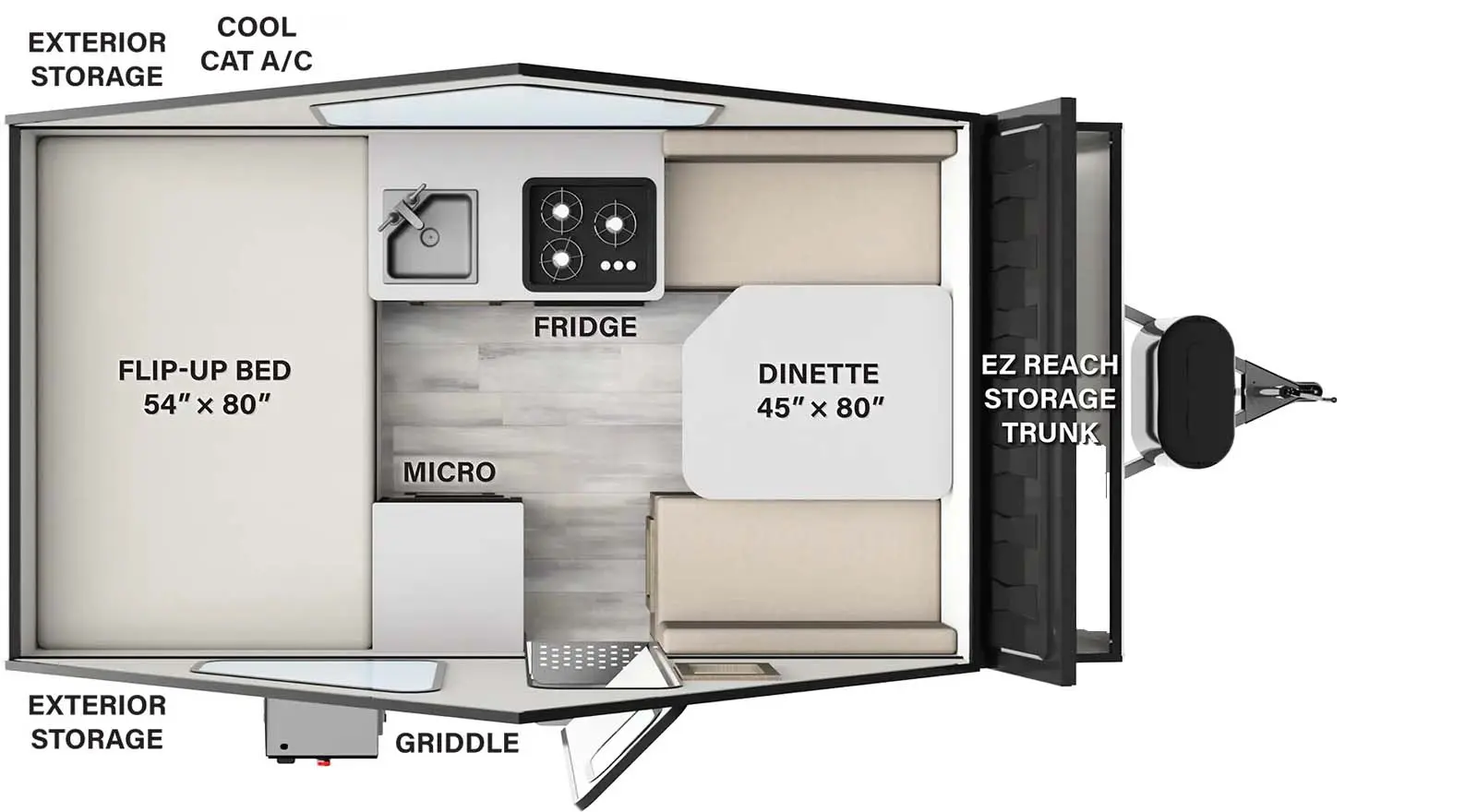

A122S

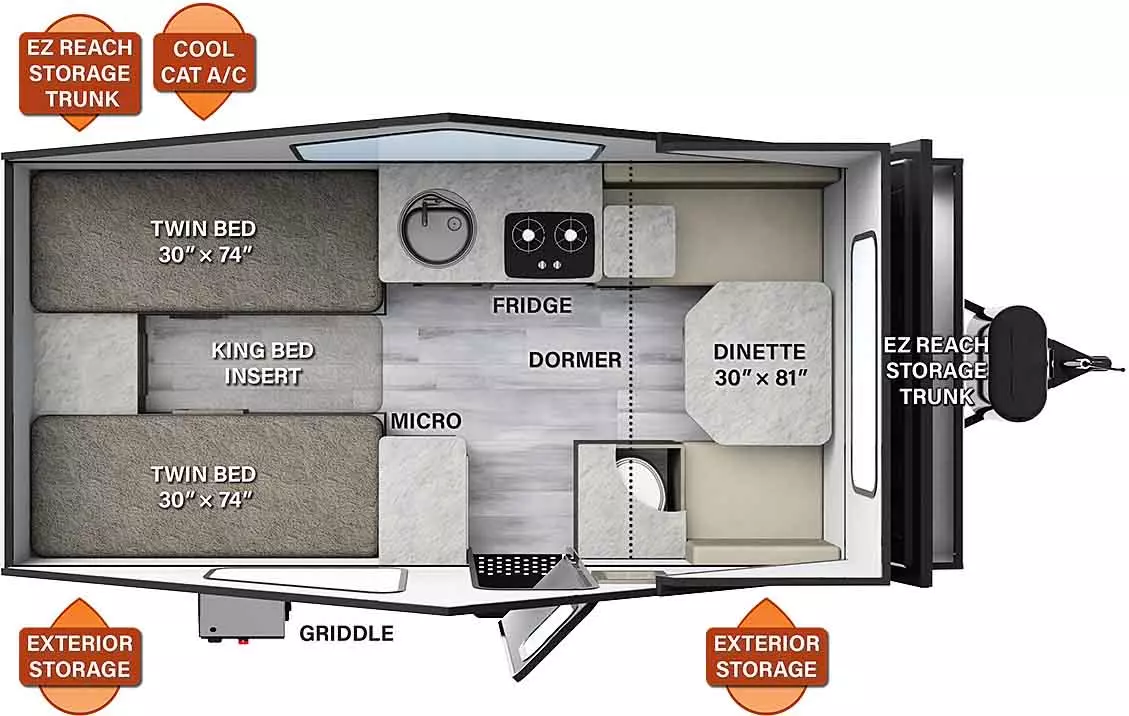

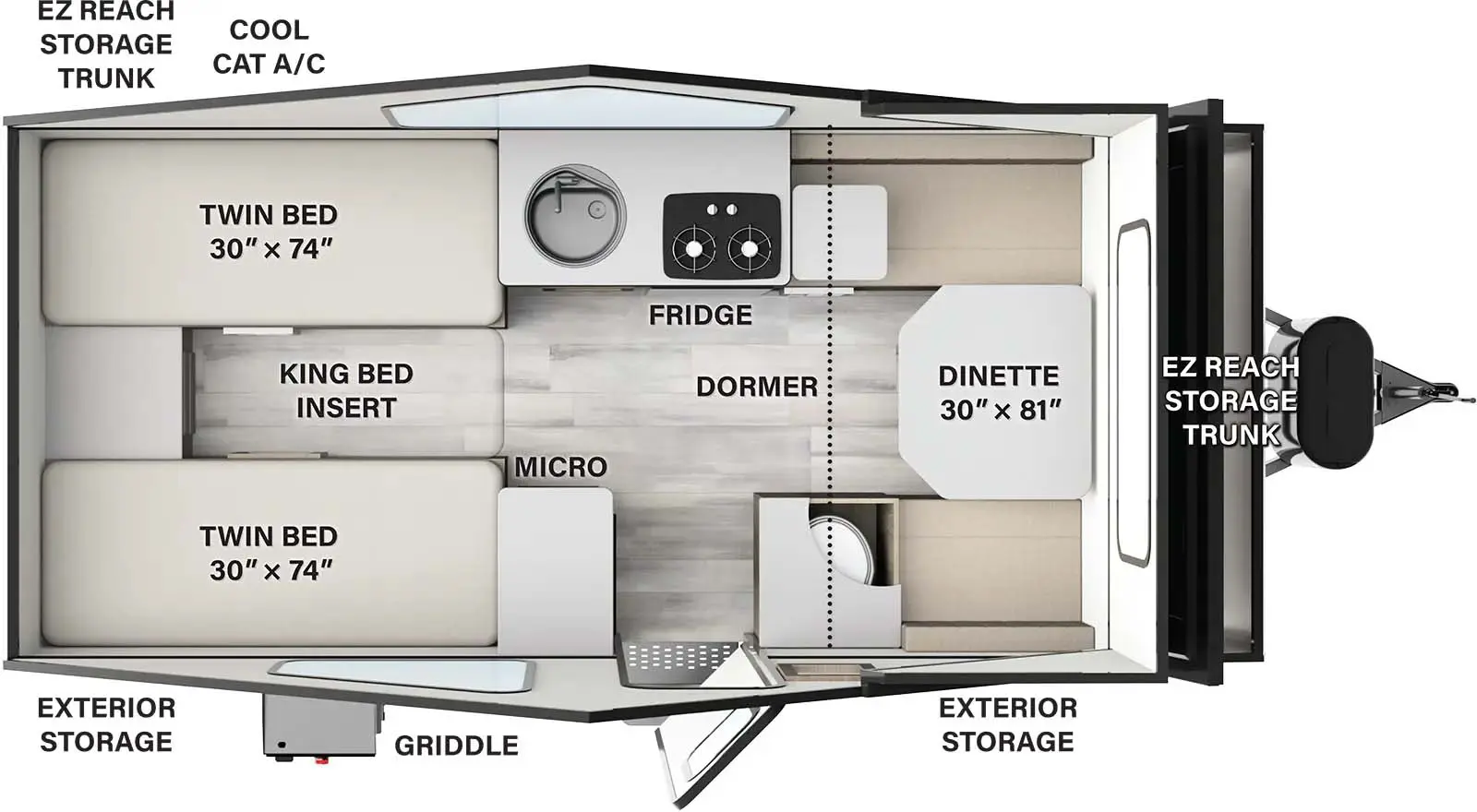

A213HW

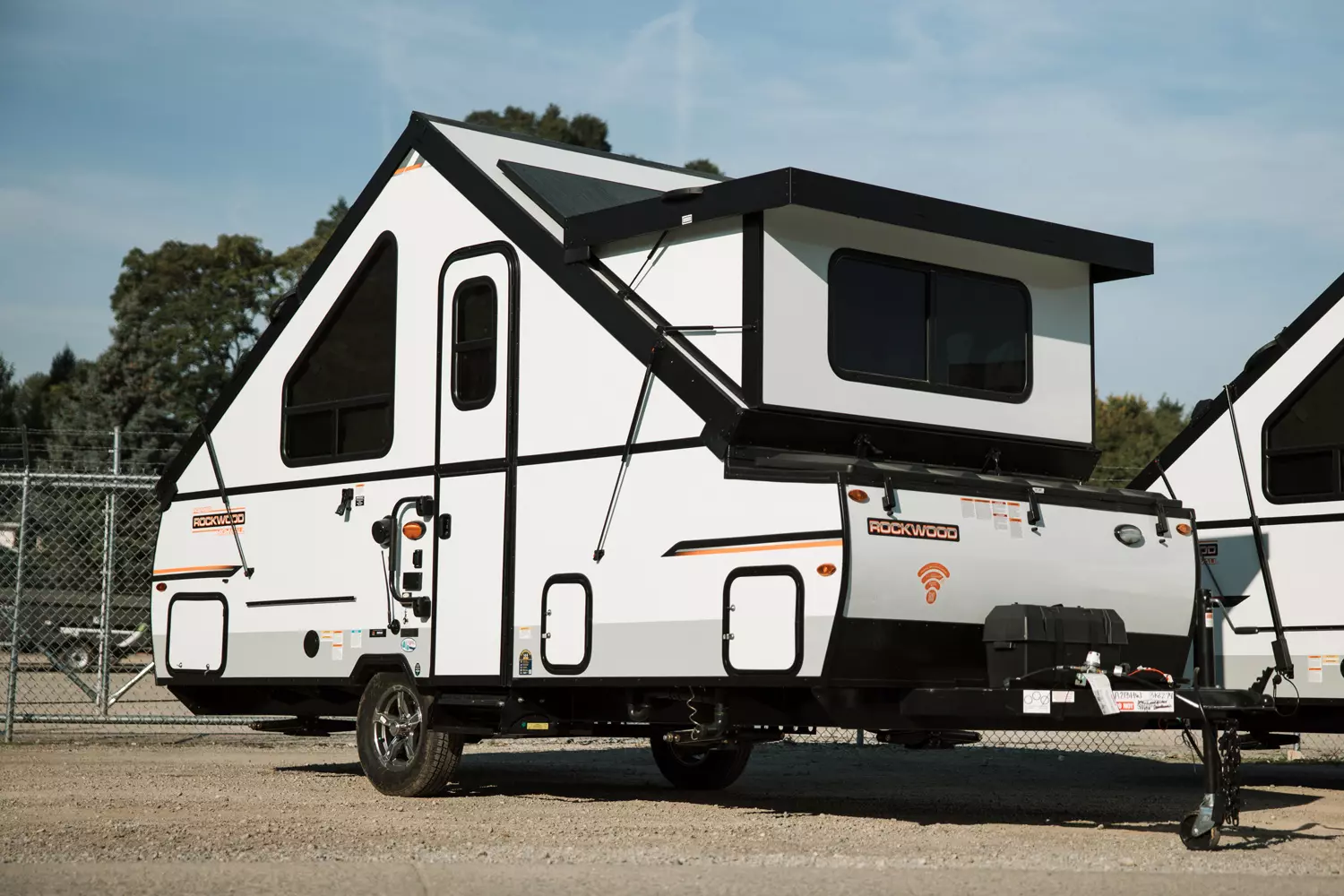

A214HW



Videos

Some videos may show features or options not available on all products. Contact our service representatives or your local dealer if you have questions about how your specific RV operates.


Literature


Rockwood Tent Camper Brochure
