Cedar Creek Cottage Destination Trailers

Cedar Creek is dedicated to enhancing the joy of the outdoors and your peace of mind, by building better quality recreational vehicles designed to withstand rugged road conditions and extreme temperatures. Experience Cedar Creek – see where the road leads and enjoy what life has to offer.

Filter

Select filters below and then click the Filter Results button to remove non-matching Floorplans and their Specifications








to

to

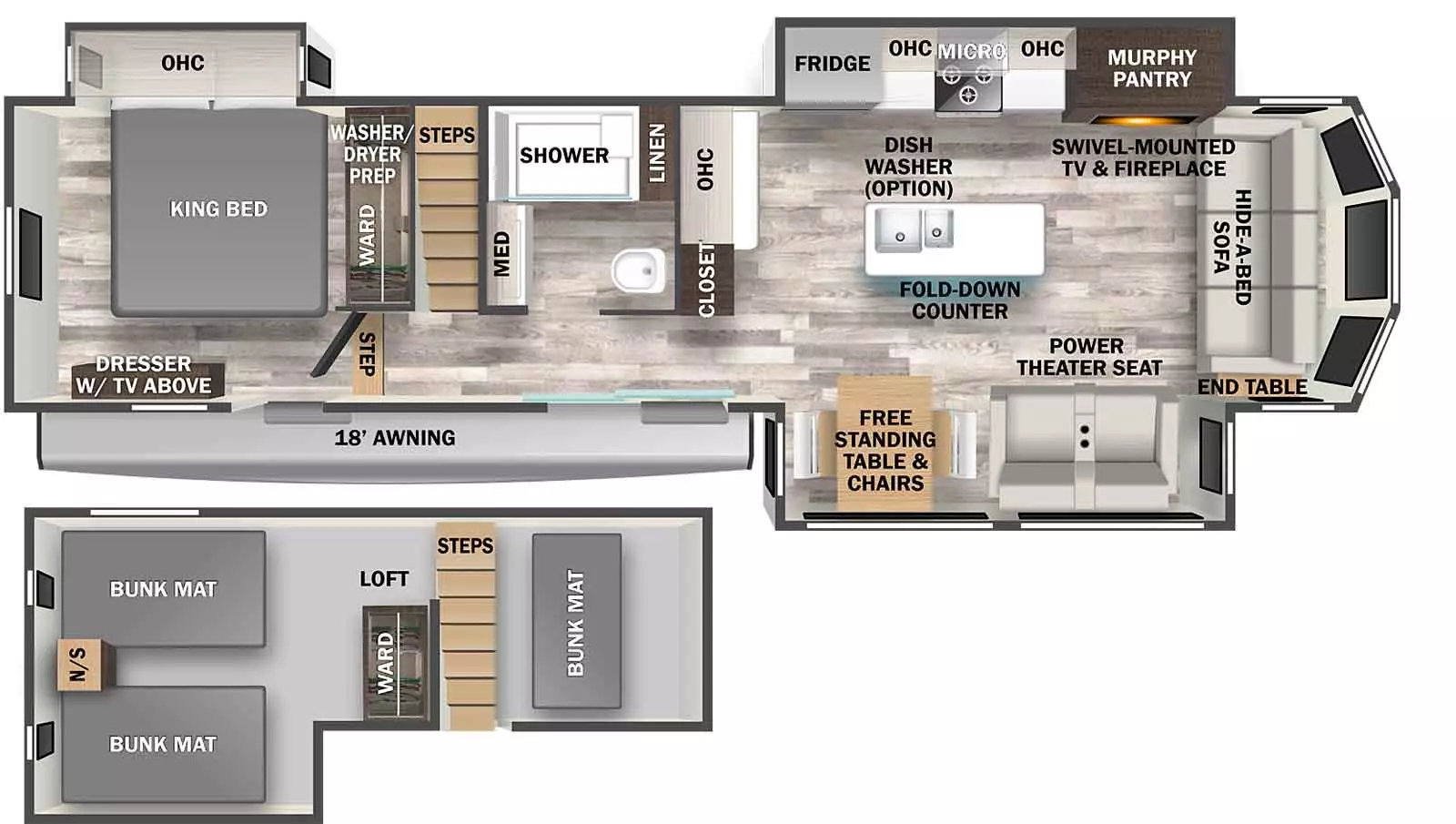

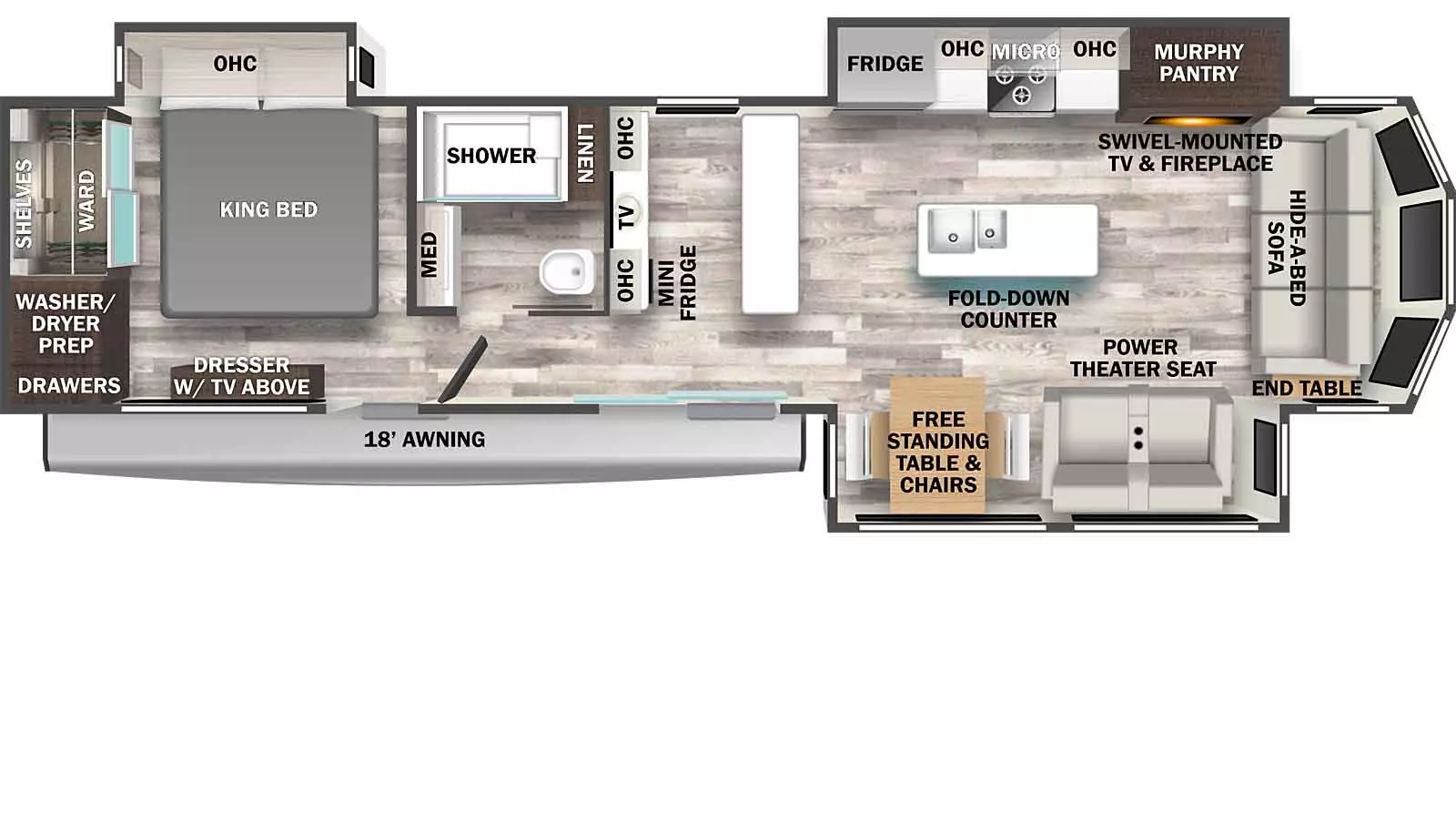

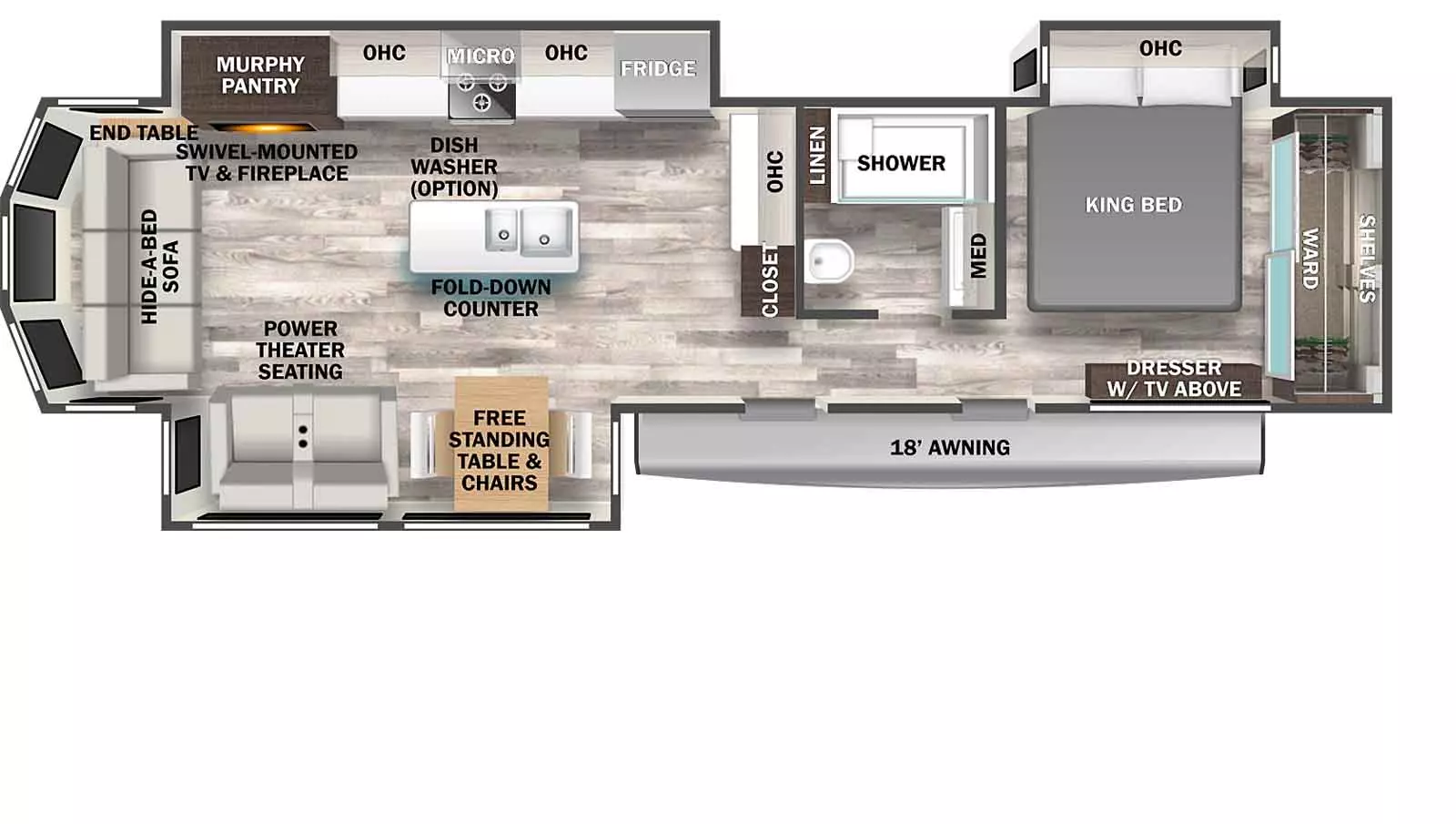

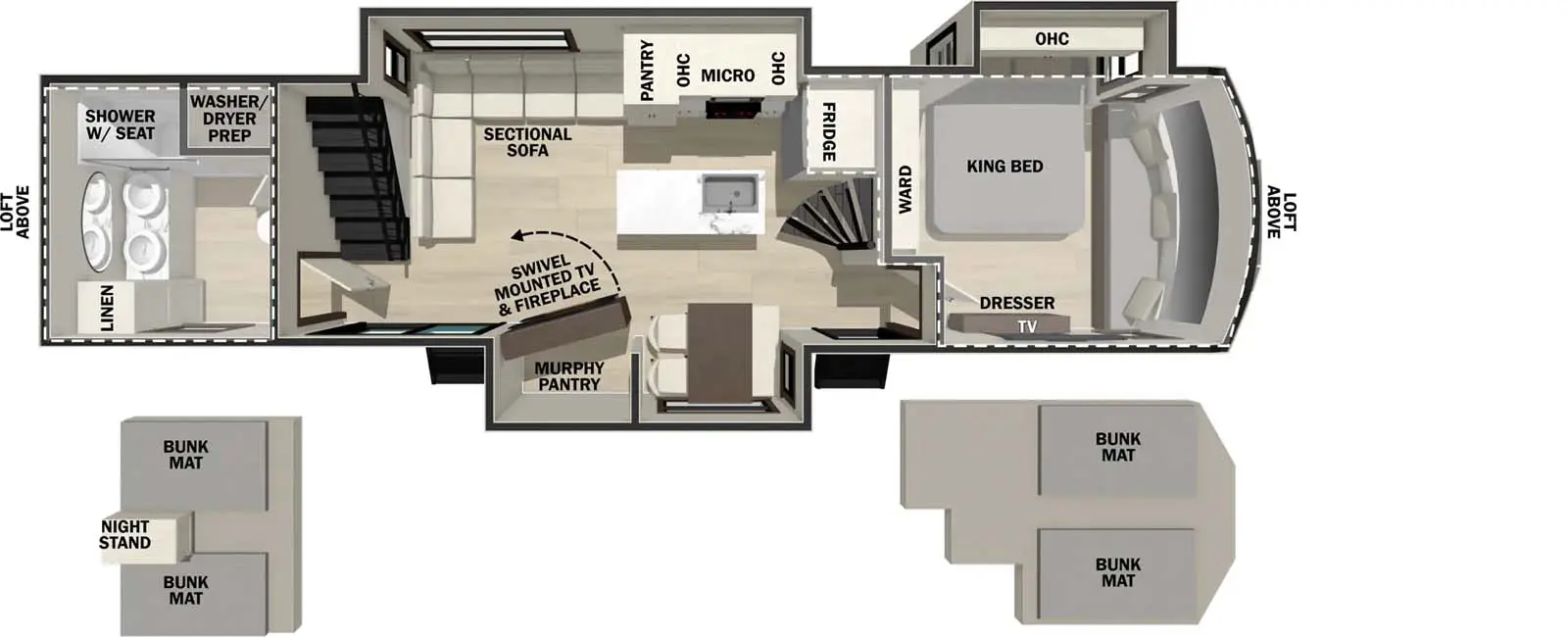

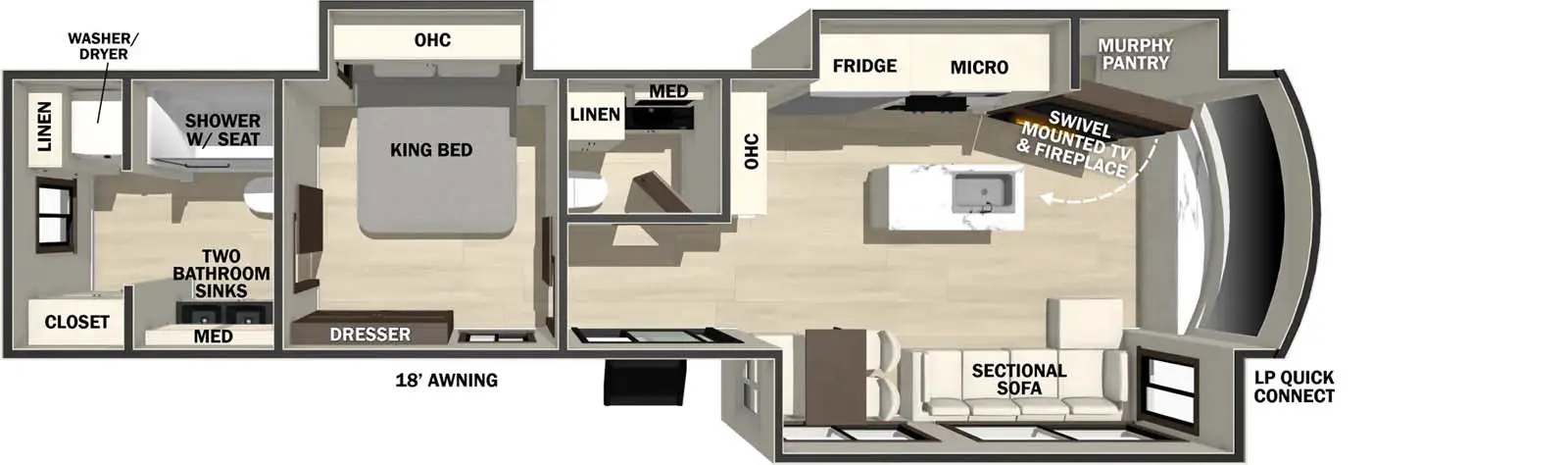

Floorplans

Print


20th Anniversary Limited Edition

Cottage Destination Trailers



Specifications

Print


Hitch Weight:
GVWR:
UVW:
CCC:
Exterior Length:
Exterior Height:
Exterior Width:
Fresh Water:
Gray Water:
Black Water:
Awning Size:
1550 lb.
13550 lb.
10929 lb.
2621 lb.
41' 6"
12' 10"
102"
57 gal.
82 gal.
41 gal.
18'
1335 lb.
13335 lb.
11214 lb.
2121 lb.
40' 3"
12' 10"
102"
57 gal.
82 gal.
41 gal.
18'
1835 lb.
13835 lb.
11304 lb.
2531 lb.
40' 4"
12' 10"
102"
76 gal.
120 gal.
40 gal.
18'
1961 lb.
13961 lb.
12147 lb.
1814 lb.
40' 4"
12' 10"
102"
76 gal.
120 gal.
40 gal.
18'
1565 lb.
13565 lb.
11499 lb.
2066 lb.
41' 6"
12' 10"
102"
76 gal.
120 gal.
40 gal.
18'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Features & Options

Print

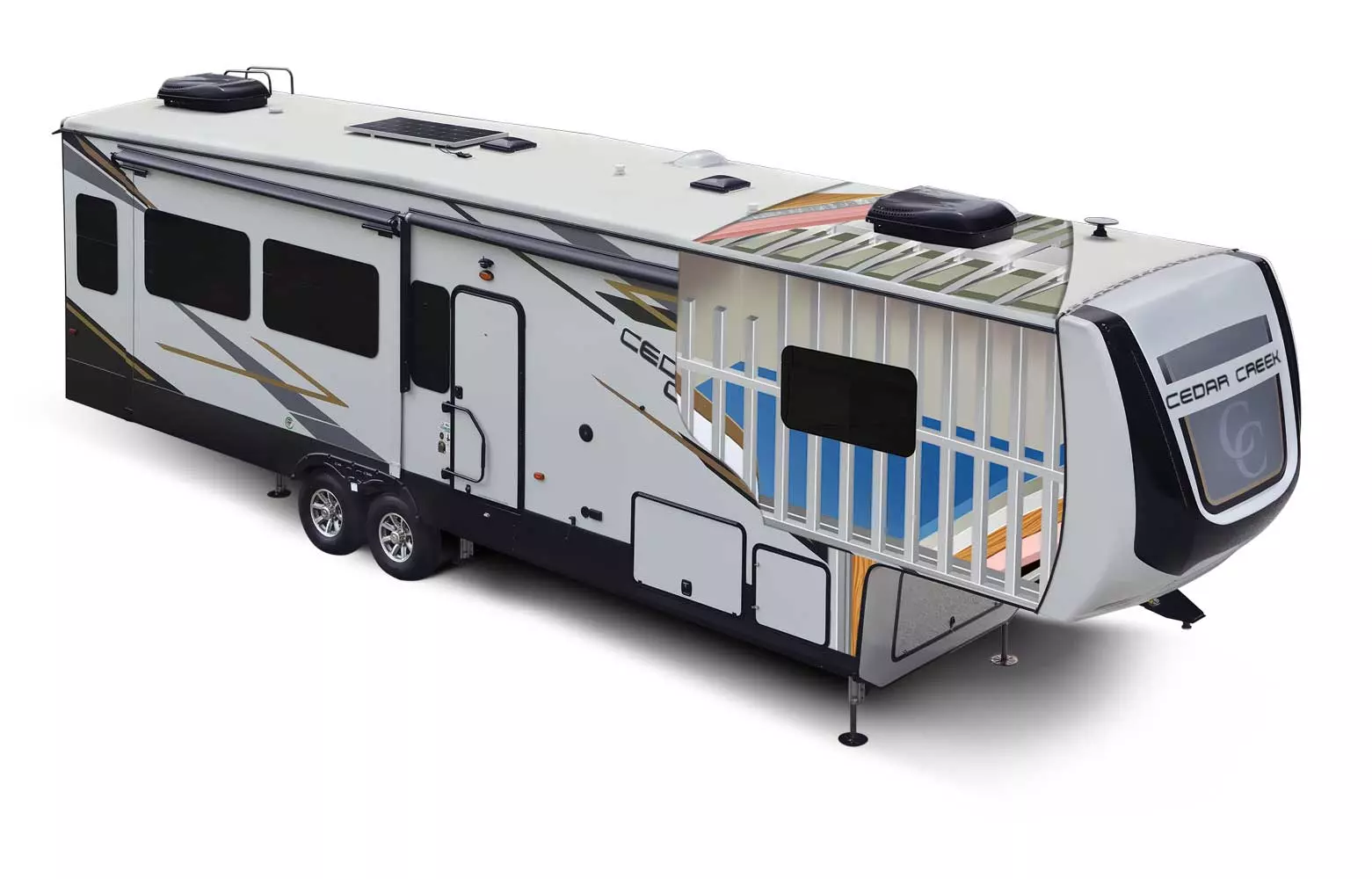

  • Cedar Creek’s famous all aluminum superstructure on 16” center or less
  • “True” pearl gelcoat exterior – truly the best of the best in gelcoat exteriors. Stronger, thicker and keeps its high gloss longer than our competitors less expensive gel “coated” exteriors
  • High sheen, European Beech cabinet doors with hidden hinges
  • Solid surface kitchen countertops with huge, under-mounted stainless steel sinks
  • Residential, full panel backsplash
  • Furrion Chef’s Collection gas cooktop and oven
  • Self-closing drawer guides with wooden silverware organizer
  • Jensen Home Theater System includes: 50” LED TV, CD/DVD Player, AM/FM Stereo, and J-Control App for your smart devices. Apple licensing is also included.
  • Residential pantry with full extension drawers
  • USB ports in kitchen and bedroom
  • 12V sound bar with 2 mid-tone speakers, 2 tweeters, 2 woofers and 2 outside speakers
  • Shaw® RX2 stain and soil resistant carpeting in the dining room slide
  • Congoleum® Carefree™, Designer Series floor covering throughout, except living room slide
  • LED Edison lighting fixtures with backlit tin medallion
  • 36” Fireplace with remote control and thermostat
  • King Denver® mattress with full size headboard and luxury bedding
  • 88” Franklin® Hide-a-bed sofa
  • La-Z-Boy® recliners
  • Insignia™ 18 cu. ft. electric refrigerator with Geek Squad protection.
  • Winegard® HD ready pre-wire
  • Day shade and blackout roller shades
  • 20 Gallon electric water heater
  • Detachable hitch
  • Quick disconnect LP gas line
  • King WiFiMax campground WiFi extender
  • Dual pane patio door
  • 102” Wide body
  • 50 Amp service
  • ABS Ribbed underbelly panels with no screws into the I-Beam frame
  • Decorative front cap with molded picket fence
  • Dexter® Heavy duty axles with heavy duty link plates and shackles
  • 16” 6-Lug, ST, “E” tires
  • Electric awning with LED night lighting strip
  • Enclosed and triple layered insulated underbelly (R-45)
  • Hitch light
  • Large surface 12V heating pads on all holding and fresh water tanks
  • Lighted entry step
  • Porch light
  • Selector switches for slide rooms
  • Clamp ring windows with butyl rubber seals
  • Ducted 15,000 Duo-Therm “HP” (high performance) air conditioner with larger compressor for 30% more airflow
  • Braced and wired for a second air conditioner
  • 5/8” Tongue and groove plywood floor
  • 3M Silaprene® bonded sidewalls
  • Satellite and cable hook-ups into living room and bedroom
  • Thermal pane patio door
  • Create-A-Breeze Fantastic Fan with thermostat and rain sensor in kitchen
  • Stainless steel 30” over-the-range microwave with built-In vent
  • Crown molding complementing all overhead cabinets in kitchen area
  • Free-standing table with hidden table leaf extension and four (4) chairs
  • Bedroom roof vent
  • 2” x 2” Finished bed base with gas lifts
  • Side ventilation windows
  • Ceiling mounted, individually switched, overhead reading lights in slide
  • Solid wood dresser top (No Formica)
  • 18” Tall porcelain toilet with circular flow flush system
  • One-piece, 48” x 30” fiberglass shower
  • 10-Blade bathroom Breeze Power Bath Vent with convenient wall switch
  • Bath towel rack and toilet paper holder
  • Large, double stack bathroom mirror medicine cabinet with overhead makeup lights
  • Linen cabinet
  • 12V Battery disconnect
  • LP gas/carbon monoxide detector
  • Dometic® Climate Control with dual zone heating and cooling
  • Smoke detector
  • Cedar Creek switch control center
  • Solid State 55 amp power converter
  • 40,000 BTU furnace
  • Washer/dryer prep
  • Free 24/7 Roadside Assistance for One Year from Purchase Date
  • FREE membership to the Forest River Owner’s Group (FROG)
  • 30” Stainless steel convection oven/microwave
  • Induction cooktop IPO gas cooktop
  • 20 Cu. ft. electric double drawer refrigerator with ice maker
  • Fisher and Paykel stainless steel dishwasher
  • “Champagne Dreamer” 10” luxury queen and king mattress
  • Central vacuum system
  • Power theater seating IPO recliners
  • Shaw® Carpet in Living area with rebond pad
  • Shaw® Carpet in Bedroom Area with rebond pad
  • New Chottoman with hidden storage
  • 32” LED TV in bedroom
  • Second ducted 15,000 high performance air conditioner
  • Awning toppers with fabric weather shield
  • Heat pump on main air conditioner
  • Splendide® Stackable washer and dryer
  • Dual pane windows
  • (3) Additional sets of stabilizer jacks (4 sets total)
  • 12’ Electric slide room awning
  • Cadet self-regulating bedroom wall heater (N/A 40CL)
  • Ceiling fan in bedroom (N/A 40CL)
  • "True" High Gloss Pearl Gelcoat
  • New Ashley Grey Cabinetry and Fascia
  • 50" Jensen Television with Swing Arm
  • New Decorative Ceiling Panels with Flat Roof Design
  • European Beech Cabinet doors with High Sheen Glaze
  • Bedroom Package Redesign
  • Dual Pane Patio Door
  • Island Medallion with Infinity Light
  • LED, Edison Lighting Fixtures with Tin Medallion
  • Redesigned Island with LED Back Lighting
  • Solid Surface Counters
  • 20 Cu. Ft. Stainless Steel, Double Drawer, Electric Refrigerator with Ice maker
  • Wooden Silverware Organizer
  • Ceiling Fan in the Bedroom
  • Congoleum® flooring in Living Room & Bedroom
  • Power Theater Seating with USB Charging Ports
  • 20 Gallon Electric Water Heater
  • 15,000 BTU, Whisper Quiet, Ducted, 2nd Air Conditioner
  • New, One Piece Backsplash
  • Champagne Dreamer 10" Luxury King Mattress
  • Cedar Creek's Famous All Aluminum Construction
  • USB Ports in Kitchen & Bedroom
  • 12 volt Jensen Home Theater System with Soundbar
  • King Wi-Fi Router / Range Extender
  • 36" Fireplace with Remote and Thermostat
  • Redesigned Bedroom Package
  • Furrion™ Chef's Kitchen with Gas Cooktop
  • 4 Total sets of Stabilizer Jacks
  • Franklin™ 88" Hide-a-Bed Sofa
  • Redesigned Bedroom Package with Shiplap Headboard
  • Self Closing Drawer Glides
  • Up-light Bedroom Ceiling Cove
  • 32" Television in the bedroom
  • Full pantry in the kitchen area
  • Shaw Carpeting on Dining Slide
  • Intra - Vac Central Vaccuum System
  • Deluxe Day / Night Roller Shades (Blackout Shades in BR Only)
  • Bathroom Redesign with New Double Faucet Sink
  • Detachable Hitch
  • New Quick Disconnect LP Gas Line
  • Shaw Carpeting in the Bedroom w/Rebond
  • Dual Pane Tinted Windows
  • 30" Stainless Steel Convection Oven/ Microwave
  • Splendide Front Loading Washer & Dryer
  • "Champagne Dreamer" 10" Luxury Queen Mattress
  • Fisher & Paykel, Dishdrawer, Stainless Steel Dishwasher in Island


Virtual Tours

40C20

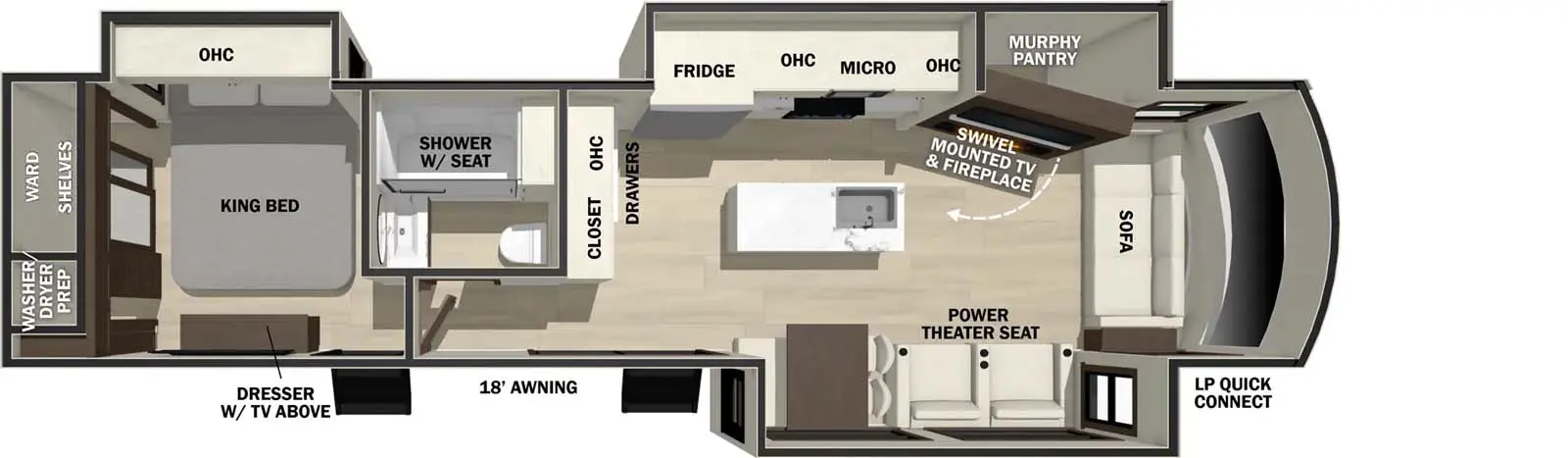

40CCK
