8288SB Floorplan

Signature Fifth Wheels

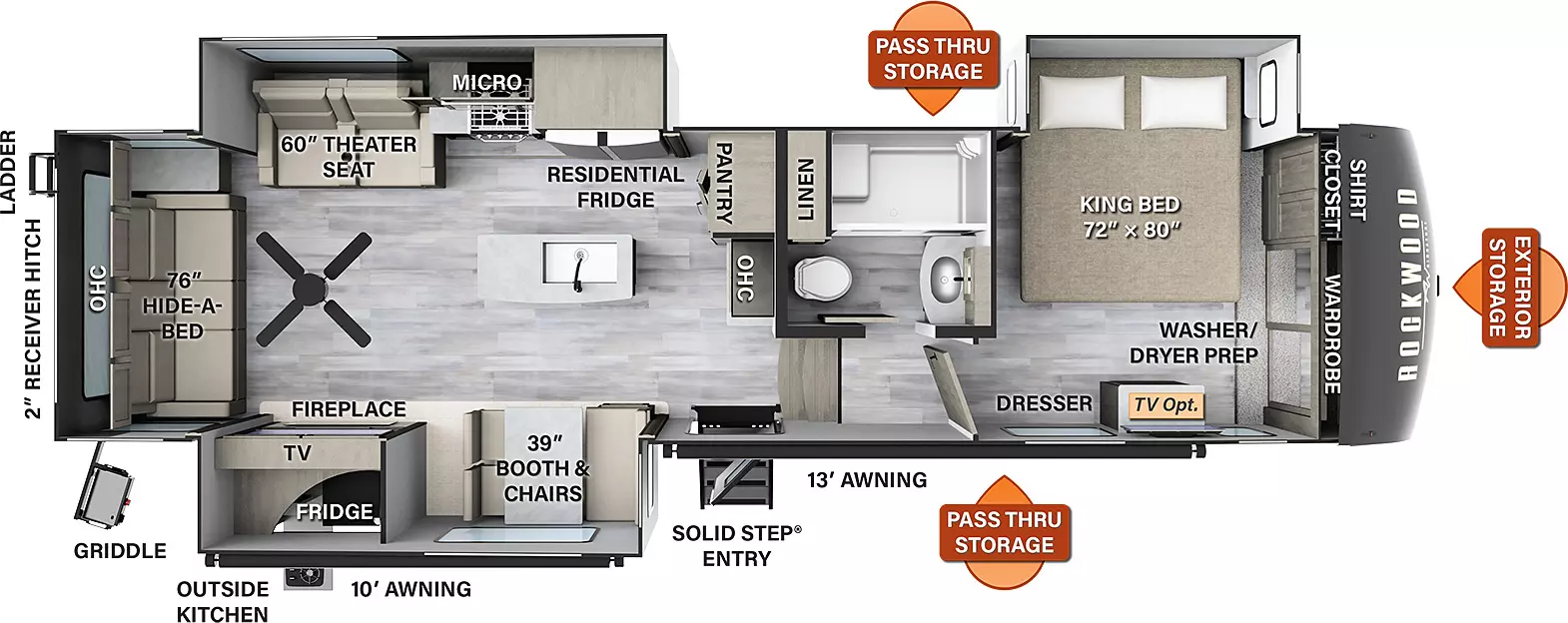

The 8288SB has three slide outs, two on the off-door side and one on the door side along with one entry door. Exterior features include a 10 foot awning and 13 foot awning, outside kitchen with refrigerator, griddle, exterior storage, pass through storage, rear ladder, and 2 inch receiver hitch. Interior layout from front to back: front bedroom with off-door side king bed slide out, front shirt closet and wardrobe with washer/dryer prep, and dresser (TV optional); side aisle bathroom; kitchen living dining area with off-door side slide out containing a theater seating, residential refrigerator, microwave and cook top stove; kitchen island with double basin sink; door side slide out with entertainment center, fireplace, and booth and chairs; hide a bed sofa, overhead cabinet and paddle fan in the rear.
Enlarge
This island kitchen fifth wheel with an enormous rear window gives you a great vista of the back of your camper. The outside camp kitchen features a fridge and stove top for those who like to cook in nature. With a theater seat and hide-a-bed sofa you can have guests spend the night and enjoy comfortable seating. The large dinette is perfect for sharing a meal. The corner walk-in pantry stores everything that you would ever need to make that perfect meal.

Specifications

Hitch Weight:
1,831 lb.
UVW
10,519 lb.
CCC
1,712 lb.
Exterior Length:
37' 0"
Exterior Height:
13' 2"
Exterior Width:
96"
Fresh Water:
54.00 gal.
Gray Water:
80.00 gal.
Black Water:
50.00 gal.
Awning Size:
10' & 11'

GVWR (Gross Vehicle Weight Rating)
– is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

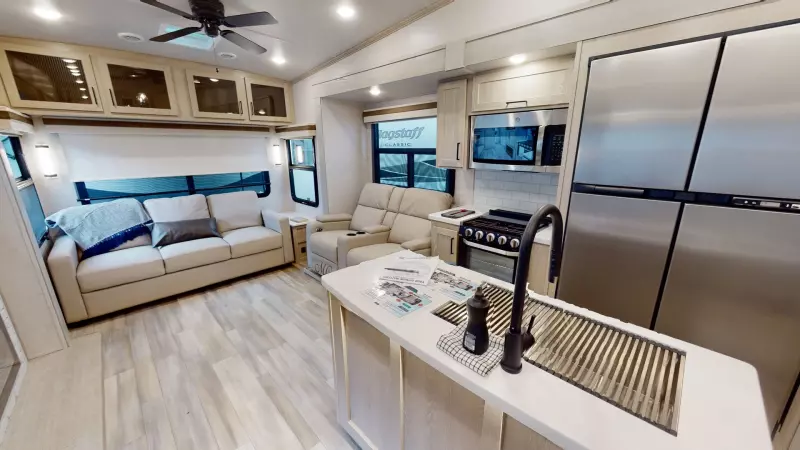

360 Tour



Video Tour



Features & Options

  • Laminated White Fiberglass Sidewalls
  • High Gloss Front Cap
  • Larger 76” Entry Doors
  • Tinted Frameless Windows
  • 360 Siphon Black Water Venting
  • Outside Speakers
  • Teton All In One Wi-Fi Booster/LTE Prep & Antenna
  • Ground Solar Panel Prep
  • Rear Ladder
  • Black Tank Flush
  • Strut Assist Fold-Out Steps
  • Friction Hinge 30” Primary Entrance Door
  • Large Folding Grab Handles
  • Outside Griddle w/ LP Hookup and Work Table
  • Front Outside Storage
  • Outside Antifreeze Inlet for Convenient Winterizing
  • Slam Latches on Most Exterior Storage Doors & Magnetic Storage Door Latches
  • Two Enclosed 30lb LP Gas Bottles w/ Storage Door Access
  • Nautilus Water Management System w/Spray Hose
  • 2” Accessory Hitch Receiver
  • Keyed Alike Locks
  • 200W Roof Solar Panel with 1000W Inverter (1800W Inverter on 2893BS, 2883WS, 8288SB, 8294BS, 2898BS)
  • Shielded Awning Cover
  • Newport Ash Cabinetry
  • Autumn Wood Cabinetry
  • Screwed & Glued, Solid Wood Cabinet Doors & Drawers With Hidden Hinges & Upgraded Hardware with Soft Closing Drawer Slides
  • 35,000 BTU Floor Ducted Furnace
  • 50 Amp Service with Second A/C prep
  • Carbon Monoxide Detector
  • Battery Disconnect Switch
  • 55 Amp Converter With Charger
  • Flush Mount Ceiling LED 12 Volt Interior Lighting w/ Multiple Switches
  • Water-Pur Filtration System
  • Water Heater By-Pass Kit
  • Maxxair® Ventilation Fan and Vent Cover
  • 15,000 BTU Ducted A/C
  • 6 Gallon Quick Recovery Auto Ignition Gas/Electric Water Heater
  • One Control We RV App Control for Lights/Awnings/Slides/Water Heater/Water Pump/WIFI Pwr
  • Fireplace (N/A 2445WS, 2442BS)
  • Deluxe Tri-Fold Sofa
  • Theatre Seating w/ Adjustable Lumbar Support & USB Ports (8288SB, 8291CL, 8294BS, 2893BS, 2898BS, 2883WS)
  • Ceiling fan
  • 76" Slide Out Height in Living/Kitchen
  • LED TV With Upgraded Speaker System and Subwoofer
  • Multi Zone Soundbar/Stereo Combo w/AM/FM & Bluetooth
  • Marine Grade Carpet In Slides
  • Day Night Roller Shades
  • Optional TV
  • Washer/Dryer Prep (N/A 2442BS, 2445WS, 2883WS, 2891BH, 2892WS, 2898BS)
  • Carpetless Main Bedroom Floor
  • Under Bed Storage
  • Designer Headboard & Bedding
  • Individual Reading Lights
  • Two Bed Side Power Outlets
  • 72 x 80 King Beds (8288SB)
  • 5/8” Plywood Tongue and Groove Subfloor
  • Aluminum Bed and Dinette Bases
  • Enclosed Underbelly
  • Thermostatically Controlled Heated Holding Tanks
  • Radiant Foil Insulated Underbelly, Front Cap & Slide-out Floors
  • 6 Sided Fully Aluminum Framed (Floor, Walls, & Roof)
  • Insulation Factors R-7 Side Wall, R-12 Floor and R-14 Roof
  • Radius Roof With Vaulted Interior Ceilings
  • One Piece Seamless Roofing Membrane
  • Surface Coated Steel I-Beam Frame
  • Interior & Exterior Azdel Sidewall Construction
  • LCI *CURT TURNING POINT Pin Box Hitch
  • Torsion Axle, Rubber-Ryde Suspension w/ Easy Lube Axles & Never Adjust Brakes
  • Rear Observation Camera Prep w/ Molded Mounting Plate
  • Undermounted Spare Tire
  • Polished Alloy Wheels
  • Tire Pressure Monitoring System with Monitor
  • Three Burner High Output Gas Range with Flush Mount Glass Top Cover
  • Trash Can in Kitchen (Select floor plans)
  • Microwave Oven
  • Recessed Cooktop and 21" Oven w/ Flush Mount Cover
  • Hidden Hinge Cabinet Doors
  • Residential Full Extension Metal Drawer Guides with Soft Close
  • Solid Surface Kitchen Countertops
  • Designer Kitchen Backsplash
  • Flush Mount Stainless Steel Sinks With “High Rise” Pull-Down Faucet
  • 20 Cubic Foot Residential Refrigerator w/ Inverter (8288SB, 8294BS, 2883WS, 2893BS, 2898BS)
  • Bathroom Skylight
  • Porcelain Residential Style Bowl Foot Flush Toilet
  • Maxxair® Ventilation Fan and Vent Cover
  • ShowerMiser Water Saver System
  • Upgraded Residential Faucet
  • Second Roof 15,000 BTU A/C with Chill Chaser Heat Strip & Digital Dual Control Thermostat
  • Bedroom TV
  • 18 Cubic Foot Gas/Electric Refrigerator (8288SB, 2883WS, 2893BS, 2898BS, 8294BS)
  • Extra Maxxair® Ventilation and Vent Cover
  • Flip Down Rear Storage Deck (250 lbs. Max Load)
  • Slide Toppers
  • ThermoPane Window Upgrade
  • Washer & Dryer (N/A 2891BH, 2892WS, 2445WS, 2442BS, 2898BS, 2883WS)
  • Shielded Power Awning w/ Adjustable Rain Dump and LED Light Strip
  • LED Bedroom TV
  • Shielded Power Awning w/ Adjustable Rain Dump and LED Light Strip
