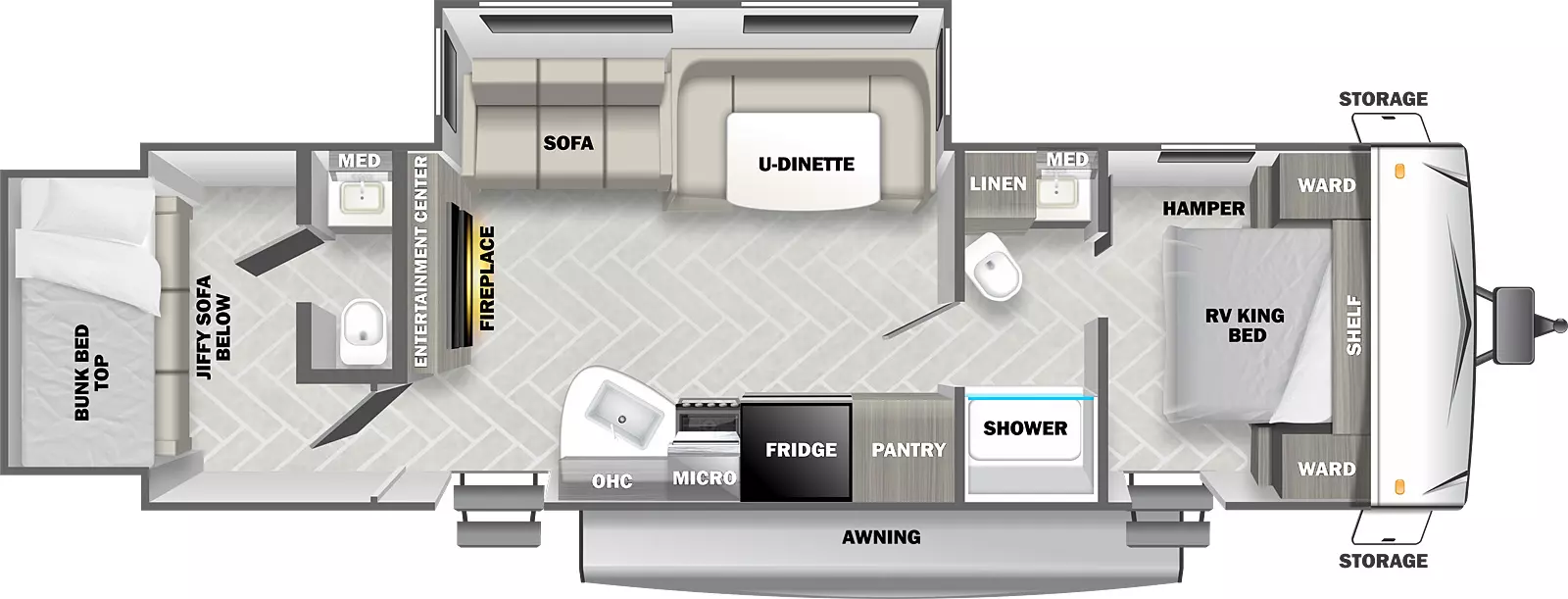

T2800 Floorplan

EVO Travel Trailers

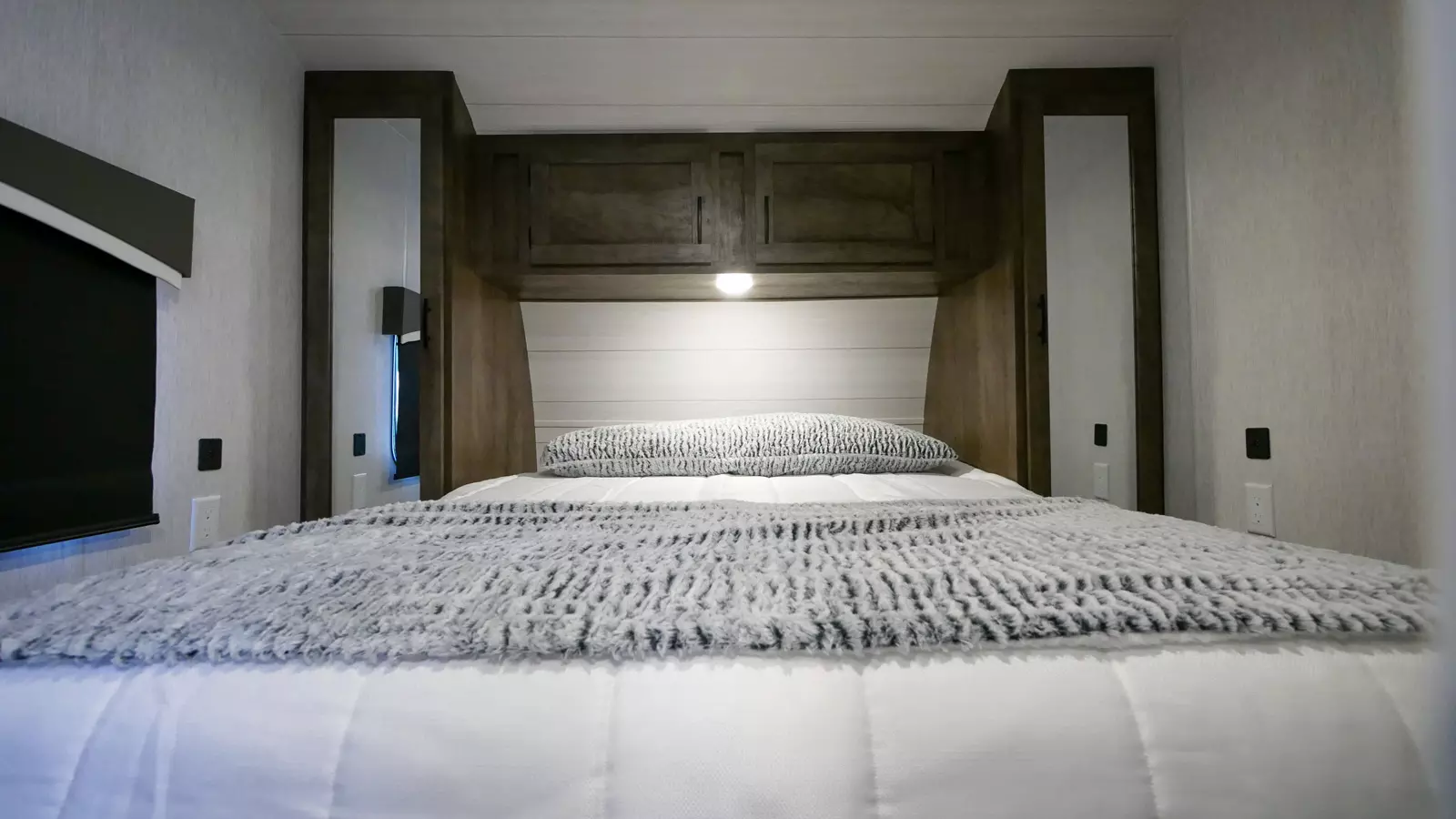

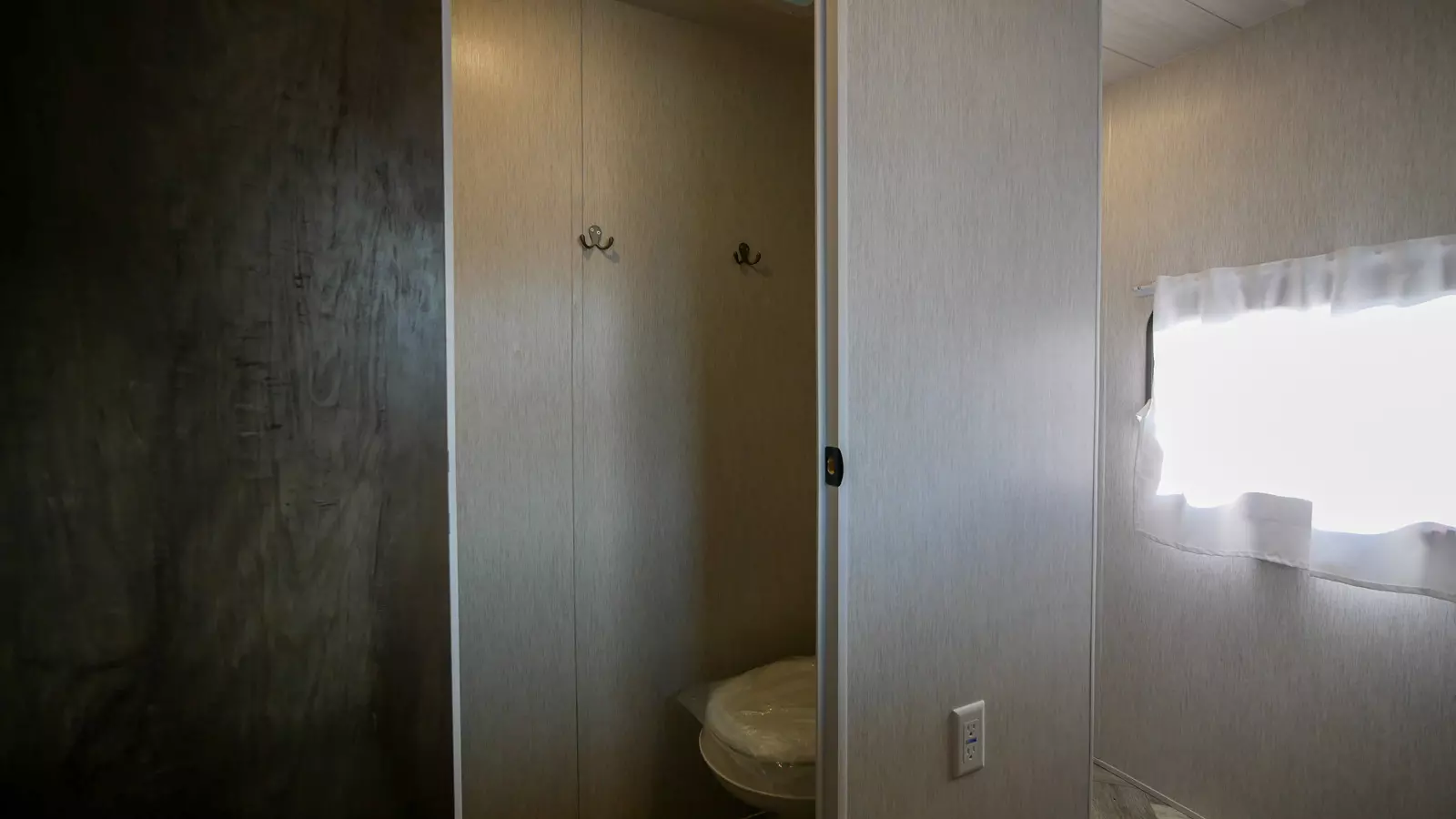

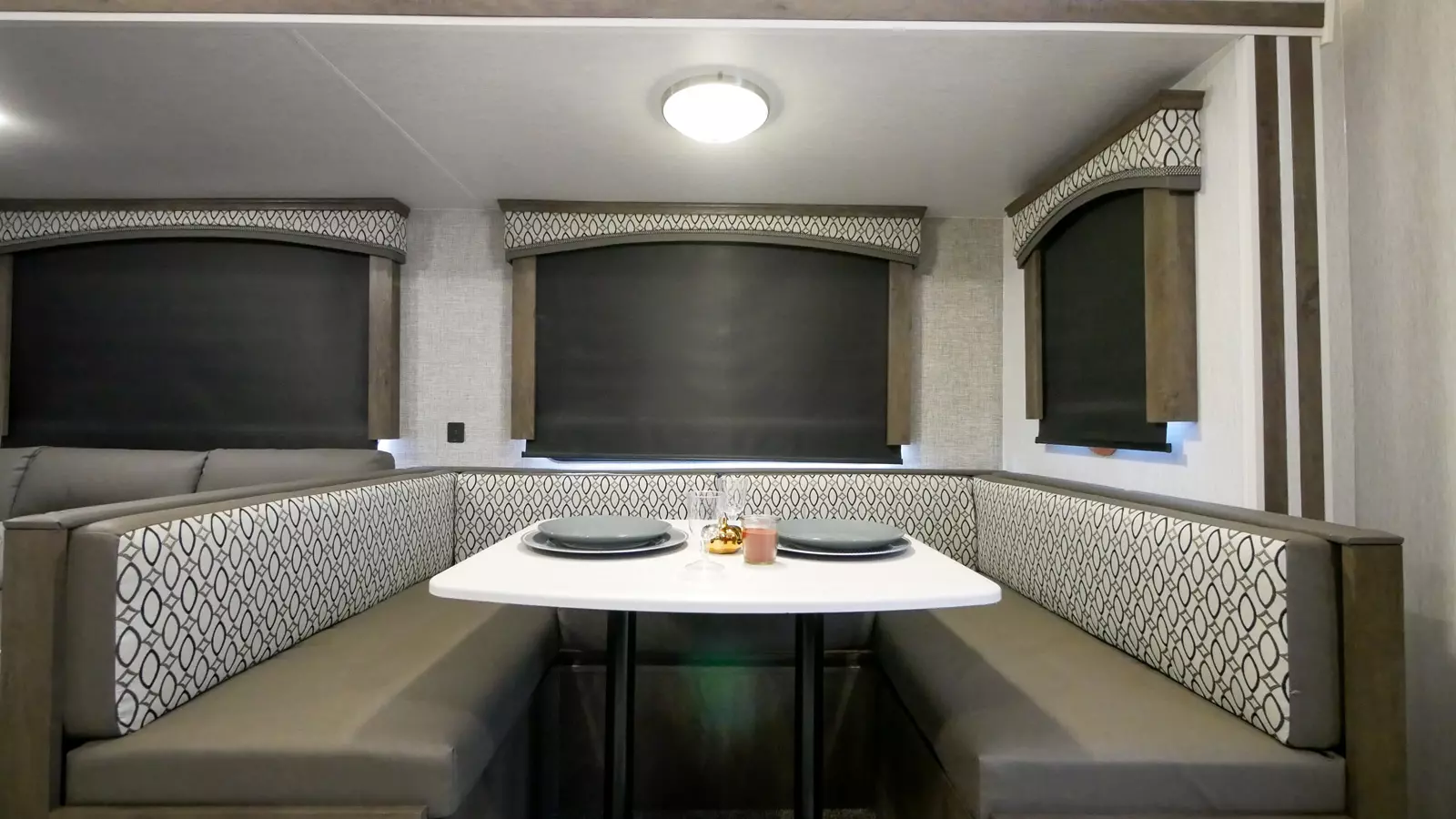

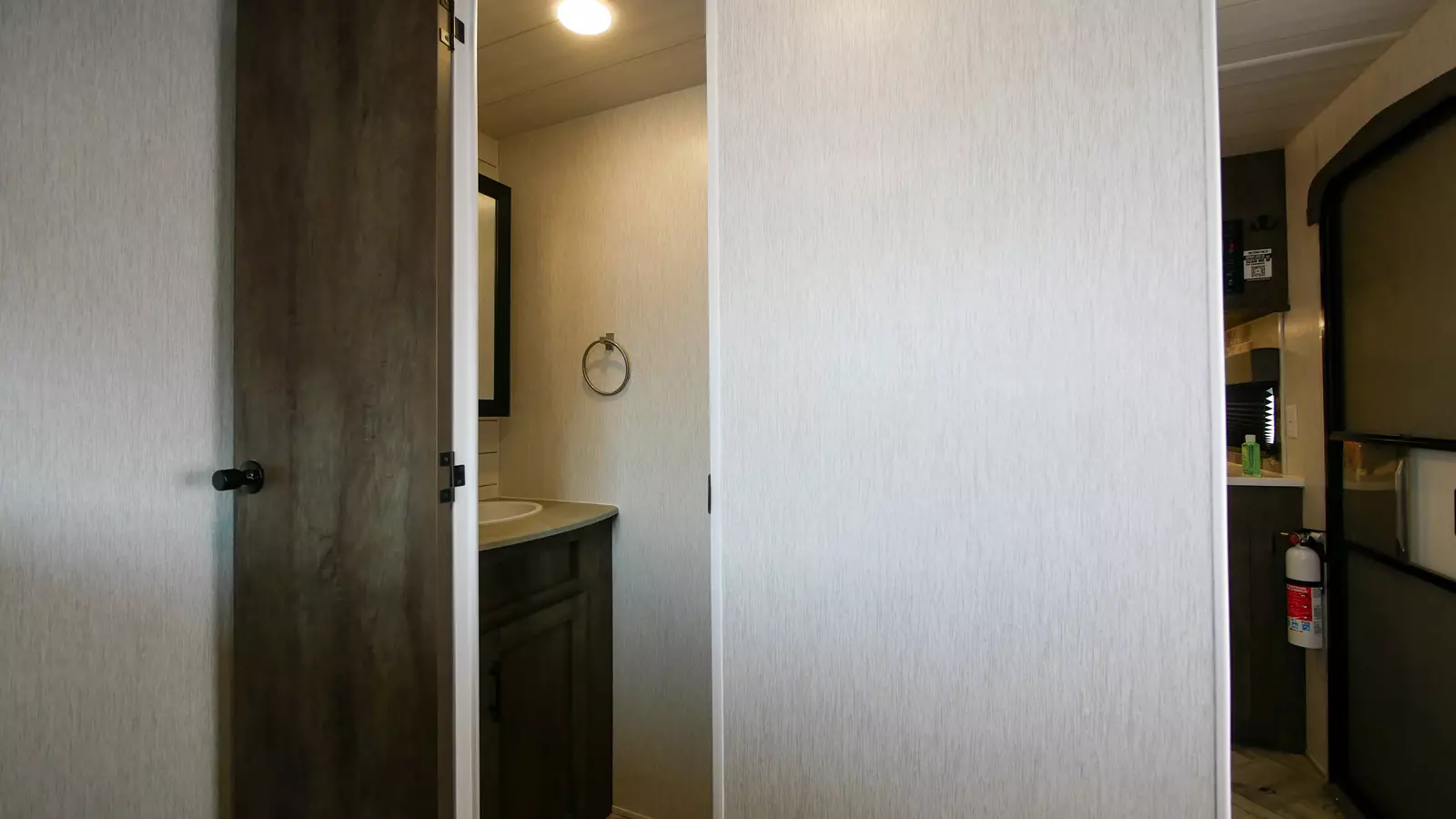

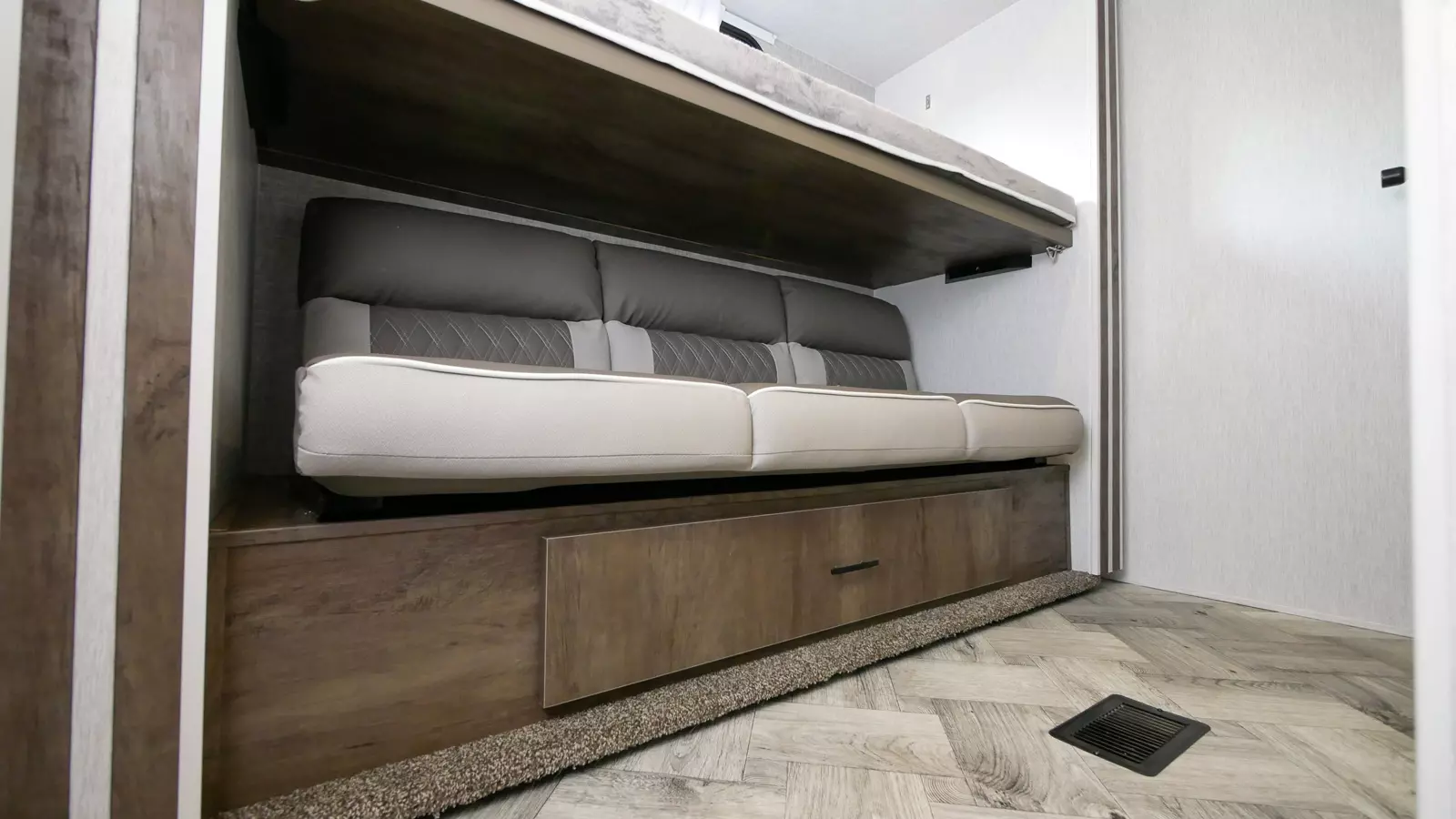

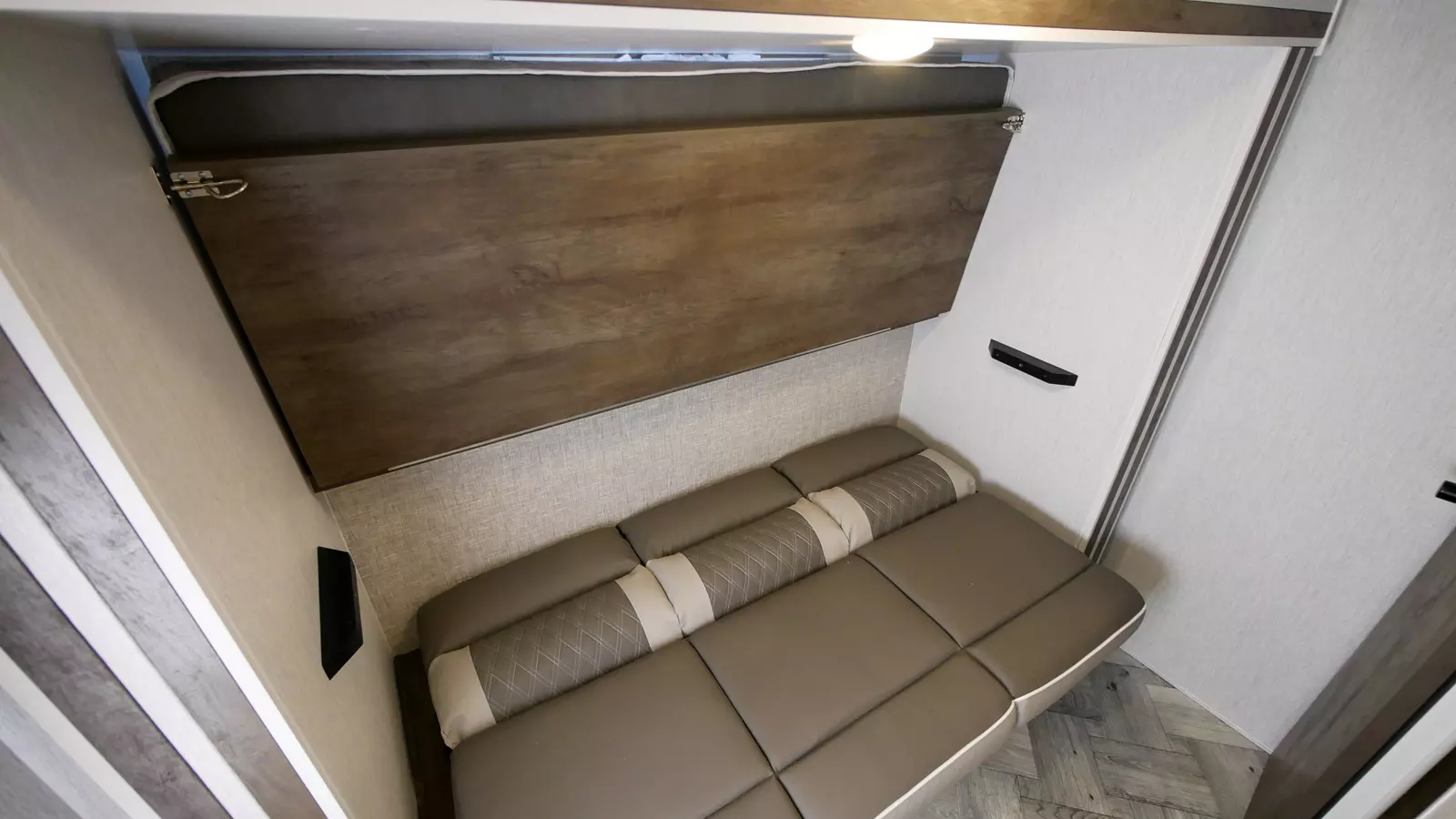

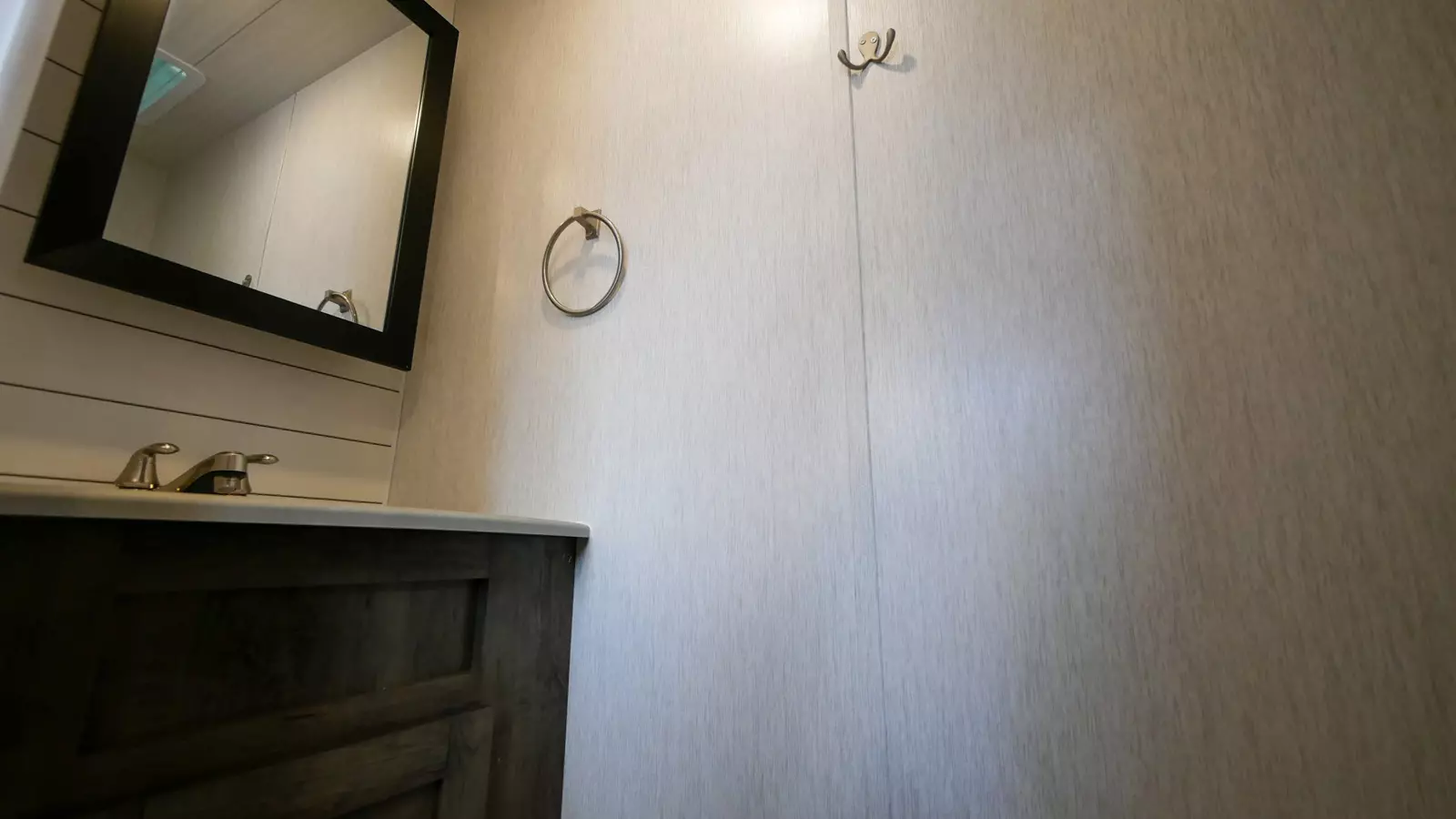

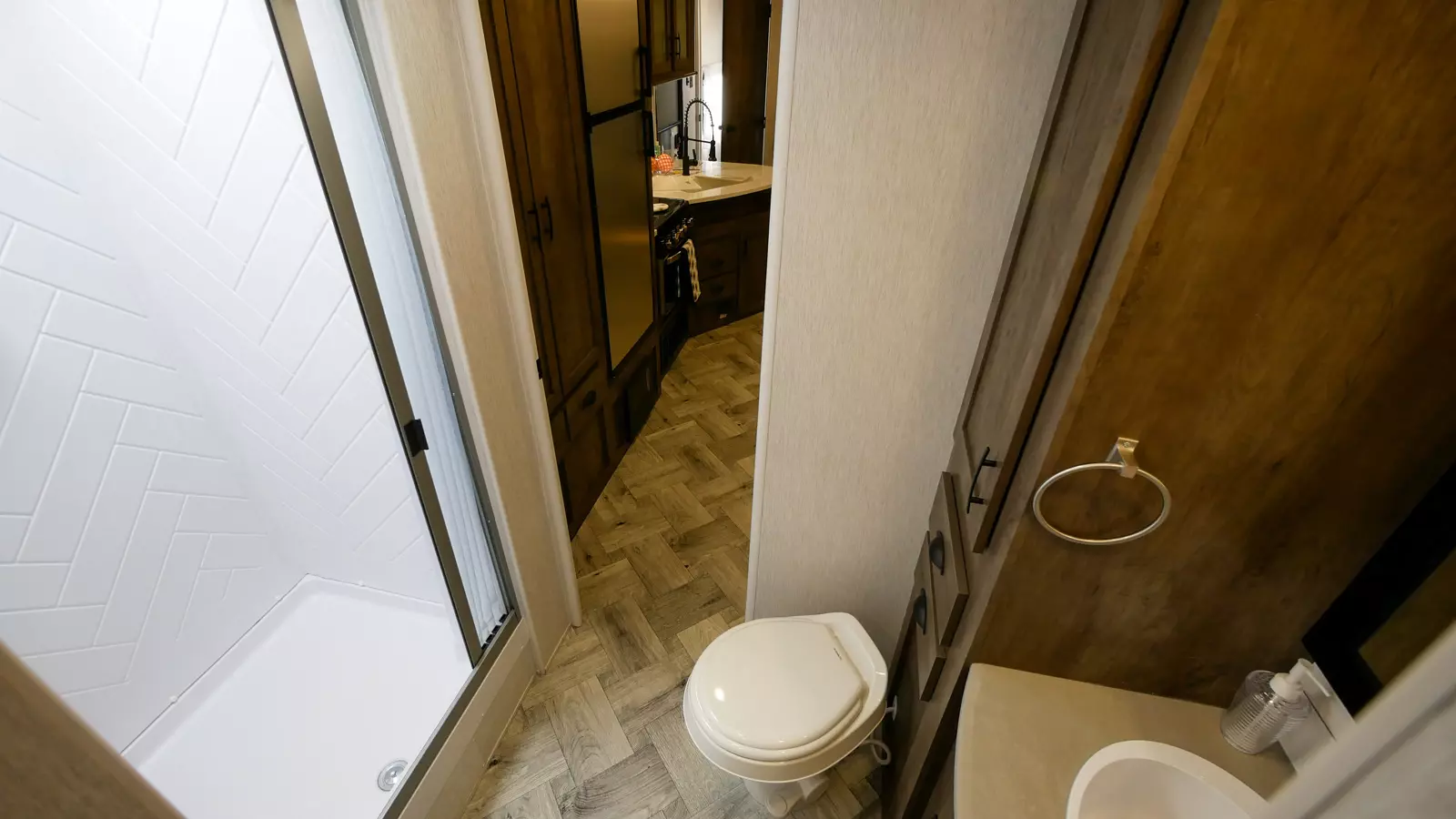

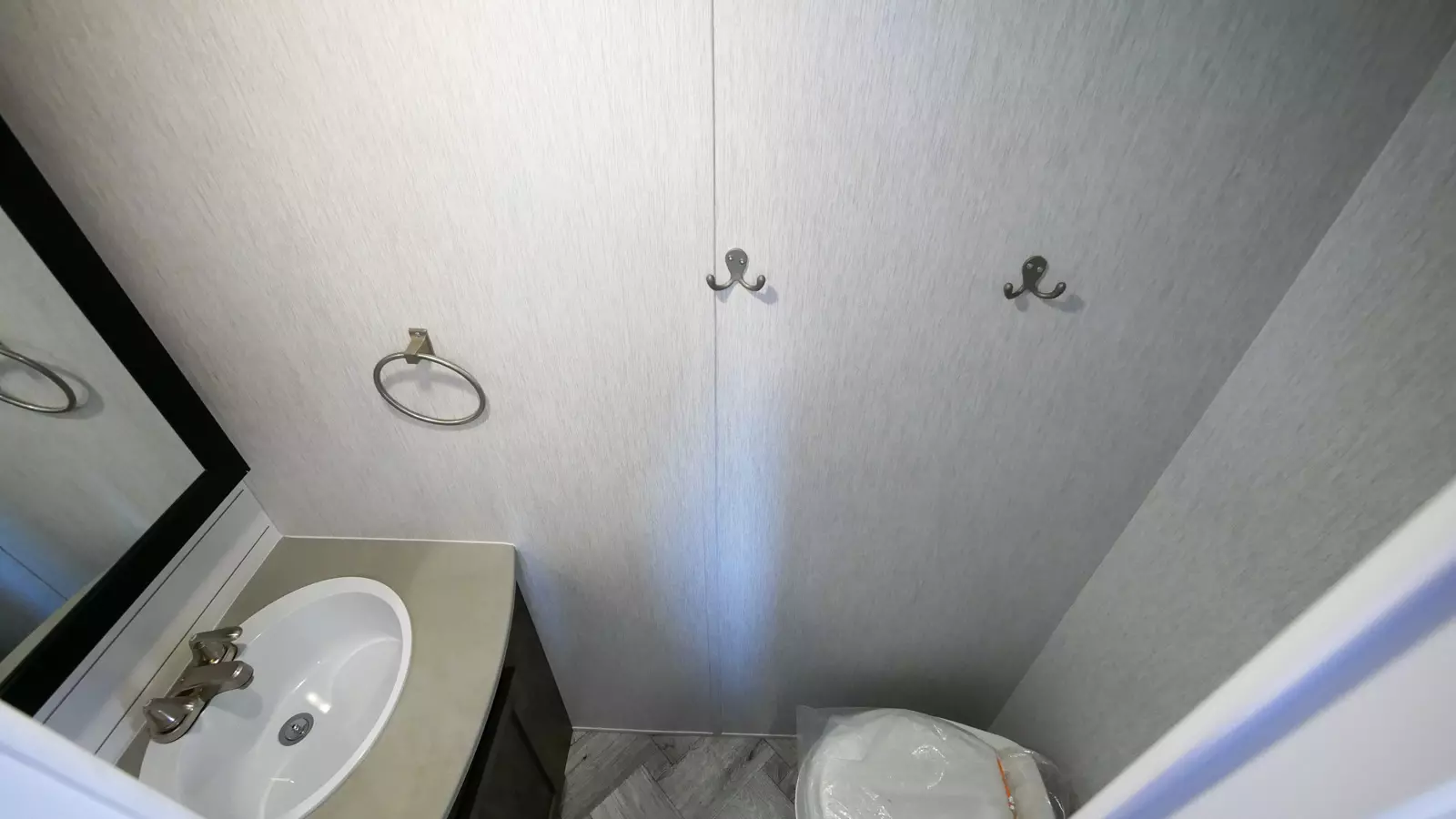

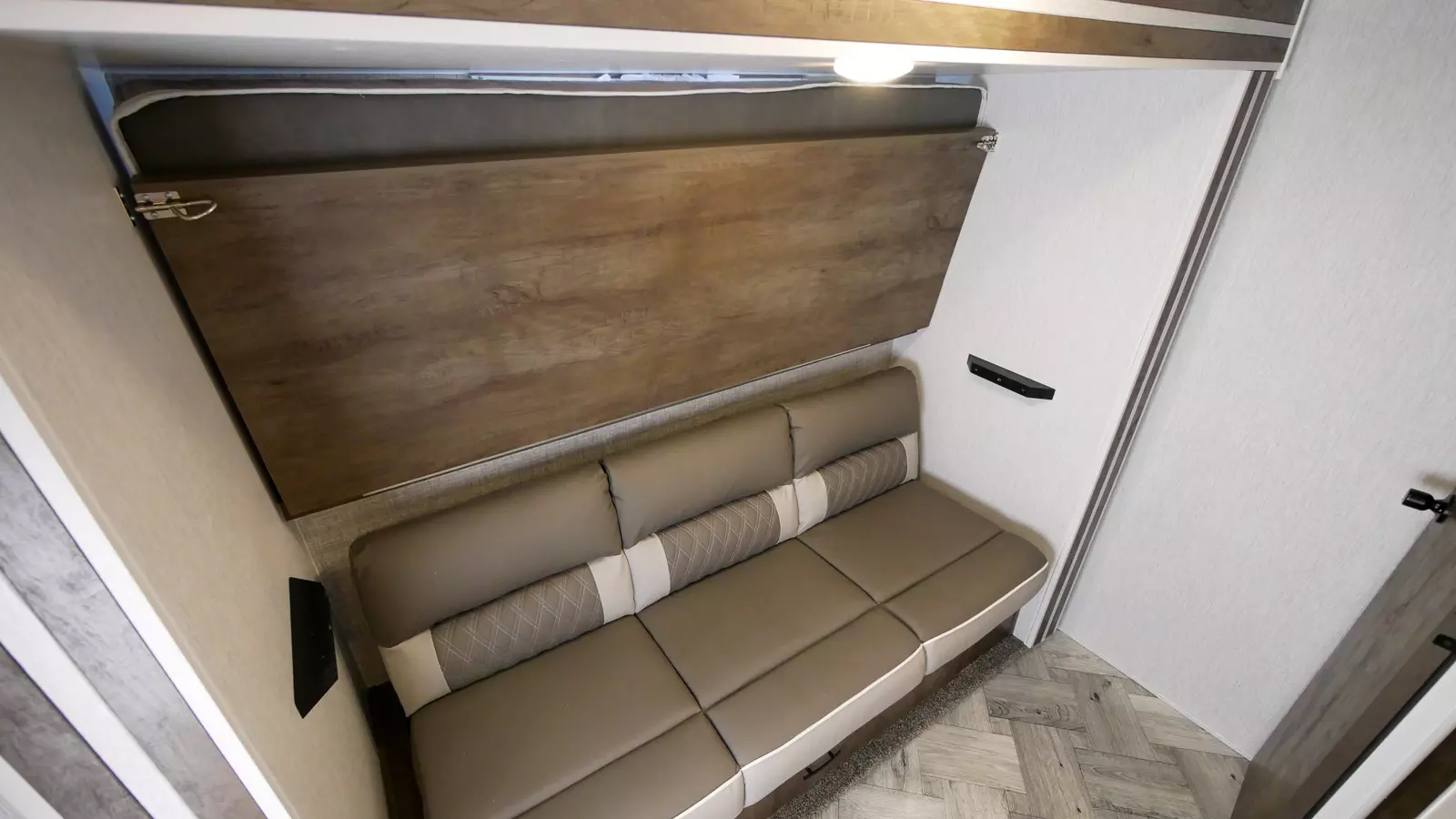

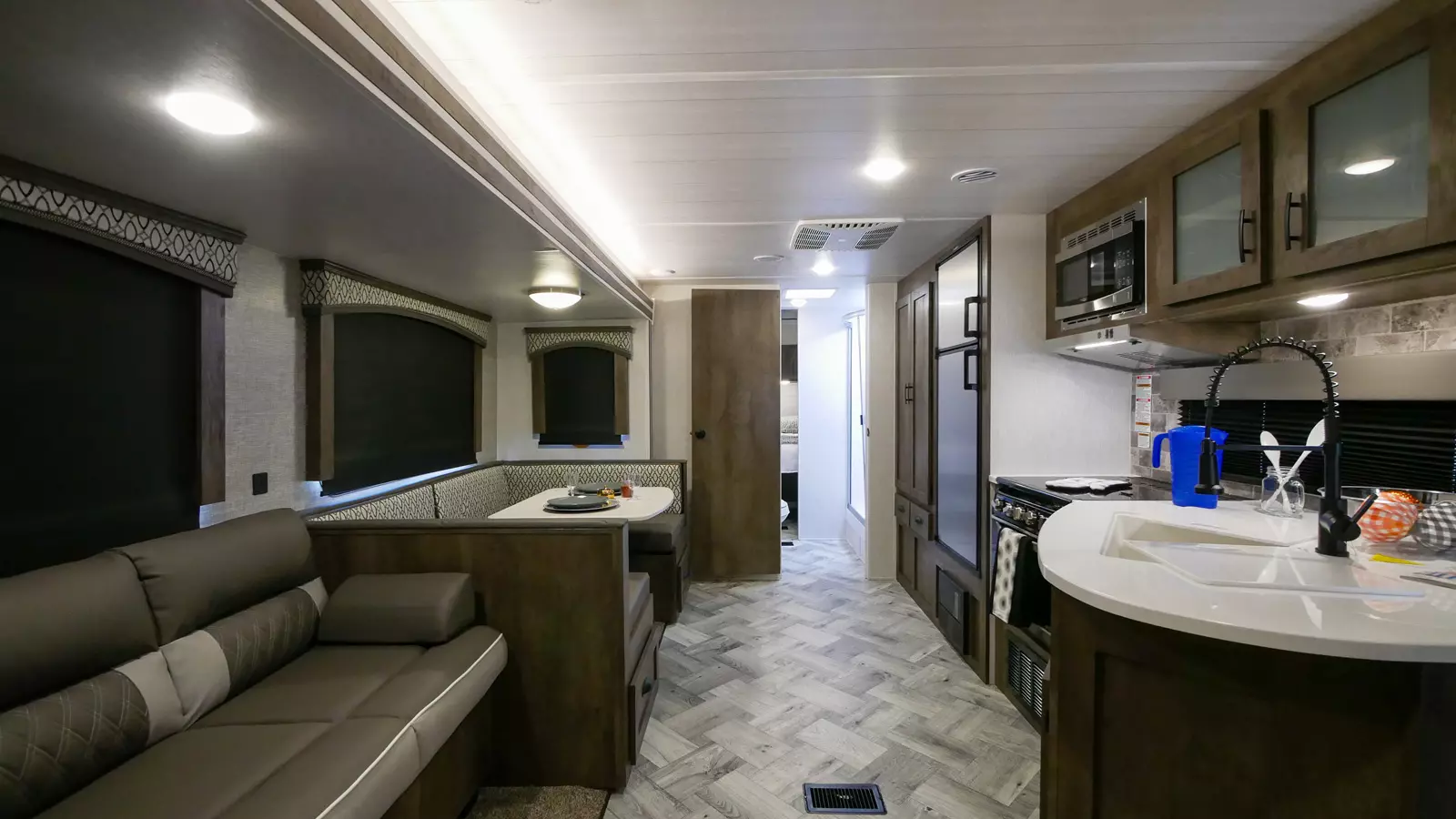

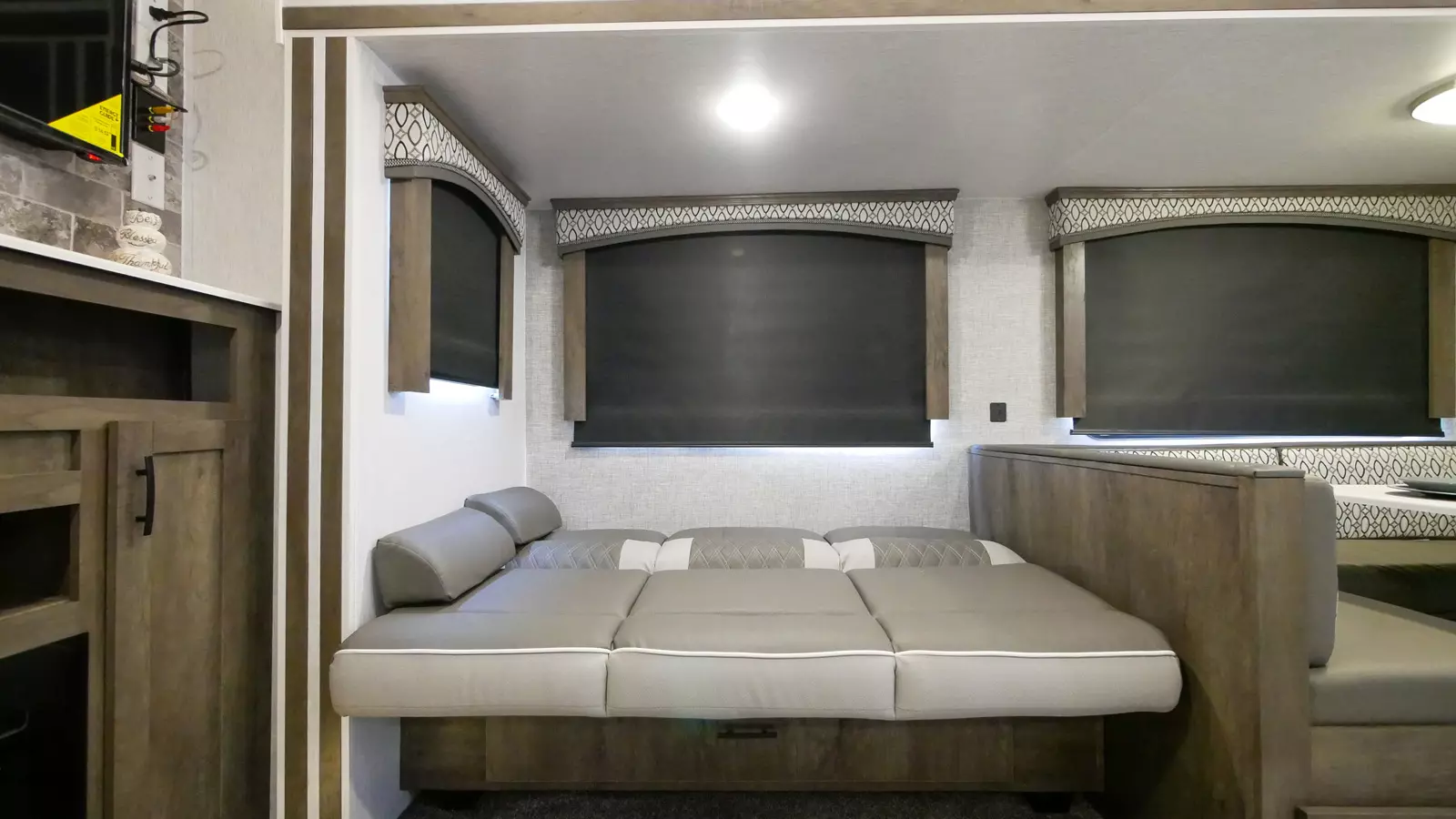

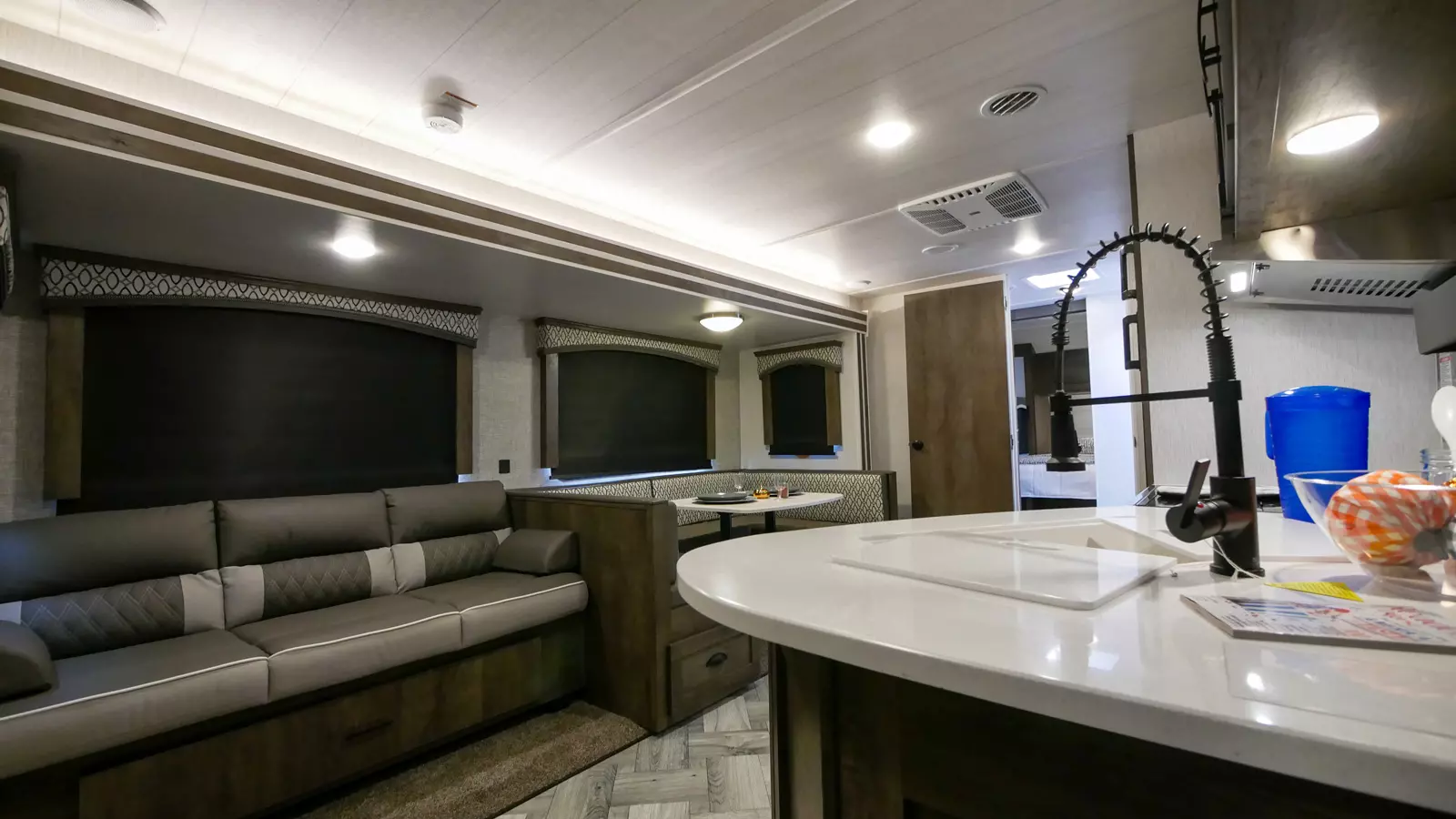

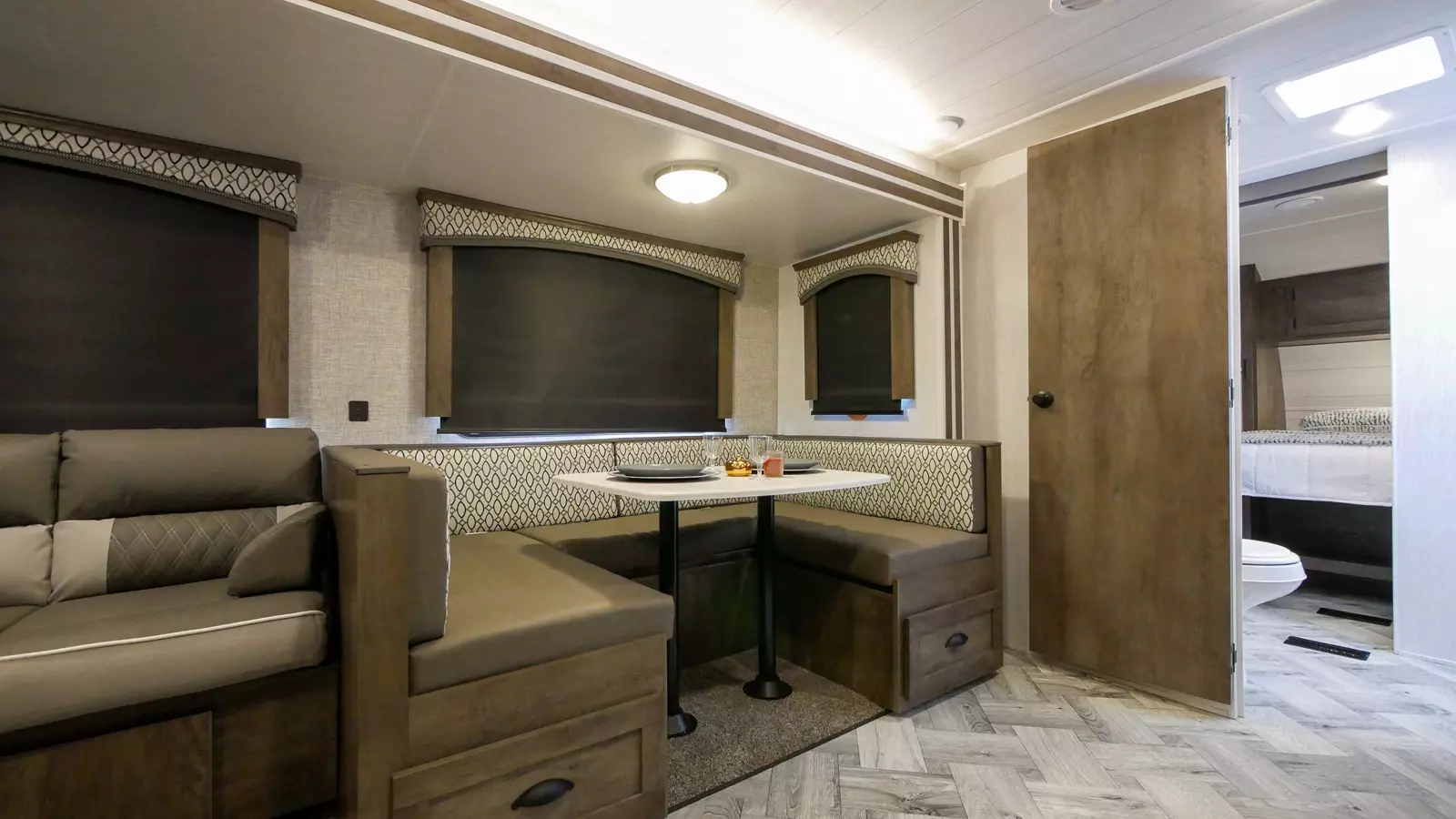

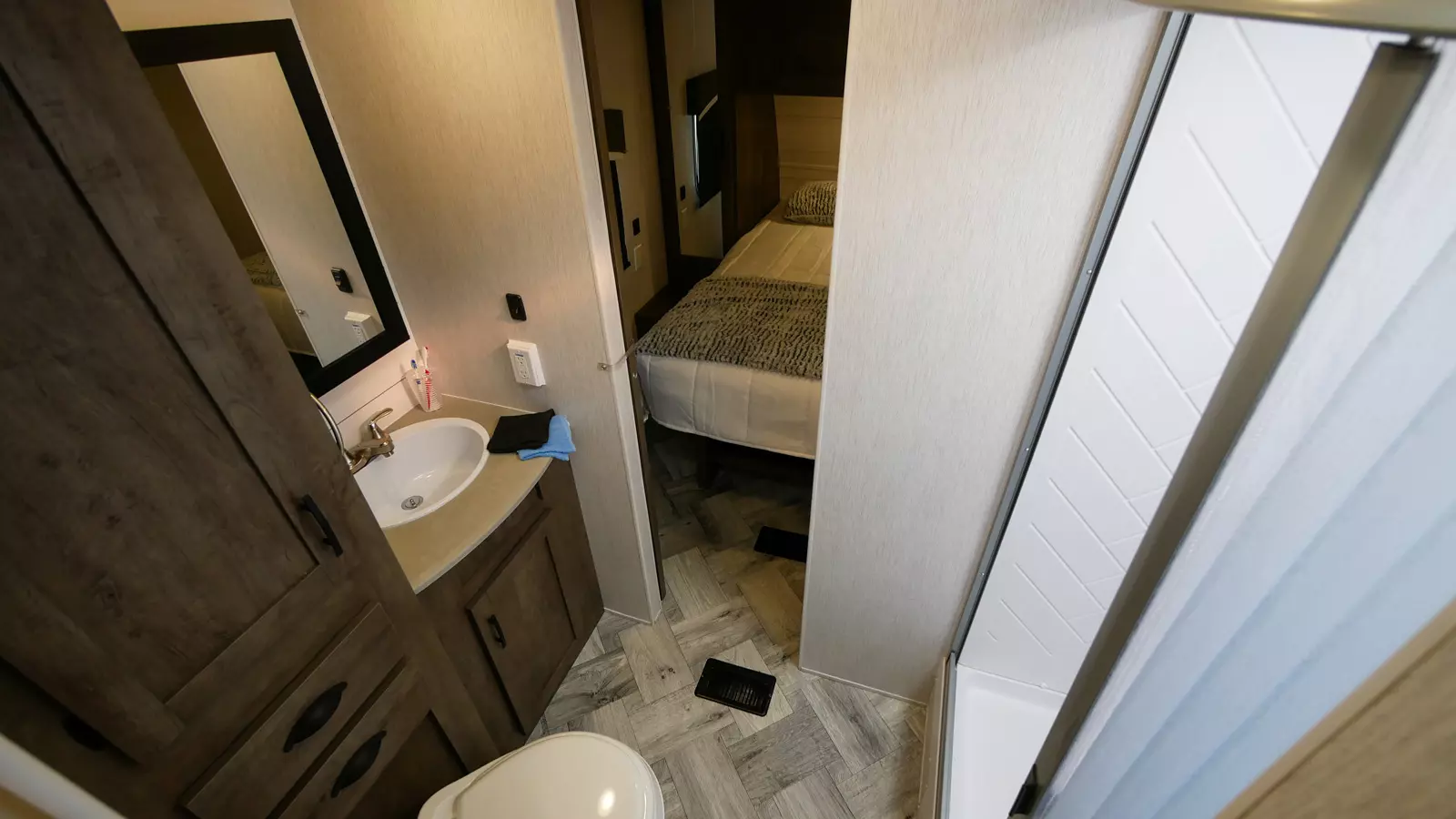

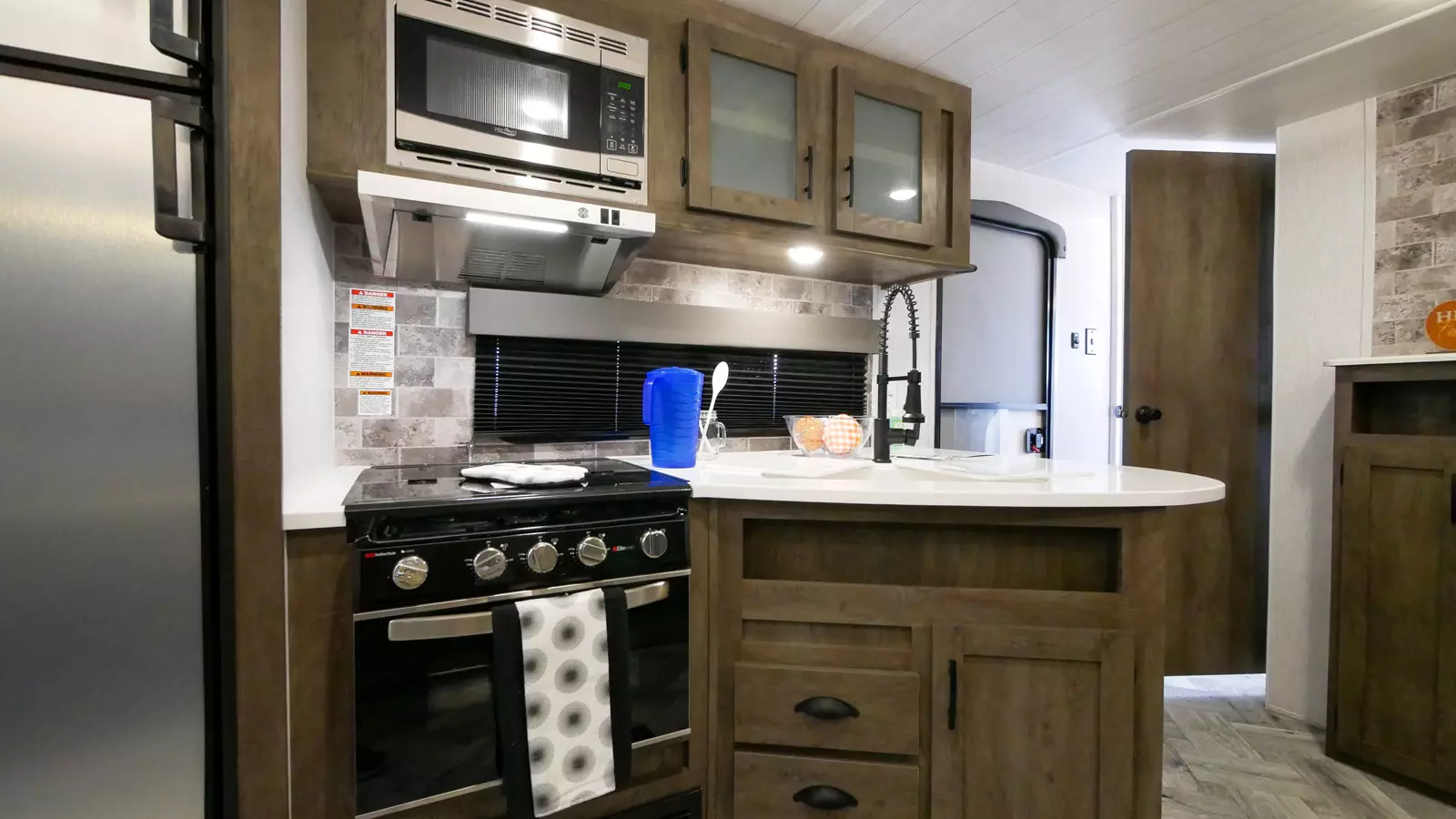

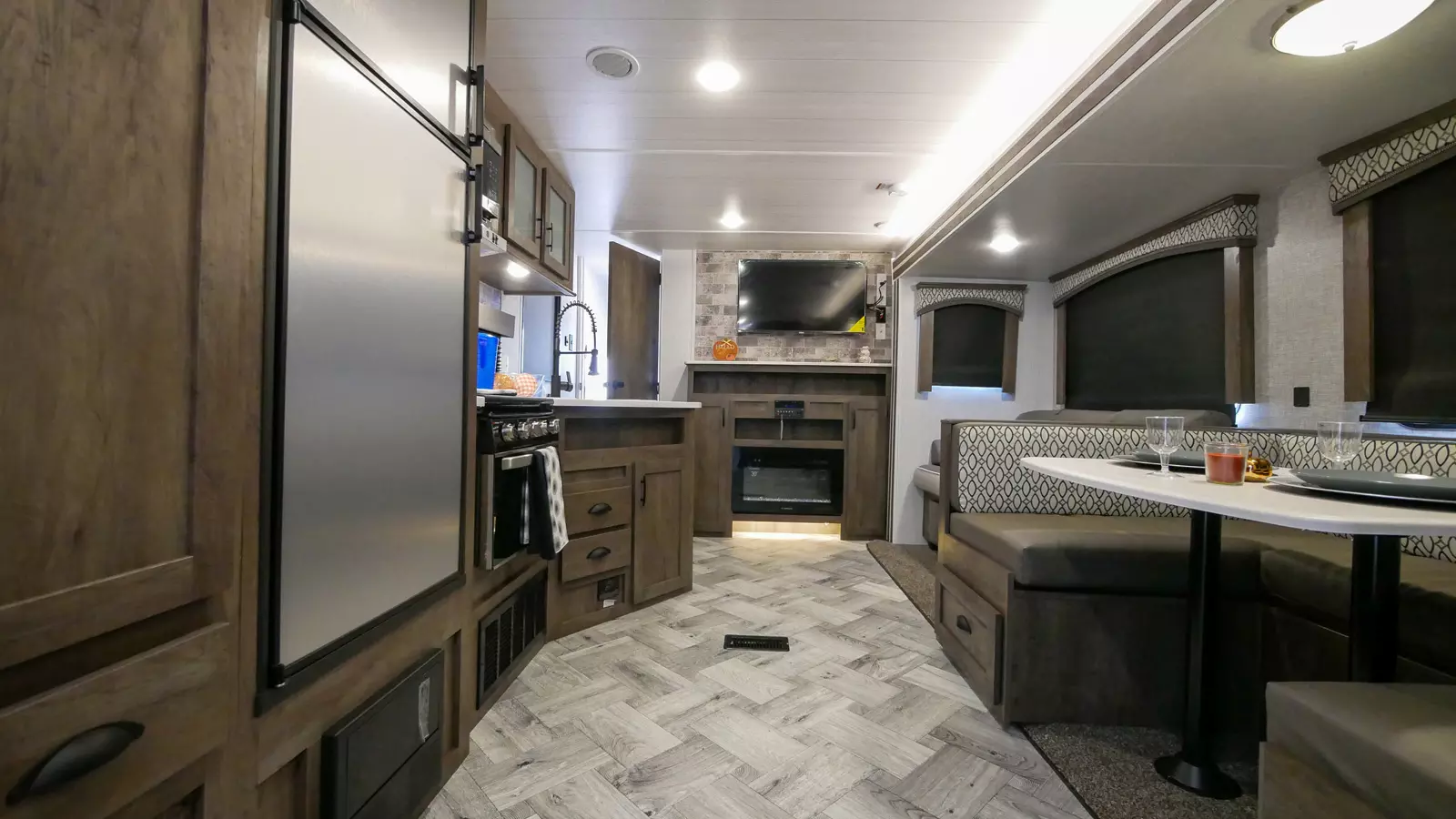

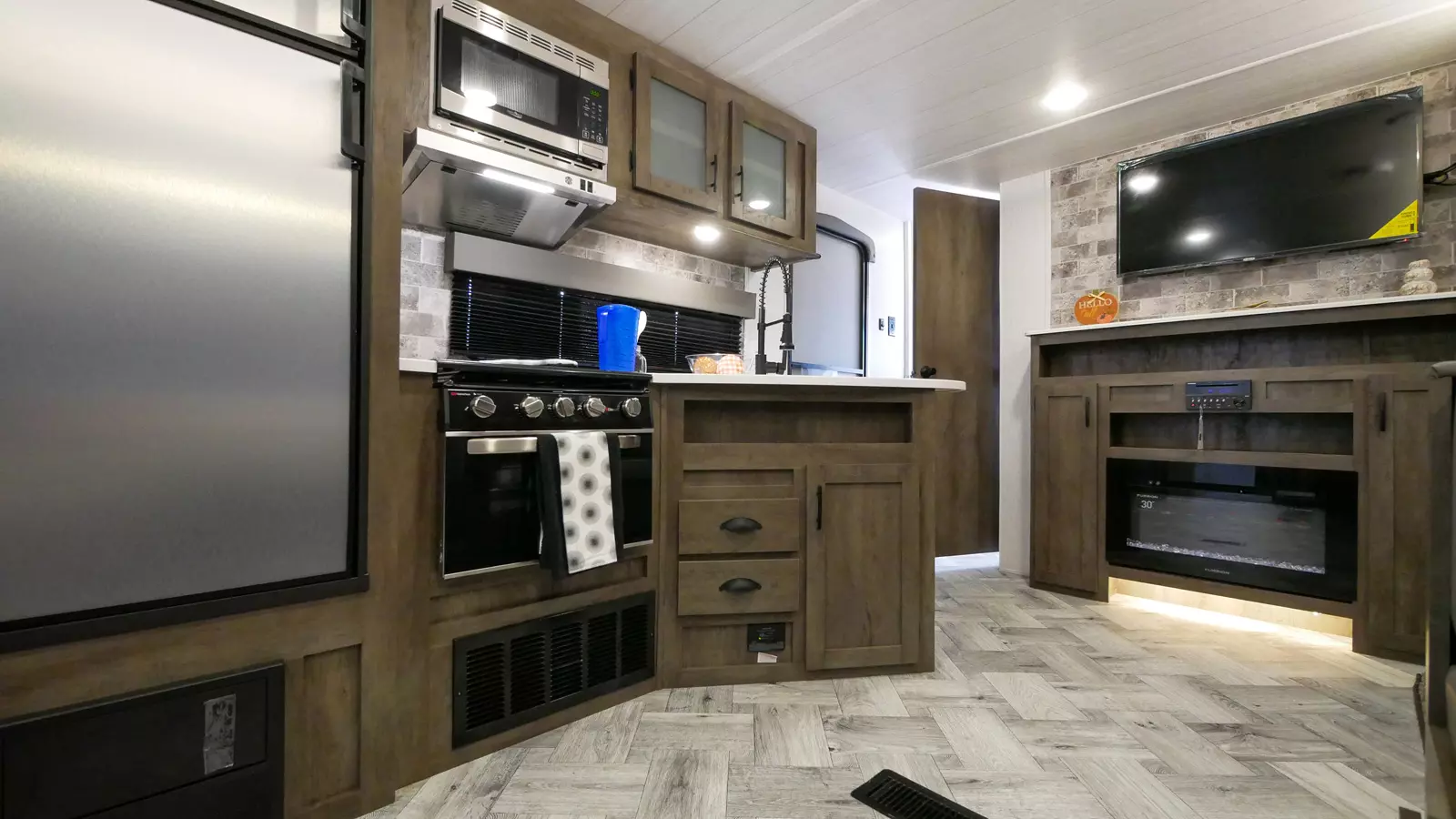

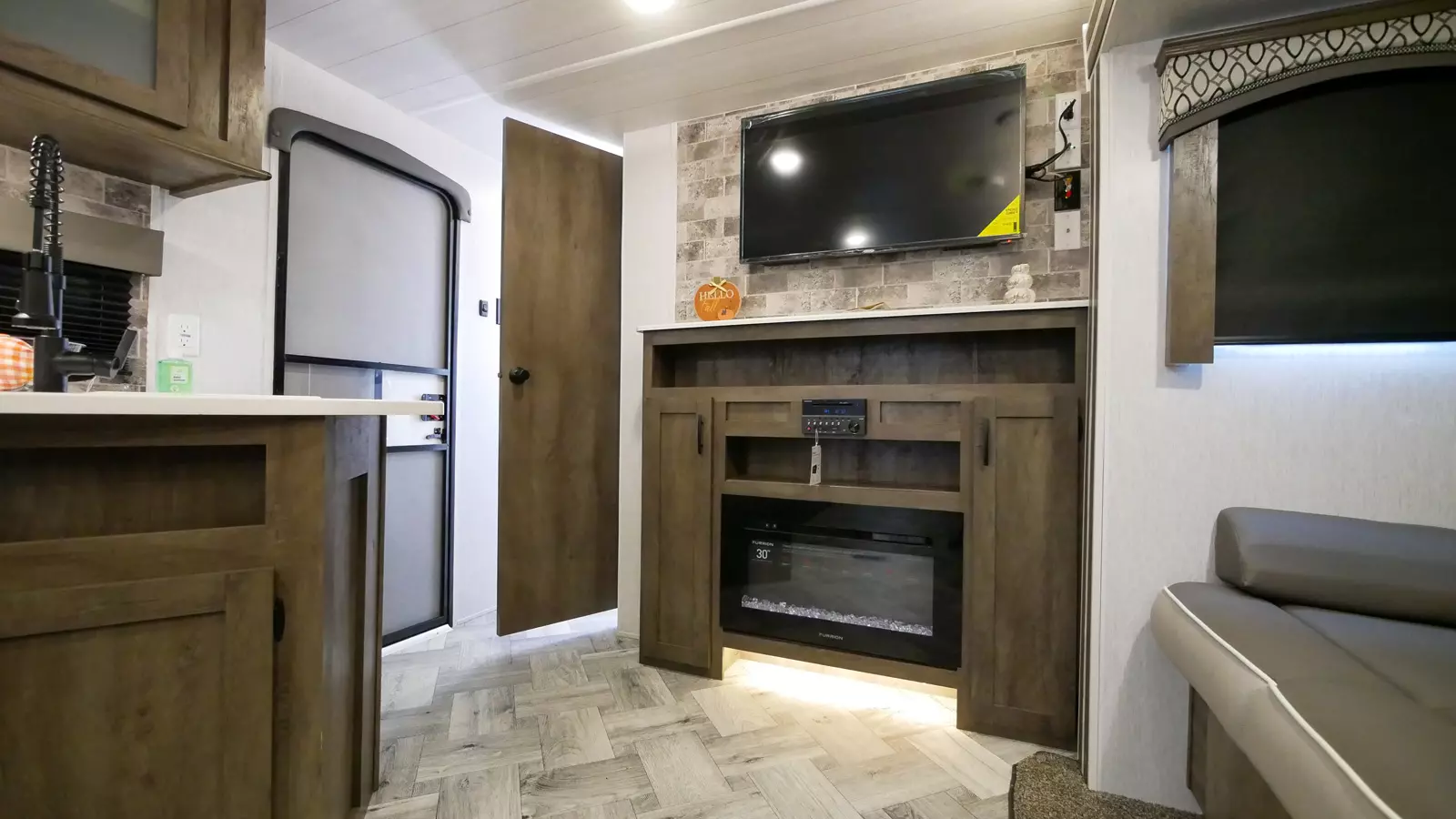

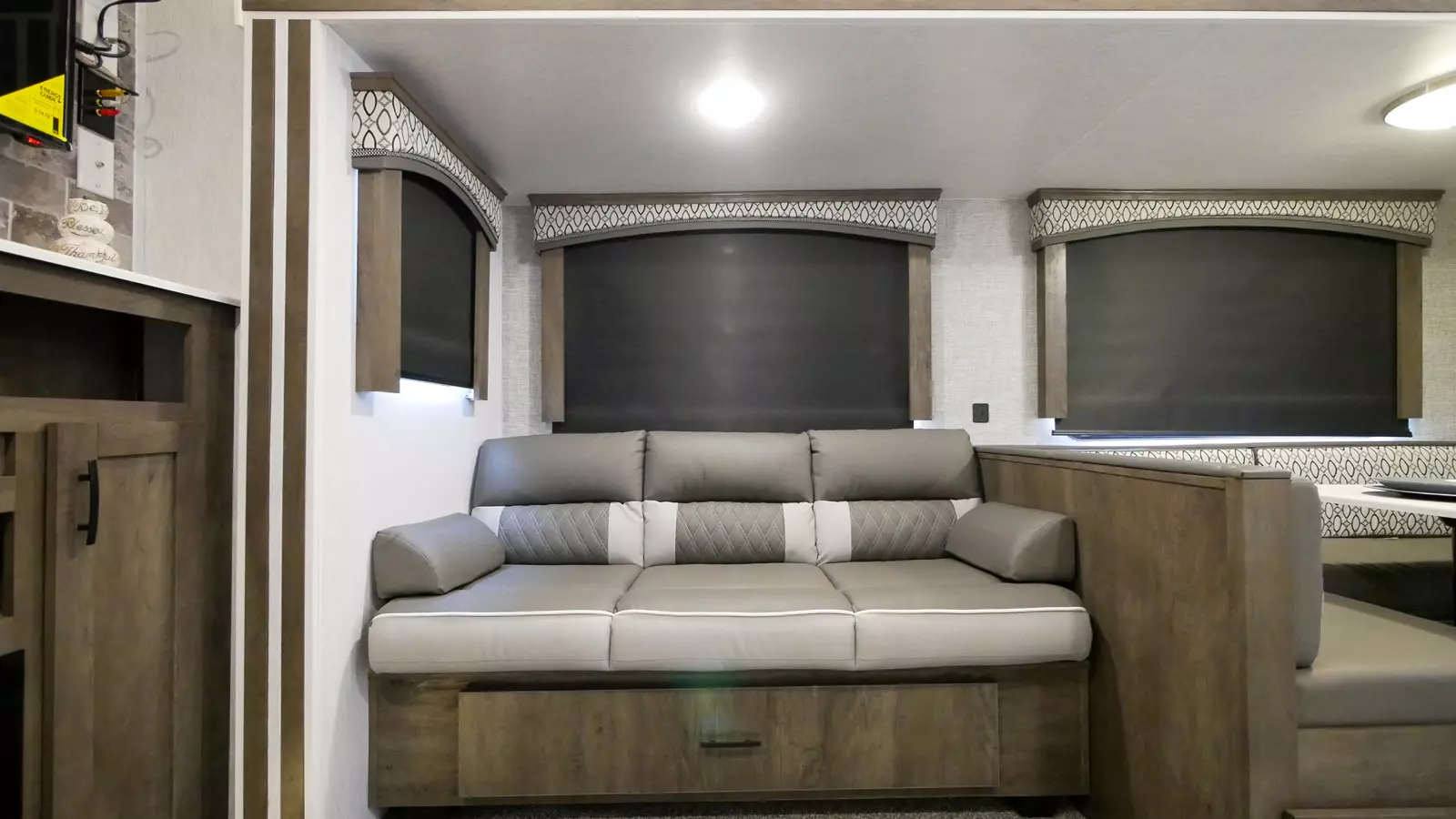

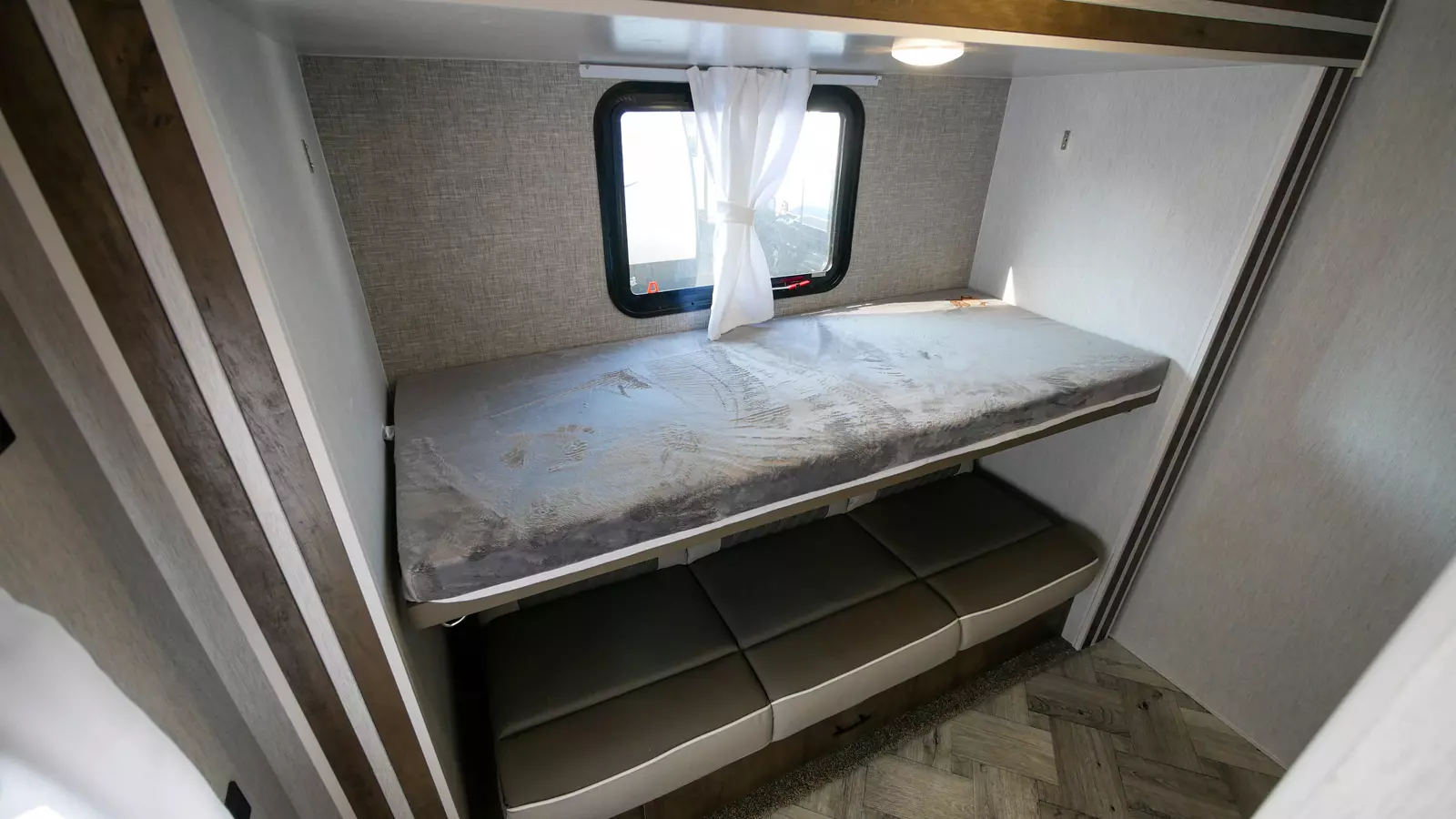

The EVO T2800 has two entry doors and pass-through storage located on the outside. Inside, there is a front bedroom containing an RV queen bed with wardrobes and room to stand on either side. There is a shelf above the head of the bed. Standing in the bedroom doorway and looking toward the rear of the unit, you have a bathroom containing a shower, commode, sink, and linen cabinet. You walk through the bathroom to enter the living area. Along the left wall is the kitchen area with pantry, refrigerator, stovetop with oven, and sink. A microwave oven and cabinets are located overhead. Directly across from the kitchen, along the right side wall, is a large slide room containing a U-shaped dinettte and sofa. A fireplace with entertainment center is located on the far end of the living area and is situated perpendicular to the length of the unit, facing the front. The rear of the unit holds a second bedroom with a bunk bed above and jiffy sofa below, plus a half bath containing a commode and sink.


Hitch Weight:
1,021 lb.
9,999 lb.
8,023 lb.
1,976 lb.
Exterior Length:
35' 0"
Exterior Height:
11' 3"
Exterior Width:
Fresh Water:
50.00 gal.
Gray Water:
120.00 gal.
Black Water:
40.00 gal.
Awning Size:
GVWR (Gross Vehicle Weight Rating)
– is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.


Features & Options

  • 2000-lb. Tongue Jack
  • EZ Lube Axles
  • 8” Rust Resistant Powder Coated I-Beam Chassis
  • 4-wheel Electric Self Adjusting Brakes
  • 15” Radial Trailer Special Tires
  • 4” Steel Rear Bumper/Sewer Hose Storage w/end caps
  • Frame Mounted Dual Battery Rack
  • Schwintec Electric Slide-out Operating System, Flush Floor per Floor Plan
  • Full through Chassis Electric Slide Room Support System (Super Slides)
  • One-piece Promax OSB waterproof slide-out floor decking
  • Slide-out exterior end walls are Highgloss gel coat fiberglass
  • R-7 Johns Mansville Fiberglass Insulation Roof/Floor/Walls/End Caps
  • Roof with One-piece PVC Roofing Membrane
  • Large Water and Up to 115 gal. Holding Tank Capacity (See Specs for Detail)
  • Enclosed Underbelly w/Heat Duct
  • Front Pass-through Storage with LED Light
  • Crowned Roof for Water Drainage
  • Truss Rafters on Slide Models
  • Black Frame Safety Glass Windows
  • 30-amp. 110v Power Cord
  • City Water Connection
  • Cable TV Hook-up
  • Exterior LED Utility Porch Light
  • 110V Exterior Plug
  • Radius Entry Door with Window
  • Amber Step Light
  • Radius Compartment Storage Doors
  • Entry Assist Handle Main Entry
  • Dometic Awning w/Retractor Assist Springs
  • Aerodynamic Aluminum Front Cap
  • Omni Digital TV Antenna w/Booster
  • LPG Tank Cover with Easy Access
  • Exterior Speakers
  • Extended Rain Gutter Spouts
  • 6-gal. Suburban Gas/Electric DSI Water Heater w/16-gal/hr. recovery
  • Water Heater By-Pass for Cold Storage
  • Hot & Cold Low Drain Points
  • Front Lower Gravel Guard
  • Compartment Door Holding Latches
  • Boutique Craftsmen Cabinets w/Hidden Latches
  • Stained Wood Cabinet Doors
  • Brushed Nickle Cabinet Hardware
  • Wood Drawer Fronts
  • Deluxe Ball Bearing Drawer Guides
  • Convenient Storage Areas
  • Galley Lighting
  • System Capacity Monitor Panel
  • Systems Control Panel
  • Two 12v/USB Charging Stations at Bunk Area
  • Extra Large Country Kitchen Sink w/Recessed Covers
  • Chefs Hi-Rise Sink Faucet
  • U-Shaped Dinette Per. FP
  • Dometic Foot Flush Toilet
  • Full Wall Tub/Shower Surround
  • Glass Enclosure (Showers)
  • Power Vent in Bathroom
  • Medicine Cabinet with Mirror
  • Full Length Bedroom Wardrobes
  • Denver Mattress
  • Lift Up Bed for Storage Per. FP
  • 110V Outlets on both sides of main bed
  • 20K or 30K BTU Suburban Furnace per FP
  • 48” Storage Drawer under Slide Sofa
  • Shoe Storage under Entertainment Center
  • Escape Windows in Sleeping Areas
  • Knife Holder Behind Range
  • Solid Doors at Bedroom Entry (Per FP)
  • Laundry Chutes (Per FP)
  • Suburban 3-Burner Range with 17” oven w/Stainless Steel Appliance Upgrade
  • Range Hood with LED Light and Exhaust Fan w/Stainless Steel Appliance Upgrade
  • Dometic 6-cu.ft. Double Door Stainless Steel Appearance
  • Microwave w/Carousel Hi-Point Stainless Steel Appearance
  • 6-gal. Suburban Dual Power Gas/Electric DSI Water
  • Heater w/up to 16-gal/hr. recovery
  • Dometic 13,500 BTU Air Conditioning
  • Floor Ducted Heat per Floor Plan
  • Suburban 20K or 30K BTU Furnace per Floor Plan
  • Flush Mounted Speakers in Ceiling
  • AM/FM/DVD/ Bluetooth Stereo System
  • Interior/Exterior Speakers
  • Solid Surface Counter Top w/under Mount Country Sink
  • Power Stabilizer Jacks
  • Power Tongue Jack w/Light
  • Power Awning with Shock Absorbers
  • LED Light Strip Porch Light
  • LED Power Saving Interior Lighting
  • Blue Tooth Stereo with DVD Player AM/FM
  • Night Shades in Living Area
  • Solar Prep for Portable Unit
  • Back-up Camera Prep.
  • Denver Pillow Top Memory Foam Mattress
  • Push Button Remote (Operates Slide, Awning, Jacks, Porch Light)
  • Ducted Air Conditioning Roof Vents
  • 15,000 BTU Quick Cool Air Conditioner
  • HD LED Television with Mount
  • Deluxe Aluminum Wheels
  • 135 W GO Power Solar Charging Package
  • Radiant Foil Insulation in Roof and Floor for R-38 equivalent
  • Fully Enclosed Underbelly with heat duct to tank area
  • 30# LP Tanks
  • BBQ LP Quick Disconnect
  • Black Tank Flush
  • Outside Shower
  • Roof Ladder
  • Spare Tire and Carrier
  • Bunk Accessible USB Charging Ports
  • Skylight over Tub
  • Battery Disconnect
  • Outside TV Outlet
  • Main Entry Swing Away Handle
  • Teddy Bear Bunk Mattress (Per FP)
