WILDWOOD HERITAGE GLEN HYPER-LYTE TRAVEL TRAILERS AND FIFTH WHEELS

With everything from the look of the professionally designed fabrics to the attention to detail in the well crafted crown molding slide out fascia, Wildwood Heritage Glen has left nothing out when it comes to quality.

Care Camps, fighting cancer and making memories

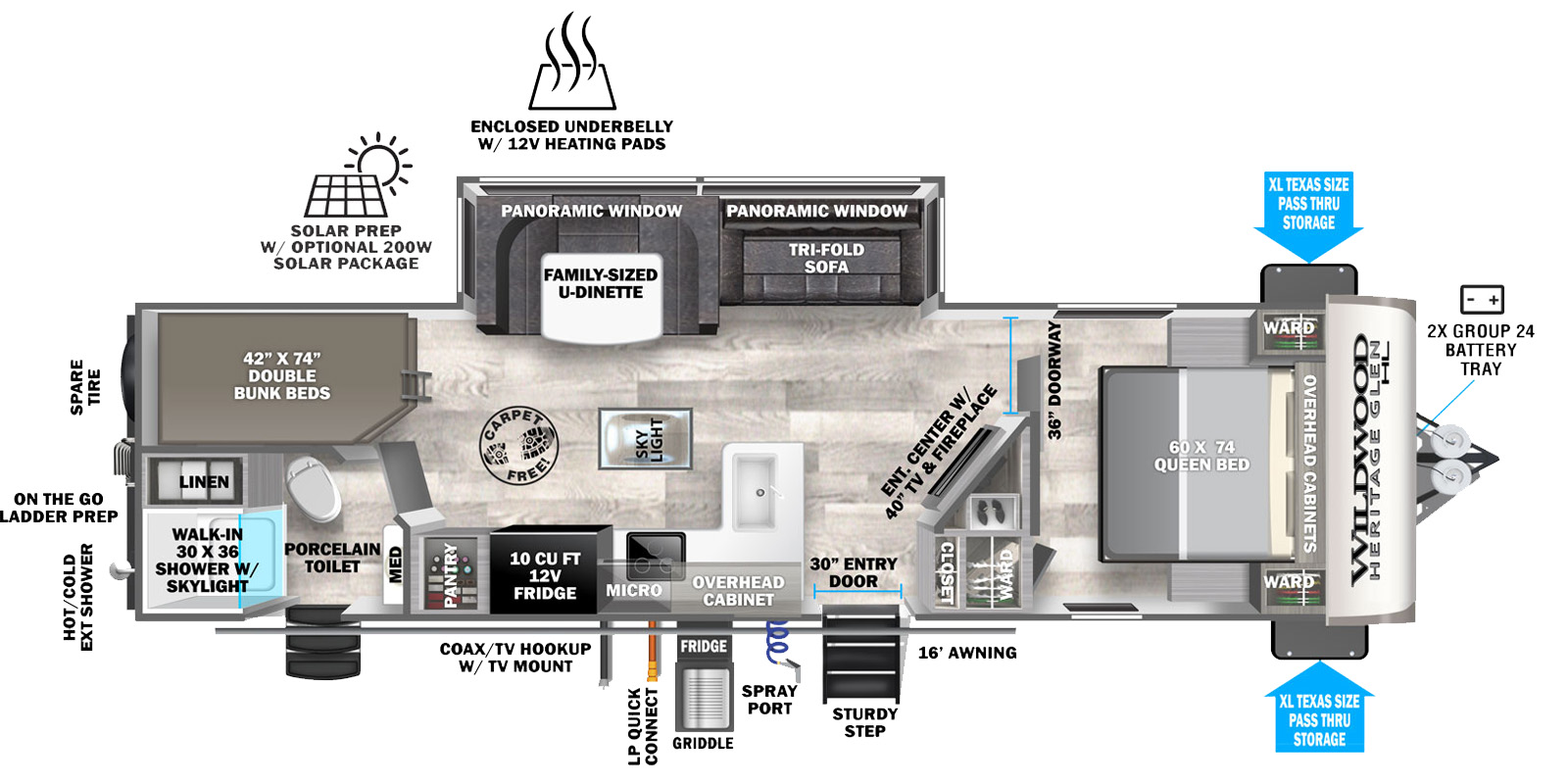

Floorplans

Print

Heritage Glen Hyper-Lyte Travel Trailers


Specifications

Print

Floorplan: 17RBHL : Heritage Glen Hyper-Lyte Travel Trailers 19RBHL : Heritage Glen Hyper-Lyte Travel Trailers 20BHHL : Heritage Glen Hyper-Lyte Travel Trailers 22RBHL : Heritage Glen Hyper-Lyte Travel Trailers 22RKHL : Heritage Glen Hyper-Lyte Travel Trailers 23BHHL : Heritage Glen Hyper-Lyte Travel Trailers 24RLHL : Heritage Glen Hyper-Lyte Travel Trailers 25RBHL : Heritage Glen Hyper-Lyte Travel Trailers 26BHHL : Heritage Glen Hyper-Lyte Travel Trailers 29XBHL : Heritage Glen Hyper-Lyte Travel Trailers
Hitch Weight:545 lb.520 lb.780 lb.570 lb.530 lb.725 lb.810 lb.640 lb.890 lb.965 lb.
UVW:4,903 lb.4,788 lb.5,593 lb.5,413 lb.5,198 lb.6,063 lb.5,883 lb.6,038 lb.6,688 lb.7,173 lb.
CCC:2,642 lb.2,732 lb.2,187 lb.2,157 lb.2,332 lb.1,537 lb.1,927 lb.1,602 lb.3,002 lb.2,592 lb.
Exterior Length:23' 5"23' 10"26' 0"27' 11"26' 7"30' 0"30' 2"31' 0"33' 9"36' 10"
Exterior Height:10' 10"10' 10"10' 10"10' 10"10' 10"10' 10"10' 10"10' 10"10' 10"10' 10"
Exterior Width:96"96"96"96"96"96"96"96"96"96"
Fresh Water:49.00 gal.49.00 gal.49.00 gal.49.00 gal.49.00 gal.49.00 gal.48.00 gal.49.00 gal.49.00 gal.49.00 gal.
Gray Water:30.00 gal.62.00 gal.62.00 gal.62.00 gal.32.00 gal.60.00 gal.64.00 gal.62.00 gal.60.00 gal.60.00 gal.
Black Water:30.00 gal.32.00 gal.32.00 gal.32.00 gal.32.00 gal.30.00 gal.32.00 gal.32.00 gal.30.00 gal.30.00 gal.
Awning Size:18'18'18'18'16'21'16'18'16'18'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print
  • Outside Kitchen w/ Griddle, Refer & Spray Port (22RKHL, 23BHHL, 25RBHL, 26BHHL, 29XBHL)
  • Extra Large Pass Thru Storage
  • Matte Black Cabinet Hardware
  • European Oak colored horizontal plank linoleumflooring
  • High Definition Graphics Package
  • Saddle colored wood cabinetry
  • Side-Mounted Heat Ducts
  • Pantry Doors w/ Glass Inserts & Motion Sensor Lights
  • Residential Single Bowl Undermount Sink
  • Wide Stance Axle System
  • 7-Way "Rain Defense" Plug Holder (Front Frame)
  • Hidden Hinges on Cabinet Doors
  • High Efficiency AC Cooling System
  • 10 cu.ft. Black Refrigerator (12V)
  • Laminated "Aluma Frame" Sidewalls & Floor with Block Foam Insulation
  • Heated & Enclosed Dump Underbelly
  • Radial Tires w/ Black-Accented Aluminum Rims
  • Interior Grab Handle at Entry Door
  • Yacht Trim Ceiling Finishes
  • 15K BTU Air Conditioner with Quick Cool
  • Shaded Pet Tether / Security Hook
  • XL MAX-TINT PANORAMIC WINDOWS IN MAIN SLIDE
  • 12V HEAT PADS ON ALL HOLDING TANKS
  • HIGH RISE FAUCET W/ PULL OUT SPRAYER
  • RECESSED GLASS STOVE TOP COVER
  • MIDNIGHT GLASS RANGE HOOD
  • MIDNIGHT GLASS MICROWAVE
  • BACK UP CAMERA PREP
  • STEP ABOVE ALUMINUM ENTRY STEPS (MAIN ENTRY DOOR)
  • 40" LED TV & FURRION SOUNDBAR W/ FM, BLUETOOTH, HDMI & USB (32" TV in 20BHHL, 22RKHL)
  • DESIGNER'S CHOICE LUXURY COMFORTER
  • POWER TONGUE JACK W/ LED DOCKING LIGHT
  • FRICTION DOOR HINGE
  • BAGGAGE DOOR MAGNETS & EASY PULL SLAM LATCHES
  • LED AWNING, MARKER & TAIL LIGHTS
  • PORCELAIN TOILET
  • TRI-FOLD SLEEPER SOFA OR THEATER SOFA (FLOORPLAN SPECIFIC) (20BHHL: JIFFY SOFA W/ FAMILY-SIZED U-DINETTE)
  • BLACK-ACCENTED UPGRADED ALUMINUM WHEELS
  • SPARE TIRE & CARRIER
  • OUTSIDE SHOWER
  • IVORY PERFORMANCE COLORED EXTERIOR FIBERGLASS WITH SMOKED QUARTZ METALLIC ACCENTS
  • CENTRAL SWITCH CENTER
  • SOLAR PREP
  • LIPPERT ON THE GO LADDER PREP
  • LP QUICK CONNECT
  • EXTRA WIDE 30" ENTRANCE DOOR


Virtual Tours

  • 17RBHL
    17RBHL Main Room
  • 19RBHL
    19RBHL Main Room
  • 20BHHL
    20BHHL Main Room
  • 22RBHL
    22RBHL Main Room
  • 22RKHL
    22RKHL Main Room
  • 23BHHL
    23BHHL Main Room
  • 24RLHL
    24RLHL Main Room
  • 25RBHL
    25RBHL Main Room
  • 26BHHL
    26BHHL Main Room
  • 29XBHL
    29XBHL Main Room


Literature
