37MBH - DSO Floorplan

Dealer Stock Only

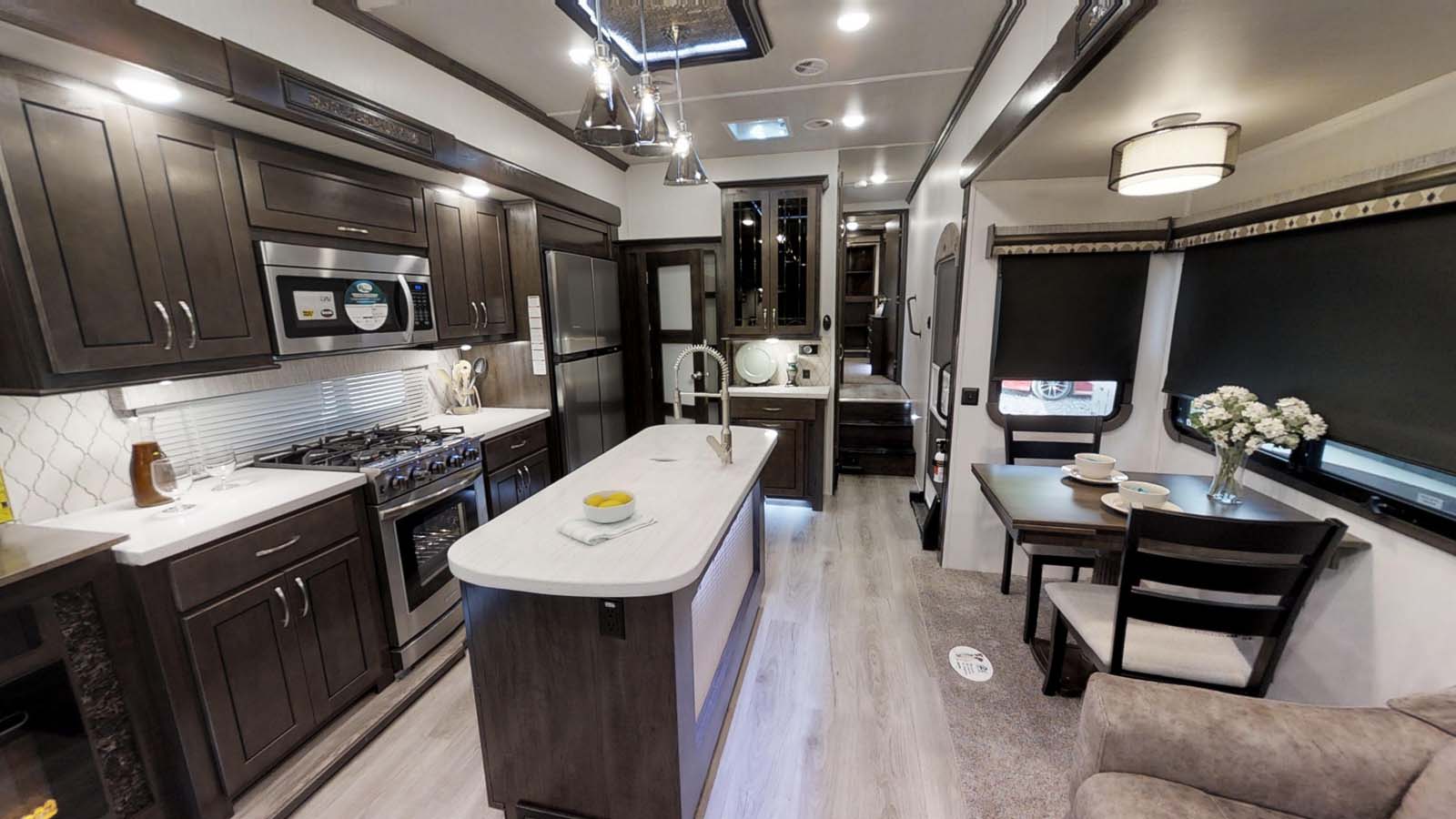

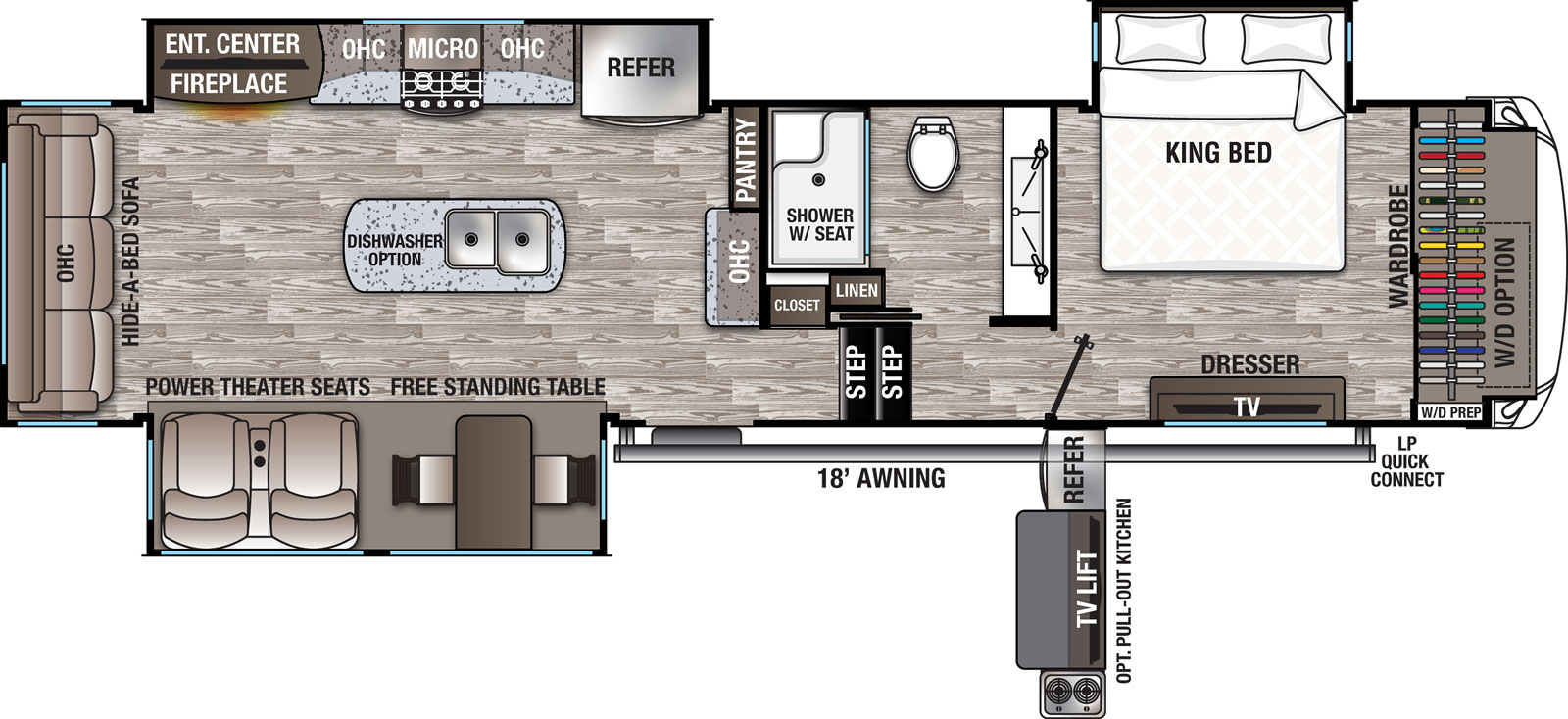

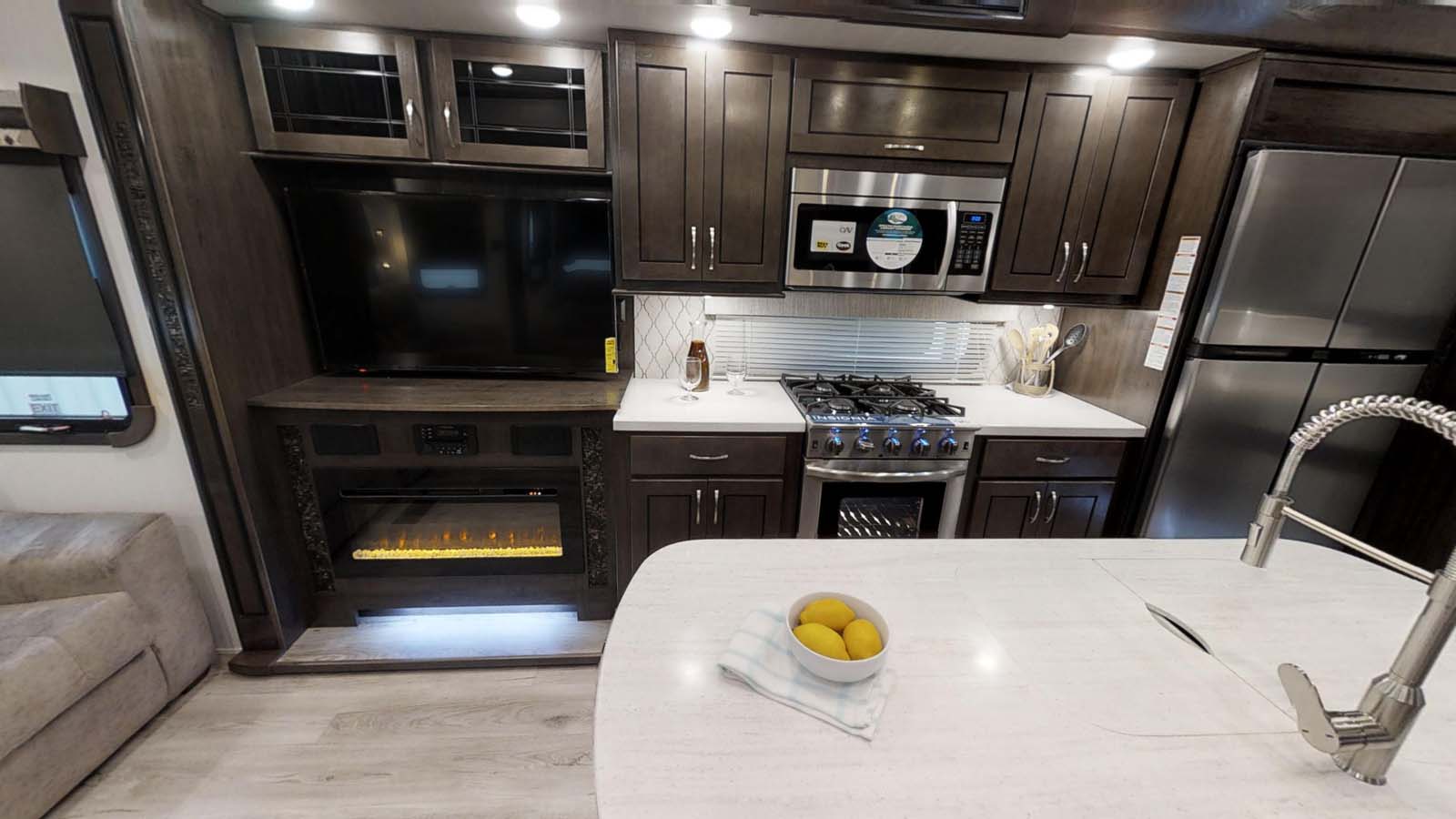

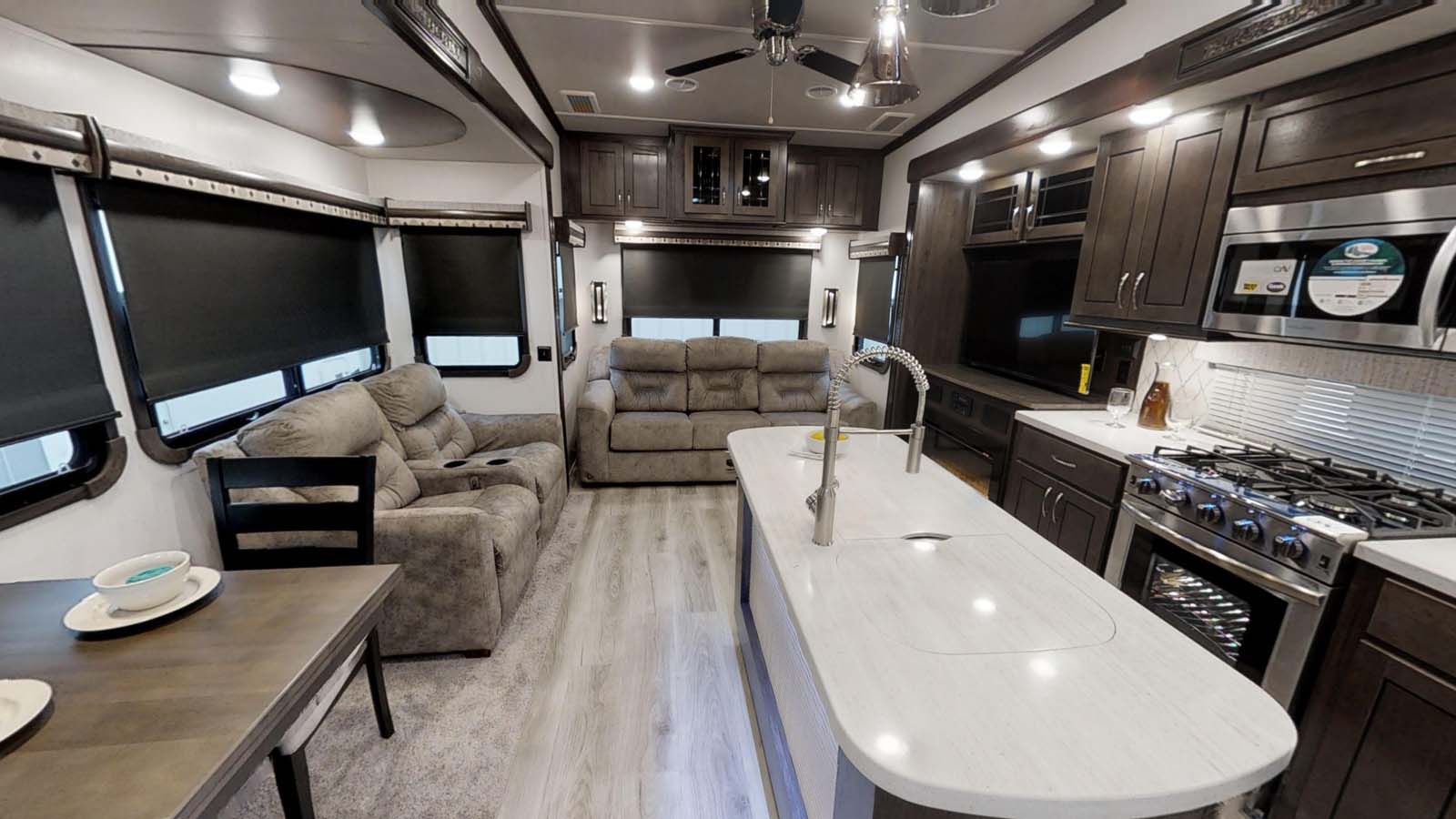

The 37MBH-DSO has 3 slide outs, 2 on the off-door side and 1 on the door side, with 1 entry door. Exterior features include an 18 foot awning, optional pull-out kitchen that includes a refrigerator, TV lift and stovetop and LP quick connect. Interior layout from front to back include: front bedroom with king bed in an off-door side slide out, front wall wardrobe, optional washer/dryer and washer/dryer prep, dresser and TV across from bed; off-door side bathroom in upper deck with shower w/seat, toilet, linen storage and sink; living/dining/kitchen area on lower level; off-door side slide out holding an entertainment center, fireplace, overhead cabinets, stovetop, overhead microwave and refrigerator; kitchen island with double basin sink and optional dishwasher; door side slide out with 2 power theater seats and free standing table with 2 chairs; and a hide-a-bed sofa on the rear wall.
Enlarge

Specifications

Hitch Weight:
2,190 lb.
GVWR:
16,190 lb.
UVW
12,224 lb.
CCC
3,966 lb.
Exterior Length:
37' 1"
Exterior Height:
13' 5"
Exterior Width:
96"
Fresh Water:
69.00 gal.
Gray Water:
80.00 gal.
Black Water:
40.00 gal.
Awning Size:
18'

GVWR (Gross Vehicle Weight Rating)
– is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.



360 Tour



Video Tour



Features & Options

  • “True” Gelcoat Exterior (The Best of the Best in Exteriors)
  • True Gelcoat, Front Cap (Painted on Hathaway)
  • Exterior Graphics Design with 5 Year Warranty
  • Cedar Creek’s Famous All Aluminum Superstructure on 16” Centers or less
  • Silaprene® Bonded Sidewalls
  • Hehr Frameless, Tinted Automotive Style Windows
  • Z-frame with Metal Wrapped Skirting to the Frame
  • Performance and Safety - Dexter®
  • Dexter® Heavy Duty Axles with E-Z Lube® Hubs
  • Dexter® Nev-R-Adjust® Brakes
  • Dexter® E-Z Flex Suspension with Greased Zerk fittings
  • Bronze Bushings for Shackles -”No Plastic”
  • 16” – E&G Special Trailer (ST) Tires 17.5” on “H”
  • 1-1/4” Thick Baggage Door with Slam Latches
  • 4’ x 6’ ABS, Ribbed, Removable Underbelly Panels for Easy Access into the Underbelly
  • Roof with TPO Vinyl Roof Covering
  • Wired for Furrion® Rear Camera
  • 12V Heating Pads on All Black, Grey, and Fresh Water Tanks
  • Extra Wide 32” Entry Door with a Friction Hinge and MorRyde® Easy-Steps™
  • A & E Black Electric Awning with Upgraded Fabric and LED Night Lights
  • Full Docking Station with Multi-Function Tank Levers, Outside Shower, Black Tank Flush, 12V Battery Disconnect Door Side, Cold Water Port
  • Heated Front Storage Compartment with Slam Door Baggage Latches with Magnetic Catches
  • 50 Amp Cord Reel
  • (2) Whisper Quiet , Ducted Air Conditioners with Dual Zone Control and Cold Air Returns
  • 12 Gallon DSI/Electric Hot Water Heater with Bypass Kit
  • 2” Bike Rack Receiver
  • Solar Prep
  • One Year of Saferide™ RV Roadside Assistance
  • Free Membership to Forest River Owners Group F.R.O.G.
  • Cedar Creek ConnectAnywhere™ Control System turns the RV into a WIFI Hotspot (Includes a free 3 month data plan subscription)
  • 50” Television with Swing Arm
  • 32” Television in the Bedroom
  • 12V AM/FM/DVD Stereo system with Phone App with Interior and Exterior Speakers
  • (2) Exterior Satellite and Cable Hook-Ups to Bedroom and Living Room
  • Pre-Wired for Satellite to the Roof
  • European Beech Cabinet Doors and Fascia in Kitchen and Living Room
  • Full Extension Drawer Glides with Self Closing Drawers
  • 20 Cu. ft. Stainless Steel Electric Refrigerator with Icemaker with Dedicated Inverter
  • Pantry
  • Residential, High Top, Swivel, Kitchen Faucet with Pull Out Sprayer
  • Stainless Steel, 30” Over the Range Microwave
  • Insignia Free Standing 24”, 4-Burner Gas Range
  • Full Panel Backsplashes were Applicable
  • Backlit Medallion over the Island
  • Intervac Central Vacuum System with Front Storage Compartment Port

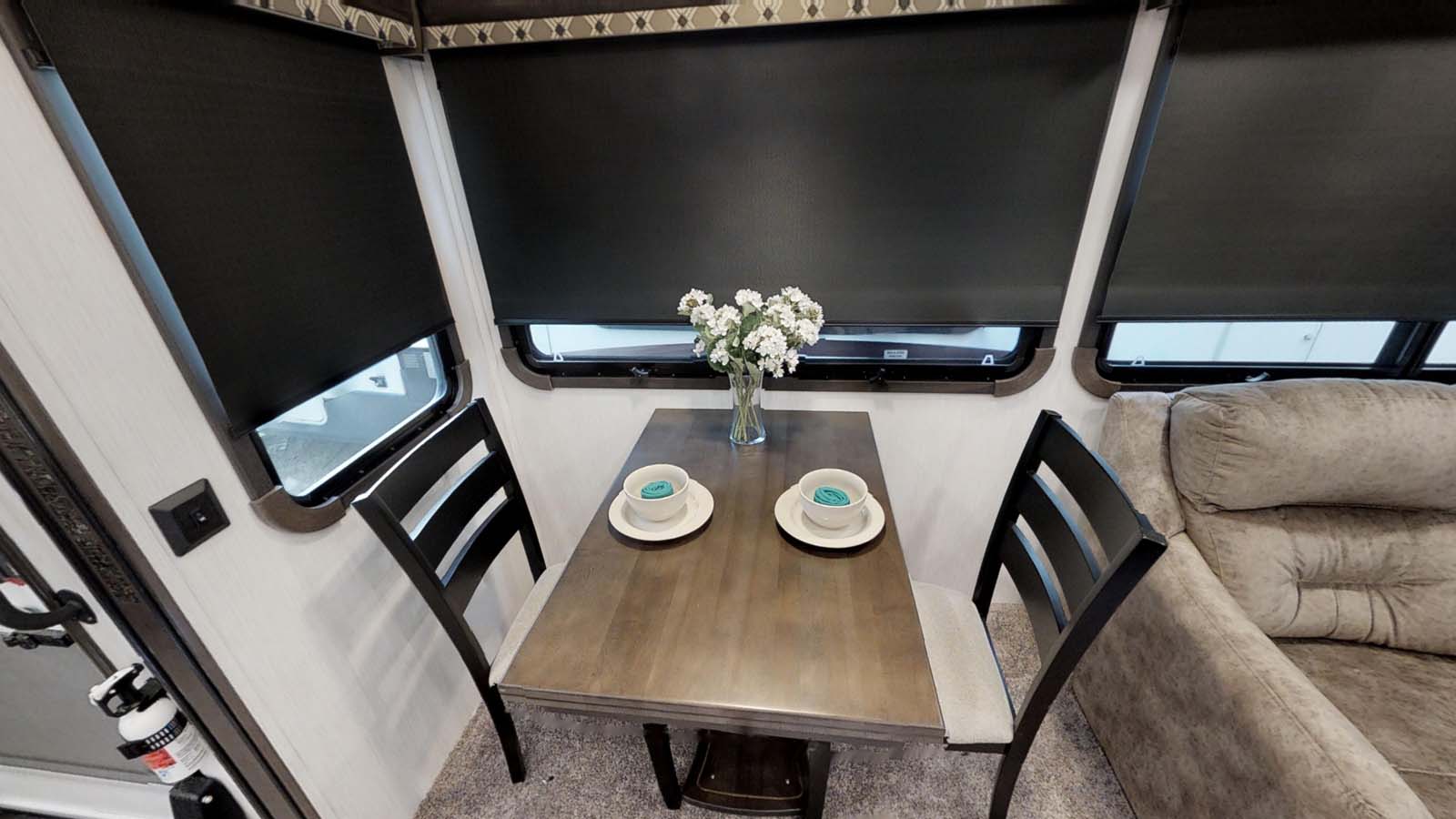

  • Free Standing Table with Center Leaf and 4 Chairs – (2 Folding/2 stationary with Hidden Storage)
  • Solid Surface Countertops with Stainless Steel Undermounted Sinks
  • Fantastic Create-a-Breeze Fan with Rain Sensor and Thermostat in Kitchen
  • Congoleum® Flooring in Living Room, Bedroom, and Bath (Carpet Mandatory in Dining Slide)
  • Larger Full View Windows - Every Window Opens for Ventilation
  • Black-Out Night Shades (Bedroom Only on Hathaway)
  • Day/Night Shades (Hathaway Only)
  • Power Theater Seating
  • Luxury Hide-a-Bed Sofa
  • 36” Fireplace
  • Congoleum® Flooring (Carpet Mandatory in Dining Slide)

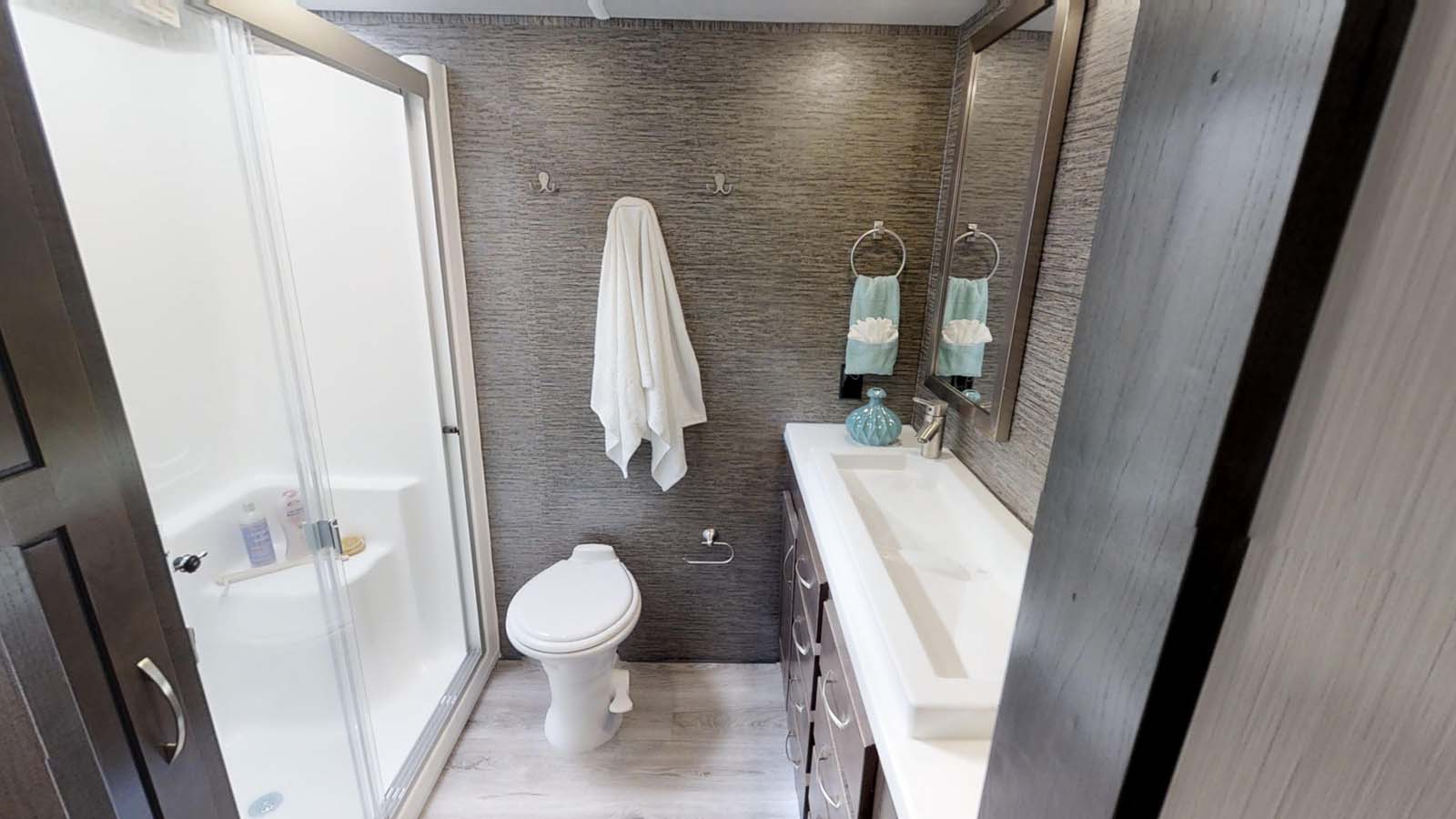

  • Full 48” x 30” Rectangular Shower with Large Seat and Sliding Glass Doors
  • Skylight
  • Upgraded Shower Head
  • 18” High Porcelain Toilet with Top Circular Flush System
  • Large 10” Blade Create-a-Breeze Fan with Wall Switch
  • Convenient Wall Switches for Fan and Lights
  • Extra Storage for Linens
  • LED Night Lighting under Vanity

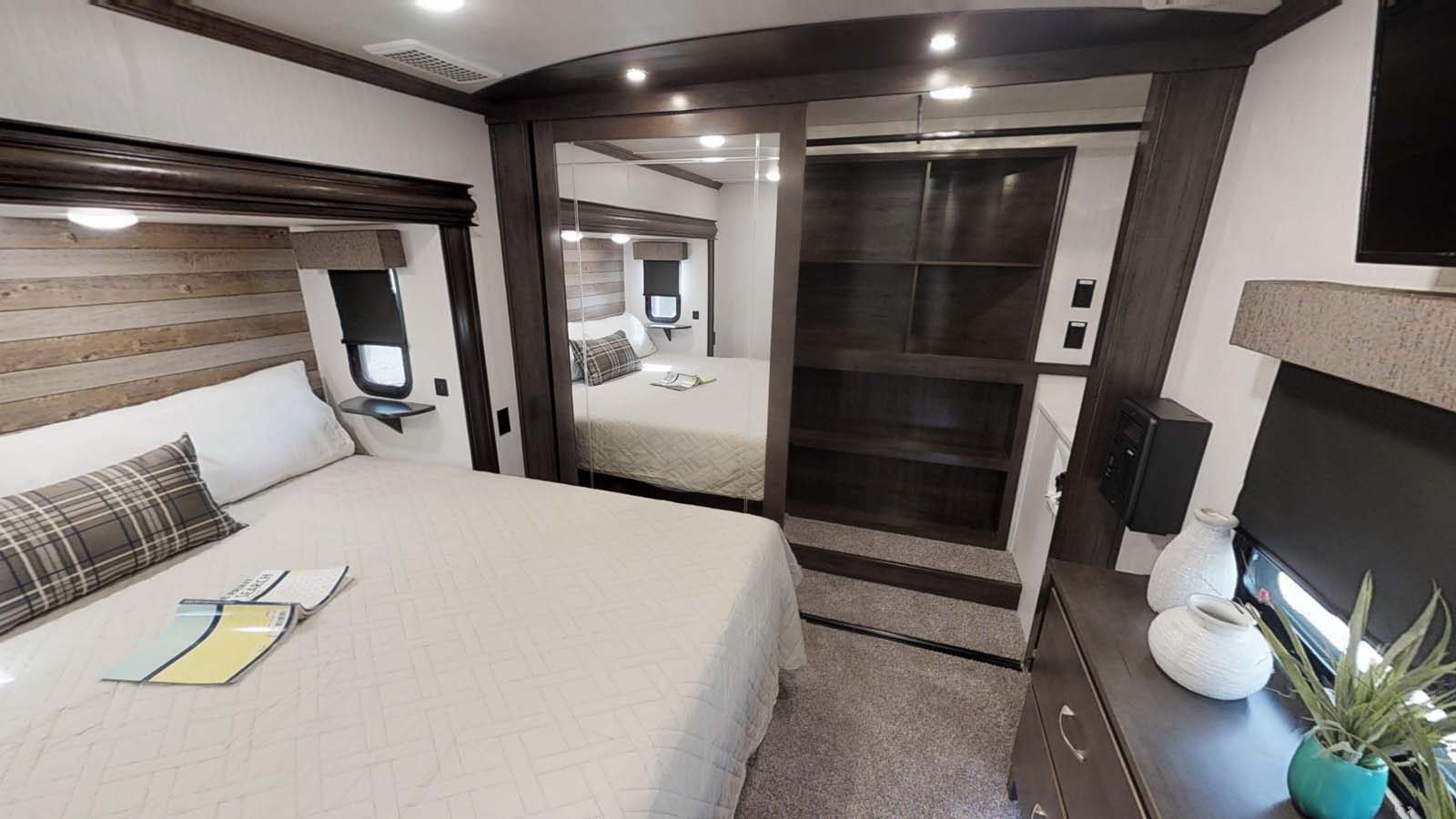

  • Residential Style Headboard with Luxurious Bedding Décor
  • Individual Reading Lighting Above the Bed
  • USB Plug-ins on each side
  • Standard 72” x 80” 7” King Bed
  • Storage Area Under the Bed
  • Prepped for an Optional Washer and Dryer
  • 6-Point Hydraulic Leveling System (Mandatory)
  • Trailair Air Ride Hitch
  • Dual Pane Frameless, Tinted Windows
  • Furrion Rear Observation or 4 Camera Security Systems
  • Slide-out Awning Toppers
  • Second 12’ THULE® Power Awning on Dining Slide (N/A 35LFT, 37FLK, 38RTH)
  • Heat Pump on Main Air Conditioner
  • TrumaTM On-Demand Hot Water System
  • Full Body Paint Package
  • Generator Prep
  • 5.5 Marquis Gold Onan Generator with Prep
  • Go PowerTM Solar Panels
  • King, Roof Mounted Satellite – My Dish RV Flexible Programming including local channels
  • 18 Cu. Ft. Stainless Steel, Gas/Electric Refrigerator
  • Optional 30” Convection/Microwave
  • Trackless Shaw® Carpet in the Living Room or Bedroom
  • Booth Dinette
  • Cedar Creek Outdoor Party Center in Front Storage Compartment (N/A 35LFT, 37FLB, 38RTH)
  • Upgraded Luxury 9” King Bed
  • Upgraded Luxury 9” Queen Bed
  • Optional Side-by-Side Washer/Dryer
  • Cadet Wall Mounted Heater with Circulation Fan
