Forest River, Open Up and Explore!

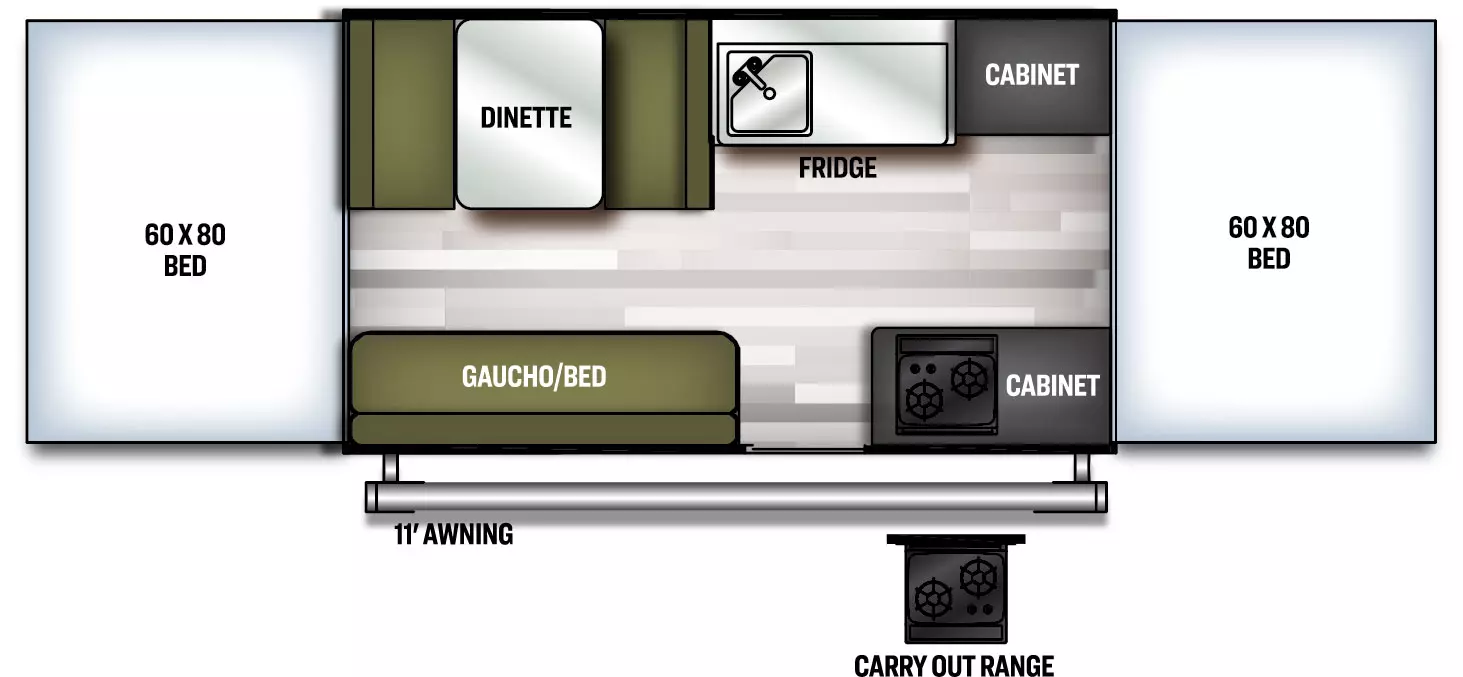

flagstaff-tent 228LTD Limited Series



Hitch Weight:
225 lb.
UVW
2049 lb.
CCC
1176 lb.
Box Size
TBD
Exterior Open Length:
23' 1"
Exterior Closed Height:
5' 6"
Exterior Closed Length:
16' 5"
Exterior Width:
84"


Specifications Definitions

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Note: Specifications are subject to change without notice.




Features & Options

Limited Series Features & Options
LTD PACKAGE
  • Battery Box & Wire
  • Awning
  • Step
  • Heated Mattress on Bunk Ends
  • Carbon Monoxide Detector
  • Inside/Outside Two-Burner Stove
  • Spare Tire w/ Carrier & Cover
  • Interior LED Lights
  • Solar Prep On Frame
  • Nitrogen Filled Tires
  • Exterior Recep (206LTD & 228D only)
LTD STANDARD FEATURES
  • Gray Exterior
  • Slatewood Interior
  • Wood Look Flooring
  • Electric Water Pump
  • Antifreeze Inlet Bypass
  • 1.9 Cubic Foot 3 Way Refrigerator
  • 20K BTU Furnace
  • Residential Style Cabinet Doors
  • Wood Drawers w/ Full Extension Metal Guides
  • One Piece Door
  • Flip Down Galley w/ Storage
  • 25 AMP Converter w/ Built In Battery Charger
  • Roof Vent
  • Privacy Curtains
  • 2 Rear Stabilizer Jacks w/ Sand Pads
  • Quilted Top Bed Mattress
  • 13” Radial Tires (228LTD Only)
  • 20 lb. LP Bottle
  • Patio Light (206LTD/228LTD)
  • Leaf Spring Axles
LTD OPTIONS
  • Power Lift System (factory installed)
  • LP Bottle Cover
  • 2-20# LP Bottles w/ Covers
  • 3-Way Refrigerator (forced)
  • Electric Brakes (Std. 228LTD)
  • 20K BTU Furnace (forced)
  • 11’ Screen Room w/ Privacy Panels
  • Outside Griddle
  • 40 Amp Portable Solar Panel
  • 13500 BTU Low Profile Roof Air
  • 15000 BTU Low Profile Roof Air
