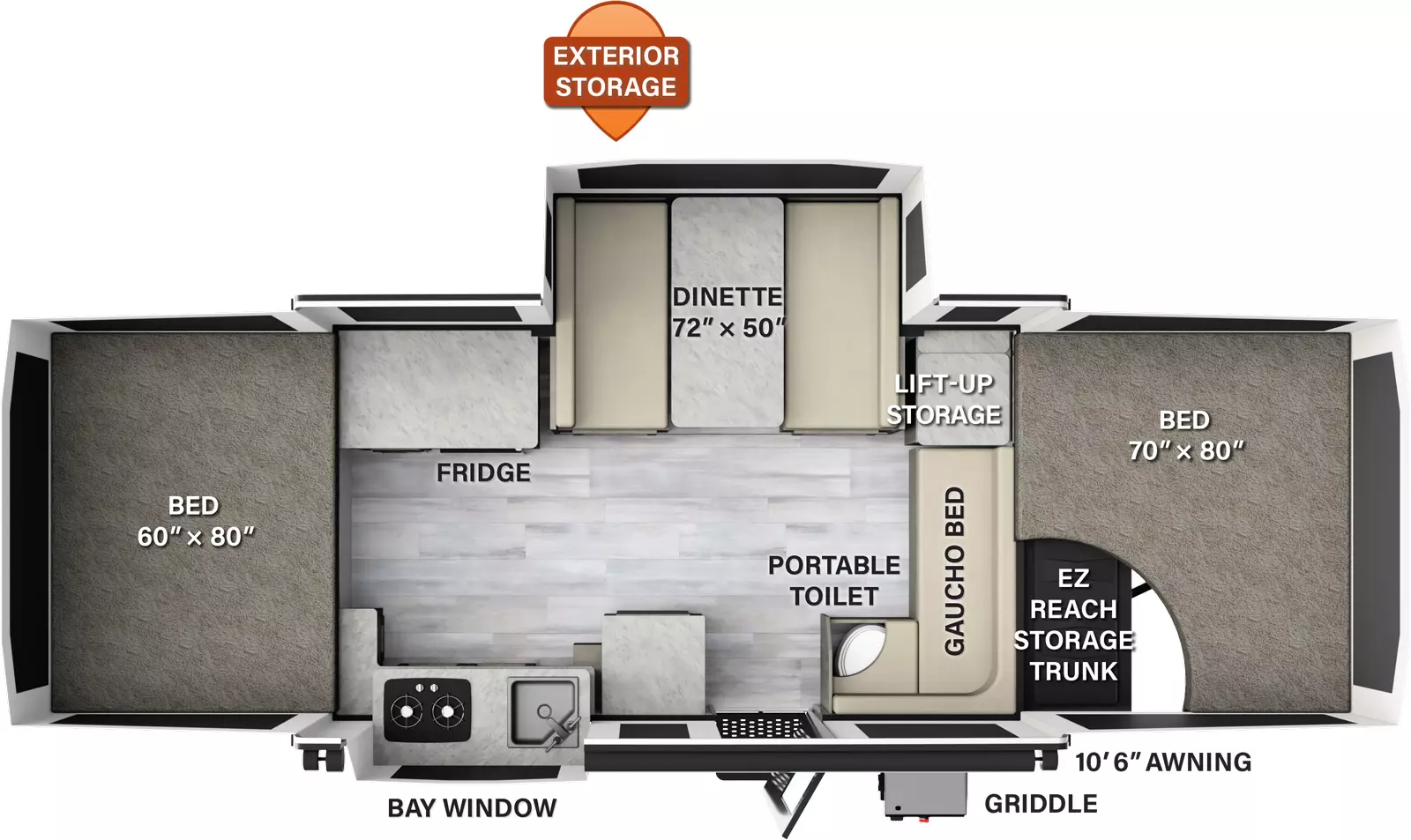

This tent is awesome for entertaining guests. The large dinette and the awesome L-seat work perfectly for hosting friends and family for a night of games. The L-seat also has a built in Port-A Pottie for quick and easy access to a toilet. The dinette slide really opens this unit up allowing nice walkable space. This unit also comes equipt with a huge EZ reach storage trunk for all of your storage needs.
- Hitch Weight
- 295 lb.
- 3,295 lb.
- 2,673 lb.
- 622 lb.
- Box Size
- Exterior Open Length
- 23' 9"
- Exterior Closed Length
- 19' 0"
- Exterior Closed Height
- 6' 0"
- Exterior Width
GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.
GCWR (Gross Combined Weight Rating) – is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.
GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.
UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.
CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.
Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.
The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.
Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.
Note: Specifications are subject to change without notice.
MAC Series Features & Options
- <strong>Standard Features</strong>
- Gray Exterior
- Autumn Wood Interior
- Wood Plank Flooring
- 12V Electric Water Pump
- Hot Water Package (All models)
- Shower/Cassette - since no models would be STD.
- Antifreeze Inlet Bypass
- Permanently Mounted 3-Burner Range w/ Cover
- Residential Style Cabinet Doors & Drawers w/ Metal Glides
- USB Charging Ports
- Roof A/C Bracing
- 30 AMP detachable Power Cord
- Storage Net Over Bunks
- Leaf-Spring Axles
- Easy Lube Axles
- Electric Brake
- 13" Radial Tires
- Aluminum Wheel
- Double Battery Box & Wiring Kit
- 4 Stabilizer Jacks w/ Sand Pads
- Solar Panel Prep On Frame
- LED Ceiling Lights
- Patio Light
- 110V Exterior Outlet
- Single Entry Step
- One Piece Screen Door
- Large Entry Door Folding Grab Handle
- 85" Wide Body w/ 80" Beds
- 4" Cushions & Covers
- TV outlet w/ Cable & Satellite
- Vinolon Supreme Tenting
- Overhead Kitchen Cabinet
- 2-20 lb. LP Bottles w/ Cover
- <strong>Outdoors Package</strong>
- Create-A-Breeze Roof Vent Fan
- 20K BTU Furnace
- Heated Mattress Bunk Ends
- Awning w/ LED Lighting
- Water Filtration System
- Spare Tire w/ Carrier & Cover
- CO Detector
- Outside Griddle
- Power Roof Lift
- 1.7 CU - 12V Refrigerator w/ 100W Roof Solar Panel
- A/C Wiring Kit
- 40 Amp Portable Solar Panel
- 13,500 BTU Low Profile Roof Air
- 15,000 BTU Low Profile Roof Air
- Takes 2" Ball
