17DB

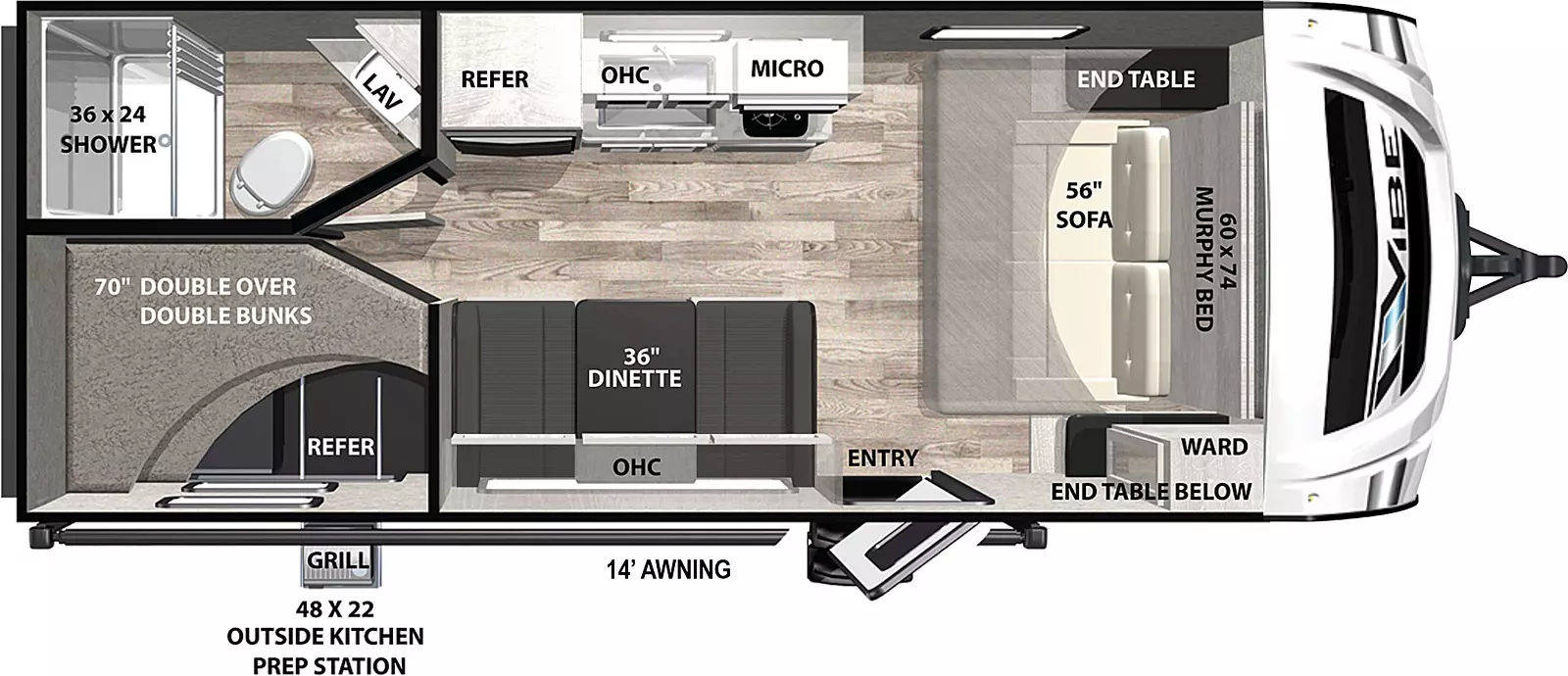

Do you camp with kids but have a smaller tow vehicle, the 17DB Vibe has it all. With double over double bunks, optional outside kitchen, heated and enclosed under belly, tons of storage and sleeping capacity and loaded with amenities!

Hitch Weight
538 lb.
GVWR
4,938 lb.
UVW
3,817 lb.
CCC
1,121 lb.
Exterior Length
22' 5"
Exterior Height
10' 8"
Exterior Width
90"
Fresh Water
39 gal.
Gray Water
27 gal.
Black Water
27 gal.
Awning Size
14'

Specifications Definitions

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) – is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Note: Specifications are subject to change without notice.



  • VIBE TOP 10 FEATURES – 2023

    • 2 ¼ INCH BONDED FLOOR WITH ½" DYNASPAN® DECKING (25 YEAR WARRANTY)
    • ALUMINUM FRAMED LAMINATED SIDEWALLS AND SLIDES
    • SCREWED AND GLUED CABINETS WITH RESIDENTIAL STEEL BALL BEARING DRAWER GUIDES ON ALL OF OUR DRAWERS
    • 200W EXPANDABLE SOLAR WITH 30 AMP CONTROLLER. (EXPANDABLE UP TO 600 WATTS)
    • BEST IN CLASS PANORAMIC WINDOWS
    • “EXTREME BARRIER” INSULATION: FURNACE HEAT TO BASEMENT; HOLDING TANKS COMES STANDARD WITH R-7 FIBERGLASS INSULATION & R-38 REFLECTIVE ASTRO FOIL INSULATION; FULLY ENCLOSED UNDERBELLY; 12V THERMOSTATICALLY CONTROLLED HEAT PADS ON ALL HOLDING TANKS; VACUUM-BONDED & PINCH ROLLED SIDEWALLS WITH R-10 HIGH-DENSITY BLOCK FOAM INSULATION IN SLIDES; REFLECTIVE ASTRO-FOIL IN ROOF; FRONT WALL, SLIDE-OUT FLOOR AND UNDER EACH HOLDING TANK; DOUBLE R-7 FIBERGLASS INSULATION IN ROOF AND UNDER EACH HOLDING TANK; 30,000 BTU FURNACE; EXTERIOR VENTED ATTIC FOR BREATHABLE ROOF; ELECTRIC FIREPLACE W/THERMOSTAT
    • WIDE STANCE AXLES – BEST TOWING PERIOD!
    • 12 VOLT OVERSIZED REFRIGERATOR
    • WALK ON TRUSS ROOF WITH XTRM-PLY PVC ROOFING - 86% Solar Reflectance

  • EXTERIOR STANDARDS

    • <strong>Single Axle Floorplans</strong>(SA)
    • Walk On Truss Roof(SA)
    • XTRM-PLY PVC Roofing with 86% Solar Reflectance  (NO MAINTENANCE – STRONGEST RV ROOF ON THE MARKET)(SA)
    • Aerodynamic Aluminum Front Cap(SA)
    • E-Z Lube Axles(SA)
    • Cable & Satellite Prep(SA)
    • Digital TV Antenna w/Booster(SA)
    • Extra Large, Aluminum Framed, Pass-thru Storage(SA)
    • Gel Coat Fiberglass w/ Contemporary Graphics Package(SA)
    • Heated and Fully-Enclosed Underbelly(SA)
    • Hyper Lyte Construction - Amazingly Light!!(SA)
    • Laminated “Aluma Frame” Side Walls. Rear Wall,  Slide Out boxes and 2¼" Laminated Floor(SA)
    • LED Lighted Exterior Speakers (2)(SA)
    • One Touch Electric Awning(SA)
    • Roadside Assistance(SA)
    • Stabilizer Jacks(SA)
    • XL Grab Handle(SA)
    • 13.5 BTU Air Conditioning(SA)
    • 1-20 lb. LP Bottle(SA)

  • INTERIOR STANDARDS

    • <strong>Single Axle Floorplans</strong>(SA)
    • Decorative Kitchen Backsplash(SA)
    • Deluxe Wood Booth Table Top(SA)
    • Double Door 10+ cu. ft. 12V Refrigerator(SA)
    • Dometic Pedal Flush Toilet(SA)
    • Fantastic Fan in Bathroom(SA)
    • Full Extension Ball Bearing Drawer Guides(SA)
    • Full 80” Ceiling(SA)
    • LED Lighting(SA)
    • Solid Surface - Thermofoil Wrapped Kitchen Countertops(SA)
    • Upgraded Residential Style Carpet(SA)
    • Stainless Microwave(SA)
    • 6 Gal. G/E DSI Water Heater(SA)
    • Hard Doors to bedrooms for privacy (Not Curtains)(SA)

  • FAMILY CAMPING PACKAGE

    • <strong>Single Axle Floorplans</strong>(SA)
    • Aluminum Wheels(SA)
    • Battery Disconnect(SA)
    • Black Tank Flush(SA)
    • Coat Rack(SA)
    • Enclosed Holding Tanks w/12V Heat Pads(SA)
    • Flip-Up Countertop Extension (not available on all floorplans)(SA)
    • Flush-Mount Kitchen Sink Cover(SA)
    • Outside Hot and Cold Shower(SA)
    • Radial Tires(SA)
    • Second Bunk Window (not available on all floorplans)(SA)
    • Sink Cover(SA)
    • Skylight Over Tub/Shower(SA)
    • Spare Tire & Carrier(SA)
    • Teddy Bear Bunk Mats (not available on all floorplans)(SA)
    • Upgraded Hidden Hinges on Cabinet Doors(SA)

  • PREMIUM PACKAGE

    • <strong>Single Axle Floorplans</strong>(SA)
    • Backup Camera Prep(SA)
    • Portable Bluetooth Stereo Speaker(SA)
    • Decorative Window Treatments (dinette only)(SA)
    • LED Awning Light(SA)
    • Magnetic Latches On Access Doors(SA)
    • Roller Shades With Automatic Stop(SA)
    • Recessed 2-Burner Cooktop w/Glass Cover(SA)
    • Seamless Countertop w/Undermount Single Bowl Stainless Steel Sink(SA)
    • Solar Prep(SA)
    • USB Port Package(SA)
    • Upgraded Designer Kitchen Faucet(SA)

  • OPTIONS

    • 200W Solar with 30amp Controller  (Expandable up to 600watts)
    • Back Pack Rack
    • Recliners in place of Dinette
    • Free-Standing Table & Chairs
    • Tri-Fold Sofa Sleeper
    • 2nd 13.5k A/C In Bedroom w/50 AMP Service
    • 15k BTU Ducted A/C IPO 13.5k
    • 30 lb. LP Bottles w/Cover
    • 50 AMP Service w/Wire & Brace for 2nd A/C
