EVO Northwest Travel Trailers

Our eye catching interiors have been painstakingly designed and developed by industry specialists with form, function and style in mind. Attention to detail is what sets Evo apart from the rest.

Care Camps, fighting cancer and making memories

We love our EVO trailer and can’t wait to take her out again! - Maerie L.



Floorplans

Print

Evo Elite
Evo Lites
Evo Selects
Dealer Stock Only


Specifications

Print

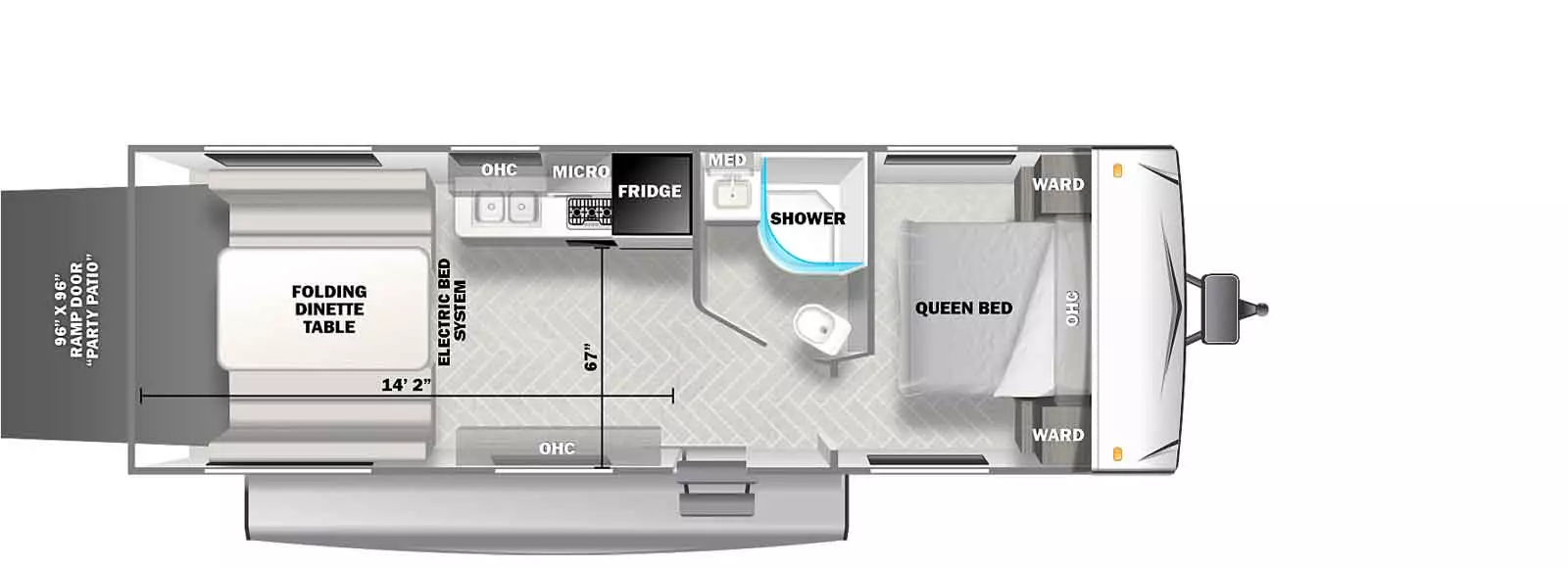

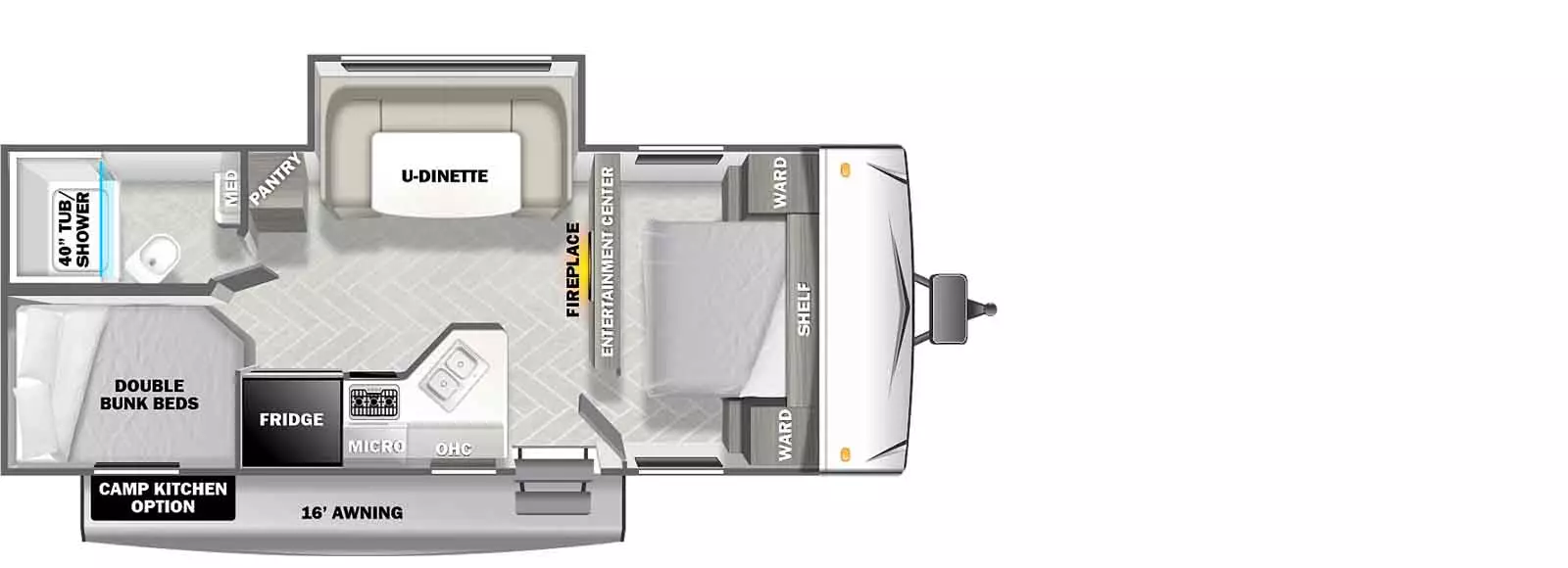

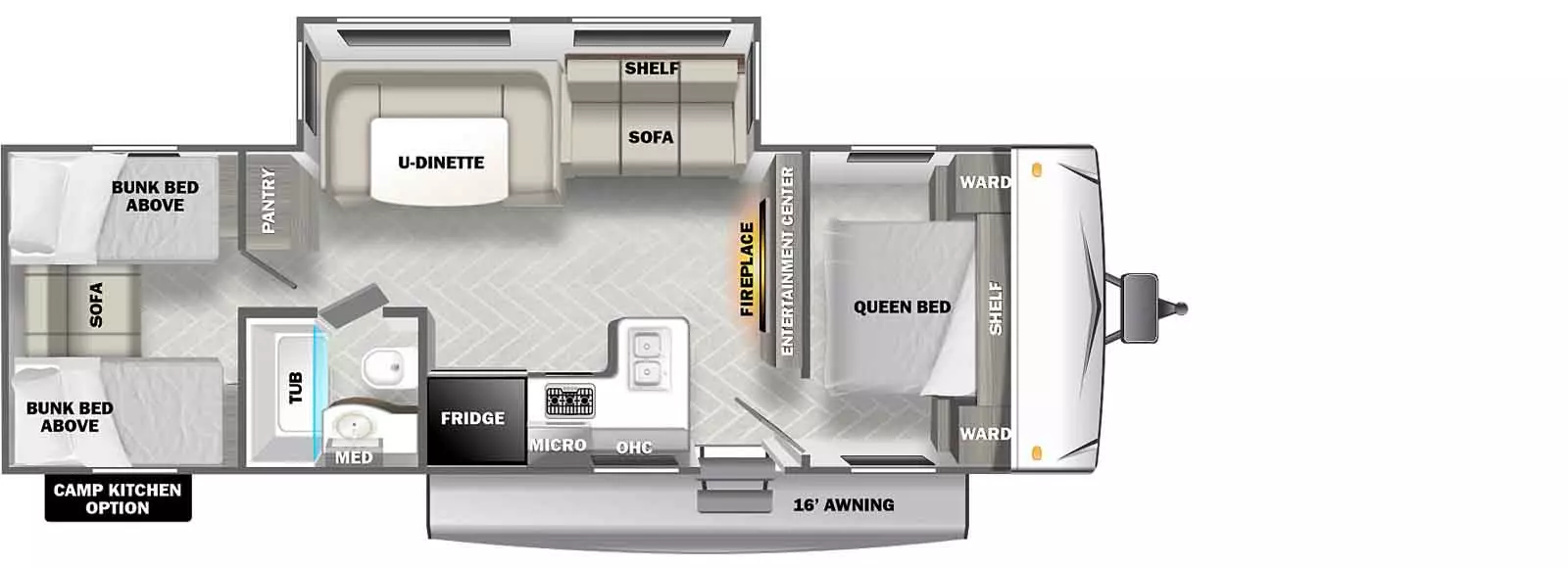

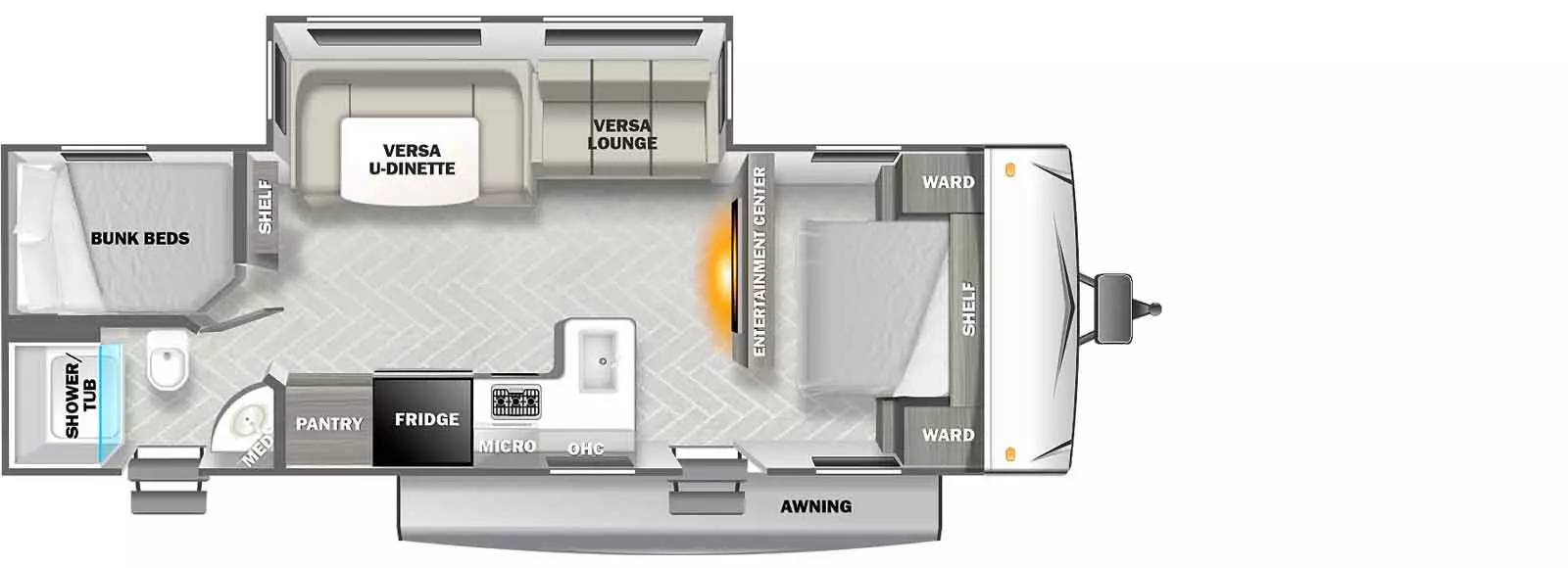

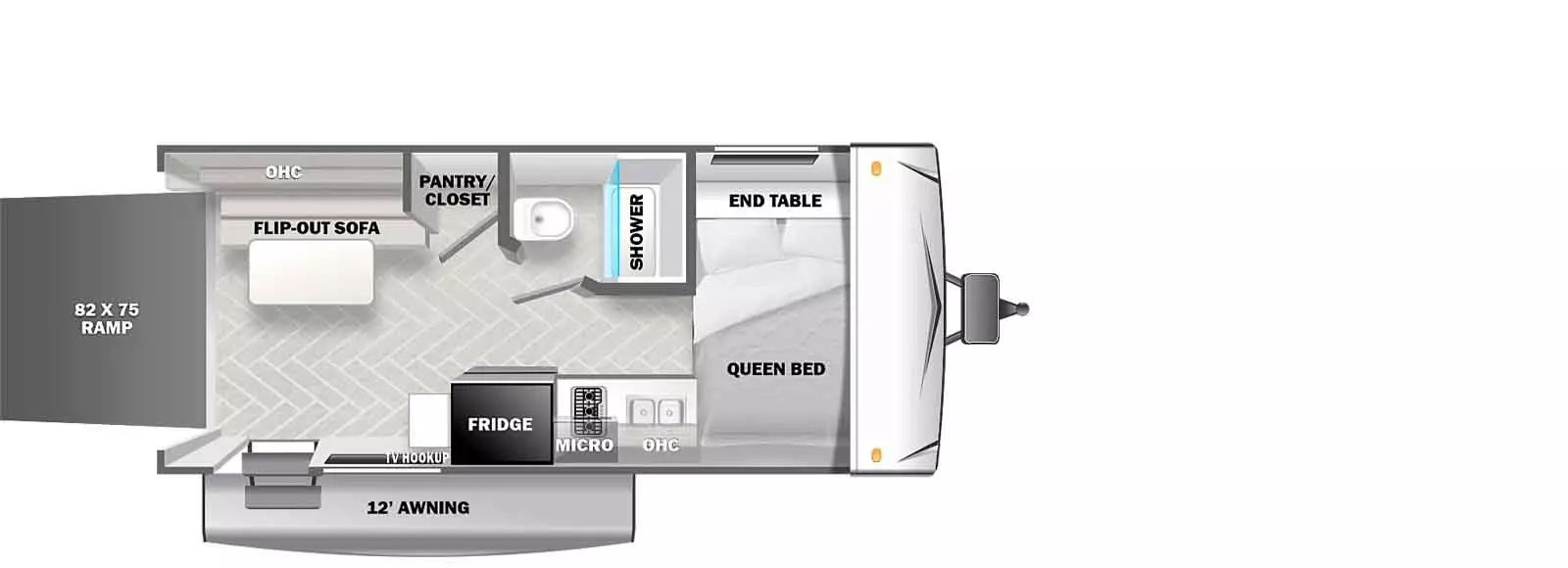

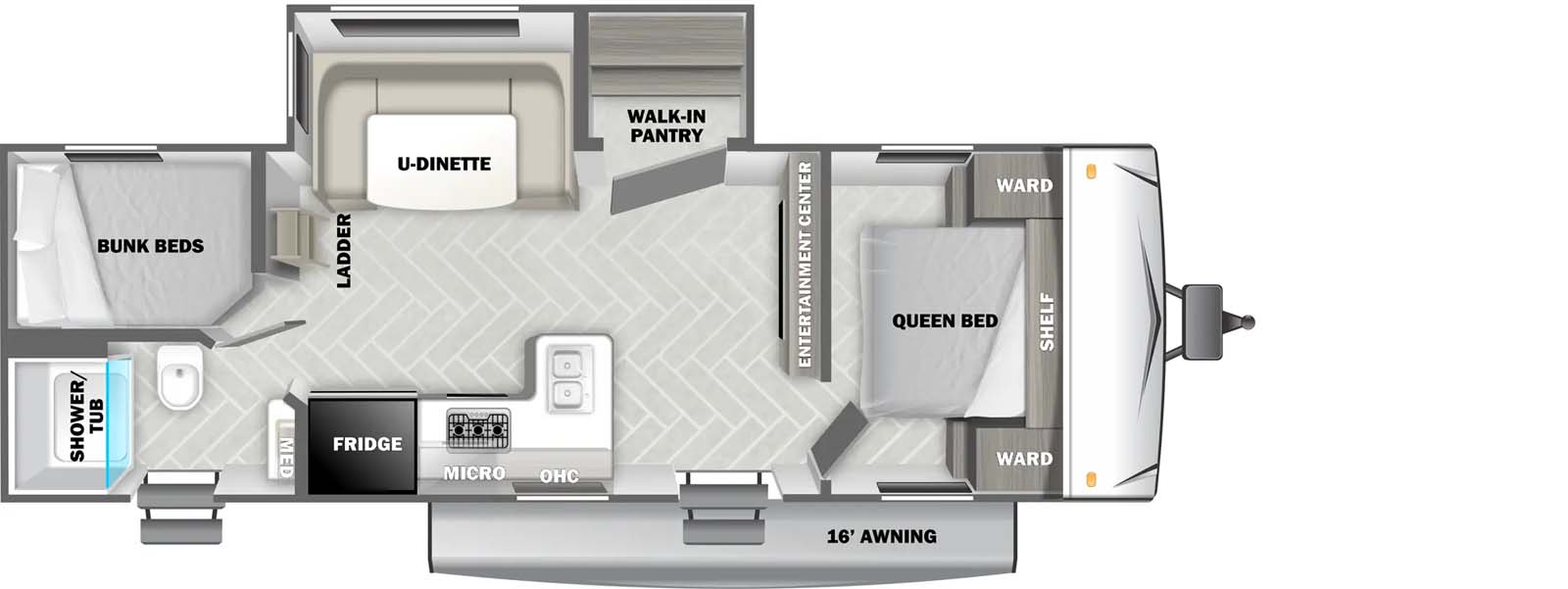

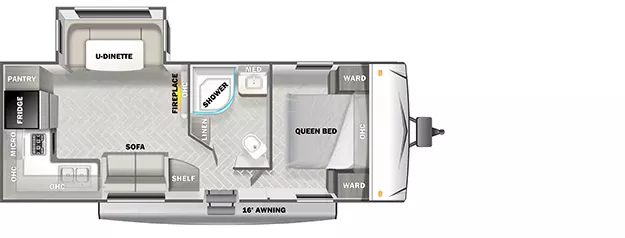

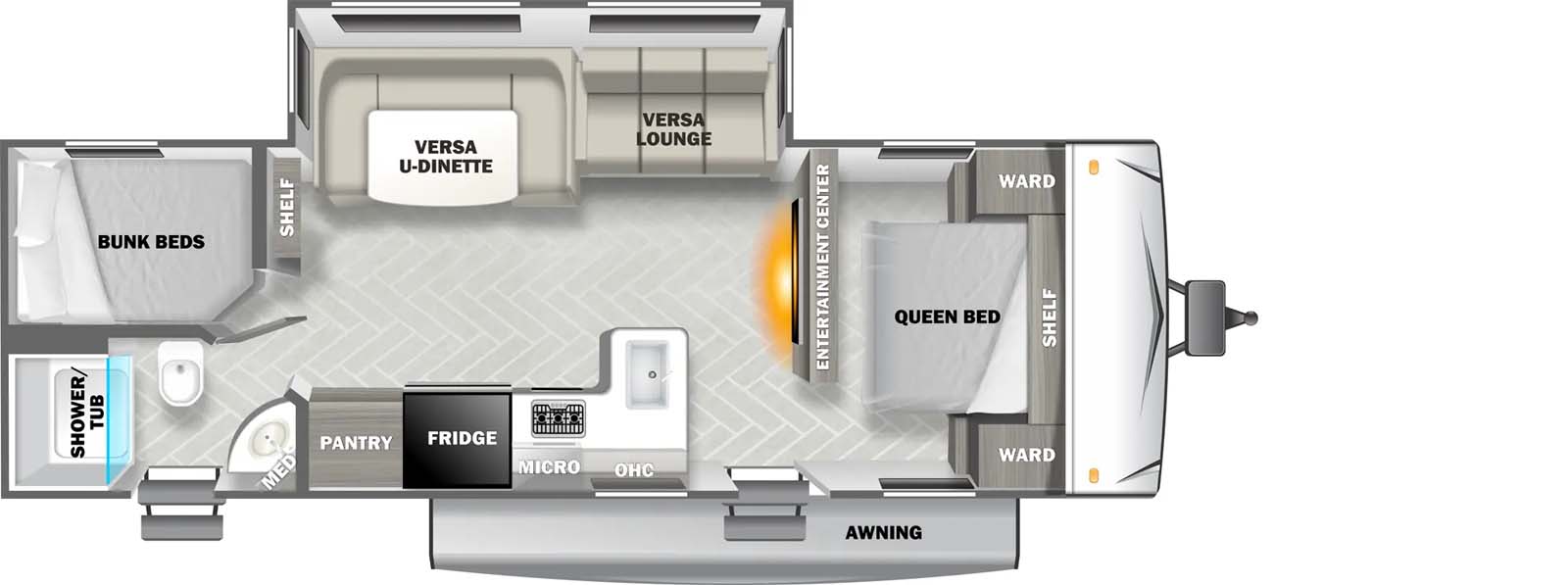

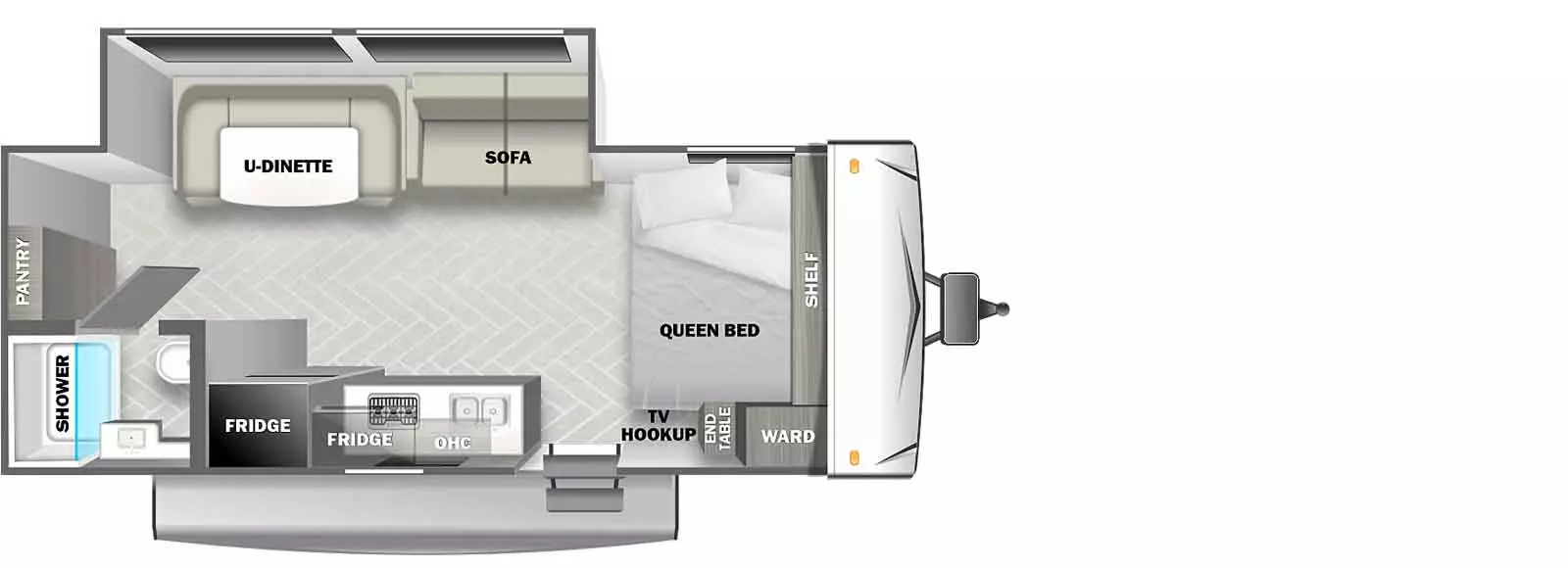

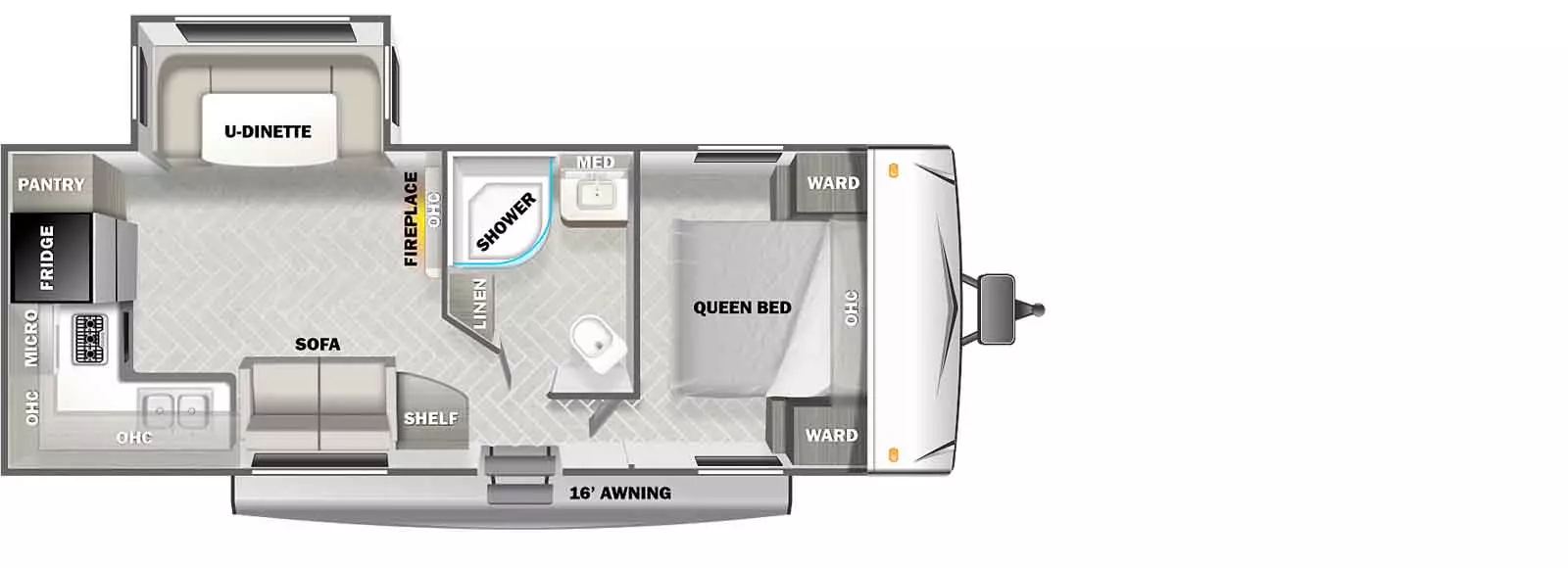

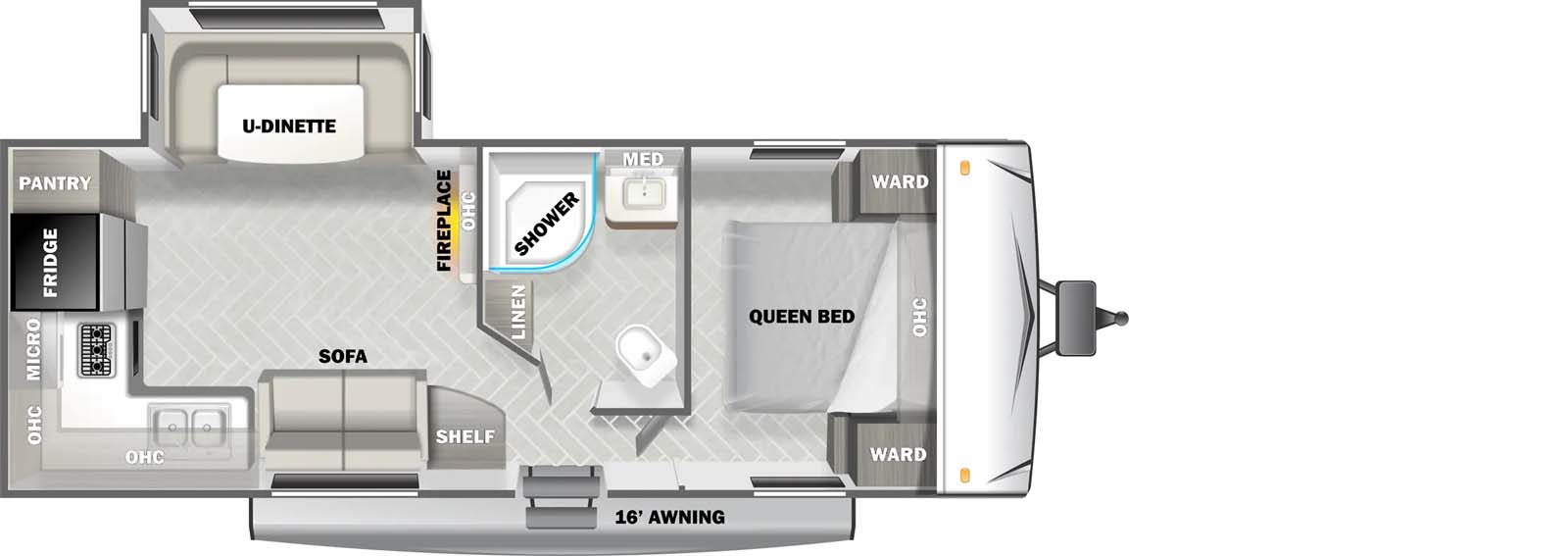

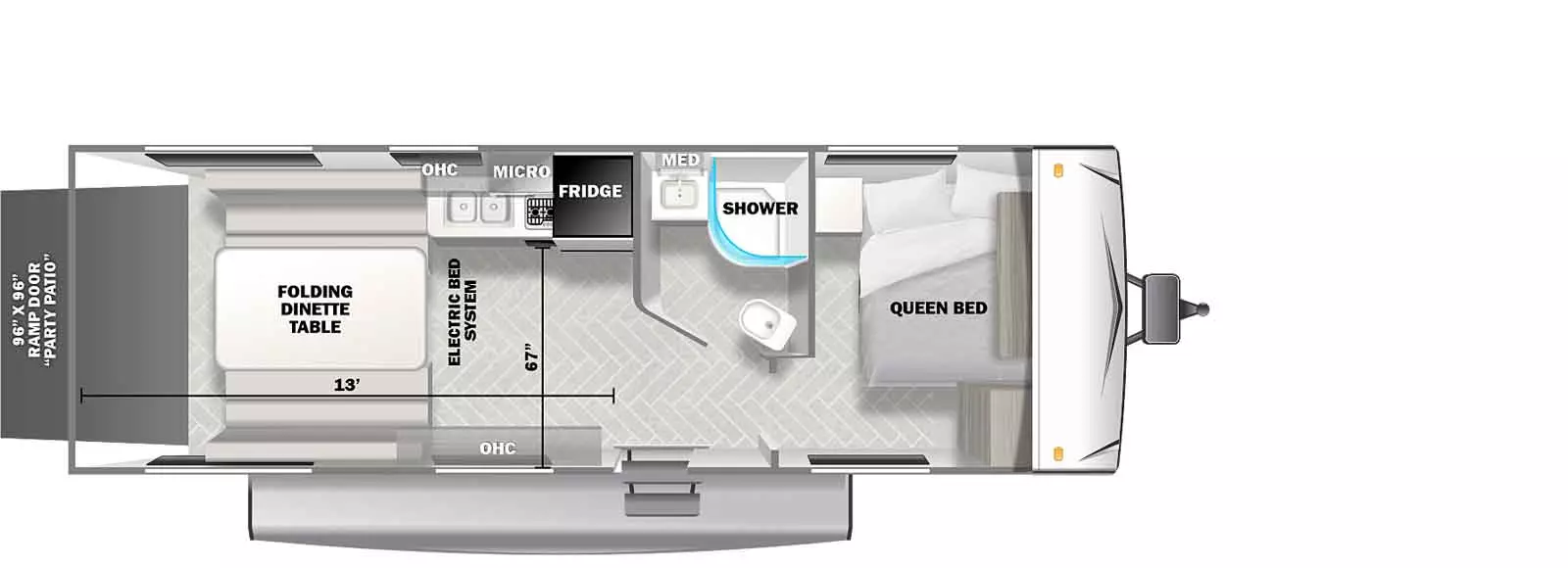

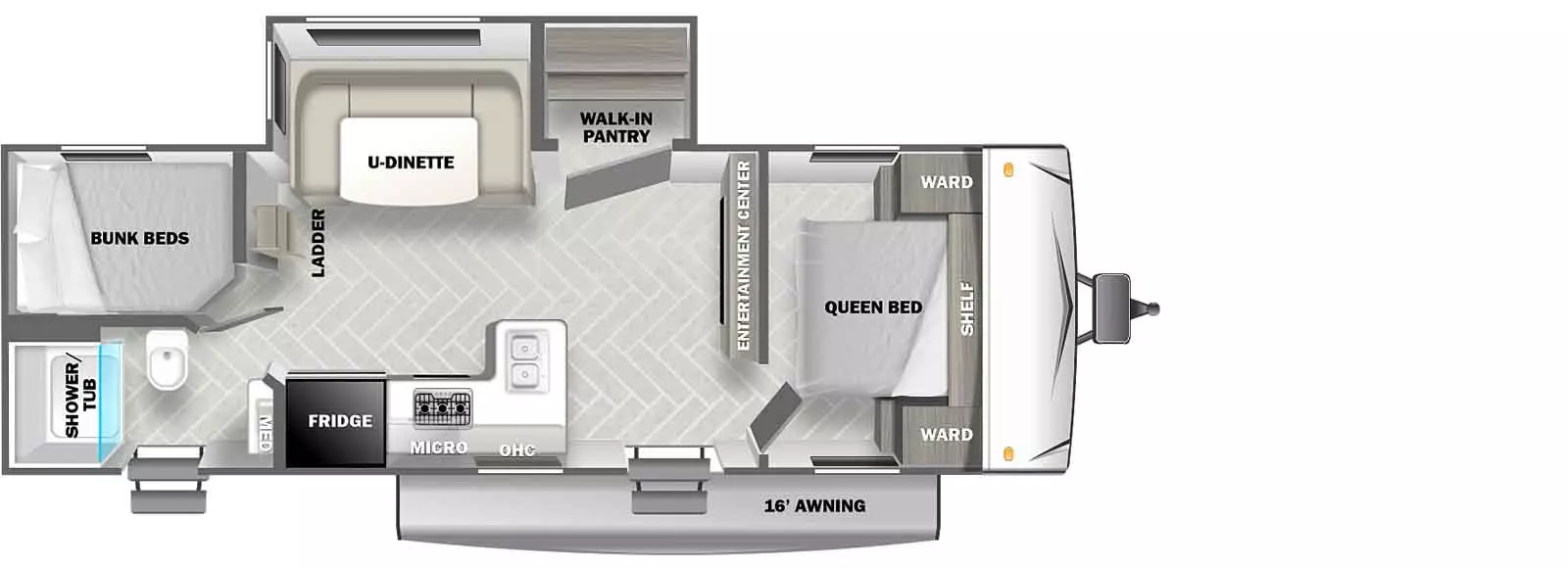

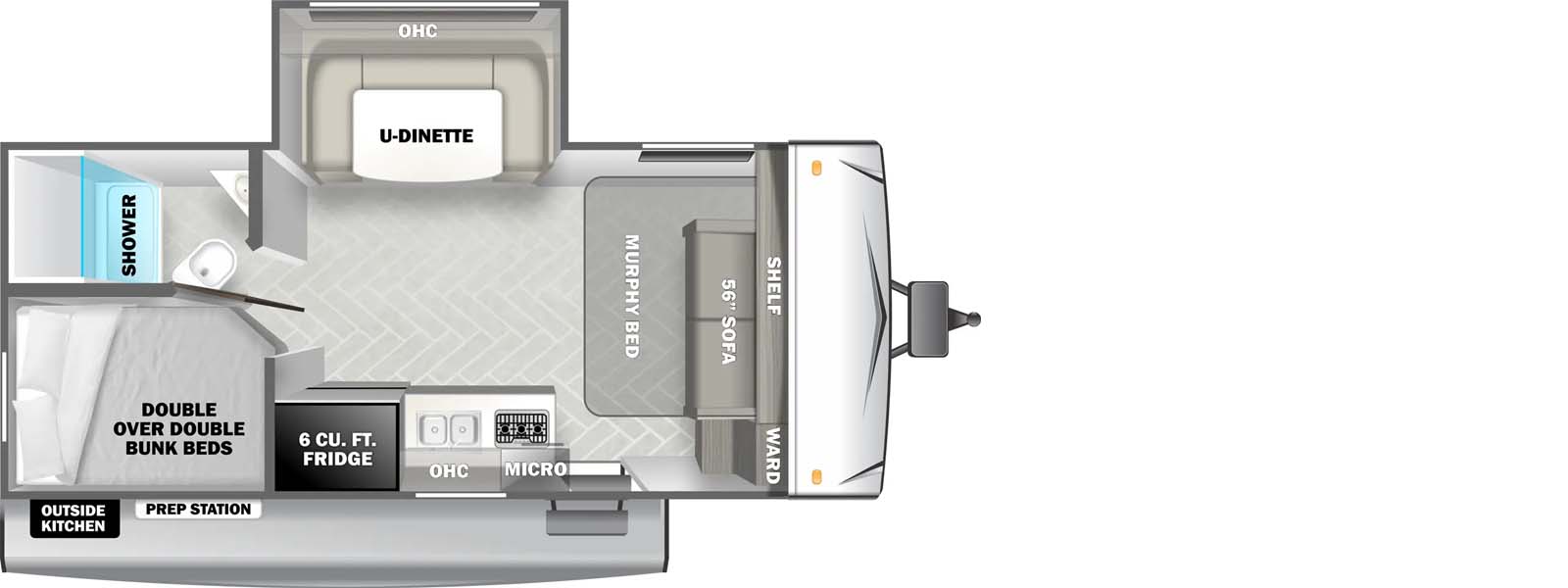

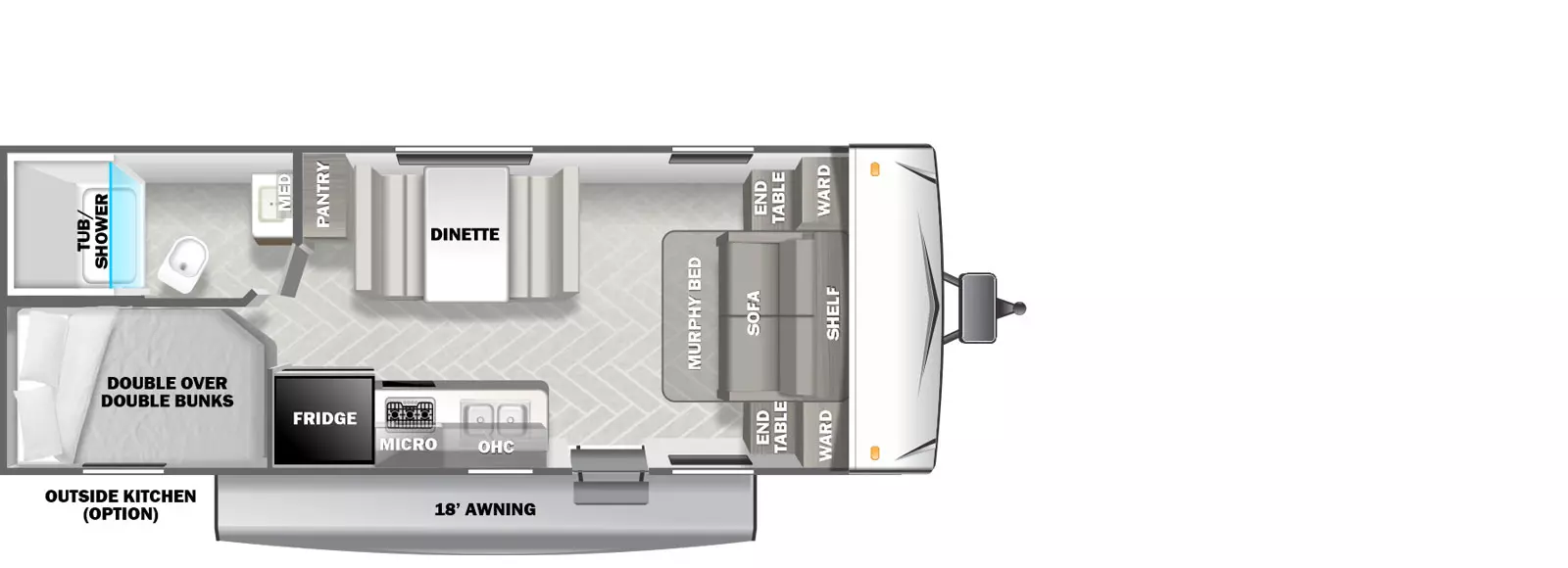

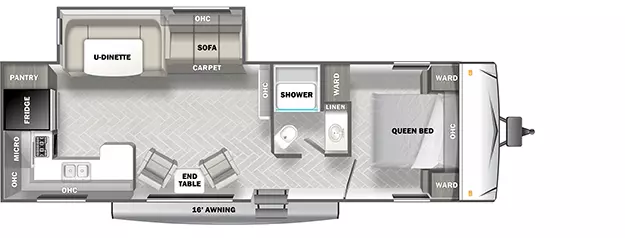

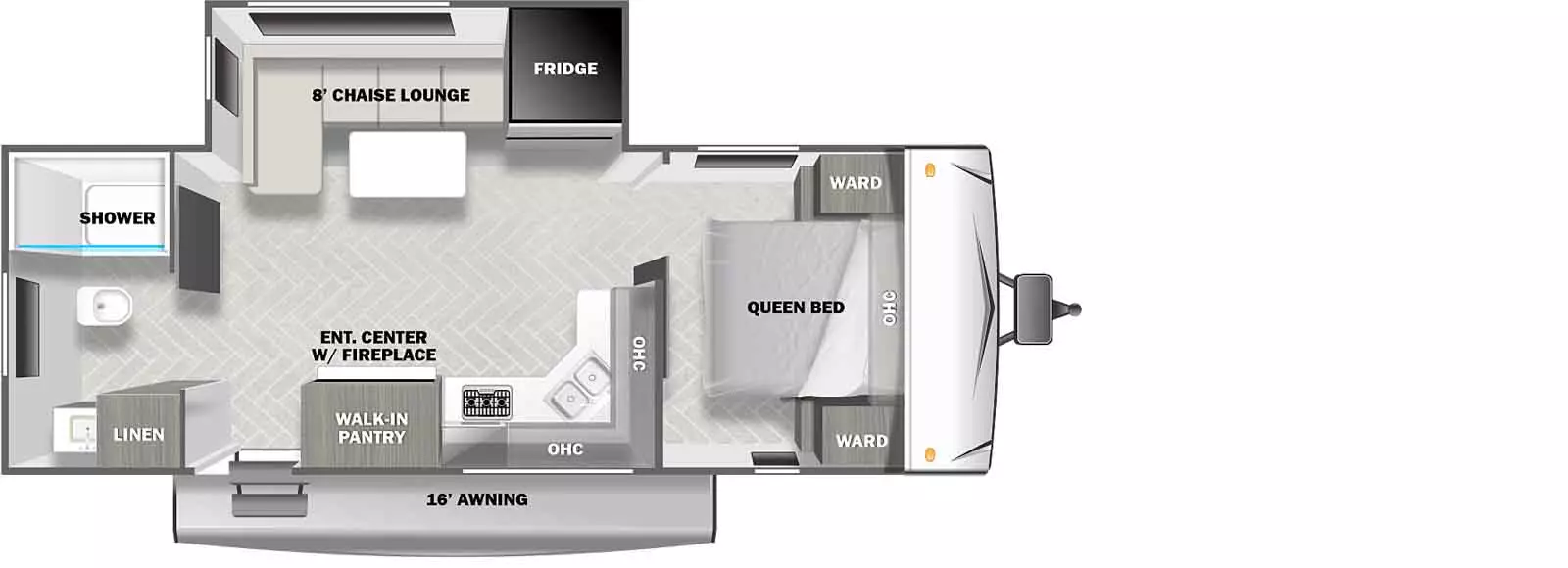

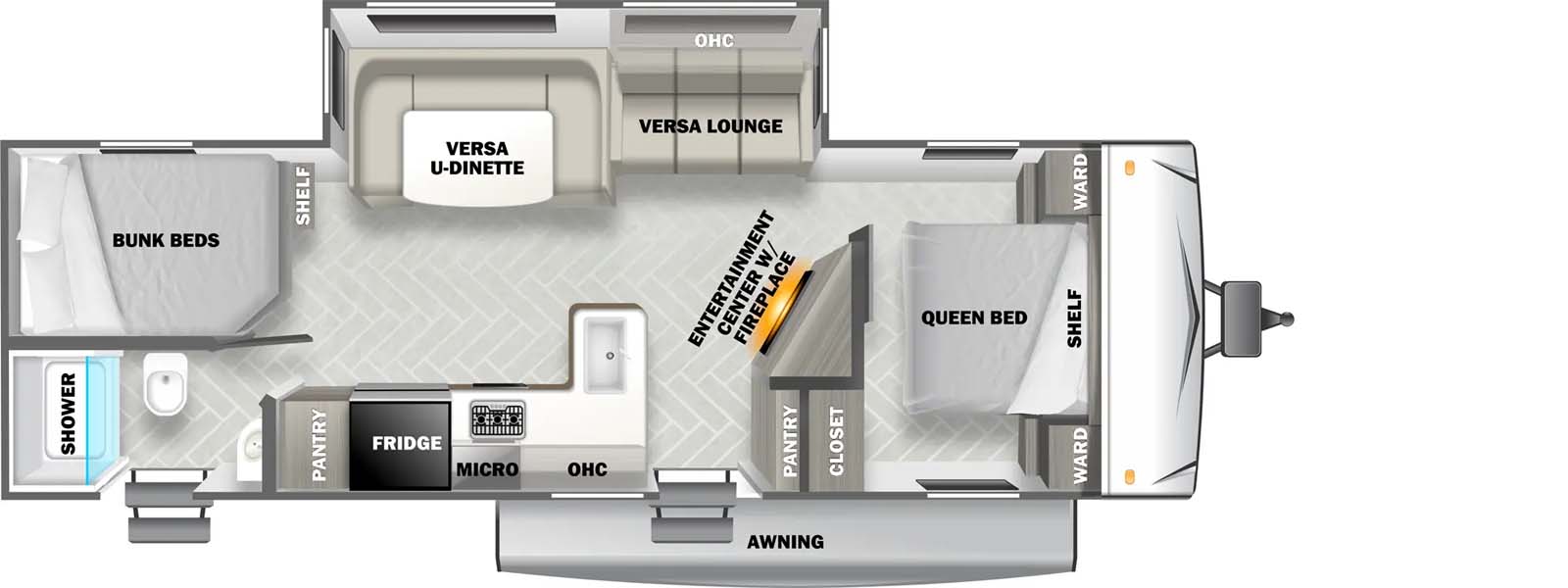

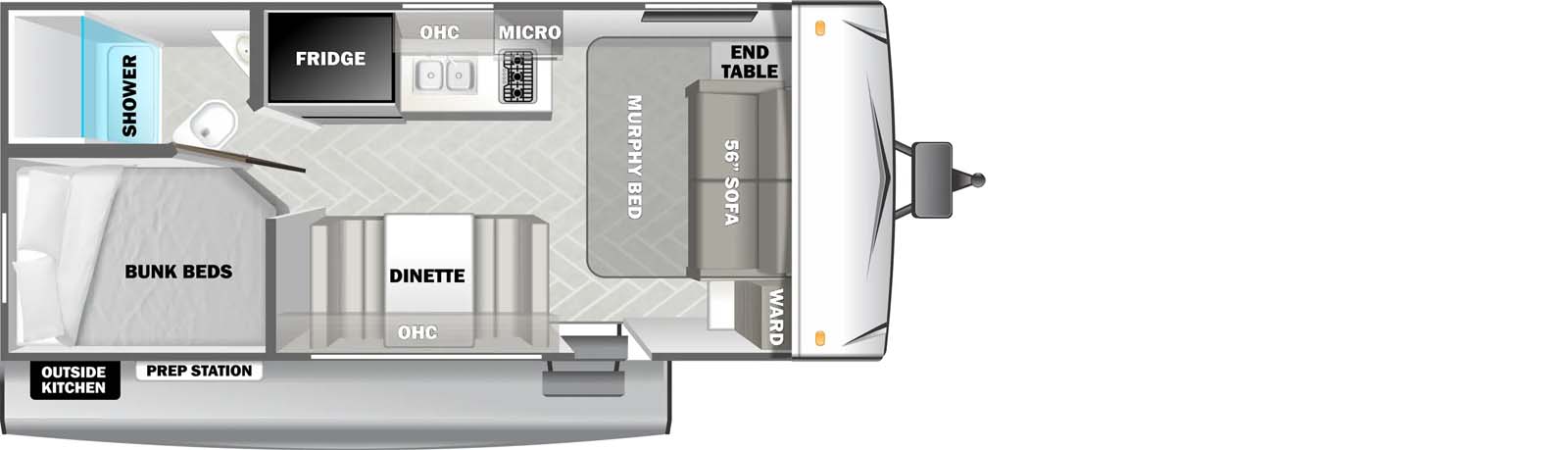

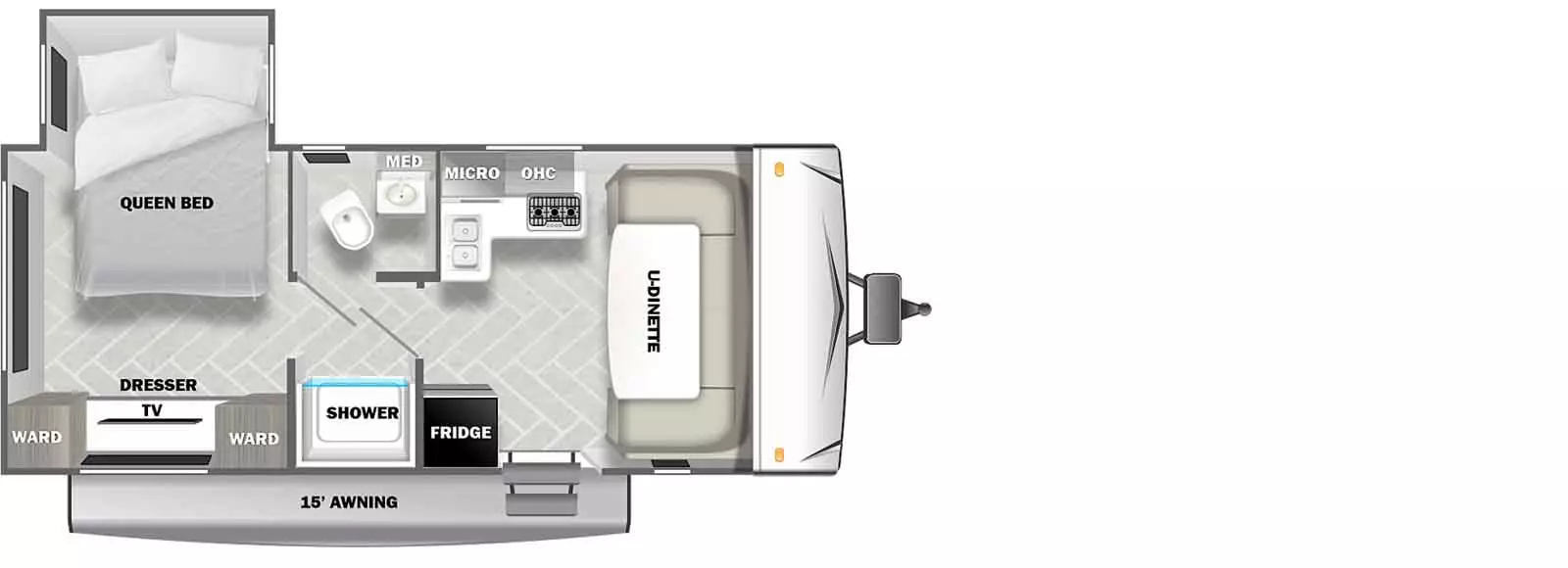

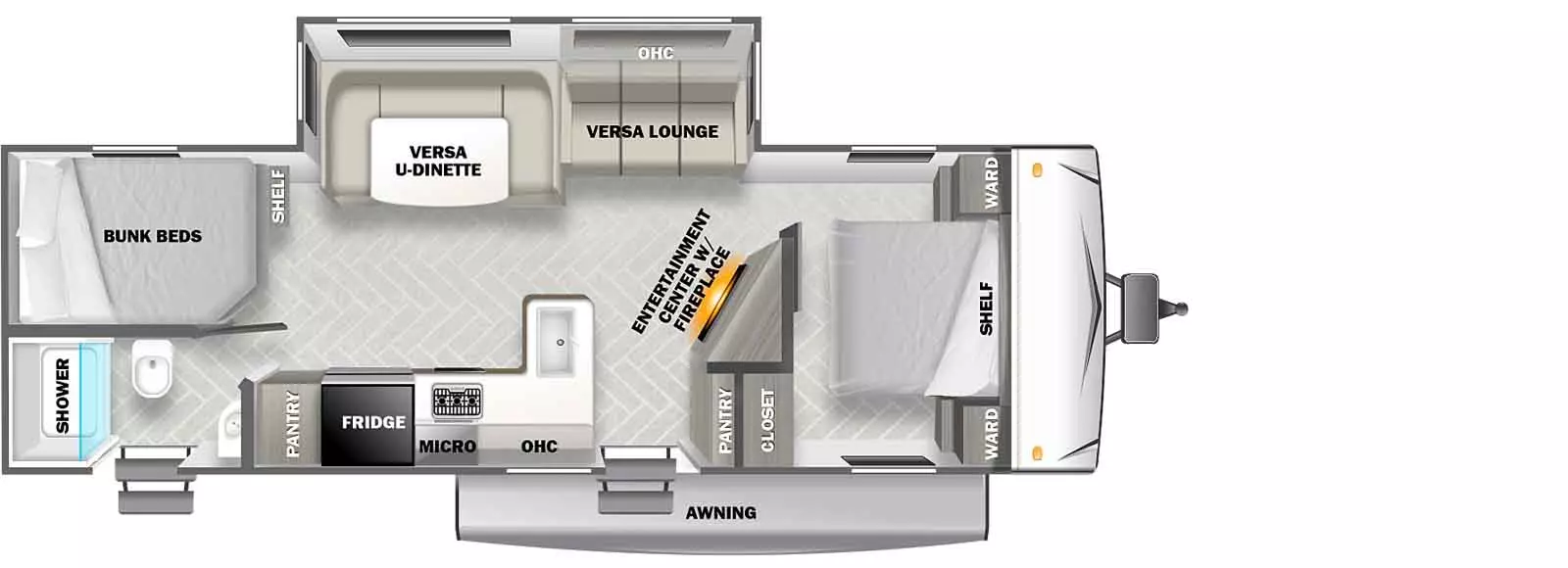

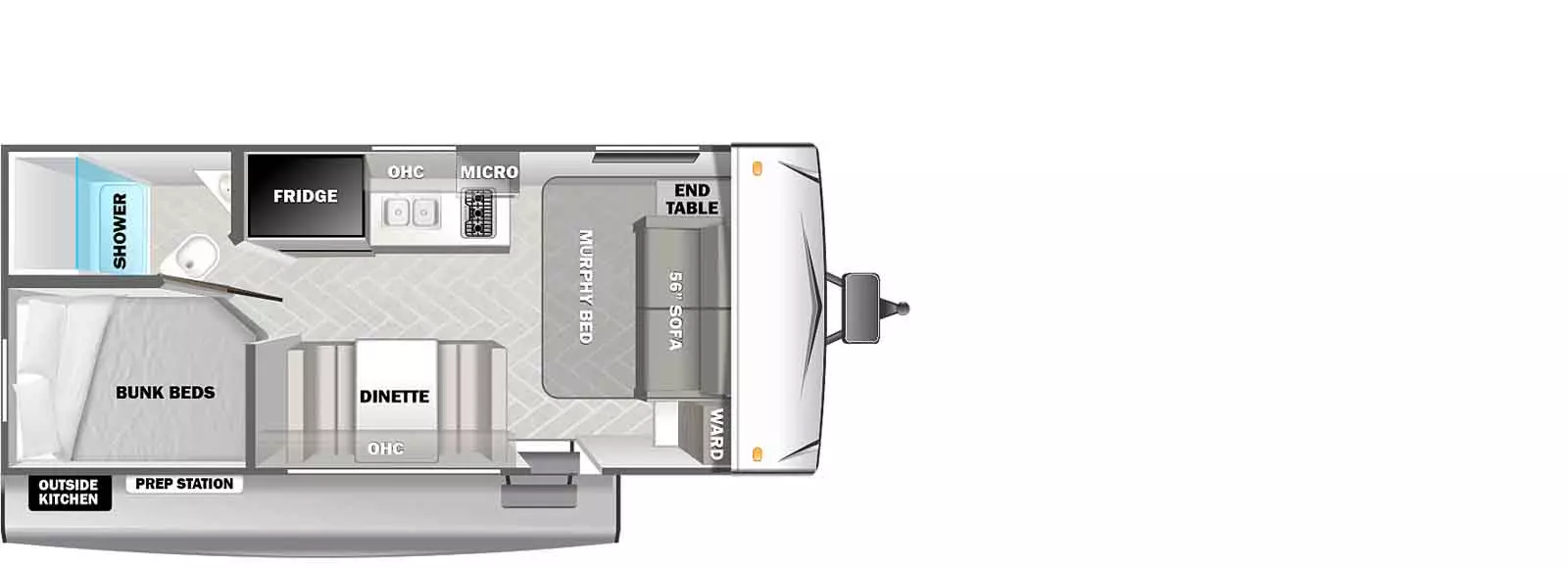

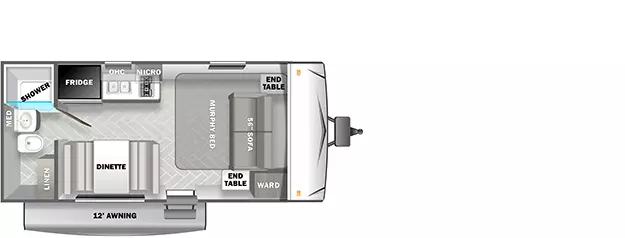

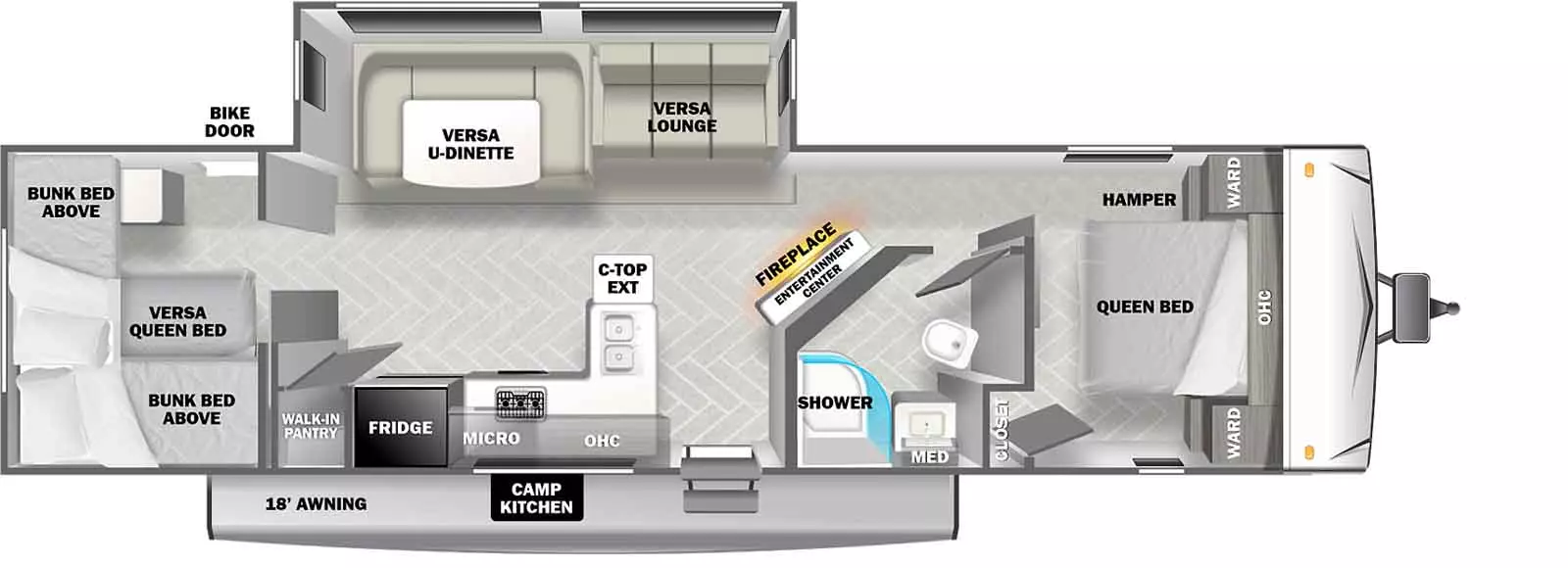

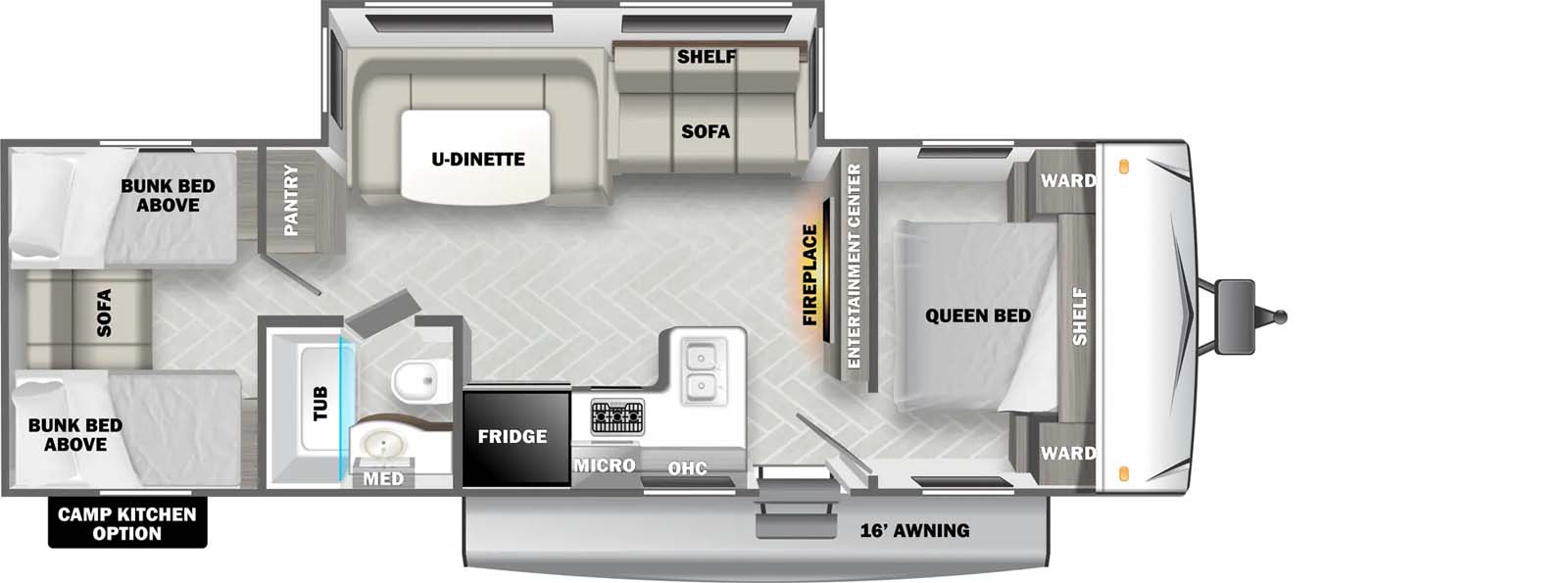

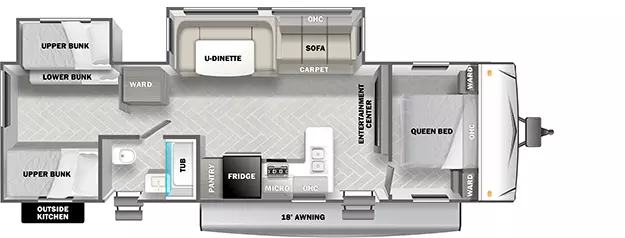

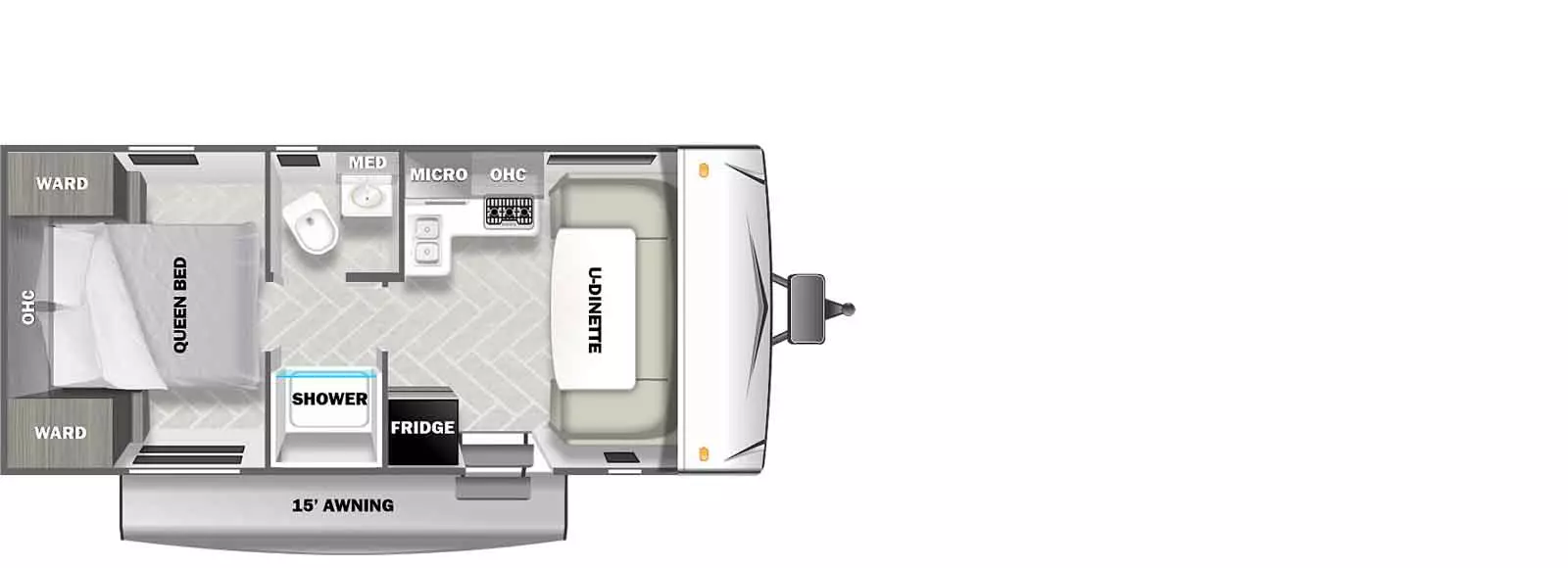

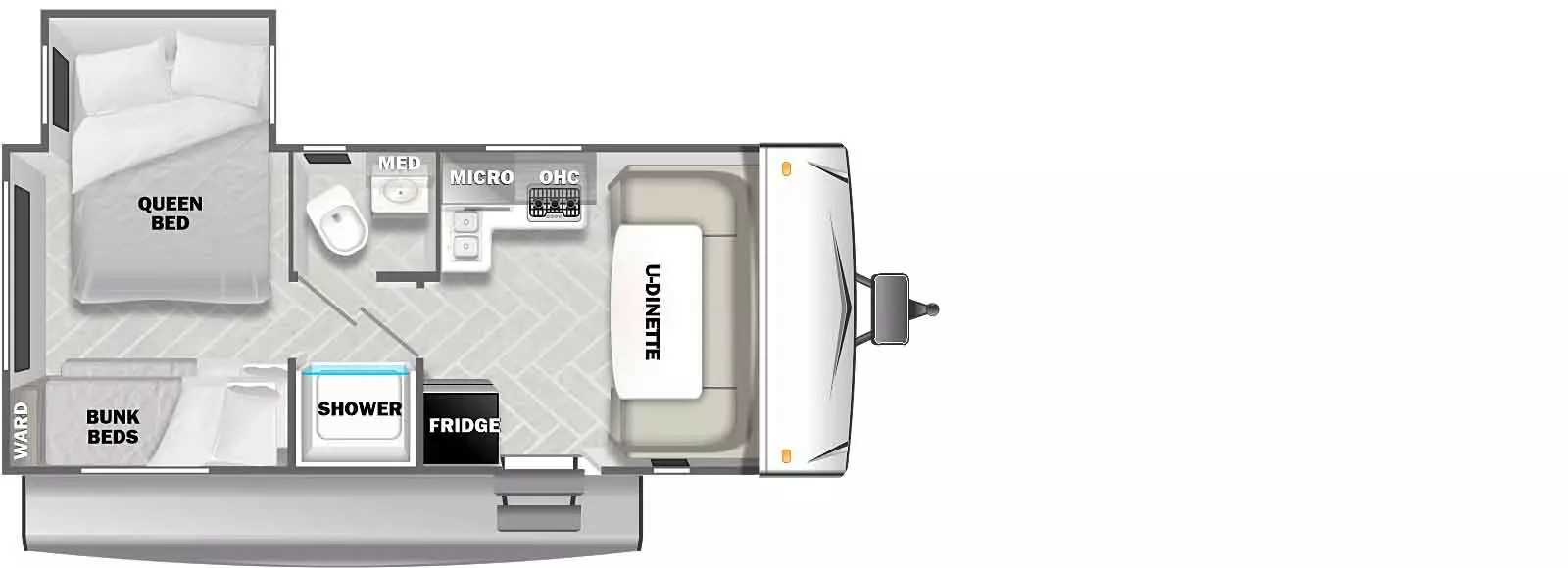

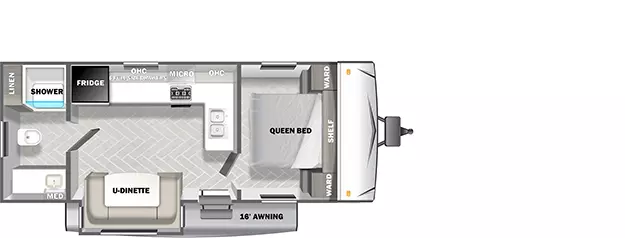

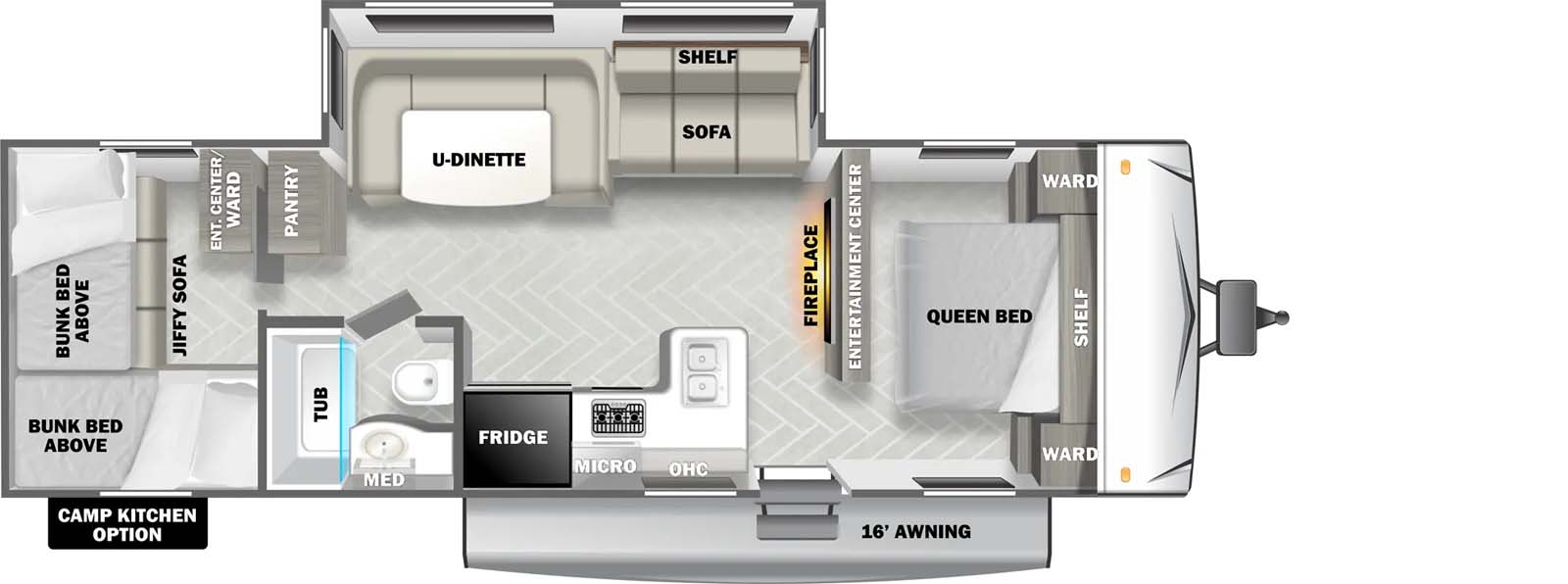

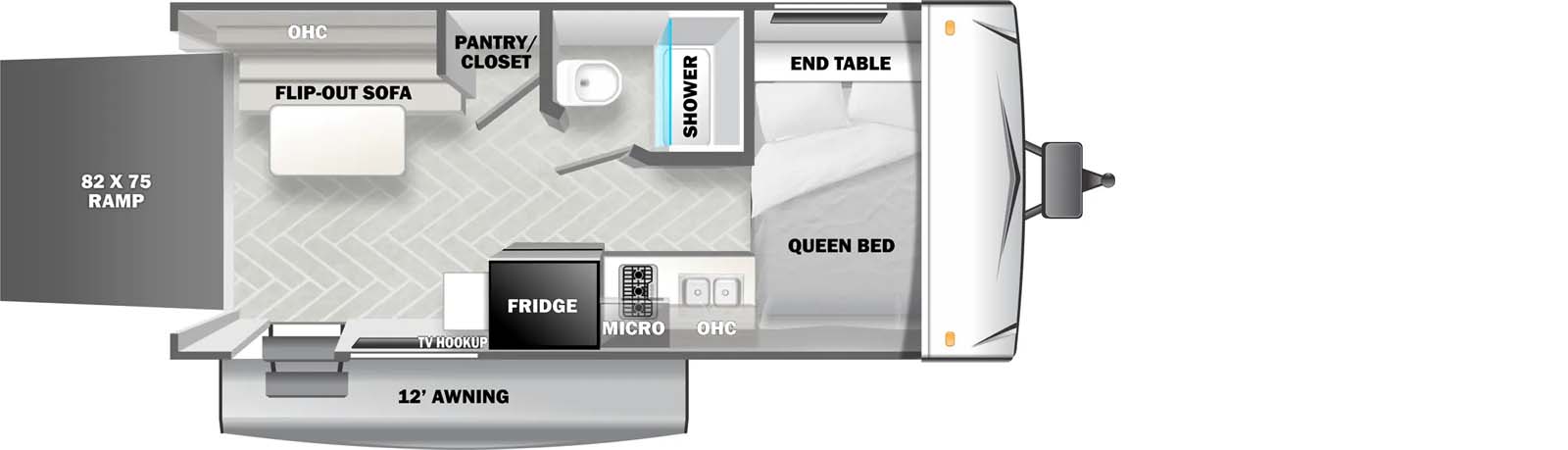

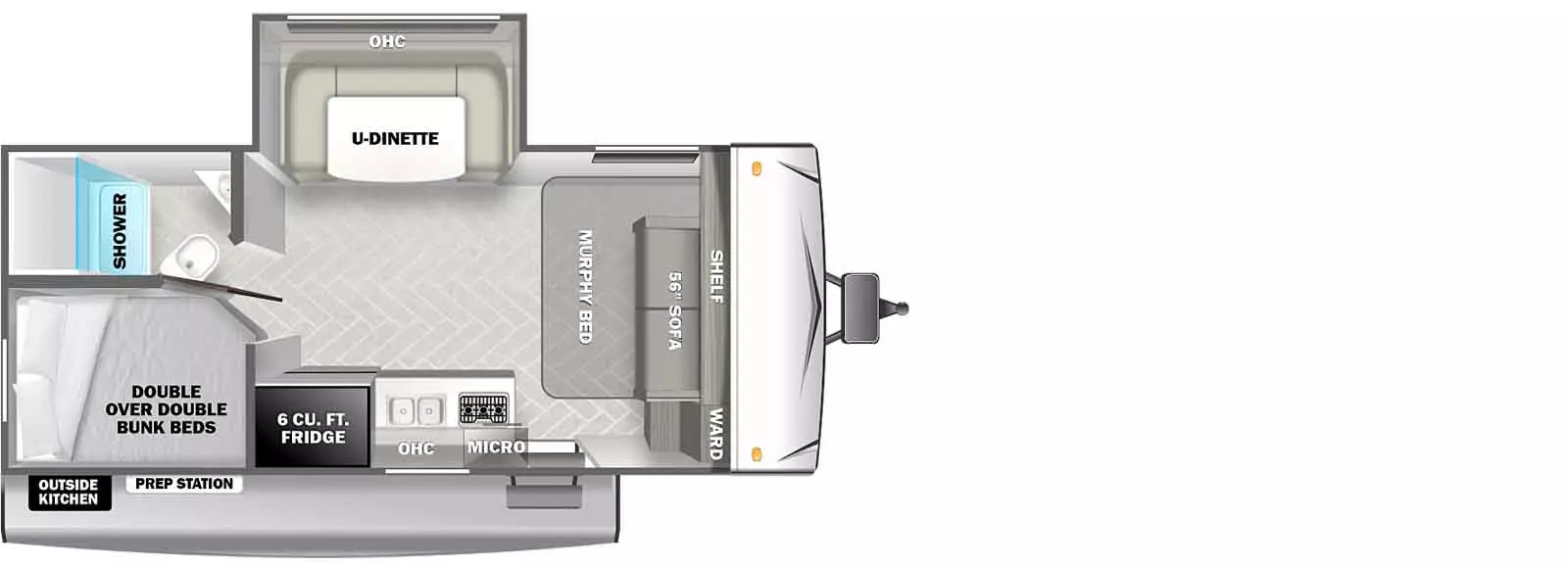

Floorplan: 2230RB : Evo Elite 2740BH : Evo Elite 2960VB : Evo Elite 2110RTX : Evo Lites 2160RBX : Evo Lites 2200RBX : Evo Lites 2260BHX : Evo Lites 2400BHX : Evo Lites 2460RKX : Evo Lites 2495DBX : Evo Lites 2510RTX : Evo Lites 2700BHX : Evo Lites 2750QBX : Evo Lites 2985VBX : Evo Lites 162QK : Evo Selects 169RS : Evo Selects 176QB : Evo Selects 178BHS : Evo Selects 178RT : Evo Selects 179DB : Evo Selects 180SS : Evo Selects 177FQ - DSO : Dealer Stock Only 2360RK - DSO : Dealer Stock Only 2445RB - DSO : Dealer Stock Only 2791RK - DSO : Dealer Stock Only 3250BH - DSO : Dealer Stock Only
Hitch Weight:775 lb.834 lb.874 lb.689 lb.582 lb.TBD605 lb.625 lb.585 lb.738 lb.732 lb.794 lb.749 lb.740 lb.488 lb.580 lb.530 lb.485 lb.510 lb.489 lb.536 lb.428 lb.577 lb.658 lb.726 lb.955 lb.
GVWR:7,775 lb.9,634 lb.9,674 lb.8,489 lb.7,582 lb.TBD7,605 lb.7,625 lb.7,585 lb.7,738 lb.8,532 lb.7,794 lb.8,549 lb.8,540 lb.4,888 lb.4,980 lb.4,930 lb.4,885 lb.4,910 lb.4,889 lb.4,936 lb.4,328 lb.7,577 lb.7,658 lb.9,526 lb.11,155 lb.
UVW:5,625 lb.7,008 lb.7,396 lb.5,487 lb.4,794 lb.TBD4,643 lb.5,469 lb.5,491 lb.5,538 lb.5,710 lb.6,254 lb.6,737 lb.6,398 lb.3,594 lb.4,017 lb.3,943 lb.3,866 lb.3,478 lb.3,442 lb.3,944 lb.3,182 lb.5,780 lb.5,421 lb.7,228 lb.8,228 lb.
CCC:2,150 lb.2,626 lb.2,278 lb.3,002 lb.2,788 lb.TBD2,962 lb.2,156 lb.2,094 lb.2,200 lb.2,822 lb.1,540 lb.1,812 lb.2,142 lb.1,294 lb.963 lb.987 lb.1,019 lb.1,432 lb.1,447 lb.992 lb.1,146 lb.1,797 lb.2,237 lb.2,298 lb.2,927 lb.
Exterior Length:27' 0"33' 8"36' 0"27' 10"25' 6"TBD27' 6"28' 11"29' 1"28' 3"30' 1"32' 1"33' 8"33' 10"23' 6"23' 1"23' 1"22' 11"21' 8"22' 5"22' 8"22' 3"29' 1"26' 8"33' 8"36' 7"
Exterior Height:11' 0"11' 2"11' 2"11' 8"10' 8"TBD10' 6"10' 8"10' 8"10' 8"11' 8"10' 8"10' 8"10' 8"10' 2"10' 8"10' 8"10' 8"10' 2"10' 2"10' 8"10' 2"11' 3"10' 8"10' 3"11' 5"
Exterior Width:96"96"96"96"96"TBD96"96"96"96"96"96"96"96"90"90"90"90"90"90"90"90"96"96"96"96"
Fresh Water:61.00 gal.61.00 gal.61.00 gal.61.00 gal.39.00 gal.TBD39.00 gal.40.00 gal.61.00 gal.61.00 gal.61.00 gal.61.00 gal.61.00 gal.61.00 gal.39.00 gal.39.00 gal.39.00 gal.38.00 gal.38.00 gal.38.00 gal.39.00 gal.38.00 gal.61.00 gal.61.00 gal.61.00 gal.61.00 gal.
Gray Water:64.00 gal.75.00 gal.75.00 gal.32.00 gal.32.00 gal.TBD64.00 gal.64.00 gal.64.00 gal.60.00 gal.32.00 gal.74.00 gal.32.00 gal.32.00 gal.27.00 gal.27.00 gal.27.00 gal.27.00 gal.27.00 gal.27.00 gal.27.00 gal.30.00 gal.66.00 gal.74.00 gal.75.00 gal.60.00 gal.
Black Water:32.00 gal.32.00 gal.32.00 gal.32.00 gal.42.00 gal.TBD28.00 gal.32.00 gal.40.00 gal.32.00 gal.32.00 gal.32.00 gal.42.00 gal.40.00 gal.32.00 gal.32.00 gal.32.00 gal.27.00 gal.30.00 gal.27.00 gal.27.00 gal.30.00 gal.42.00 gal.32.00 gal.33.00 gal.32.00 gal.
Awning Size:16'18'18'18'14'18'14'14'17'12'18'15'16'16'15'15'15'TBD12'14'12'12'16'18'16'18'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print
  • Pot & Pan Drawer Under one Dinette Seat
  • 13.5 Ducted A/C with Quick Cool
  • XL Grab Handle
  • Heated & Enclosed Fresh Water Tank
  • E-Z Lube Axles
  • Self-Adjusting Brakes
  • Full Extension Ball Bearing Drawer Guides
  • Central Switch Command Center
  • (2) Outside Speakers
  • Radius Entry Door
  • 6 Gal. Gas/Electric DSI Water Heater
  • Radial Tires
  • 2 Pots & Pans Drawers (N/A on Some Models)
  • Sink Cover
  • Flip-Up Countertop Extension (N/A on some Models)
  • Foot Flush Toilet
  • Skylight over Tub
  • Coat Rack
  • Cable TV Hookup
  • LP Quick Disconnect
  • Black Tank Flush
  • Radial Tires
  • Spare Tire & Carrier
  • Outside Shower
  • Teddy Bear Bunk Mats (N/A on Non-Bunk Models)
  • Upgraded Hidden Hinges
  • Battery Disconnect
  • Extra Large Panoramic Window Package in Main Slide
  • 8 cu. Ft. Gas/Electric Refrigerator
  • Power Awning w/ Adjustable Legs
  • Power Tongue Jack
  • Solidstep Triple Step (Main Entrance Only)
  • Stabilizer Jacks
  • External LED Strip Lighting
  • Exterior Convenience Package: Friction Hinge Entry Door, Magnetic Latches on Baggage Doors
  • Green Package: Solar Prep & LED Interior Lighting
  • Solid Surface Countertop w/ Undermount Sink
  • USB Port Package
  • Bluetooth Stereo
  • Upgraded Pillowtop Mattress
  • Upgraded Appliance Package
  • Designer Spring Faucet
  • Electric Fireplace w/ Crystals (Not available on All Models)
  • Modern Cloth Roller Shades w/ Autostop (Living room & Bedroom)
  • Astro Foil (Ceiling & Floor)
  • Heated & Enclosed Tanks with 12V Heat Strips
  • Astro Foil (Ceiling & Floor)
  • E-Z Lube Axles
  • Self-Adjusting Brakes
  • Full Extension Ball Bearing Drawer Guides
  • Central Switch Command Center
  • (2) Outside Speakers
  • Radius Entry Door
  • Water Heater Gas DSI 6 Gal
  • Range with Oven IPO Cooktop
  • 2 Pots & Pans Drawers (N/A on Some Models)
  • Sink Cover
  • Flip-Up Countertop Extension (N/A on some Models)
  • Foot Flush Toilet
  • Skylight over Tub
  • Coat Rack
  • Cable TV Hookup
  • LP Quick Disconnect
  • Black Tank Flush
  • Radial Tires
  • Spare Tire & Carrier
  • Outside Shower
  • Teddy Bear Bunk Mats (N/A on Non-Bunk Models)
  • Upgraded Hidden Hinges
  • Battery Disconnect
  • Extra Large Panoramic Window Package in Main Slide
  • 8 cu. Ft. Gas/Electric Refrigerator
  • Power Awning w/ Adjustable Legs
  • Power Tongue Jack
  • Solidstep Double Step (Main Entrance Only)
  • Stabilizer Jacks
  • External LED Strip Lighting
  • Exterior Convenience Package: Friction Hinge Entry Door, Magnetic Latches on Baggage Doors
  • Green Package: Solar Prep & LED Interior Lighting
  • Solid Surface Countertop w/ Undermount Sink
  • USB Port Package
  • Bluetooth Stereo
  • Upgraded Appliance Package
  • Electric Fireplace w/ Crystals (Not available on All Models)
  • Modern Cloth Roller Shades w/ Autostop (Living room & Bedroom)
  • Enclosed Heated Tanks with 12V Heat Strips
  • E-Z Lube Axles
  • A/C 13.5 or Roof Vent
  • 7.5' Wide for Easy Towing
  • 78" Interior Height
  • Upgraded Tuffcoat Aluminum Exterior
  • Diamond-Plated Rock Guard on Front
  • 26" Entry Doors (IPO 22" Standard)
  • Upgraded Large 32"x16" Baggage Doors
  • Roller Shades
  • High Rise Kitchen Faucet
  • Solid Wood Drawer Sides w/ Ball Bearing Guides
  • 6 Gallon DSI Gas Water Heater
  • TV Backer w/ Hookups
  • 30 Amp Service
  • (1) 20 lb. LP Tank
  • 20K BTU Furnace
  • Microwave
  • 2-Burner Cooktop
  • Cable Satellite TV Ready
  • Double Door 6 cu. ft. RV Refrigerator
  • Foot Flush Toilet
  • Power Vent
  • Radial Tires
  • Spare Tire & Carrier
  • Tub Surround
  • TV Antenna w/ Booster
  • Exterior Convenience Package: Double Entry Step, Friction Hinge Door, Magnetic Latches on Baggage Doors, and XL Grab Handle
  • LED Strip Lighting
  • Green Package: Solar Prep & LED Interior Lighting
  • Portable FM/Bluetooth Stereo
  • Power Awning w/ Adjustable Legs
  • Seamless Countertop
  • Upgraded Appliance Package
  • Mattress
  • USB Port Package

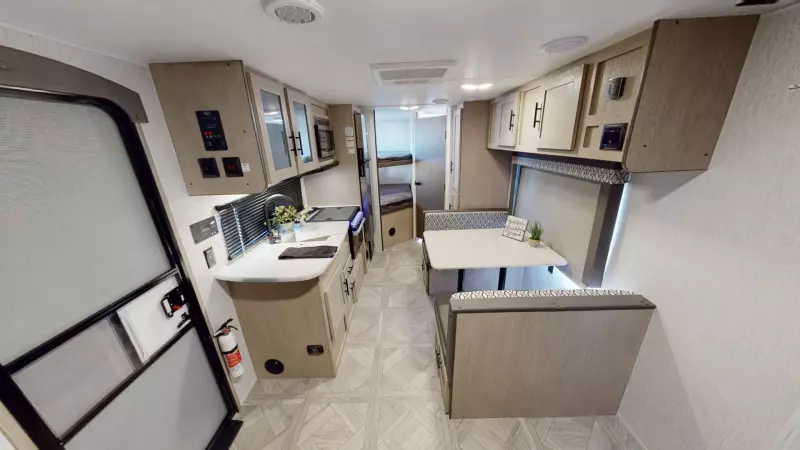

Virtual Tours

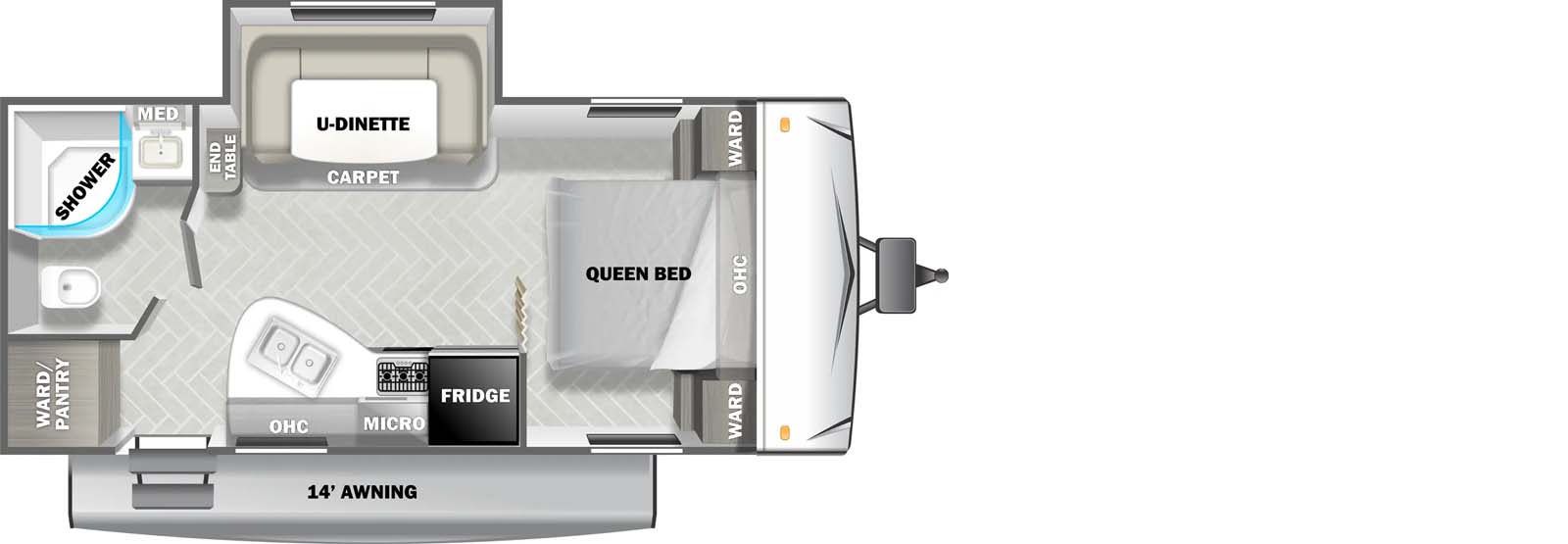

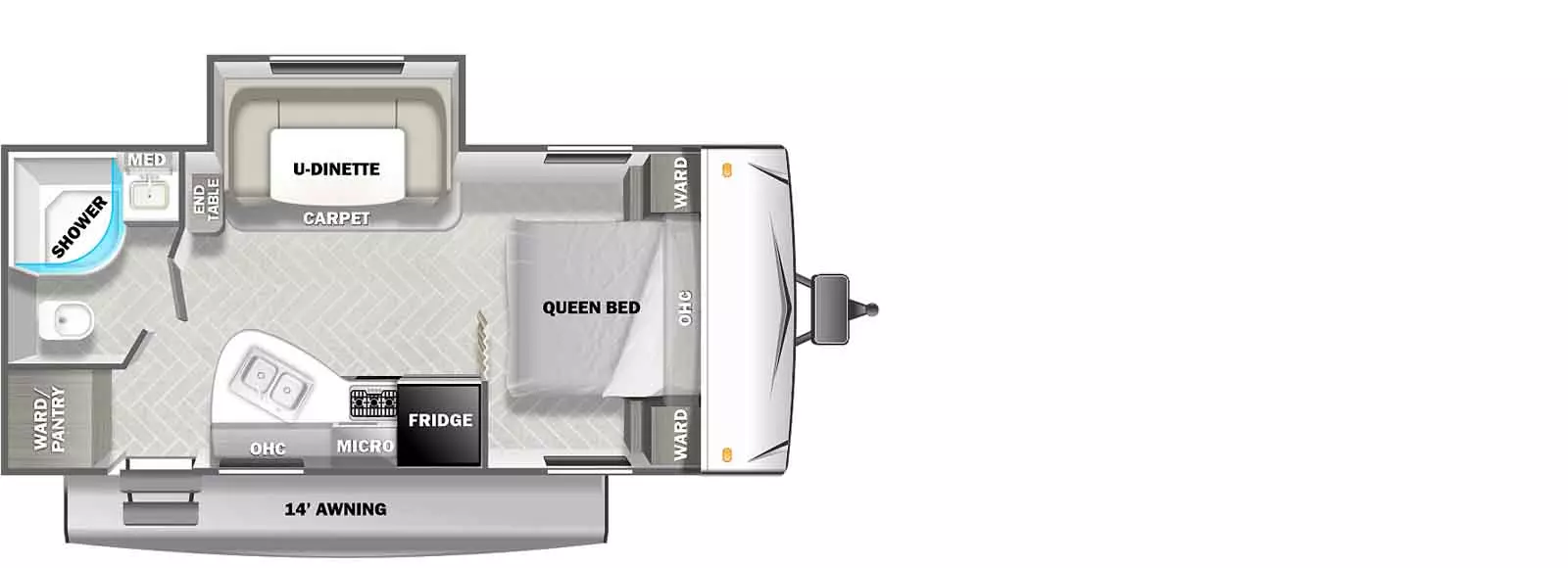

  • 2160RBX
    2160RBX Main Room

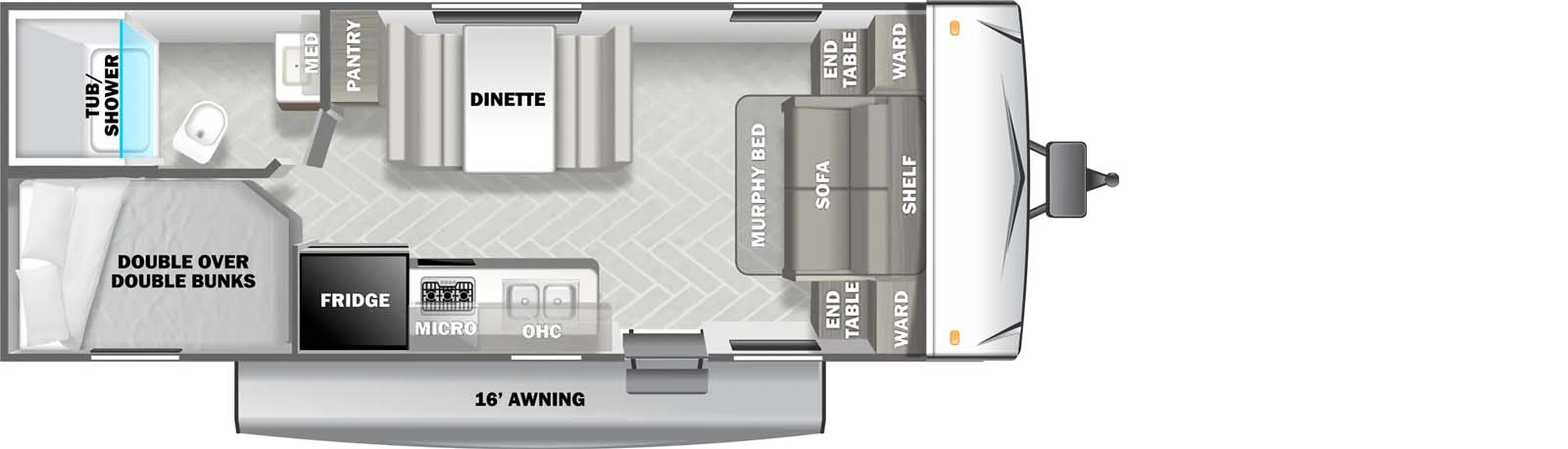

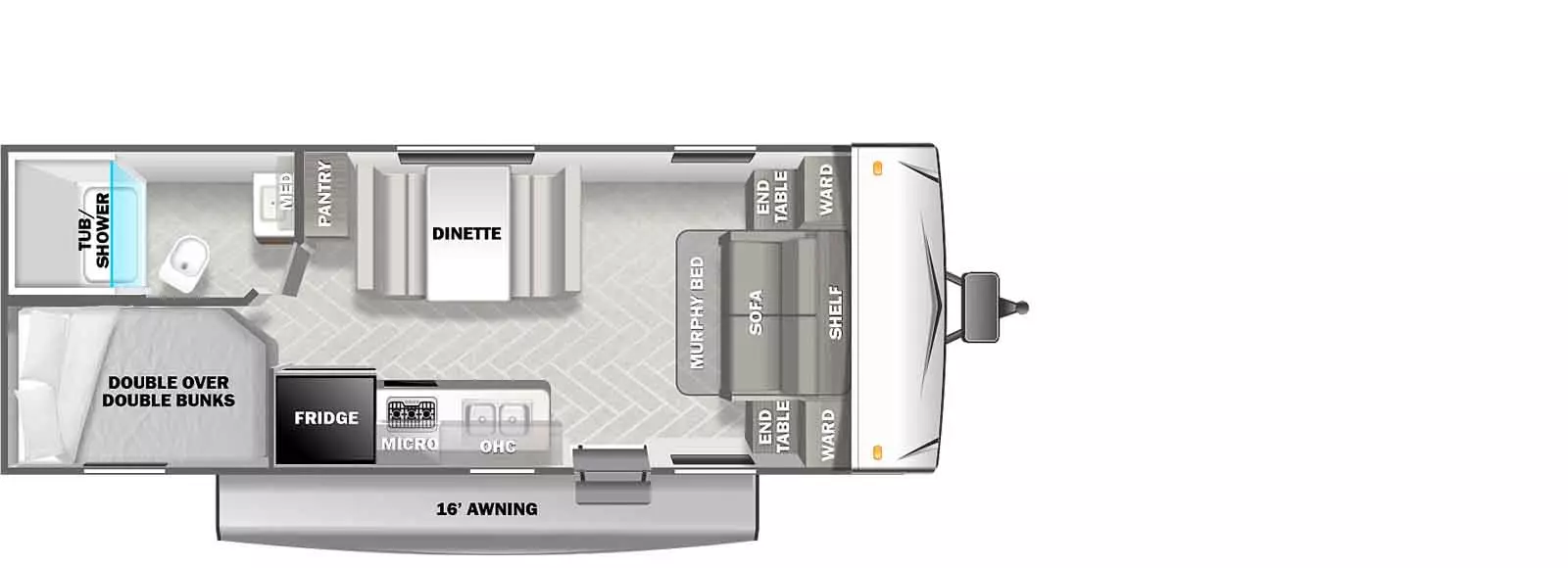

  • 2260BHX
    2260BHX Main Room


Videos

Some videos may show features or options not available on all products. Contact our service representatives or your local dealer if you have questions about how your specific RV operates.
