EVO Southwest Travel Trailers

Our eye catching interiors have been painstakingly designed and developed by industry specialists with form, function and style in mind. Attention to detail is what sets Evo apart from the rest.

Care Camps, fighting cancer and making memories

We love our EVO trailer and can’t wait to take her out again! - Maerie L.




We love our Evo T2490. It’s allowed us to travel with our three dogs and 2 year old son. It’s floorplan allows for organization and plenty of sleeping area for everyone. - Nathan M.

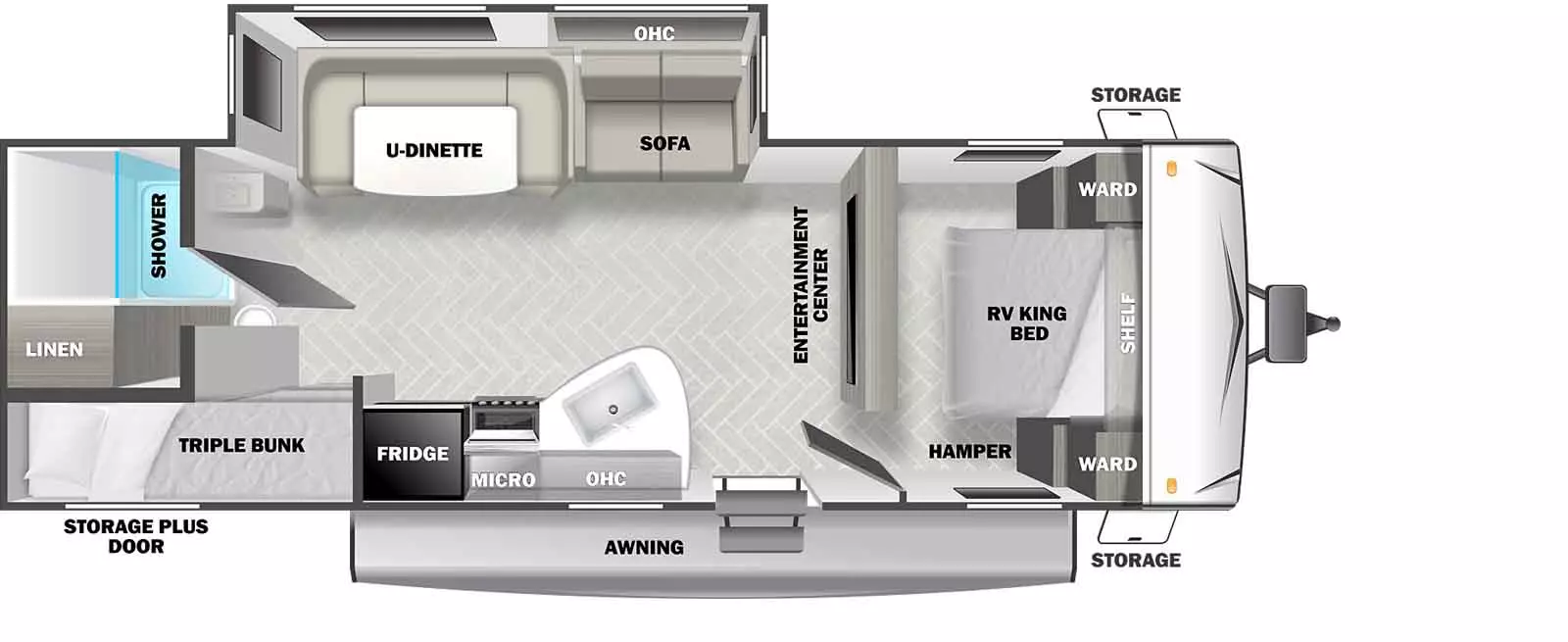

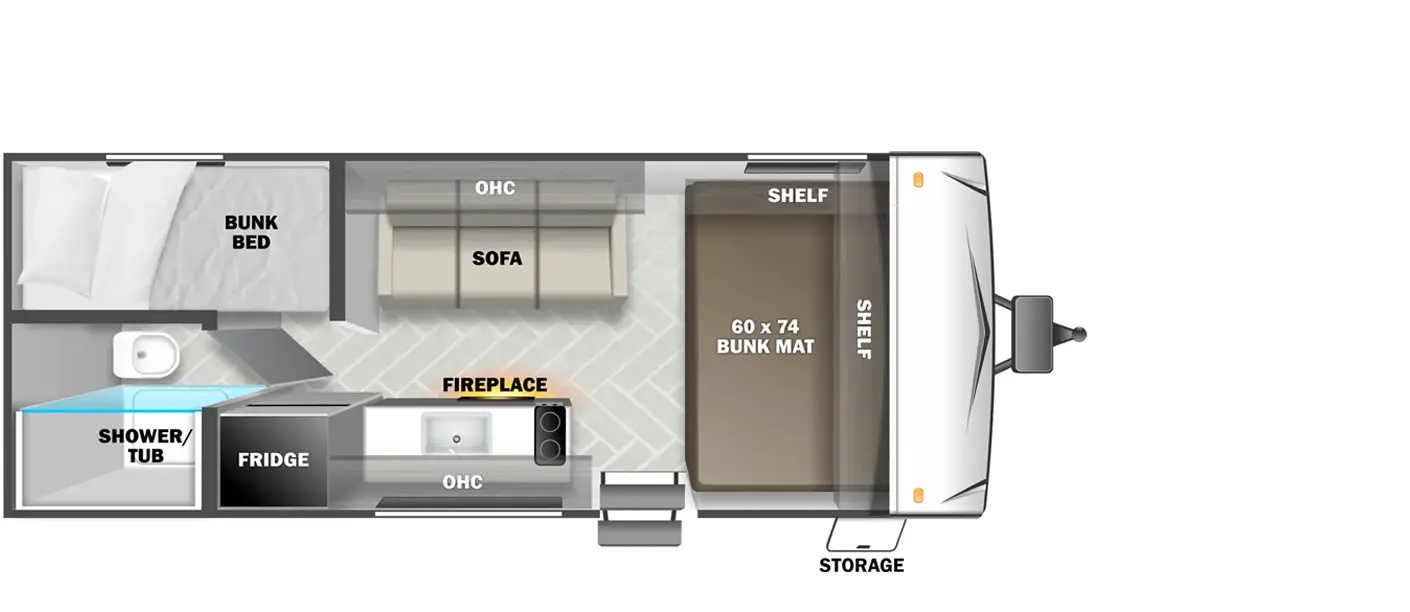

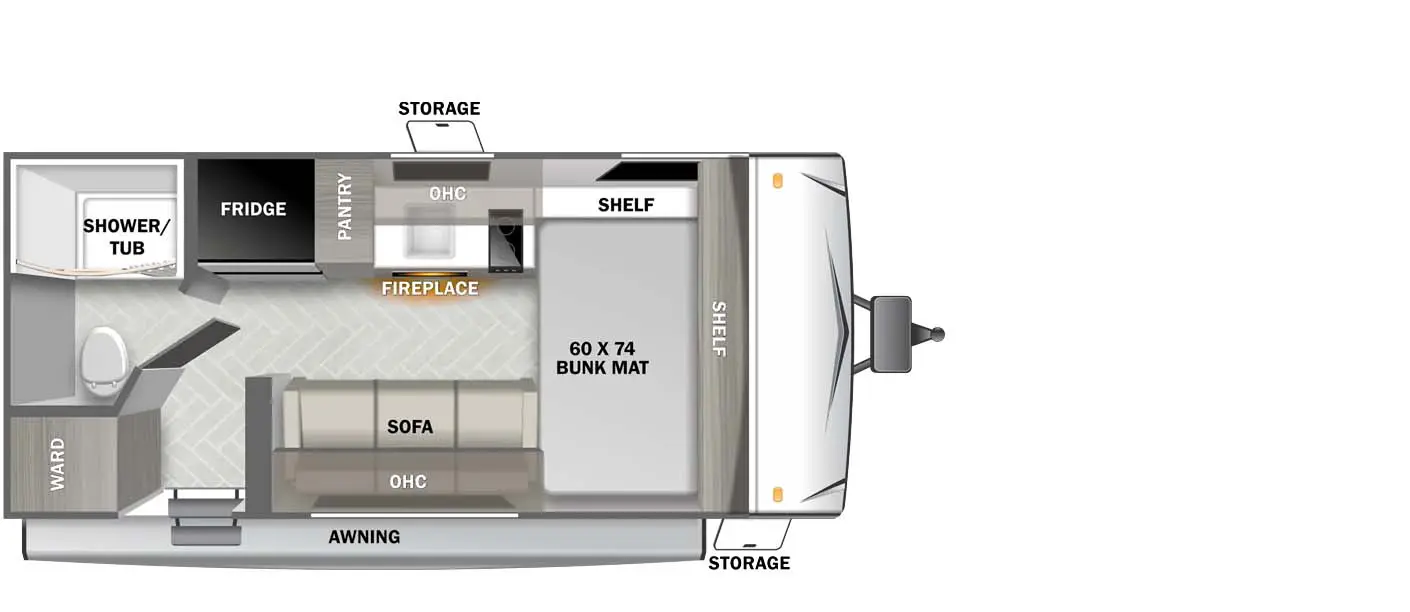

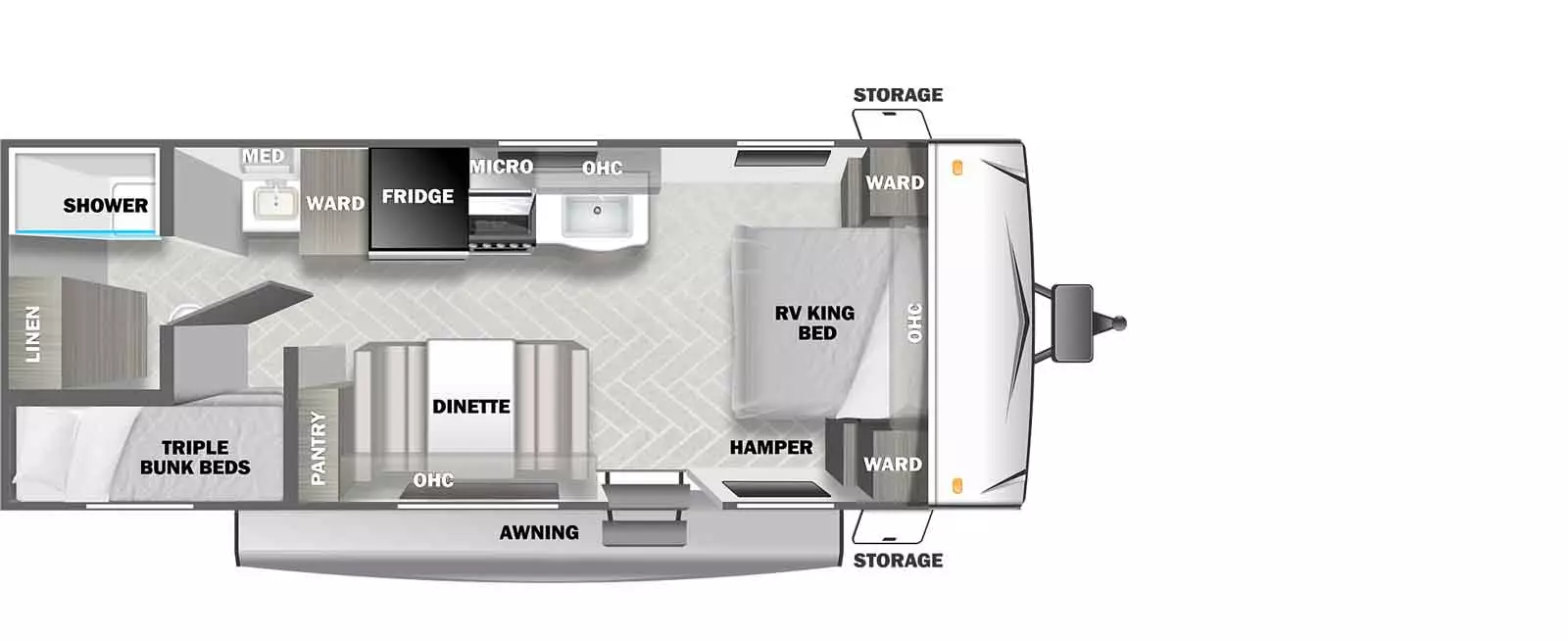

Floorplans

Print

EVO Factory Select Travel Trailers
EVO Travel Trailers


Specifications

Print

Floorplan: 177BQ : EVO Factory Select Travel Trailers 177FQ : EVO Factory Select Travel Trailers 178DB : EVO Factory Select Travel Trailers 197SS : EVO Factory Select Travel Trailers 208RD : EVO Factory Select Travel Trailers 228RK : EVO Factory Select Travel Trailers 267SS : EVO Factory Select Travel Trailers 268BH : EVO Factory Select Travel Trailers T1850 : EVO Travel Trailers T2160 : EVO Travel Trailers T2250 : EVO Travel Trailers T2360 : EVO Travel Trailers T2460 : EVO Travel Trailers T2490 : EVO Travel Trailers T2500 : EVO Travel Trailers T2550 : EVO Travel Trailers T2560 : EVO Travel Trailers T2600 : EVO Travel Trailers T2610 : EVO Travel Trailers T2650 : EVO Travel Trailers T2700 : EVO Travel Trailers T2792 : EVO Travel Trailers T2800 : EVO Travel Trailers T2850 : EVO Travel Trailers T2990 : EVO Travel Trailers T3250 : EVO Travel Trailers
Hitch Weight:445 lb.430 lb.485 lb.495 lb.565 lb.550 lb.655 lb.545 lb.633 lb.585 lb.608 lb.664 lb.729 lb.820 lb.TBD757 lb.TBD853 lb.TBD866 lb.826 lb.834 lb.1,021 lb.841 lb.923 lb.931 lb.
GVWR:4,845 lb.4,830 lb.5,585 lb.5,595 lb.7,565 lb.7,550 lb.8,455 lb.7,545 lb.7,633 lb.7,585 lb.7,600 lb.7,664 lb.7,729 lb.7,820 lb.TBD7,757 lb.TBD7,853 lb.TBD9,999 lb.9,999 lb.9,999 lb.9,999 lb.9,999 lb.9,999 lb.9,999 lb.
UVW:3,374 lb.3,334 lb.4,033 lb.4,113 lb.4,273 lb.4,708 lb.5,280 lb.4,559 lb.4,935 lb.5,245 lb.5,088 lb.5,910 lb.6,347 lb.5,970 lb.TBD6,515 lb.TBD6,485 lb.TBD7,258 lb.7,108 lb.7,262 lb.8,023 lb.6,917 lb.7,295 lb.8,403 lb.
CCC:1,471 lb.1,496 lb.1,552 lb.1,482 lb.3,292 lb.2,842 lb.3,175 lb.2,986 lb.2,698 lb.2,340 lb.2,512 lb.1,754 lb.1,382 lb.1,850 lb.TBD1,242 lb.TBD1,368 lb.TBD2,741 lb.2,891 lb.2,737 lb.1,976 lb.3,082 lb.2,704 lb.1,596 lb.
Exterior Length:22' 8"22' 8"24' 0"24' 2"25' 10"26' 3"31' 0"28' 8"22' 9"25' 1"27' 3"28' 8"30' 4"29' 6"TBD30' 8"TBD31' 3"TBD33' 1"32' 8"33' 8"35' 0"32' 5"34' 11"36' 7"
Exterior Height:10' 3"10' 3"10' 3"10' 5"10' 5"10' 5"10' 9"10' 5"10' 11"10' 11"10' 11"10' 11"10' 11"10' 11"TBD10' 11"TBD11' 0"TBD11' 3"11' 0"11' 2"11' 3"11' 0"11' 3"11' 2"
Exterior Width:84"84"96"84"96"96"84"96"96"96"96"96"96"96"TBD96"TBD96"TBD96"96"96"96"96"96"96"
Fresh Water:42.00 gal.42.00 gal.42.00 gal.42.00 gal.42.00 gal.42.00 gal.42.00 gal.42.00 gal.50.00 gal.50.00 gal.50.00 gal.50.00 gal.50.00 gal.56.00 gal.TBD50.00 gal.TBD56.00 gal.TBD50.00 gal.50.00 gal.50.00 gal.50.00 gal.50.00 gal.50.00 gal.50.00 gal.
Gray Water:22.00 gal.22.00 gal.28.00 gal.22.00 gal.30.00 gal.52.00 gal.28.00 gal.28.00 gal.35.00 gal.28.00 gal.35.00 gal.75.00 gal.40.00 gal.35.00 gal.TBD75.00 gal.TBD40.00 gal.TBD75.00 gal.75.00 gal.65.00 gal.120.00 gal.75.00 gal.80.00 gal.58.00 gal.
Black Water:22.00 gal.22.00 gal.30.00 gal.22.00 gal.30.00 gal.22.00 gal.22.00 gal.30.00 gal.35.00 gal.32.00 gal.35.00 gal.40.00 gal.35.00 gal.30.00 gal.TBD40.00 gal.TBD40.00 gal.TBD40.00 gal.40.00 gal.28.00 gal.40.00 gal.40.00 gal.35.00 gal.30.00 gal.
Awning Size:14'12'TBD12'14'TBD14'16'14'14'14'16'16'16'TBD16'TBD16'TBDTBD16'16'TBD16'18'18'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print
  • New Roof Mount Solar Prep
  • New Roof Ladder Prep
  • New Cabinets
  • New Countertops and Backsplashes
  • New Linoleum Flooring
  • Camp Kitchens (2850, 2700, 2792, 2990)
  • Ducted 13.5k A/C
  • Power Stabilizer Jacks
  • Versa Queen Bed (3250)
  • Storage Plus Door (2550, 2700, 2792)
  • Bluetooth Stereo with Exterior Speakers
  • Heated and Enclosed Underbelly
  • Lower Front Gravel Guard
  • Pillow Top Mattress
  • Full Walk On Roof
  • Foot Flush Toilet
  • Omni Directional TV Antenna
  • 30k BTU Furnace
  • 6 Gallon Quick Recover Water Heater (16 gal/hour)
  • Microwave w/Carousel
  • 8 cu ft Double Door Refrigerator
  • Glass Shower per floorplan
  • Slideout LED Backlighting
  • Water Heater Bypass and Winterization Unit
  • Park Cable TV Hookup
  • USB Charging Stations Throughout
  • Laundry Chute per Floorplan
  • Suburban 3 Burner Cooktop w/17” Glass Front Oven
  • Deluxe Recliner Chairs (2600, 2792)
  • 30 lb. LP Bottles
  • BBQ LP Quick Connect
  • Power Tongue Jack
  • Black Tank Flush
  • Spare Tire and Carrier
  • Outside Shower
  • USB Ports Throughout
  • Skylight Over Tub
  • Battery Disconnect
  • Entry Door Swing Away Assist Handle
  • Outside TV Outlet
  • Teddy Bear Bunkmats (per floorplan)
  • Bluetooth Stereo Interior Speakers
  • 7-way Power Cord Holster
  • Chef’s High Rise Spring Faucet
  • Back Up Camera Prep
  • Capital Bedding Pillow Top Mattress
  • LG Solid Surface Kitchen Countertop
  • 30” Built In Electric Fireplace
  • Power Awning w/LED Lights
  • LED “Powersaver” Interior Lights
  • Friction Door Hinge and Magnetic Storage Door Catches
  • Roller Window Shades Throughout
  • Aluminum Frame Laminated Fiberglass Sidewalls (2360, 2650, 3050)
  • Torklift Glow Entry Steps
  • 32” LED TV
  • 39” LED TV
  • 15K A/C with Quickcool
  • 190W Go Power Solar with Control Panel
  • Deluxe Recliner Chairs (2460,  2560)
  • 50 amp Service with Bedroom A/C Prep
  • Arctic Package (radiant foil insulation in roof and floor)
  • New Rood Ladder Prep
  • New Cabinets and Flooring
  • Roller Shades Throughout
  • 1 Piece PVC Full Walk On Roof
  • Spare Tire and Carrier
  • Stabilizer Jacks
  • Battery Disconnect
  • Black Tank Flush
  • Skylight Over Tub
  • Cable Satellite Ready
  • Power Tongue Jack
  • TV Antenna w/Booster
  • 3 Burner Cooktop
  • Exterior LP Connection
  • Double Door GE Refrigerator
  • Farm Style Single Bowl Sink
  • 13.5k Ducted A/C
  • Microwave
  • Exterior Speakers
  • 6 gal Gas DSI Water Heater
  • 48 Gal Fresh Water Tank
  • 20 lb. LP Bottle
  • Automatic Ignition 20k BTU Furnace
  • Teddy Bear Bunk Mats
  • Lower Front Rock Guard
  • Water Heater Bypass
  • Radial Tires
  • Power Awning
  • LED Awning Light Strip
  • LED Power Saver Interior Lights
  • Bluetooth Stereo w/Remote
  • Back Up Camera Prep
  • Solar Prep
  • USB Ports Throughout
  • Friction Entry Door Hinge
  • EZ Lube Axles
  • Ball Bearing Drawer Guides
  • Radius Entry Door
  • Radiant Foil in Floor and Ceiling

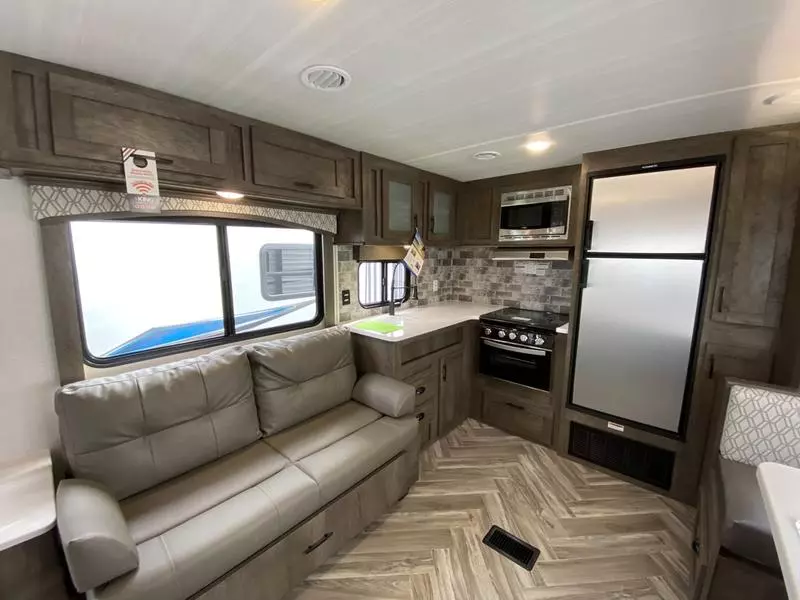

Virtual Tours

  • 177BQ
    177BQ Main Room
  • 177FQ
    177FQ Main Room
  • 178DB
    178DB Main Room

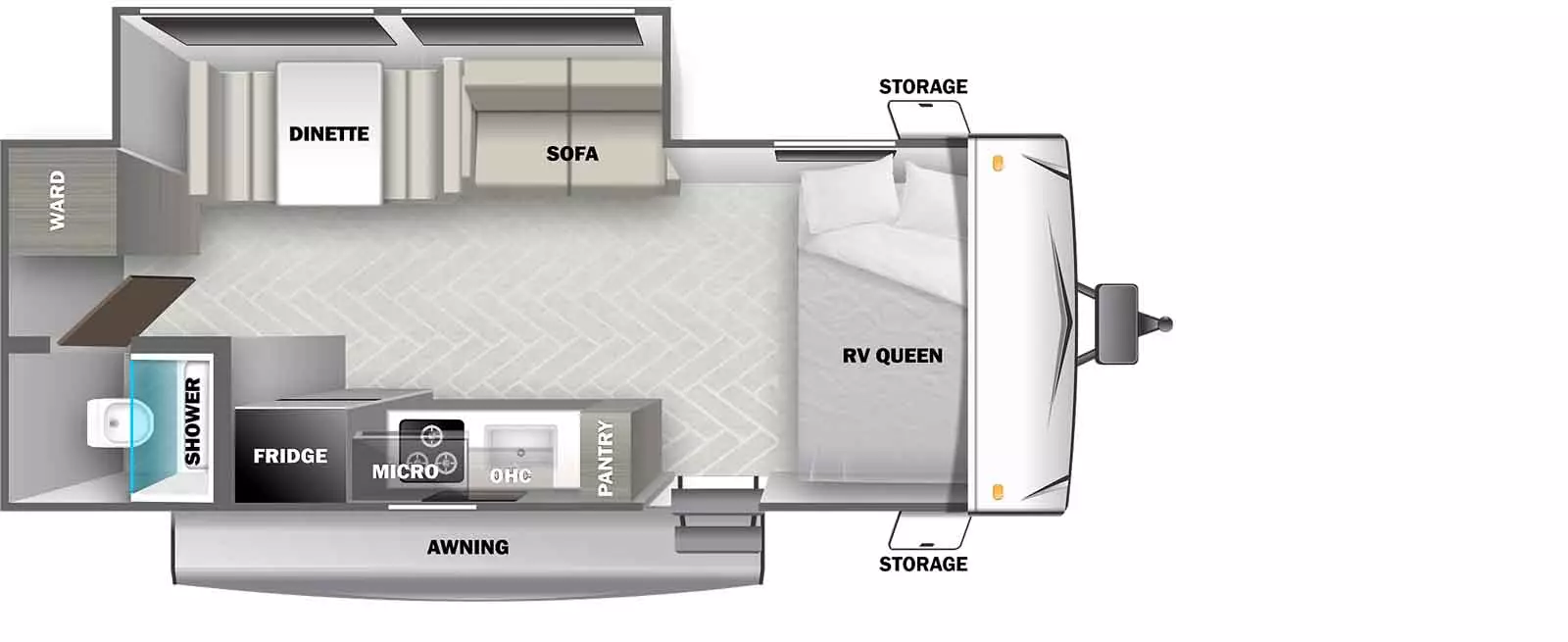

  • 197SS
    197SS Main Room
  • 208RD
    208RD Main Room
  • 228RK
    228RK Main Room
  • 268BH
    268BH Main Room

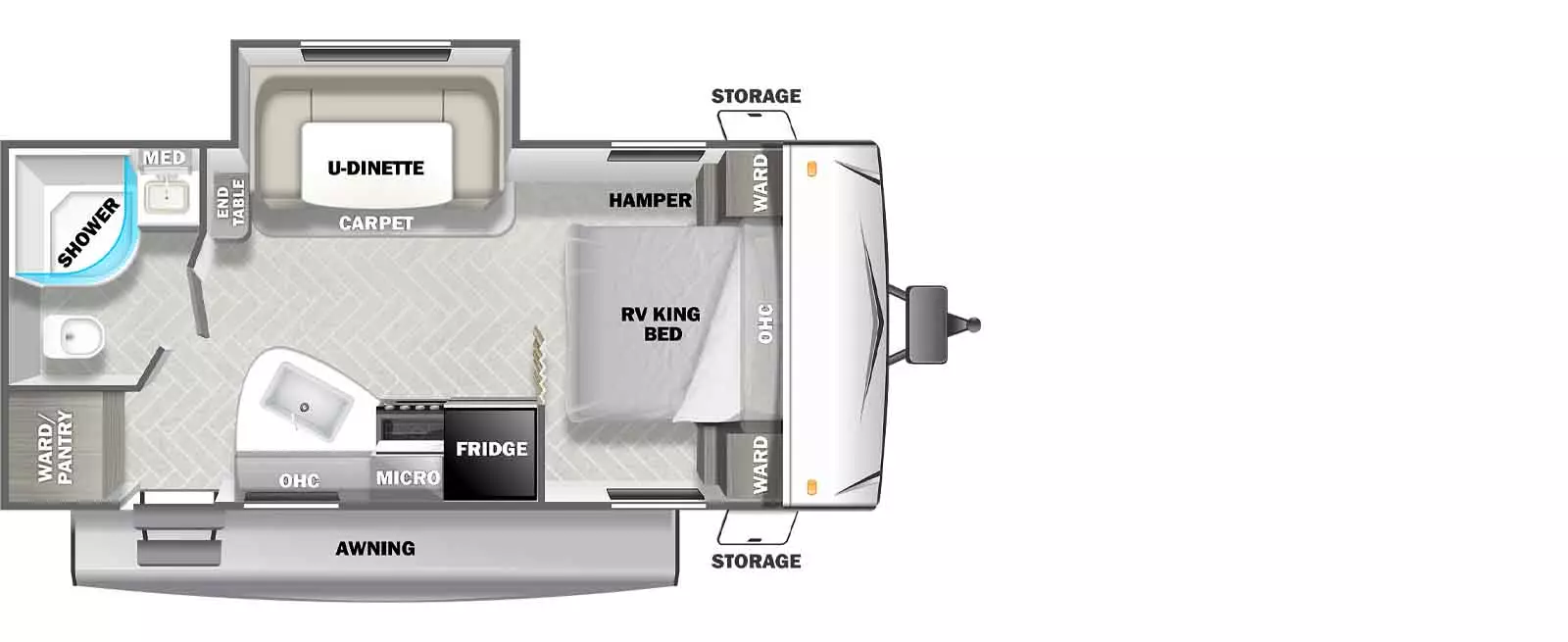

  • T2160
    T2160 Main Room
  • T2360
    T2360 Main Room
  • T2460
    T2460 Main Room
  • T2490
    T2490 Main Room
  • T2600
    T2600 Main Room
  • T2650
    T2650 Main Room

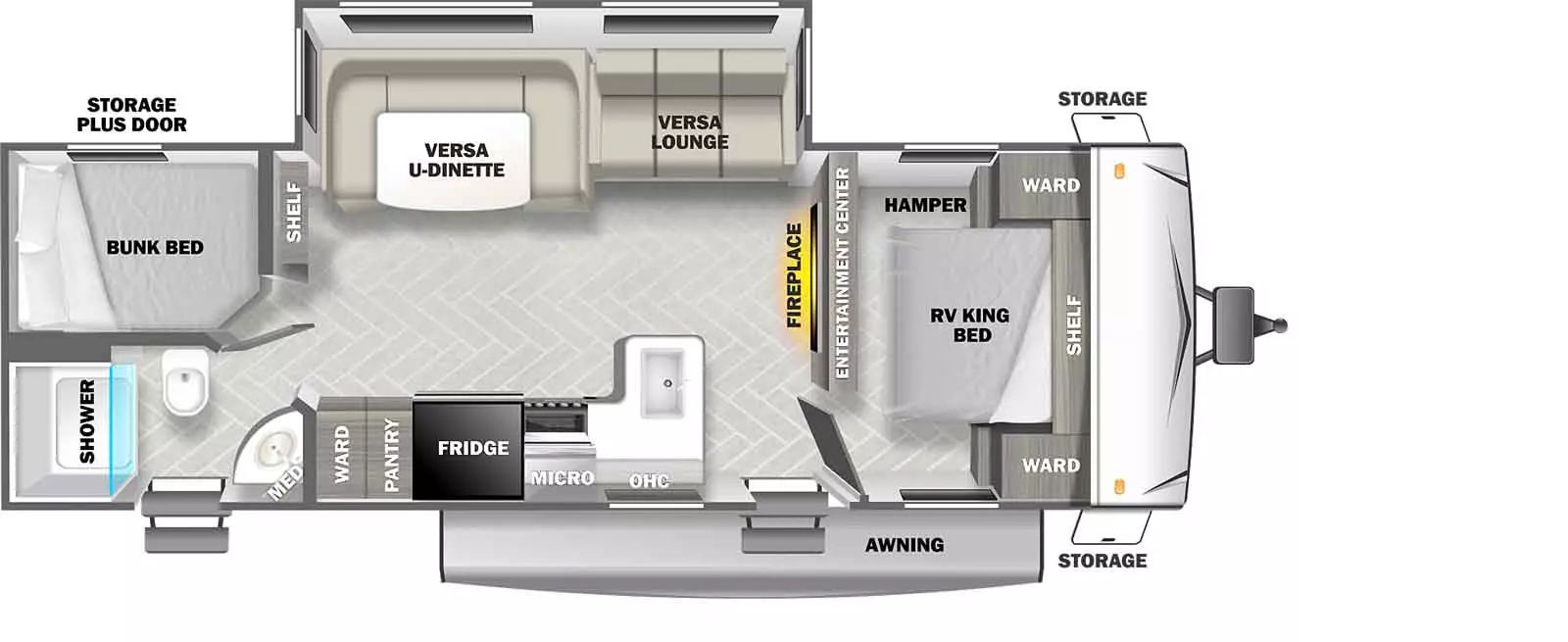

  • T2700
    T2700 Main Room
  • T2792
    T2792 Main Room
  • T2850
    T2850 Main Room


Videos

Some videos may show features or options not available on all products. Contact our service representatives or your local dealer if you have questions about how your specific RV operates.


Literature
