Flagstaff Shamrock Expandable Hybrid Travel Trailers

A VALUE THAT’LL MAKE YOU JUMP! We have a trailer just for you. Whether you are interested in the expanded interior space provided by the spacious drop down bunks, heated mattresses and the feel of a traditional trailer, the Flagstaff Shamrock will deliver the quality and amenities you expect. Flagstaff brings the necessities of residential living on the campsite

Azdel Onboard™ RV Composite Panels We RV - Rockwood Link TreeCare Camps, fighting cancer and making memories

Floorplans

Print

Shamrock Expandable Travel Trailers


Specifications

Print

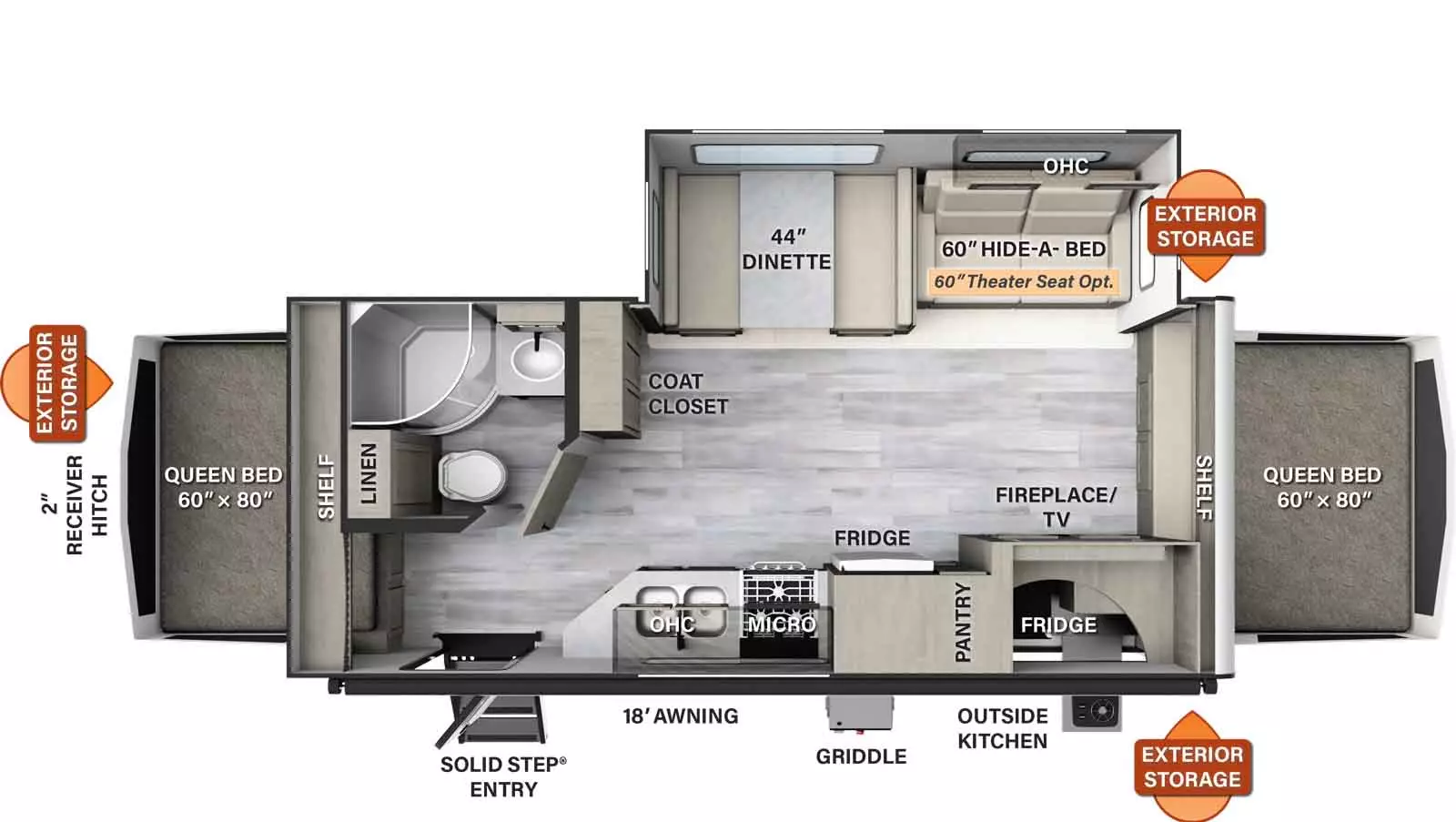

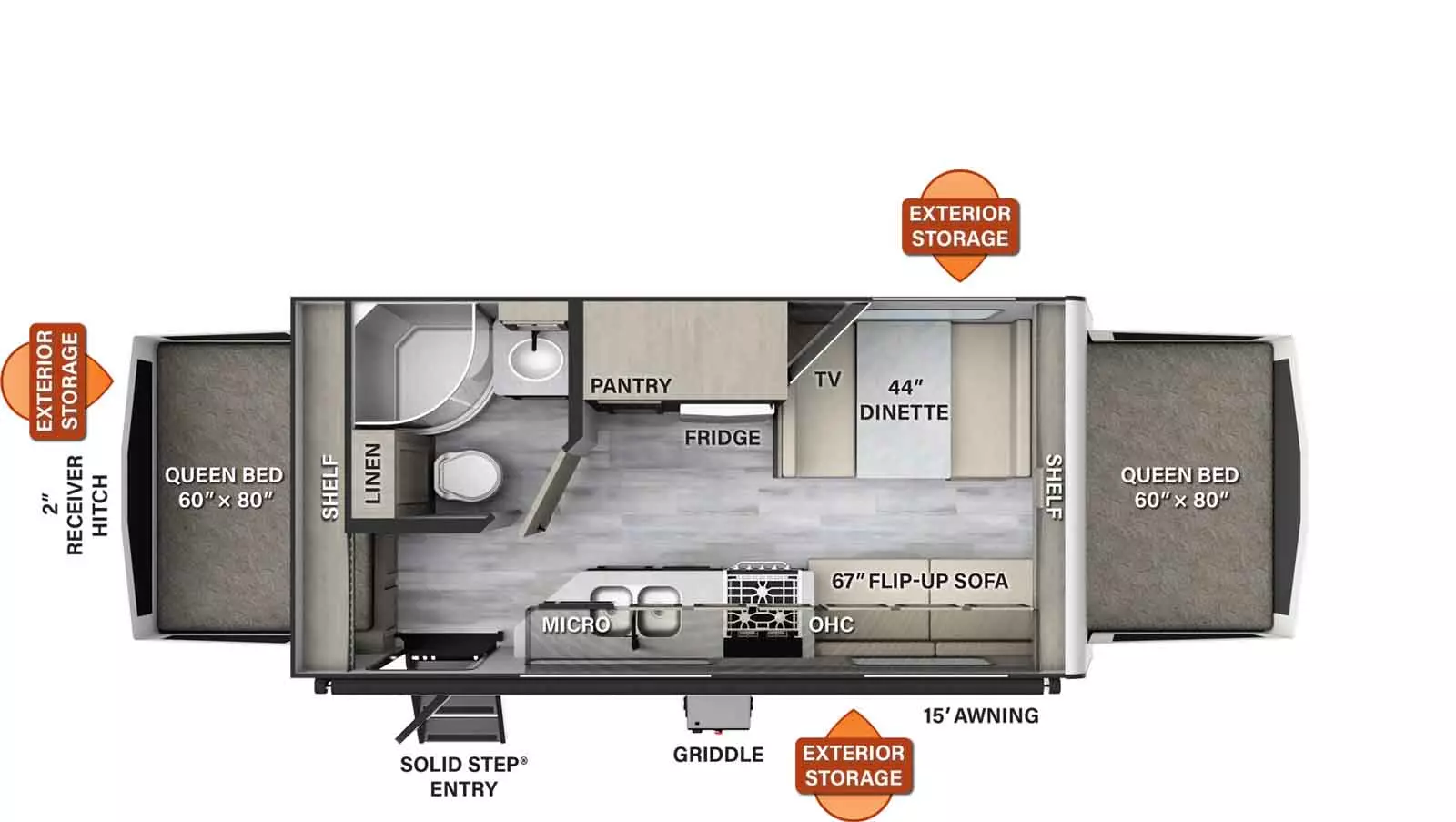

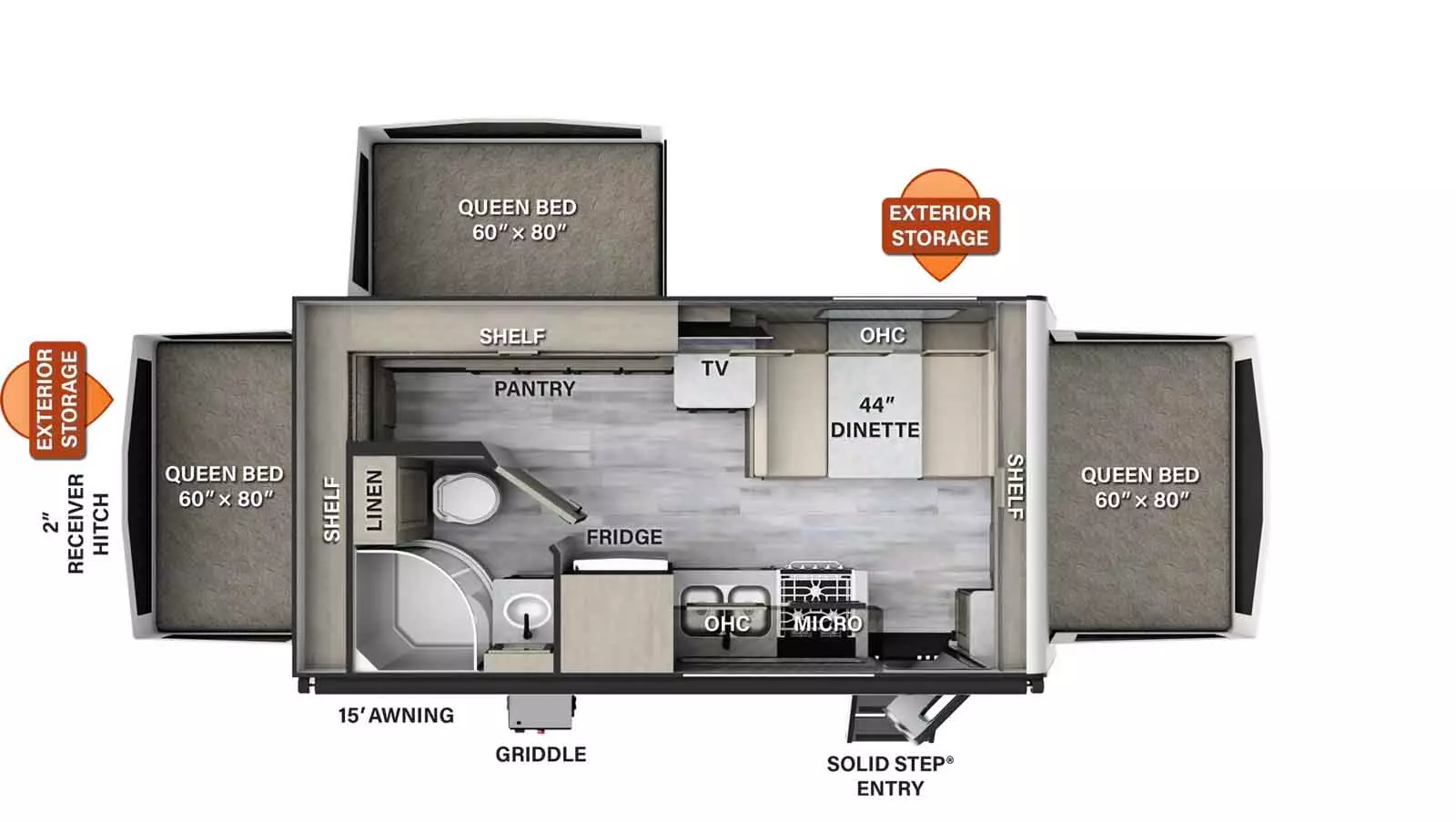

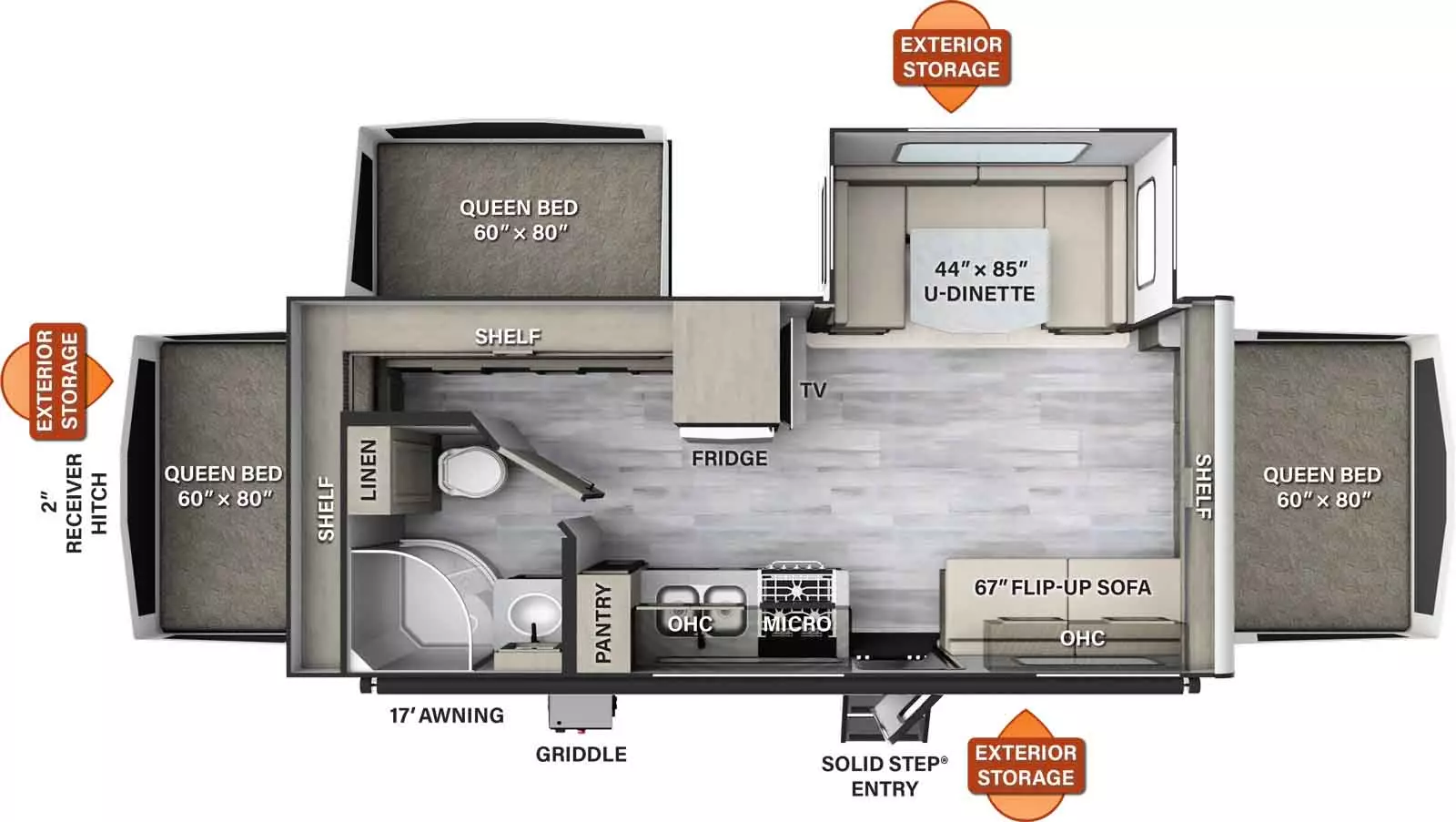

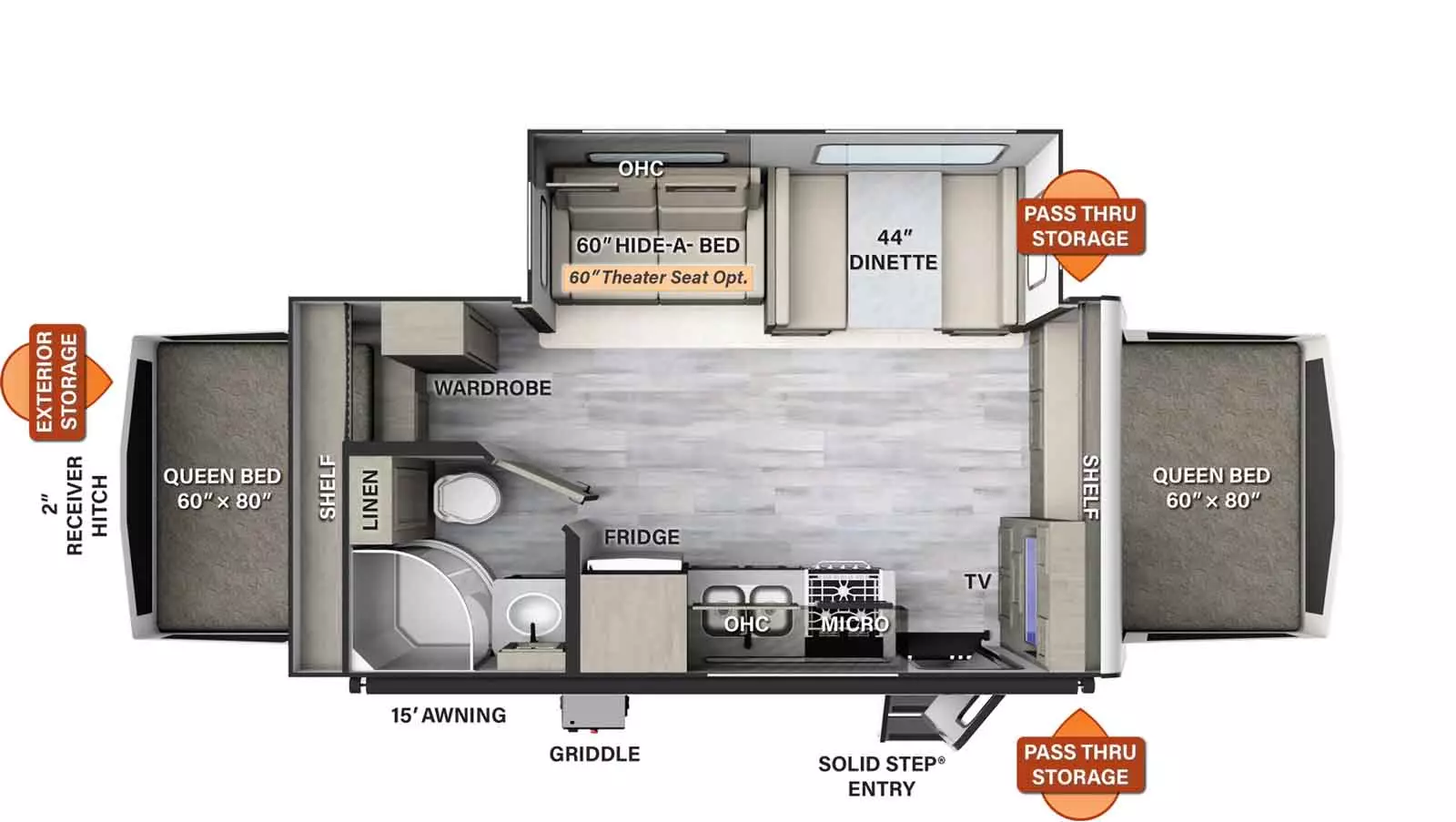

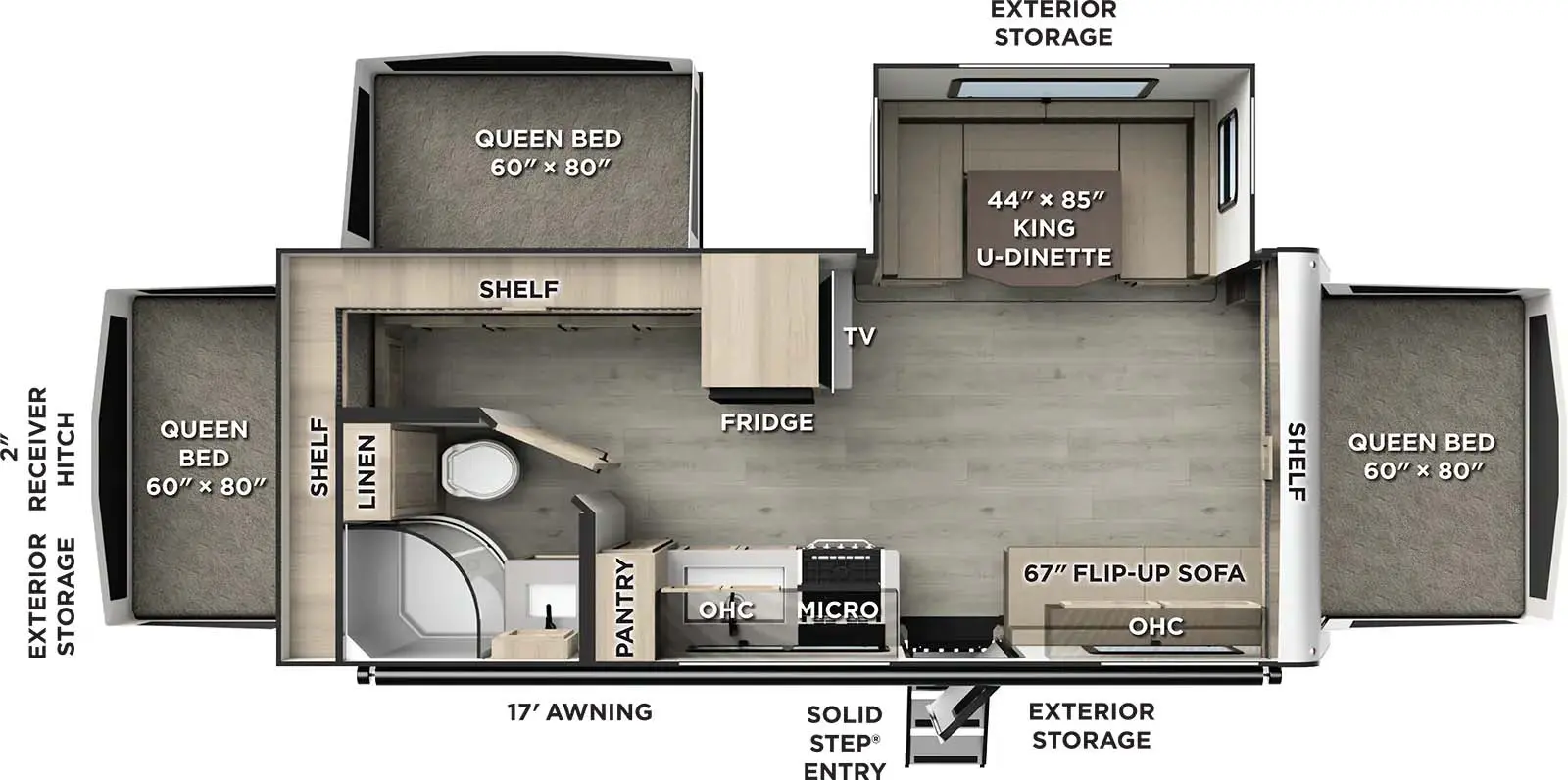

Floorplan: 183 : Shamrock Expandable Travel Trailers 19 : Shamrock Expandable Travel Trailers 21SS : Shamrock Expandable Travel Trailers 233S : Shamrock Expandable Travel Trailers 235S : Shamrock Expandable Travel Trailers
Hitch Weight:450 lb.434 lb.548 lb.652 lb.738 lb.
UVW:4,259 lb.4,298 lb.5,047 lb.5,111 lb.5,639 lb.
CCC:1,471 lb.1,416 lb.1,501 lb.1,541 lb.1,259 lb.
Exterior Length:21' 2"22' 0"22' 10"24' 10"24' 10"
Exterior Height:10' 6"10' 6"10' 11"10' 6"10' 11"
Exterior Width:96"96"96"96"96"
Fresh Water:54.00 gal.54.00 gal.54.00 gal.54.00 gal.54.00 gal.
Gray Water:30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.
Black Water:30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.
Awning Size:15'15'15'17'18'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print

* Due to the current environment, our features and options are subject to change due to material availability.

  • Laminated White Fiberglass Sidewalls
  • Easy To Reach Lockable Bed Latch System
  • Solid Entry, Strut Assist Fold Out Entry Steps (N/A 183, 19, 233S)
  • Exterior Battery Disconnect Switch
  • Power Awning w/ Adjustable Rain Dump & LED Lighting
  • Tinted Frameless Windows
  • Magnetic Compartment Door Catches
  • Cable & Satellite Hookup
  • Teton All In One Wi-Fi Booster/LTE Prep & Antenna
  • Roof & Side Solar Prep
  • Outside Griddle w/ LP Hook Up
  • Friction Hinge Entrance Door with Window Shade & ScreenShot Screen Door
  • Large, Foldable Grab Handles (All Entrance Doors)
  • Outside Shower w/ Hot & Cold Water
  • Outside Antifreeze Station
  • Black Tank Flush
  • 360 Siphon Vent Cap On All Black Tanks
  • Power Tongue Jack
  • Outside Speakers
  • Keyed Alike Locks
  • Electronically Controlled Heated Holding Tanks
  • 2" Accessory Hitch
  • Factory Installed 200W Roof Solar Panel with 1,000W Inverter
  • Newport Ash Cabinetry
  • Screwed & Glued, Solid Wood Cabinet Doors & Drawers With Hidden Hinges, Metal Drawer Glides & Residential Hardware
  • Carbon Monoxide Detector
  • Interior 12V USB Outlet
  • Monitor Panel Switch Station with OneControl App
  • 55 AMP Converter with Charger
  • Ceiling LED 12V Interior Lighting
  • Fireplace (235S)
  • Quick Recovery Water Heater w/ Interior Gas/Electric Switches
  • Bunk Fan/Light Combo w/ Each Bed
  • Two Maxxair Ventilation Fans & Covers
  • Heated Mattress
  • 35K BTU Ducted Furnace
  • 15,000 BTU Ducted Air Conditioner
  • Night Roller Shades
  • Marine Grade Carpet in slides
  • Aluminum Cage Dinette & Bed Base
  • 6 Sided Aluminum Framed (Side Walls, End Wall, Front, Floor & Roof)
  • 5/8" Plywood Tongue & Groove Subfloor
  • Insulation Factors R-7 Side Wall, R-12 Floor & R-14 Ceiling
  • Radiant Foil Insulated Underbelly & Slide Out Floors
  • Enclosed Underbelly
  • Radius Roof w/ Interior Vaulted Ceilings
  • Vinyl/Rubber Composite Roofing Membrane
  • Vacuum Laminated One Piece Roof & Walls
  • Interior & Exterior Azdel Sidewall Construction
  • Square Bunk Ends w/ Permanently Attached Tents
  • Aircraft Grade Cable Supports For Bed Ends
  • Rear Observation Camera Prep w/ Molded Mounting Plate
  • Easy Lube Axles & Nev-R Adjust Brakes
  • Torsion Axle, Rubber-Ryde Suspension
  • TST Tire Pressure Monitor System w/ Monitor
  • Spare Tire w/ Carrier & Cover
  • Power Tongue Jack
  • Three Burner High Output Gas Range with Flush Mount Glass Top Cover
  • 21" Gas Oven
  • Under Mount Double Bowl Kitchen Sink w/ Residential Style Faucet
  • Microwave Oven
  • Water-Pur Filtration System
  • Seamless Kitchen Countertops
  • 12V Refrigerator
  • Showermiser Water Saving System
  • Bathroom Skylight
  • Water Heater By-Pass Kit
  • Foot Flush Toilets
  • Maxxair Ventilation Fan & Cover
  • Deluxe Tri-Fold Sleeper Sofa (21SS, 235S)
  • Slide Toppers
  • Theater seat IPO Sofa (21SS, 235S)
  • Gas/Electric Refrigerator
  • Second roof mount solar panel
