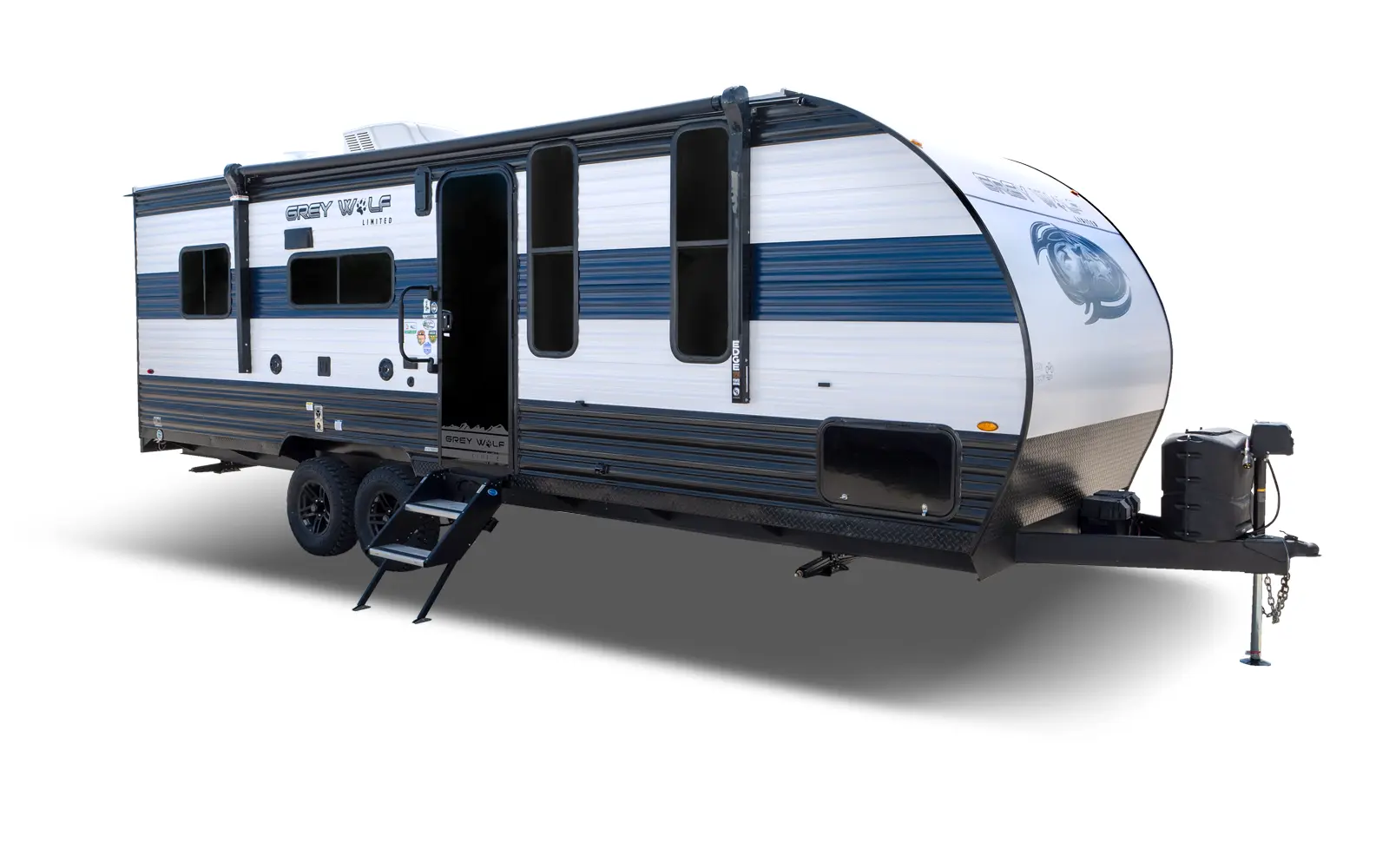

Cherokee Grey Wolf Travel Trailers, and Fish House Travel Trailers

The Grey Wolf by Cherokee is engineered with impeccable quality, distinctive features, superior comfort and remarkable affordability. Grey Wolf offers our customers a chance to escape the ordinary and relax, to enjoy family and friends and to see nature in all its beauty and wonder. These special life moments are the reasons we take such pride in all we do.


RV News New Unit 2019 Best of Show - Grey Wolf 26DBH Care Camps, fighting cancer and making memories

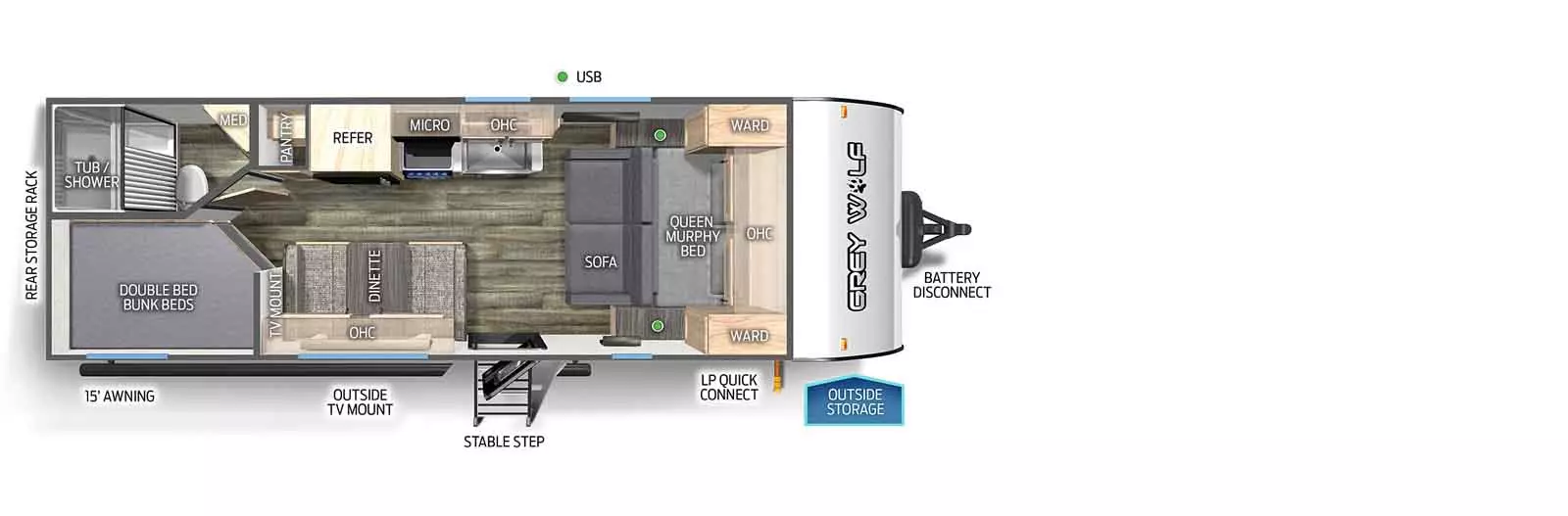

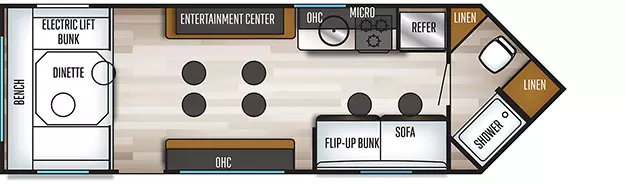

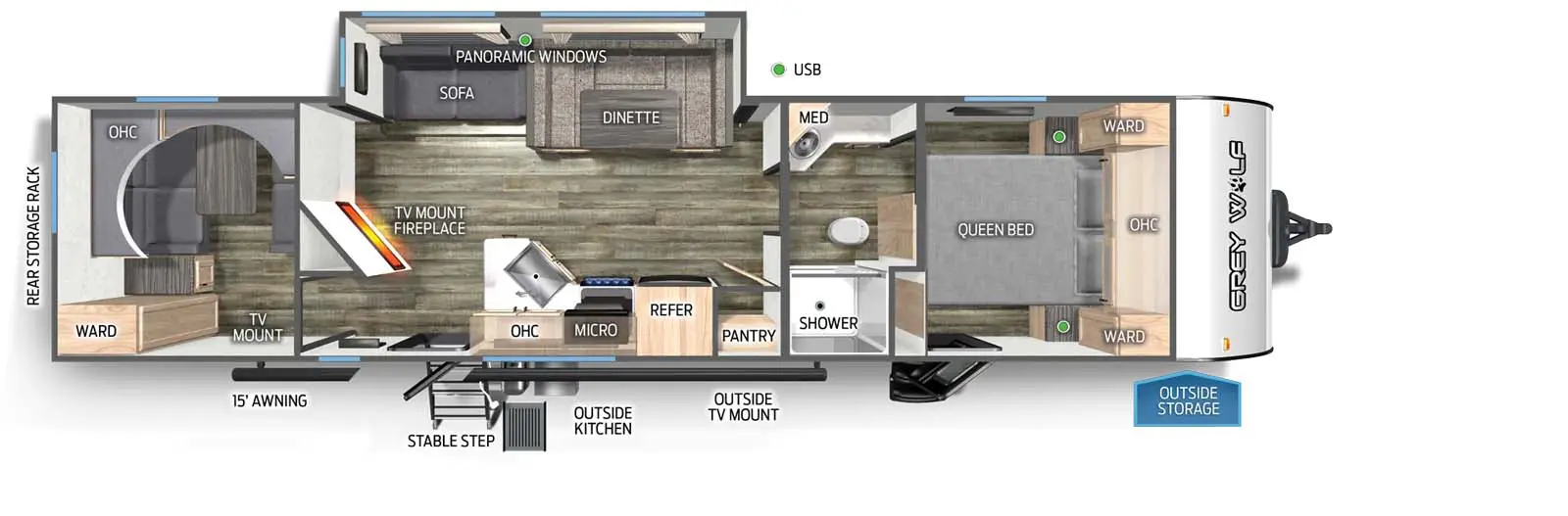

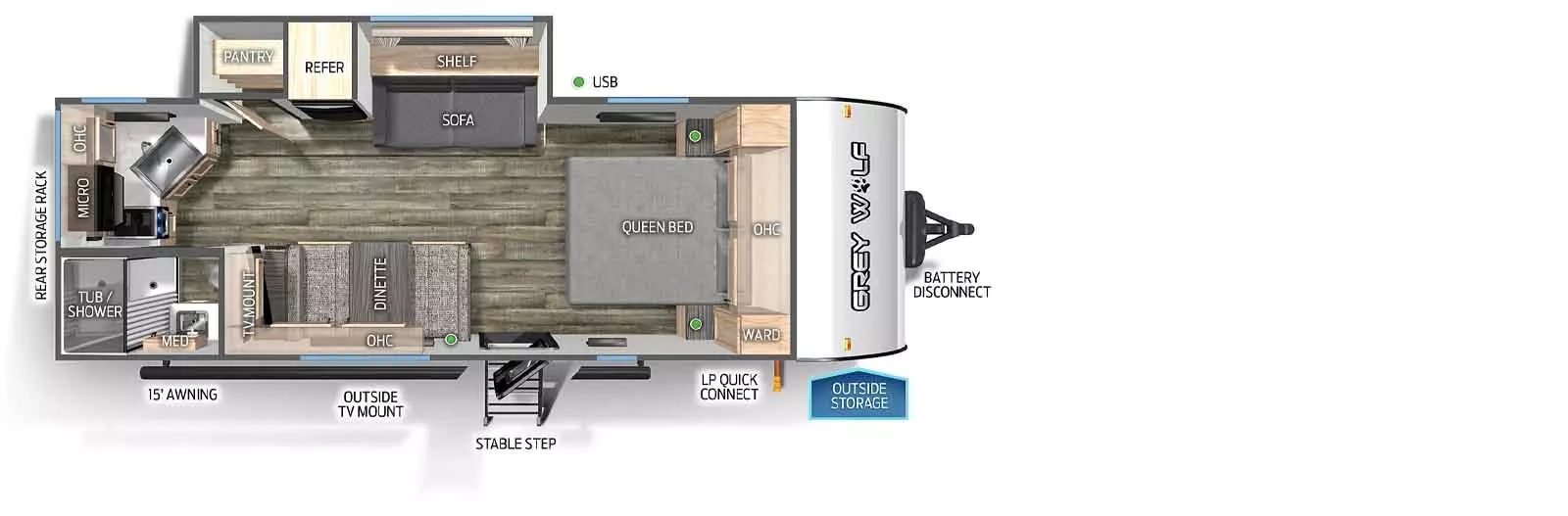

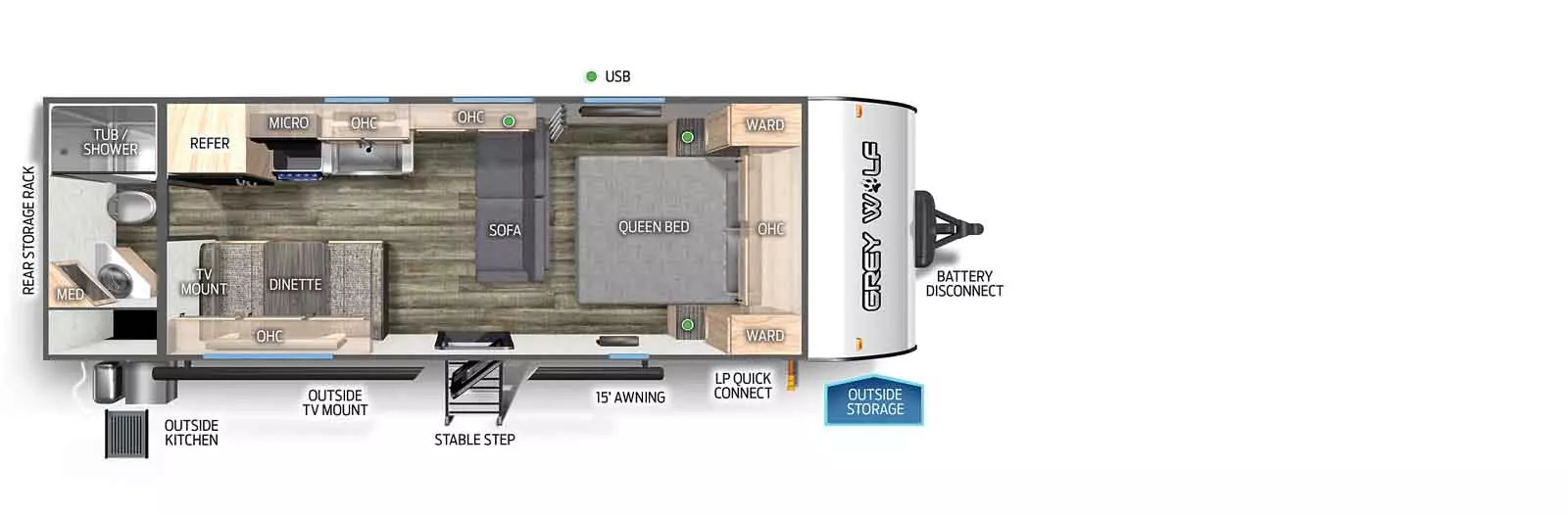

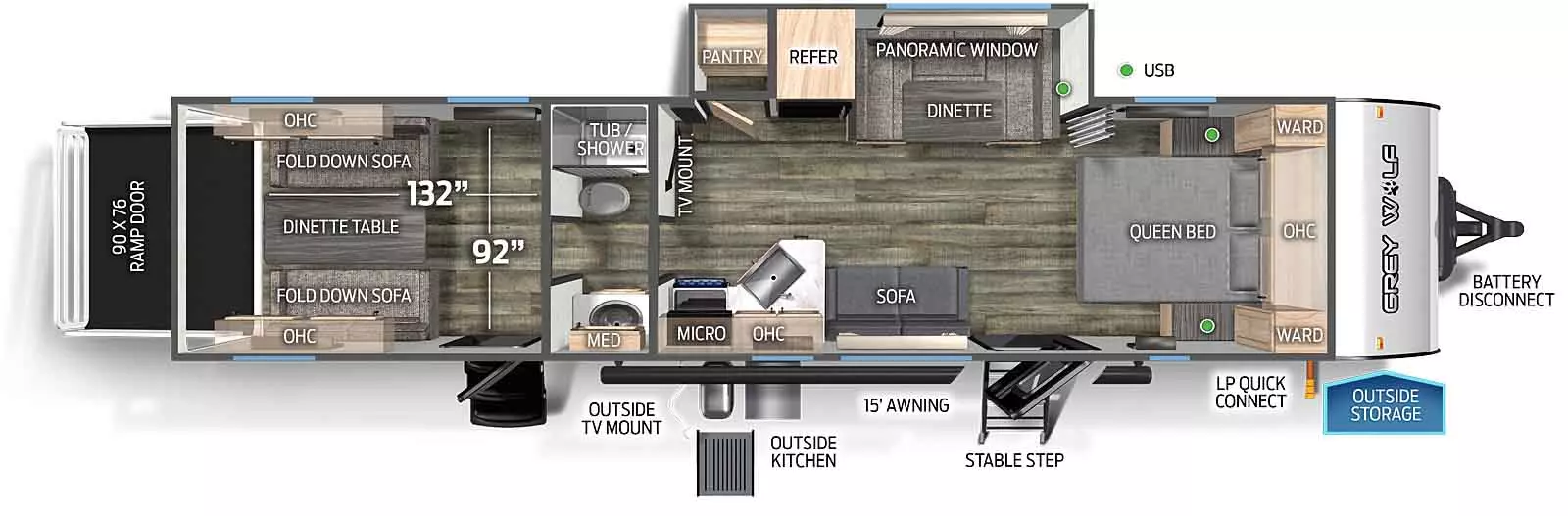

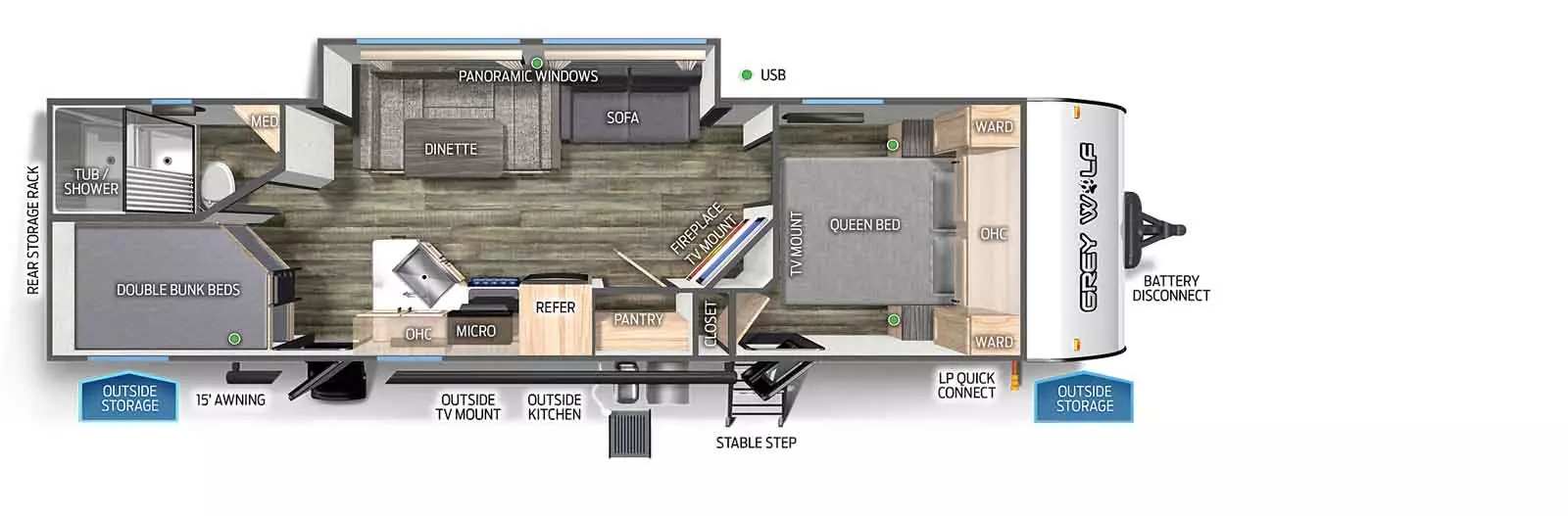

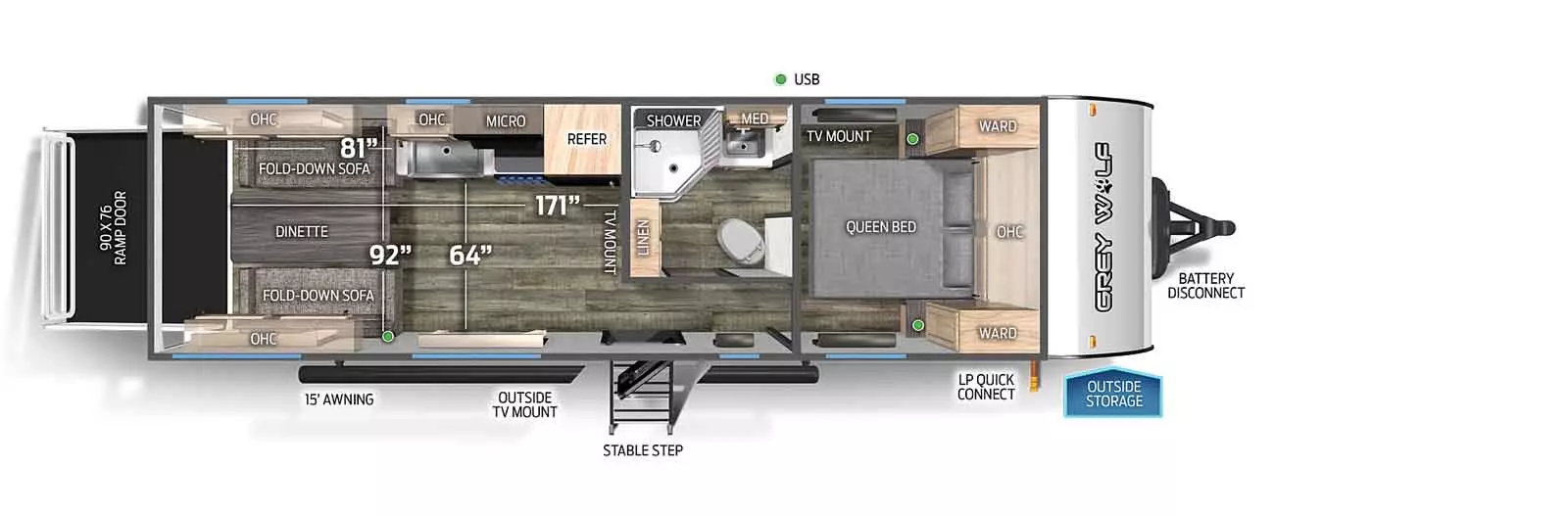

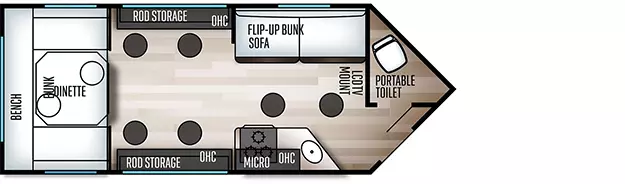

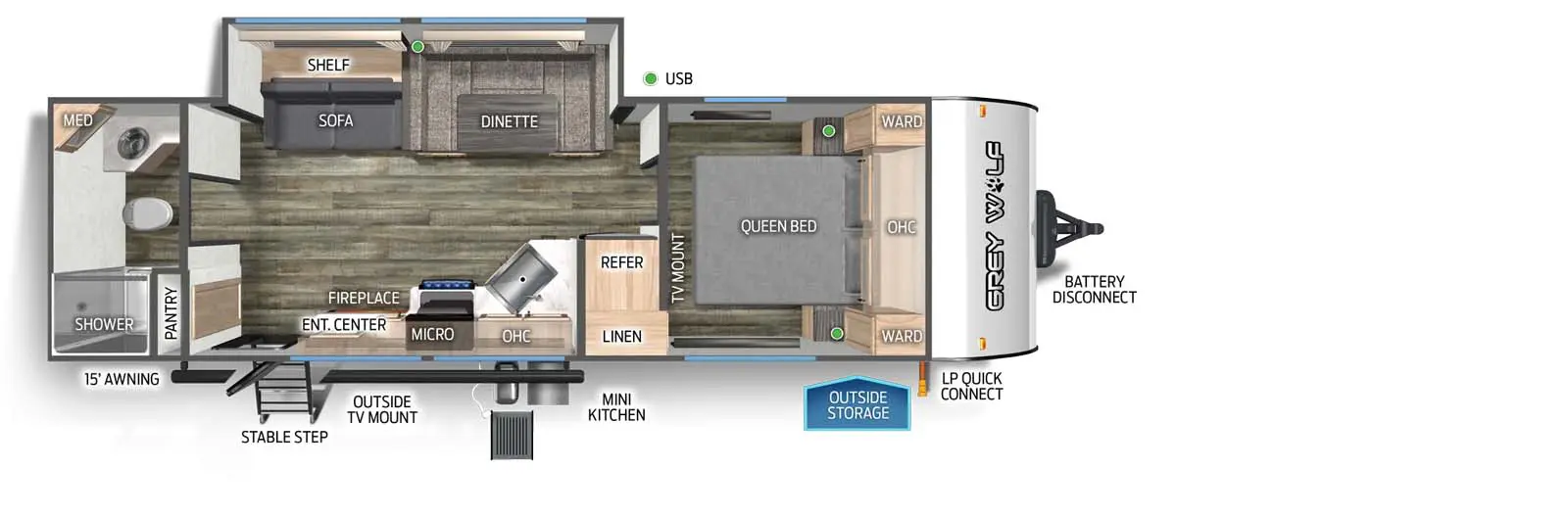

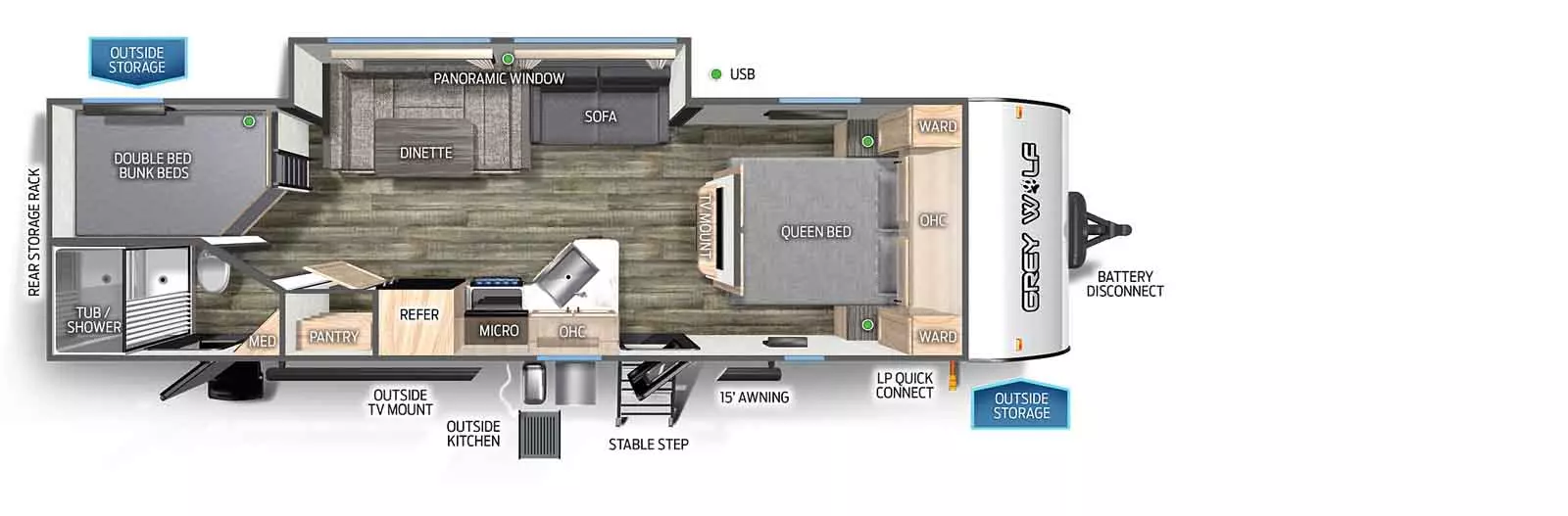

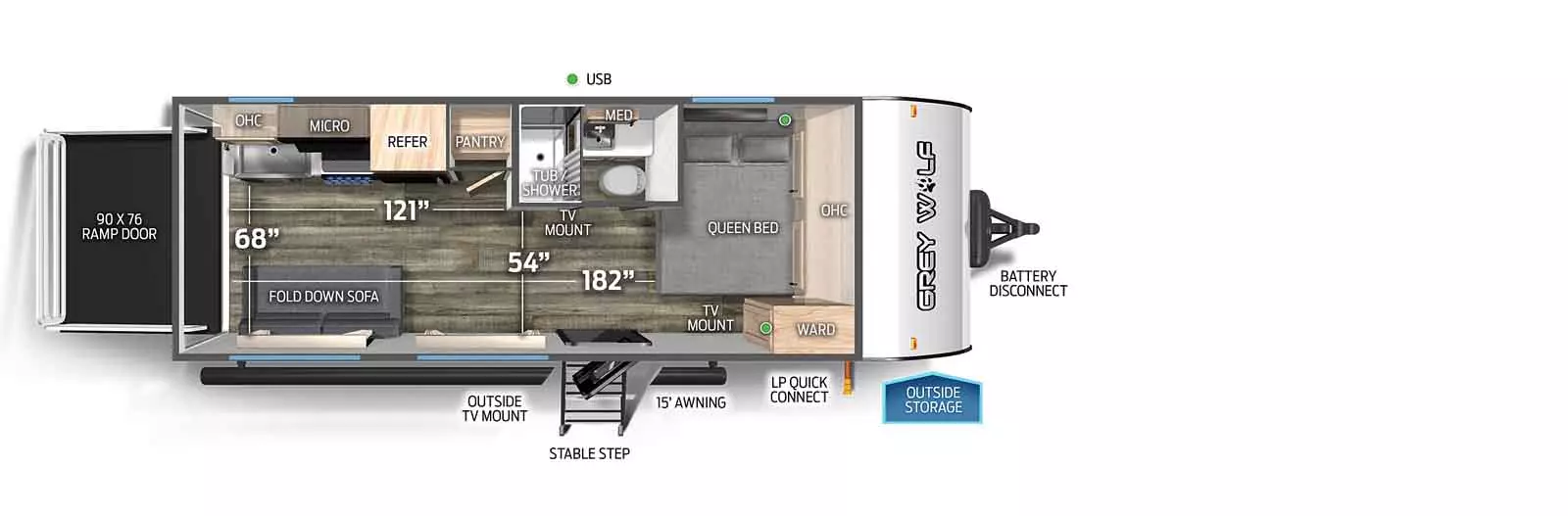

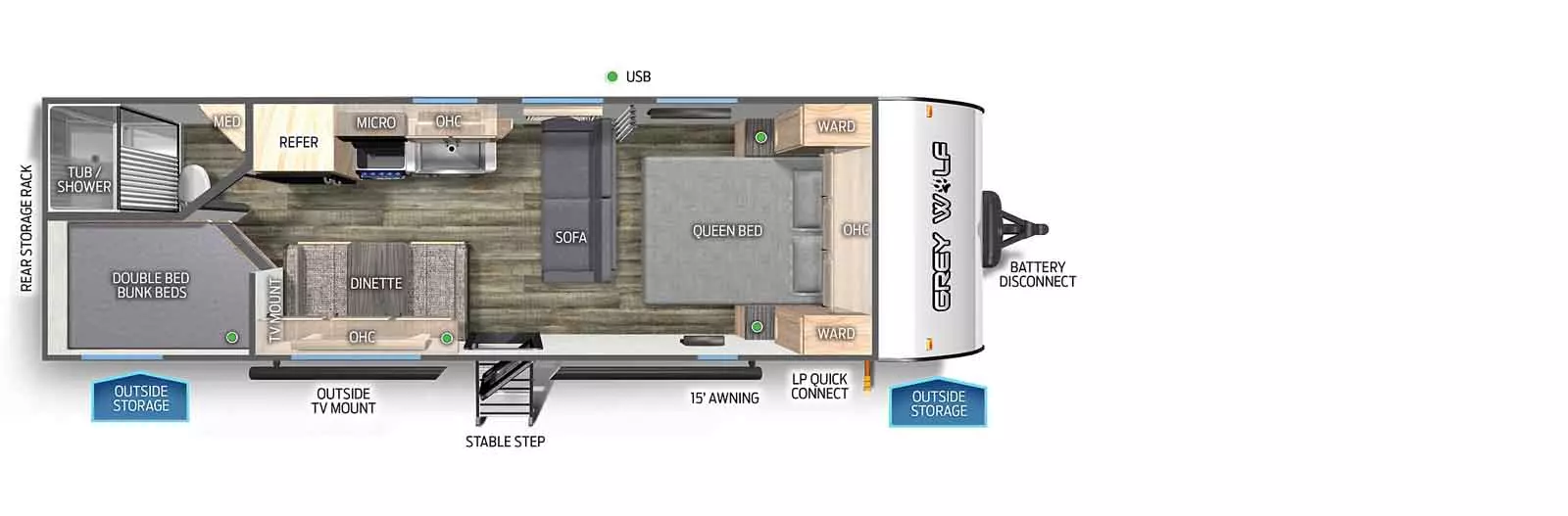

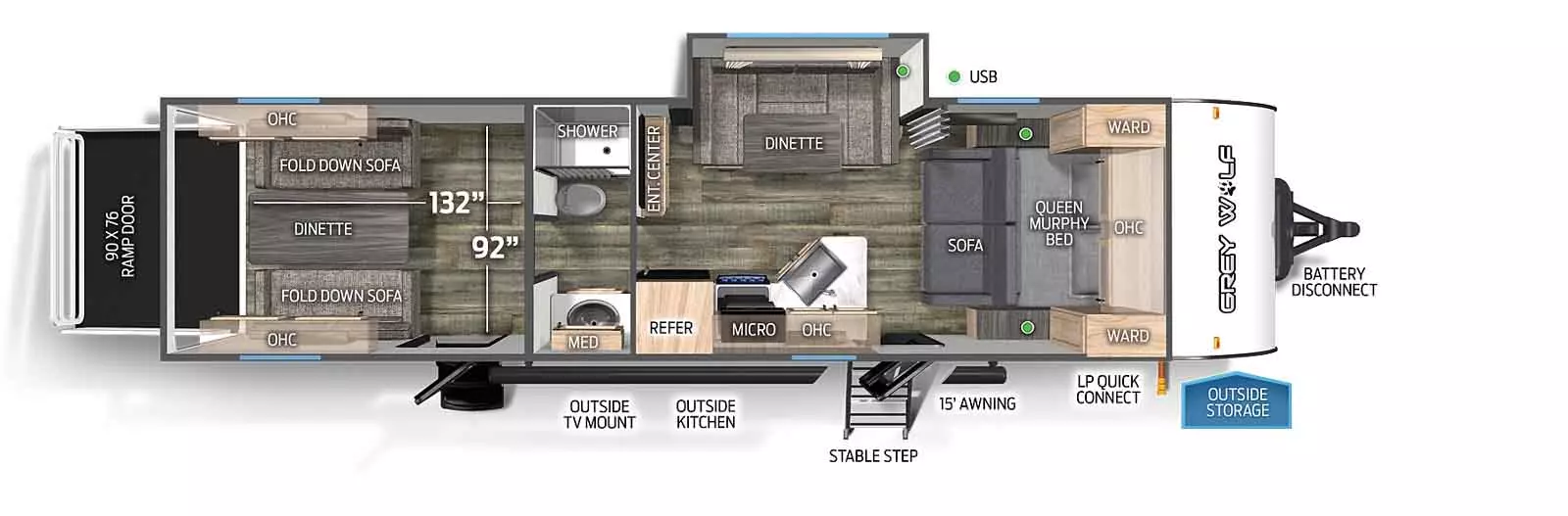

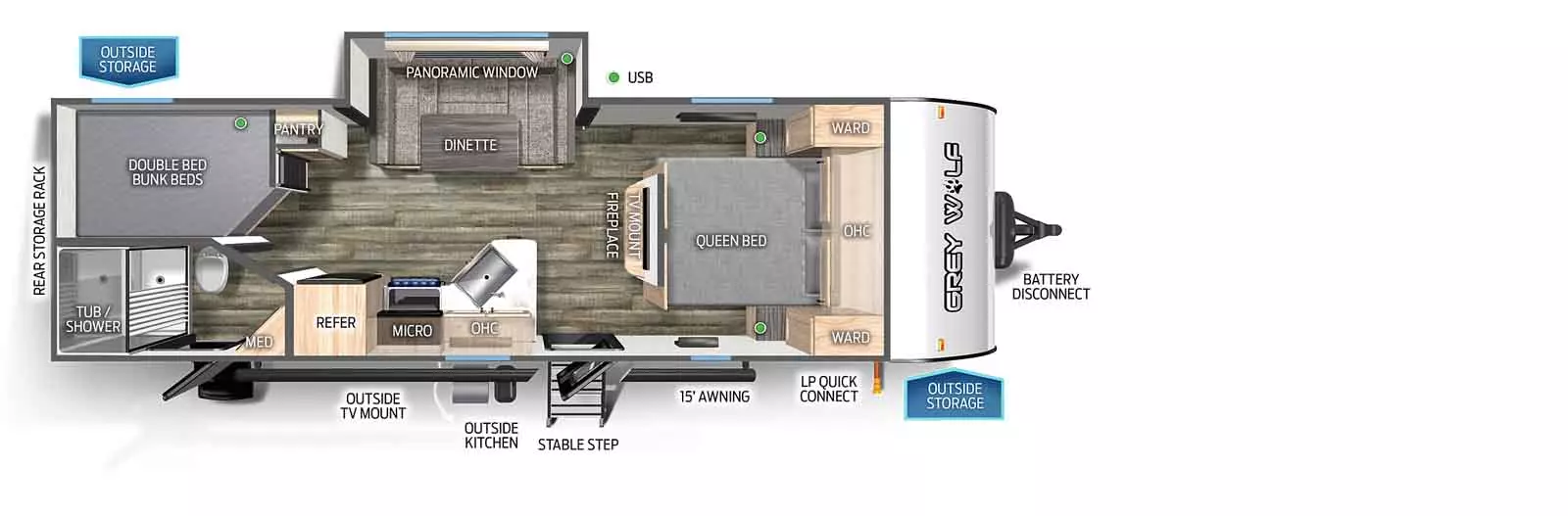

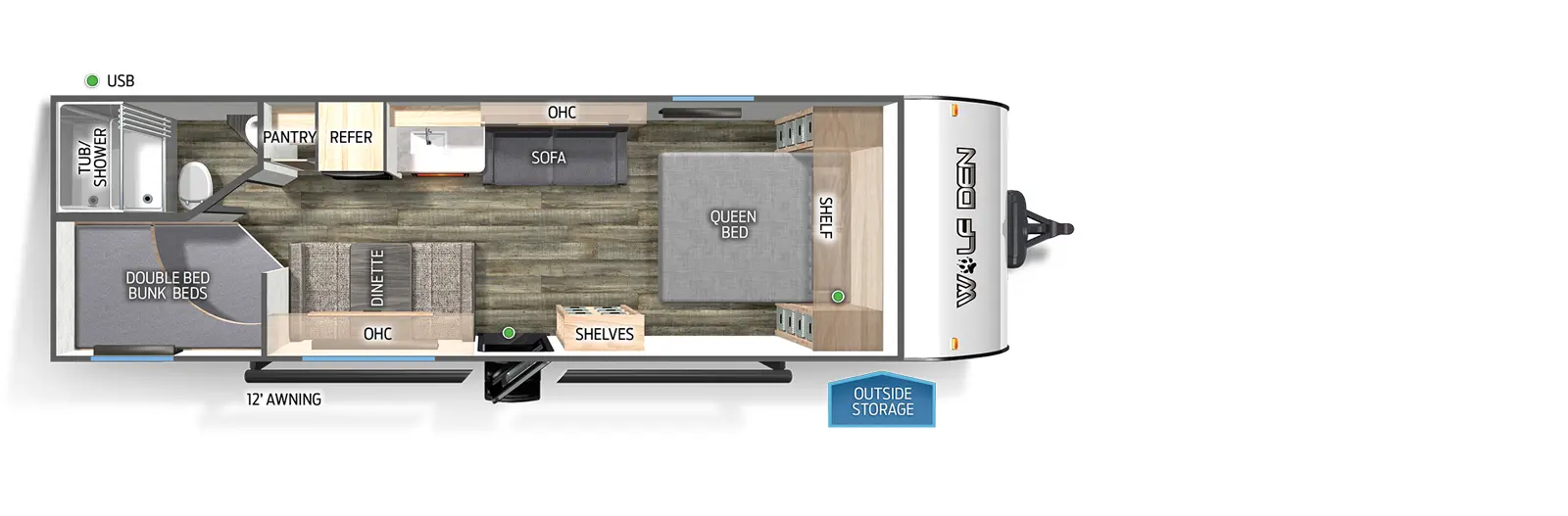

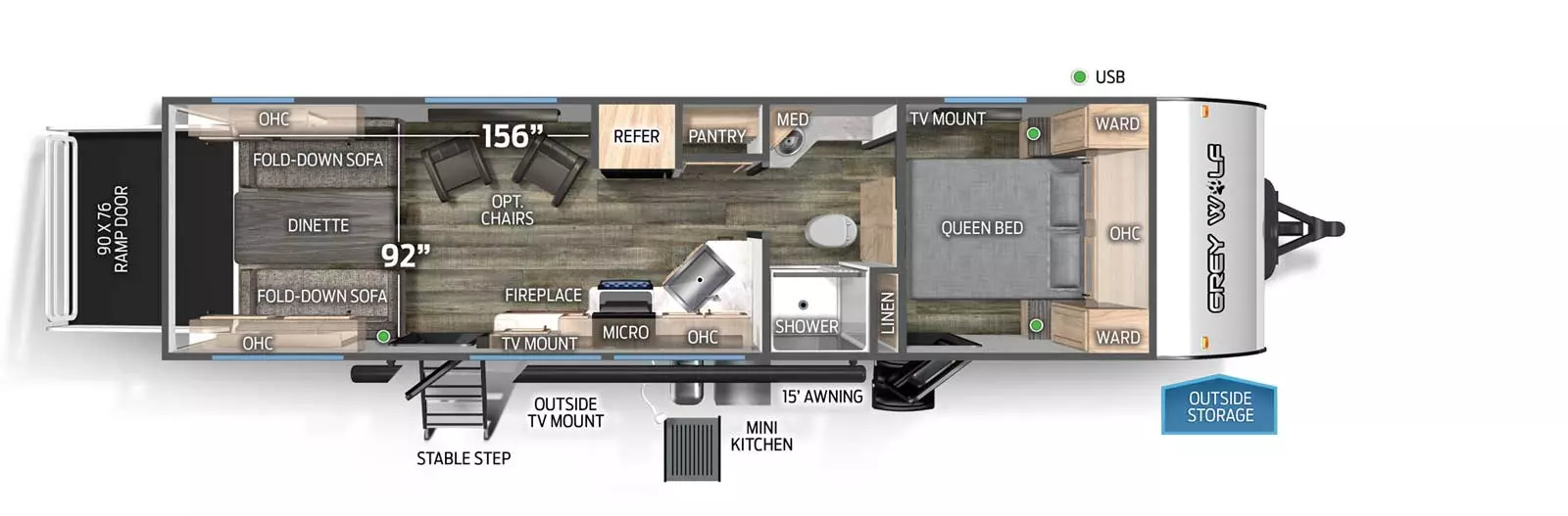

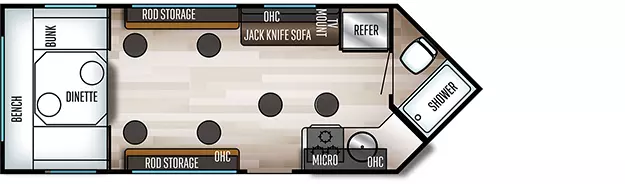

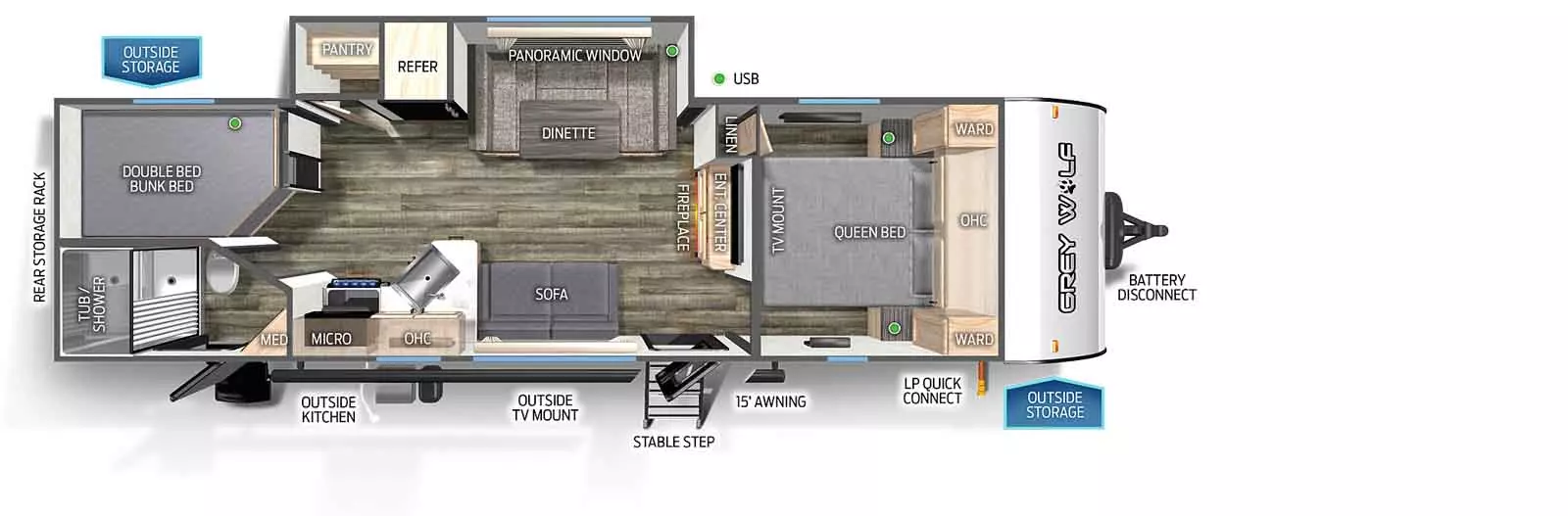

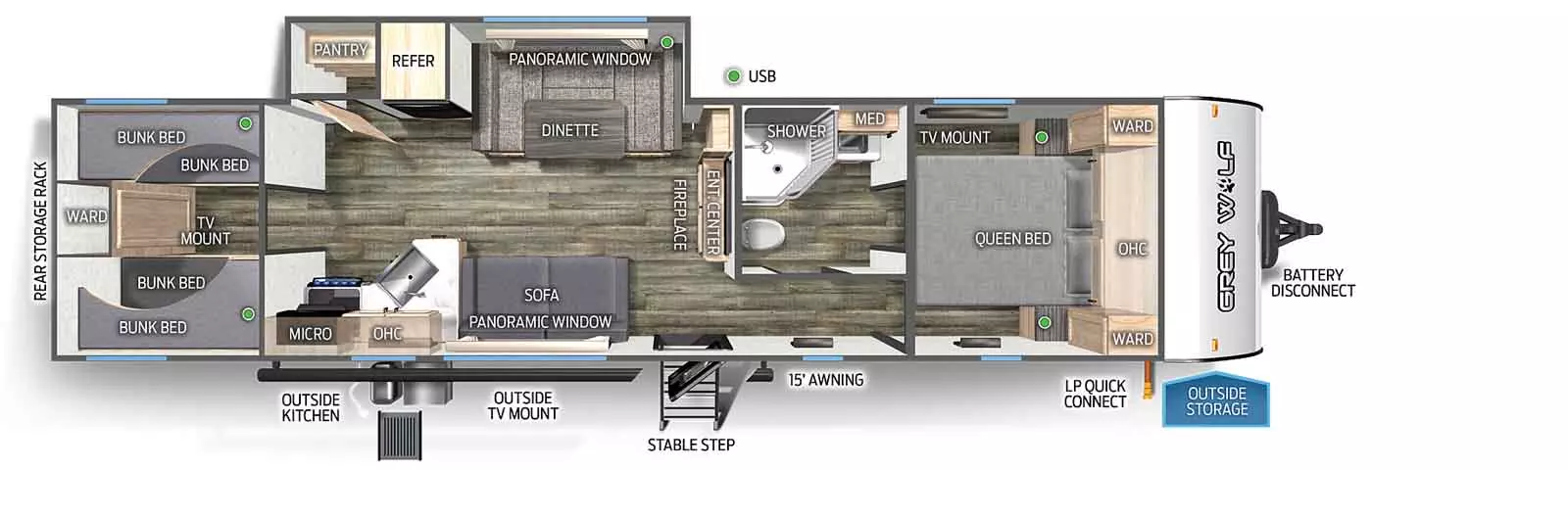

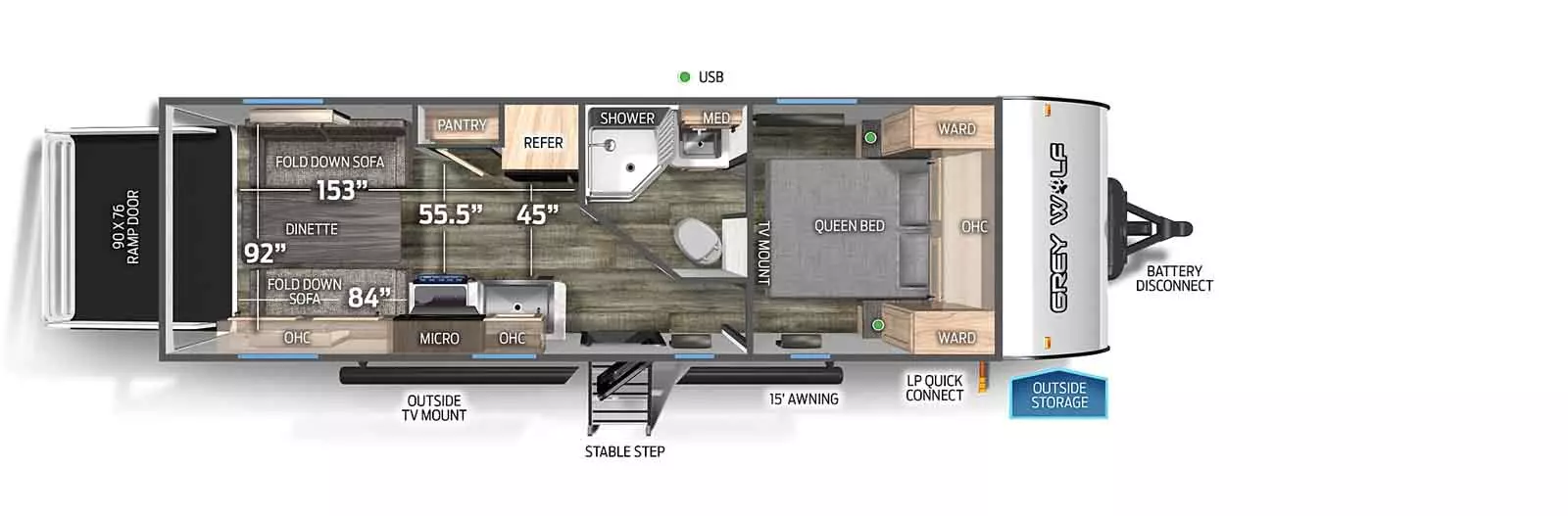

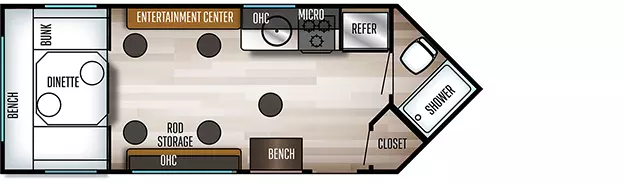

Floorplans

Print

Grey Wolf Travel Trailers
Grey Wolf Toy Haulers
Grey Wolf Fish House


Specifications

Print

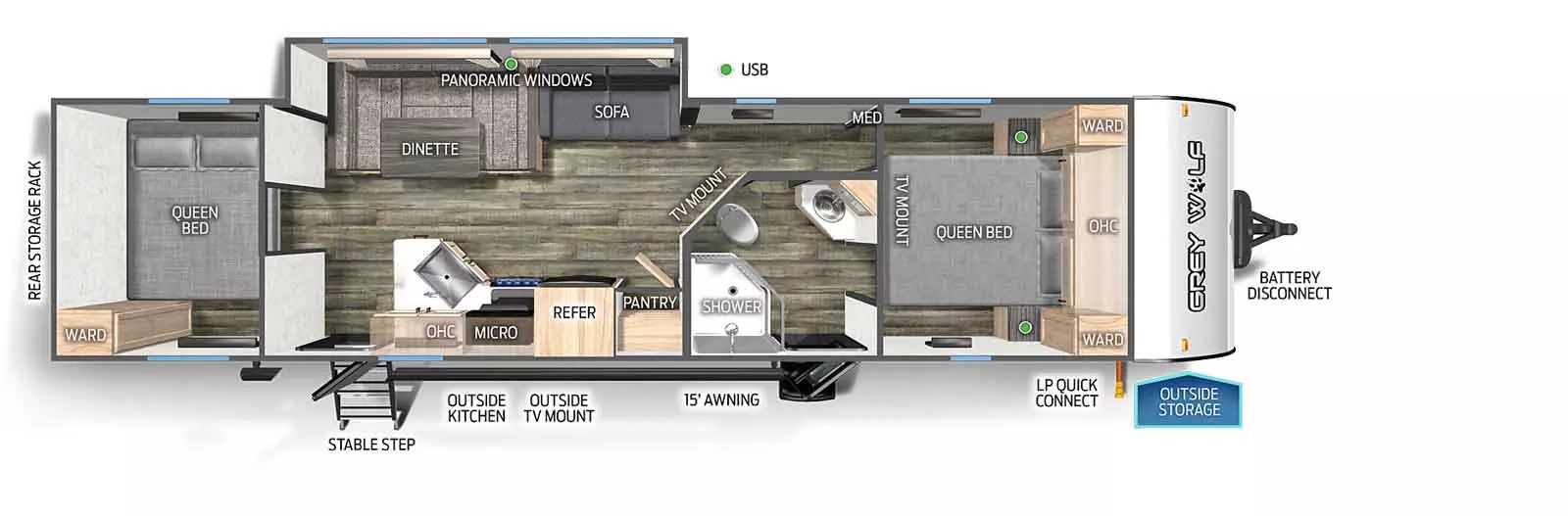

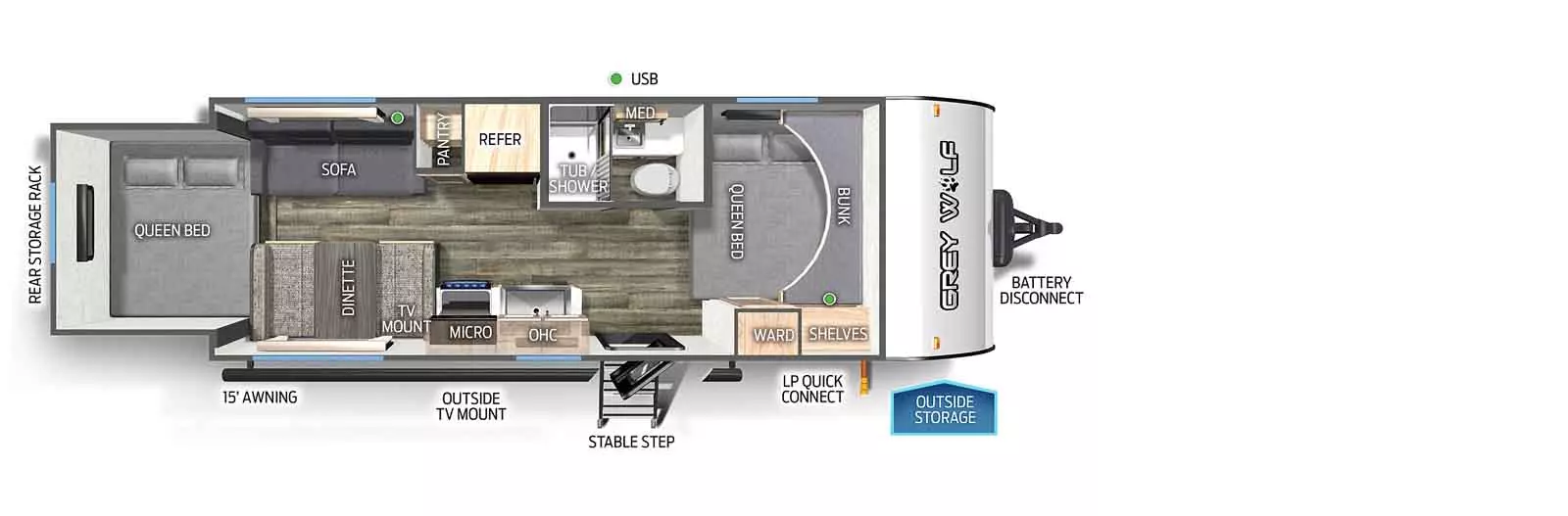

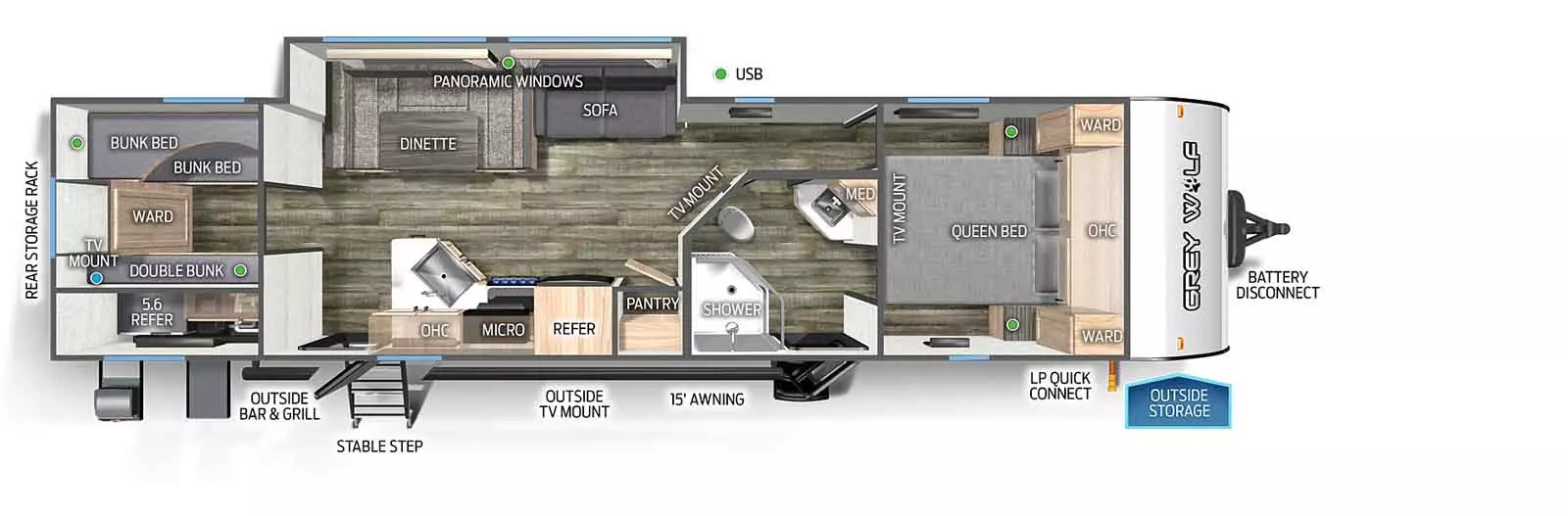

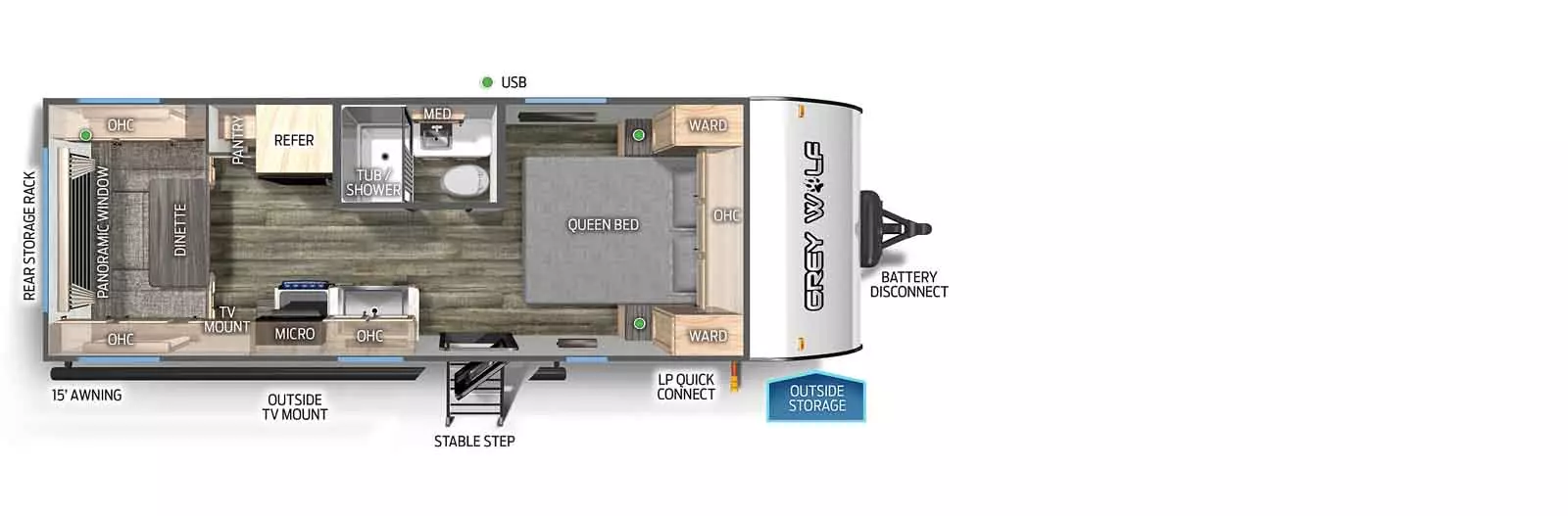

Floorplan: 19SM : Grey Wolf Travel Trailers 20RDSE : Grey Wolf Travel Trailers 22MKSE : Grey Wolf Travel Trailers 23DBH : Grey Wolf Travel Trailers 23MK : Grey Wolf Travel Trailers 24JS : Grey Wolf Travel Trailers 26BRB : Grey Wolf Travel Trailers 26DBH : Grey Wolf Travel Trailers 26DJSE : Grey Wolf Travel Trailers 26MK : Grey Wolf Travel Trailers 27DBH : Grey Wolf Travel Trailers 28DT : Grey Wolf Travel Trailers 29QB : Grey Wolf Travel Trailers 29TE : Grey Wolf Travel Trailers 18RR : Grey Wolf Toy Haulers 22RR : Grey Wolf Toy Haulers 25RRT : Grey Wolf Toy Haulers 26MBRR : Grey Wolf Toy Haulers 26RR : Grey Wolf Toy Haulers 27RR : Grey Wolf Toy Haulers 29RRT : Grey Wolf Toy Haulers 16BF : Grey Wolf Fish House 16GR : Grey Wolf Fish House 17BB : Grey Wolf Fish House 17MP : Grey Wolf Fish House 17TH : Grey Wolf Fish House 21GP : Grey Wolf Fish House
Hitch Weight:522 lb.450 lb.585 lb.621 lb.608 lb.470 lb.935 lb.725 lb.574 lb.790 lb.815 lb.805 lb.977 lb.837 lb.550 lb.686 lb.690 lb.785 lb.775 lb.1,159 lb.1,255 lb.450 lb.376 lb.668 lb.694 lb.495 lb.855 lb.
GVWR:7,522 lb.7,450 lb.7,585 lb.7,621 lb.7,608 lb.7,470 lb.7,935 lb.7,725 lb.7,574 lb.7,790 lb.7,815 lb.7,805 lb.7,977 lb.7,837 lb.7,550 lb.7,686 lb.7,690 lb.7,785 lb.7,775 lb.8,159 lb.9,985 lb.5,550 lb.5,476 lb.5,768 lb.5,794 lb.5,595 lb.9,855 lb.
UVW:4,846 lb.4,053 lb.4,341 lb.5,380 lb.5,063 lb.4,443 lb.6,313 lb.5,795 lb.4,596 lb.6,073 lb.5,863 lb.5,888 lb.6,618 lb.6,428 lb.4,463 lb.4,871 lb.5,103 lb.5,393 lb.5,030 lb.6,571 lb.7,293 lb.3,717 lb.3,418 lb.4,449 lb.4,471 lb.4,748 lb.6,338 lb.
CCC:2,676 lb.3,397 lb.3,244 lb.2,241 lb.2,545 lb.3,027 lb.1,622 lb.1,930 lb.2,978 lb.1,717 lb.1,952 lb.1,917 lb.1,359 lb.1,409 lb.3,087 lb.2,815 lb.2,587 lb.2,392 lb.2,745 lb.1,588 lb.2,692 lb.1,833 lb.2,058 lb.1,319 lb.1,323 lb.847 lb.3,517 lb.
Exterior Length:24' 5"25' 4"26' 9"29' 3"29' 0"27' 3"32' 7"31' 9"29' 6"33' 2"33' 8"33' 8"36' 8"36' 8"24' 1"29' 0"30' 10"33' 6"30' 10"34' 2"38' 3"25' 6"26' 6"25' 10"25' 10"27' 0"32' 2"
Exterior Height:10' 6"10' 6"10' 6"10' 6"10' 6"10' 6"10' 6"10' 6"10' 6"10' 6"10' 8"10' 8"10' 8"10' 8"10' 6"10' 6"10' 6"10' 6"10' 6"10' 6"10' 6"10' 6"10' 6"10' 6"10' 6"10' 6"10' 11"
Exterior Width:96"96"96"96"96"96"96"96"96"96"96"96"96"96"96"96"96"96"96"96"96"96"96"96"96"96"96"
Fresh Water:40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.0.00 gal.0.00 gal.15.00 gal.15.00 gal.15.00 gal.15.00 gal.
Gray Water:38.00 gal.38.00 gal.38.00 gal.38.00 gal.38.00 gal.38.00 gal.38.00 gal.38.00 gal.38.00 gal.38.00 gal.38.00 gal.38.00 gal.38.00 gal.38.00 gal.38.00 gal.38.00 gal.38.00 gal.38.00 gal.38.00 gal.38.00 gal.38.00 gal.0.00 gal.0.00 gal.12.00 gal.12.00 gal.12.00 gal.0.00 gal.
Black Water:38.00 gal.28.00 gal.28.00 gal.28.00 gal.38.00 gal.28.00 gal.28.00 gal.28.00 gal.28.00 gal.38.00 gal.28.00 gal.28.00 gal.38.00 gal.38.00 gal.28.00 gal.28.00 gal.38.00 gal.38.00 gal.38.00 gal.38.00 gal.28.00 gal.0.00 gal.0.00 gal.4.50 gal.4.50 gal.4.50 gal.23.00 gal.
Awning Size:15'15'15'15'15'15'TBD15'15'15'15'TBD15'15'TBD15'15'15'15'15'TBD16' (Optional)16' (Optional)16' (Optional)15' (Optional)14'16'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print
  • 8” Ceiling Mounted, Subwoofer with Accent Lighting
  • Cannon™ 12V, High Efficiency, 11 Cubic Foot Residential Refrigerator with Travel Lock
  • Chef Select Black Stainless Steel Kitchen Suite Package
  • Cherokee Back up Camera System
  • Cherokee Exclusive Stable Step with Oversized Landing
  • Cherokee Sanitizer
  • Cherokee Total Control App & Remote Control System
  • External LED Strip Lighting
  • External Porch Scare Light
  • Fireplace (not available on all models)
  • Full Hybrid Tub with Shower Surround
  • LED Interior Lights
  • LED Strip Lighting (not available on all models)
  • Light Filtering Sheer Shading Premium Blackout Zebra Blinds
  • Matte Black Heavy Duty Spring Assisted Kitchen Faucet Sprayer
  • Power Gear™ Frame Technology and Space Saver Rail Design
  • Premium Bedding Ensemble and Comforter
  • Premium Wheel Package
  • Ramp Door Patio System (available on Toyhauler Models Only)
  • Real Blackout Glass, Safety Slam, Friction Hinge Entry Door with Window and Shade Prep
  • Residential Farm Style Black Stainless Steel Sink
  • Seamless Roofing Membrane with Heat Reflectivity
  • Super Kitchen
  • Supersized, Central Air Conditioning Unit (15,000 BTU) with Quick Cool Air Dump Feature
  • Tire Pressure Monitors
  • Upgraded Sofa with Bolster Arm Rests
  • USB Charging Stations
  • Black Waste Tank Flush out Kit
  • Armored Underbelly Tank Enclosure
  • Flip Down Travel Rack (not available on Toyhauler Models)
  • Large Exterior Folding Assist Grab Handle
  • Outside Shower with Hot and Cold Water
  • Outside TV Bracket and Hook Ups
  • Power Awning
  • RV Grill Quick Connect
  • 40” Dinette Drawers x 2 on models with slideouts
  • 6 Gallon Gas/Electric DSI Water Heater
  • Cabinets in Bedroom
  • Entertainment System
  • High Output Attic Fan in Bathroom
  • Oven with Light
  • Roof Mounted Ducted Air Conditioner (not available on units under 26’)
  • Sink Cover
  • Skylight over Shower
  • Solid Bedroom Doors (not available on all models)
  • Mega Dinette
  • Aluminum wheels
  • LED Interior Lights
  • Cassette Toilet
  • LED Battery Minder
  • Heavy Duty Rubber Floor
  • Fish Camera Pre-Wired
  • LED Fish Hole Lights
  • 40 K BTU DUCTED Furnace
  • Thermopane Residential Windows
  • Fantastic Fan in Bathroom
  • Wheel Covers
  • 8 Ice Holes
  • LED Exterior Light Strip—Both Sides
  • Vented Battery Box
  • Solar Wired Prepped
  • A/C Prep and Prewire
  • Troyer Never Fail Lift System
  • Scare Lights on Both Sides of Unit
  • Diamond Plate Exterior Base
  • Rod Storage
  • Satellite Ready
  • Curb Side Entrance
  • Big Windows
  • LCD TV Location
  • Extra Large Dinette
  • Oven with Cooktop
  • HD TV Antenna
  • Exterior Outlet
  • 8’ Wide
  • LED Exterior Locator Light
  • CD Player– AM FM Radio
  • 5/8” Plywood Floors
  • Fully Insulated Sub Floor
  • Bubble Wrap Insulation
  • Upgrade RV Door with Deadbolt
  • 1 Year Warranty
  • SafeRide Roadside Service
  • 5” Residential Trussed Roof System
  • 3/8″ Roof Decking
  • Self Edged Granite Styled Countertop
  • Detachable Shore Power Cord

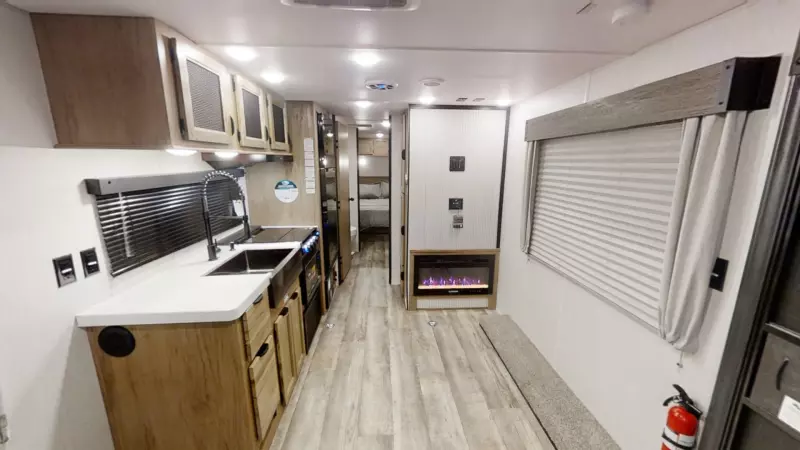

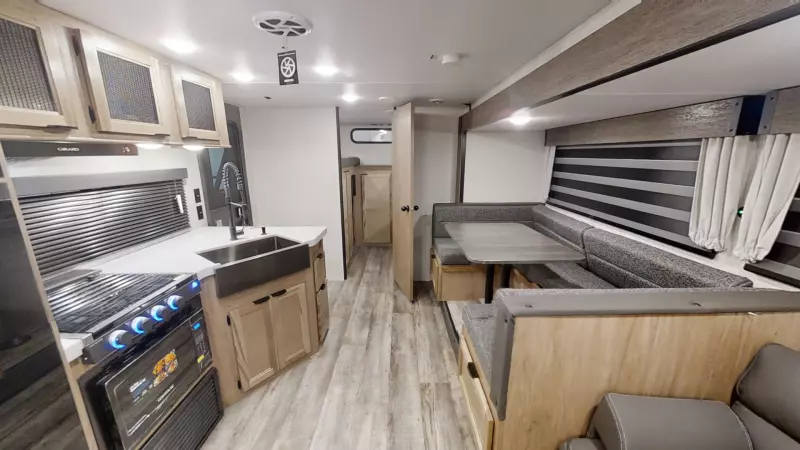

Virtual Tours

  • 19SM
    19SM Main Room
  • 20RDSE
    20RDSE Main Room
  • 22MKSE
    22MKSE Main Room
  • 22RR
    22RR Main Room
  • 23DBH
    23DBH Main Room
  • 23MK
    23MK Main Room
  • 24JS
    24JS Main Room
  • 25RRT
    25RRT Main Room
  • 26BRB
    26BRB Main Room
  • 26DBH
    26DBH Main Room
  • 26DJSE
    26DJSE Main Room
  • 26MBRR
    26MBRR Main Room
  • 26MK
    26MK Main Room
  • 26RR
    26RR Main Room
  • 27DBH
    27DBH Main Room
  • 27RR
    27RR Main Room
  • 29TE
    29TE Main Room


Literature
