RP-190 Floorplan

Ultra Lite Travel Trailer

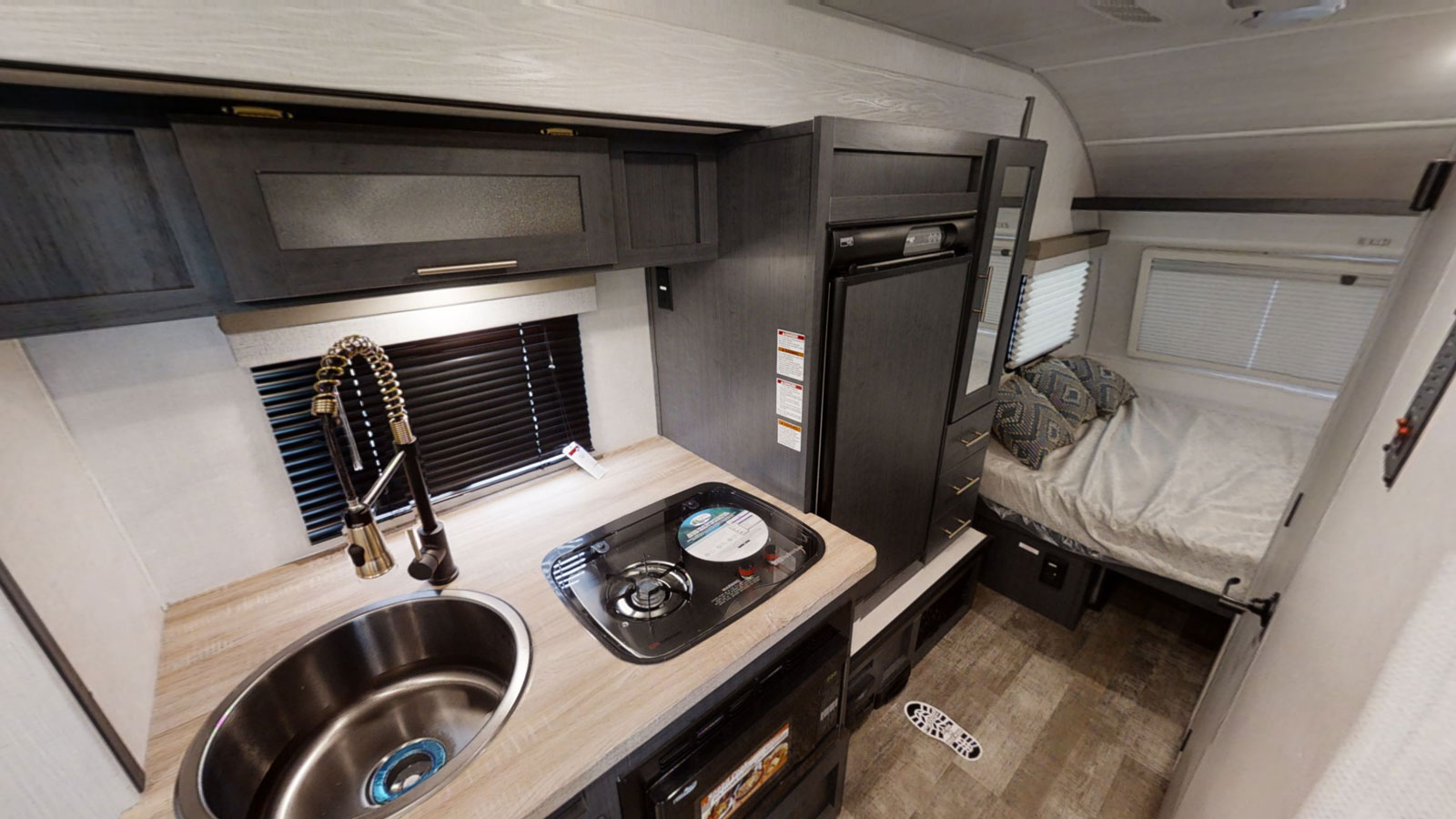

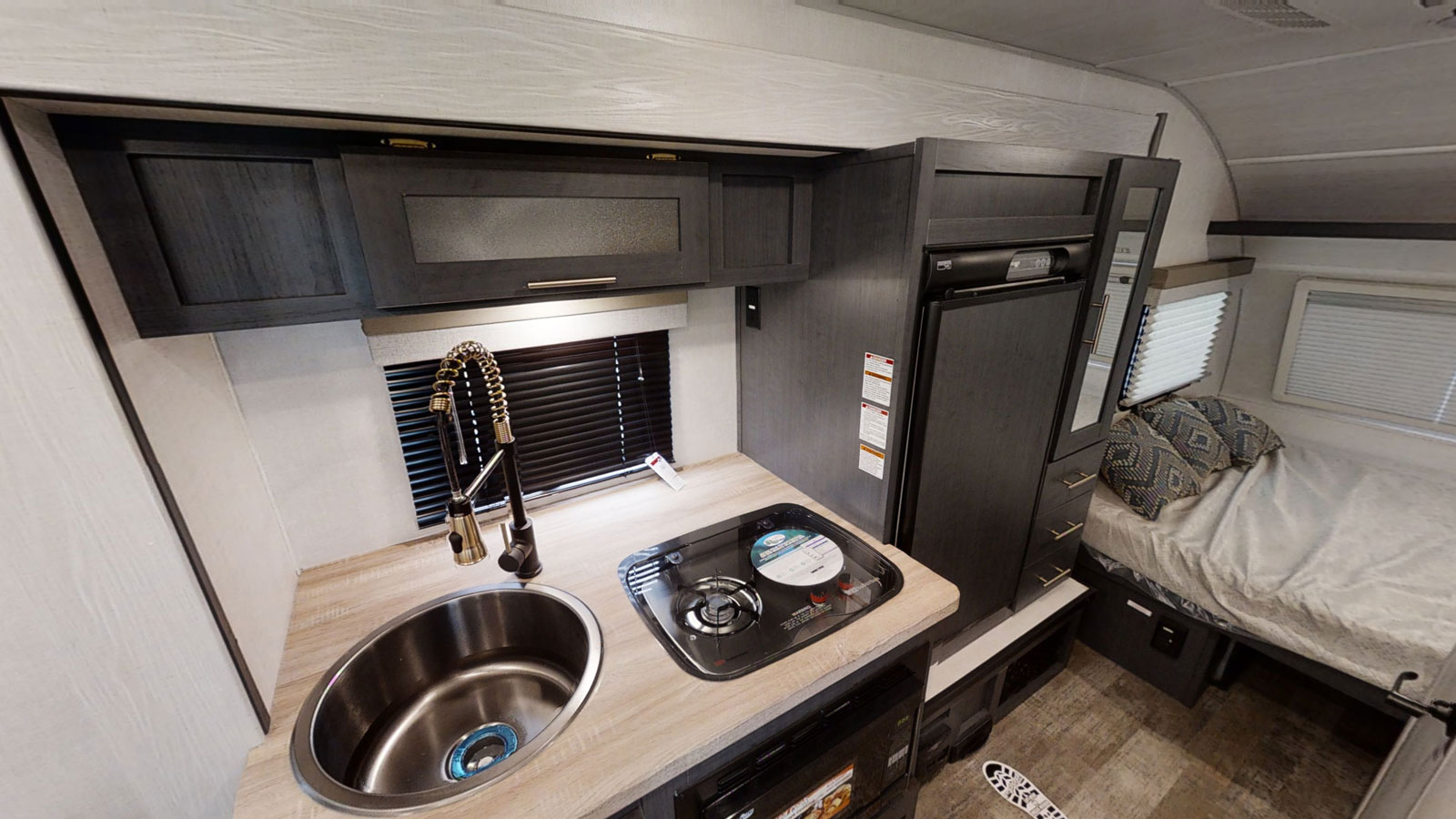

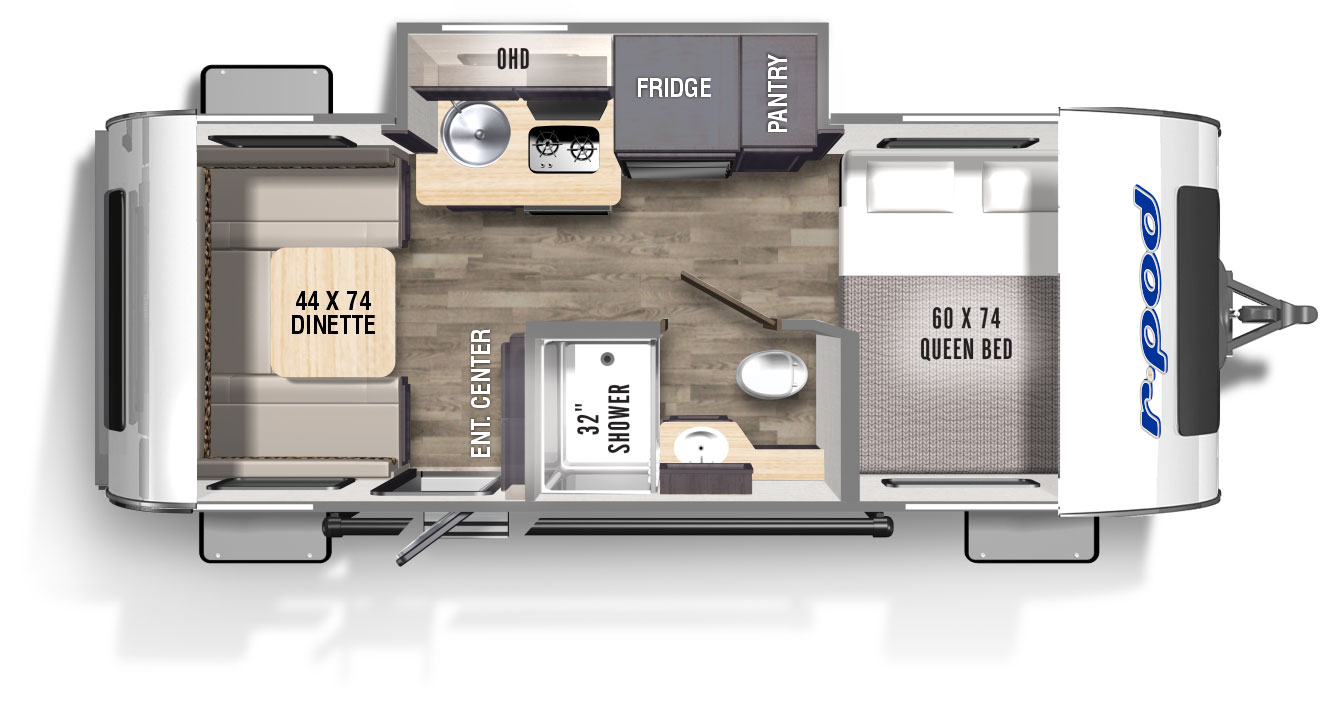

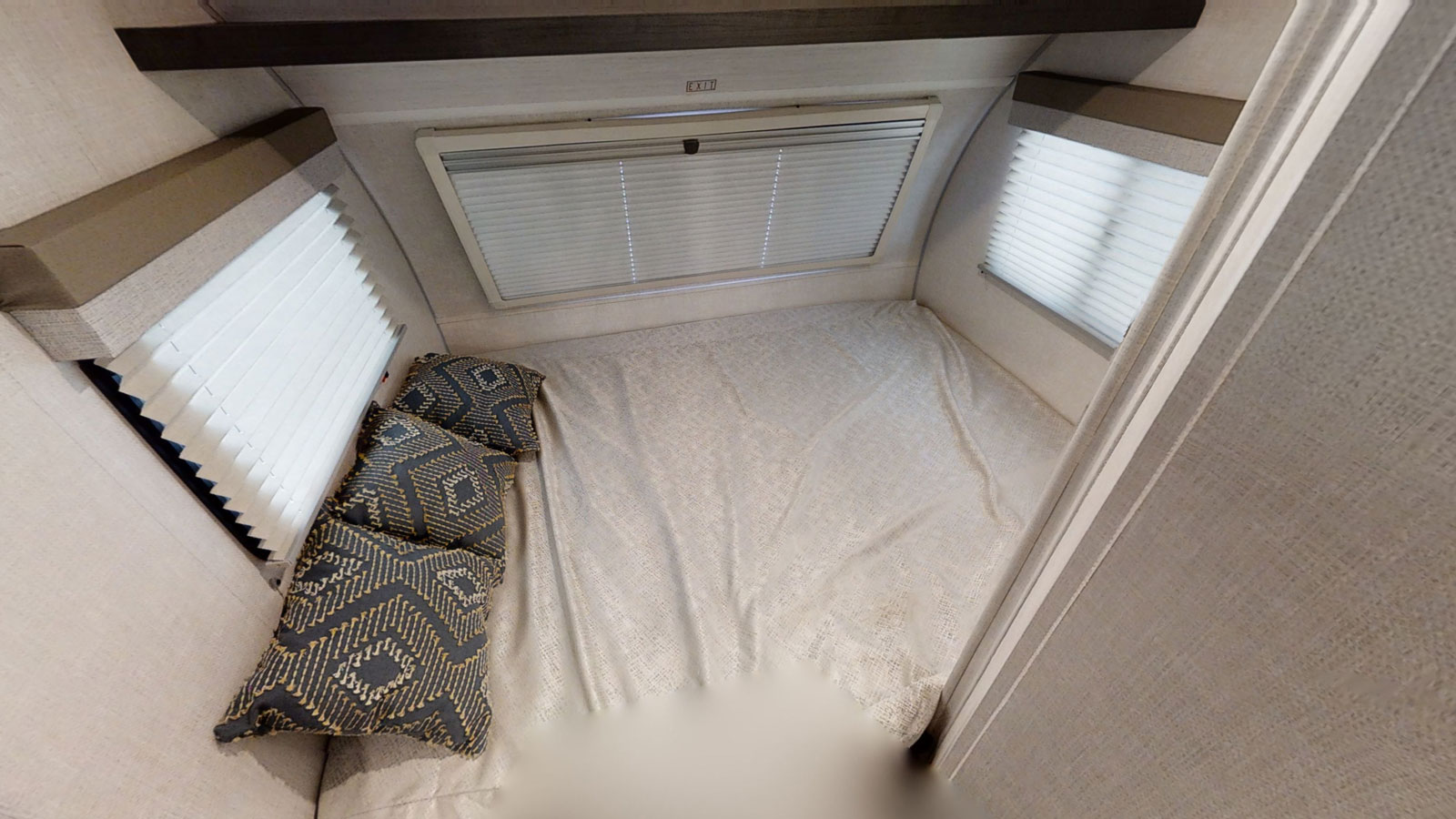

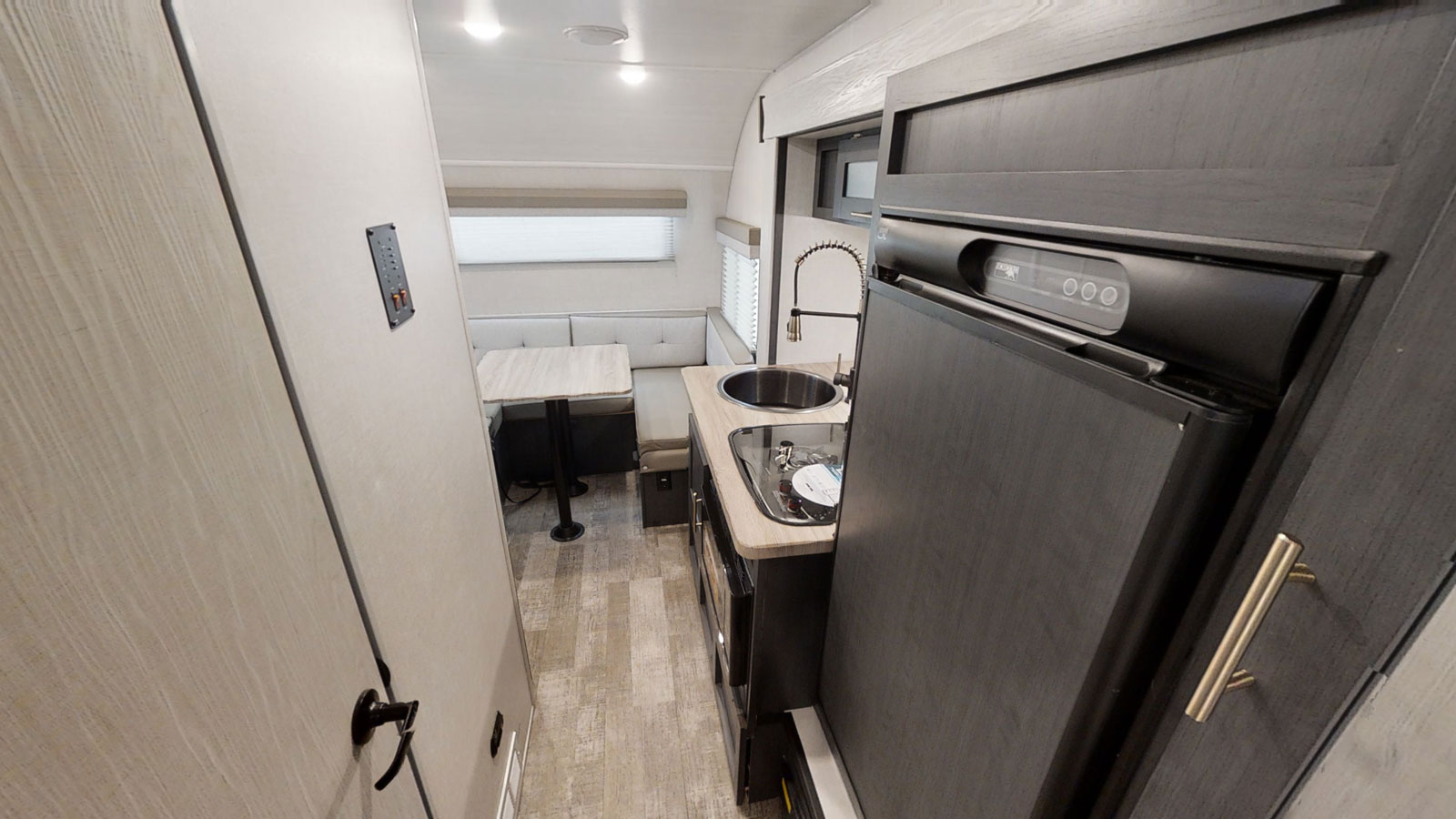

The RP190 has one entry door located near the rear, front storage compartment, rear pass-through storage, and one slide room on the off-door side on the exterior. Customers can choose the R-dome or a 10' awning. Inside, there is a 60" x 74" queen bed located across the front wall. Looking toward the rear of the vehicle, you have a kitchen slideout on the right wall, with a wardrobe, refrigerator, cooktop, convection microwave, and single basin sink, with cabinets mounted overhead. On the left wall is the bathroom containing a 32" shower, sink with medicine cabinet, and commode. Next to the bathroom is an entertainment center that faces the rear wall. A 44" x 74" U-shaped dinette is located in the back of the unit.
Enlarge
A huge U-shaped dinette fills multiple camping needs as it provides the flexibility of additional seating or sleeping. Sleeping for 1-4 and a bathroom layout with separate shower & toilet design allows multiple people to enjoy the great outdoors. Optional, removable outside kitchen allows for outdoor cooking and clean up with the sink and door side spray port.

Specifications

Hitch Weight:
307 lb.
UVW
2,979 lb.
CCC
828 lb.
Exterior Length:
20' 4"
Exterior Height:
9' 7"
Exterior Width:
96"
Fresh Water:
30.00 gal.
Gray Water:
30.00 gal.
Black Water:
30.00 gal.
Awning Size:
Opt. (R-dome or 10')

GVWR (Gross Vehicle Weight Rating)
– is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.
