RP-203 Floorplan

Ultra Lite Travel Trailer

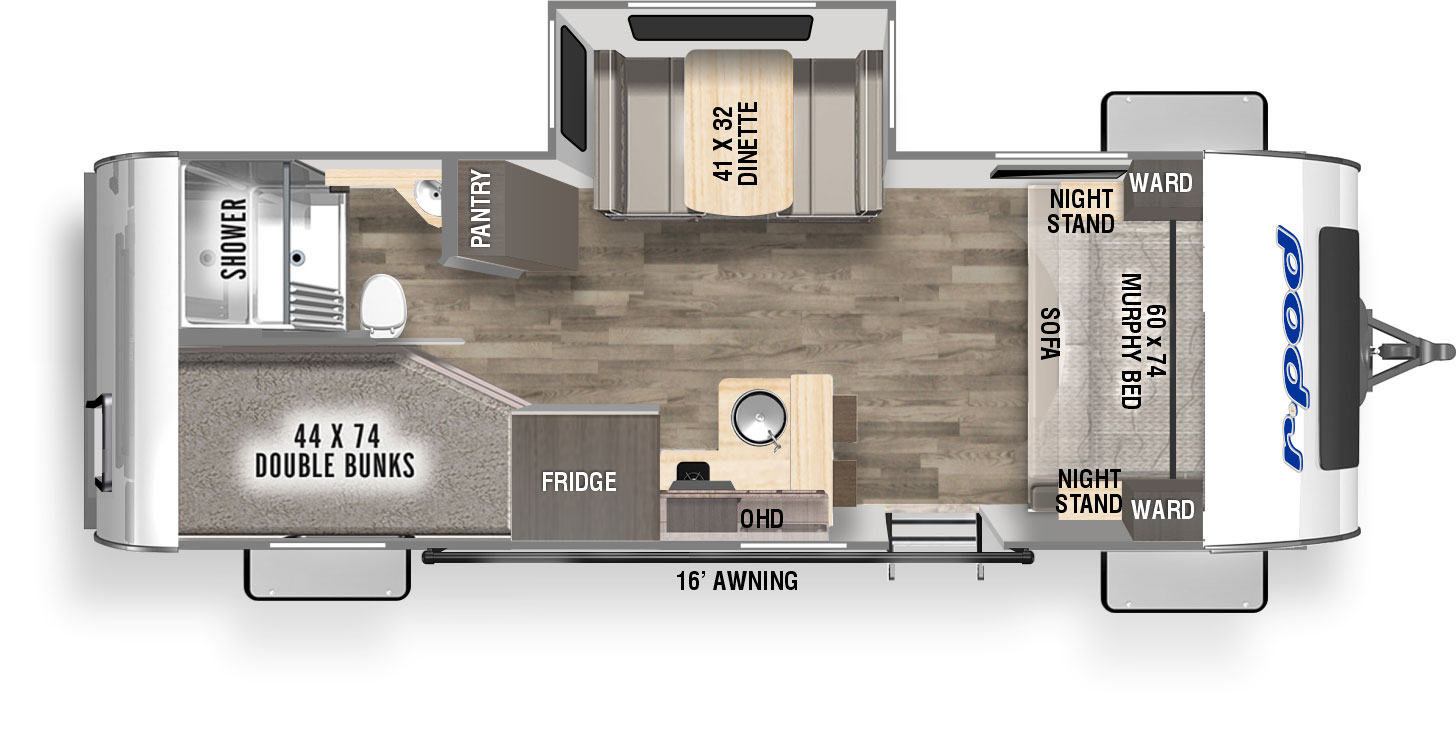

The RP-203 has one slideout and one entry. Exterior features a 16 foot awning and storage. Interior layout front to back: murphy bed/sofa; off-door side slideout with dinette; door side entry, peninsula kitchen counter with sink and barstools that wraps to door side with overhead cabinet and refrigerator; off-door side pantry; rear door side double bunks; rear off-door side full bathroom.
Enlarge

Specifications

Hitch Weight:
725 lb.
UVW
5,169 lb.
CCC
2,556 lb.
Exterior Length:
25' 0"
Exterior Height:
TBD
Exterior Width:
96"
Fresh Water:
30.00 gal.
Gray Water:
30.00 gal.
Black Water:
30.00 gal.
Awning Size:
16'

GVWR (Gross Vehicle Weight Rating)
– is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.
