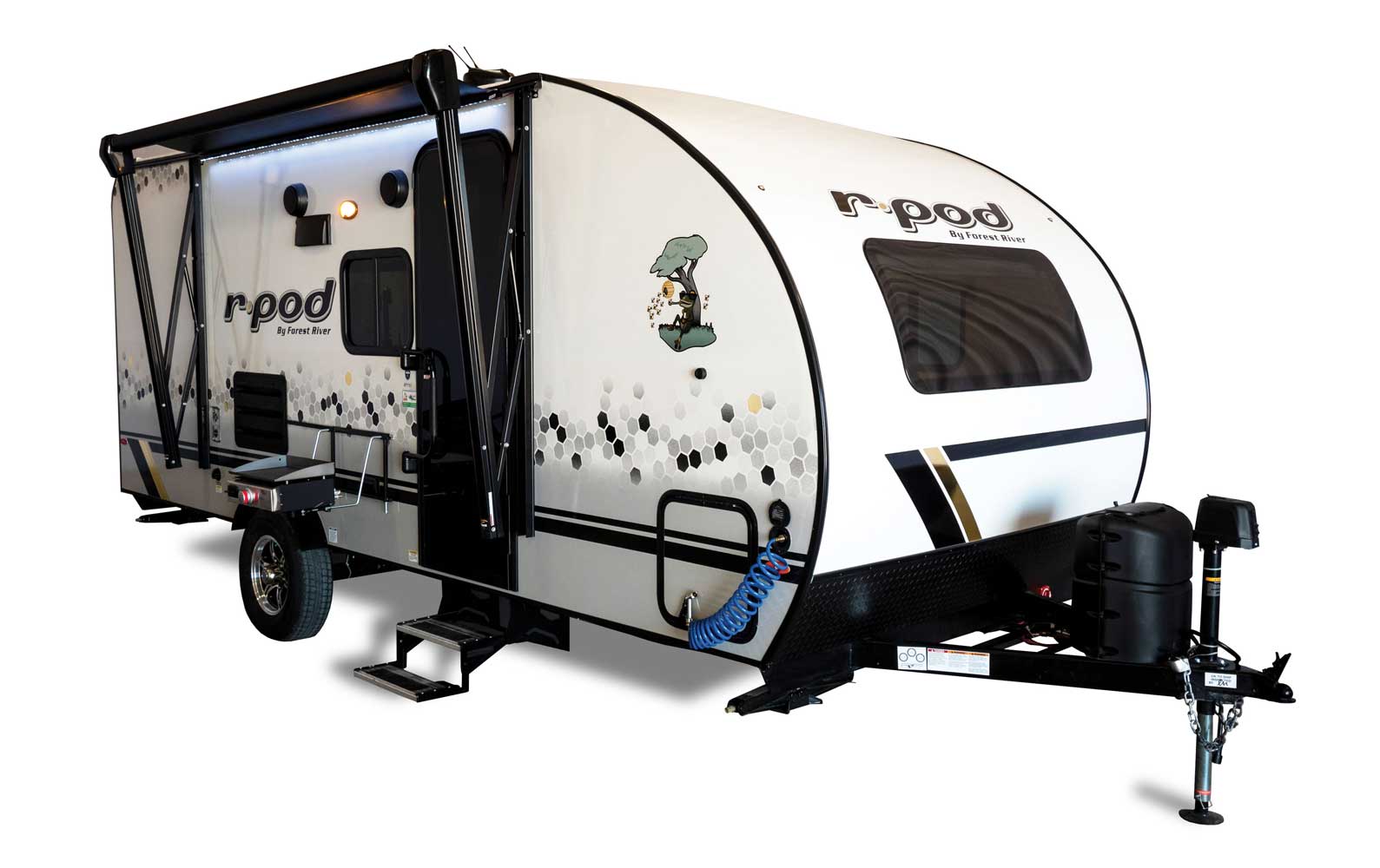

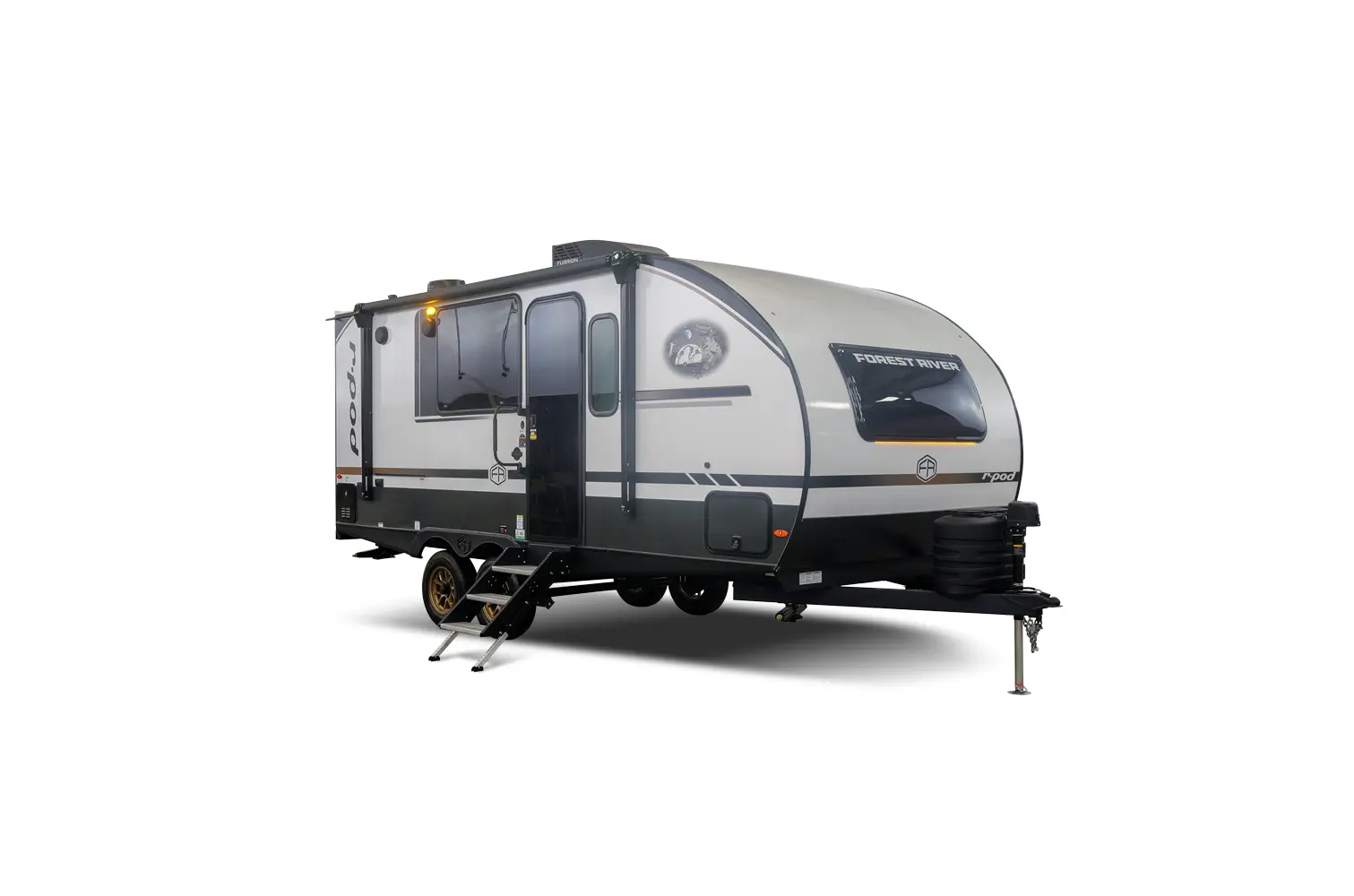

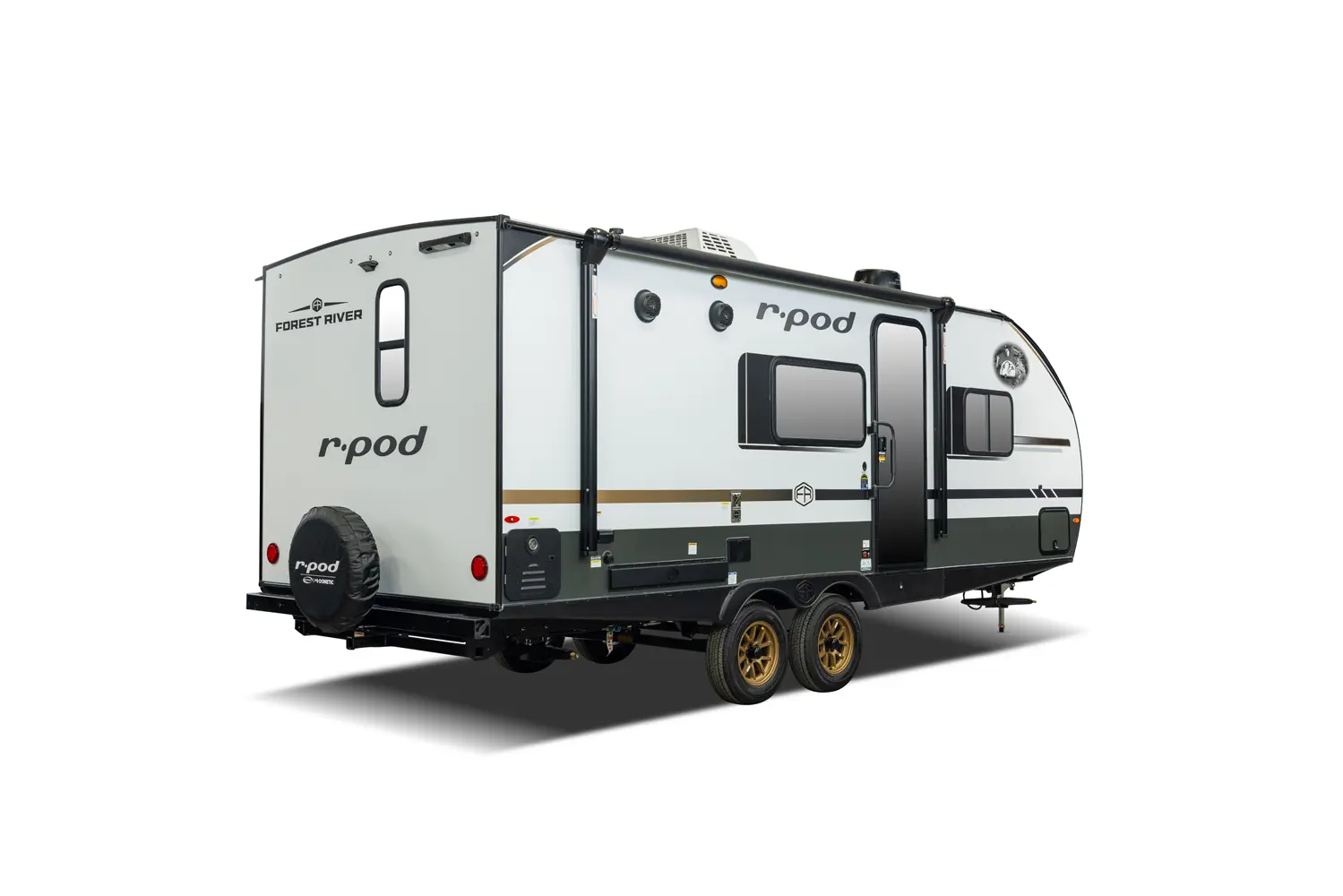

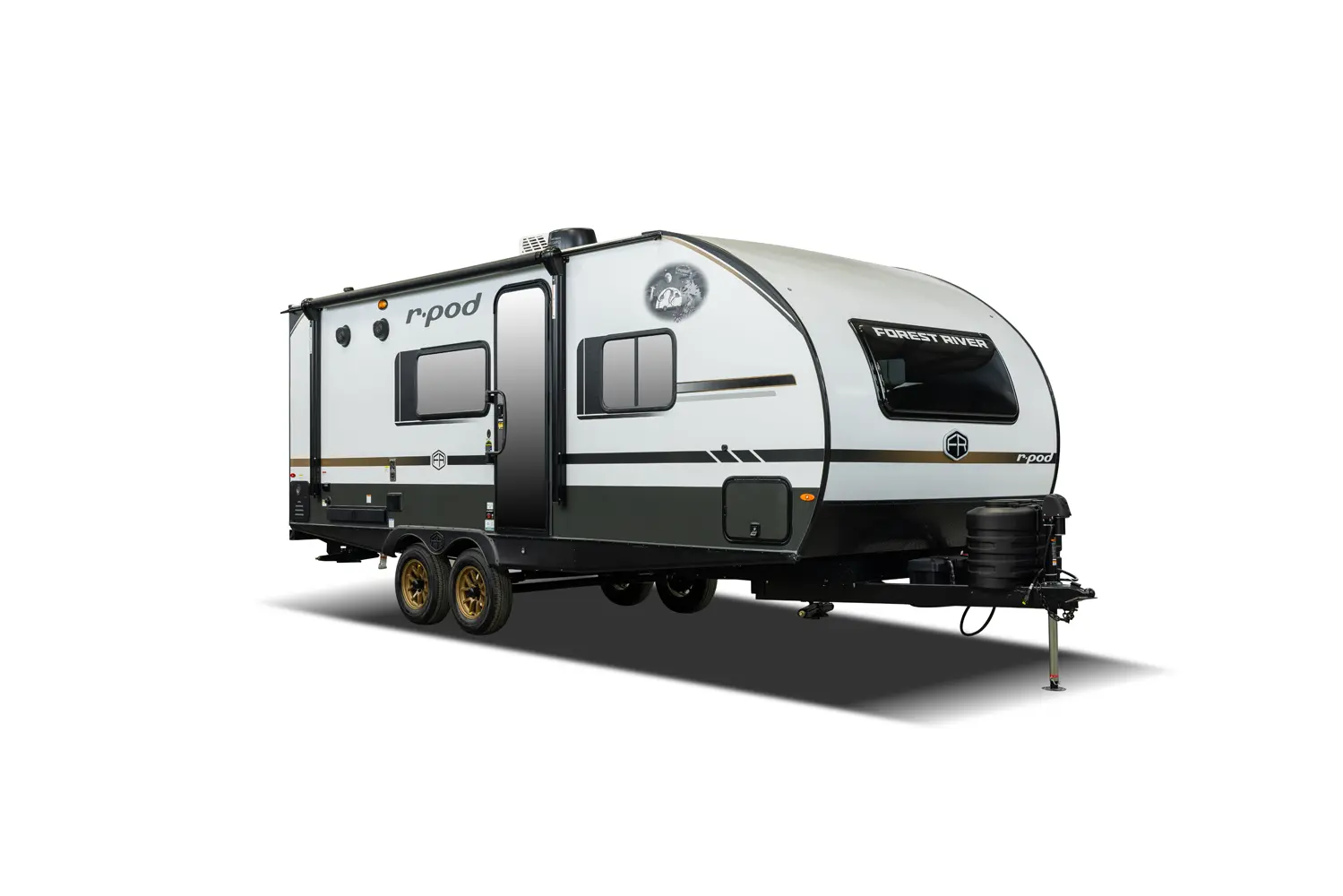

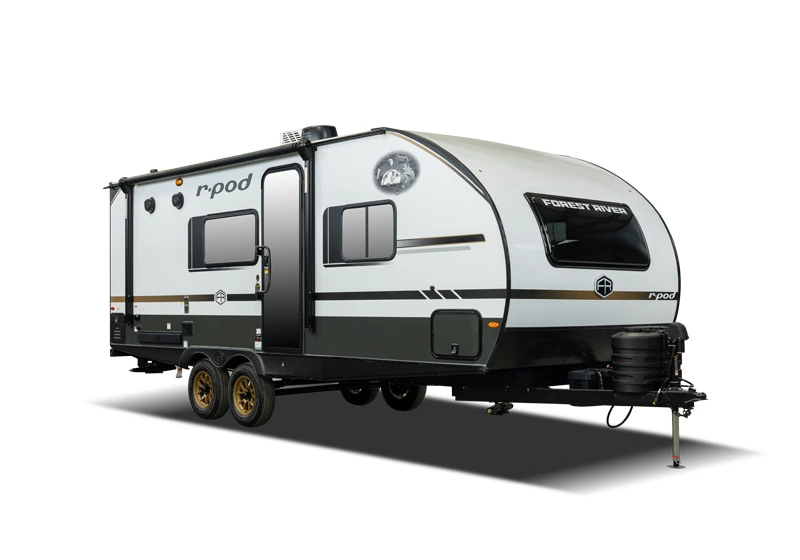

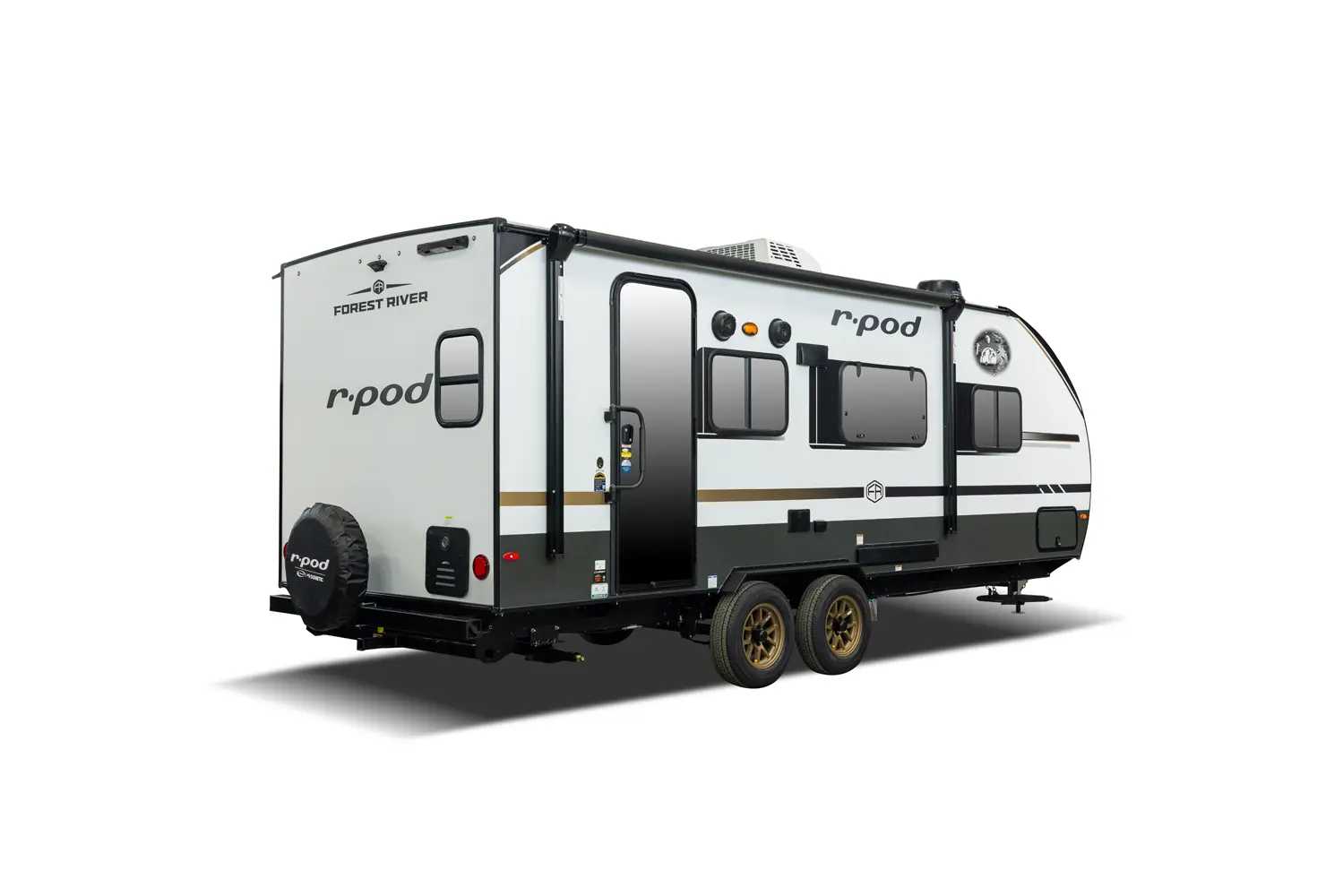

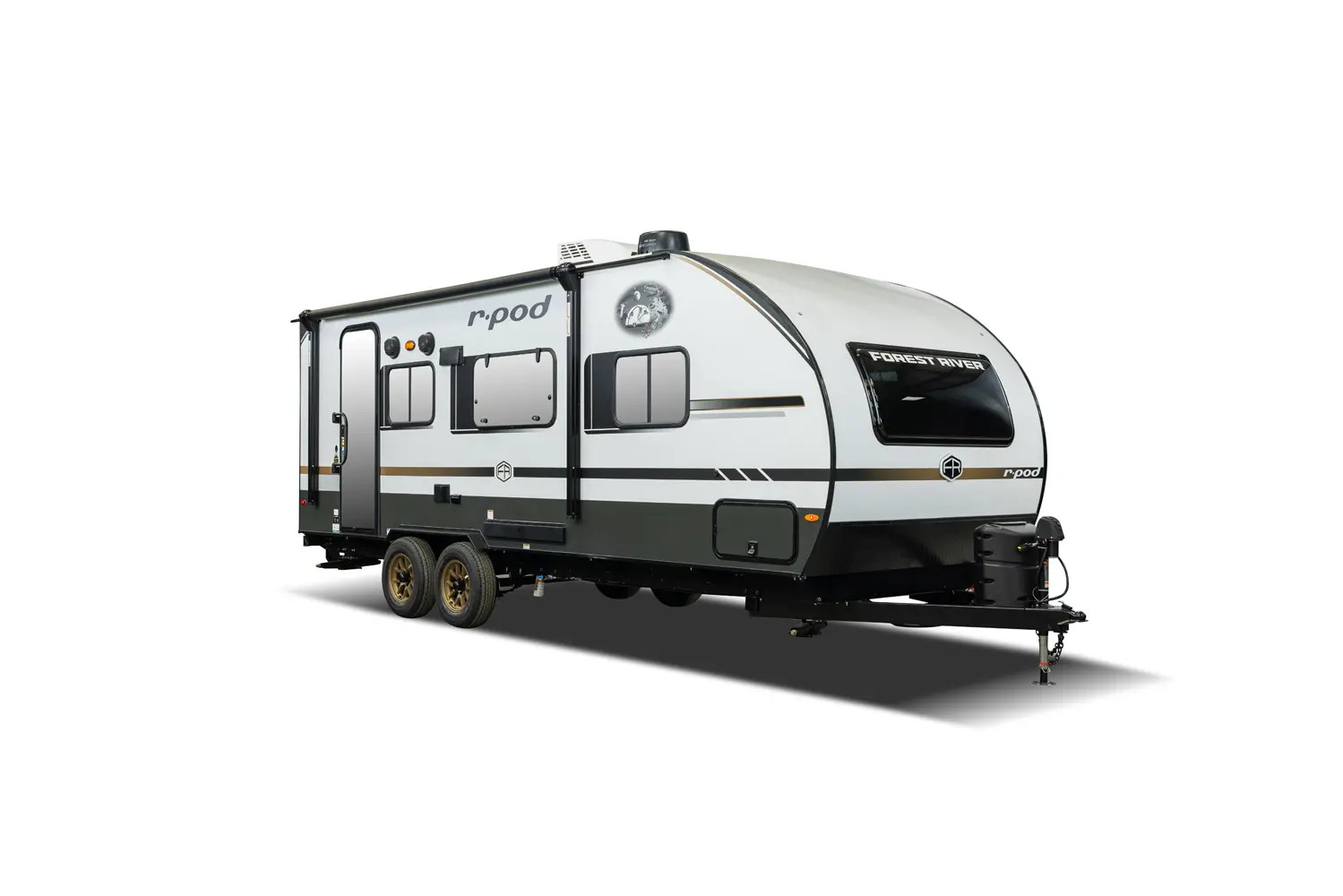

r•pod Travel Trailers and Expandable Hybrid Travel Trailers

The r•pod is the first of its kind to offer you affordable luxury at the lowest tow weight in its class. The r•pod is a perfect example of “form follows function,” with its unique shape and construction!

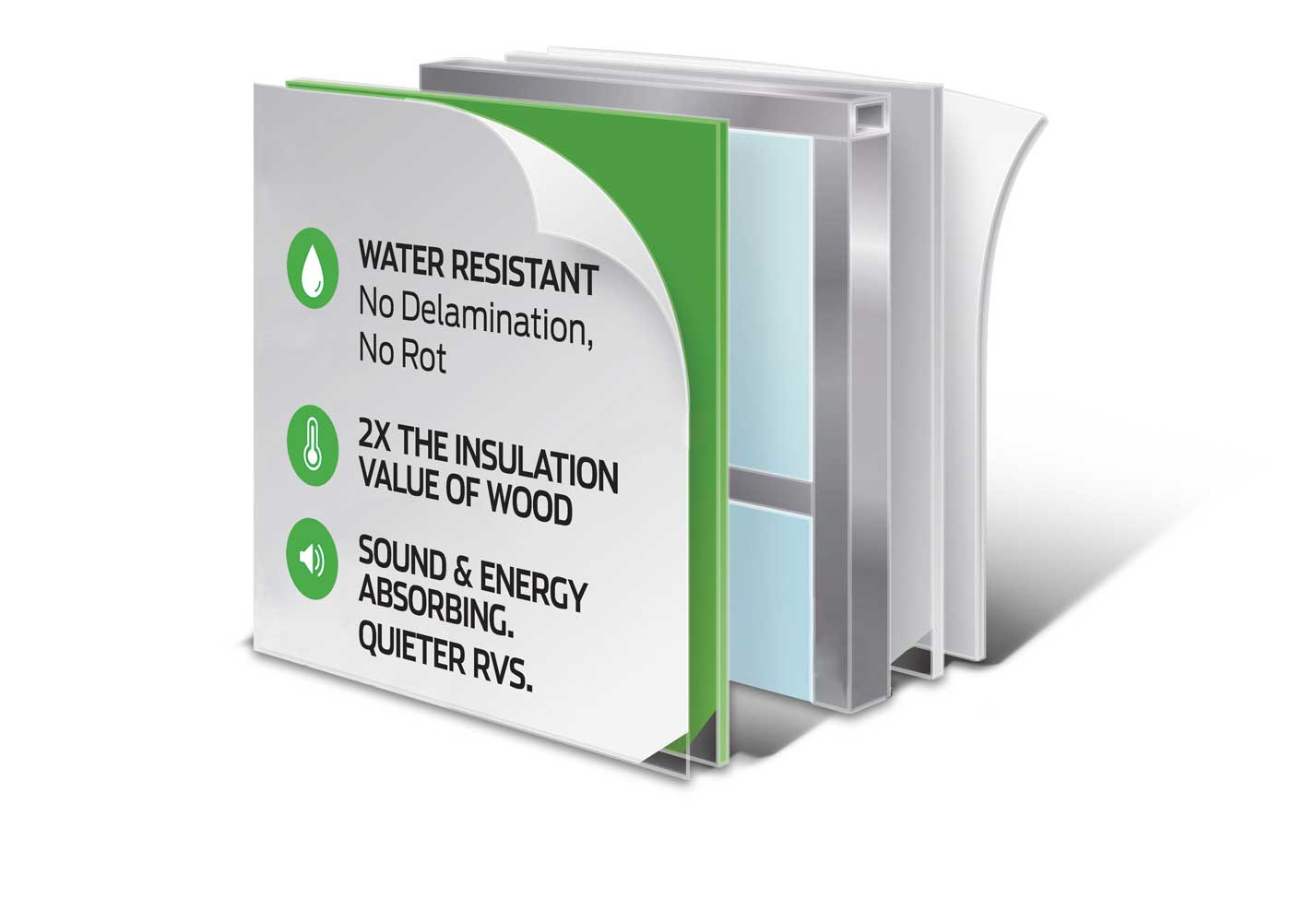

RV Business 2023 Top RV Debut - 203 Beast Mode Azdel Onboard™ RV Composite PanelsCare Camps, fighting cancer and making memories

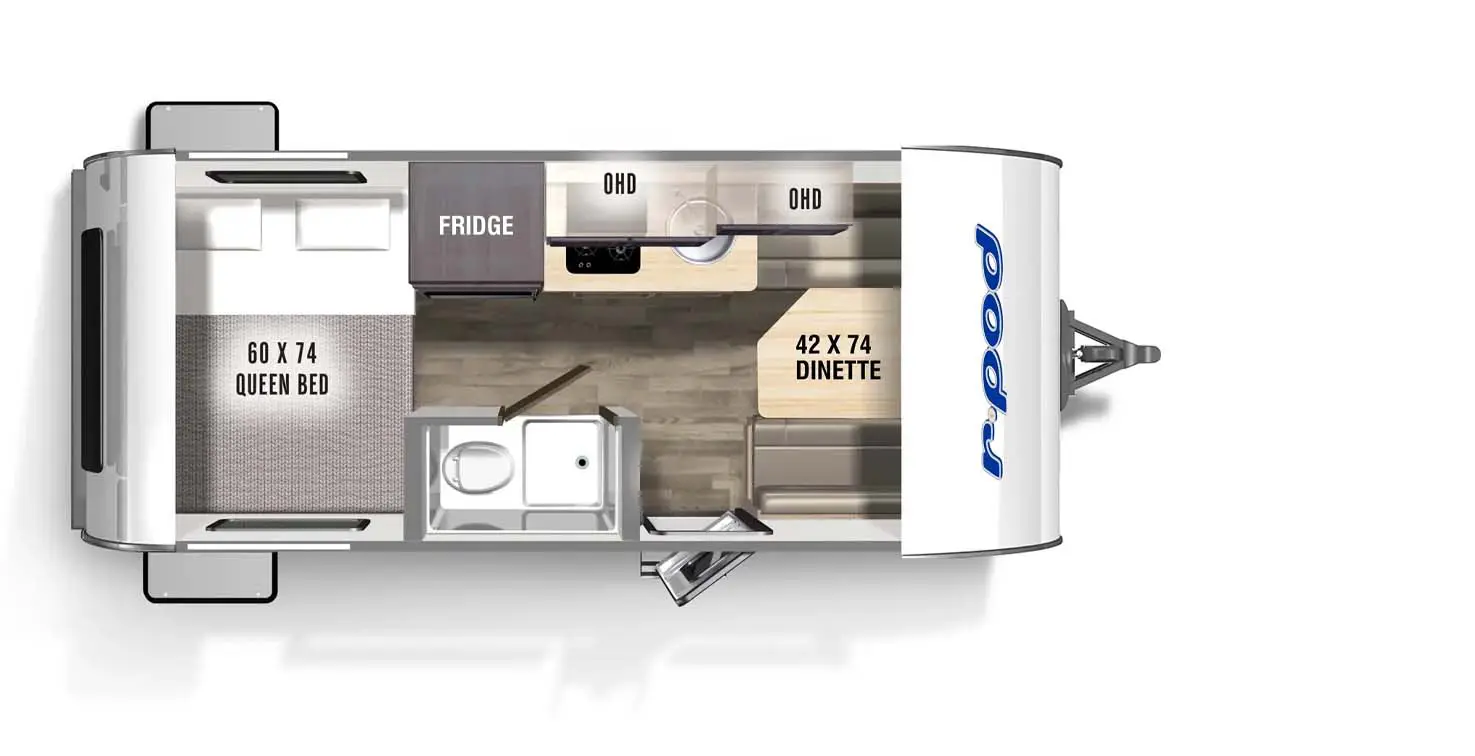

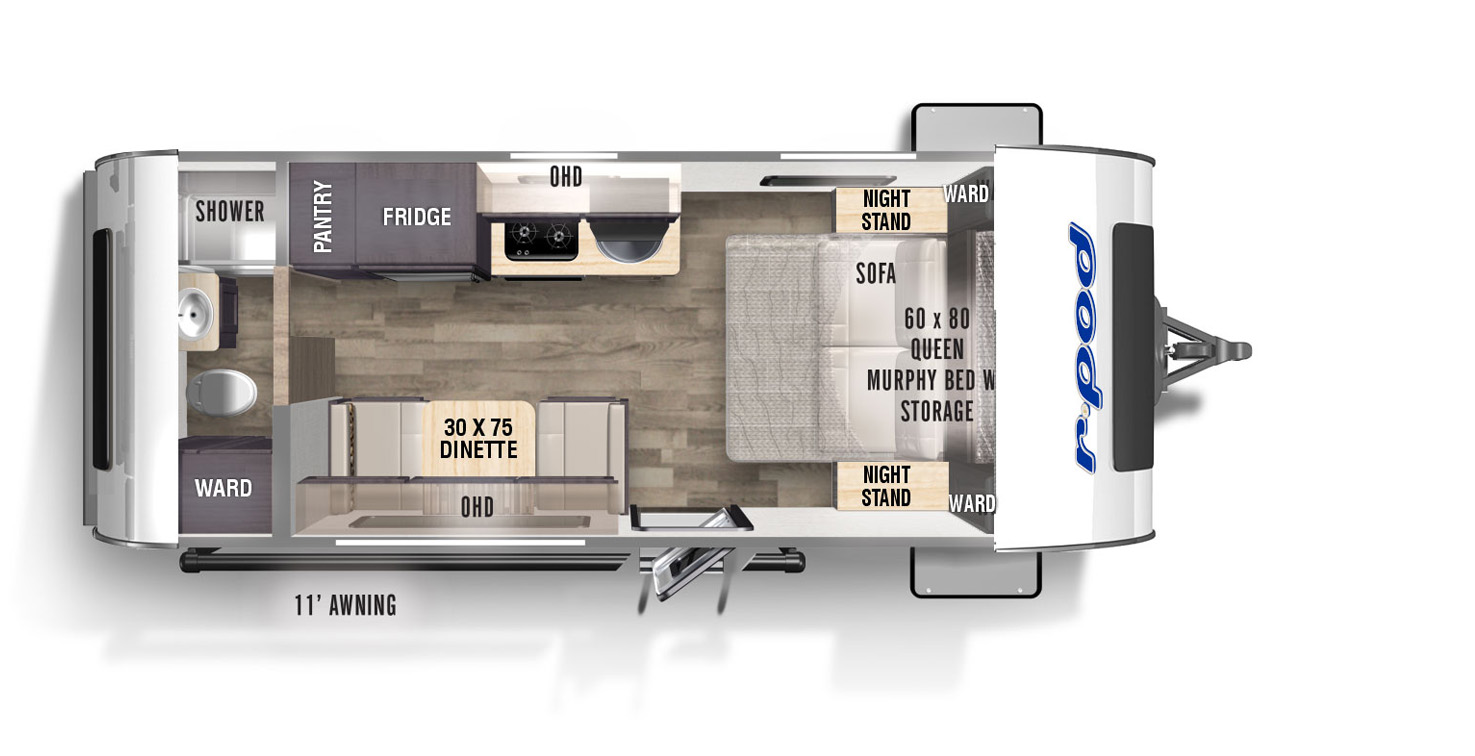

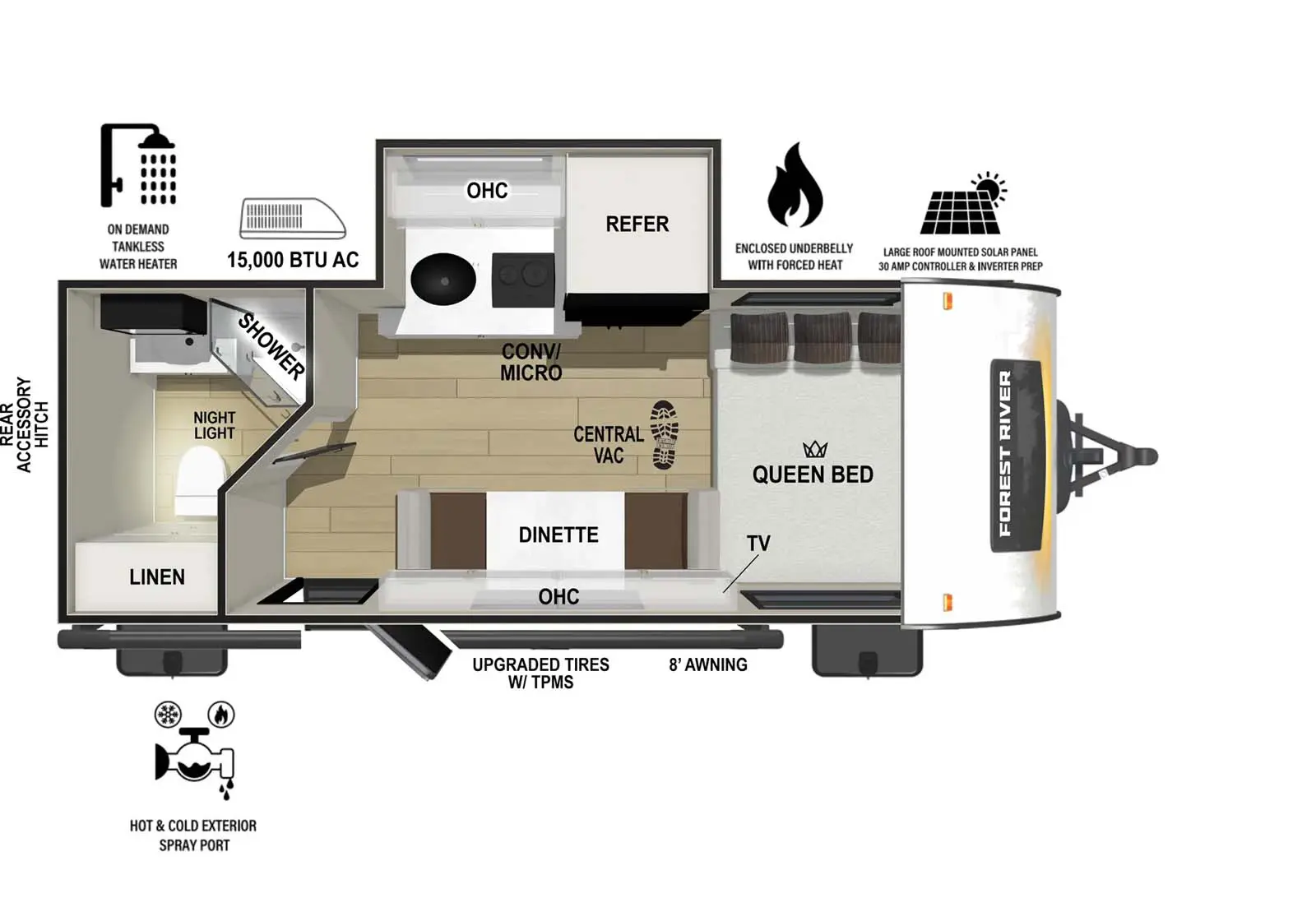

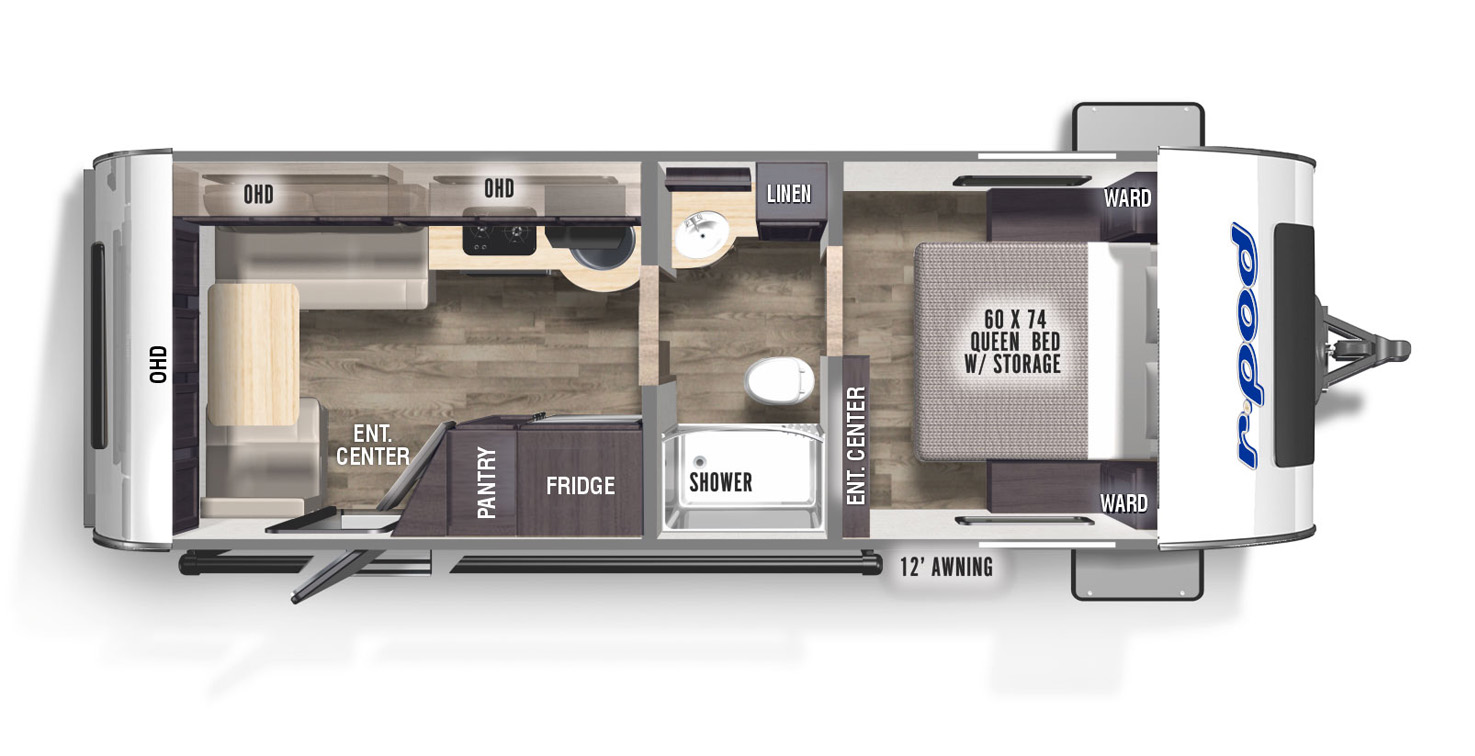

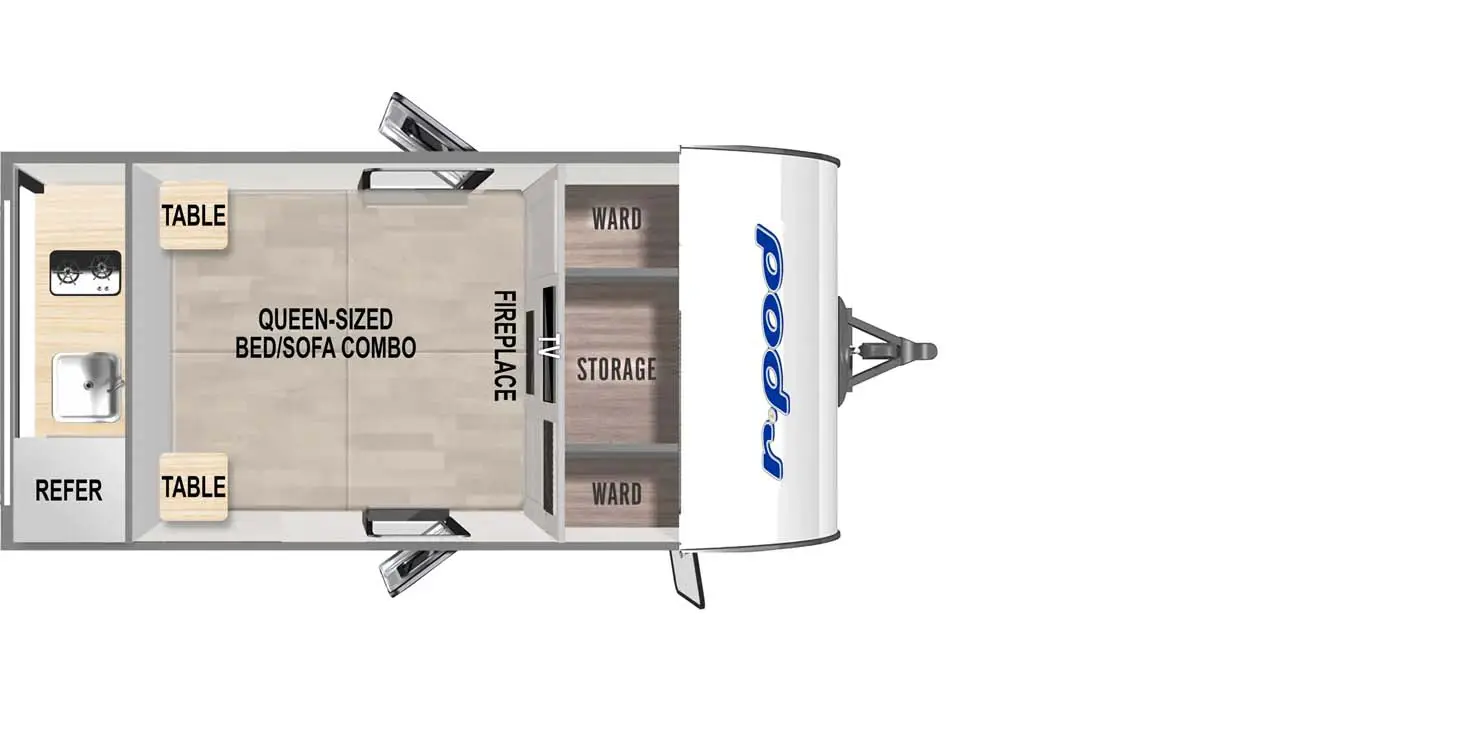

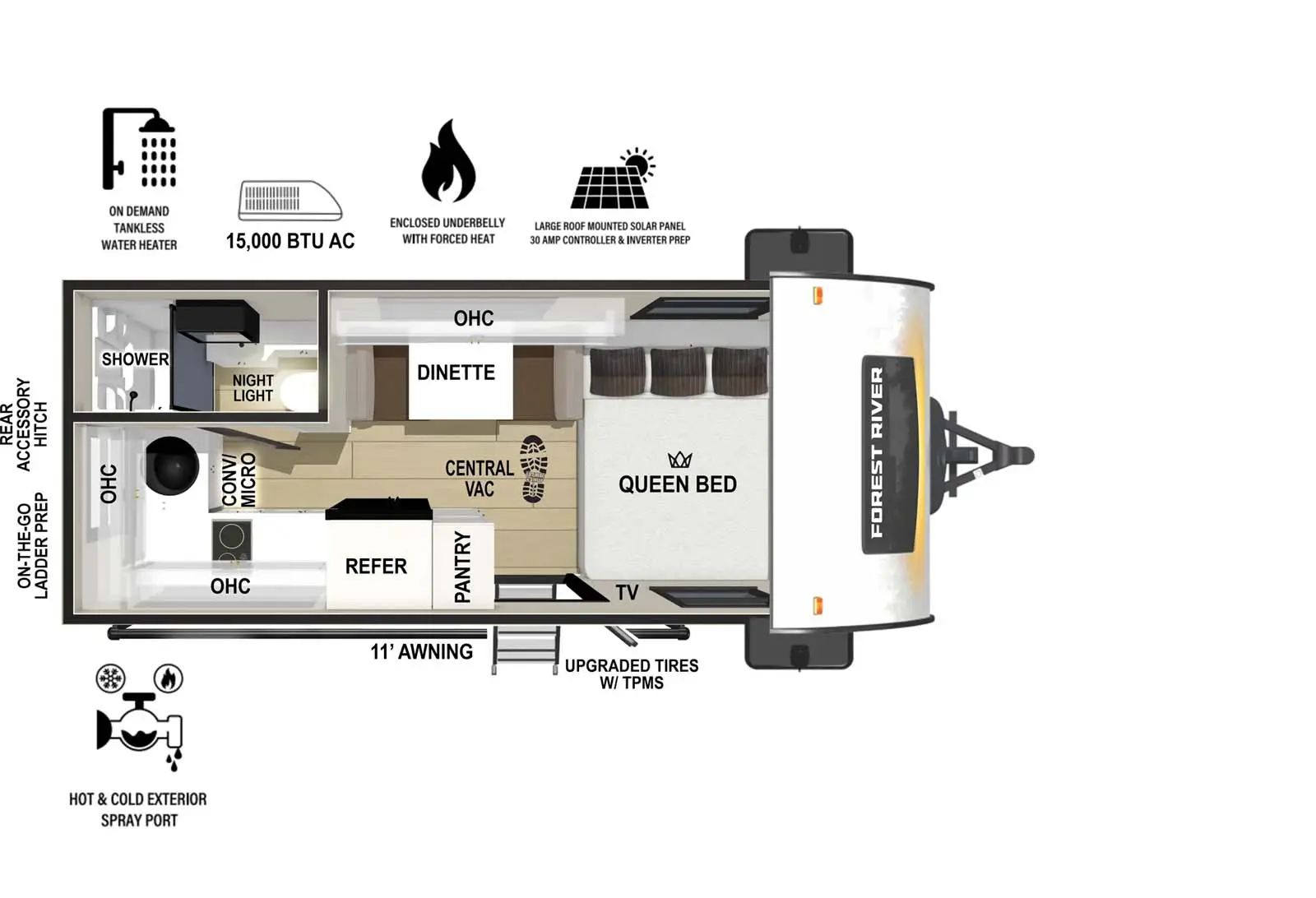

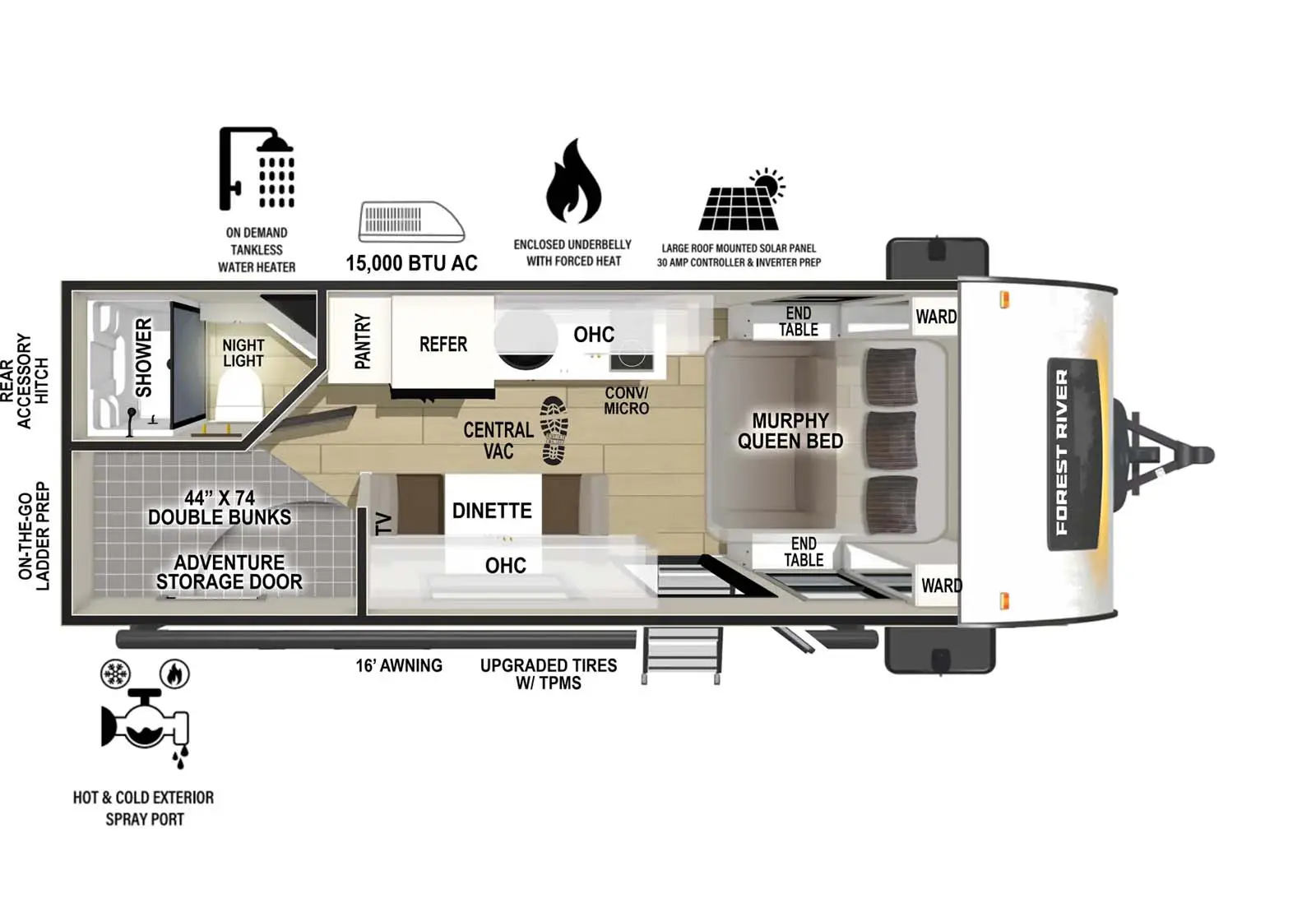

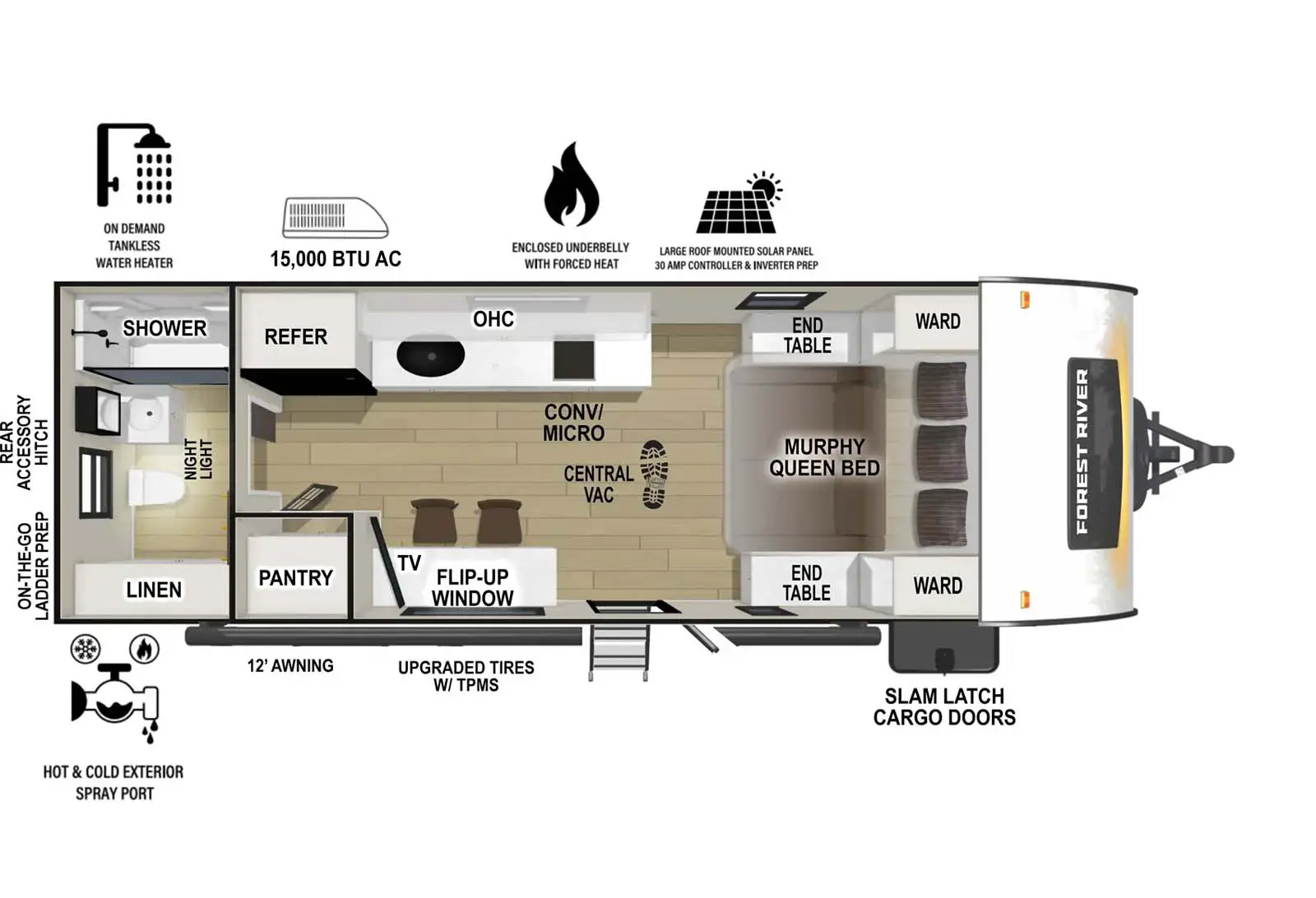

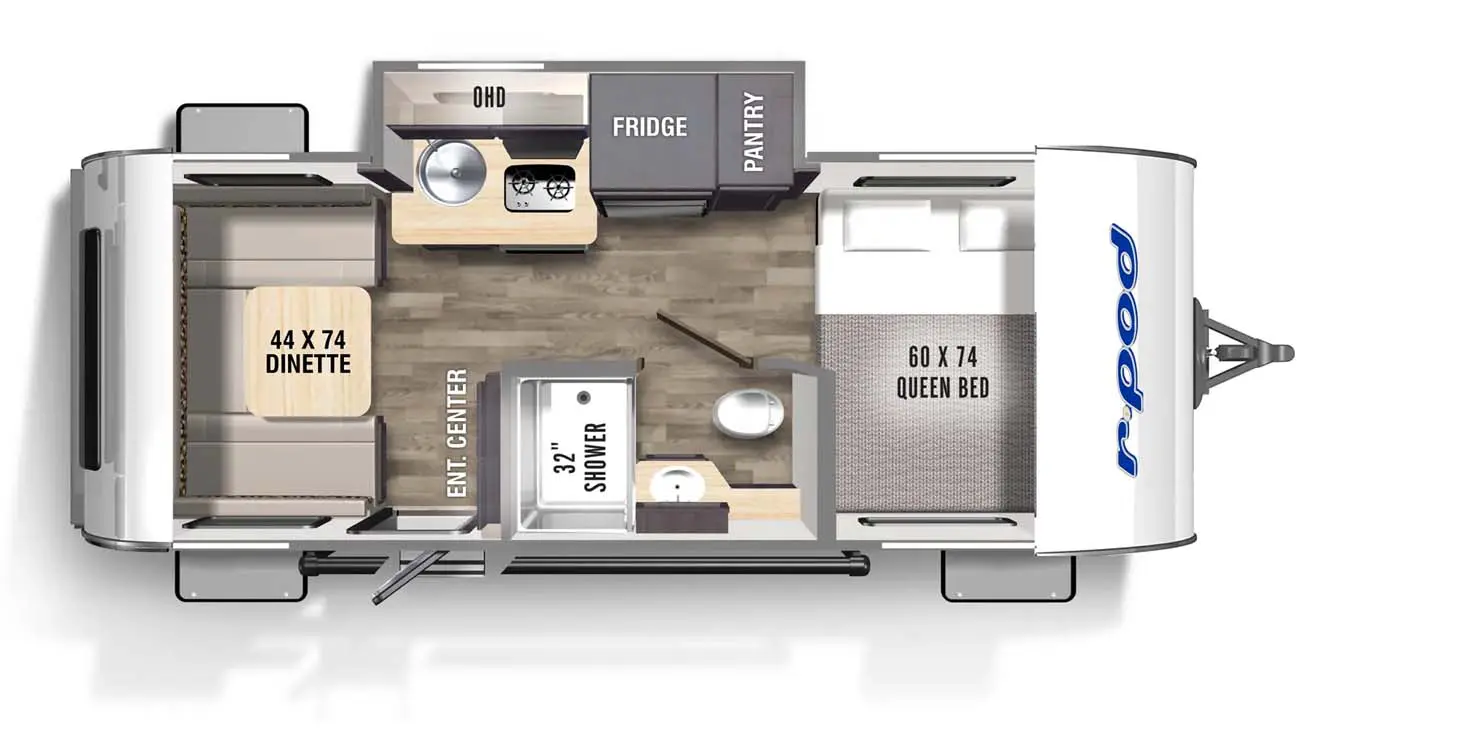

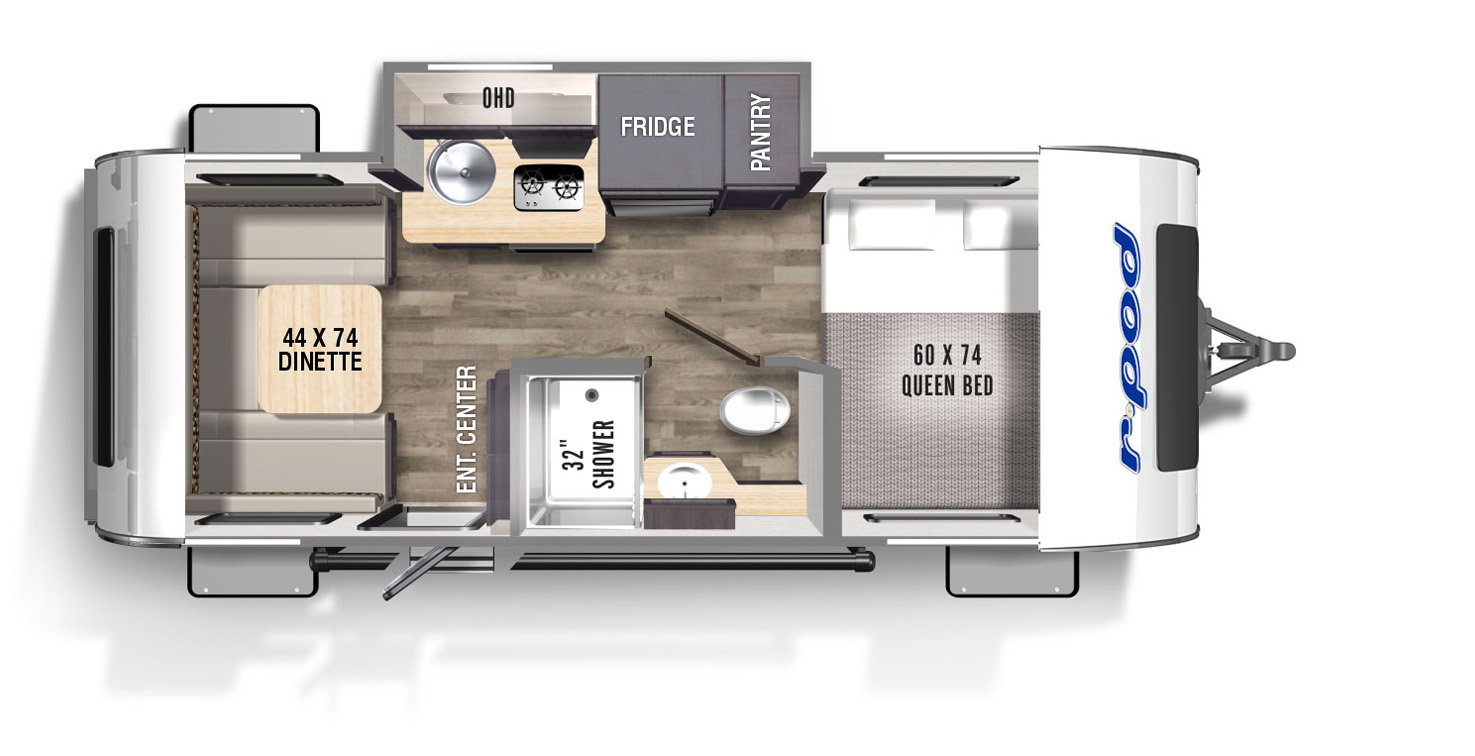

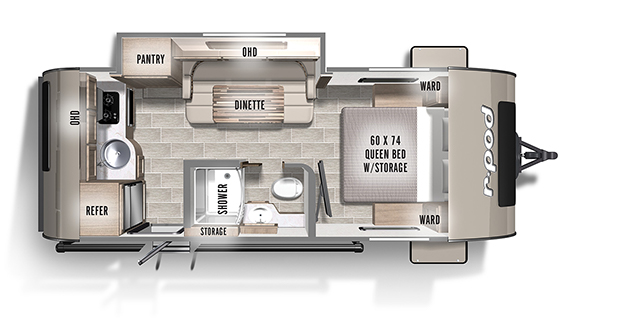

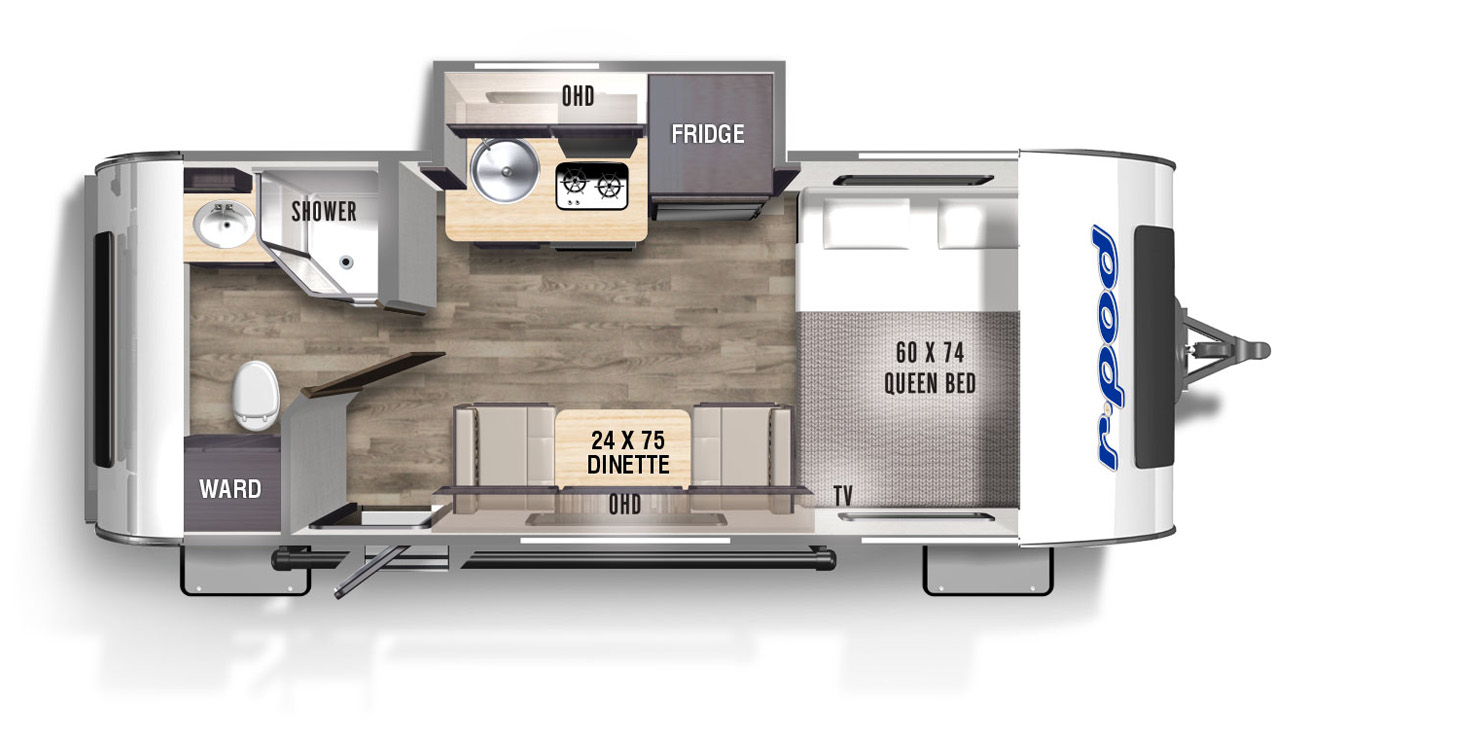

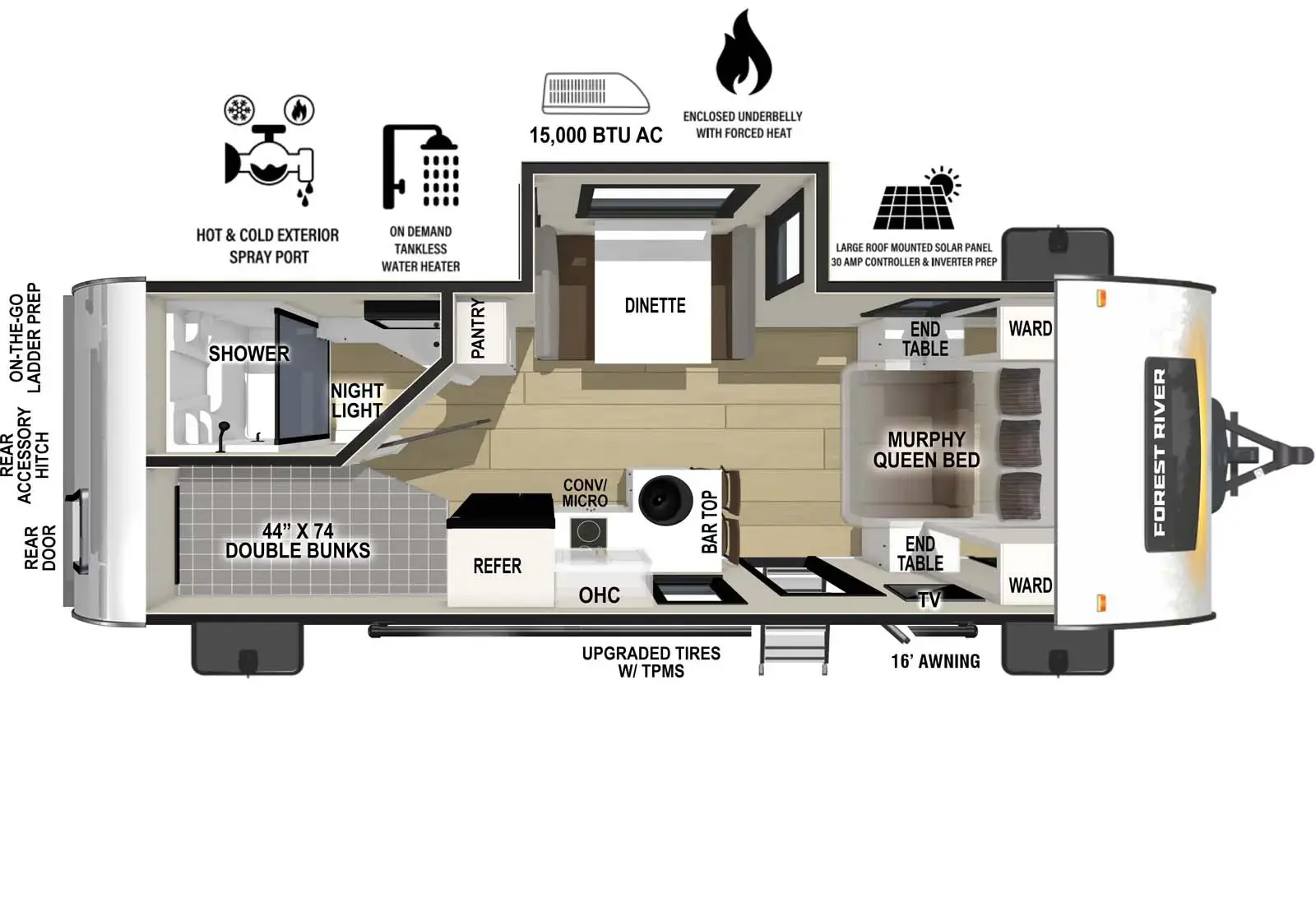

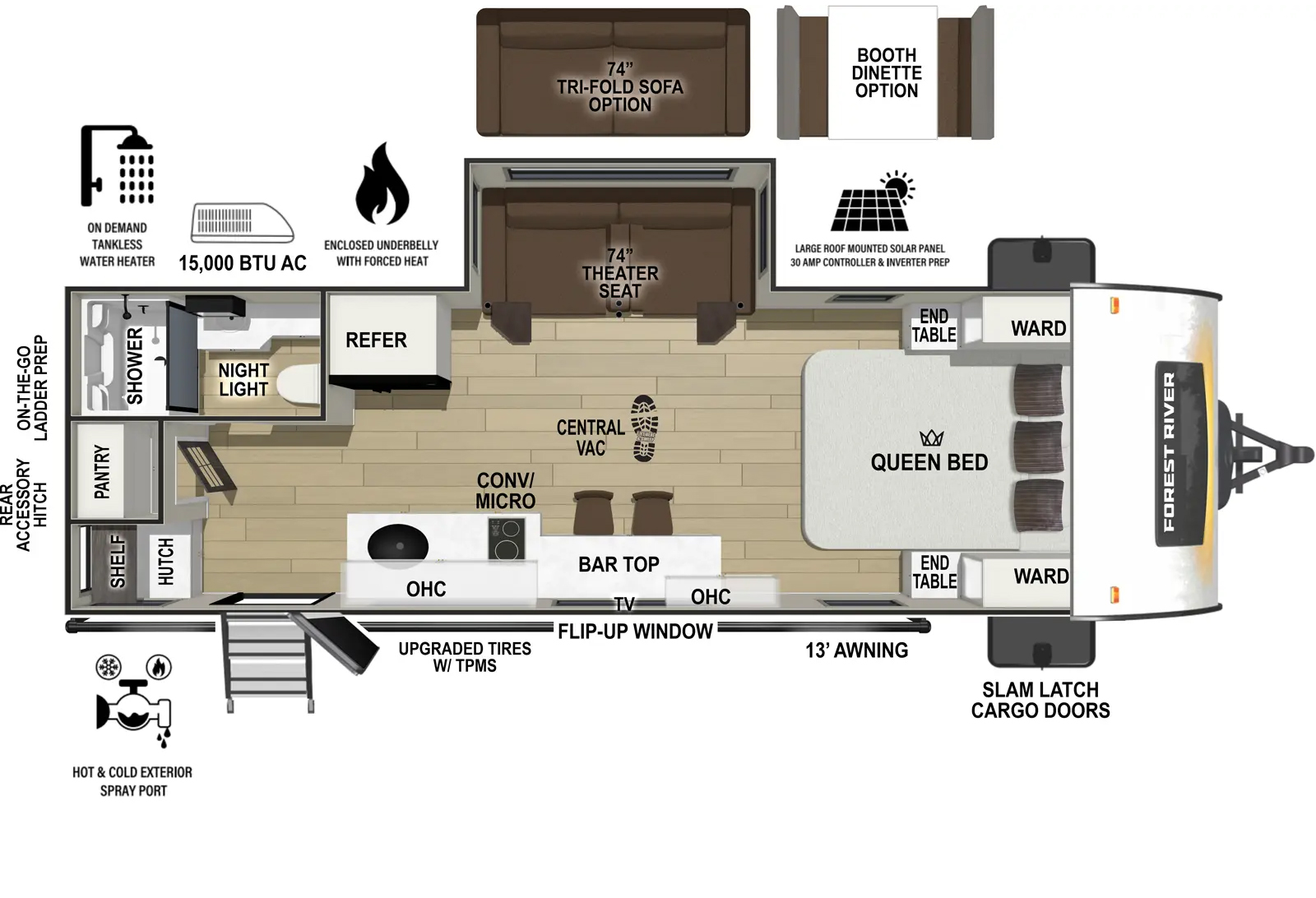

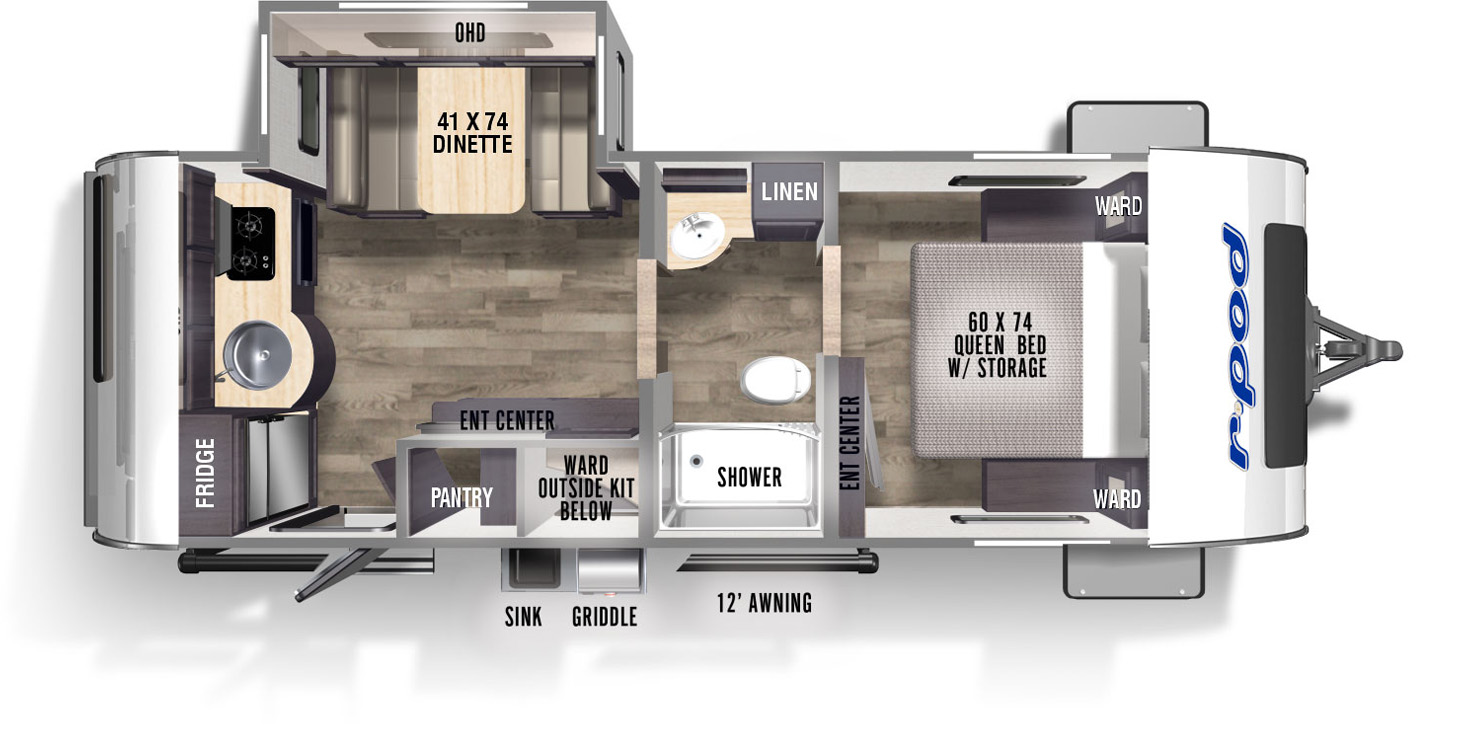

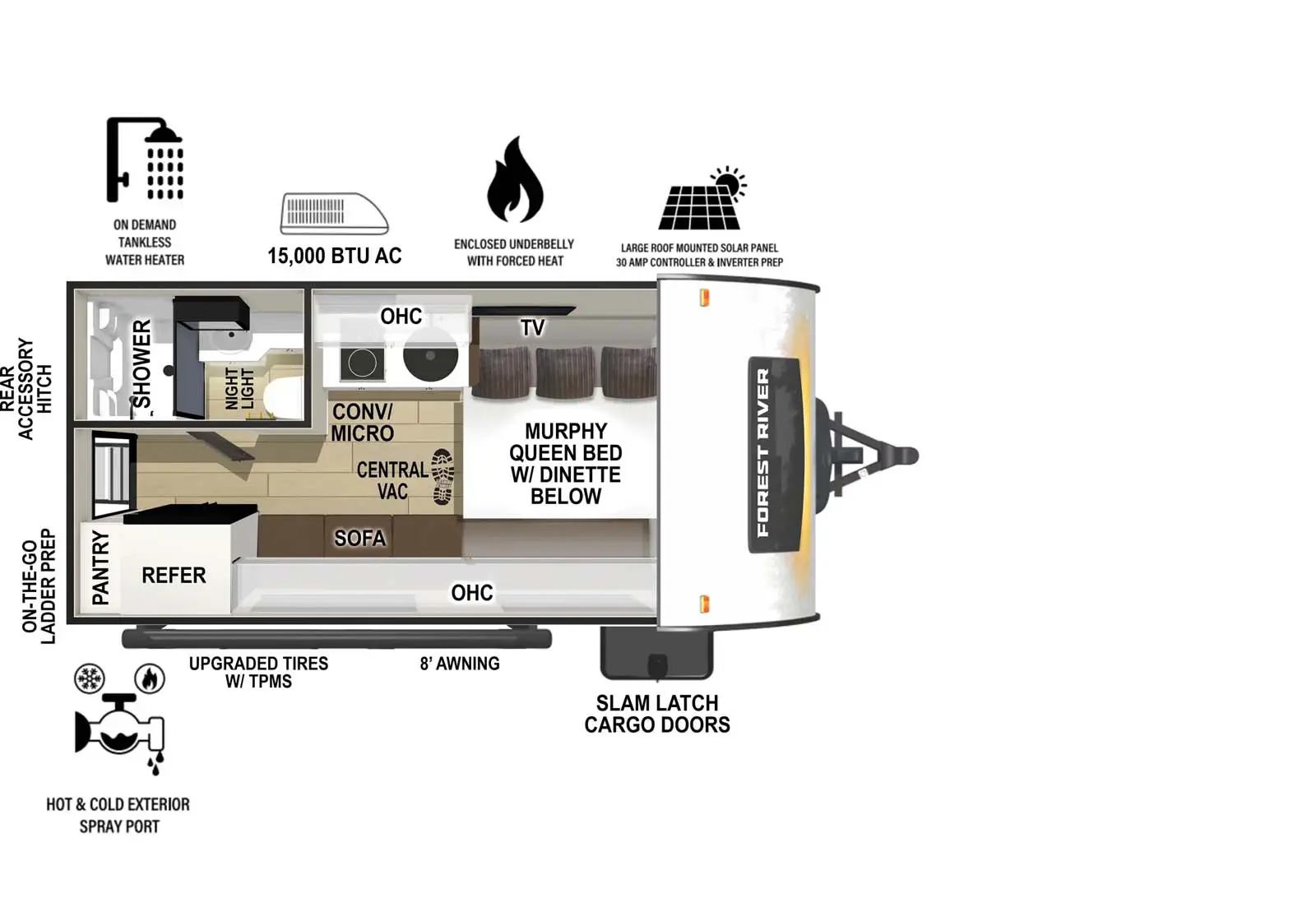

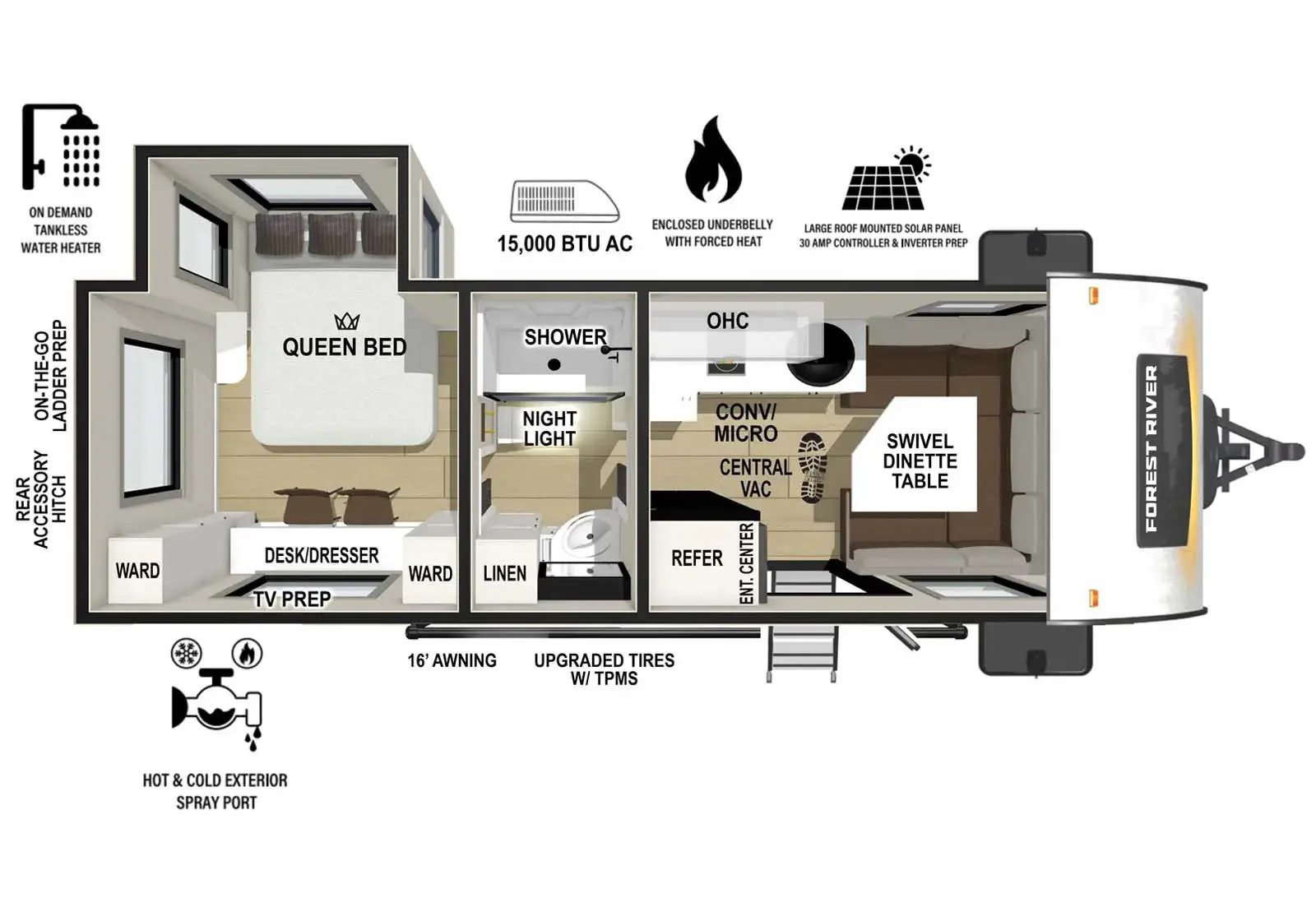

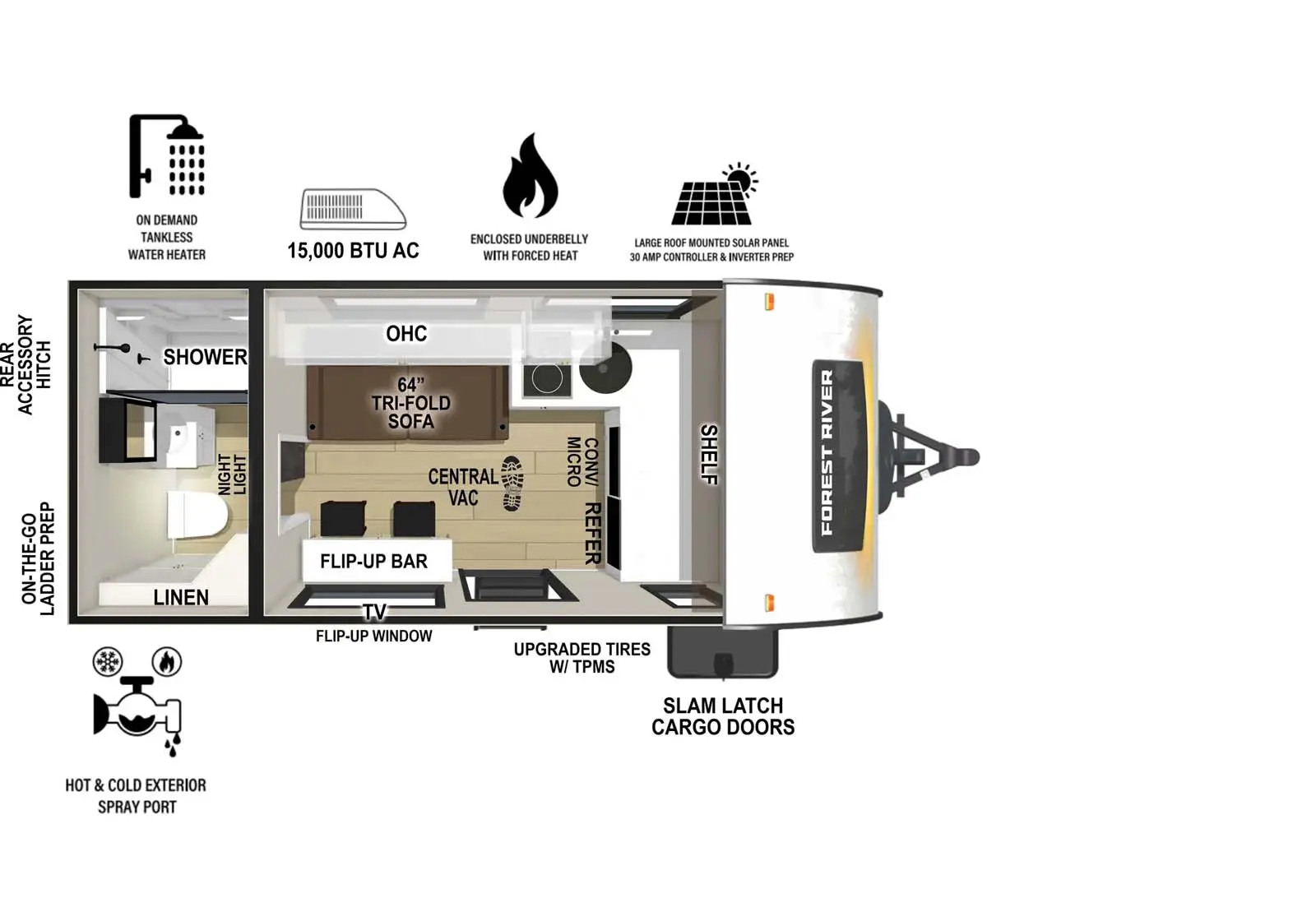

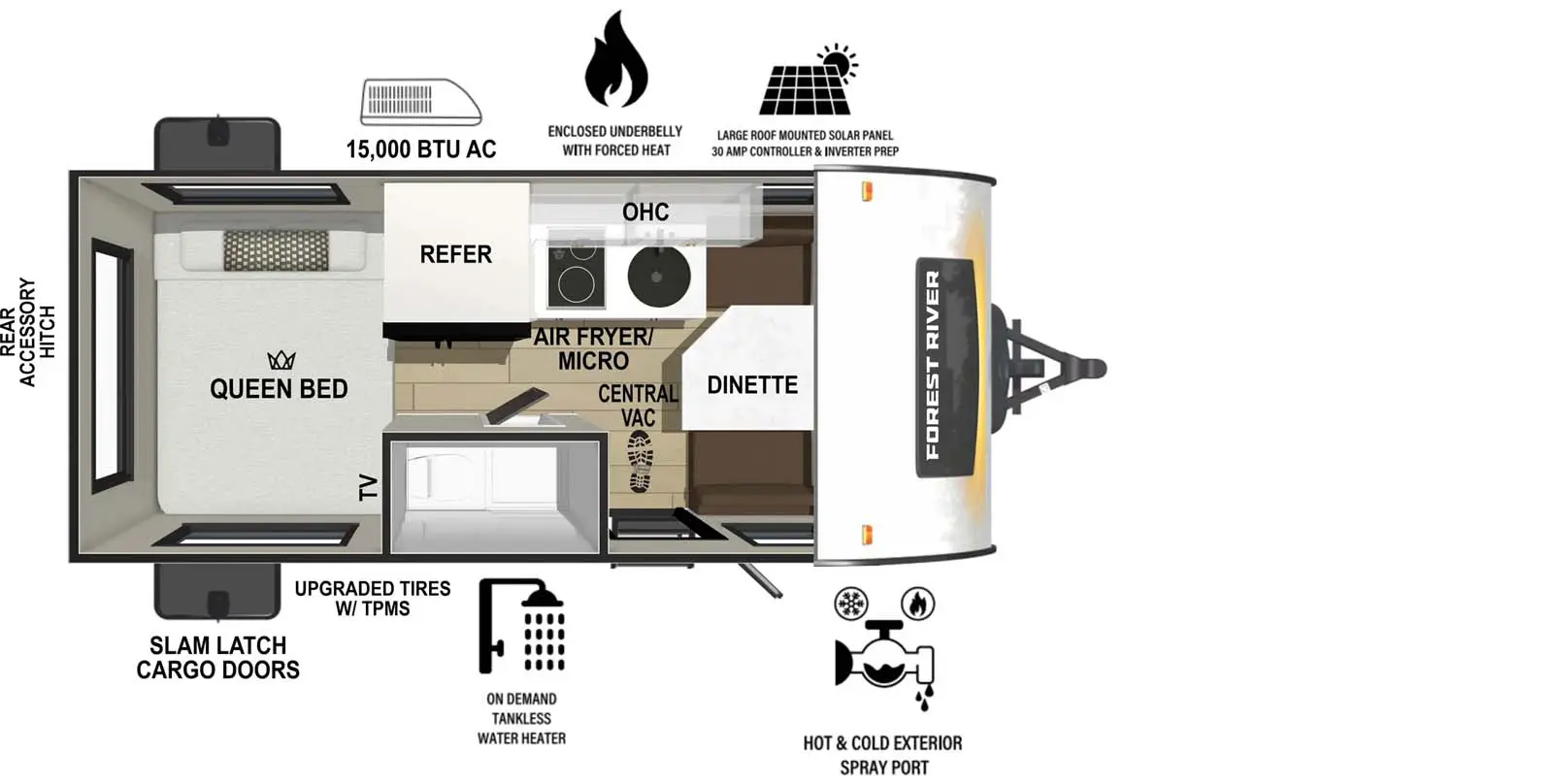

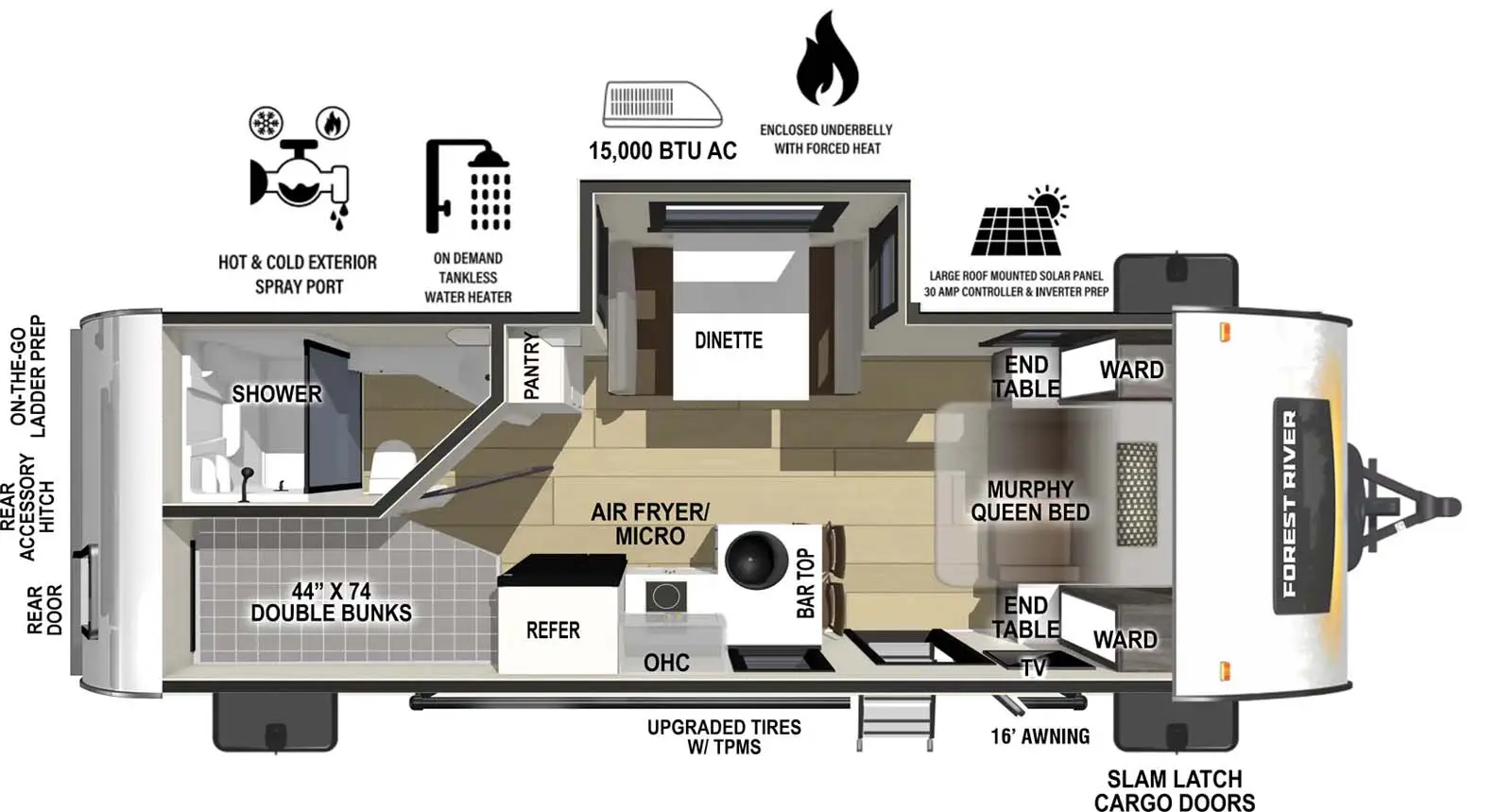

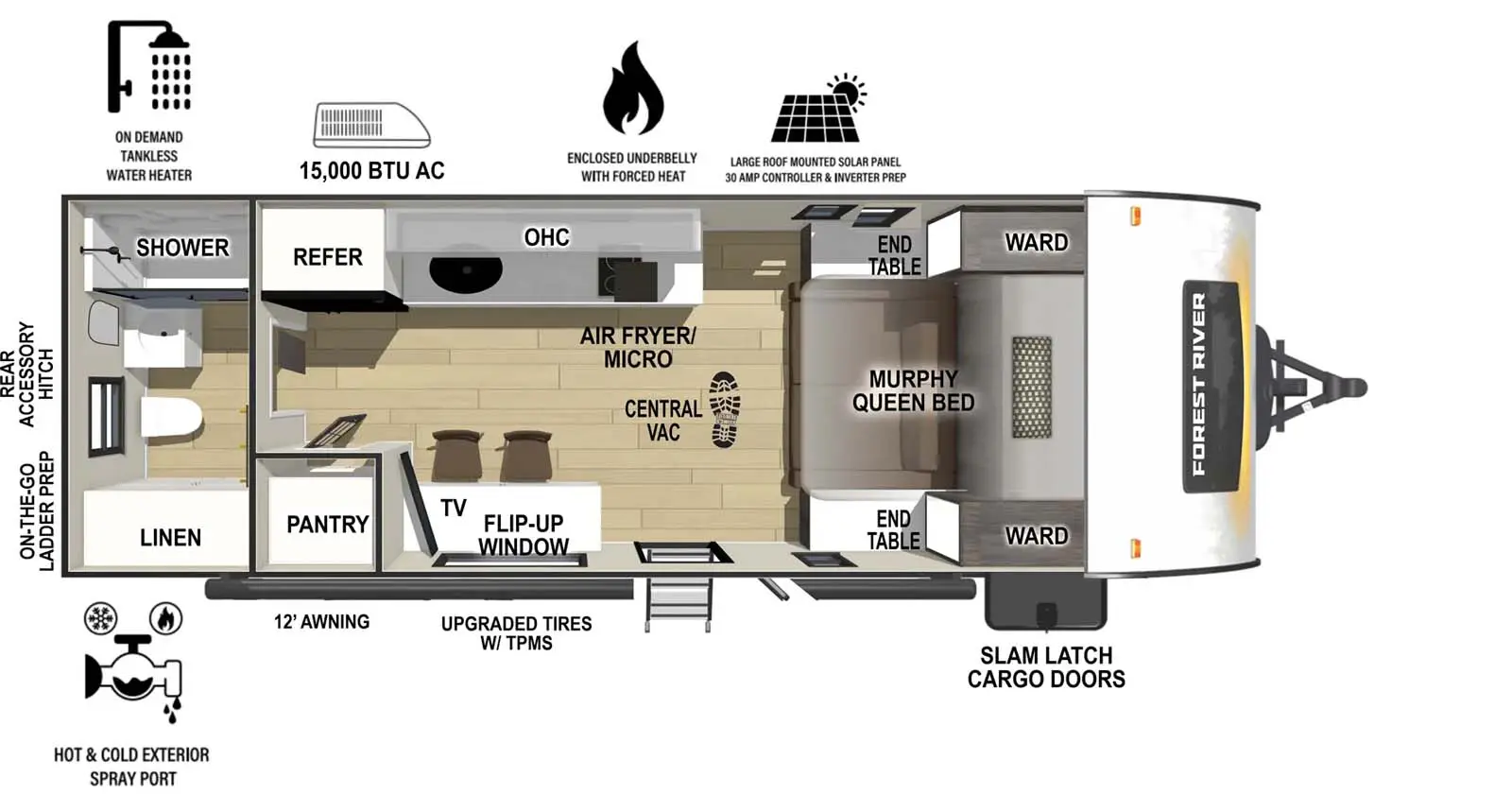

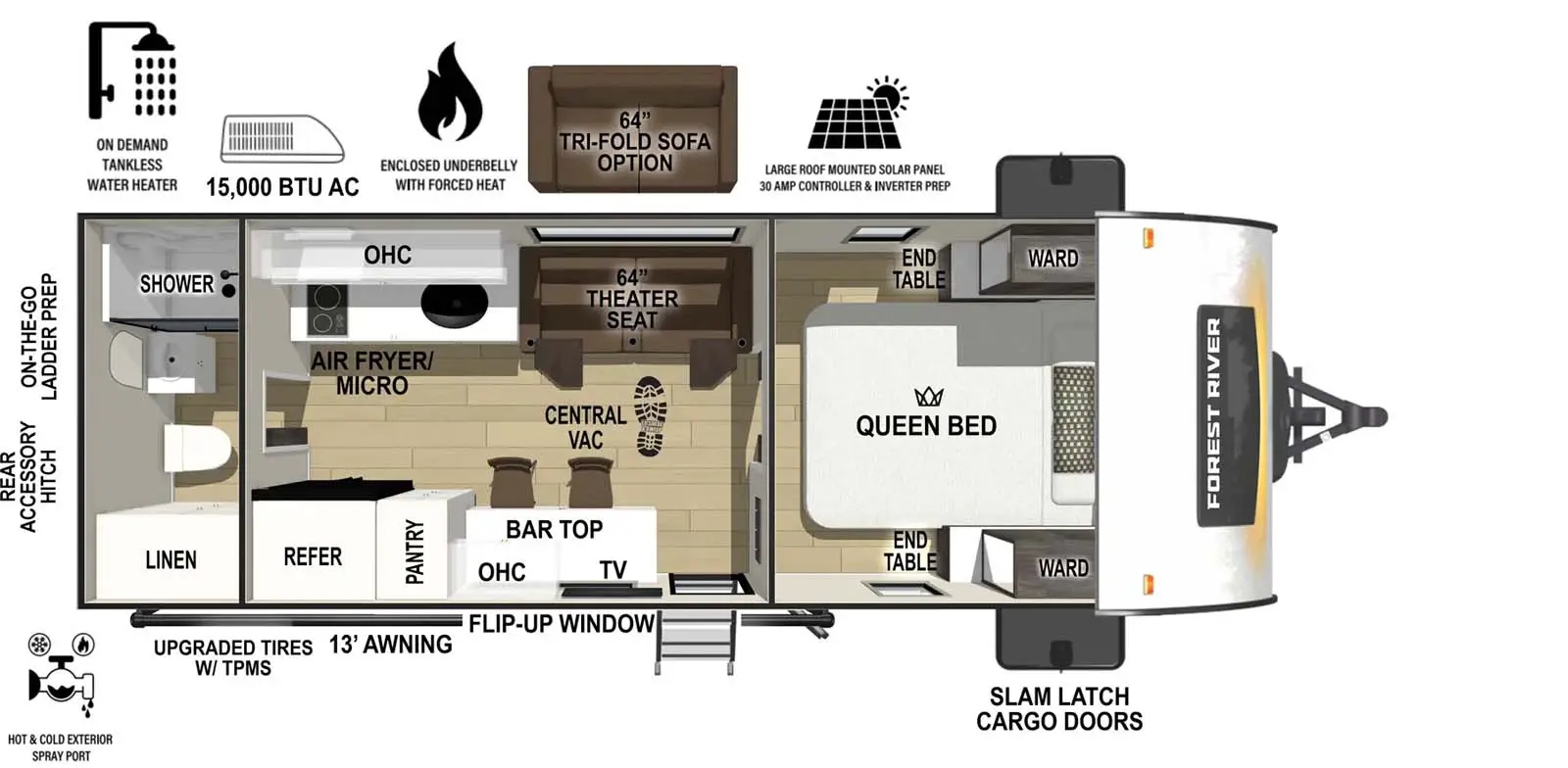

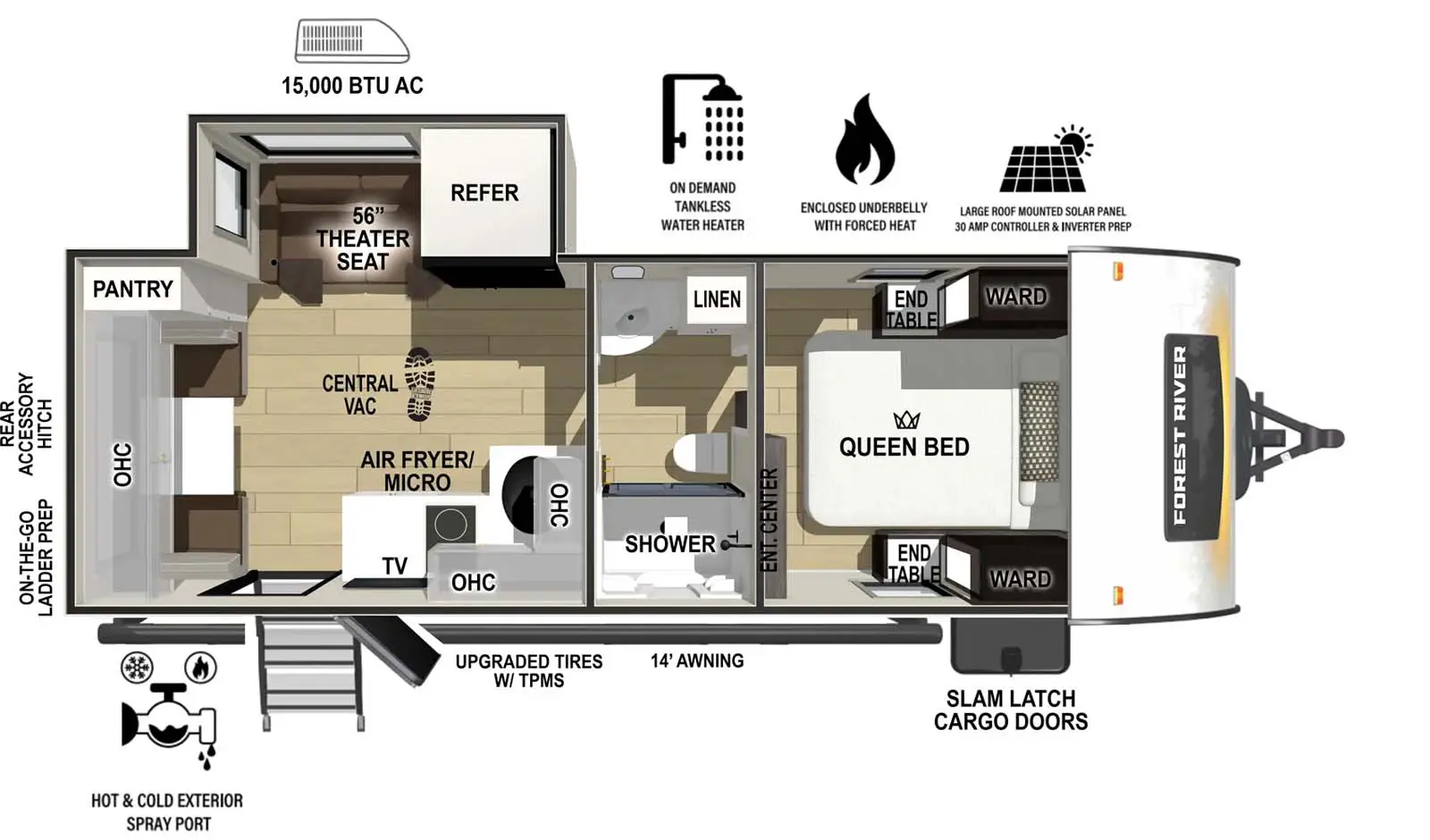

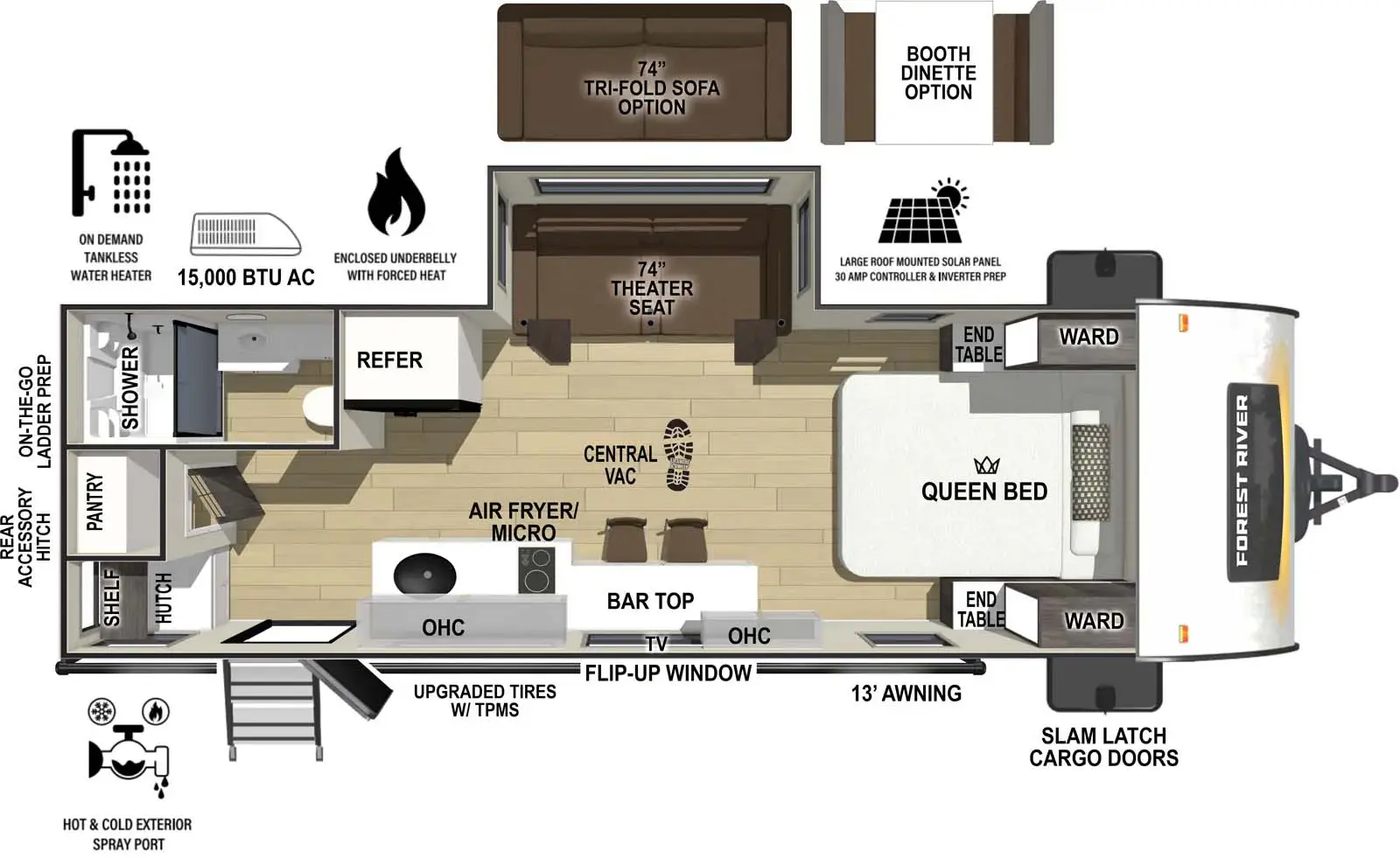

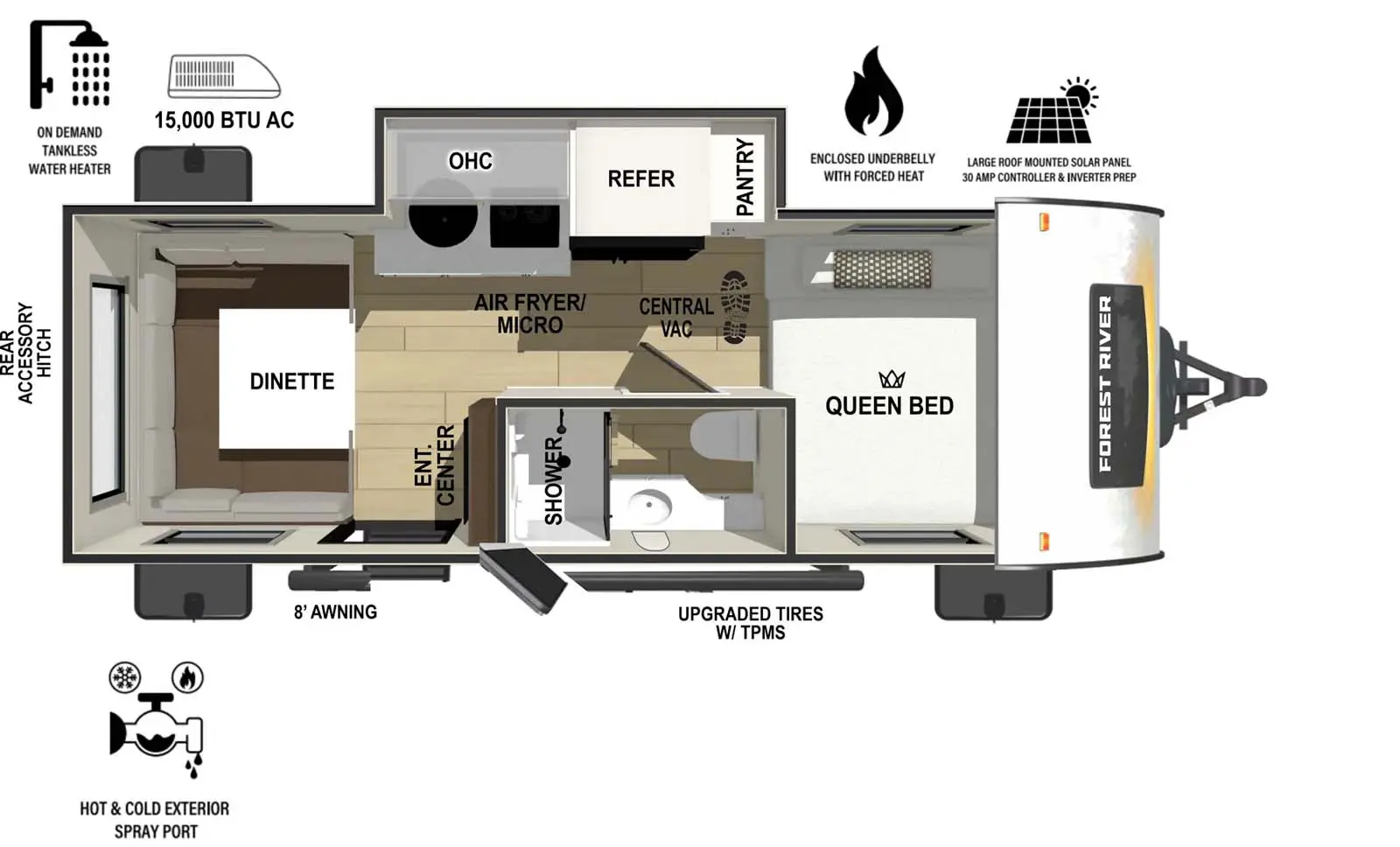

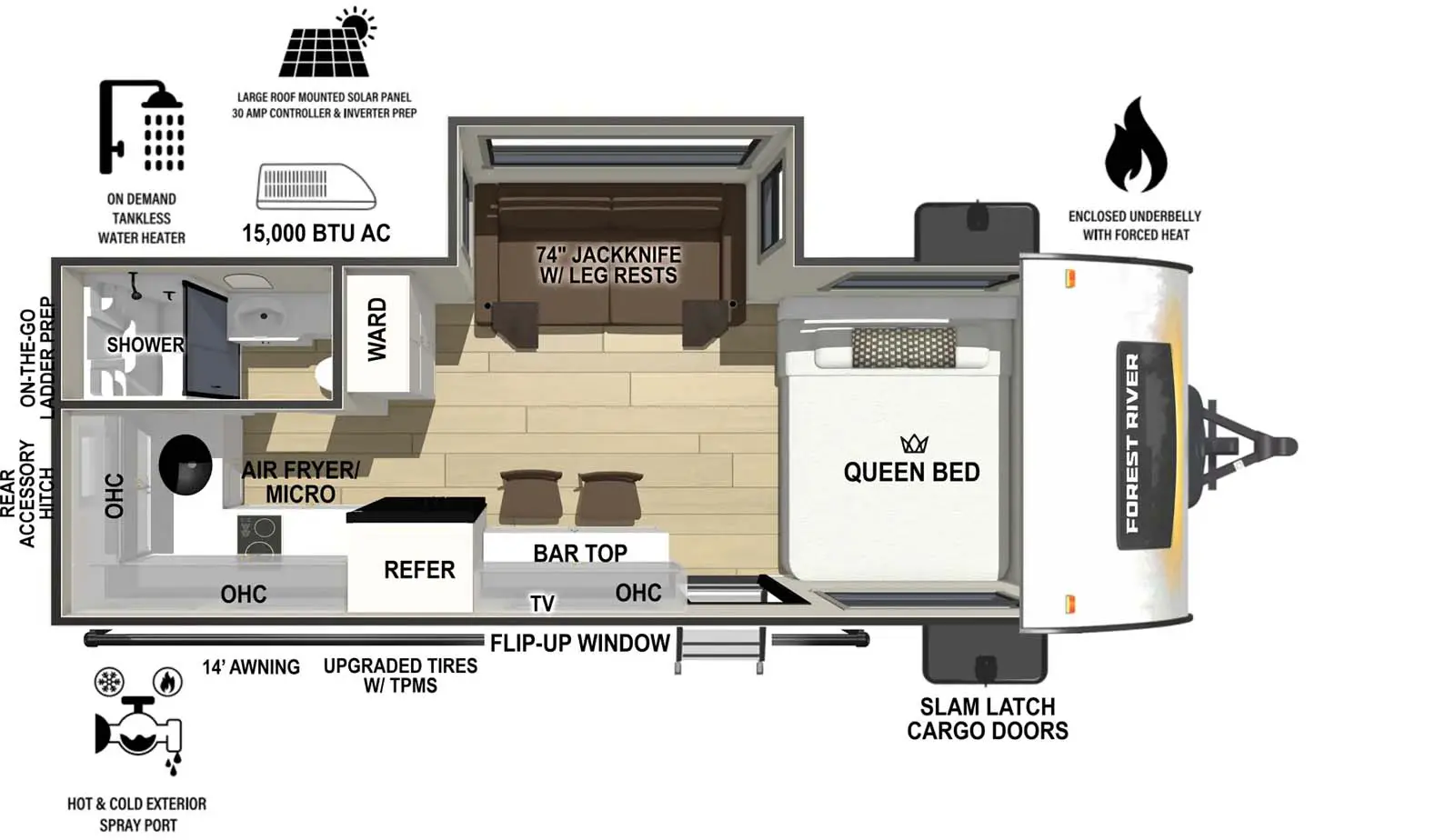

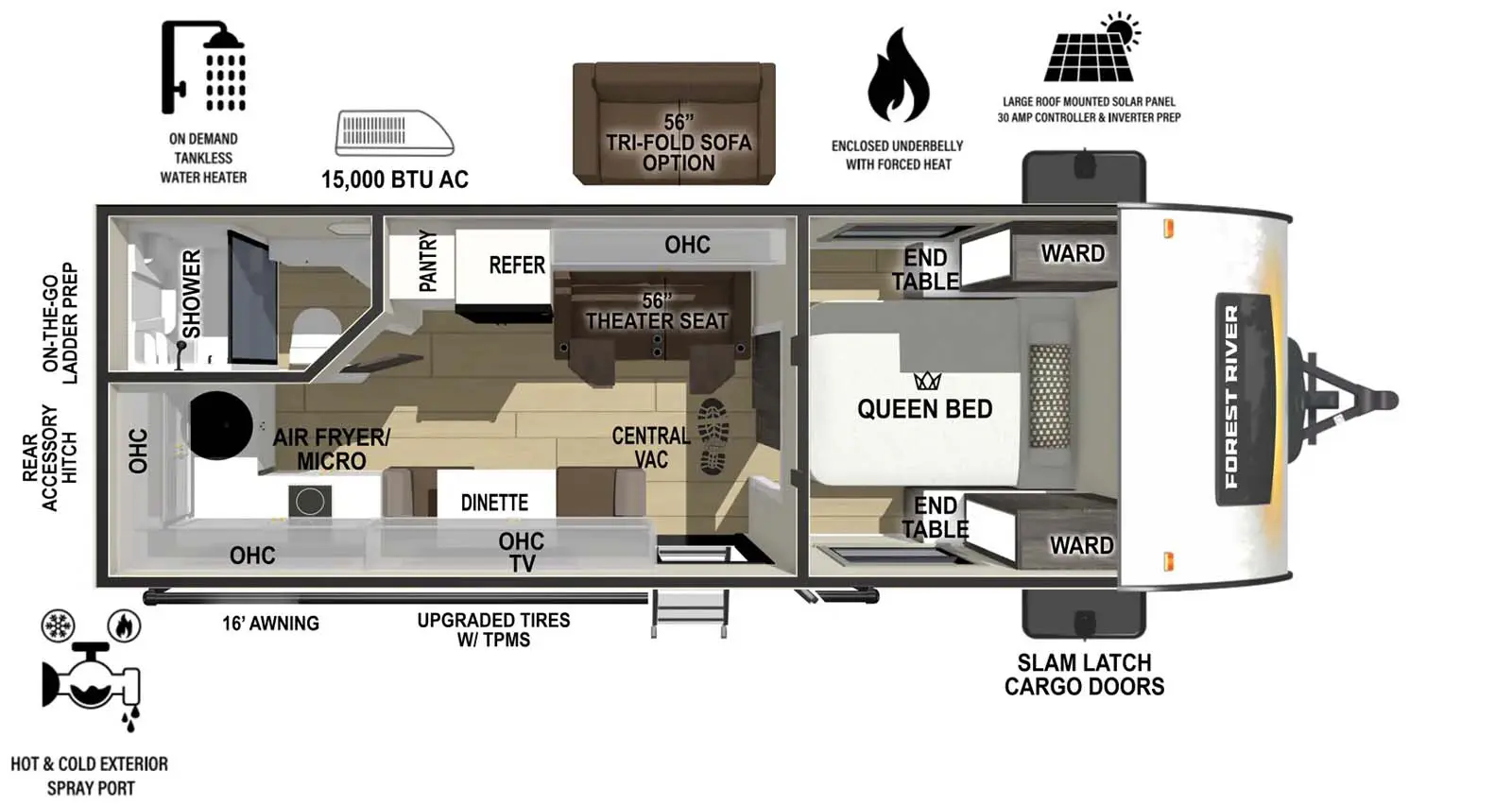

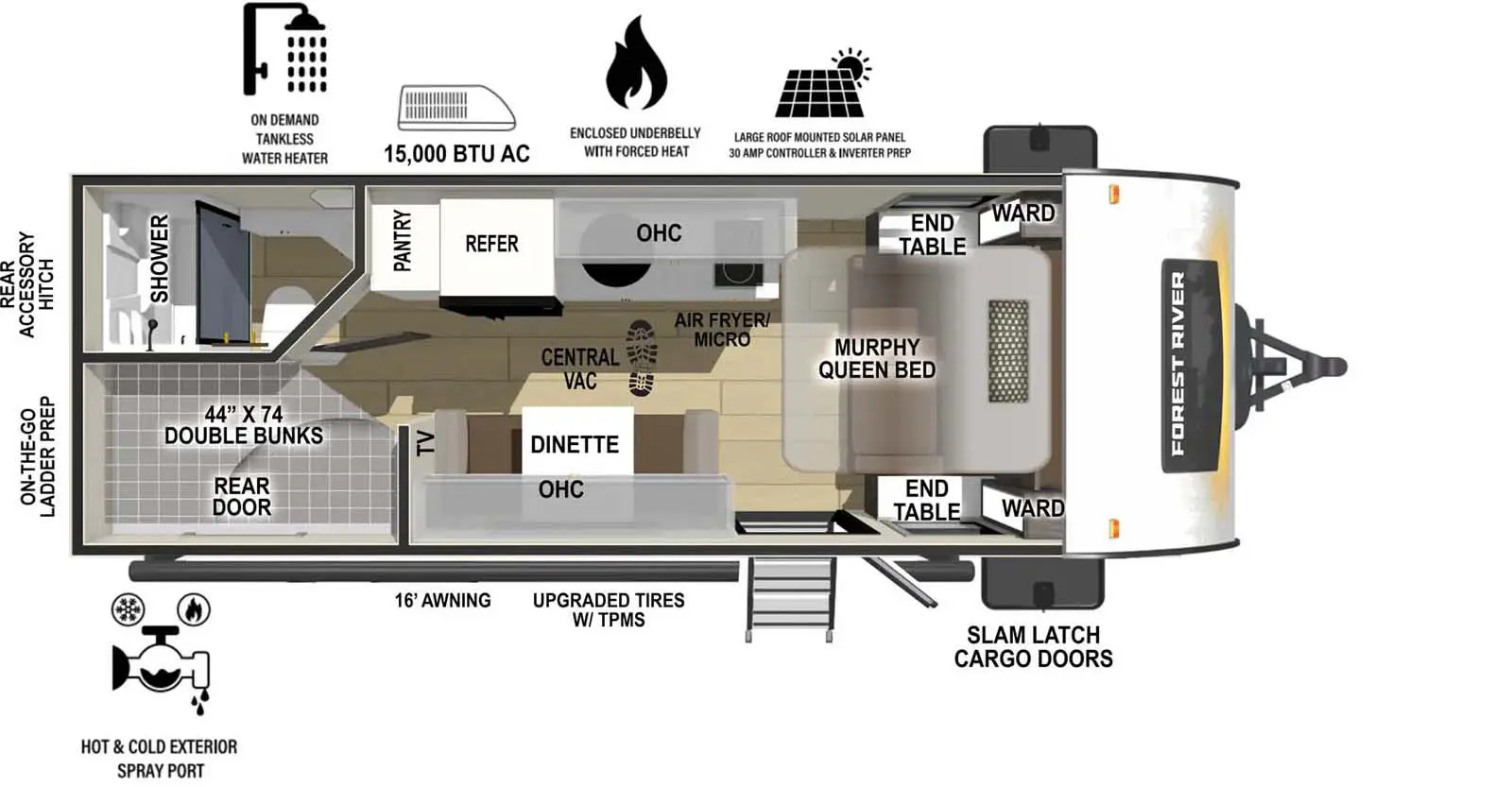

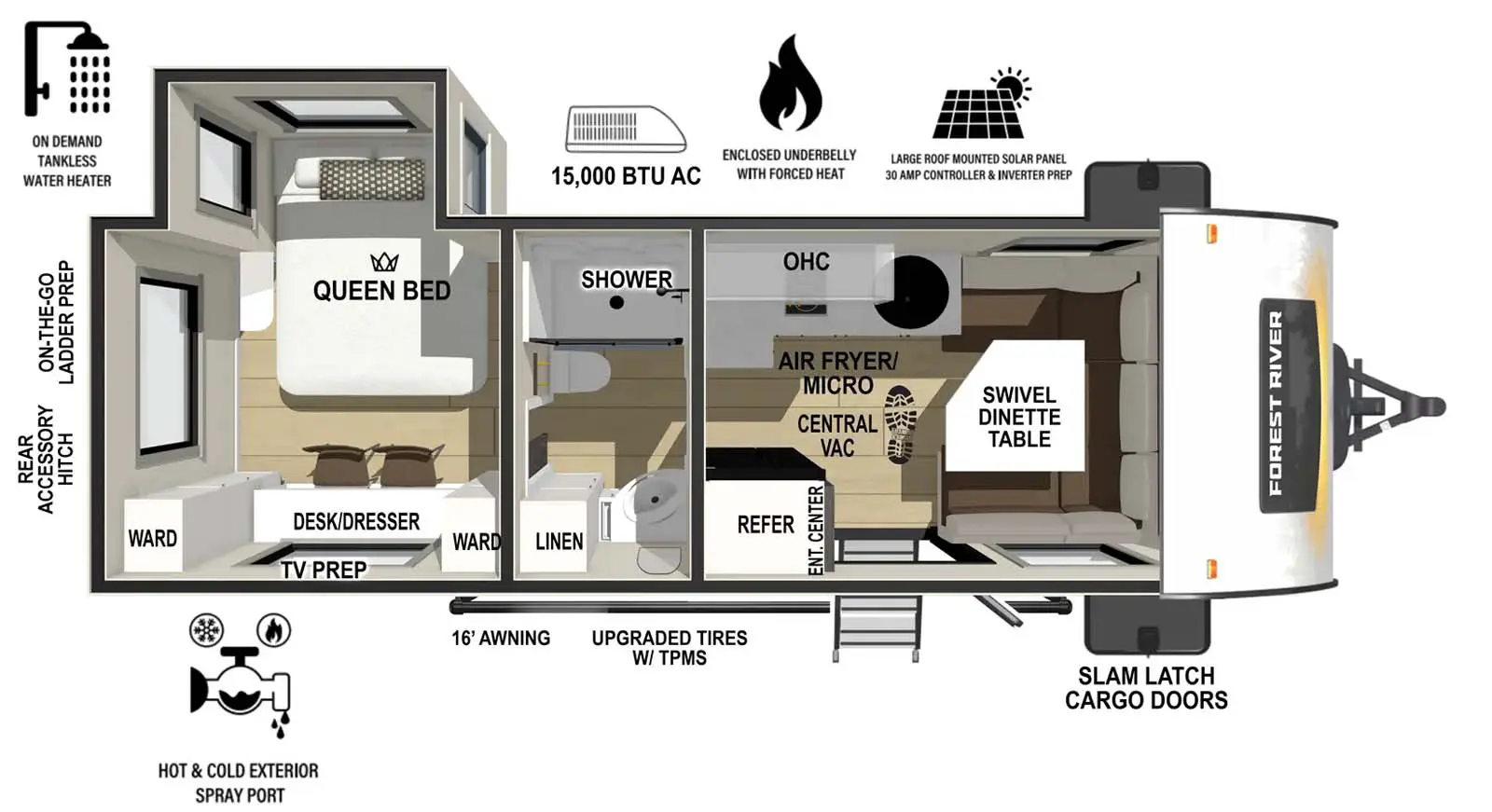

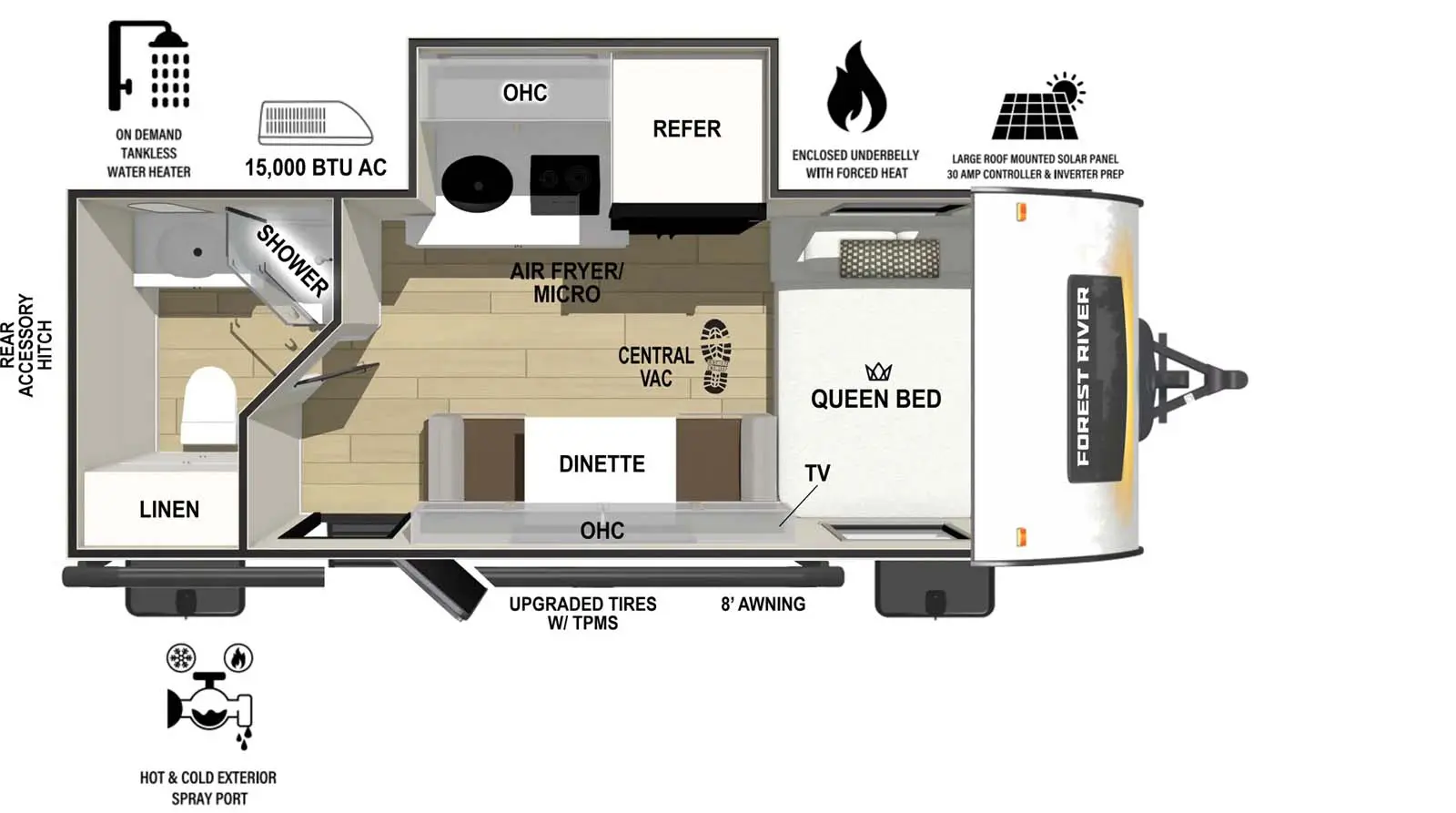

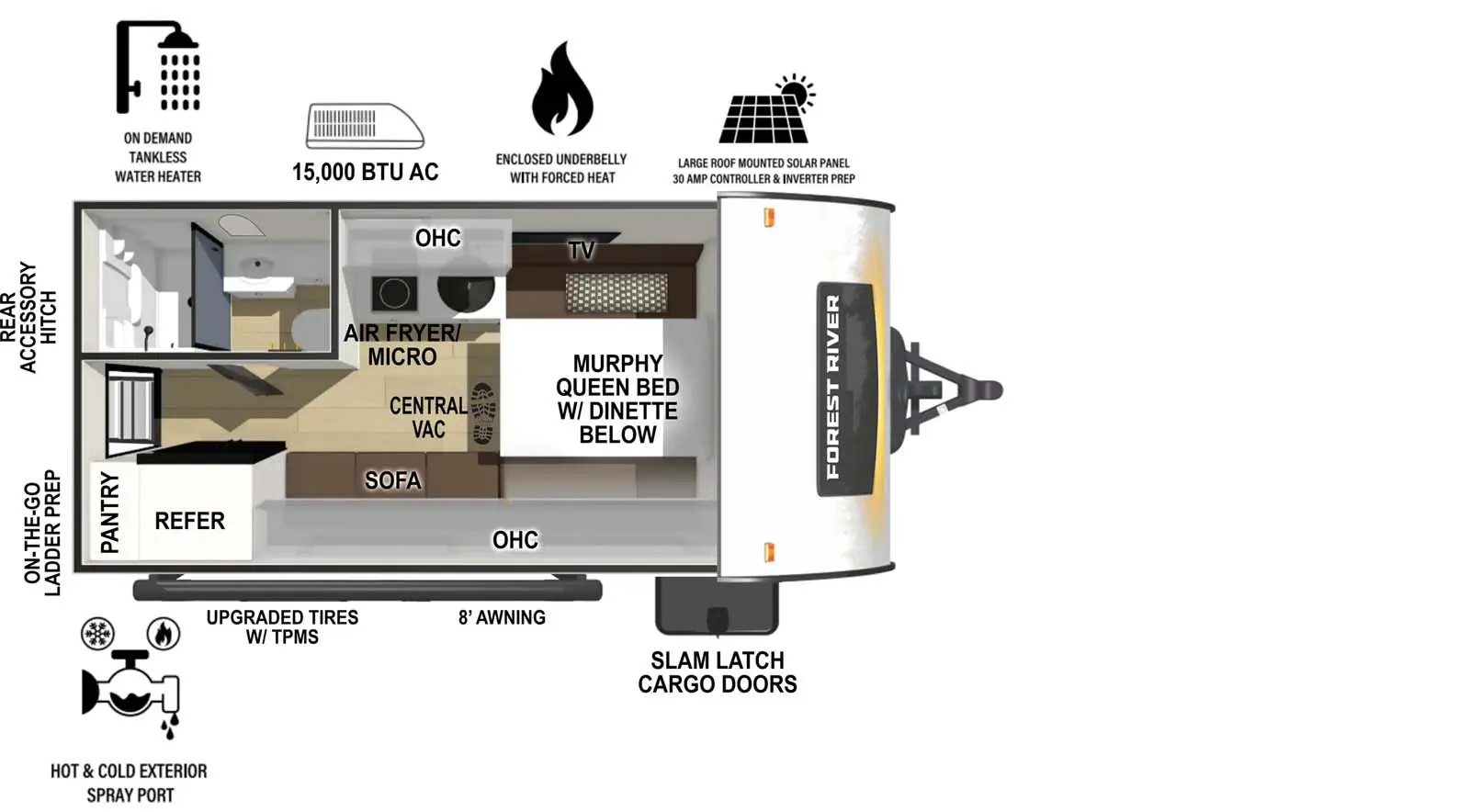

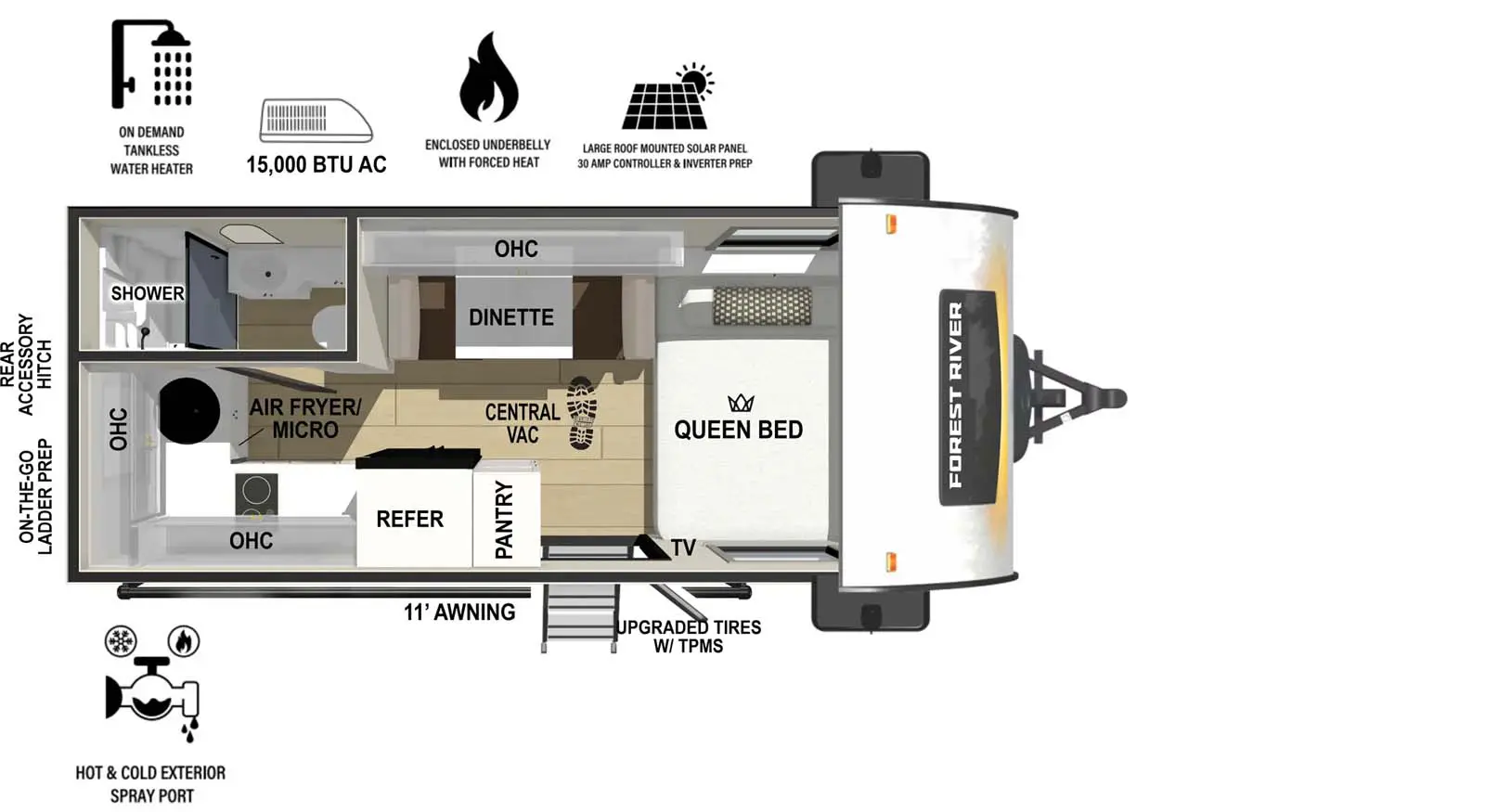

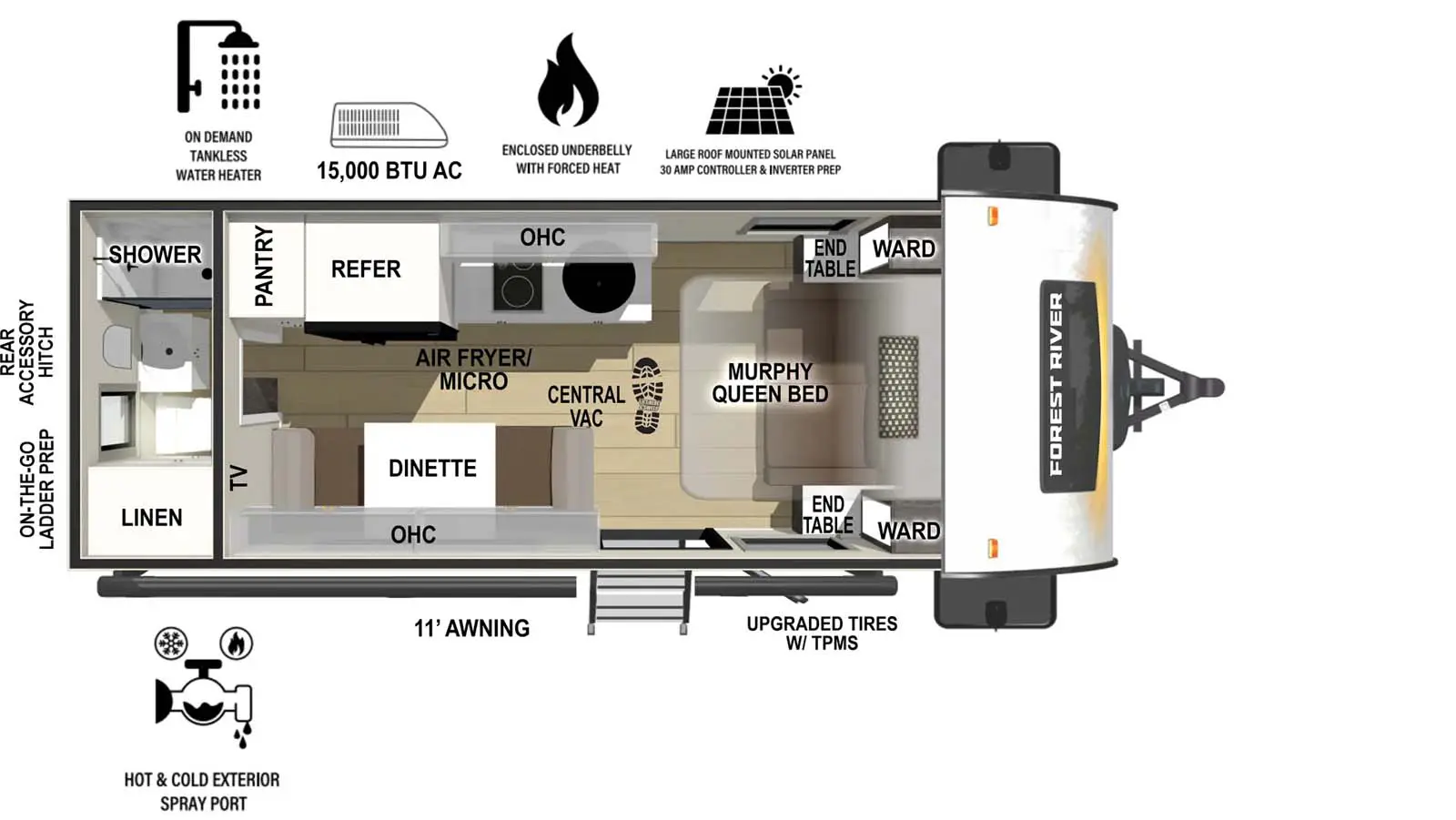

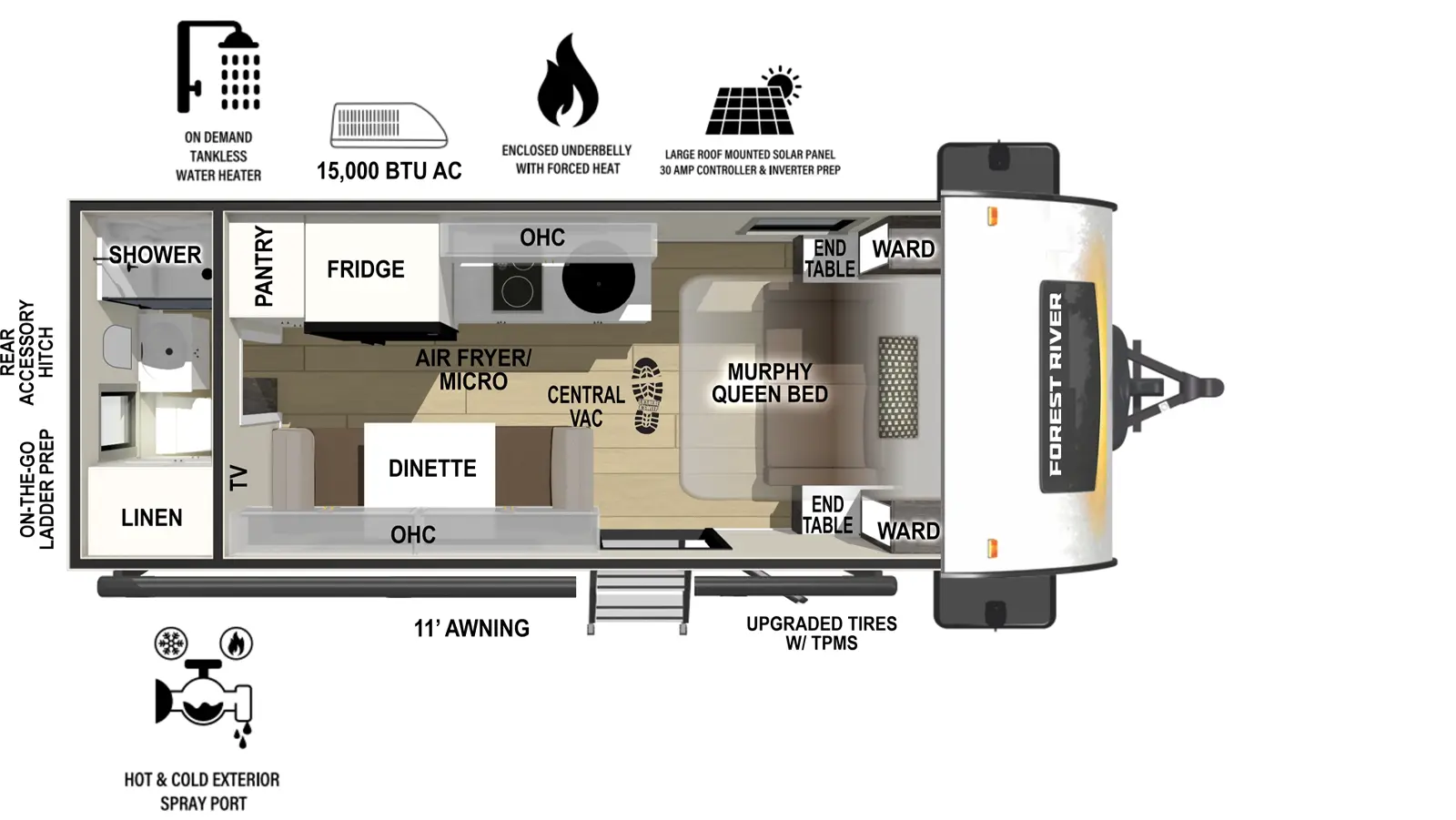

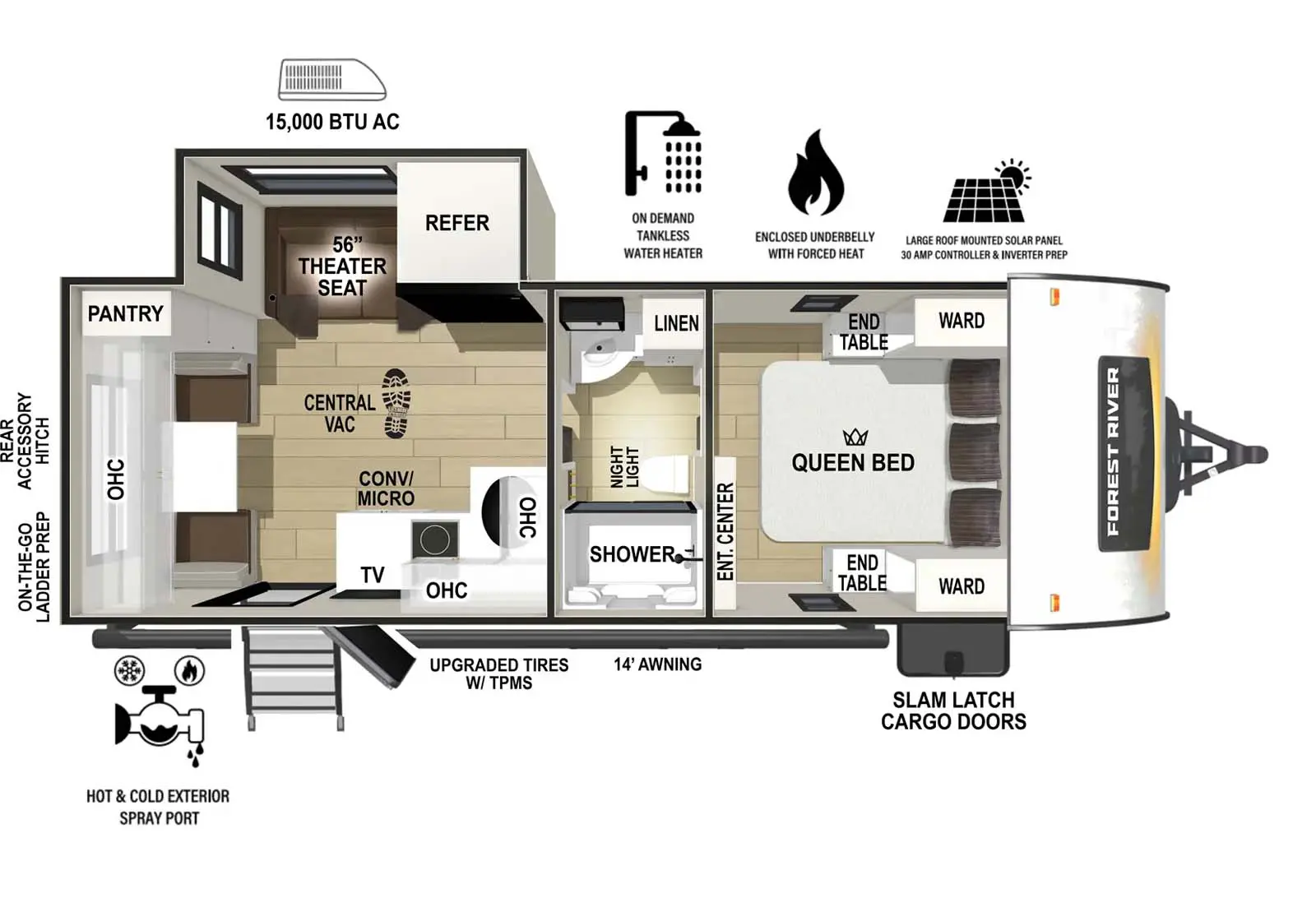

Floorplans

Print

Ultra Lite Travel Trailer
Dealer Stock Only


Specifications

Print

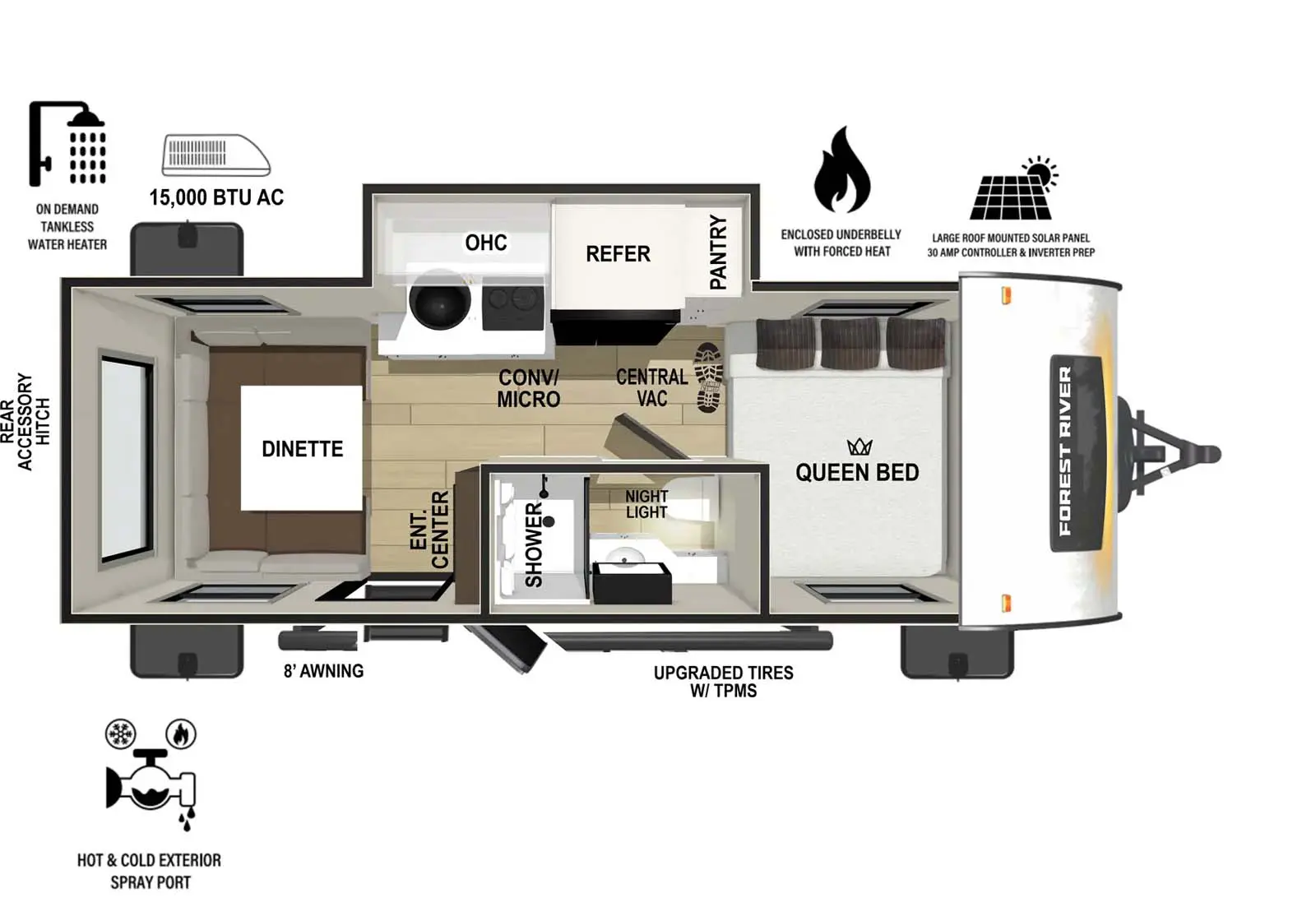

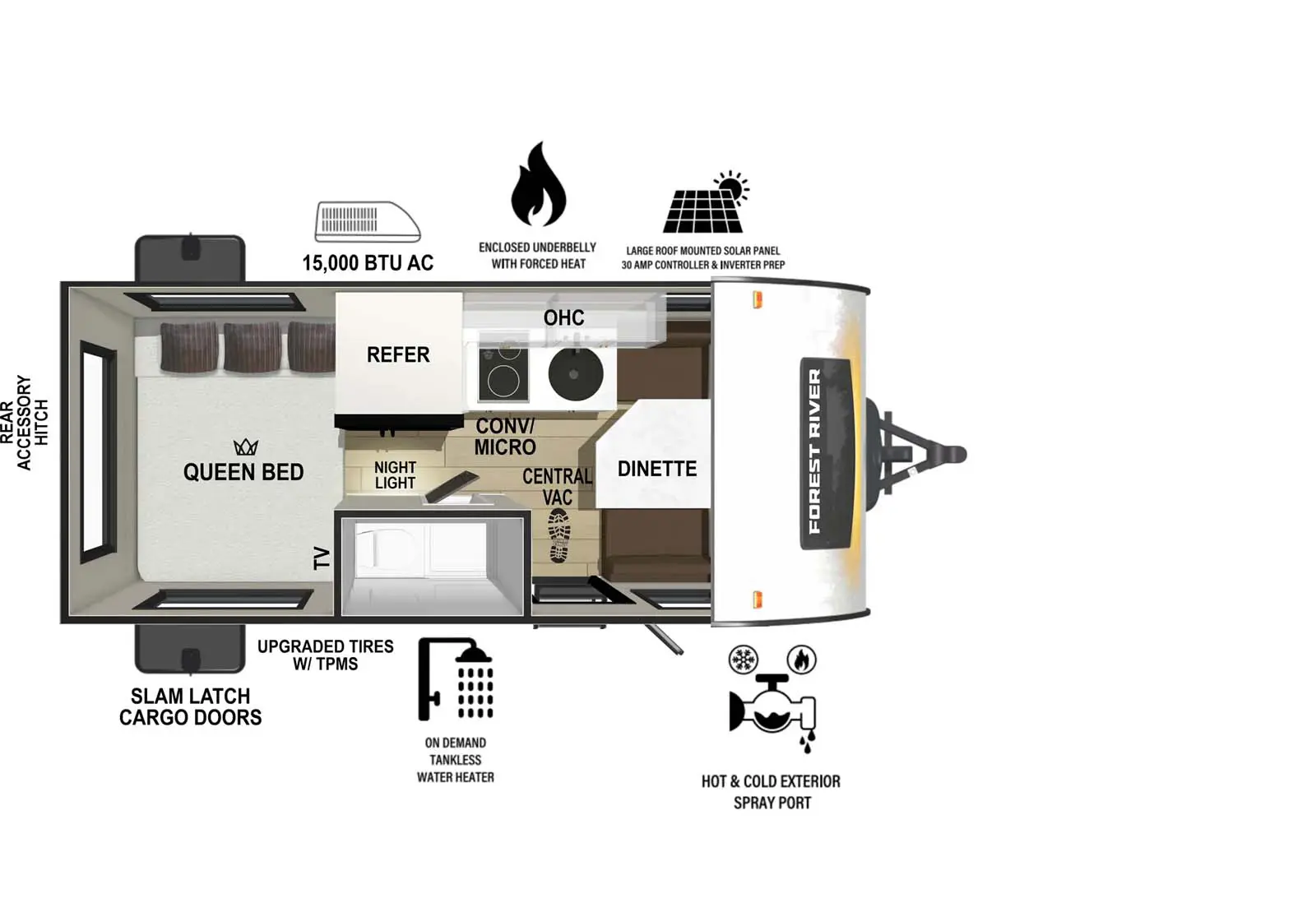

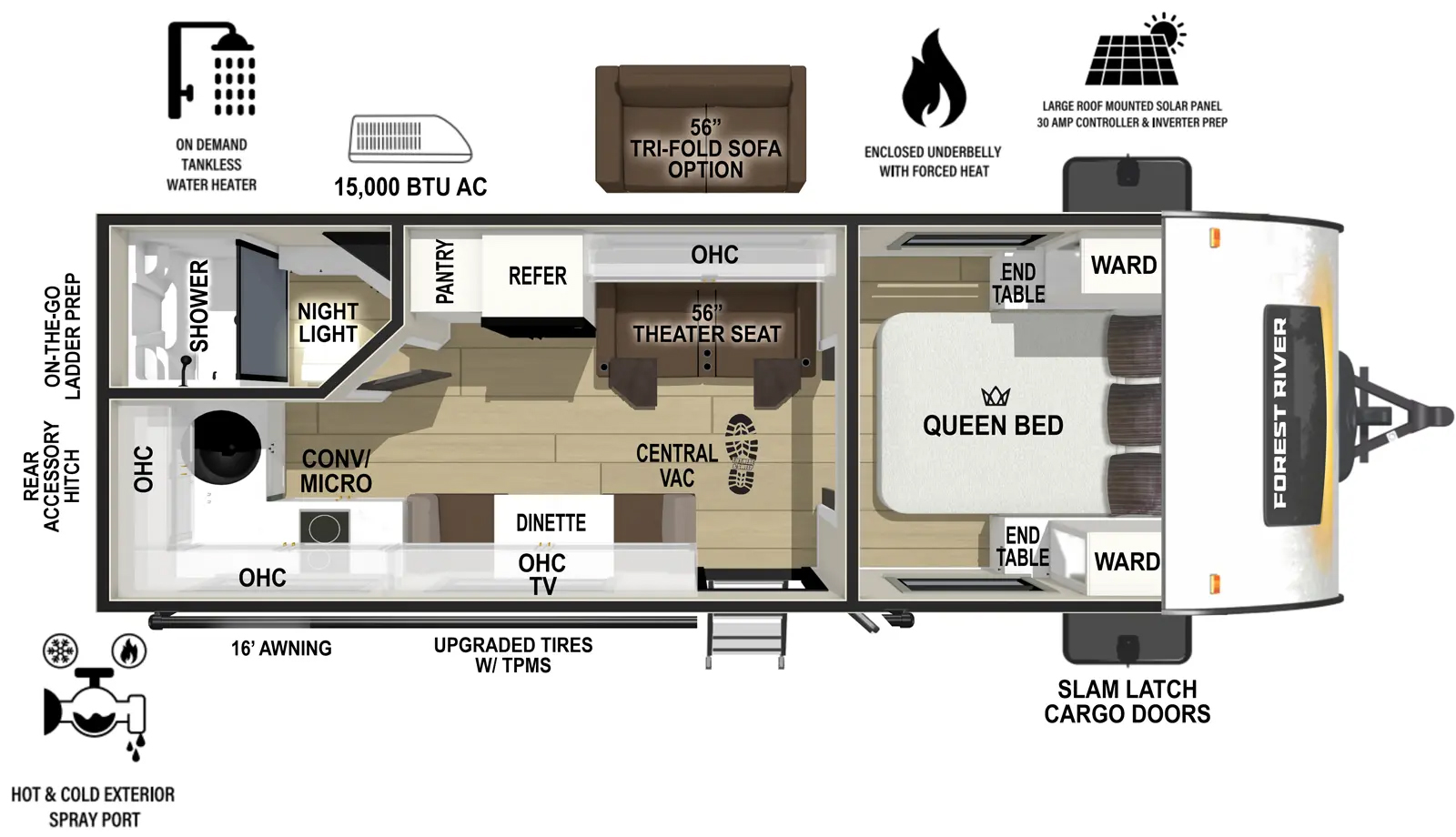

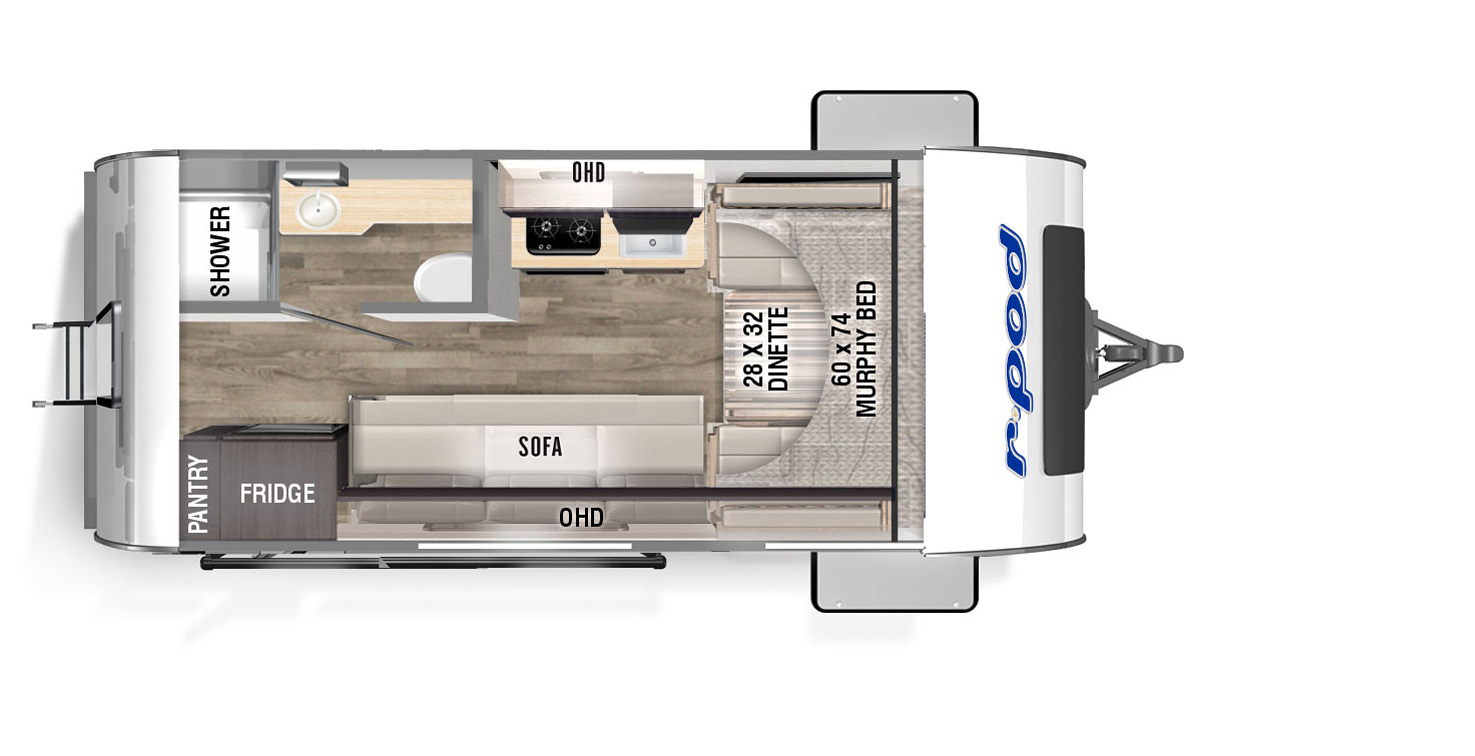

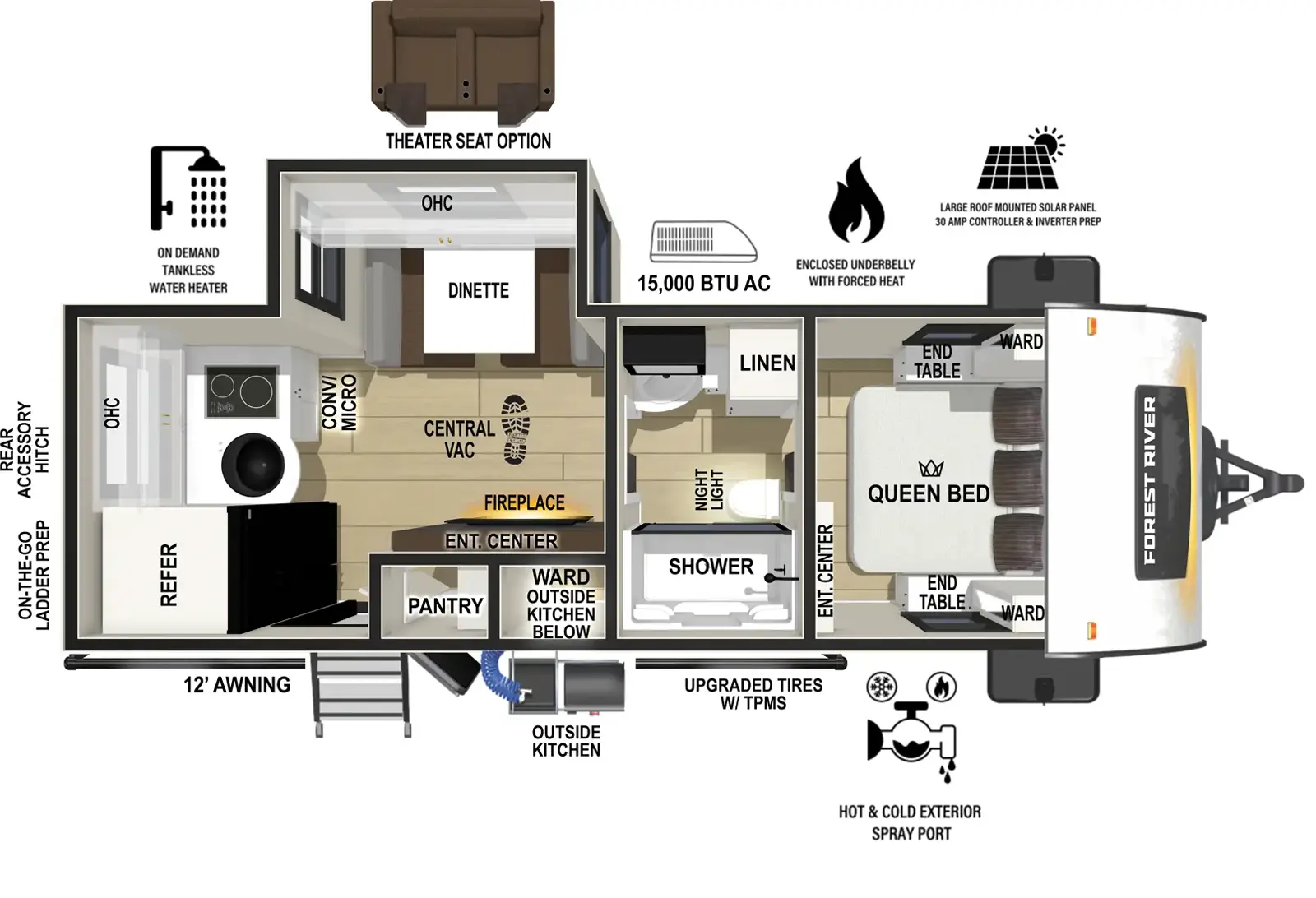

Floorplan: RP-153 : Ultra Lite Travel Trailer RP-171 : Ultra Lite Travel Trailer RP-180 : Ultra Lite Travel Trailer RP-190 : Ultra Lite Travel Trailer RP-192 : Ultra Lite Travel Trailer RP-193 : Ultra Lite Travel Trailer RP-196 : Ultra Lite Travel Trailer RP-201 : Ultra Lite Travel Trailer RP-202 : Ultra Lite Travel Trailer RP-203 : Ultra Lite Travel Trailer RP-189 - DSO : Dealer Stock Only RP-195 - DSO : Dealer Stock Only
Hitch Weight:350 lb.340 lb.332 lb.307 lb.440 lb.435 lb.361 lb.538 lb.485 lb.725 lb.354 lb.362 lb.
UVW:3,421 lb.2,714 lb.2,950 lb.2,979 lb.3,379 lb.3,654 lb.3,600 lb.5,003 lb.4,574 lb.5,169 lb.3,075 lb.3,587 lb.
CCC:1,799 lb.1,126 lb.882 lb.828 lb.1,461 lb.1,181 lb.1,161 lb.2,536 lb.1,911 lb.2,556 lb.779 lb.1,175 lb.
Exterior Length:17' 6"19' 0"20' 0"20' 4"22' 2"22' 11"22' 2"25' 0"25' 0"25' 0"20' 4"22' 2"
Exterior Height:9' 8"9' 7"9' 7"9' 7"9' 10"9' 10"9' 10"10' 7"10' 7"10' 7"9' 7"9' 10"
Exterior Width:96"96"96"96"96"96"96"96"96"96"96"96"
Fresh Water:30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.
Gray Water:30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.60.00 gal.30.00 gal.30.00 gal.30.00 gal.
Black Water:30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.
Awning Size:8'Opt. (R-dome)Opt. (R-dome or 10')Opt. (R-dome or 10')11'10'11'12'12'16'Opt. (R-dome or 10')11’

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print
  • Powder coated steel frame
  • Power tongue jack
  • Battery Disconnect
  • Self-Adjusting Electric brakes
  • LED taillights
  • Independent torsion axle
  • Aluminum wheels
  • 205/75/R15 radial tires
  • Nitrogen filled tires
  • EZ-lube hubs
  • Dual battery rack
  • Rotocast fresh water tank
  • Rotocast grey/black tank
  • 6 Gallon Gas/electric DSI hot water heater
  • 13.5K BTU air conditioner
  • Convection Microwave Oven
  • 28" 12V LED TV
  • 6 cu ft G/E Double Door Refrigerator (select models)
  • Power Awning w/LED Light Strip (Select Models)
  • Wall Mounted Residential Style Thermostat
  • Range Vent (select models)
  • Water heater by-pass system
  • Two burner recessed cook top w/flush mount glass cover
  • 20,000 BTU furnace
  • 12V demand water pump
  • Monitor panel
  • 55 amp converter w/ charger
  • 4 speed MaxxAir® Fan
  • Thetford™ toilet
  • USB Charging Ports
  • Breakaway switch
  • Fire extinguisher
  • LP detector
  • Smoke detector
  • CO detector
  • Safety chains
  • Dead-bolt door lock
  • Ground fault protected electrical circuit
  • 6' 6" Interior Height
  • Tupelo Honey Interior Décor
  • Aluminum Bed Bases
  • Large Barrelled Black Stainless Steel Sink w/Sink Cover
  • Fireplace (Select Models)
  • Seamless Kitchen Countertops
  • Large Pantry (Select Models)
  • Accent Lighting (Select Models)
  • Designer Carefree® flooring
  • Residential Style Shaker Cabinetry
  • Hardwood drawer fronts w/ full extension ball bearing drawer guides
  • Decorative window treatments
  • Shower Surround with Curtain
  • Mini blinds (where applicable)
  • Collapsible clothes hanger (where applicable)
  • Bathroom pocket organizers
  • Wood slideout fascia with corner blocks
  • Laminlux Exterior Azdel Fiberglass
  • Tufflex PVC Roofing w/20 year warranty (select models)
  • Roof Ladder (select models)
  • MorRyde Step Above Adjustable Step (select models)
  • Backup Camera Prep (select models)
  • Spare Tire
  • Black Tank Flush
  • LP Quick Disconnect
  • Friction Hinge Entrance Door
  • Welded aluminum sidewalls and floor
  • Laminated sidewalls, floor and roof (select models)
  • One Piece Seamless fiberglass roof (select models)
  • Custom tinted safety glass windows
  • 20 lb. LP tank with hard cover
  • All LED Exterior Lights
  • Bauer 7 Way Cord Keeper
  • Bauer Keyed Alike Key System
  • High Pressure Exterior Spray Port
  • Exterior 120V recept
  • License plate holder w/ light
  • Radius entrance and baggage doors
  • Double aluminum entry door step
  • Rear spoiler w/ LED clearance lights (select models)
  • TV & Stereo antenna
  • Black powder coated fender skirts with LED lights
  • Magnetic baggage door catches
  • Outside speakers
  • Schwintek™ slide out system
  • Window in entrance door
  • Sewer Hose Carrier
  • Universal Smart Vacuum System w/VacPort - No Hoses Needed
  • Solar Prep
  • Pet Friendly Frame Mounted Utility Hook & Food/Water Bowls
  • LED interior lighting
  • Tinted safety glass windows
  • R-Dome awning with screen room (select models)
  • Power Thule Box awning w/LED Light Strip (Select Models)

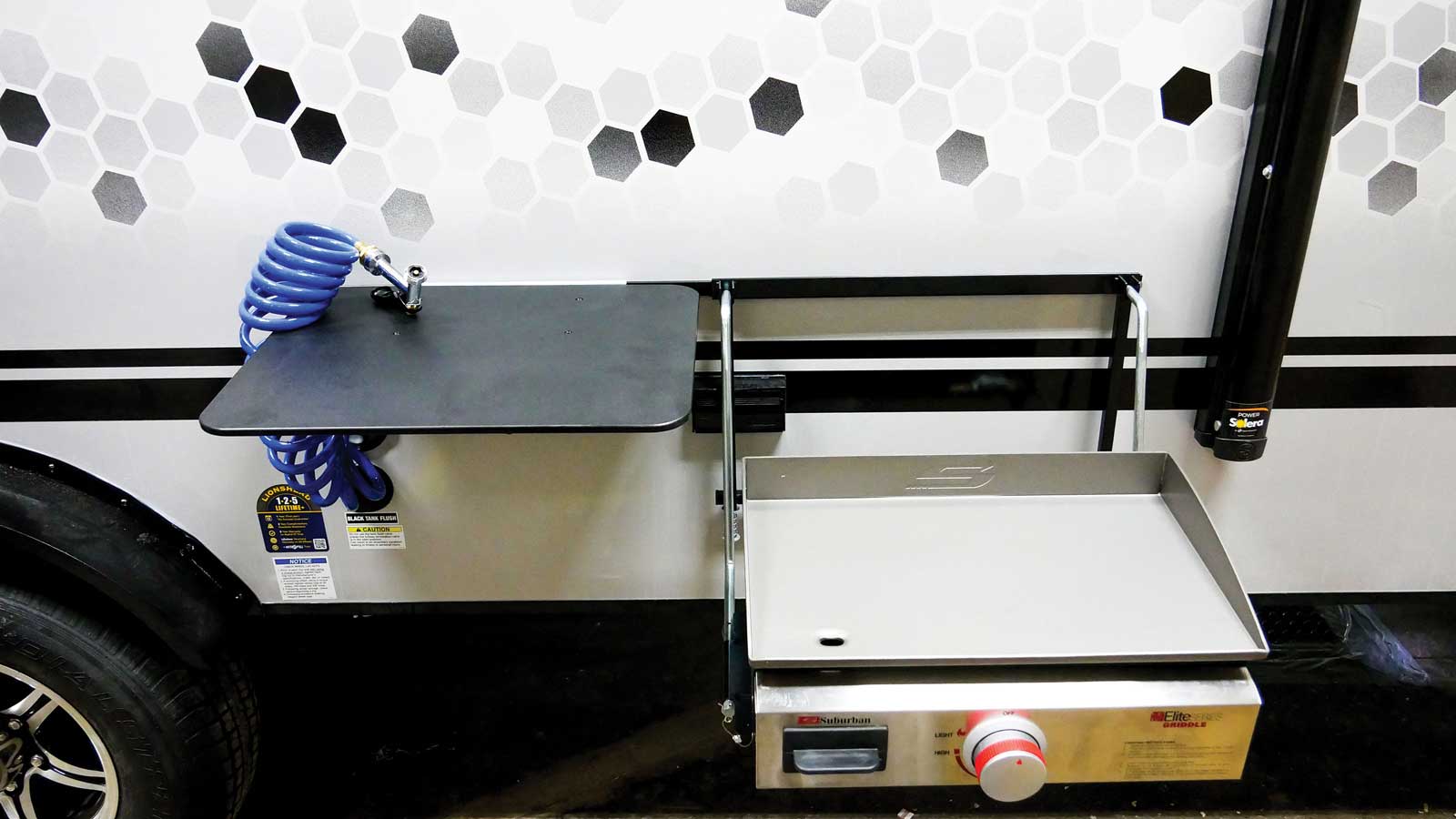

  • Outside Kitchen w/Flat Top Grill & Utility Tray (Select Models)

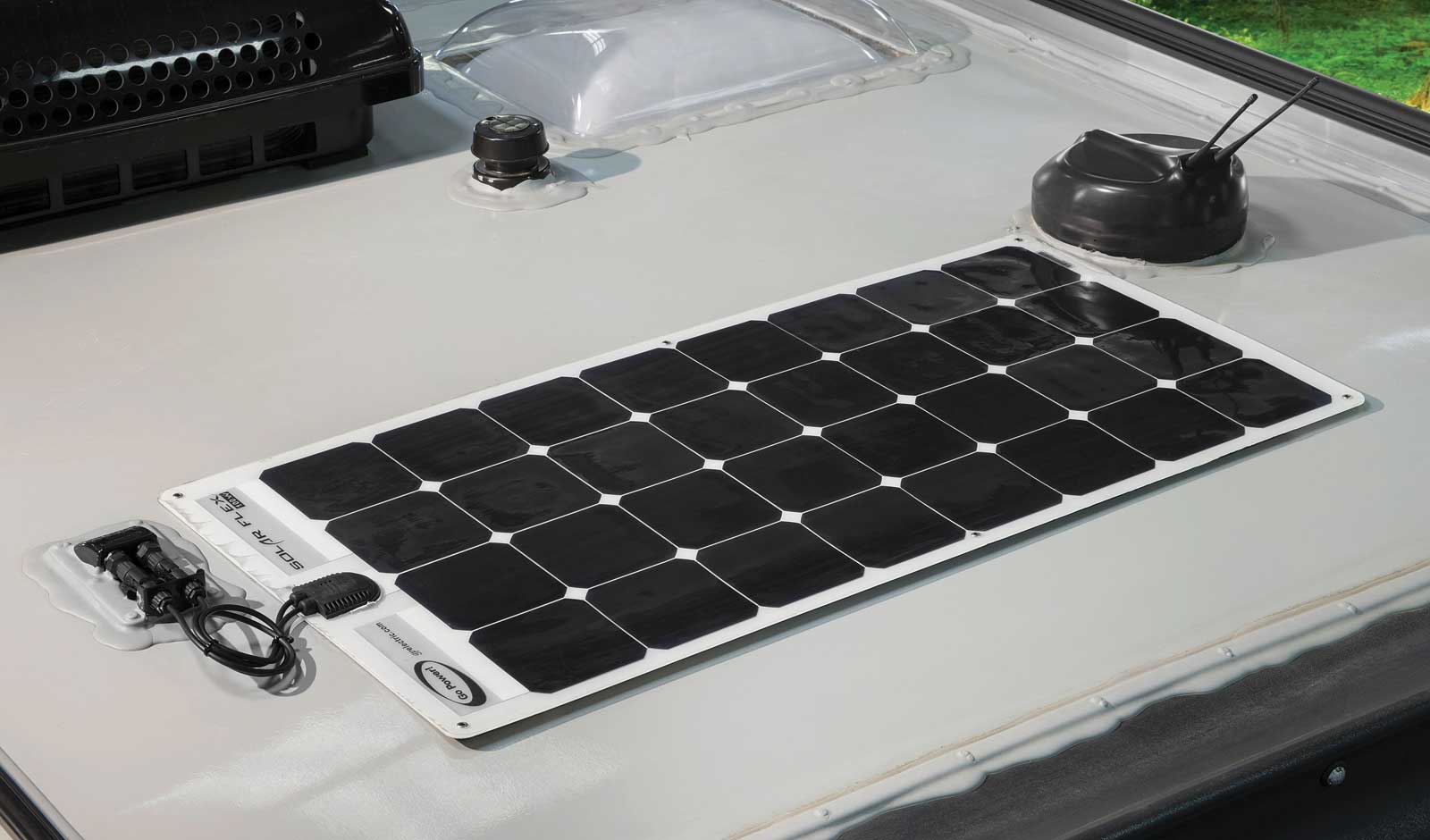

  • Solar Package (110W Panel, Digital Controller, 1,000 Watt Inverter)
  • 15K BTU AC In place of 13.5K BTU AC
  • Sofa w/Footrests & TV Trays in place of Dinette (RP202 only)

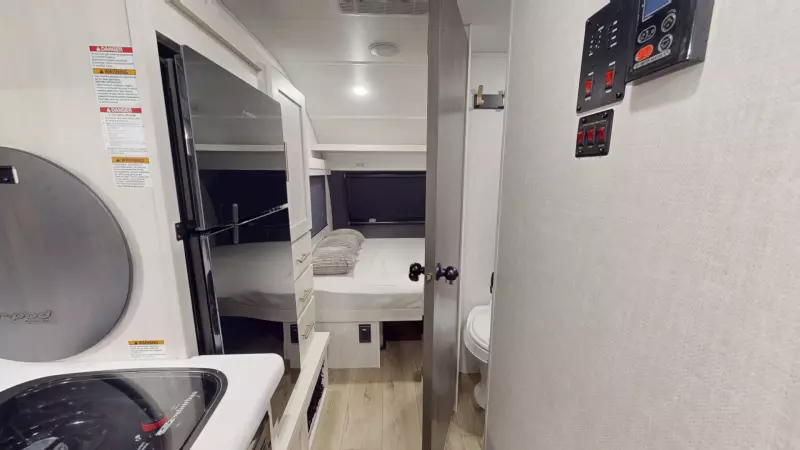

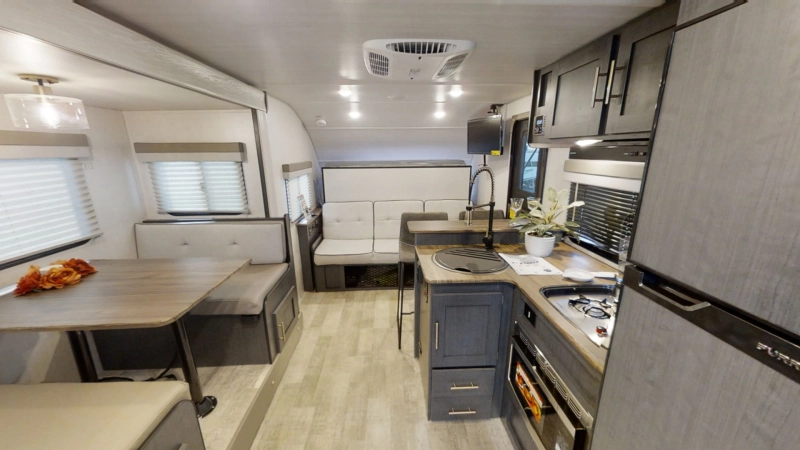

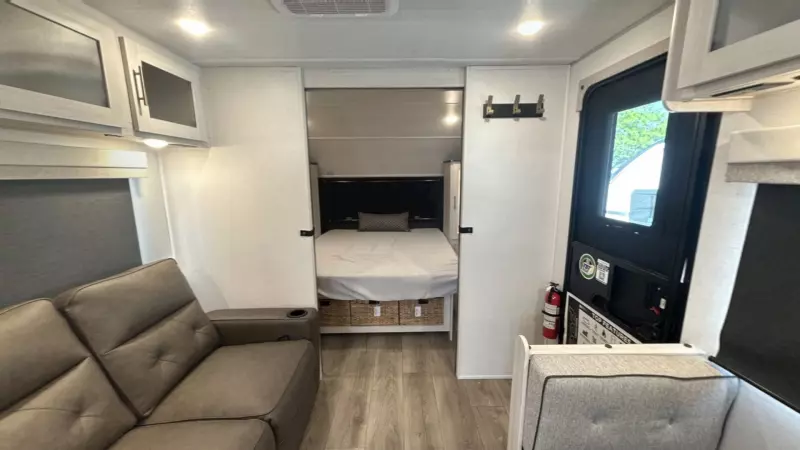

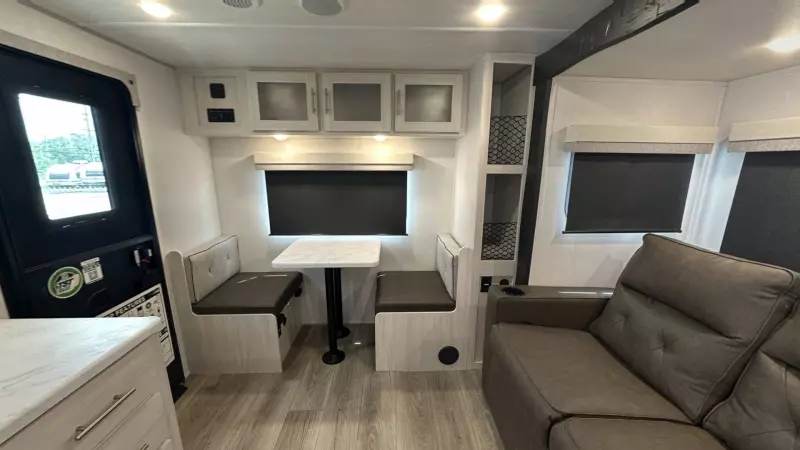

Virtual Tours

  • RP-153
    RP-153 Main Room
  • RP-171
    RP-171 Main Room

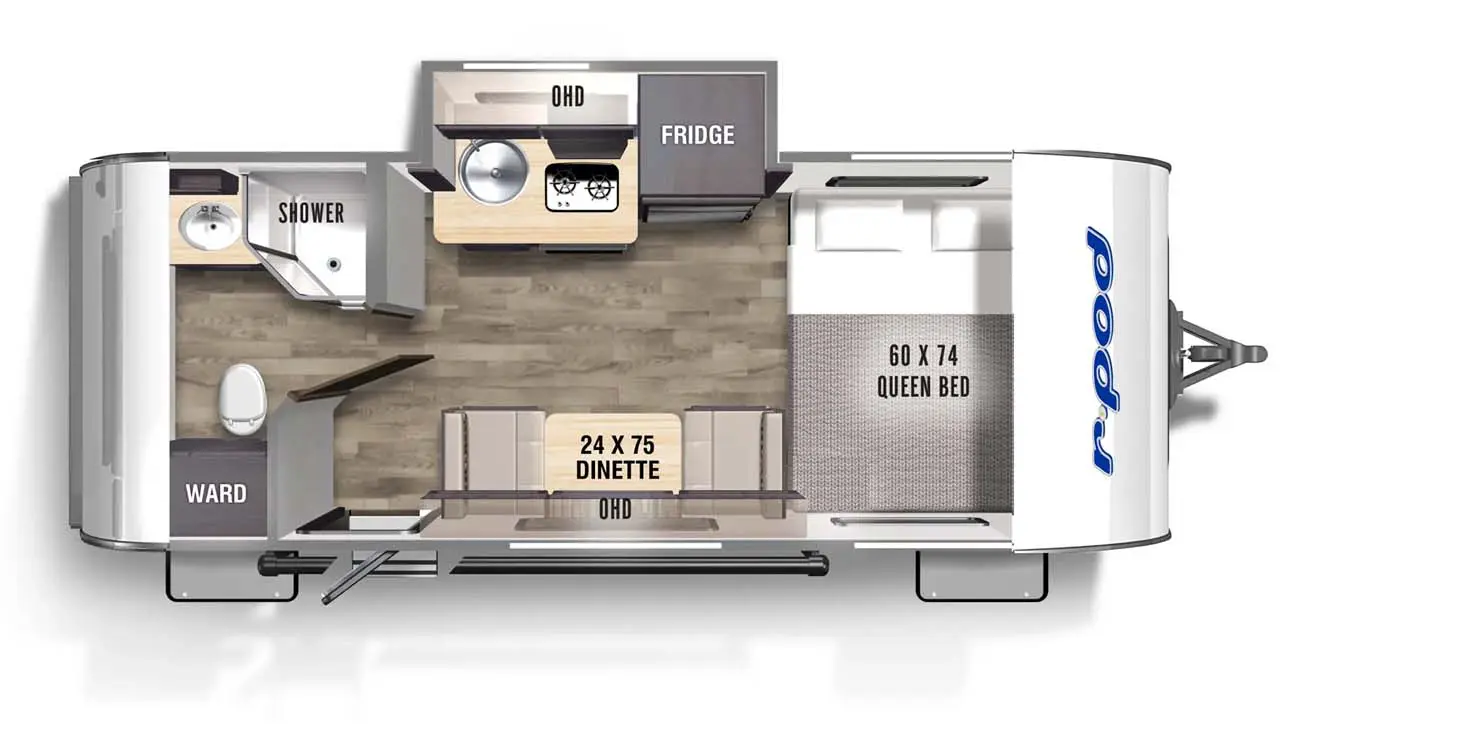

  • RP-180
    RP-180 Main Room
  • RP-189 - DSO
    RP-189 - DSO Main Room
  • RP-190
    RP-190 Main Room

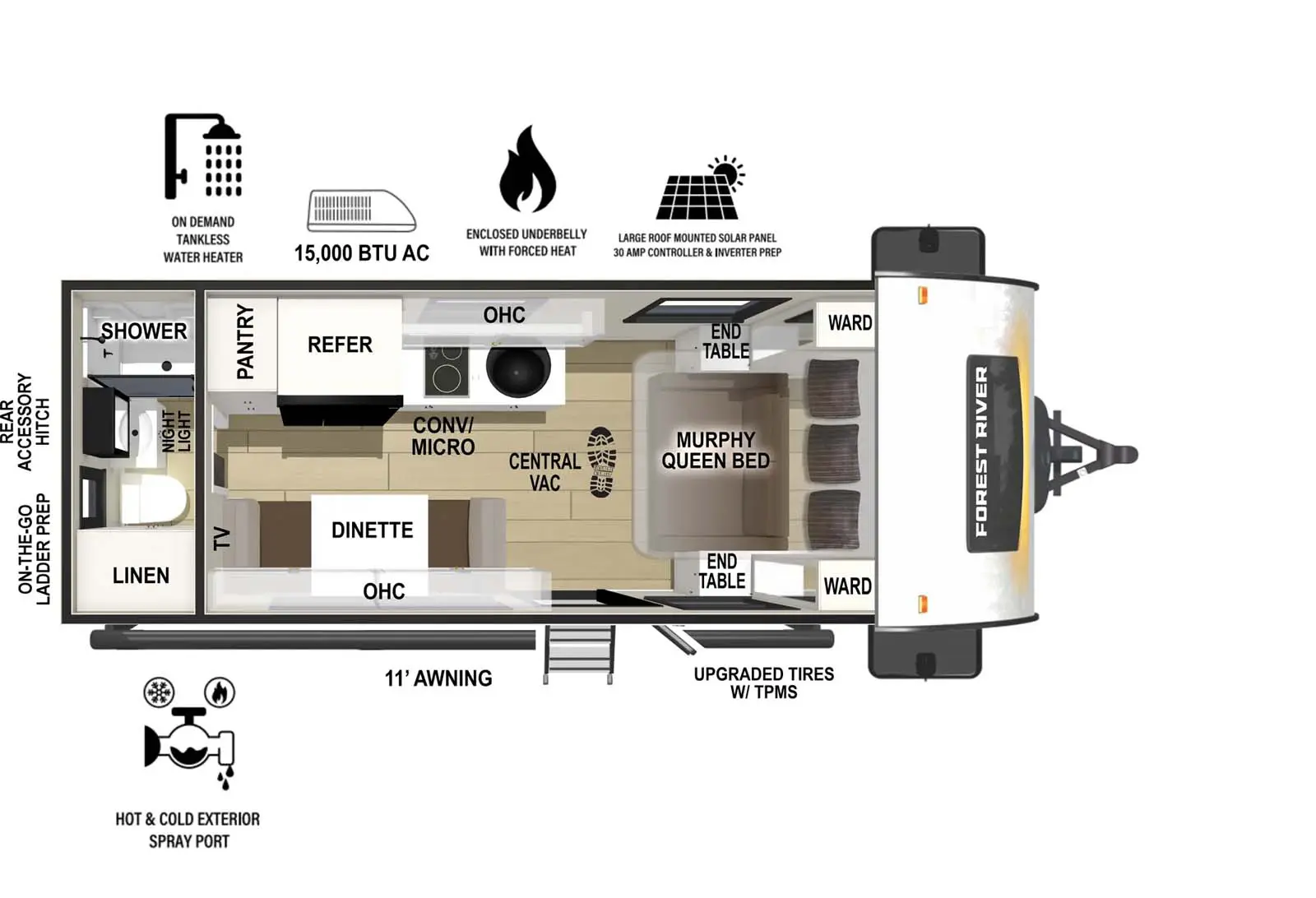

  • RP-192
    RP-192 Main Room

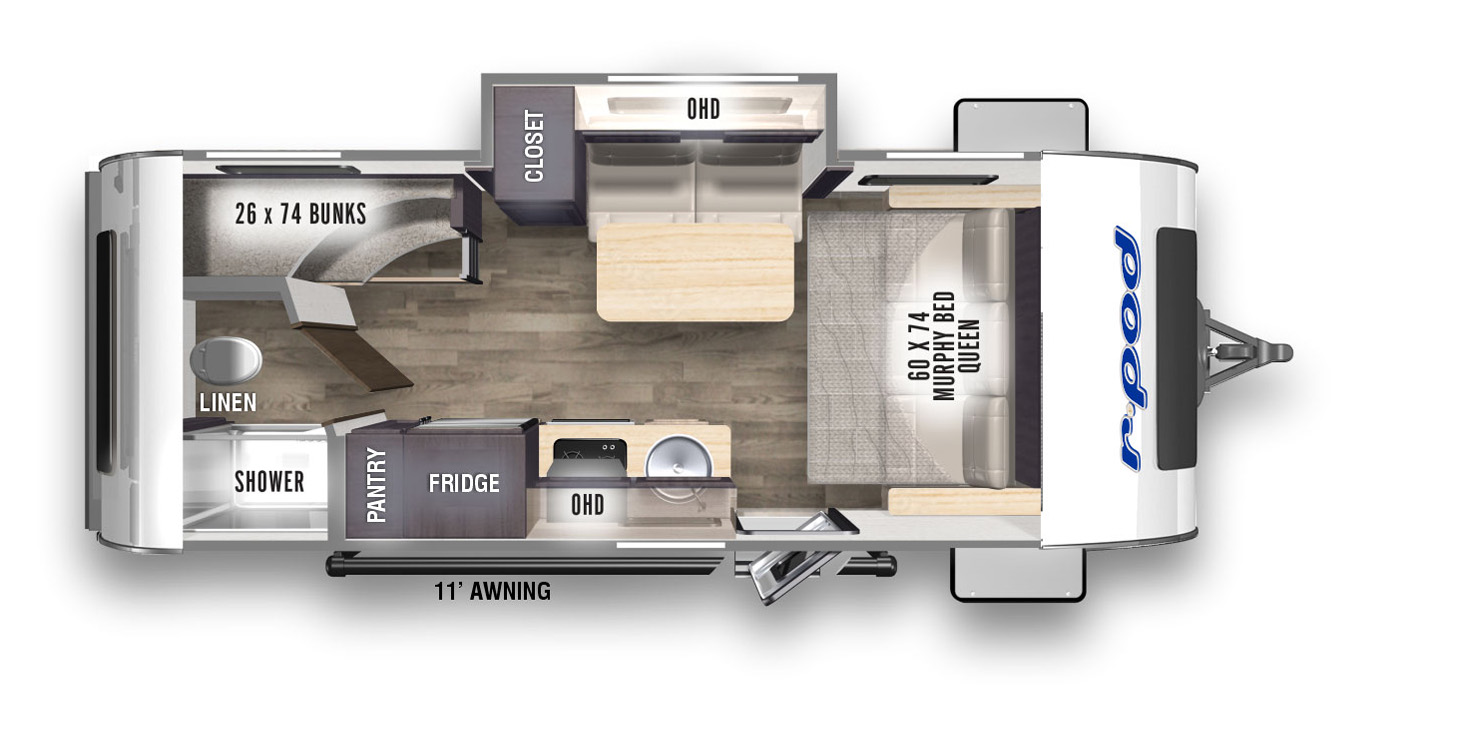

  • RP-193
    RP-193 Main Room
  • RP-195 - DSO
    RP-195 - DSO Main Room

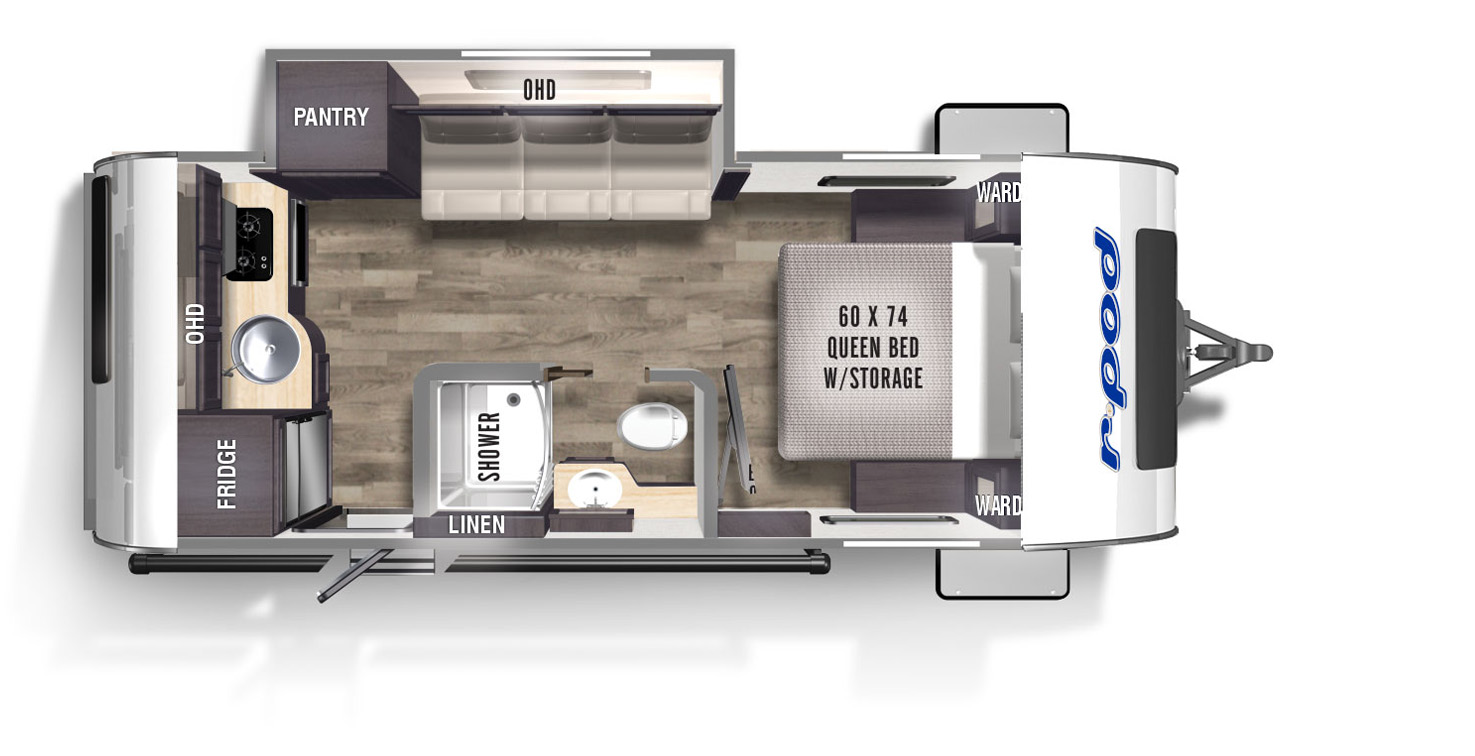

  • RP-196
    RP-196 Main Room

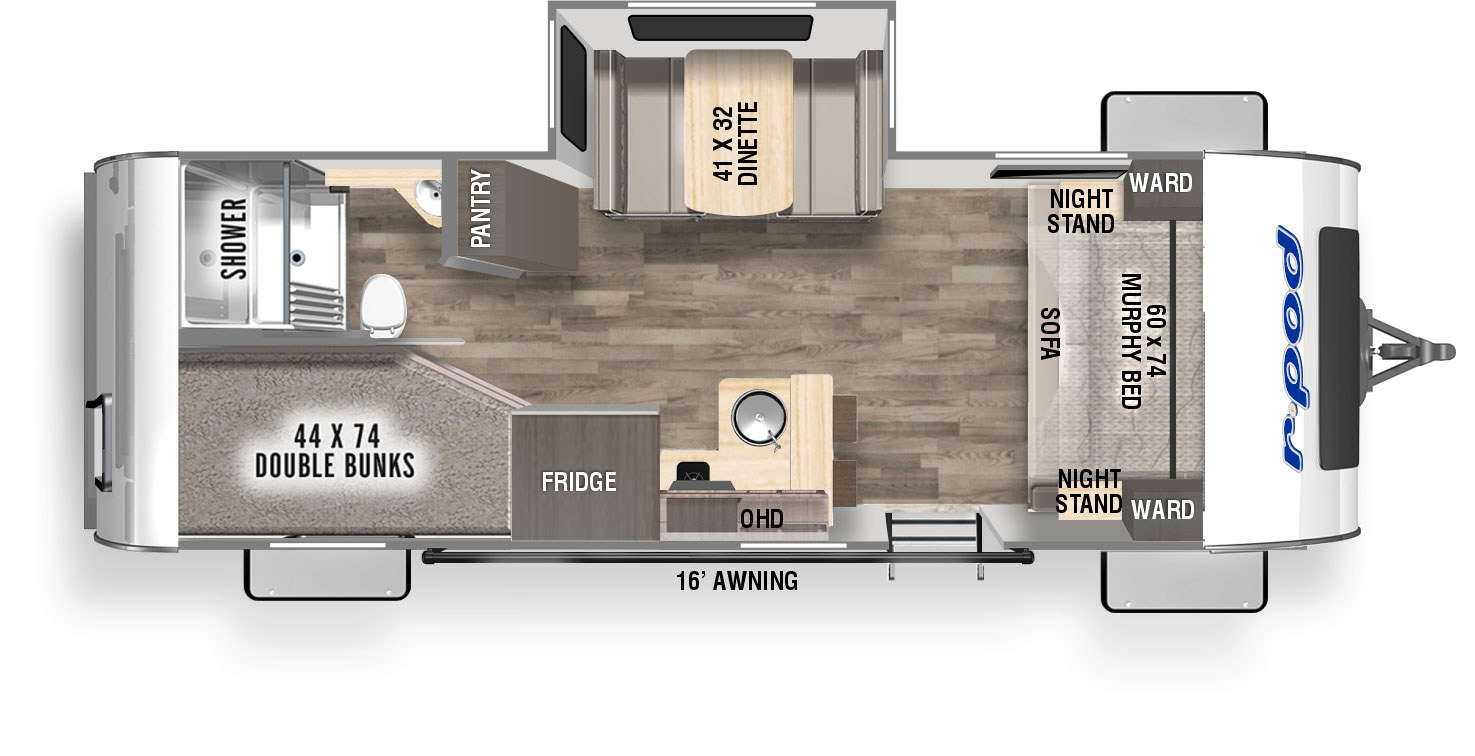

  • RP-201
