G19FD Floorplan

Travel Trailers

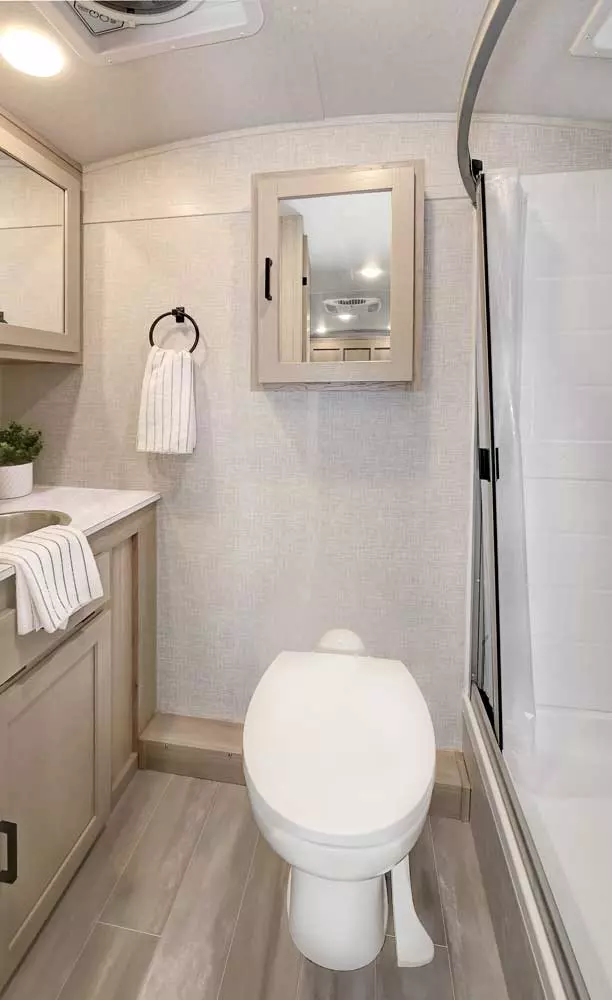

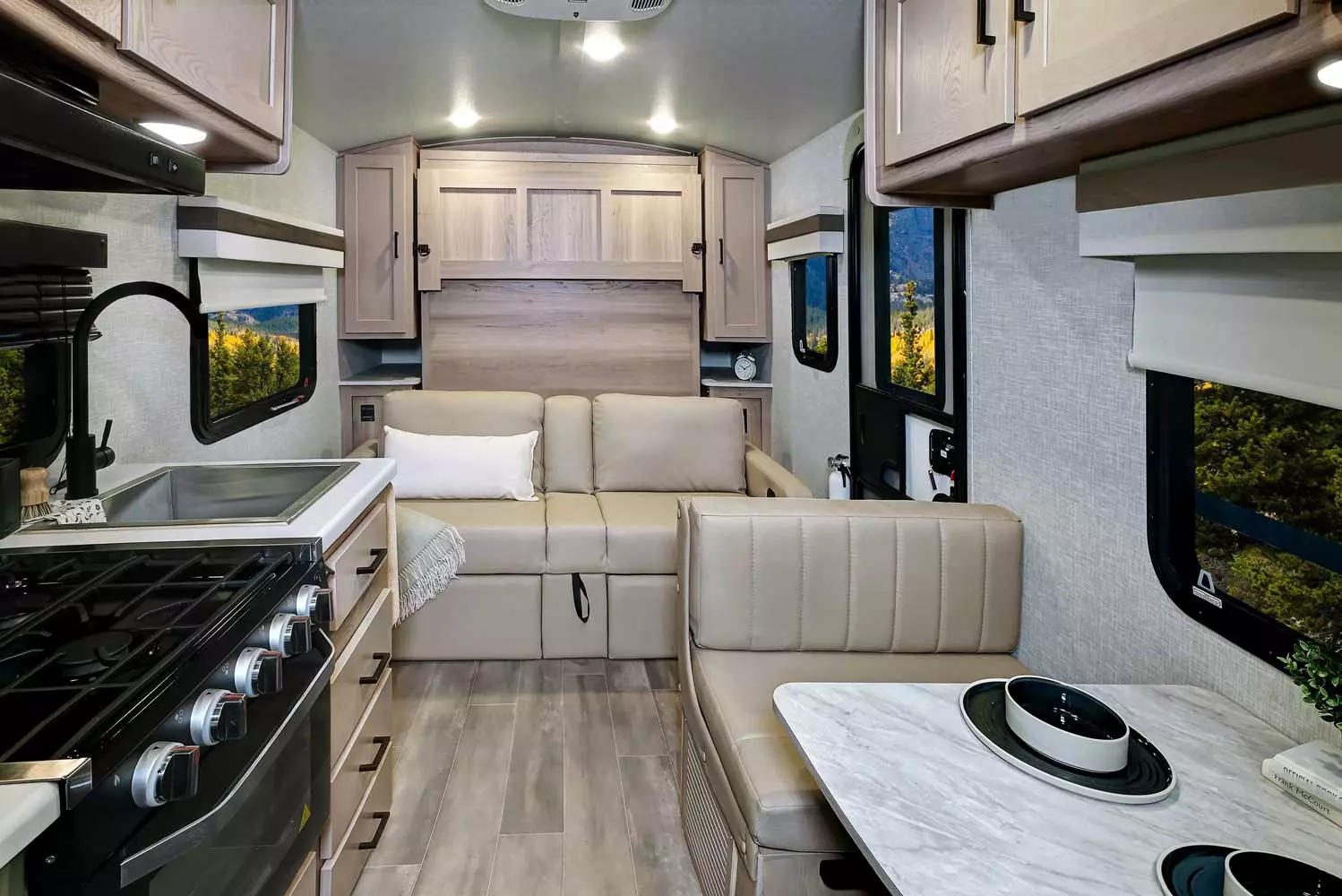

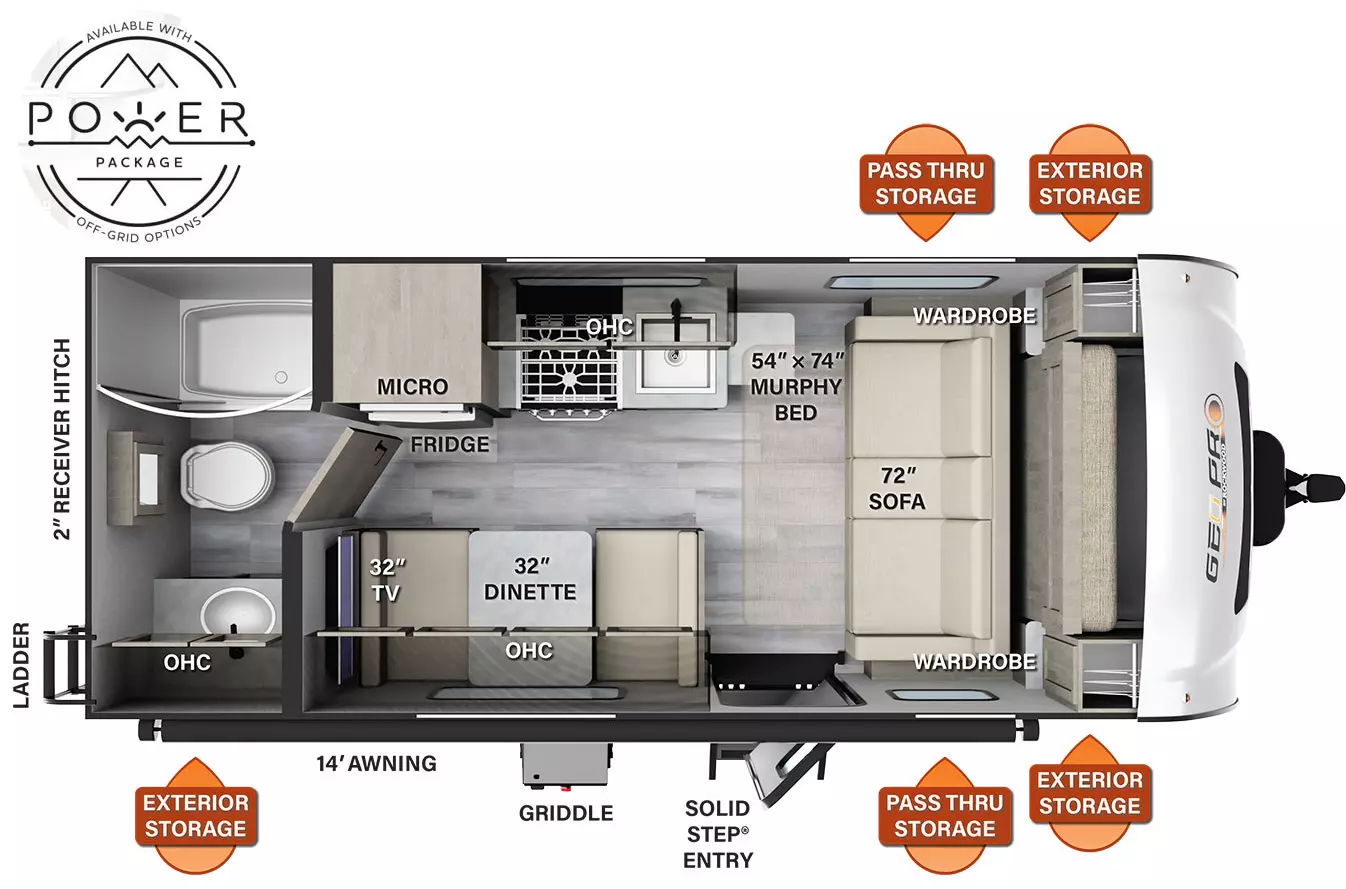

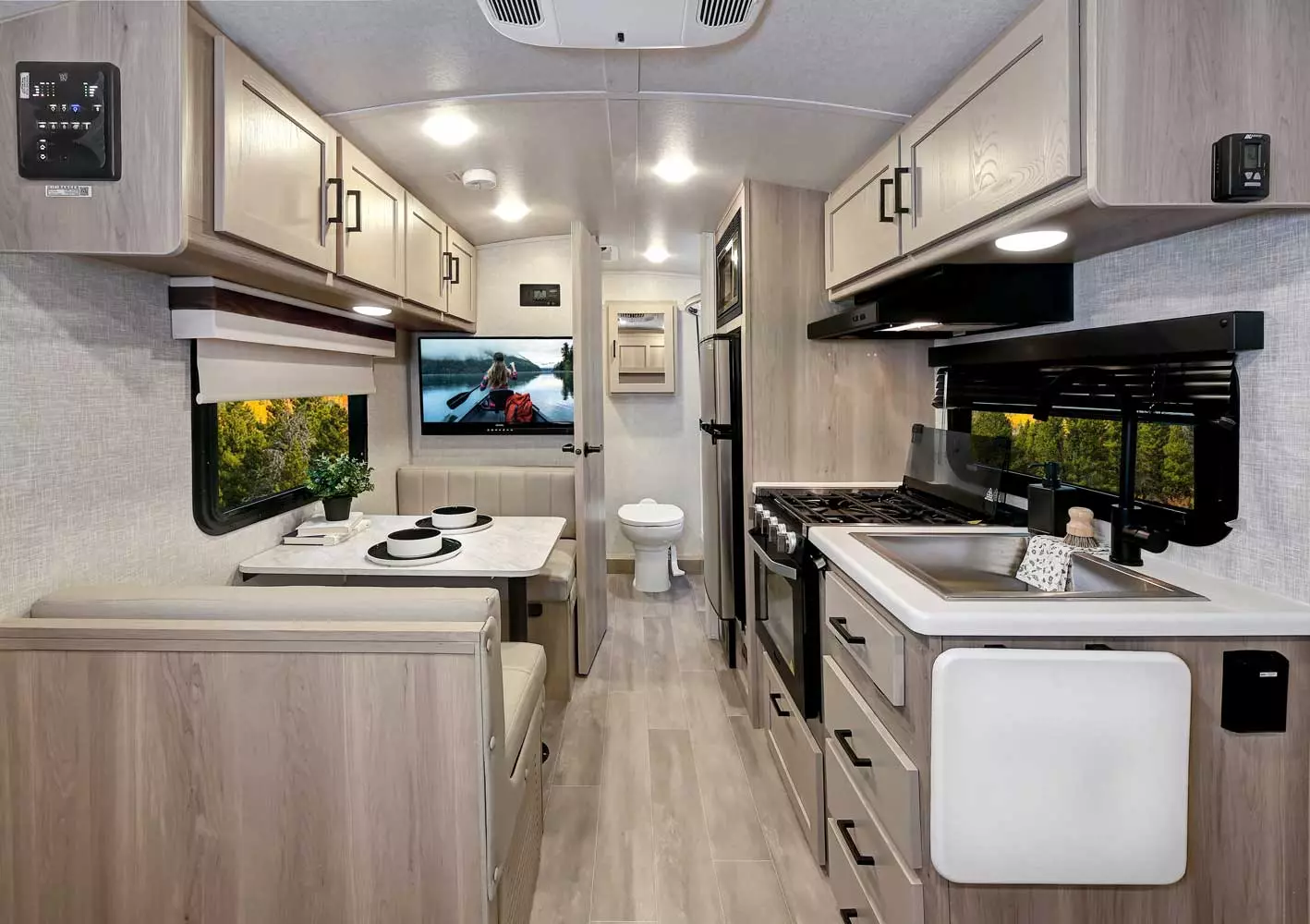

The G19FD has no slide outs and one entry door on the door side. Exterior features include exterior storage, pass thru storage, and a door side 13 foot awning. Interior layout from front to back: front 54 by 74 inch murphy bed / 72 inch sofa with overhead cabinet and side wardrobes; off-door side sink, stovetop, overhead cabinets, microwave, and refrigerator; door side 32 inch dinette with TV and overhead cabinets; and full bathroom in the rear with shower, sink toilet and linen cabinet.
Enlarge

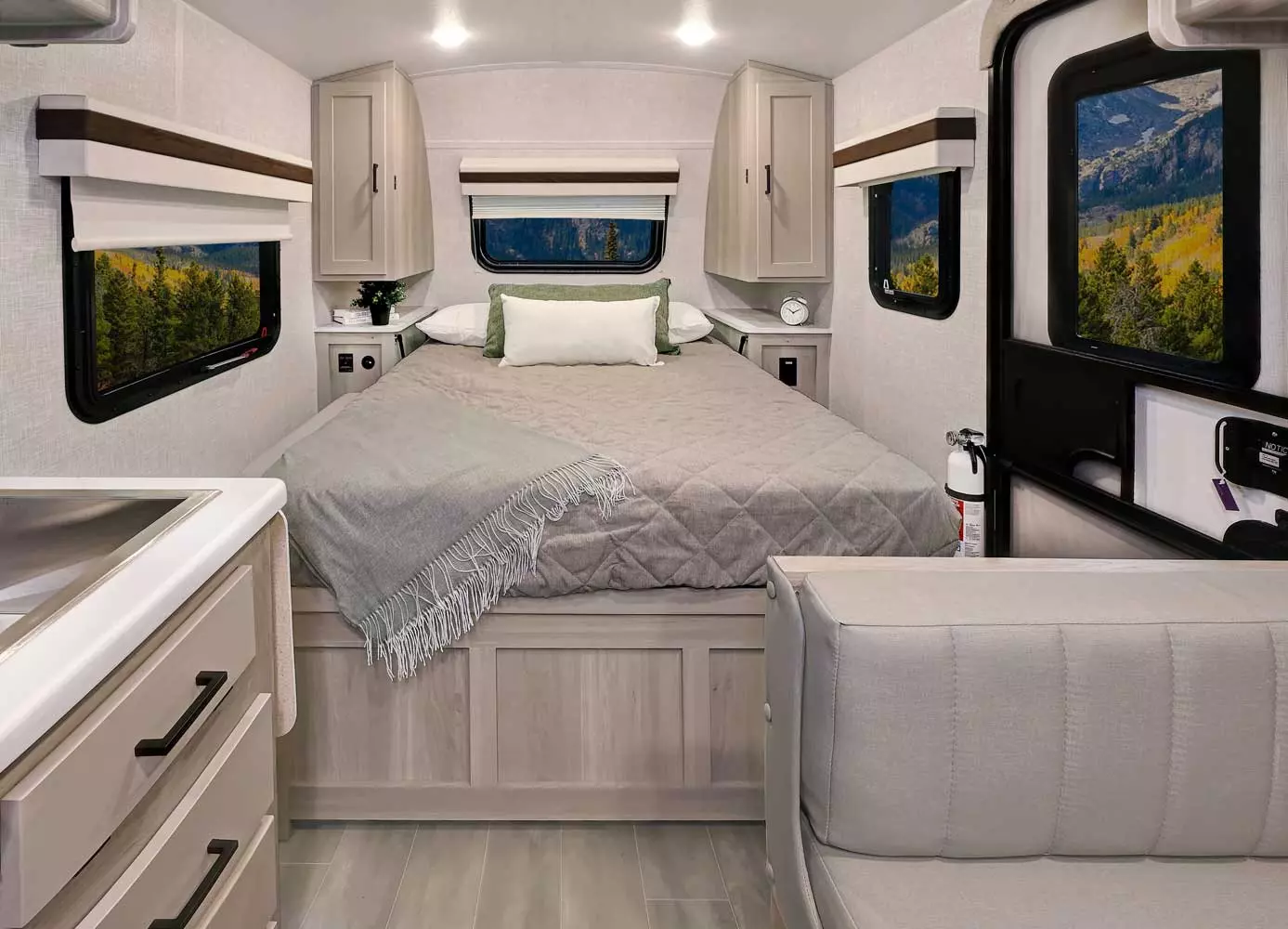

The Rockwood Geo Pro 19FD has a Murphy bed that creates all the space needed for a great couples coach. The windows beside the dinette are very large and easy to see your campsite from. The bathroom in this model goes all the way across the back end of the coach giving you the most space you can get in a unit this size. At 20’ long and just over 3000 lb, this model is perfect for anyone that wants to hunker down at a great park or with solar equipped boondocking for a long period of time.

Specifications

Hitch Weight:
409 lb.
UVW
3,233 lb.
CCC
1,176 lb.
Exterior Length:
20' 2"
Exterior Height:
9' 10"
Exterior Width:
92"
Fresh Water:
31.00 gal.
Gray Water:
27.00 gal.
Black Water:
27.00 gal.
Awning Size:
13'

GVWR (Gross Vehicle Weight Rating)
– is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.



360 Tour

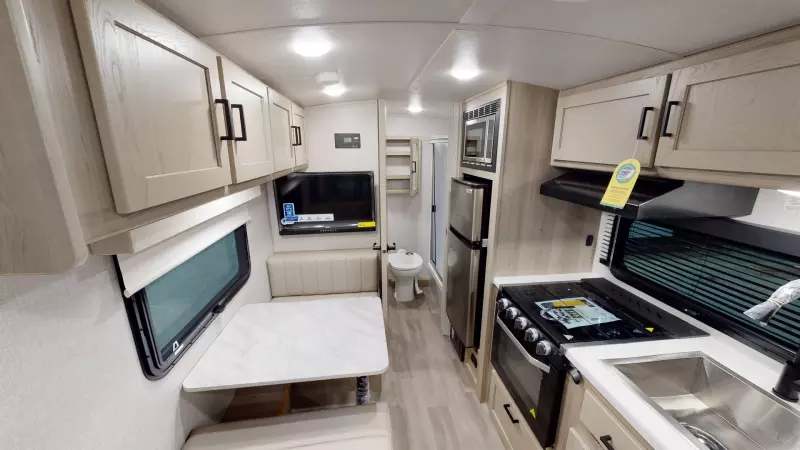

Video Tour



Features & Options

  • 4 Frame Mounted Stabilizer Jacks (Only 2 on 12SRK)
  • Fold Out Entry Steps (N/A 12SRK)
  • Roof Ladder (N/A 12SRK, 19FBTH)
  • Magnetic Baggage Door Catches
  • Outside Shower
  • Front Windshield (N/A 12SRK, 15TB)
  • Teton All In One Wi-Fi Booster/LTE Prep & Antenna
  • Outside Griddle with LP Hookup
  • 2 - 20# LP Tanks
  • Ground Solar Prep
  • Outside Speaker (N/A 12SRK)
  • 200 Watt Roof Mount Solar Panel w/ 1000 Watt Inverter
  • Power Awning (N/A 12SRK)
  • Polished Alloy Wheels
  • Tinted Bonded Frameless Windows
  • Heated Holding Tanks (N/A 12SRK)
  • 2" Hitch Receiver
  • 13,500 Roof A/C
  • Roller Shades
  • 20,000 BTU Furnace
  • 12V Entertainment TV w/stereo
  • Aluminum Cage Dinette Bases & Beds
  • 6 Sided Aluminum Cage Construction
  • Vacuum Laminated Roof and Walls
  • 5/8" tongue and groove plywood flooring
  • Interior & Exterior Azdel Sidewall Construction
  • Torsion Axle, Rubber-Ryde Suspension
  • Tire Pressure Monitoring System
  • Pre Wired for Backup Camera
  • Spare Tire W/ Carrier
  • 15” Mud Rover Radial Tires and Lift Kit
  • Power Tongue Jack
  • 12V Refrigerator
  • Microwave
  • Gas Oven (N/A 19FDS, 16BH, 15TB)
  • Maxxair® Ventilation Fan and Vent Cover (*In living room on 15TB)
  • Quick recovery Gas/Electric Water Heater
  • Shower Miser Water Saver
  • Black Tank Flush (N/A 15TB)
  • 360 Siphon Cap on Black Tank
  • Foot Flush Toilets
  • Pro Rac Mounting Bars w/ Removable Ladder
  • 2nd 200W Roof Solar Panel
  • Tongue Mount Bike Rack
  • Dexter Torsion Axles w/Aluminum Wheels
  • All In One Teton HD TV/WiFi/AM/FM Antenna (LTE Prep)
  • Shower Miser Water Saver
  • 190W Roof Mount Solar Panel
  • Bluetooth System Control Panel
  • Spare Tire
  • Hidden Hinge Cabinet Doors (N/A 12SRK)
  • Microwave Oven
  • 13,500 Btu Low Profile A/C
  • Sport Tire And Wheel Package
  • Key Alike Door & Compartment Locks
  • Roller Shades
  • Power Awning (Manual Thule 12SRK)
  • Frameless Windows
  • 1000W Inverter Power
  • Tire Pressure Monitoring System
  • Ladder
  • Power Tongue Jack
  • Gas Griddle
  • 20,000 BTU Furnace
  • 12 V Refrigerator
  • Heated Holding Tanks (N/A 12SRK)
  • Outside Speaker (N/A 12SRK)
  • 12V Entertainment TV w/stereo
  • 400AH Single Mastervolt Mli Lithium-Ion Battery w/ Safety Disconnect
  • 3kW (3000 Watts)/160A Inverter/Charger Mastervolt Combimaster
  • 3 -200W Solar Panels (600 Watts) to Maintain/Charge Battery Bank
  • 11,000 BTU Coleman Mach Soft Start A/C
  • 2 Smart Remotes - Offering Monitoring and Control for the System
  • Side Solar Plug In Standard for Portable Solar Option
