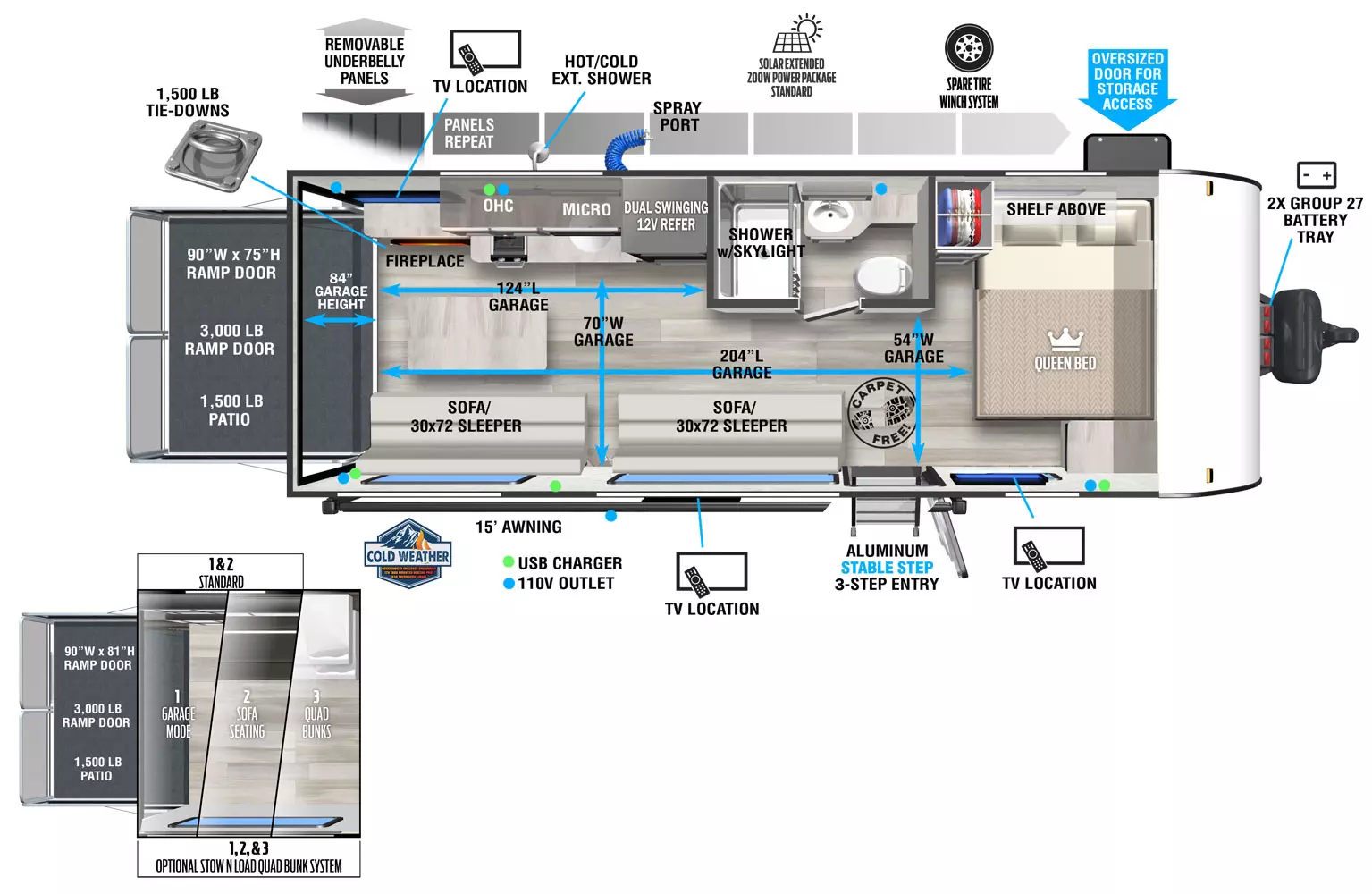

190RTK Floorplan

MAX Series: Toy Haulers and Versatile Cargo Travel Trailers

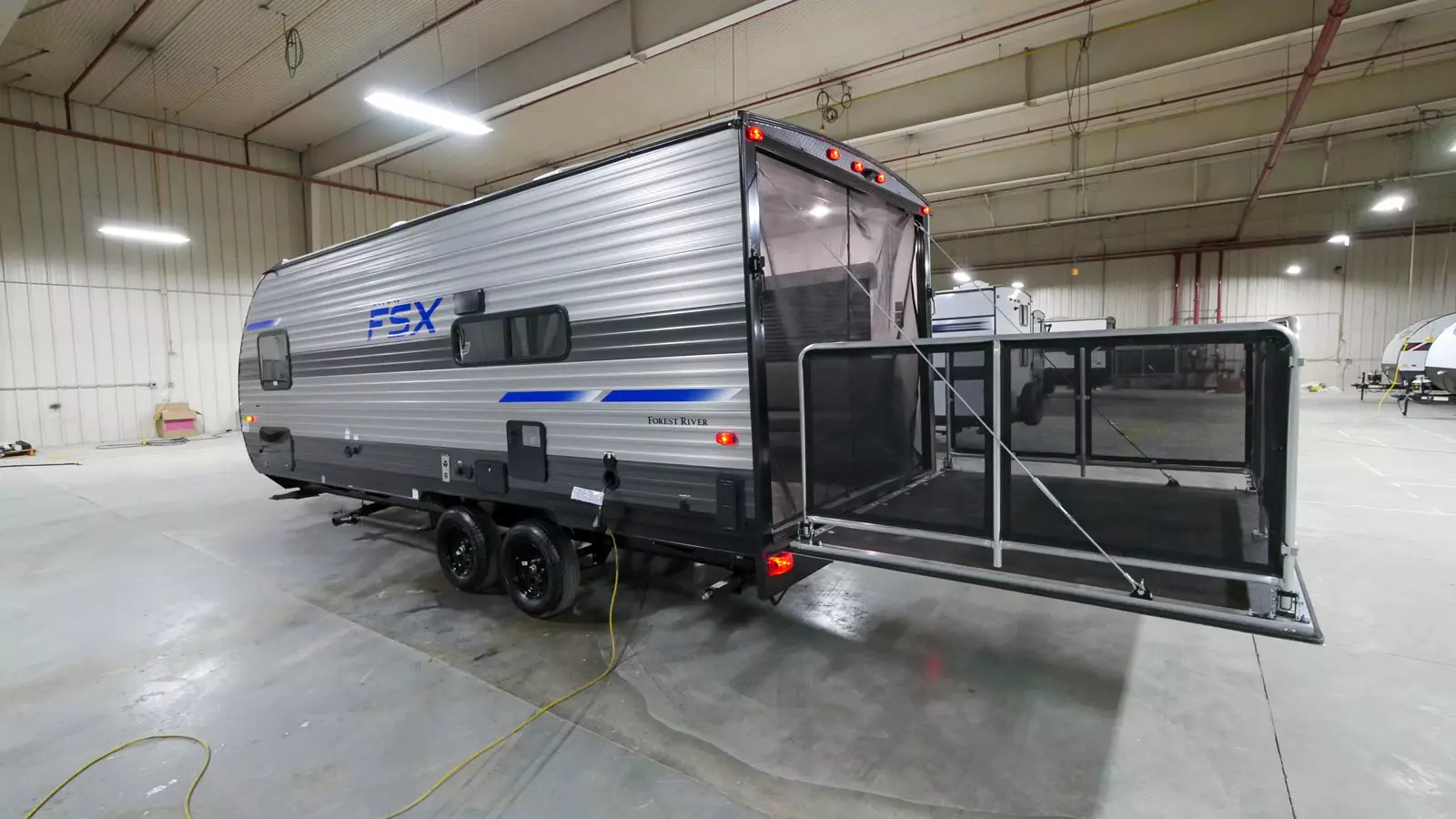

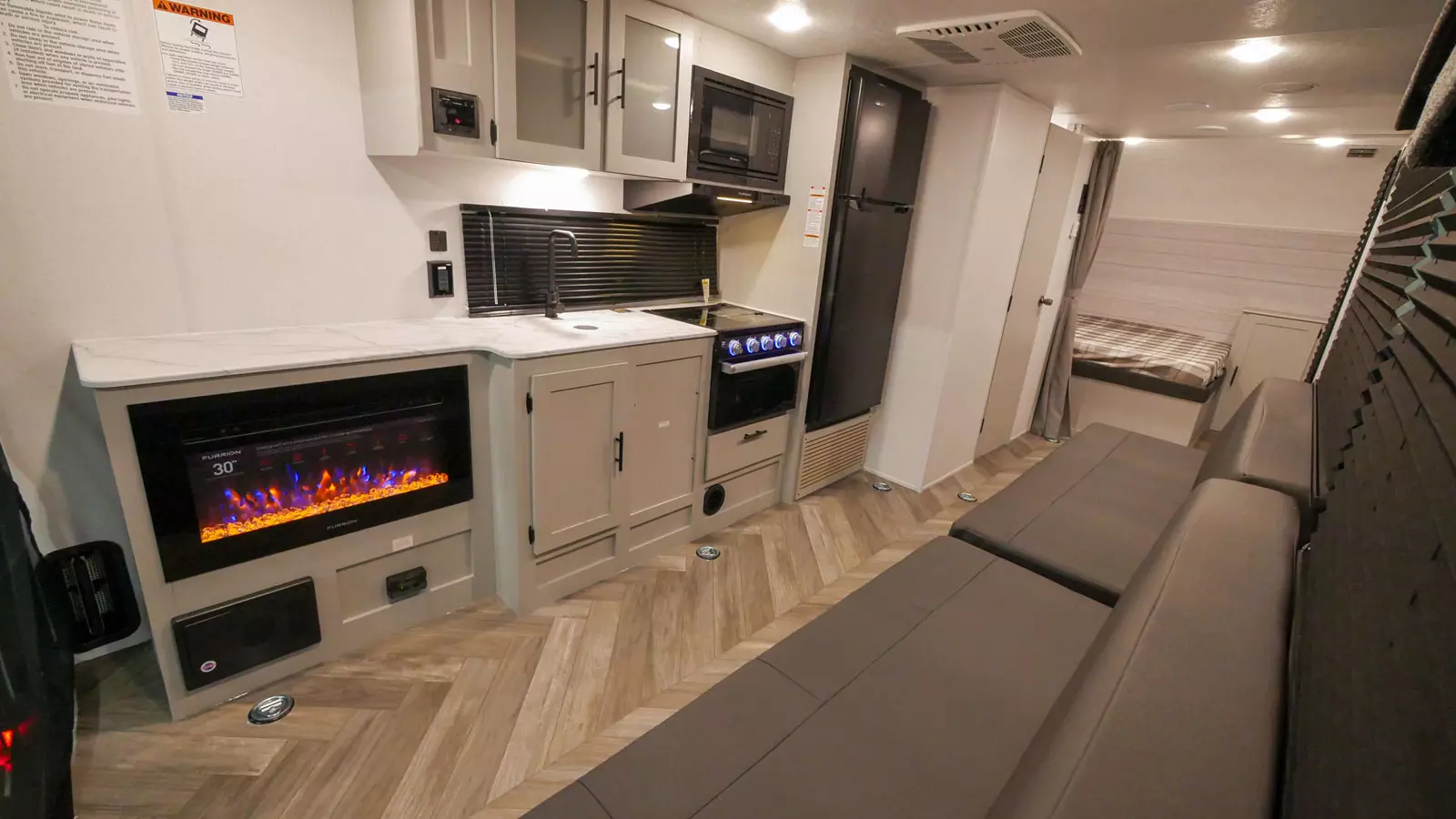

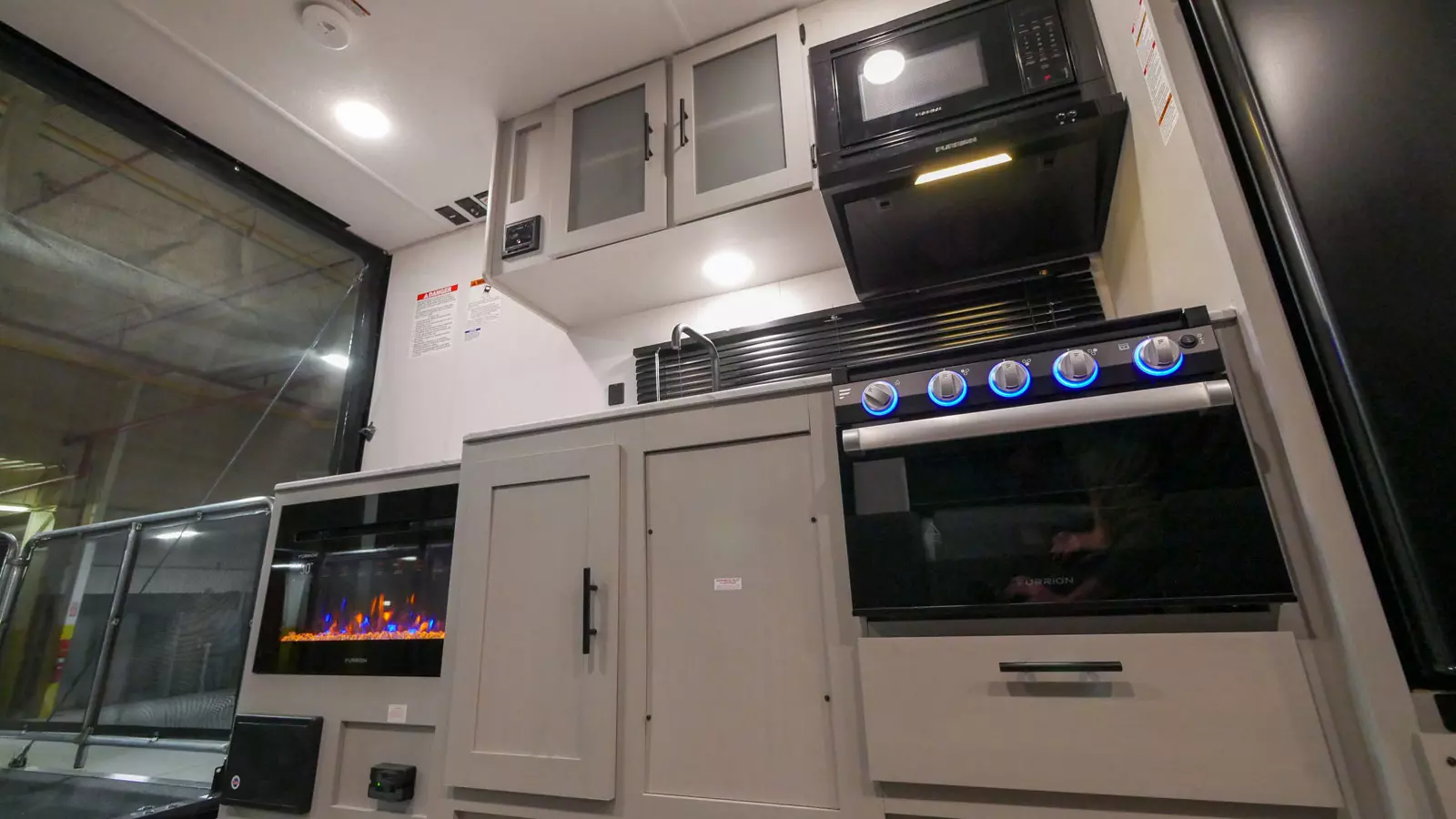

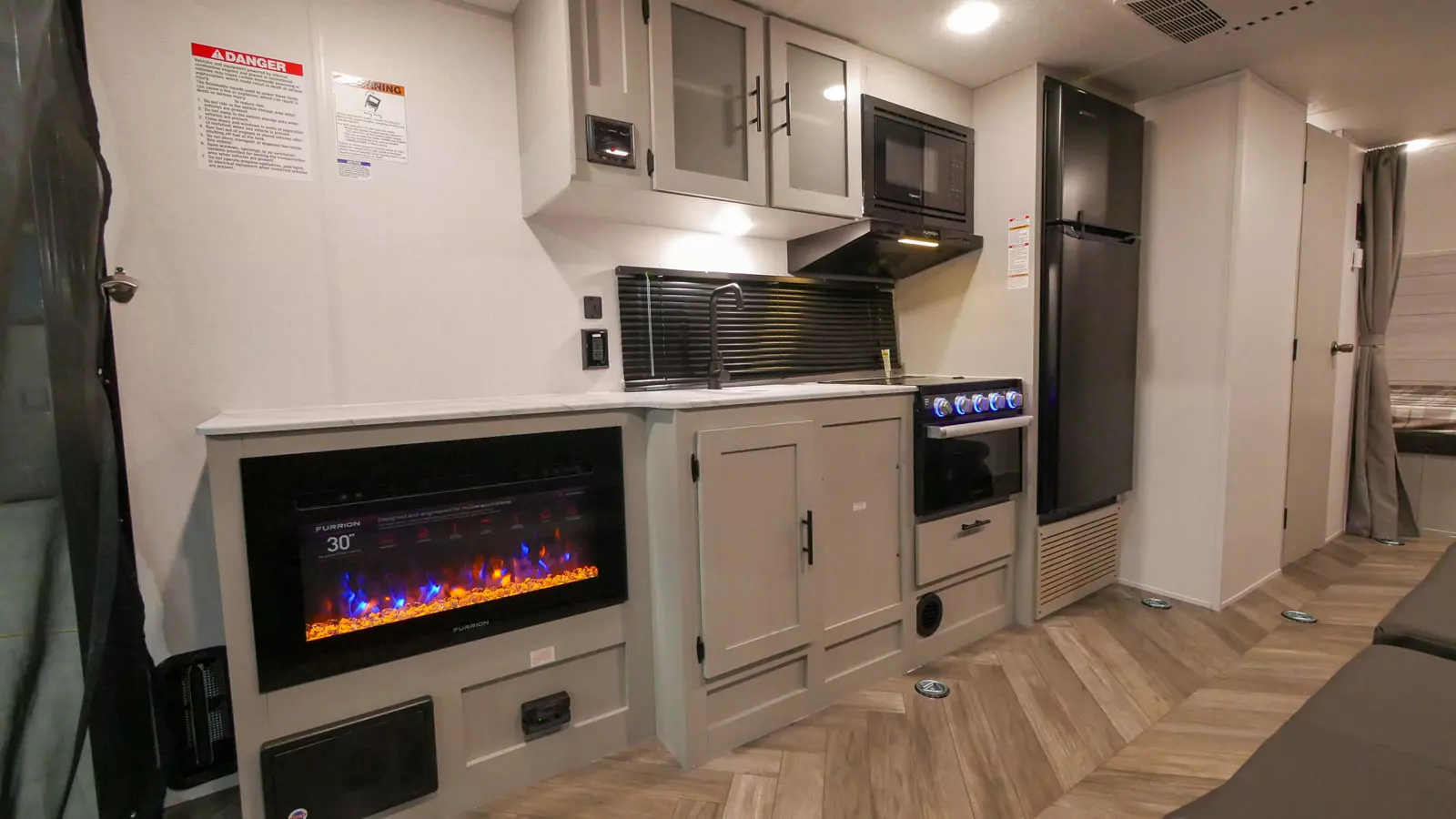

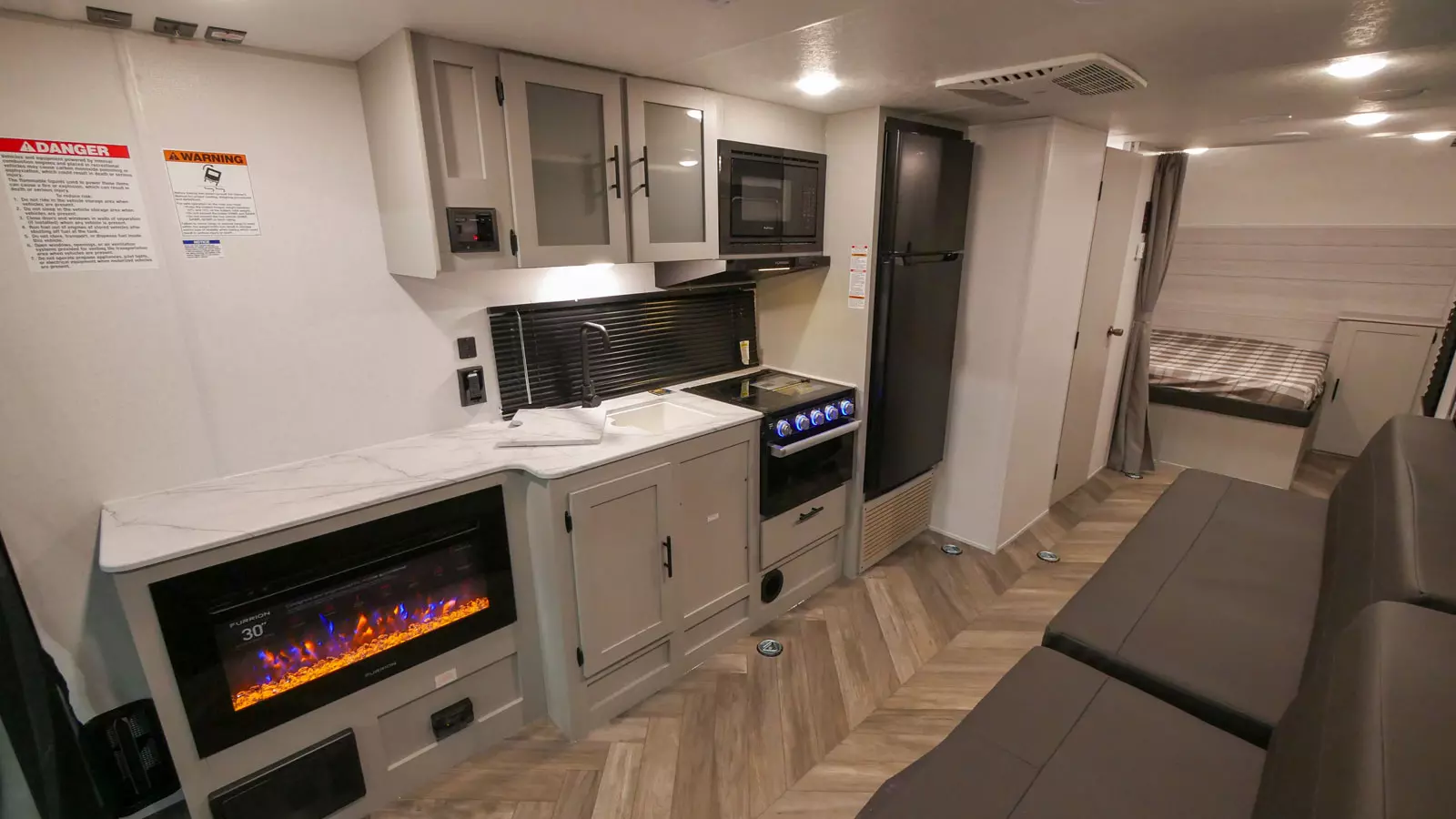

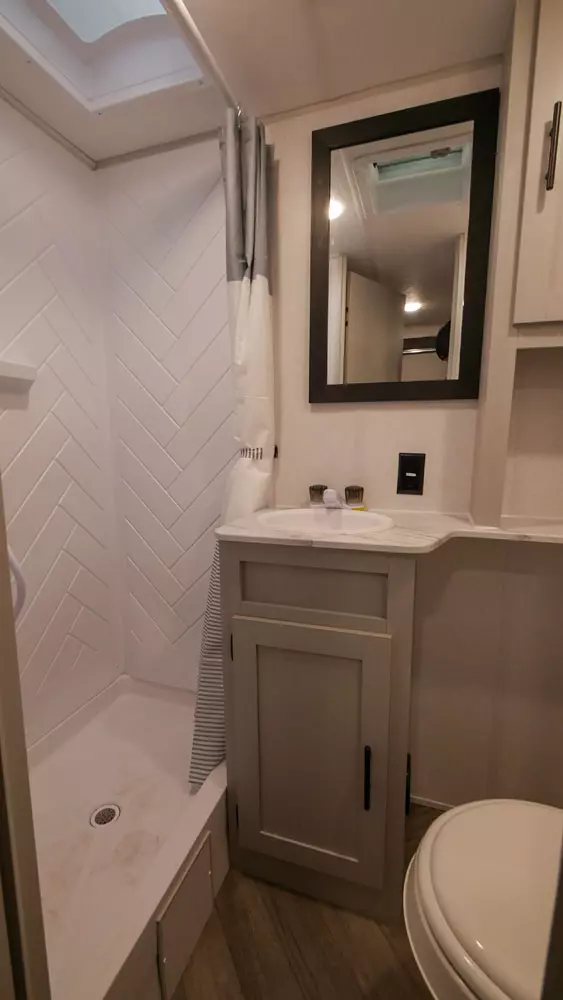

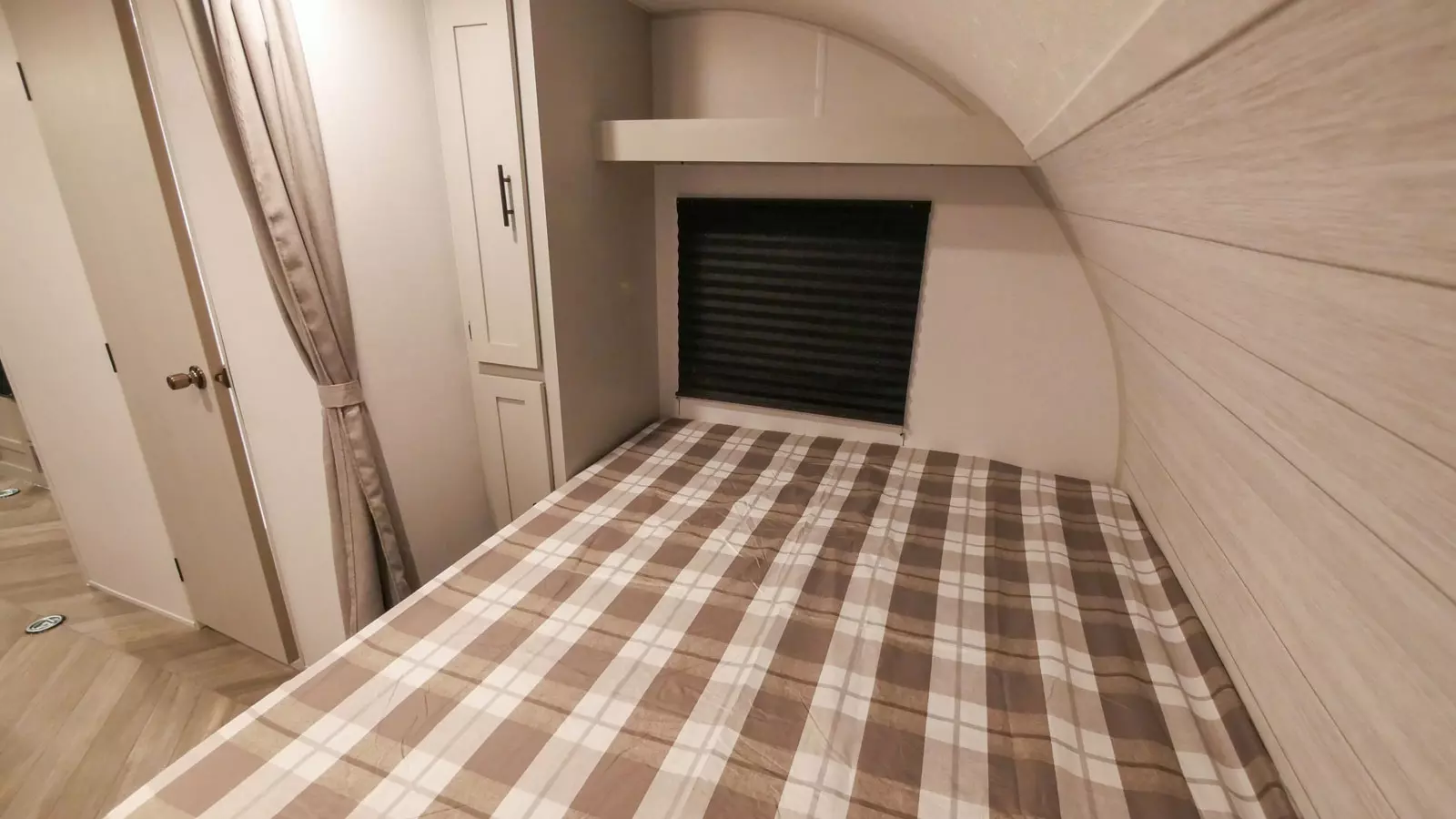

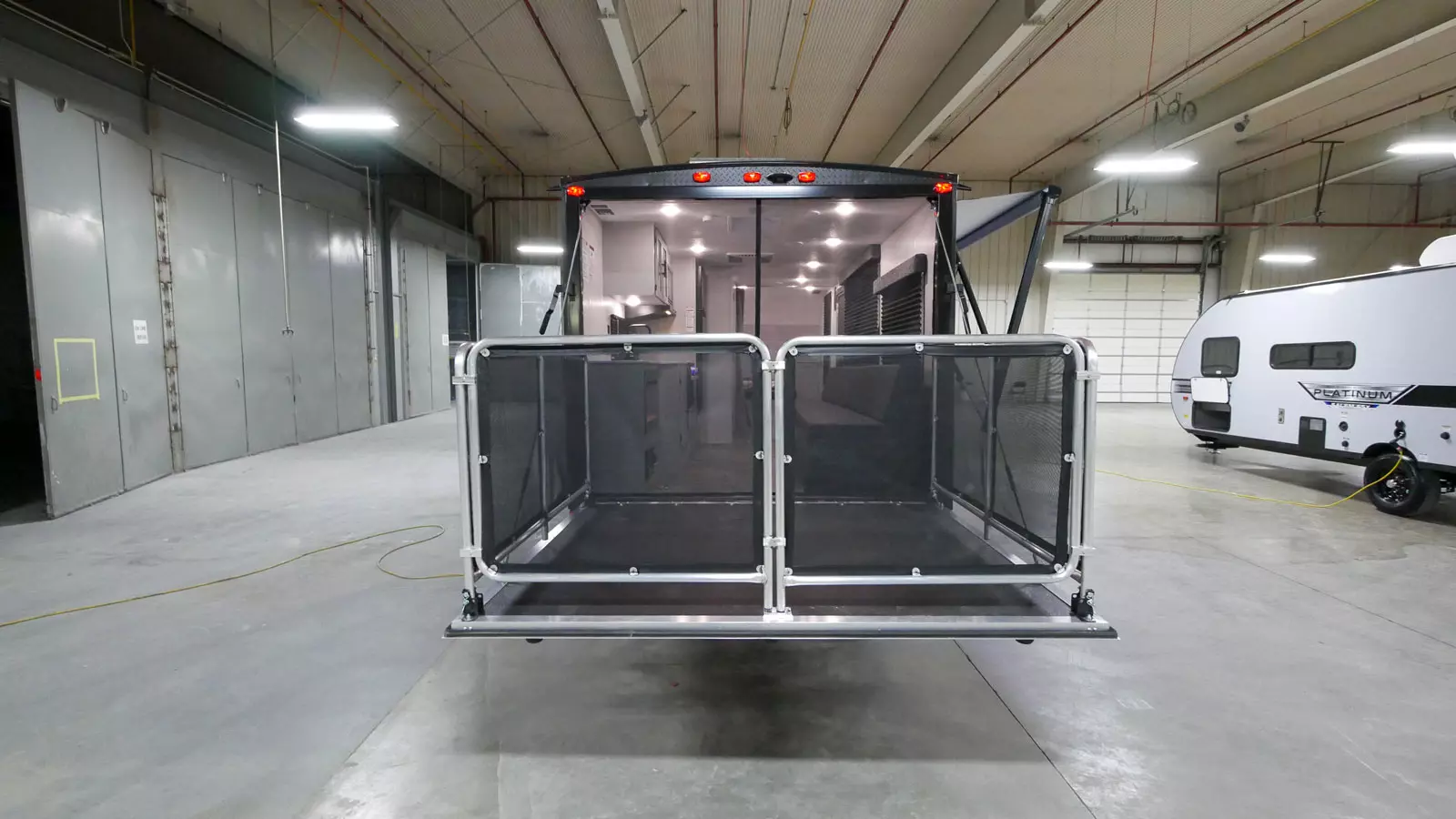

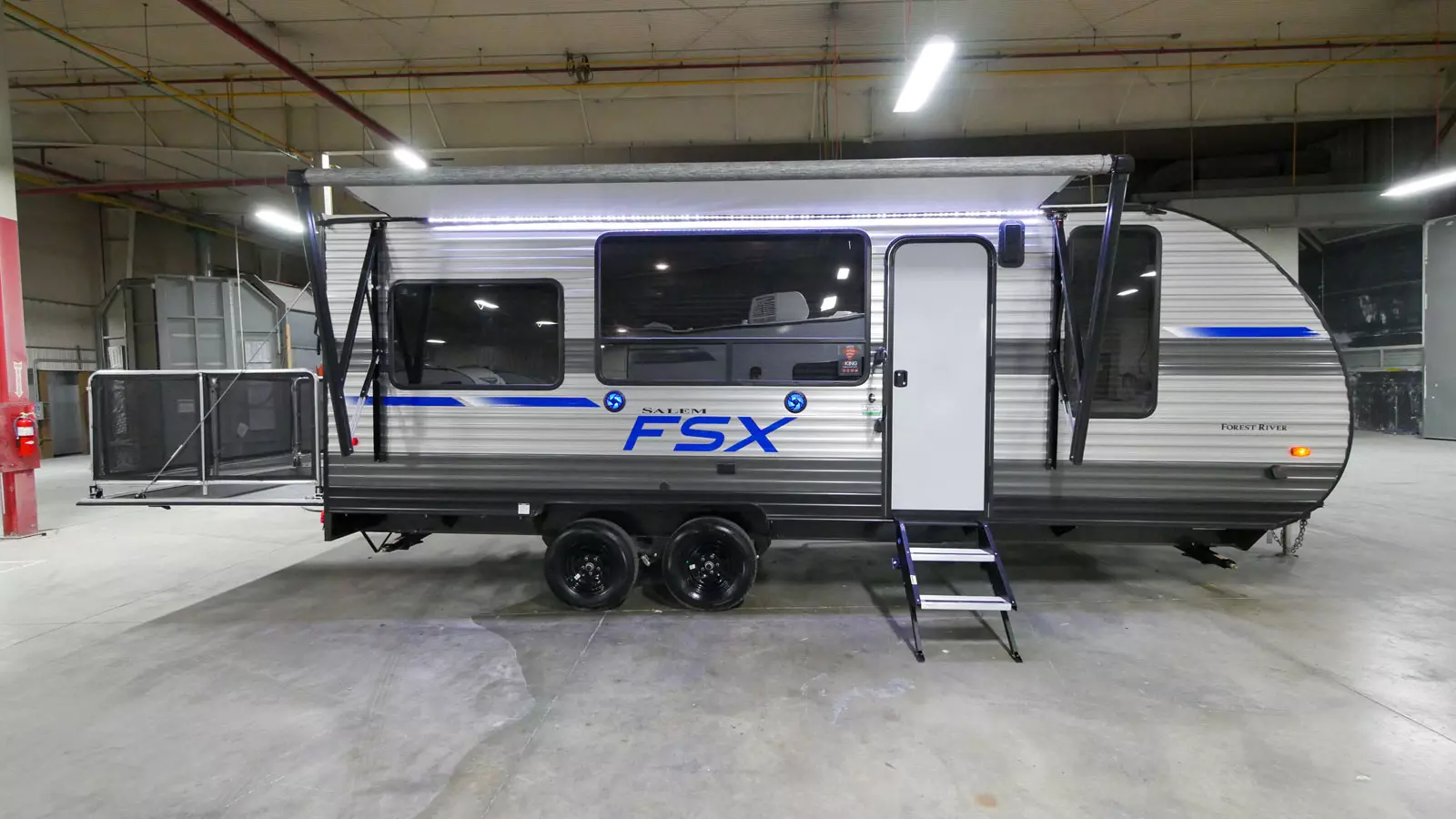

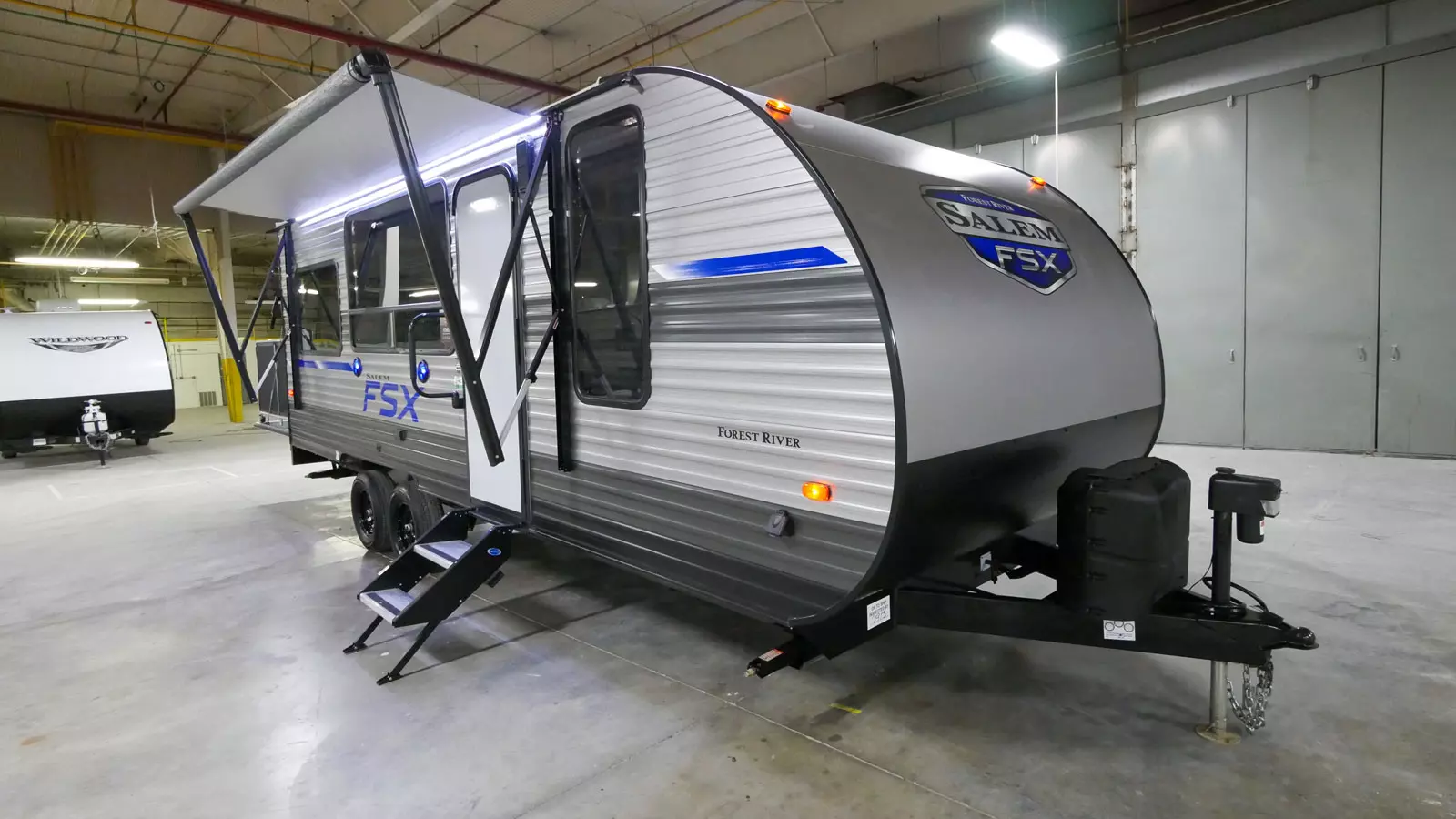

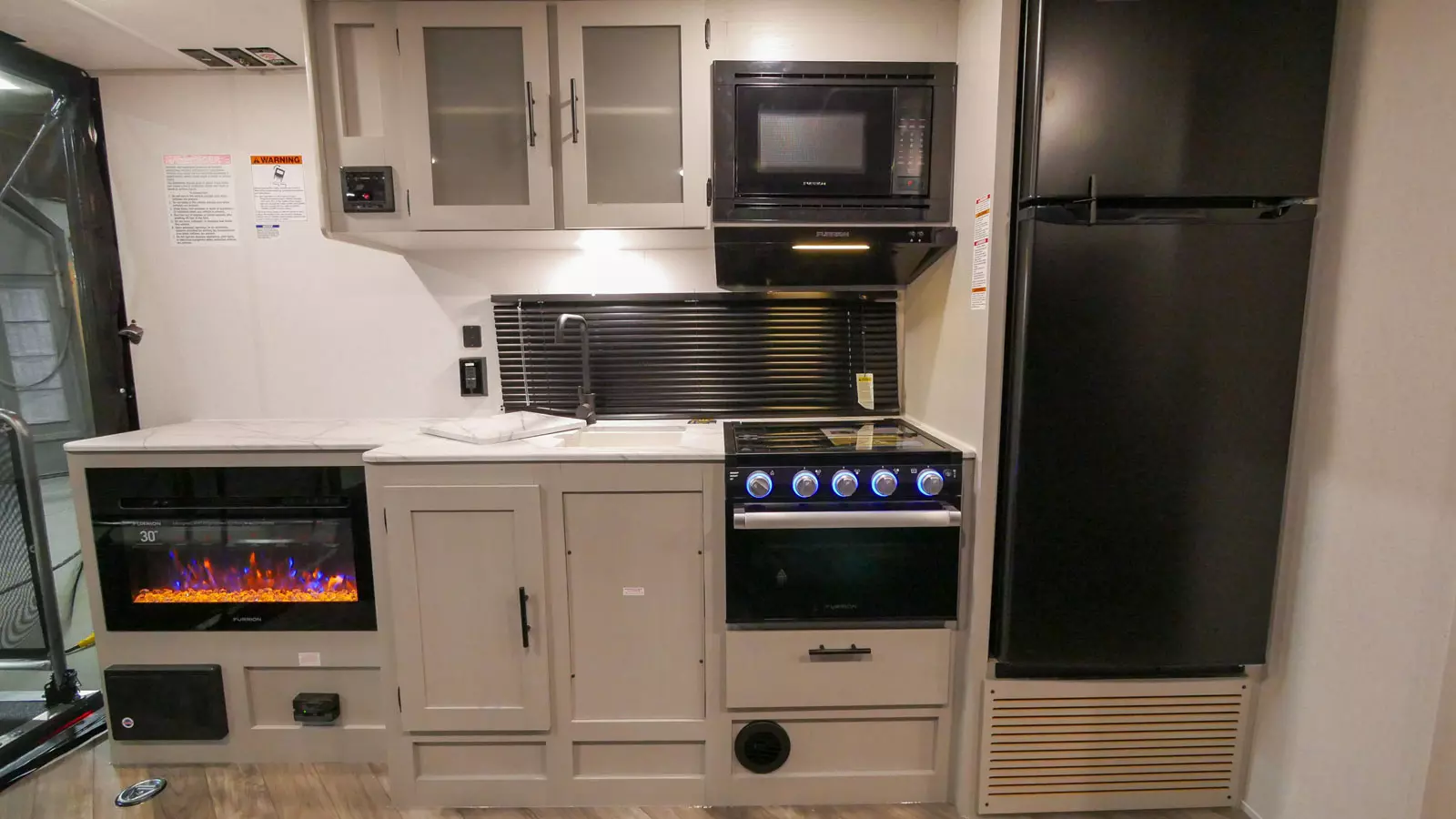

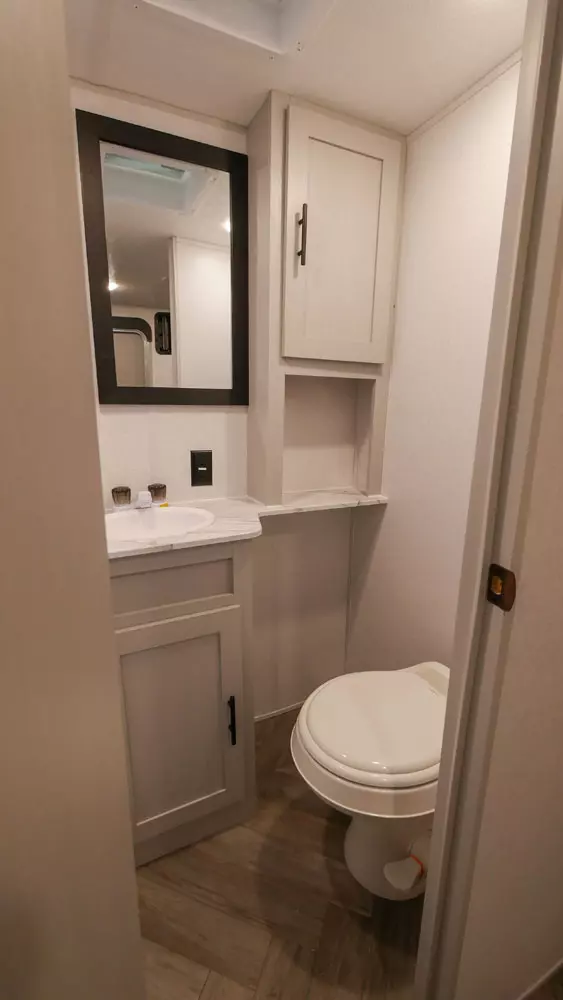

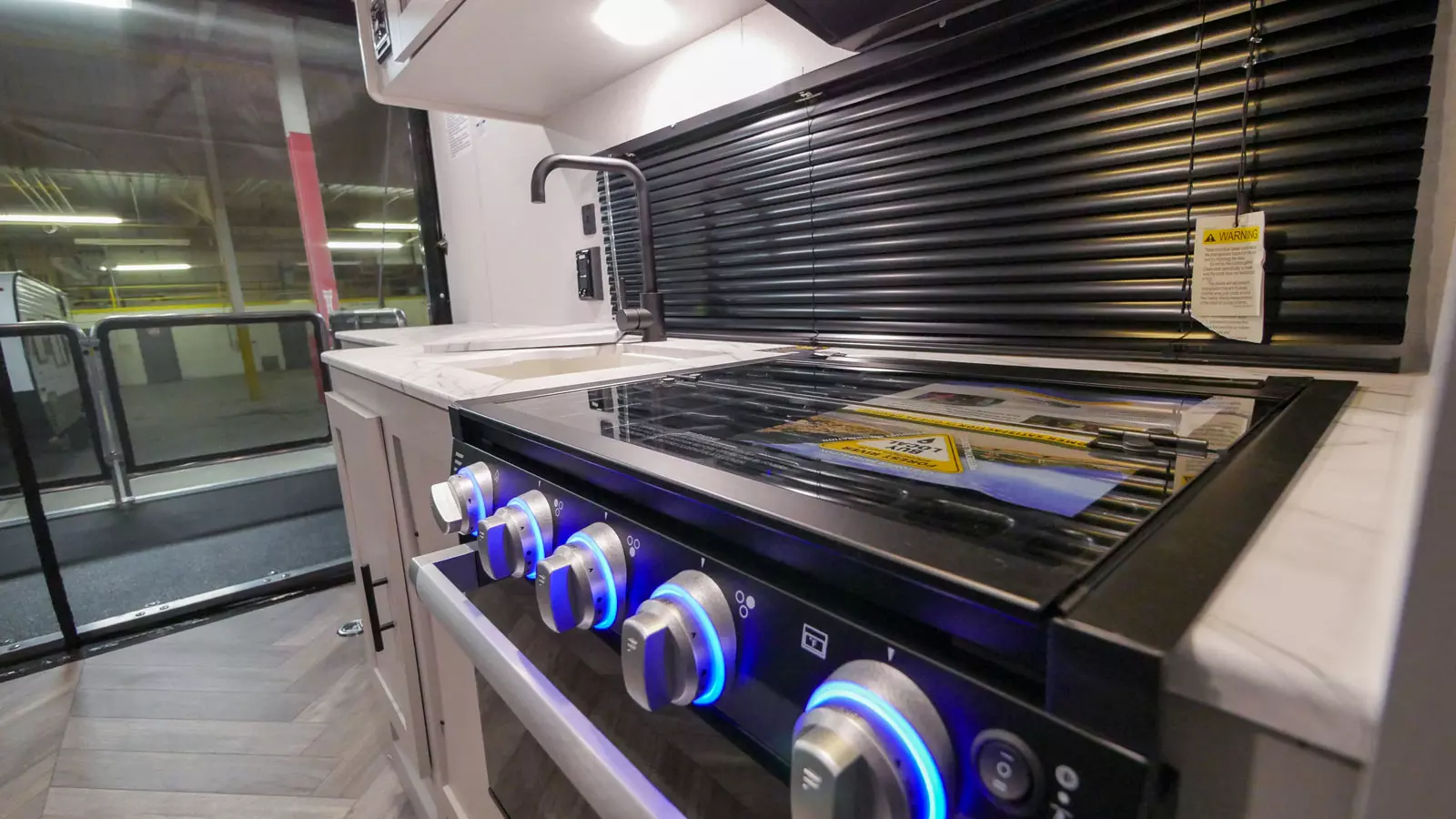

The 190RTK has zero slideouts and one entry. Exterior features removeable underbelly panels, optional solar extended 200W solar package, spray port, hot/cold exterior shower, spare tire winch system, storage, 15 foot awning, outside TV, aluminum stable step 3-step entry, front 2X group 27 battery tray, and rear ramp door. Interior layout front to back: carpet-free RV; side-facing queen bed with shelf above, wardrobe, and TV; off-door side full bathroom with skylight in shower; door side entry, sofa sleeper; rear off-door side dual swinging 12V refrigerator, microwave, overhead cabinet, sink, cooktop, fireplace, and TV; door side sofa/sleeper with table. Garage dimensions: 81 inches garage height; 204 inches from ramp door to queen bed; 124 inches from ramp door to bathroom wall, 70 inches from door side to kitchen counter; 54 inches from door side to bathroom wall; 1,500 lb. tie-downs, 3,000 lb 90 inch x 75 inch rear ramp door with 1,500 lb. patio capacity.
Enlarge

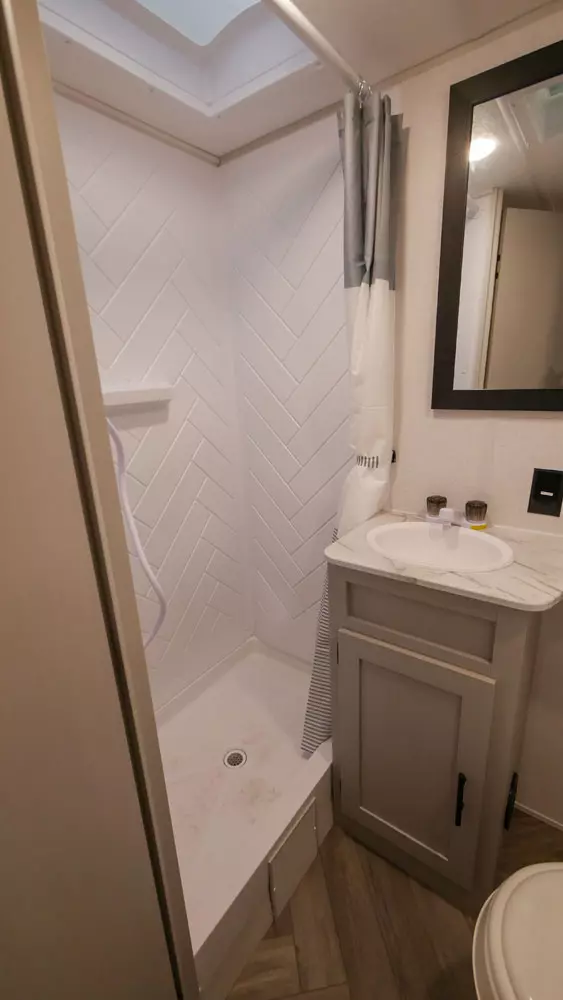

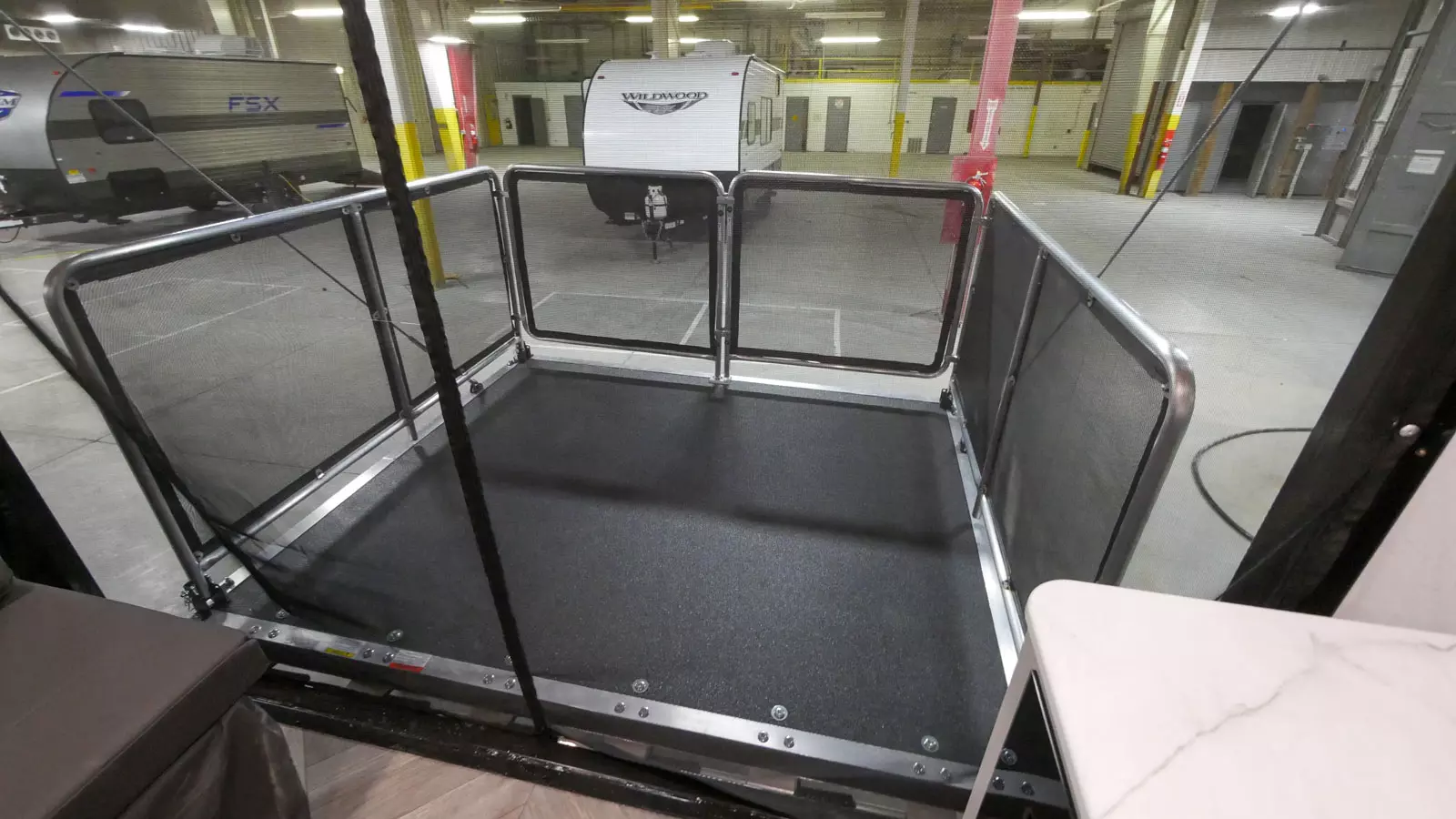

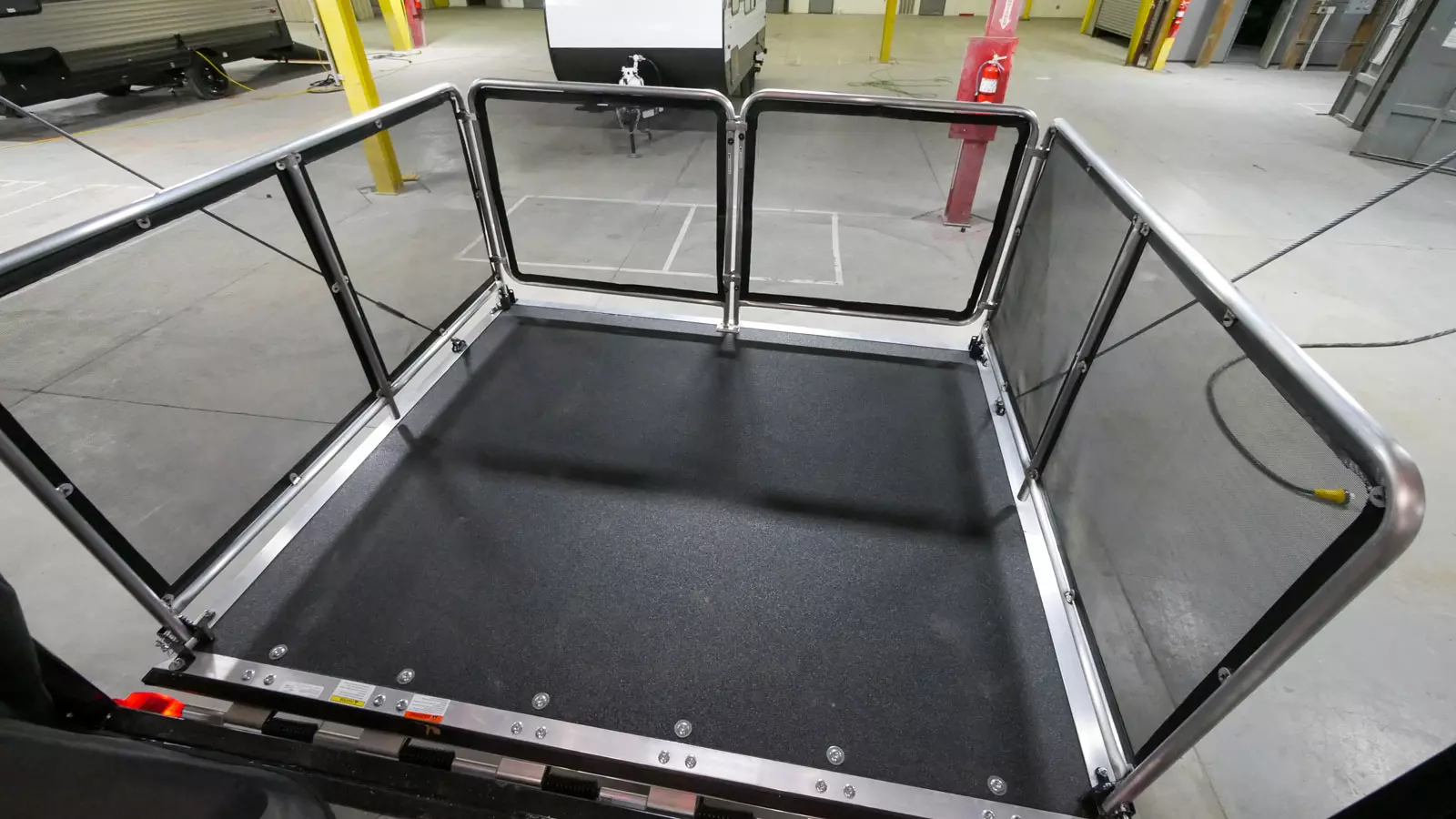

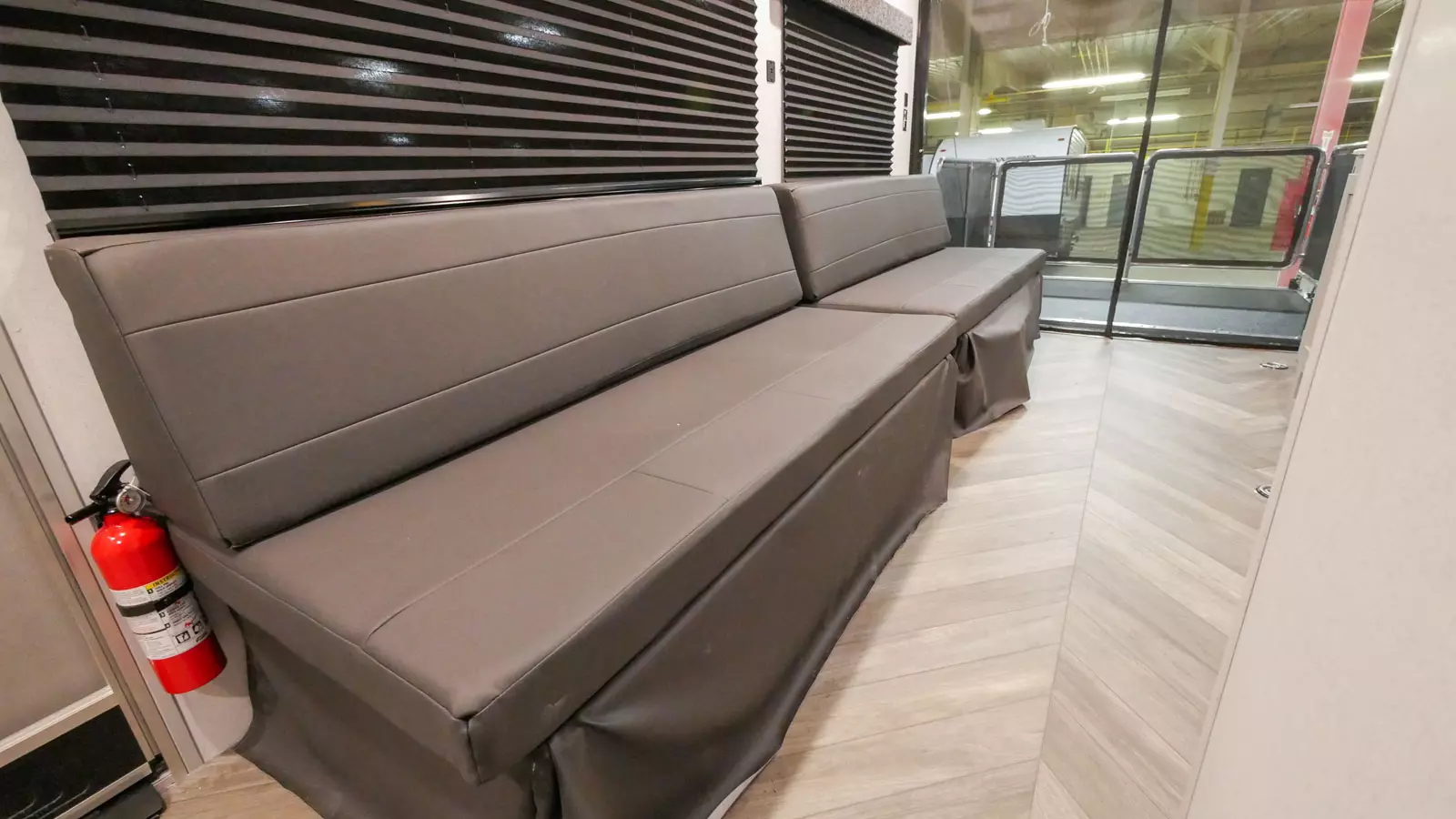

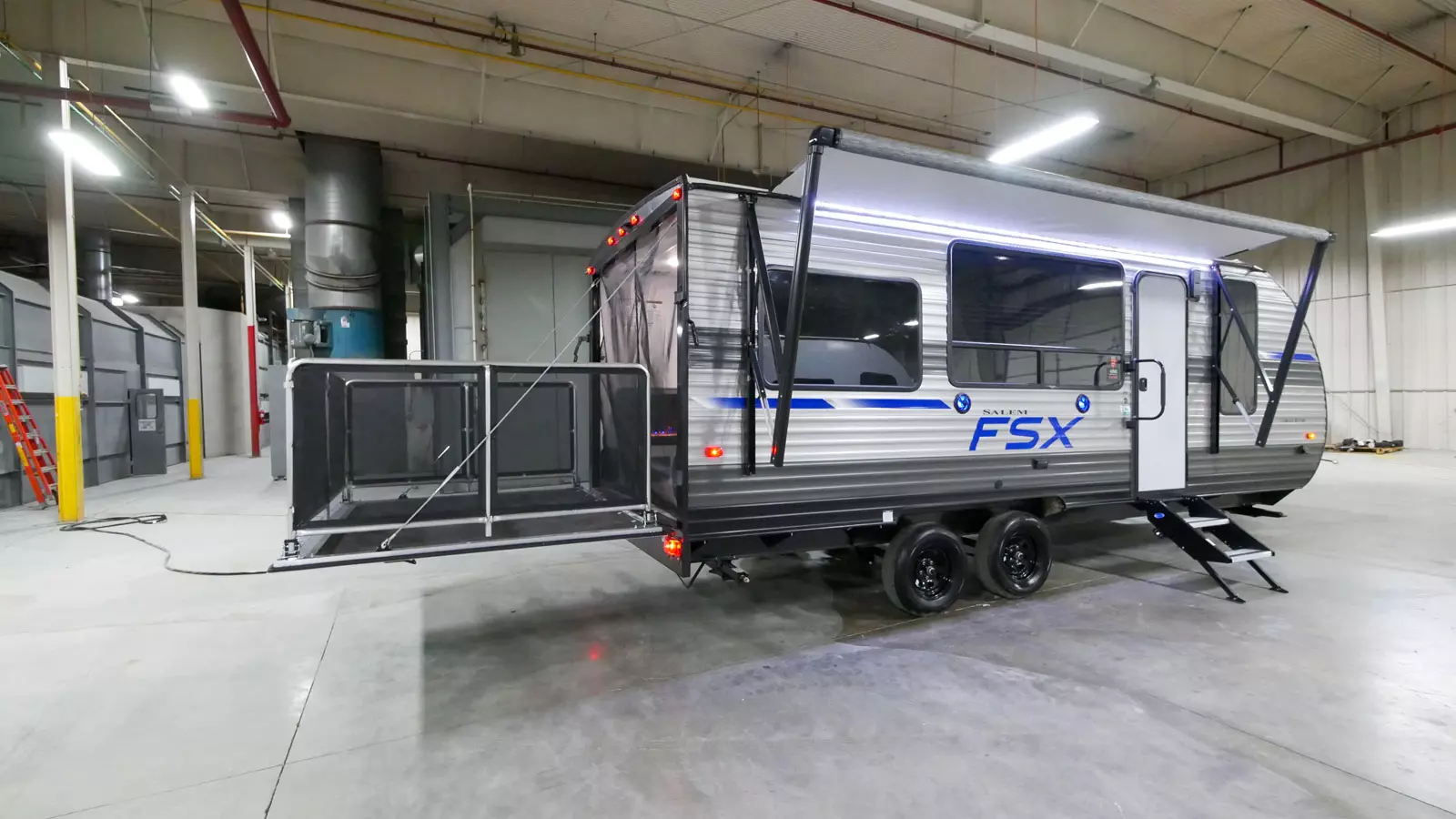

Better than basic! The 190RTK is compact yet packed with features like a front queen bedroom, skylight shower with full fiberglass surround, two flip-down sofas, fireplace, and more. With a ramp door that doubles as a party patio, this toy hauler is ready for anything!

Specifications

Hitch Weight:
595 lb.
UVW
4,488 lb.
CCC
3,107 lb.
Exterior Length:
25' 0"
Exterior Height:
10' 6"
Exterior Width:
96"
Fresh Water:
43.00 gal.
Gray Water:
30.00 gal.
Black Water:
30.00 gal.
Awning Size:
15'

GVWR (Gross Vehicle Weight Rating)
– is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.
