Wildcat Travel Trailers

Put the worries of the work-a-day world behind you and enjoy a family retreat filled with fun and adventure. That's what Wildcat by Forest River is all about

Care Camps, fighting cancer and making memories

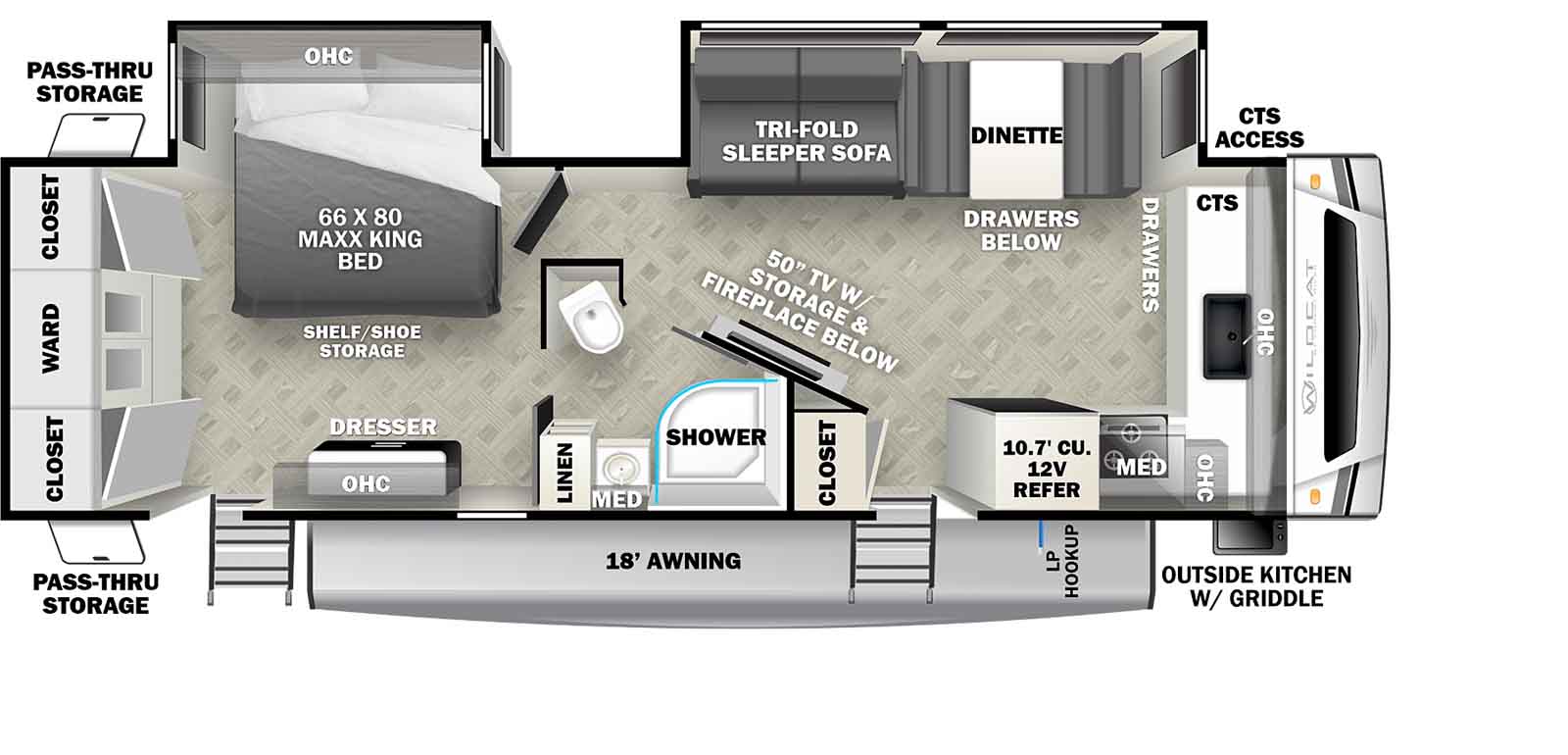

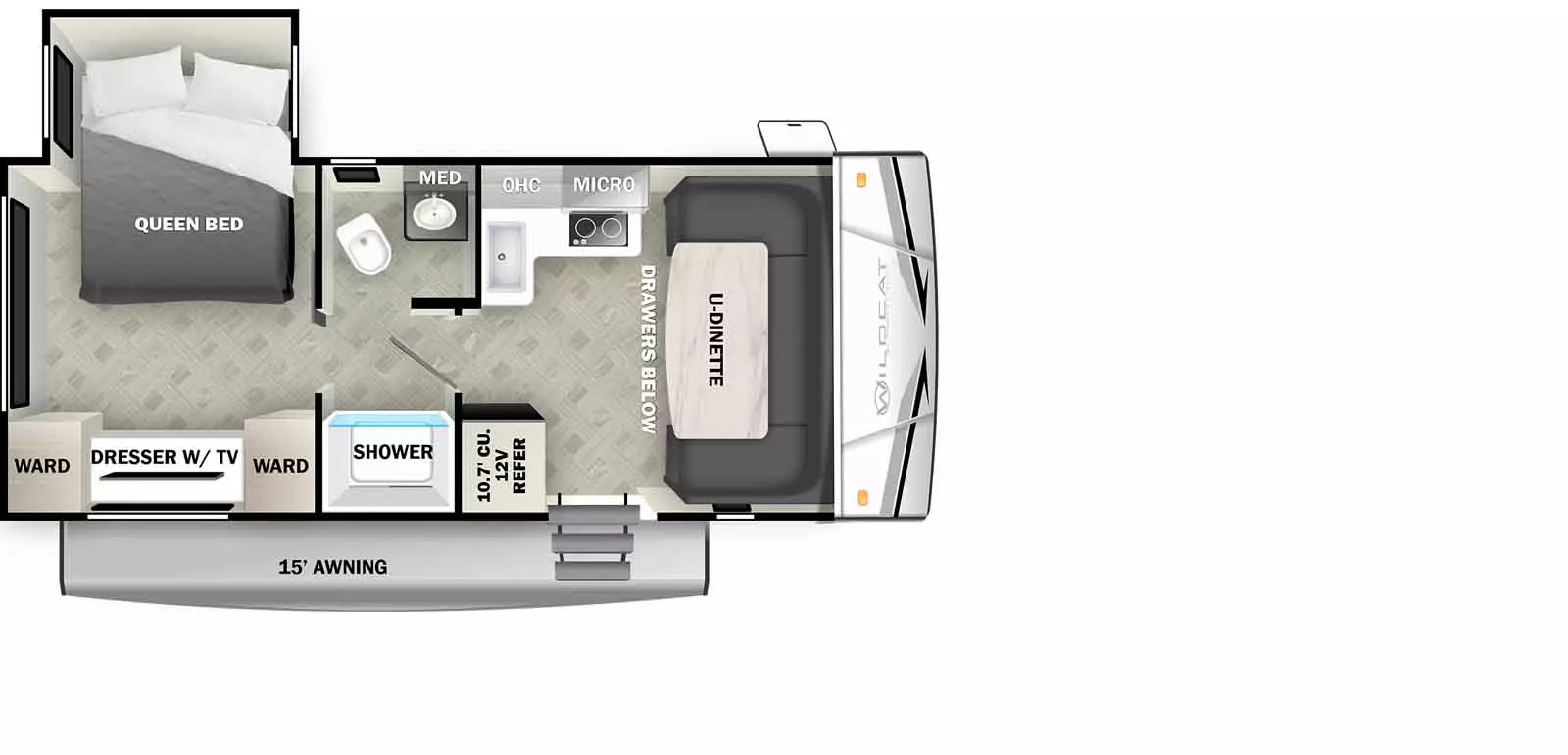

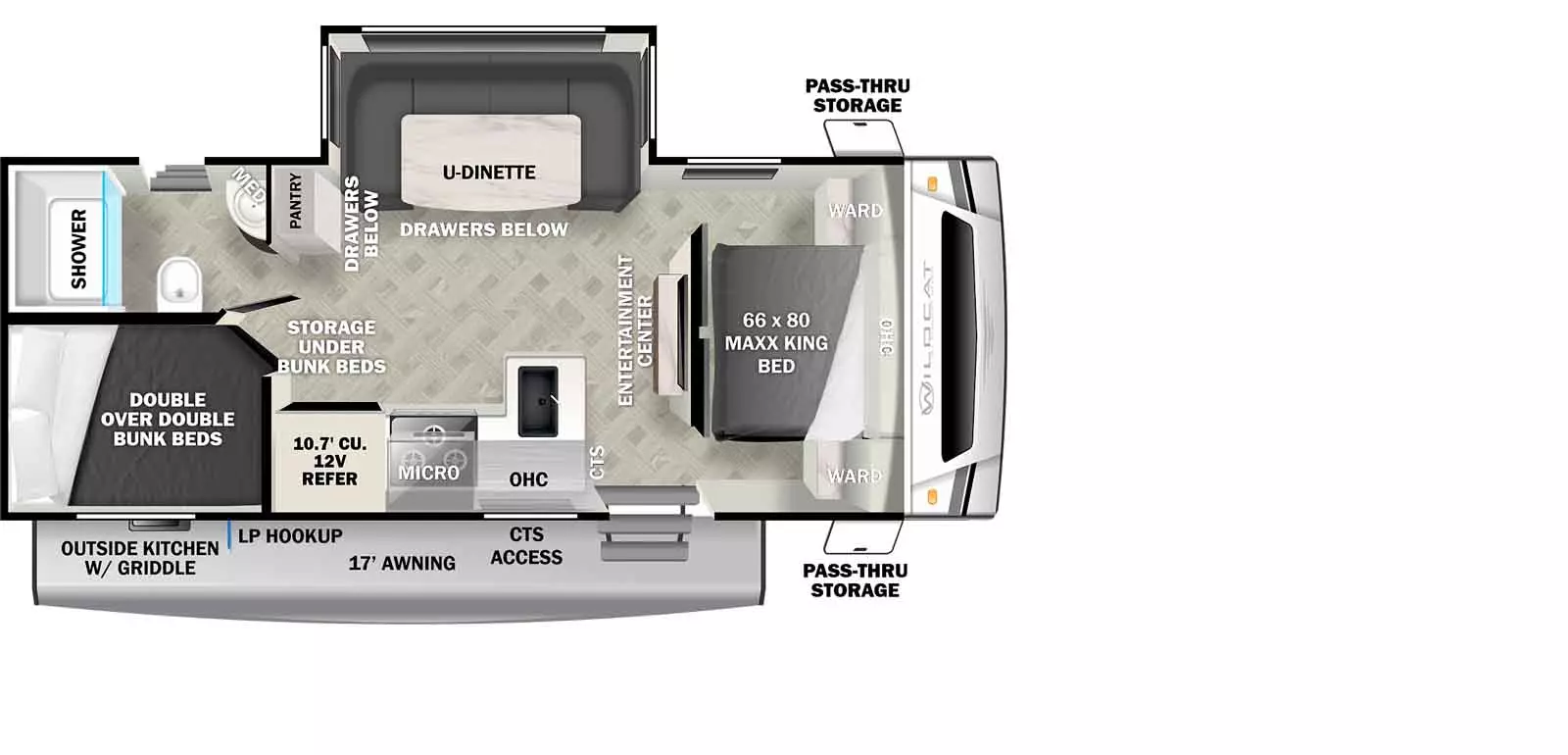

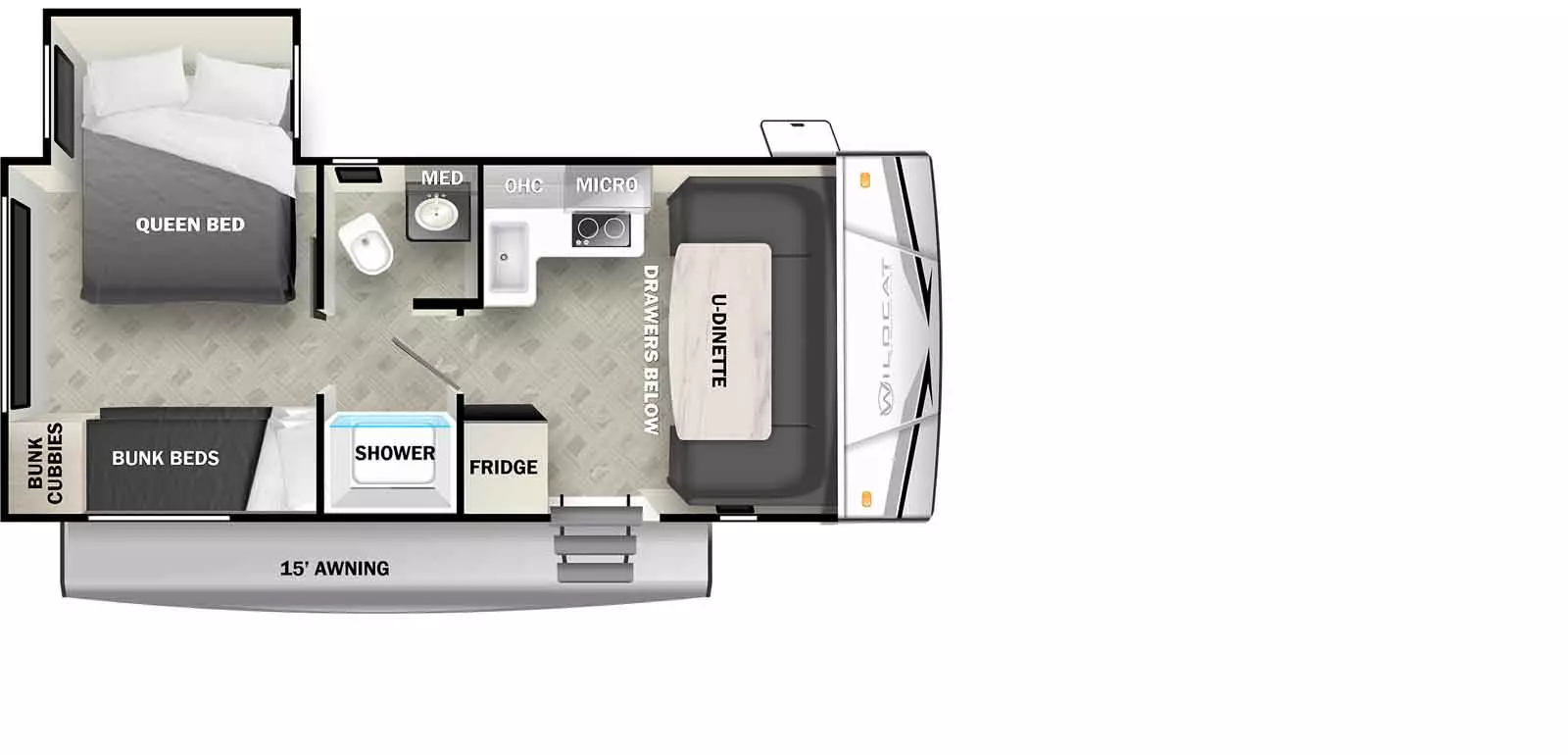

Floorplans

Print

Wildcat Travel Trailers
Dealer Stock Only


Specifications

Print

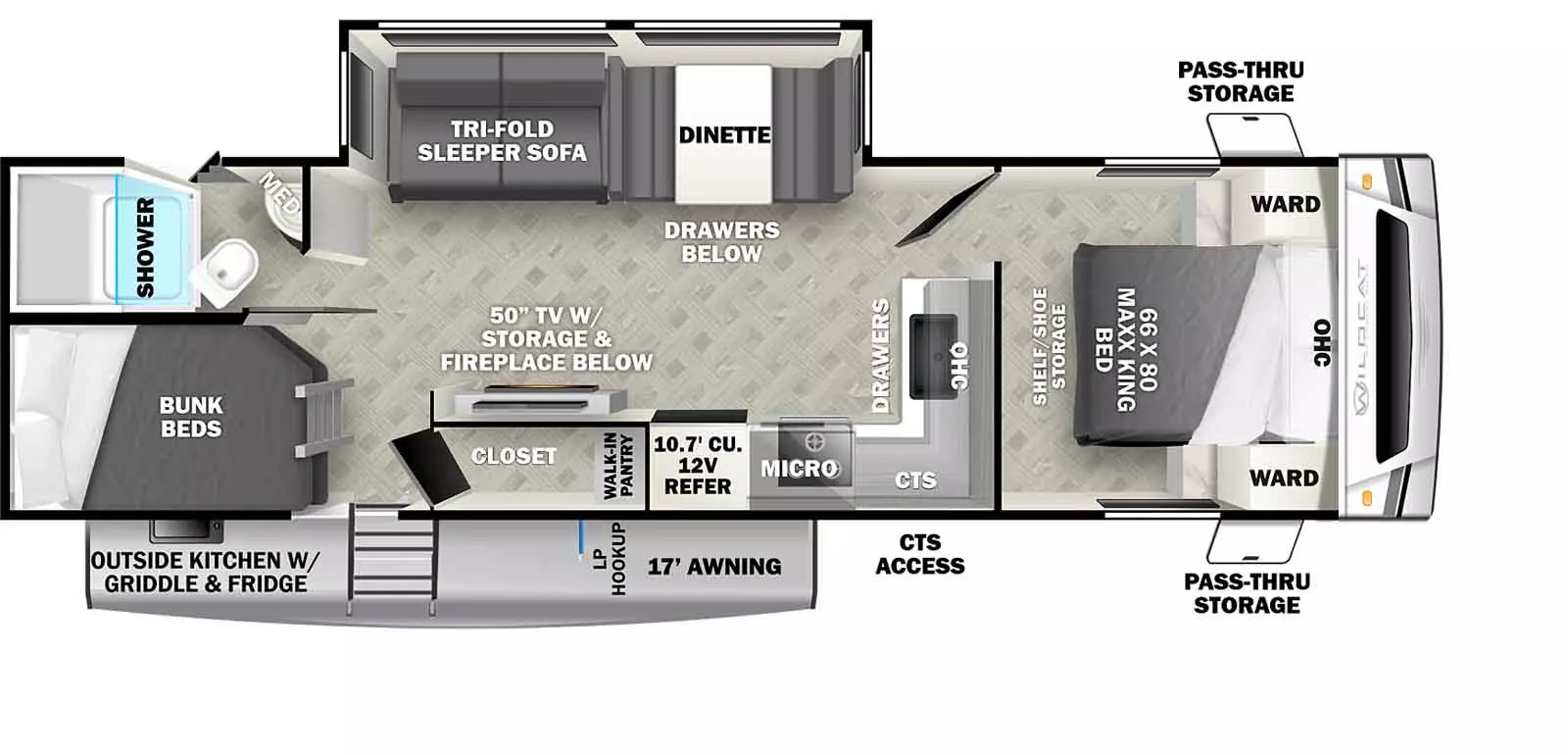

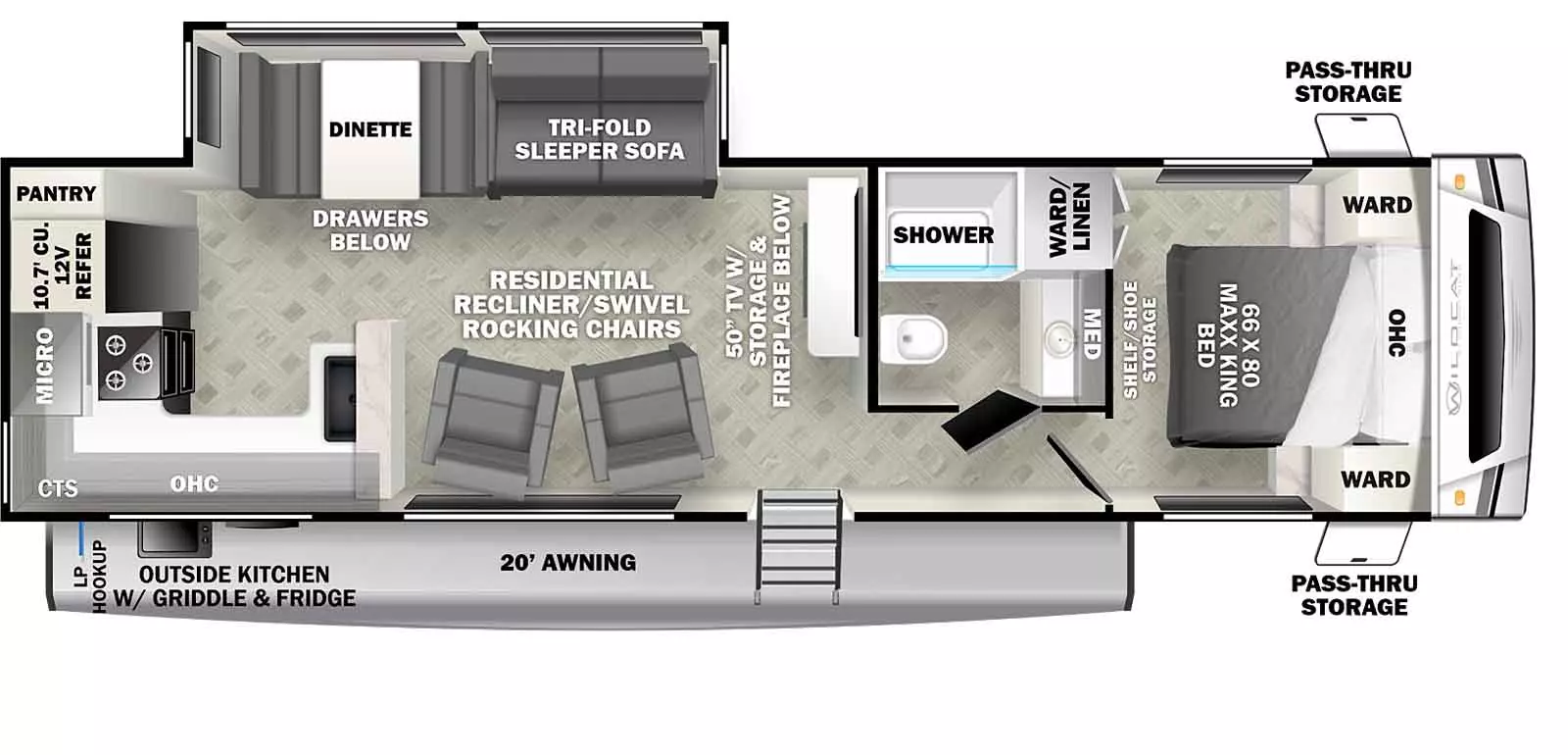

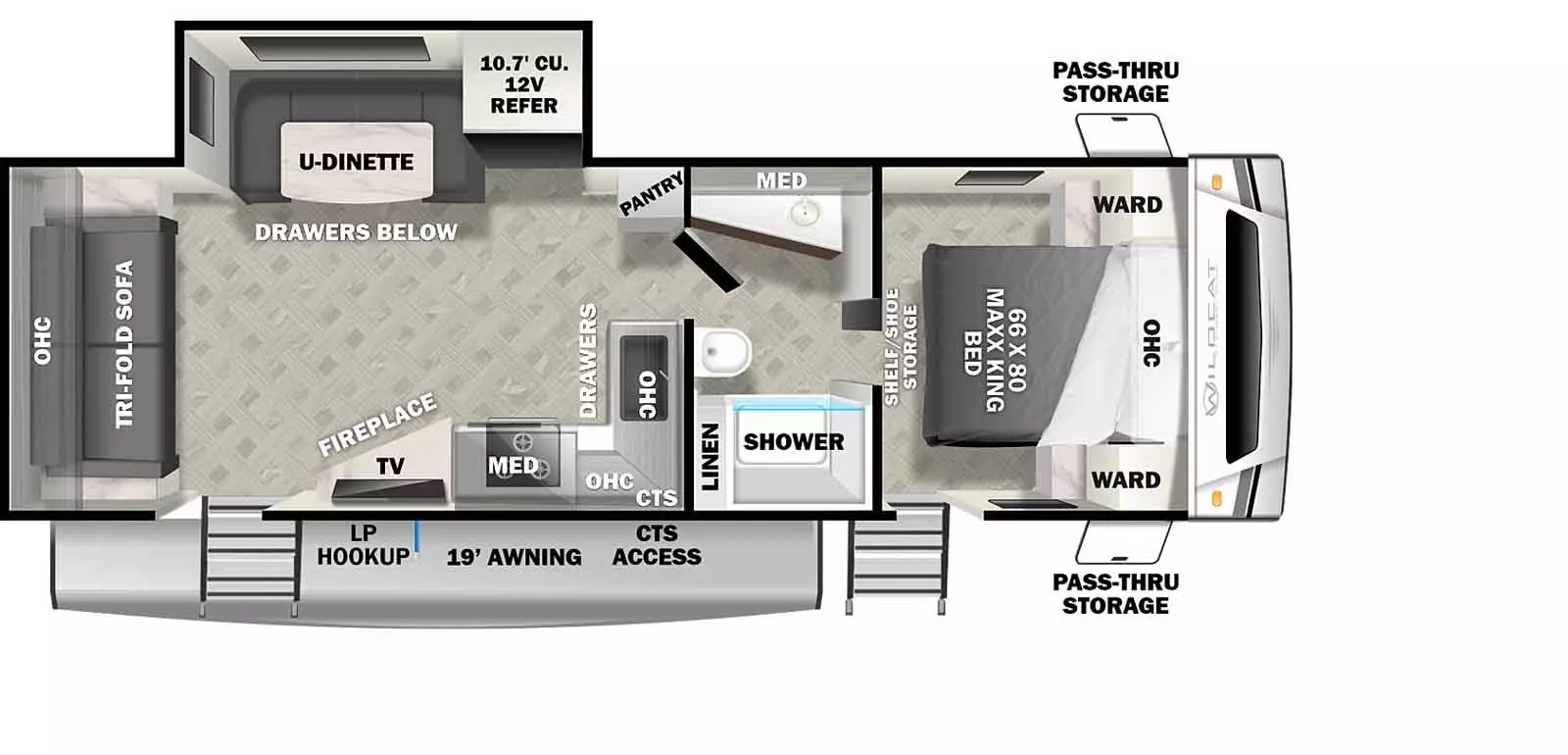

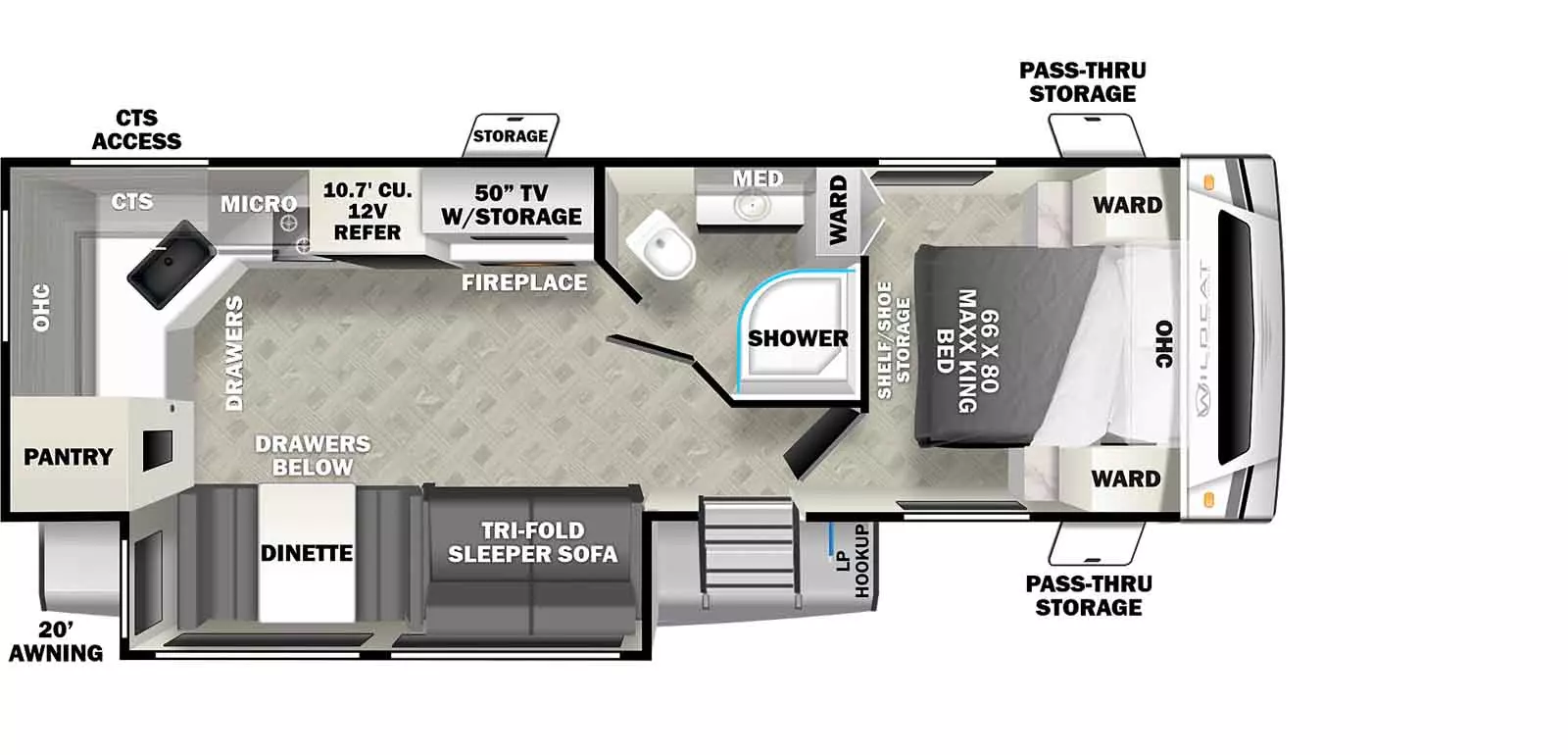

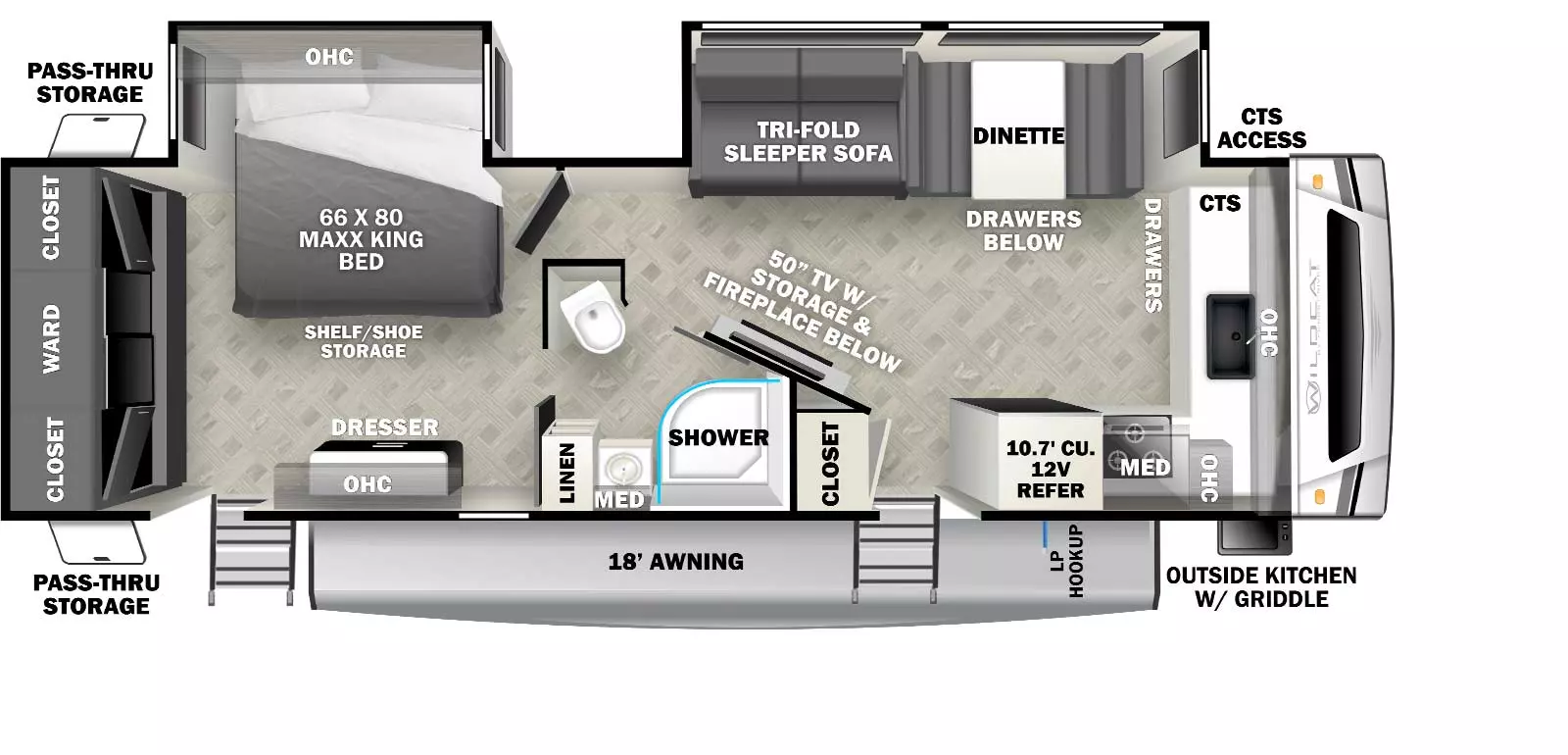

Floorplan: 247RKX : Wildcat Travel Trailers 262RSX : Wildcat Travel Trailers 266MEX : Wildcat Travel Trailers 269DBX : Wildcat Travel Trailers 272MKX : Wildcat Travel Trailers 276FKX : Wildcat Travel Trailers 282RKX : Wildcat Travel Trailers 303MBX : Wildcat Travel Trailers 323TSX : Wildcat Travel Trailers 292MKX - DSO : Dealer Stock Only 313MBX - DSO : Dealer Stock Only 333MKX - DSO : Dealer Stock Only
Hitch Weight:680 lb.693 lb.912 lb.984 lb.887 lb.1,045 lb.954 lb.830 lb.1,241 lb.1,692 lb.1,804 lb.1,890 lb.
UVW:6,747 lb.6,918 lb.7,097 lb.7,339 lb.7,665 lb.7,992 lb.7,533 lb.8,155 lb.8,992 lb.9,747 lb.10,363 lb.10,603 lb.
CCC:2,733 lb.2,575 lb.2,615 lb.2,445 lb.2,022 lb.1,853 lb.2,221 lb.1,475 lb.2,449 lb.2,145 lb.1,641 lb.1,487 lb.
Exterior Length:30' 11"31' 8"32' 7"34' 6"33' 1"33' 11"34' 7"35' 6"37' 3"36' 8"38' 3"37' 4"
Exterior Height:11' 5"11' 5"11' 5"11' 5"11' 5"11' 5"11' 5"TBD11' 7"13' 1"13' 1"13' 1"
Exterior Width:96"96"96"96"96"96"96"96"96"96"96"96"
Fresh Water:61.00 gal.61.00 gal.61.00 gal.61.00 gal.61.00 gal.61.00 gal.61.00 gal.61.00 gal.61.00 gal.81.00 gal.80.00 gal.81.00 gal.
Gray Water:64.00 gal.64.00 gal.74.00 gal.75.00 gal.74.00 gal.64.00 gal.64.00 gal.64.00 gal.108.00 gal.64.00 gal.108.00 gal.64.00 gal.
Black Water:32.00 gal.42.00 gal.32.00 gal.33.00 gal.32.00 gal.32.00 gal.32.00 gal.32.00 gal.54.00 gal.54.00 gal.54.00 gal.54.00 gal.
Awning Size:20'19'20'17'20'18'20'20'20'15'19'15'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print
  • NEW - Front windshield

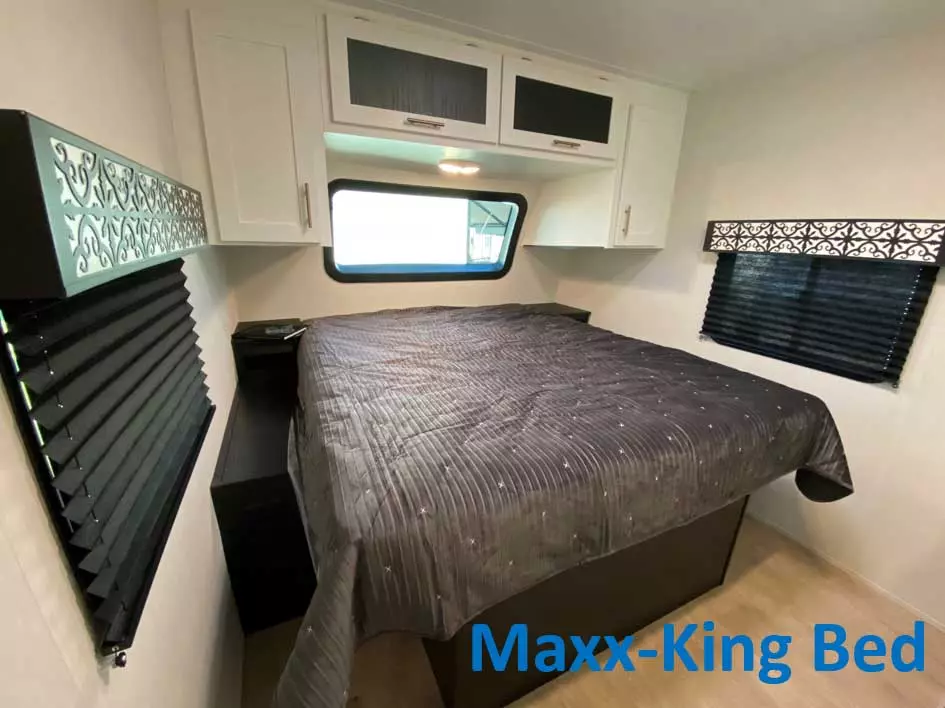

  • Maxx King 80” Long, Residential Pillow-Top, Memory Foam Mattress
  • 7' High, Full Stand-Up Height In All Bedrooms
  • Gas Struts To Lift Bed For Under-Bed Storage
  • Fully Finished Bed Bases

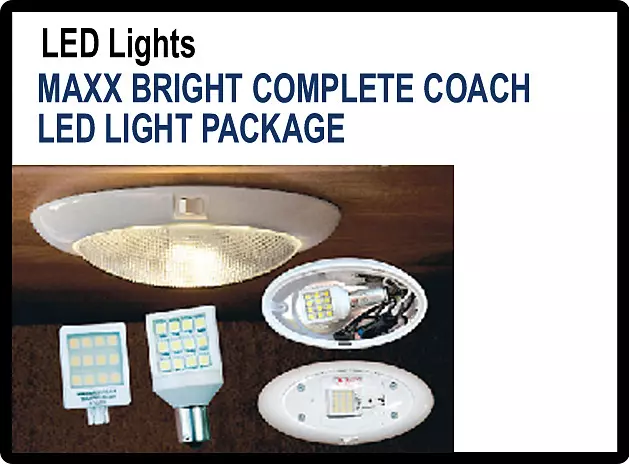

  • Complete LED Lighting Including Reading Lights
  • Upgraded Residential Bedspread
  • Shirt closets on each side of bed
  • Bedroom Roof Vent & Pre-Wired For 2nd A/C Or Power Roof Vent

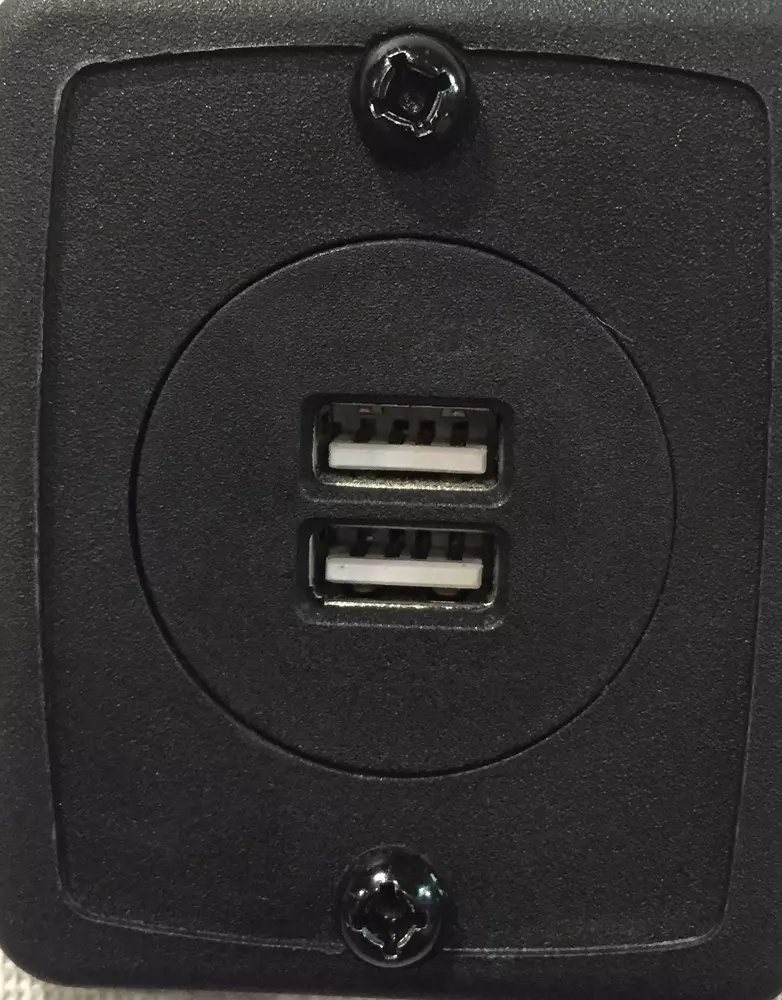

  • CPAP & Tablet station at each side of bed (USB Ports & 110V plugs)
  • Wardrobe (most models)
  • Opening Windows for cross ventilation
  • 7’ of Interior Ceiling Height (Travel Trailers)
  • Industry First-Maxx Strong Laminated Aluminum Floor-Bonded To Dynaspan Decking w/ 25 Year Warranty
  • Aerodynamic Gel-Coated Fiberglass Front Cap w/Front Windshield
  • Heavy Duty ‘I’ Beam Chassis
  • 3/8″ Roof Decking

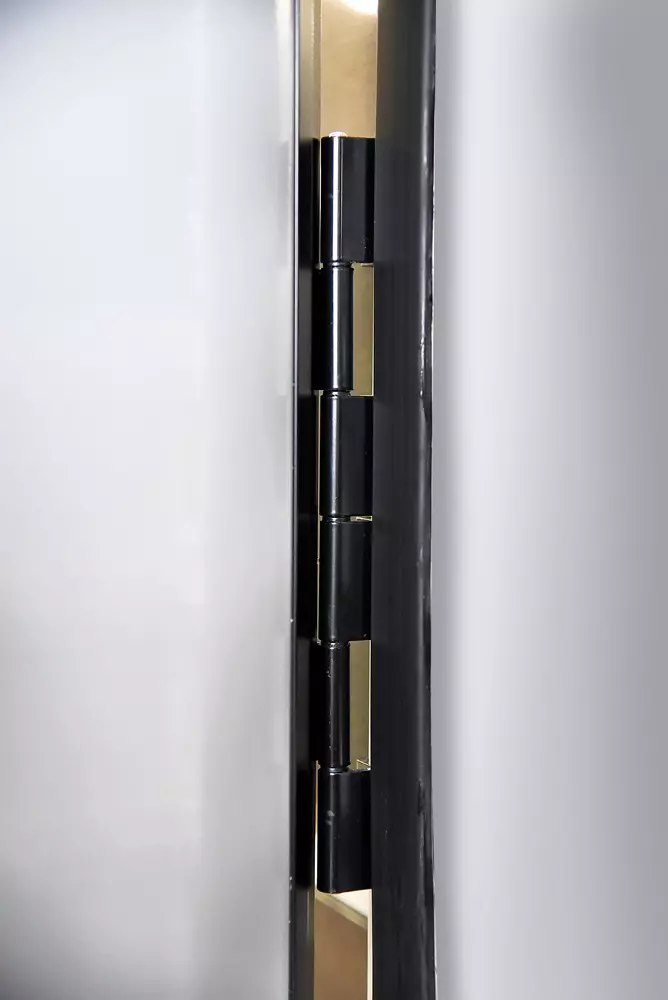

  • 30” Radius Friction Hinge Entry Door
  • Extra Large Folding Assist Handle
  • 13.5 BTU Ducted Air Conditioner
  • one Piece Roof Membrane
  • 5” Engineered & Fabricated Roof Rafters 16” on Center
  • Optimized Turning Radius For Todays Short Bed Trucks
  • 2” Thick Alumicat Vacuum-Bonded Gel-Coated Laminated Sidewalls
  • Digital “King” TV Antenna w/ WiFi Range Finder
  • Radius-Wrap Aluminum Skirt Metal
  • Premium Residential Carpeting w/ Stain Guard & Pad
  • 15” Load Range ‘E’ Radial Tires & Aluminum Wheels
  • E-Z Lube Axles w/ Self-Adjusting Brakes
  • Molded Fender Skirt
  • Fully Glued, Residential Vinyl Flooring
  • Spare Tire & Carrier
  • Outdoor All-Weather Speakers
  • 16 Gal. Per Hour, Gas/Electric, Quick Recovery DSI Water Heater

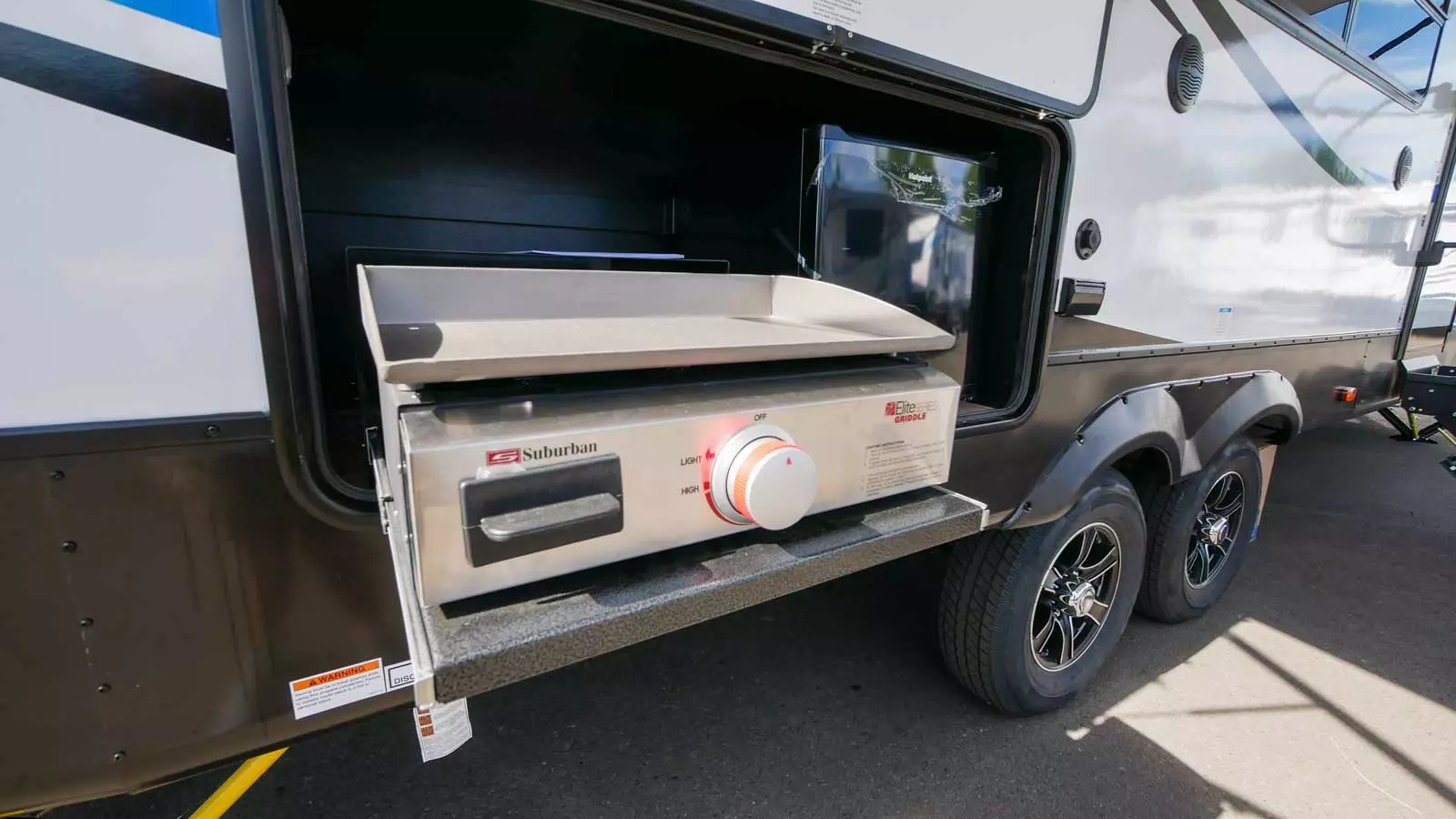

  • LP Gas Quick Connect For BBQ
  • 3M High-Definition Graphics w/5 year warranty

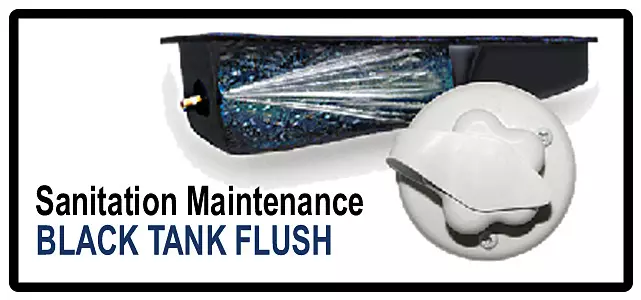

  • Black Tank flush-out valve
  • Upgraded LED Light Fixtures
  • 50 AMP Service
  • Electric Awning
  • Black Framed Tinted Safety Glass Windows
  • Rear Ladder

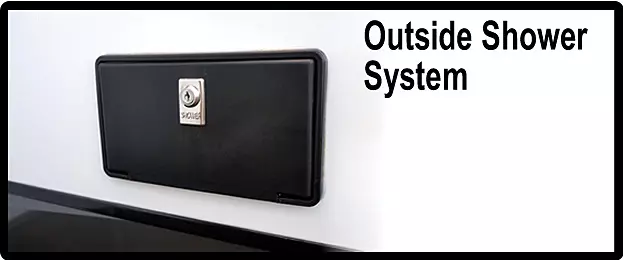

  • Outside Shower
  • Extra Large Booth Dinette w/ 30” Drawers and Dual Pedestal Table (most models)
  • Tri-Fold Memory Foam, Hide-A-Bed Sleeper Sofa
  • Extra Large-Dual Panoramic Safety Glass Picture Windows Behind Sofa & Dinette
  • Pleated Night Shades
  • 50” LCD HDTV (Most Models)
  • Soundbar Style Speakers
  • Satellite & Cable Prep
  • 12 V LED Decorative Lighting In Slide-Outs
  • Slider Windows At Ends of Slide-Outs

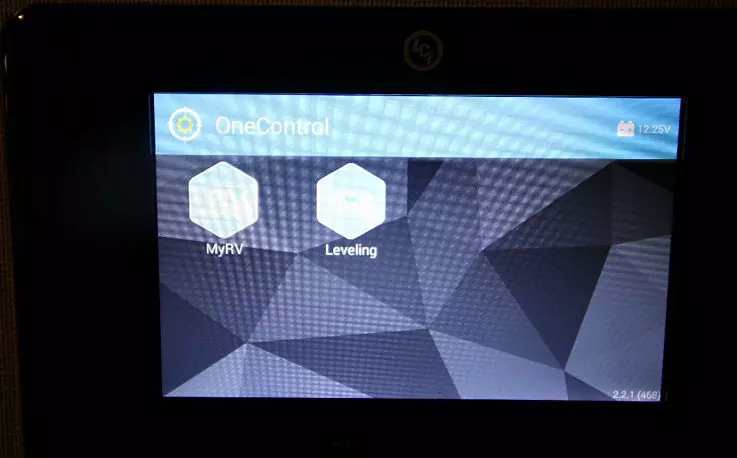

  • Command Center w/ Monitor Panel
  • Residential Swivel-Rocker-Recliner Chairs (Some Models)
  • Carbon Monoxide Detector
  • Smoke Detector
  • LP Gas Detector
  • Fire Extinguisher
  • Large Axles with self-adjusting brakes
  • Escape Windows
  • Residential Shaker-Style Cabinet Doors
  • Residential Hidden Hinges
  • Rose Gold Finished Residential Door & Drawer Hardware
  • Stainless Appearance Appliances
  • Residential Full-Extension, Steel Ball-Bearing Drawer Guides
  • Upgraded Microwave Oven
  • Residential Size Black Stainless Steel Single Bowl Sink
  • Black Pull-Out Residential Style Metal High-Rise Faucet
  • 10+ Cubic Ft. 12v Refrigerator
  • Extra Large, and Tall, Residential Overhead Cabinets w/Glass inserts
  • Extra Large Pots and Pans Drawers (Most Models)
  • Toe Kicks In Kitchen Cabinet Base
  • 21” Oven w/ 3-Burner Cast Iron Range w/ Oven Ignitor
  • Glass Range Cover
  • Residential Style Range Vent w/ Light & Fan
  • Cutlery Drawer
  • Cutting Board (Backside of Sink Cover)
  • Residential Kitchen Backsplash
  • 12" Power vent fan
  • Porcelain Toilet w/ Foot Pedal Flush
  • Built In Wood Medicine Cabinet w/ Mirror
  • GFI Receptacle

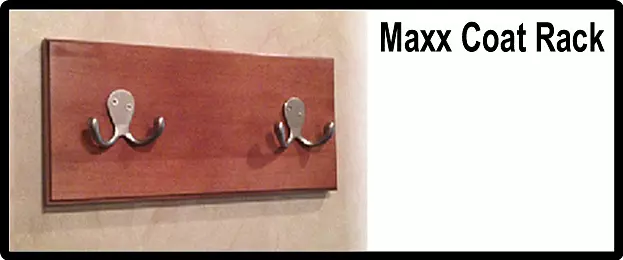

  • Towel Hooks

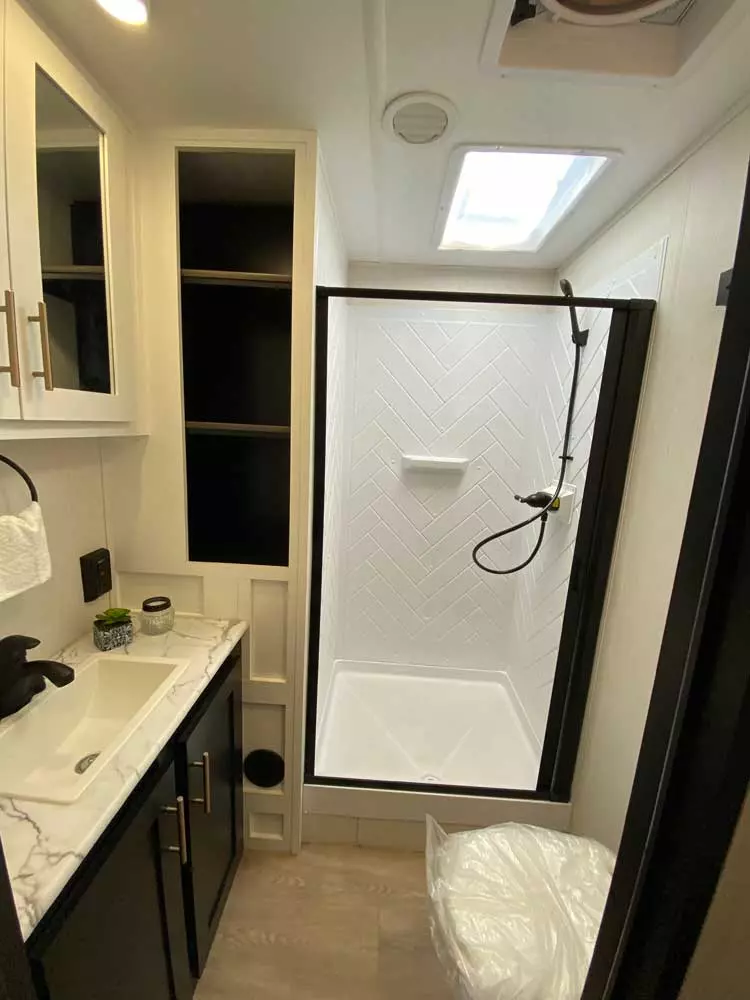

  • Large 30” X 36” Shower (Most Models)
  • Large Sink w/ Extra Counter Space
  • Shower Surround
  • Free Standing Table & 4 Chairs
  • Dual Pane Windows
  • 2ND 13.5 BTU A/C in Bedroom
  • 15K BTU Ducted A/C IPO 13.5K
  • 15K BTU Ducted A/C with Heat Pump
  • 8’ Cubic Gas/Electric Refer IPO 12 Volt Refer
  • Power Theater Seating IPO Tri-Fold Sofa
  • 16” Aluminum Wheels & Load Range ‘E’ Tires
  • GVWR Limit Label – 9,950 GVWR
  • Washington State Seal
  • Oregon State Seal
  • Idaho Permit, Montana, Wyoming, BC, Alberta Permits
  • MVSA
  • Canadian Z-240
  • Vacuum Bonded 2” Welded Aluminum Structure

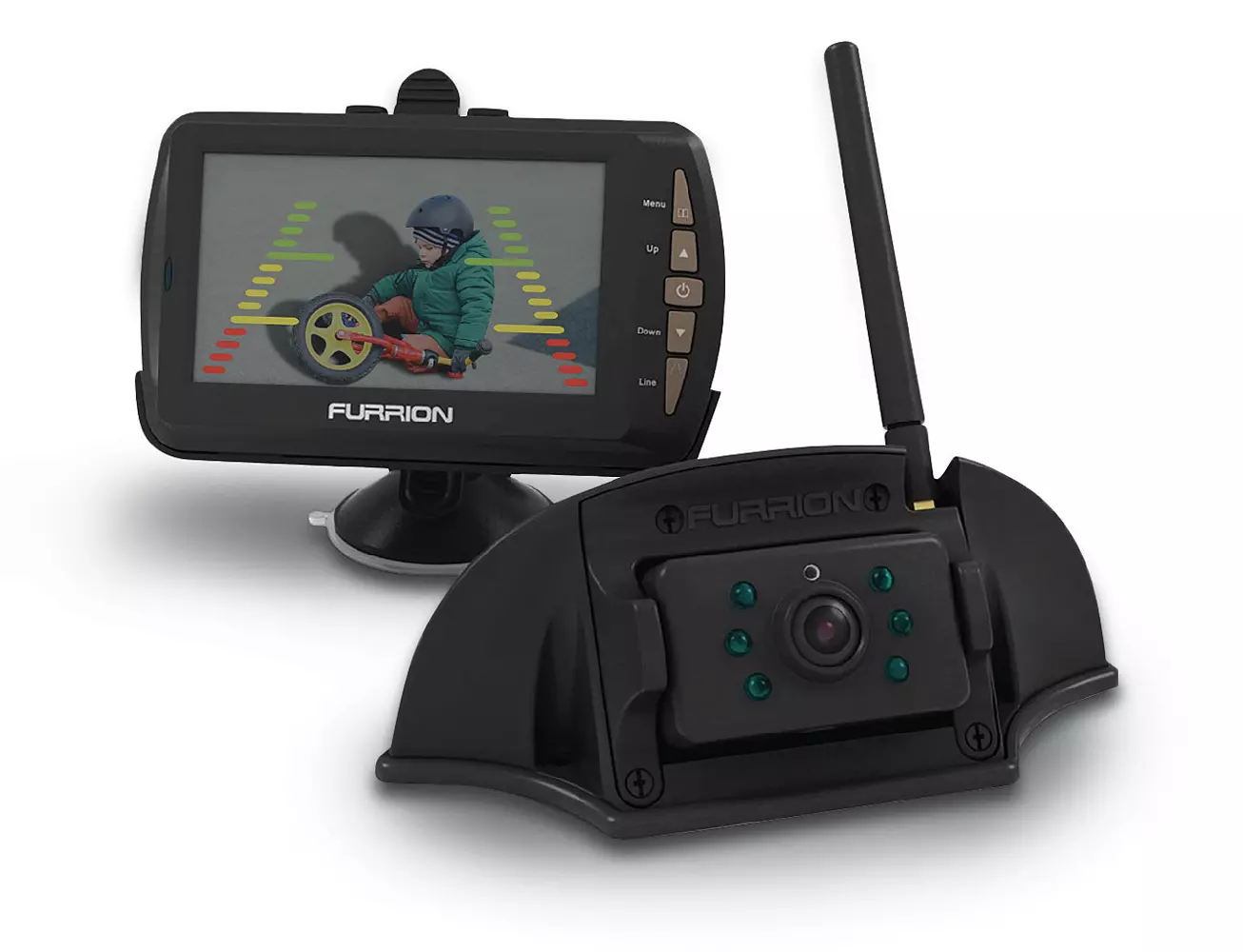

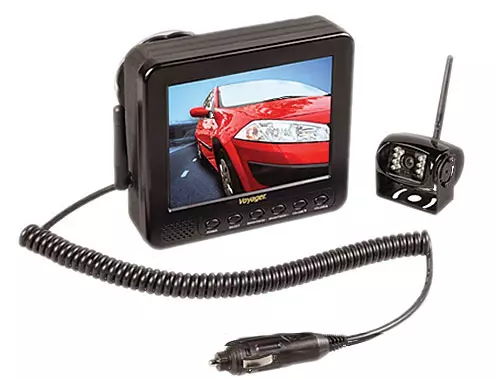

  • Back-Up Camera Prep

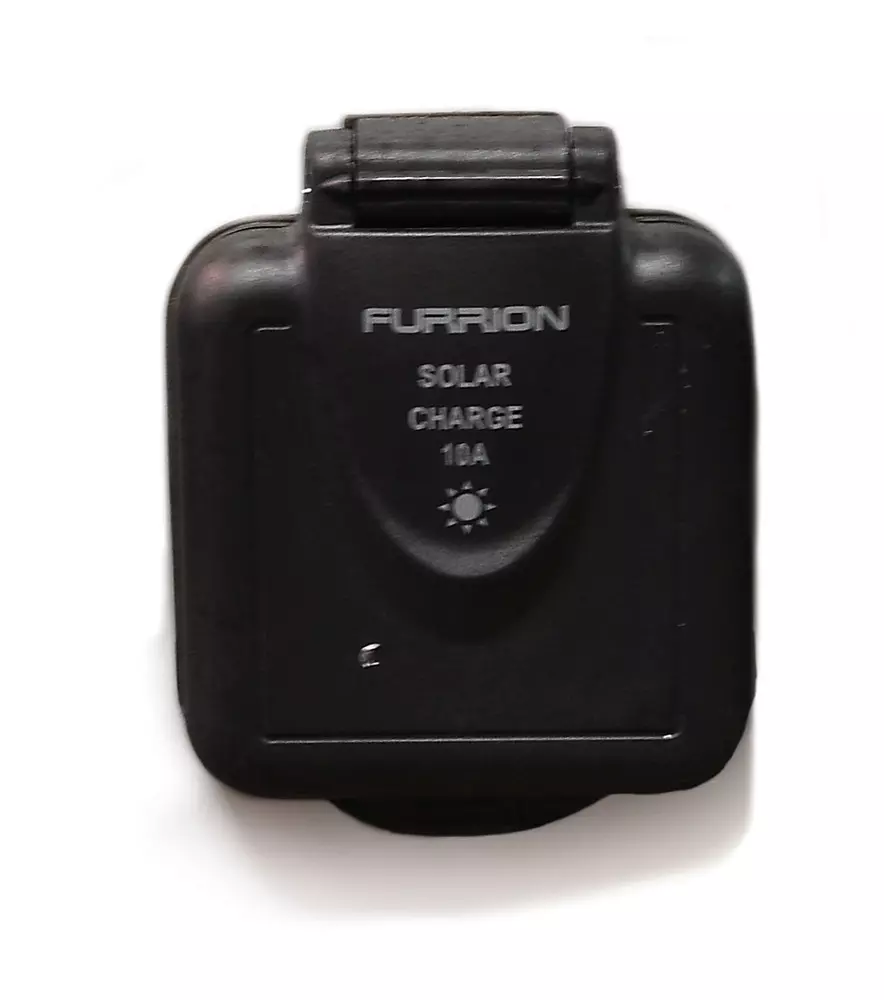

  • Portable Solar Panel Prep

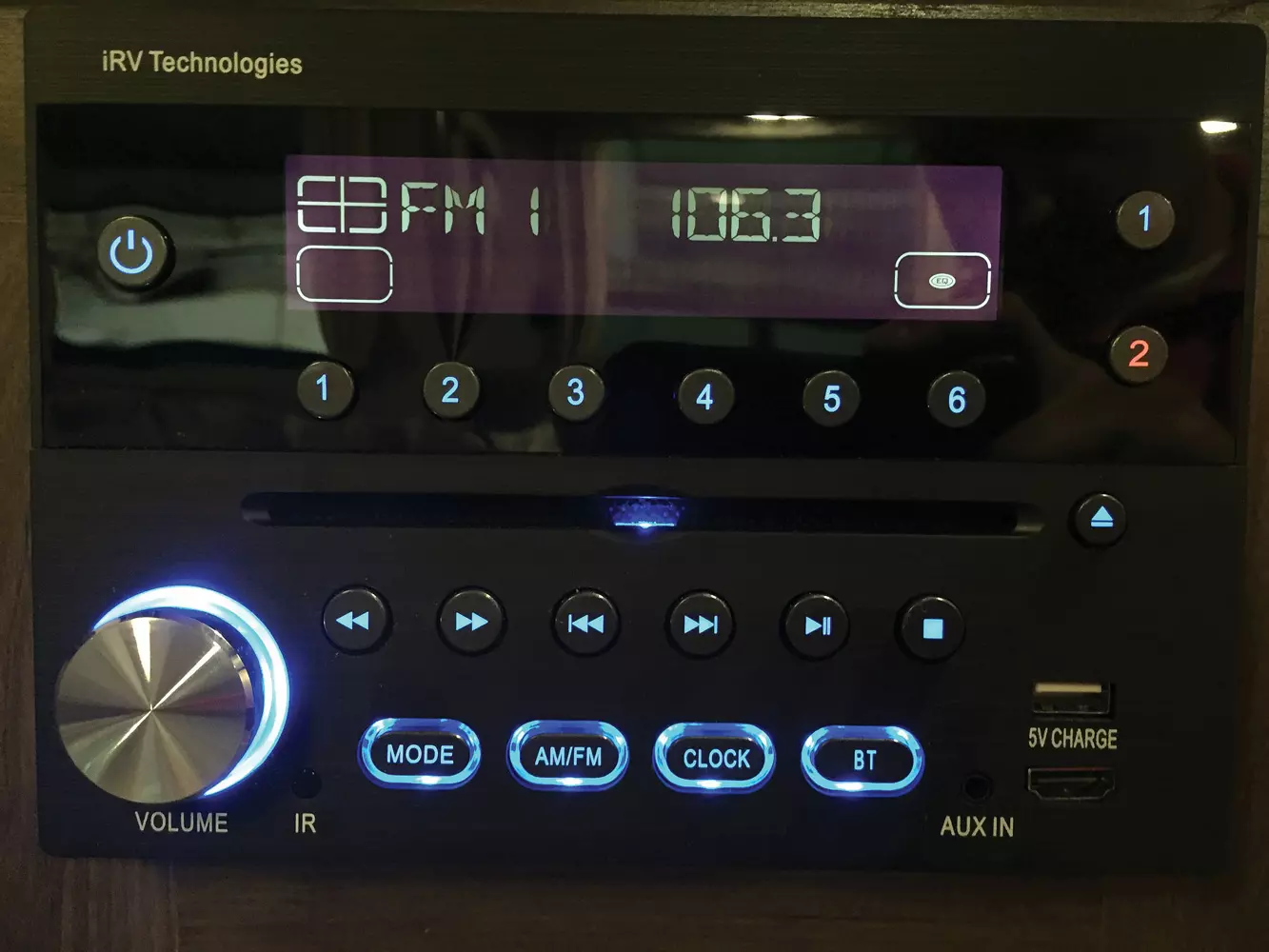

  • DVD/CD/HDMI/Blutooth/AM/FM Stereo w/Phone App Control
  • AM/FM Digital TVAntenna w/4G & WiFi Extender Prep
  • Exterior TV Connection
  • Frame-Mounted Receiver Hitch

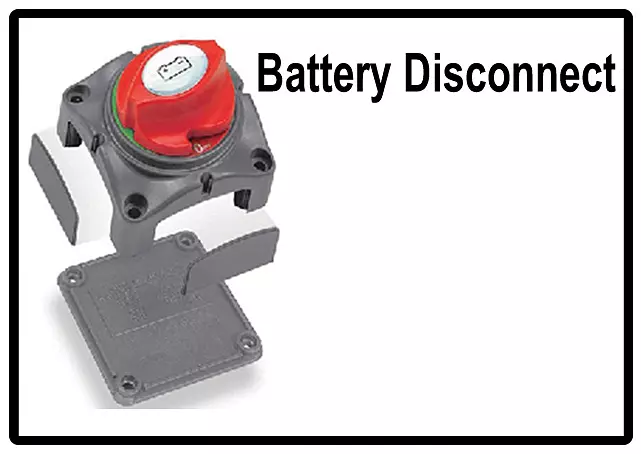

  • Battery Disconnect
  • LED HDTV (Size Varies By Model)
  • Cellphone/ Cpap & Tablet Station at Each Side of Bed (USB Ports & 110V Plugs)
  • Front Windshield (Most Models)
  • Black Tank Flush

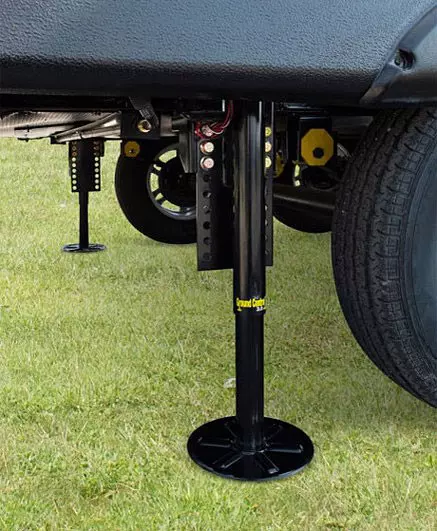

  • JT’s Strong-Arm Jacks

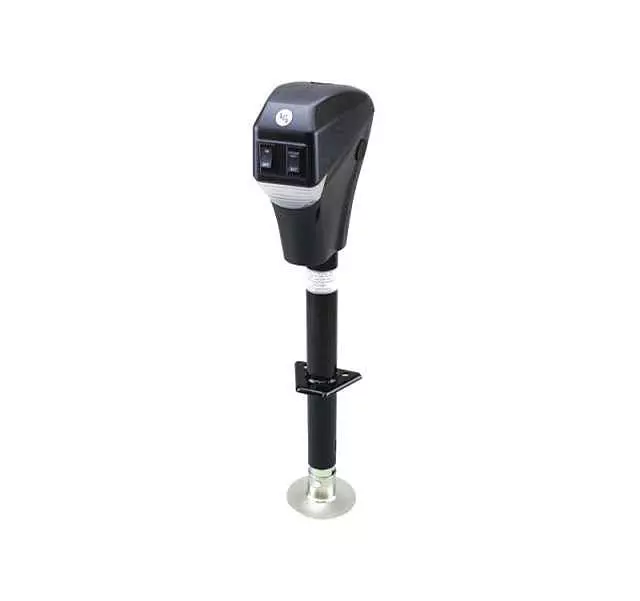

  • Power Tongue Jack
  • Friction Hinge Entry Doors

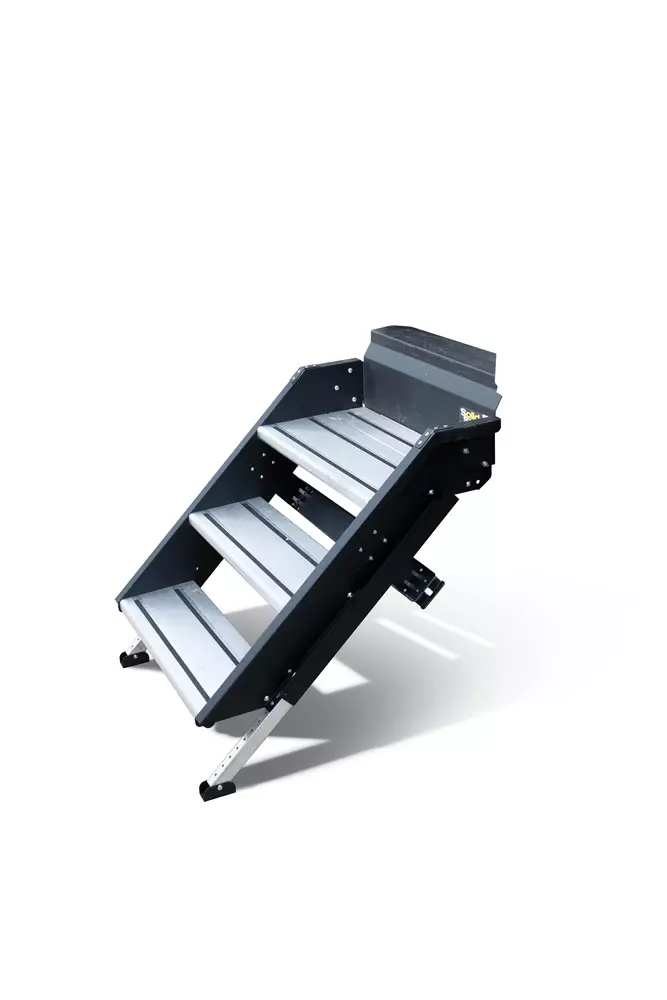

  • Fold-Down Entry Step (Main Entrance)
  • Maxx King 80” Long, Residential Pillow-Top, Memory Foam Mattress
  • Large Single Bowl Stainless Steel Sink w/Upgraded Kitchen Faucet
  • 2-In-1 Range & Oven
  • 10-Plus Cubic Foot 12 Volt Refer
  • Solid Surface Kitchen Countertops
  • Fully Enclosed Underbelly
  • 12 Volt Thermostatically Controlled Heat Pads oOn All Holding Tanks

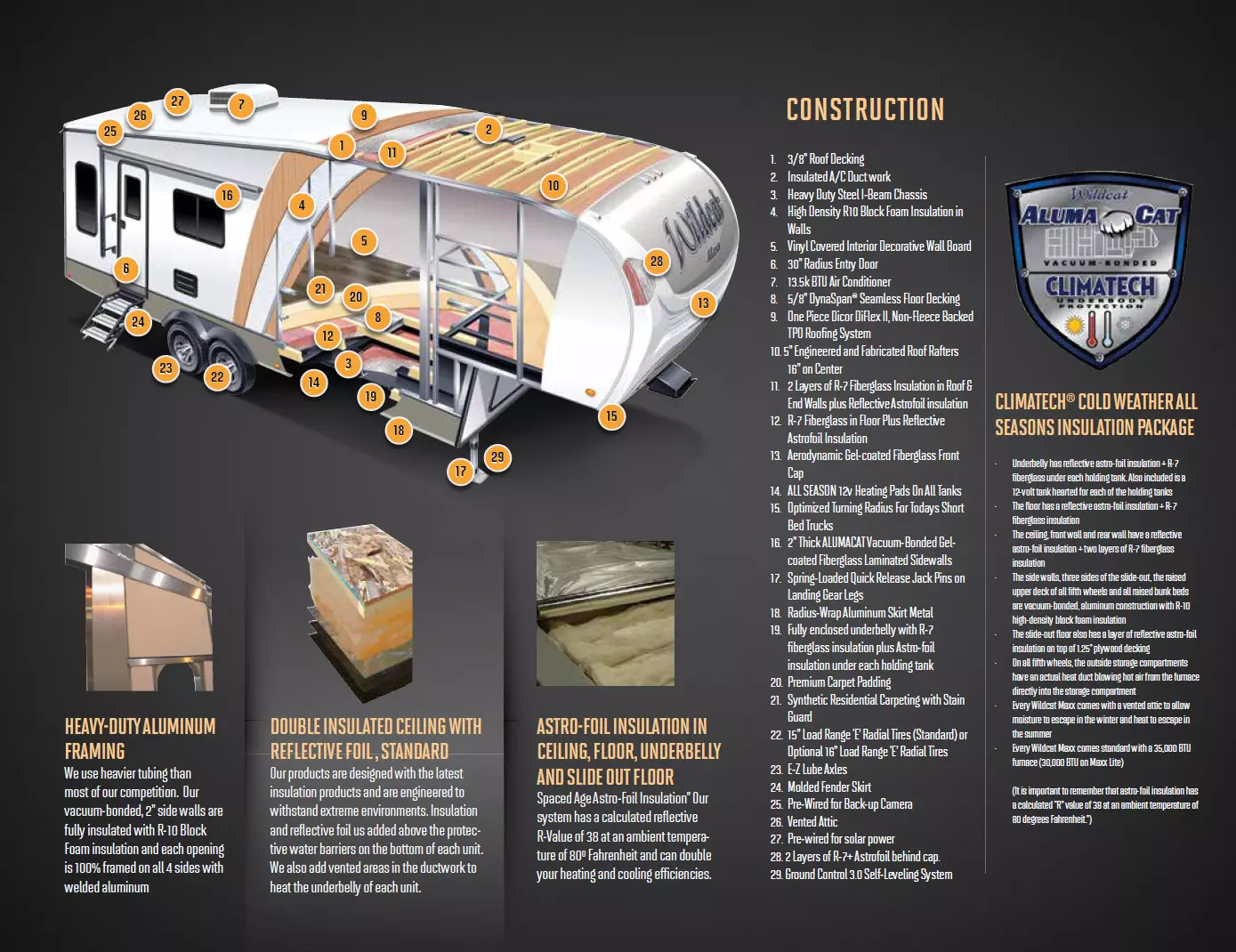

  • 2” Thick Vacuum-Bonded Sidewalls with R-10 High-Density Block Foam Insulation in Sidewalls and Slide-Out Walls and Roof
  • Reflective Astro-Foil in Roof, Front Wall, Slide-Out Floor and Under Each Holding Tank
  • Double R-7 Fiberglass Insulation in Roof and Under Each Holding Tank
  • Heated Outside Storage with Ducted Furnace Vent
  • 1” Insulated, Over-Sized Slam-Latch Baggage Doors
  • 35,000 BTU Furnace
  • Exterior Vented Attic for Breathable Roof

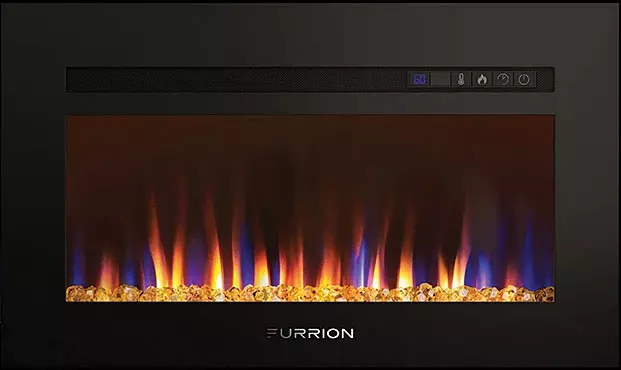

  • Electric Fireplace w/Thermostat & Remote Control (N/A Some Models)
  • 50 Amp Electric Service w/2ND A/C Prep
  • Dual 30 Lb. LP Tanks
  • Maxx-Strength Aluminum Framed Laminated Floor

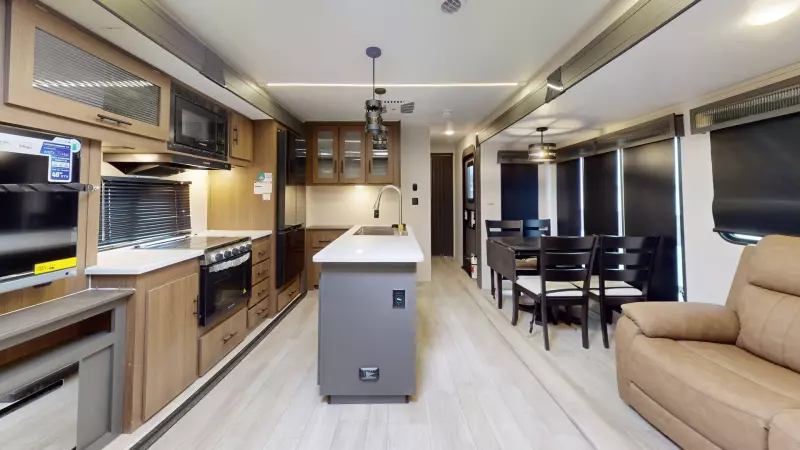

Virtual Tours

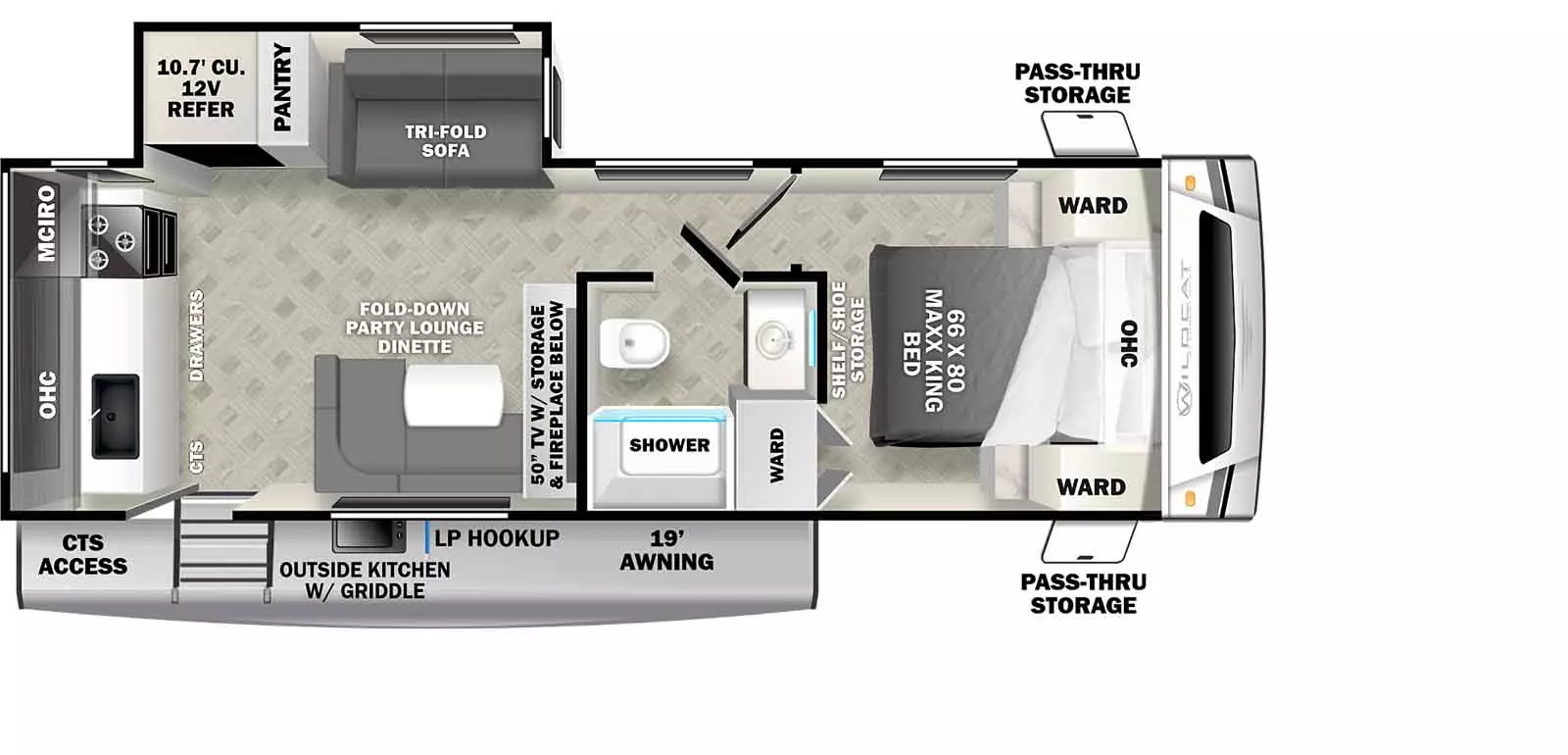

  • 247RKX
    247RKX Main Room
  • 266MEX
    266MEX Main Room
  • 272MKX
    272MKX Main Room
  • 276FKX
    276FKX Main Room
  • 282RKX
    282RKX Main Room

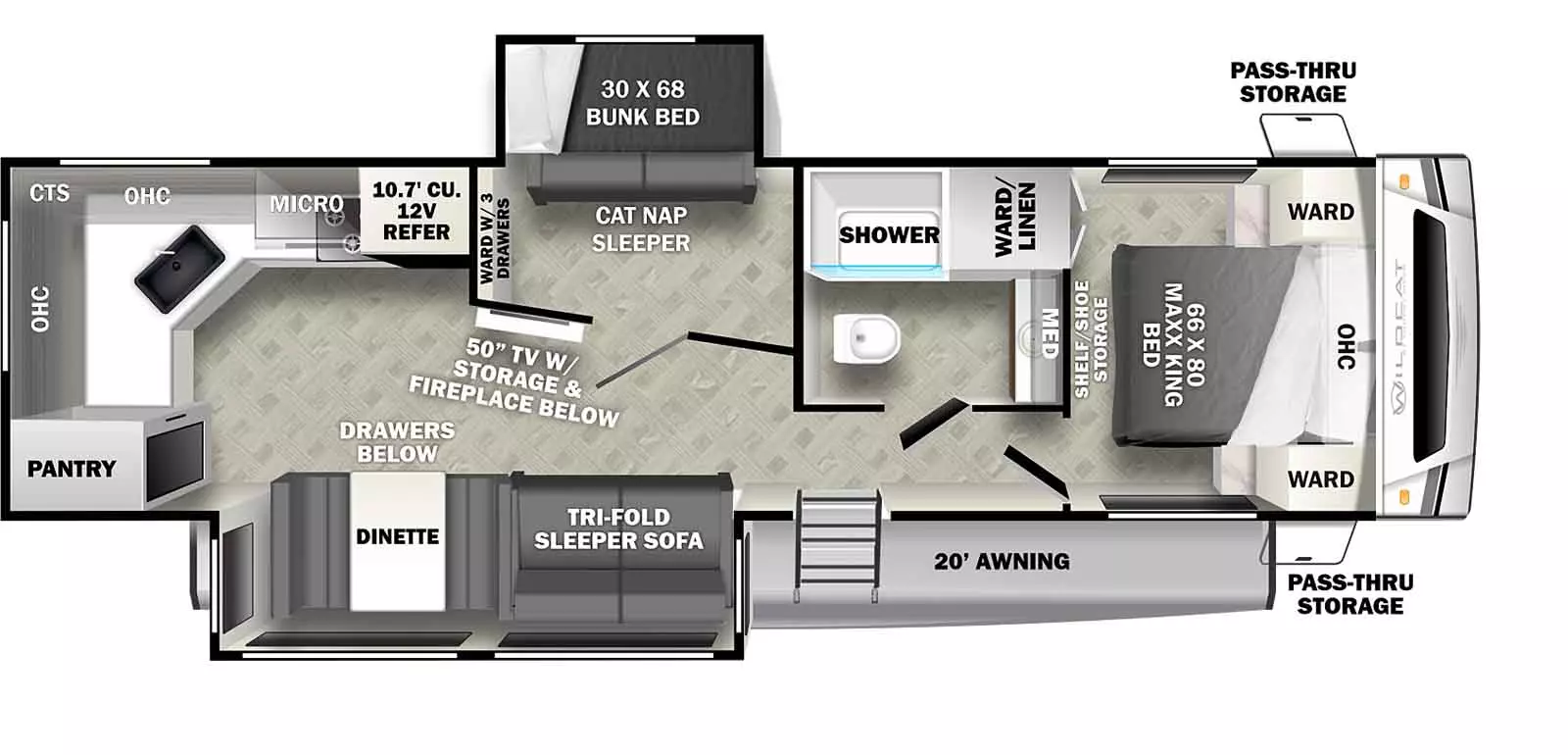

  • 303MBX
    303MBX Main Room
  • 333MKX - DSO
    333MKX - DSO Main Room


Videos

Some videos may show features or options not available on all products. Contact our service representatives or your local dealer if you have questions about how your specific RV operates.


Literature
