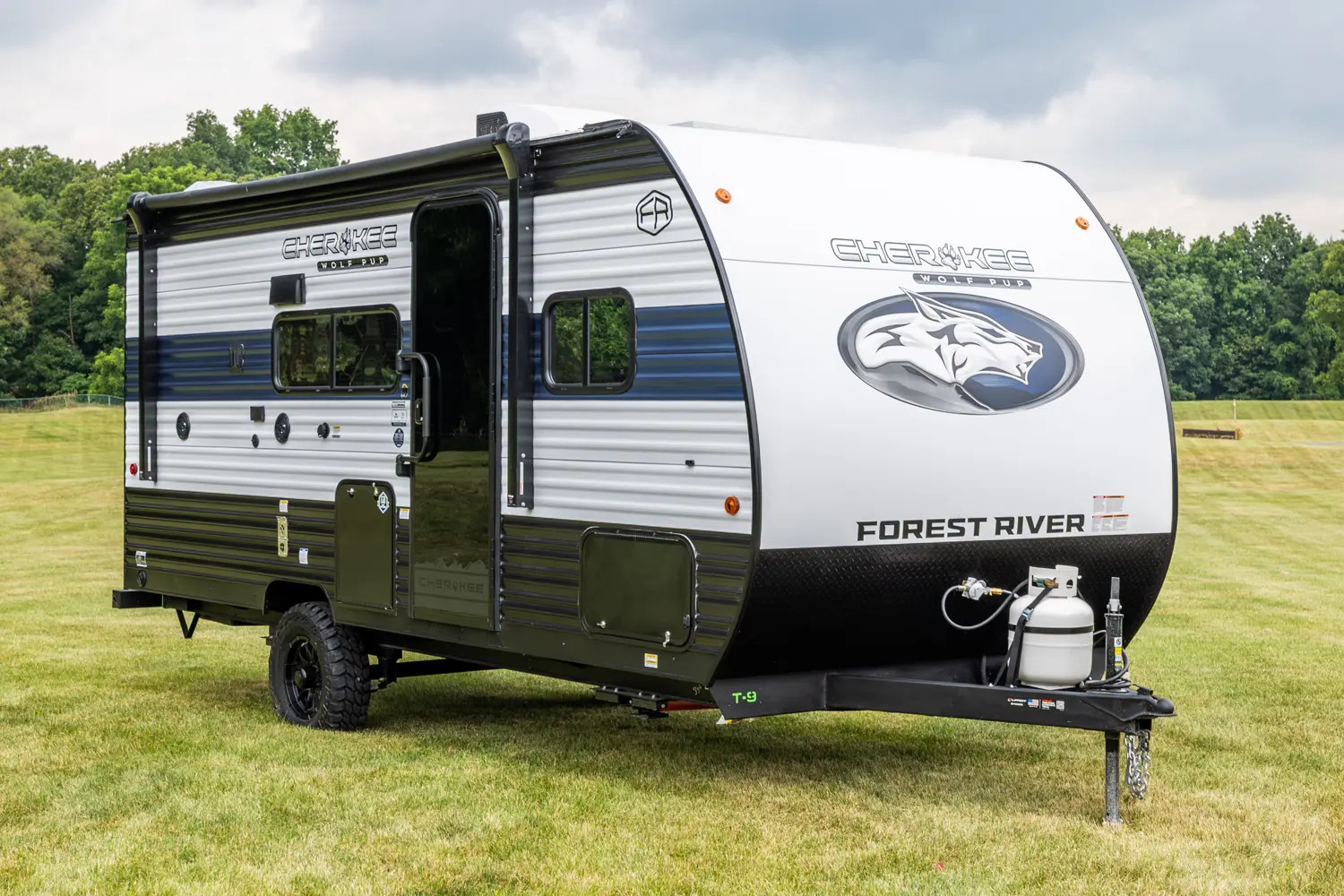

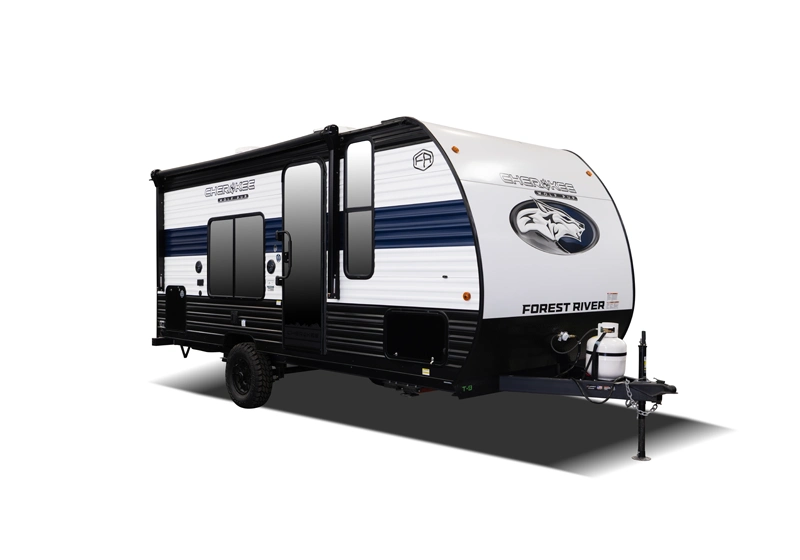

Cherokee Wolf Pup Travel Trailers and Travel Trailer Toy Haulers

Light weight and easy to tow, Wolf Pup Trailers by Cherokee are fully self-contained with ample tank capacities and an abundance of storage space compared to other trailers in its class.

Care Camps, fighting cancer and making memories

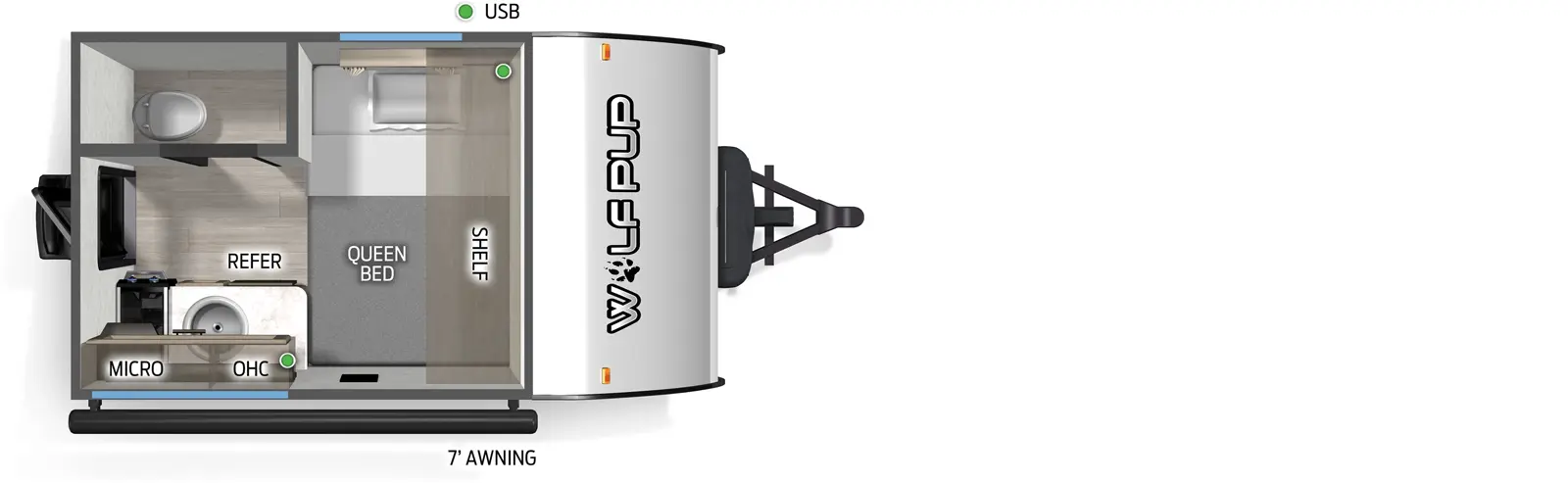

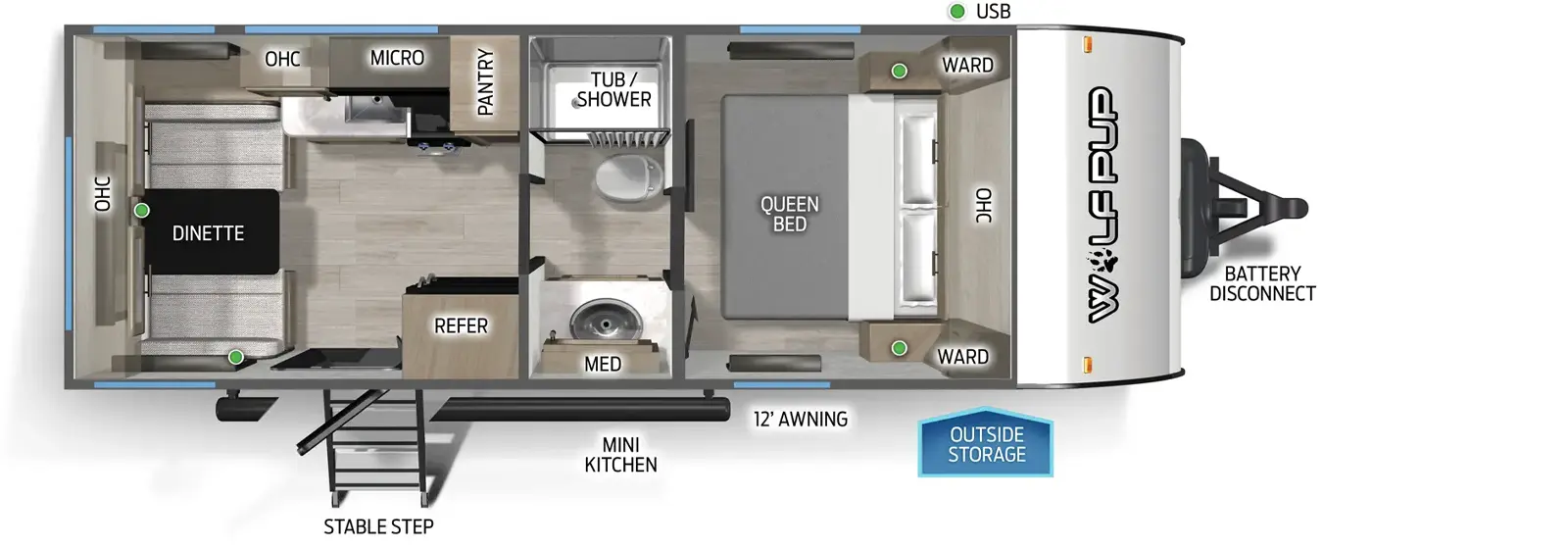

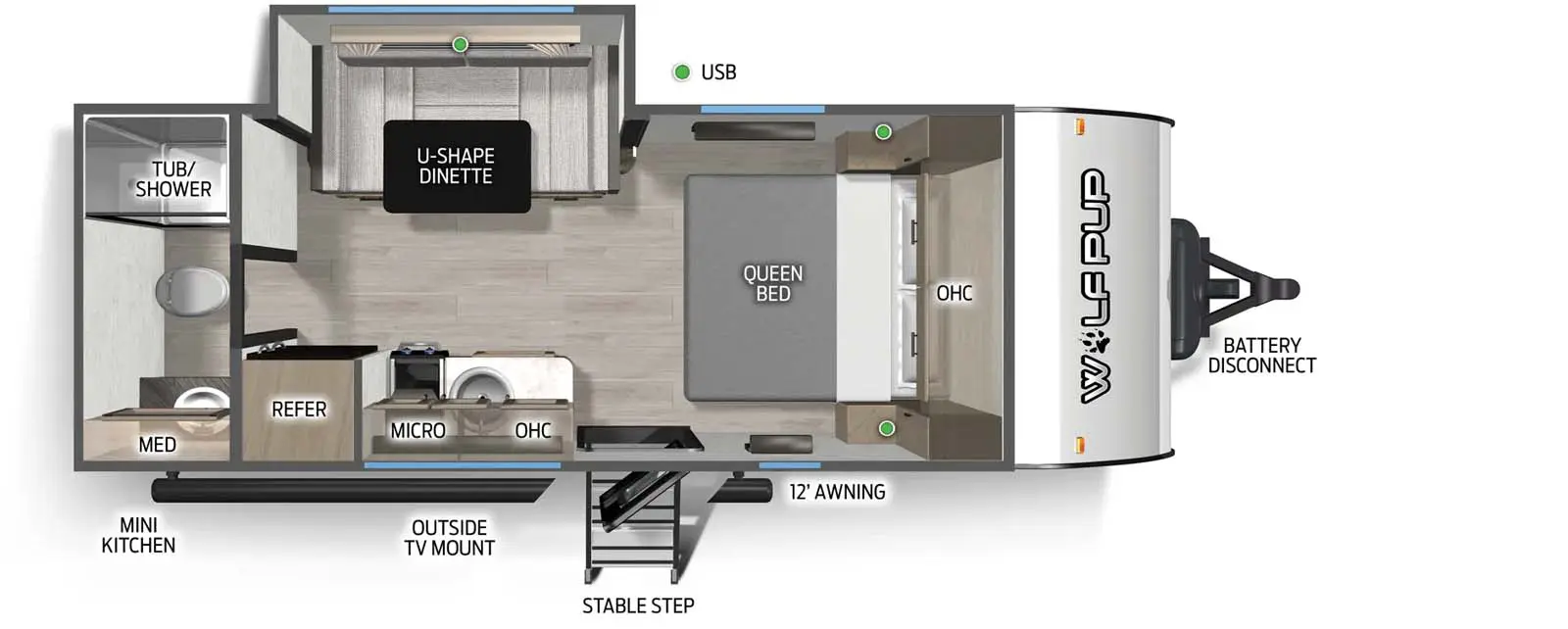

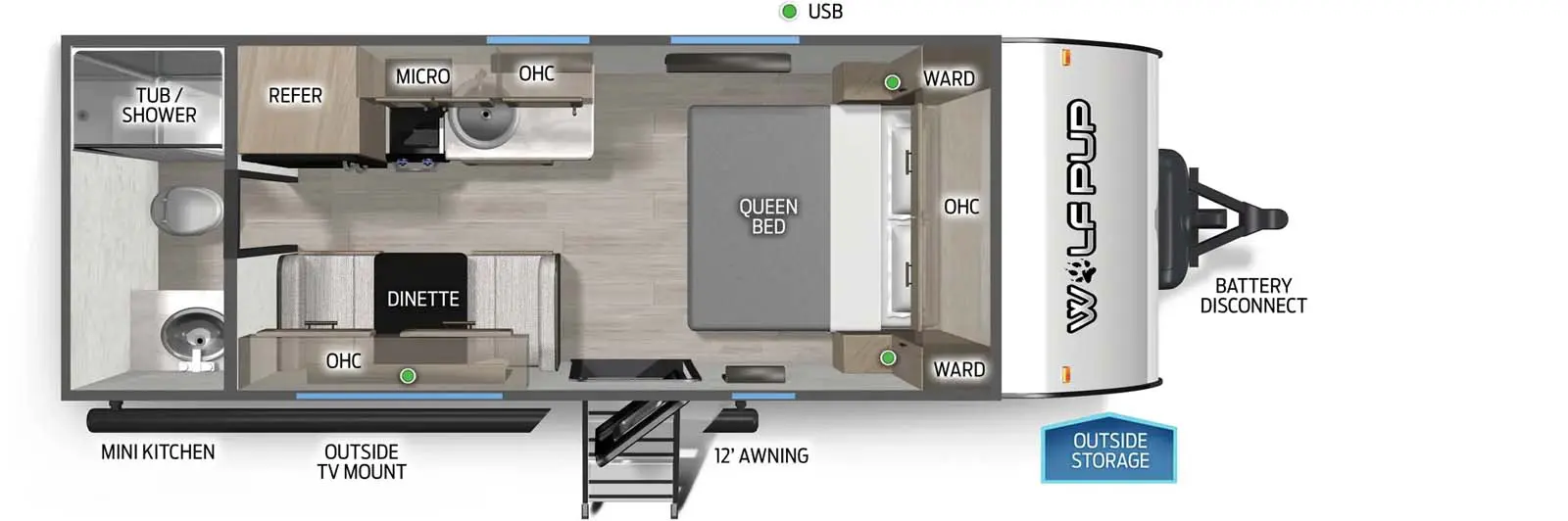

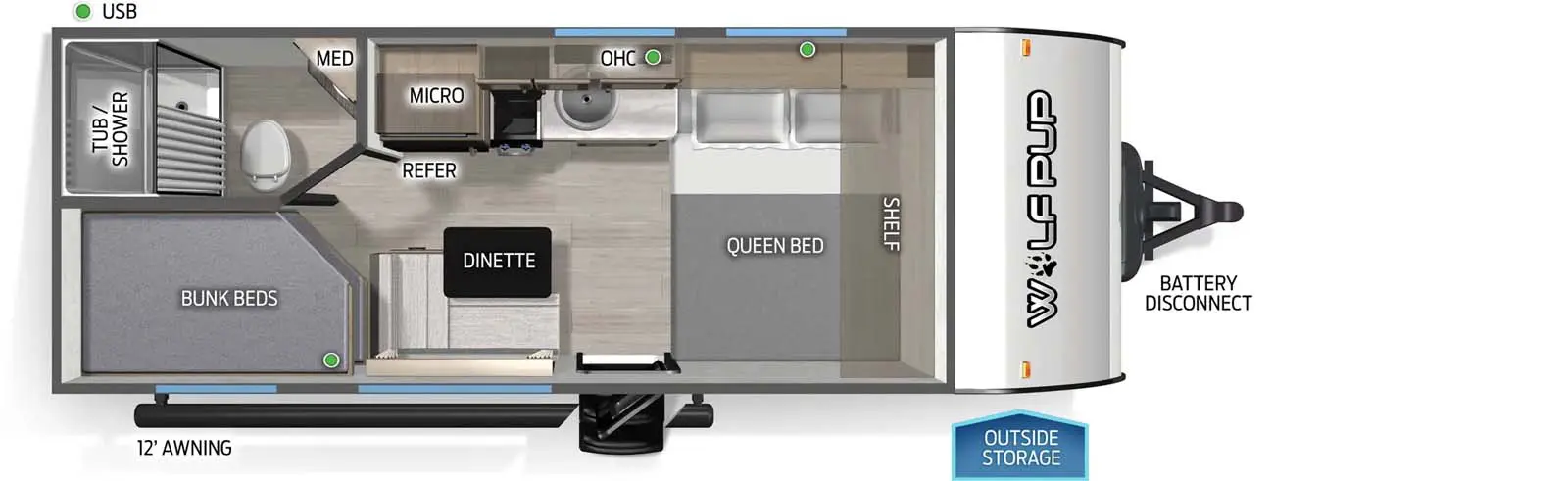

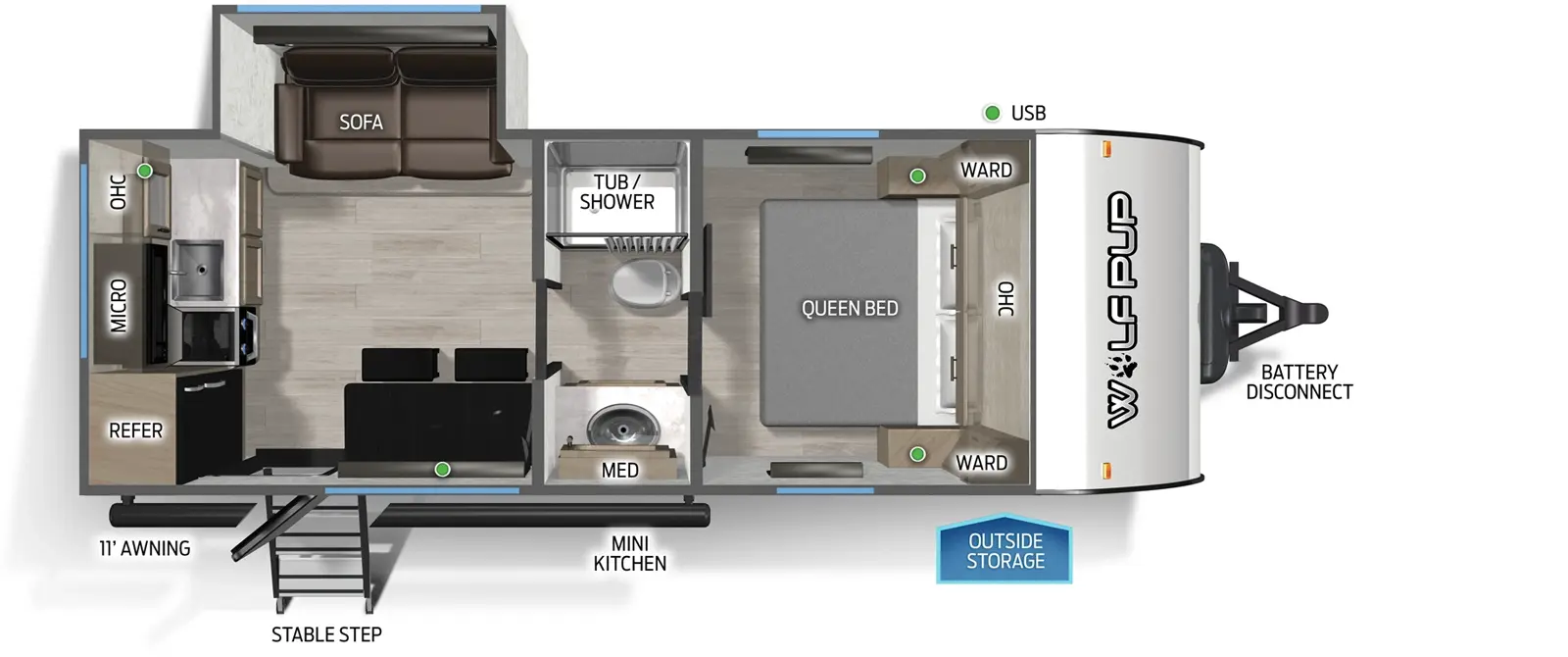

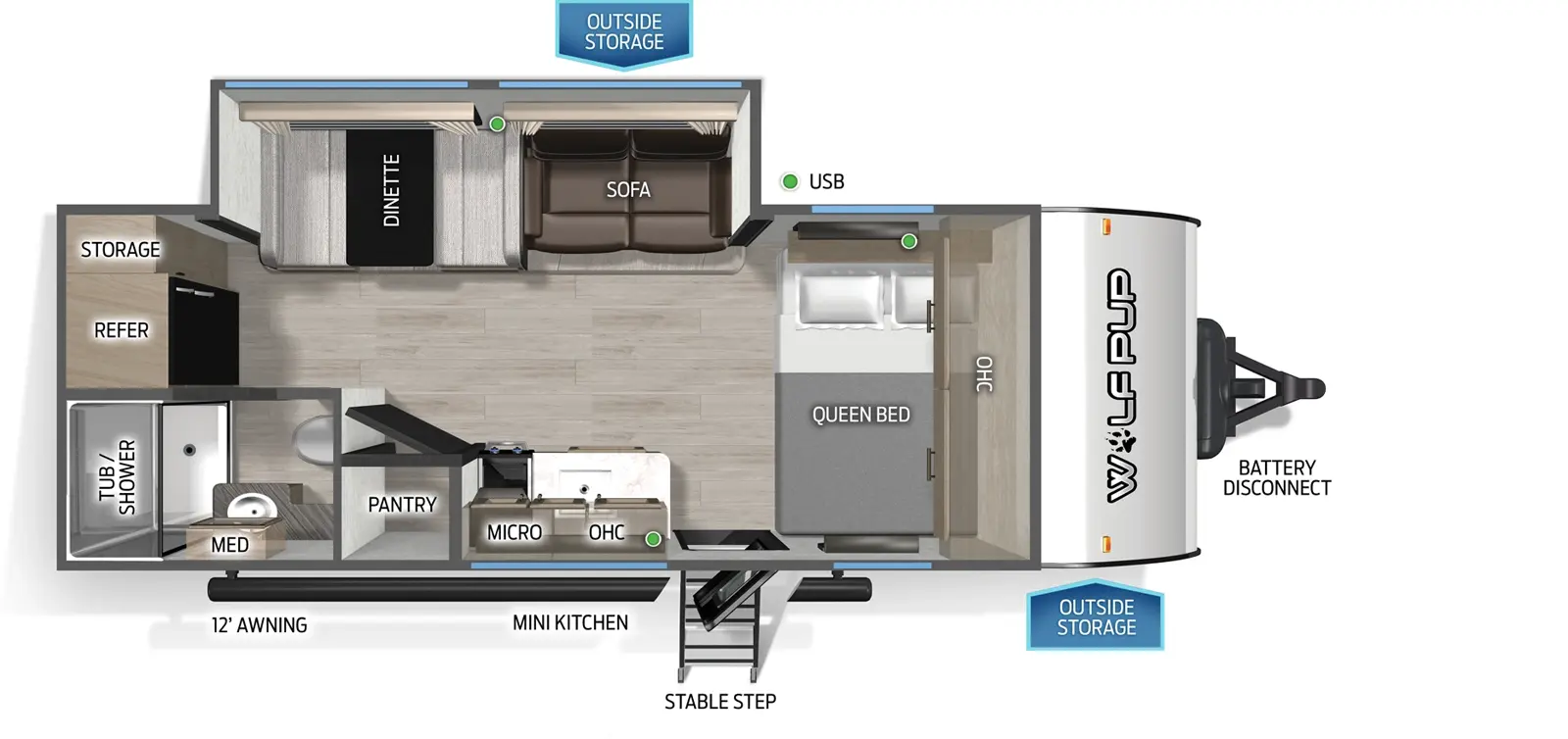

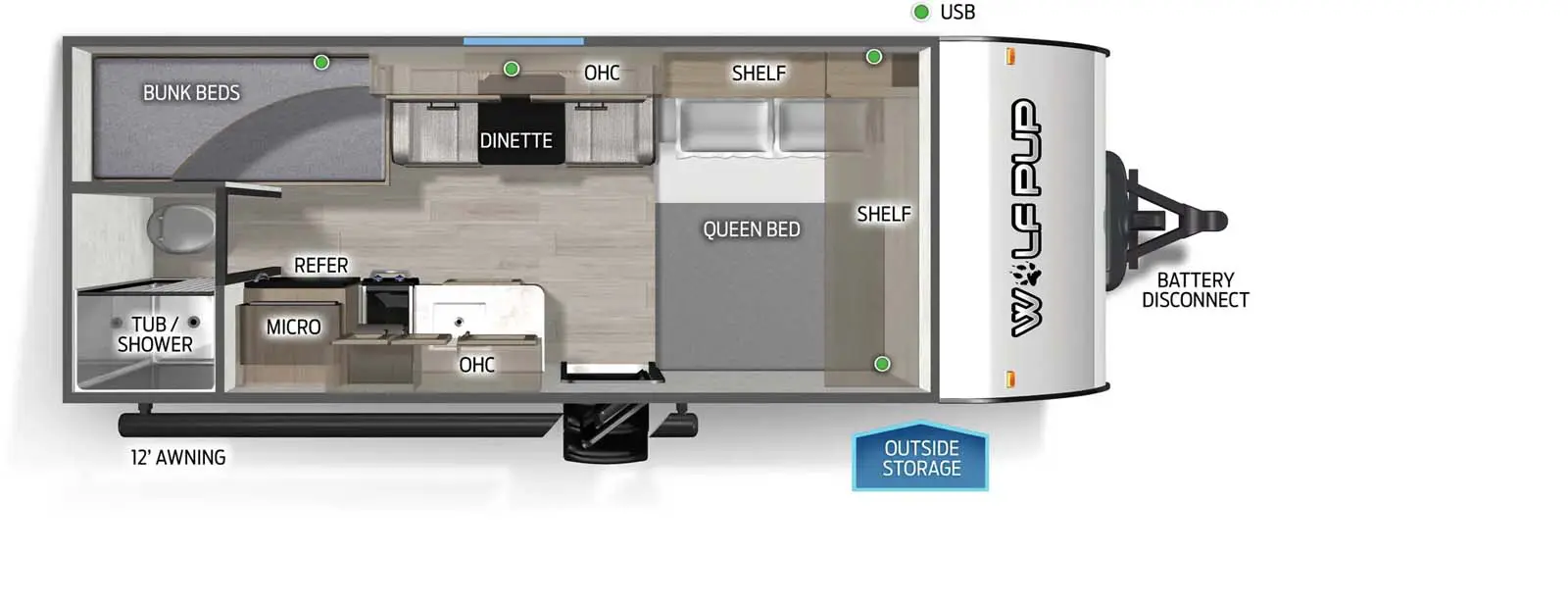

Floorplans

Print

Wolf Pup Toy Hauler
Wolf Pup Travel Trailers
Dealer Stock Only


Specifications

Print

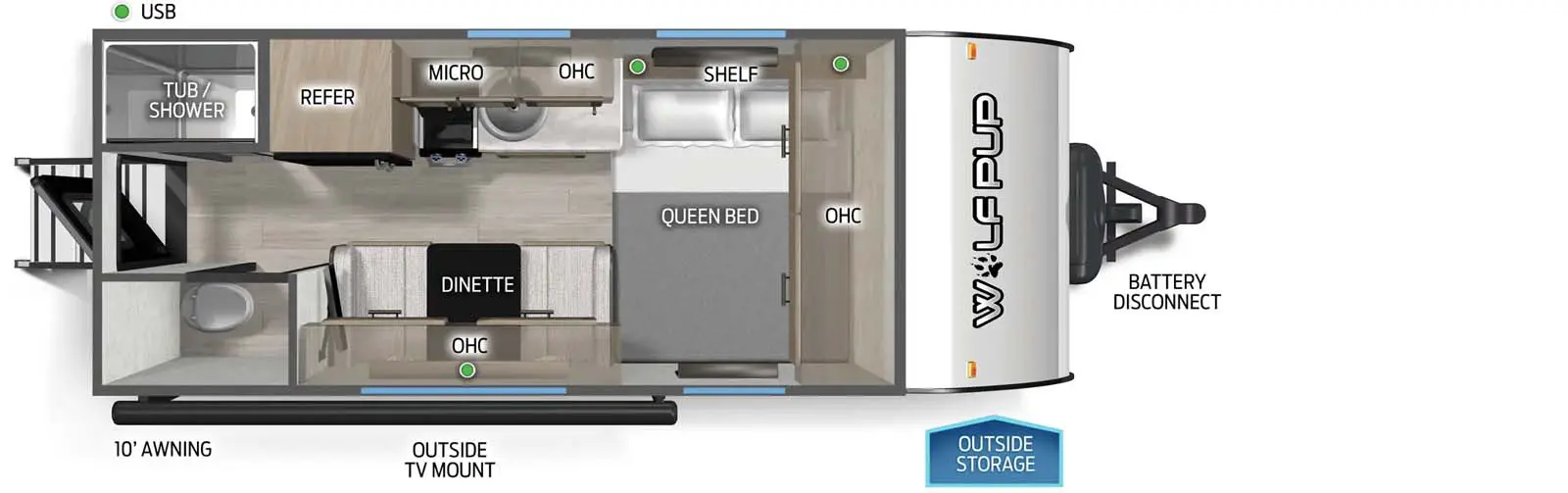

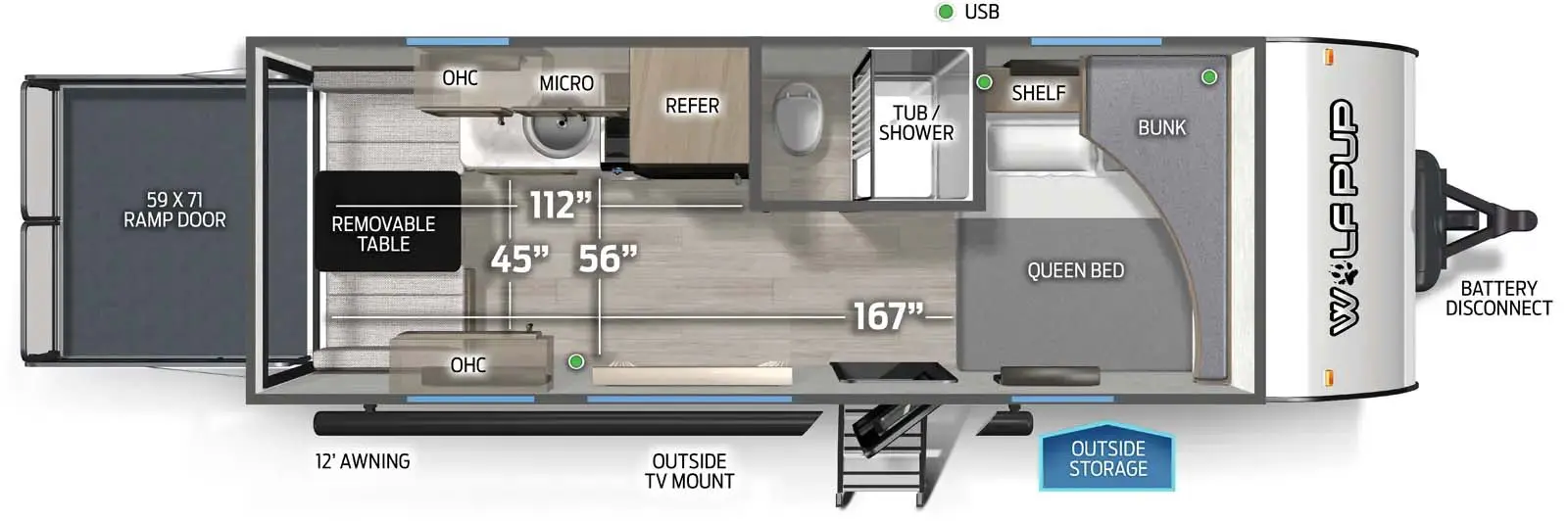

Floorplan: 18RJB : Wolf Pup Toy Hauler 14CC : Wolf Pup Travel Trailers 16BHS : Wolf Pup Travel Trailers 16CW : Wolf Pup Travel Trailers 16FQ : Wolf Pup Travel Trailers 16PF : Wolf Pup Travel Trailers 16TS : Wolf Pup Travel Trailers 17JG : Wolf Pup Travel Trailers 18TO : Wolf Pup Travel Trailers 25JB : Wolf Pup Travel Trailers 16HE - DSO : Dealer Stock Only
Hitch Weight:426 lb.400 lb.460 lb.470 lb.428 lb.475 lb.470 lb.430 lb.437 lb.645 lb.420 lb.
GVWR:4,999 lb.3,900 lb.4,999 lb.4,999 lb.4,999 lb.4,999 lb.3,970 lb.4,999 lb.4,999 lb.7,645 lb.3,920 lb.
UVW:3,435 lb.2,884 lb.3,367 lb.3,783 lb.2,919 lb.3,784 lb.3,204 lb.3,879 lb.3,797 lb.5,482 lb.3,309 lb.
CCC:1,564 lb.1,016 lb.1,632 lb.1,216 lb.2,080 lb.1,215 lb.766 lb.1,120 lb.1,202 lb.2,163 lb.611 lb.
Exterior Length:22' 9"19' 3"21' 9"22' 7"21' 8"22' 6"21' 9"23' 4"23' 2"31' 2"22' 6"
Exterior Height:10' 6"10' 6"10' 6"10' 6"10' 6"10' 6"10' 6"10' 6"10' 6"10' 6"10' 6"
Exterior Width:84"85"84"96"84"84"84"84"84"74"84"
Fresh Water:26.00 gal.26.00 gal.26.00 gal.26.00 gal.26.00 gal.26.00 gal.26.00 gal.26.00 gal.26.00 gal.42.00 gal.26.00 gal.
Gray Water:23.00 gal.23.00 gal.23.00 gal.23.00 gal.23.00 gal.23.00 gal.23.00 gal.23.00 gal.23.00 gal.23.00 gal.23.00 gal.
Black Water:23.00 gal.23.00 gal.23.00 gal.28.00 gal.23.00 gal.23.00 gal.28.00 gal.23.00 gal.23.00 gal.28.00 gal.23.00 gal.
Awning Size:12'10'12'10'12'12'10'12'12'16'12'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print
  • 13,500 BTU Air Conditioner
  • 14” Premium Wheel Package
  • 20,000 BTU Furnace
  • On Demand Tankless Water Heater
  • 8” Ceiling Mounted, 200W Subwoofer with Accent Lighting
  • Cannon™ 12V, High Efficiency, 11 Cubic Foot Residential Refrigerator with Travel Lock

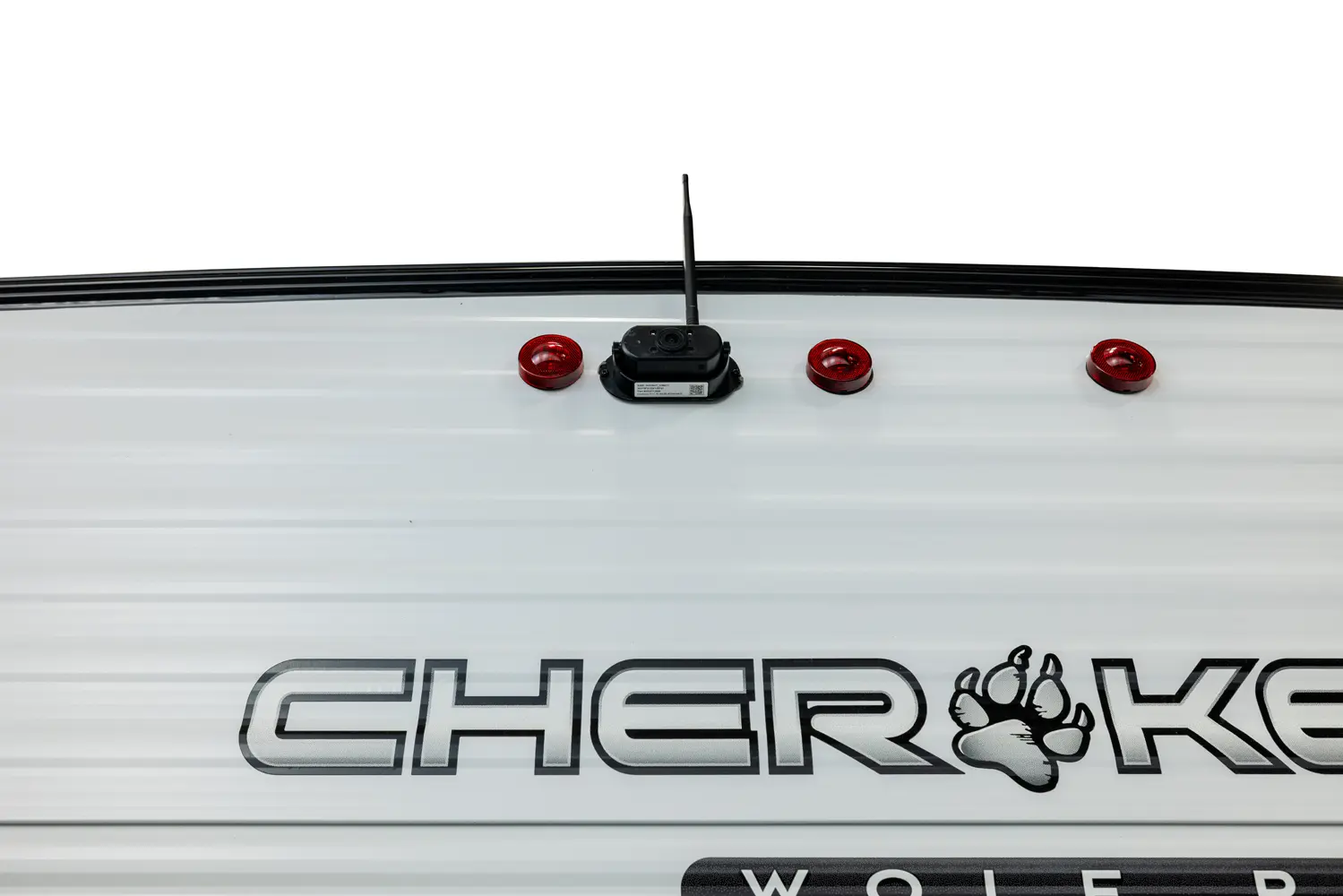

  • Cherokee Back up Camera System
  • Cherokee Exclusive Stable Step with Oversized Landing
  • Cherokee Sanitizer
  • Cherokee Total Control App & Remote Control System
  • Detachable Power Cord
  • Entertainment System
  • Exterior LED Light Strip at Awning
  • External Porch Scare Light
  • Flushmount Range with Cover
  • Four Stabilizer Jacks
  • LED Interior Lights
  • Night Shades
  • Outside Shower with Hot and Cold Water
  • Power Awning
  • Power Gear™ Frame Technology and Space Saver Rail Design
  • Real Blackout Glass, Safety Slam, Friction Hinge Entry Door with Window and Shade Prep
  • Seamless Countertop
  • Seamless Roofing Membrane with Heat Reflectivity

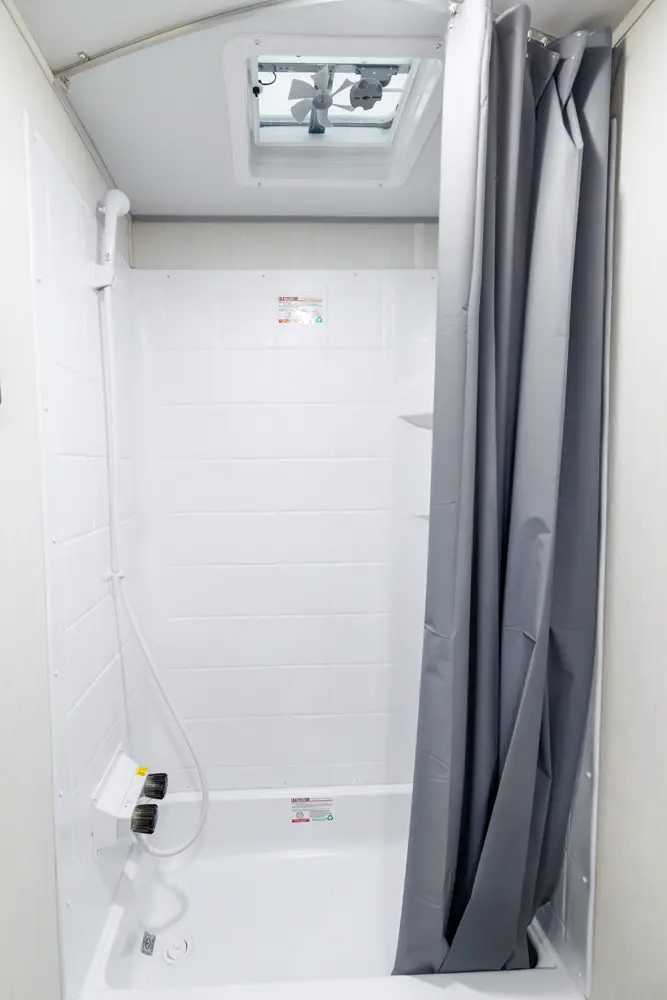

  • Shower Tub Surround

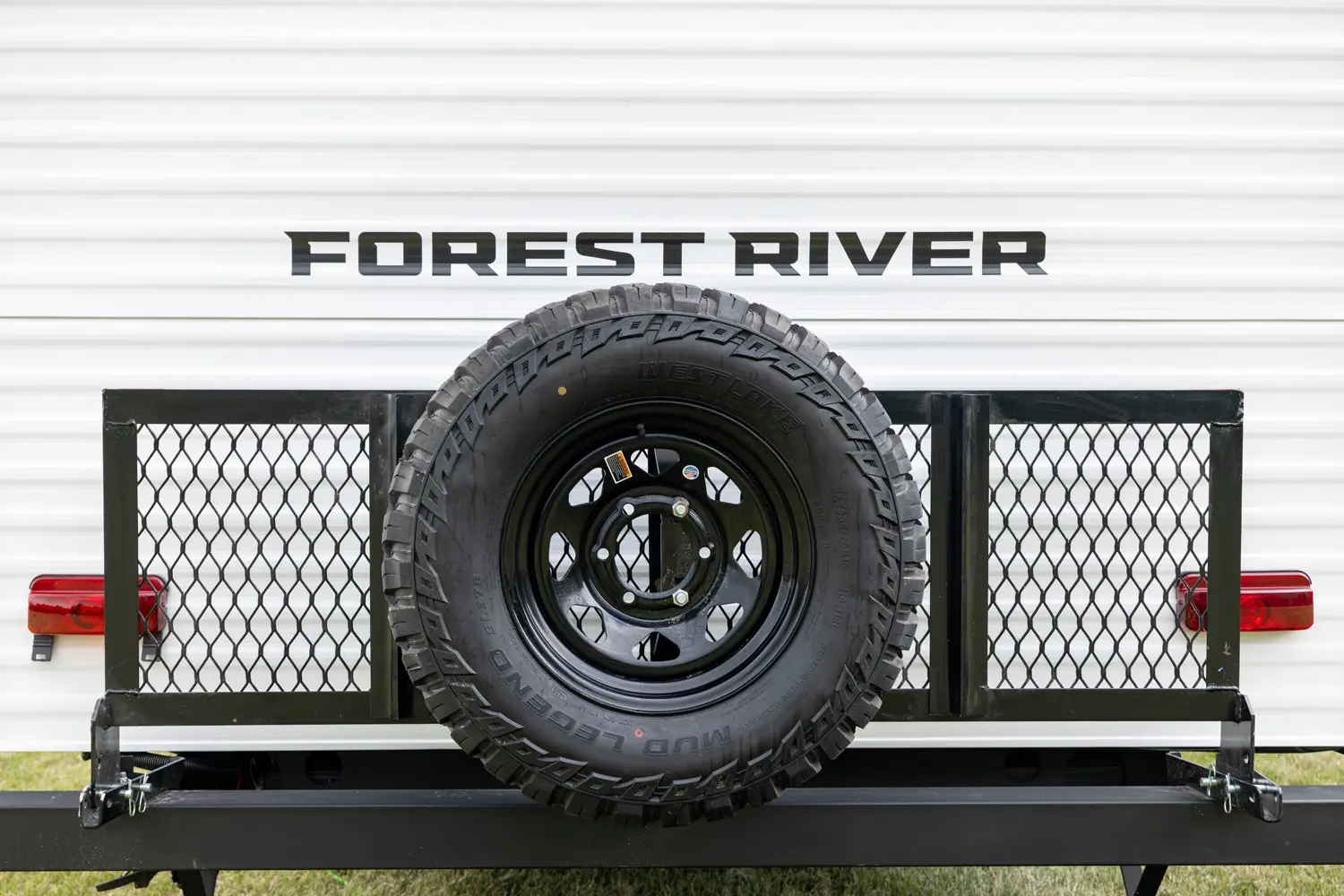

  • Spare Tire
  • Stereo with Inside and Outside Speakers
  • Tire Pressure Monitors
  • Tongue and Groove Plywood Flooring
  • Upgraded Stainless Range Hood with Light and Fan
  • USB charging stations (Beds, Bunks, Table where Applicable)
  • Wolf Pup Quick Jack
  • 14” Tires for improved towing in place of 13”
  • 26” Wide Door IPO 22” Door
  • Aerodynamic Smooth Radius Front Profile
  • Safe Ride Roadside Assistance
  • Exterior 110V Recept
  • High Impact Front metal IPO corregated metal
  • Large Exterior Folding Assist Handle
  • Monitor Panel for Tanks and Battery Levels
  • Outside Storage Door
  • Solar Prep and Wiring
  • TV Antenna with Hookups
  • 55 Amp Converter
  • On Demand Tankless Water Heater
  • Bathroom Fan
  • Fiberglass Entry Door
  • Foot Flush Toilet
  • Full Length Awning
  • High Flo Water Pump
  • High Output Cooktop
  • High Rise Faucet
  • Large High Output Microwave
  • Nitrogen Filled Tires
  • One Piece, Decked Roof
  • Oversized Dinette with Removable Table
  • Carbon Monoxide Detector
  • Emergency Exit Windows
  • Fire Extinguisher
  • GFI Protective Outlet
  • LP Gas Detector
  • Safety Glass Windows
  • Smoke Detector

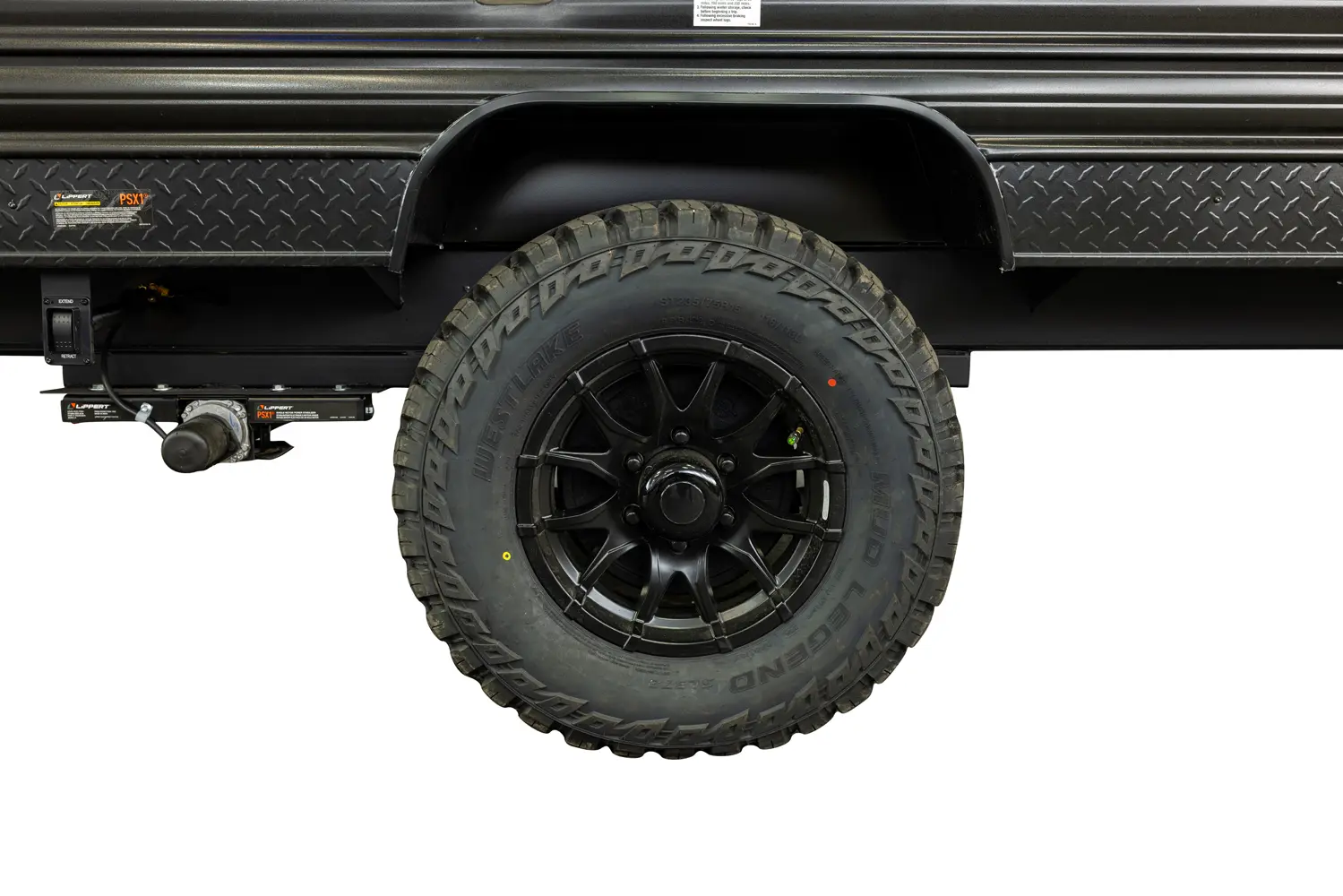

  • Off-Road Tire Package
  • 2-Inch Frame Lift
  • Diamond Plate Sided on the Bottom of the Exterior Wall
  • Hung Fiberglass Sided Walls
  • Frameless Window Package
  • Upgraded Solid Surface Countertops
  • Upgraded Shower Heads
  • Upgraded Reading Lights
  • Thermo-Foil Arctic Insulation
  • Designer Cushion Fabric
  • Hands Free Baggage Door Catch
