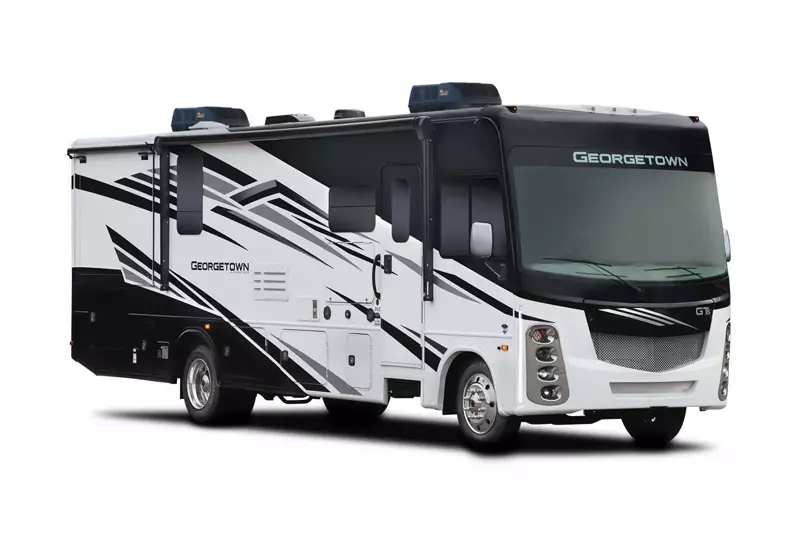

Georgetown 5 Series GT5 Gas Class A Motorhome

The 5 Series Georgetown offers more of the luxuries you would expect in a gas Class A, including custom solid surface kitchen countertops and brandy maple cabinets. Three great floorplans to choose from with plenty of storage and three decor options.

Standard appointments include a chrome package, automatic hydraulic leveling jacks, color side and rear cameras, bedroom and main living LED TVs and Pioneer dash entertainment system with AM/FM/DVD/Bluetooth and USB. Spacious galleys include dream or super size dinettes that seat friends and family in total comfort.

Visit your local dealer today and put yourself in a 5 Series Georgetown, where spacious design and true luxury come together.

Filter

Select filters below and then click the Filter Results button to remove non-matching Floorplans and their Specifications








to

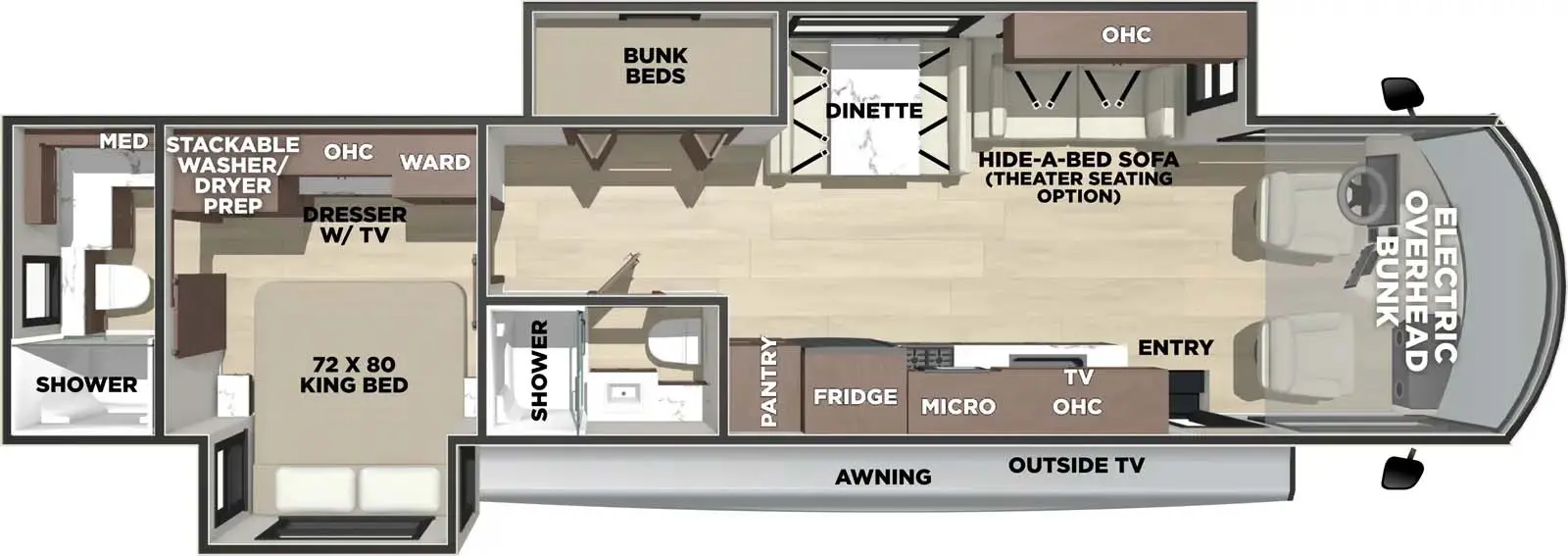

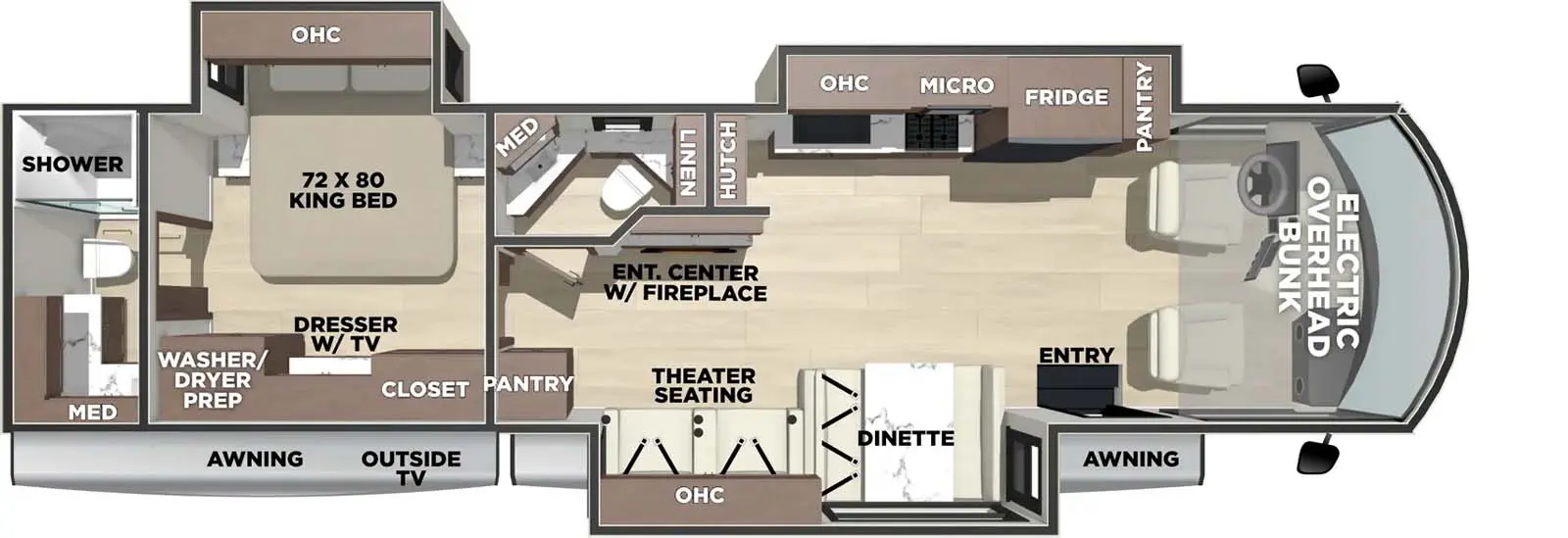

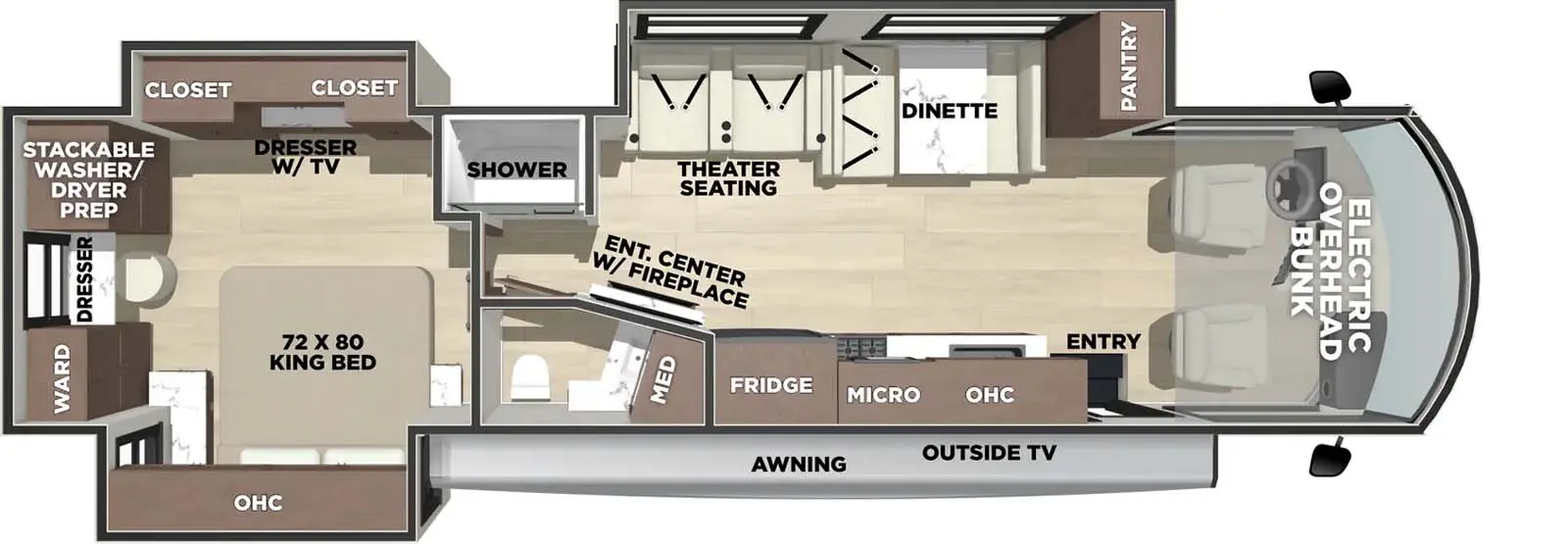

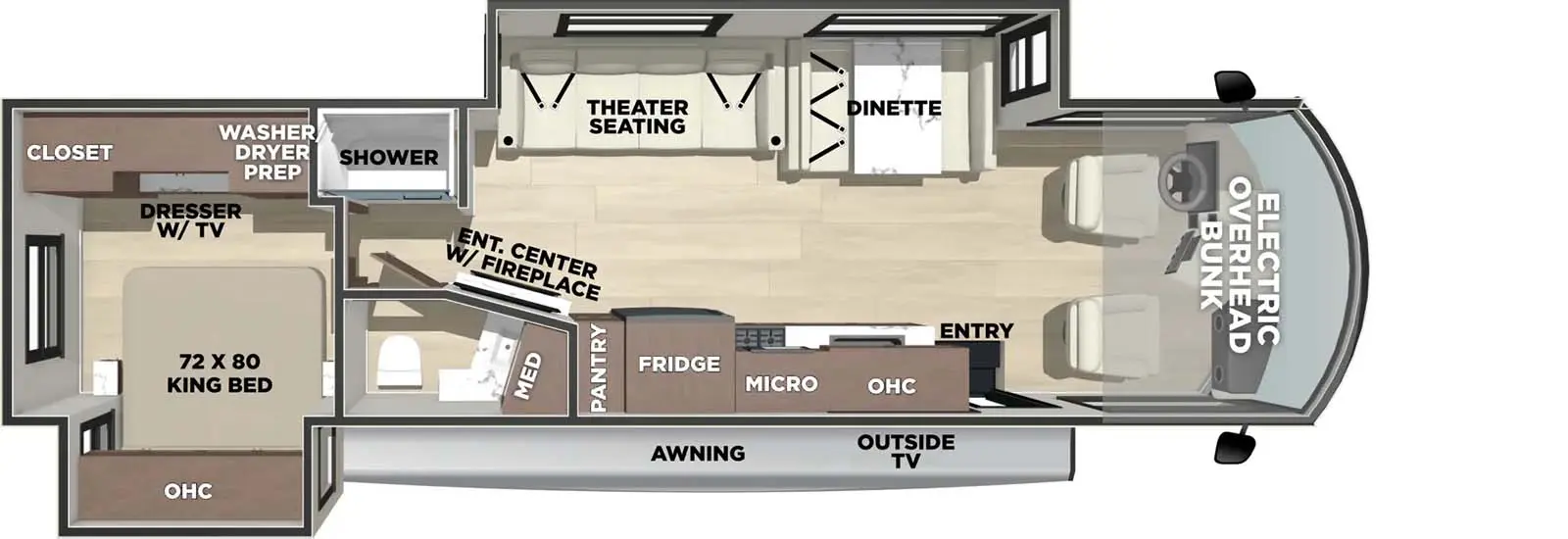

Floorplans

Print



Specifications

Print


Wheelbase:
GVWR:
GCWR
GAWR Front:
GAWR Rear:
Fuel Capacity:
Exterior Length:
Exterior Height:
Exterior Width:
Fresh Water:
Gray Water:
Black Water:
Awning Size:
208"
20500 lb.
26000 lb.
7500 lb.
13500 lb.
80 gal.
34' 11"
12' 4"
100"
82 gal.
42 gal.
42 gal.
19'
208"
20500 lb.
26000 lb.
7500 lb.
13500 lb.
80 gal.
34' 11"
12' 4"
100"
82 gal.
42 gal.
42 gal.
19'
242"
22000 lb.
26000 lb.
8000 lb.
15000 lb.
80 gal.
37' 11"
12' 6"
100"
82 gal.
52 gal.
52 gal.
17' & 12'
242"
22000 lb.
26000 lb.
8000 lb.
15000 lb.
80 gal.
37' 11"
12' 6"
100"
82 gal.
84 gal.
84 gal.
12' 6"

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) – is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Features & Options

Print
  • CHROME PACKAGE: Chrome Headlight Bezels, Chrome Foglight Bezels, Chrome Mirrors & Logos
  • One Piece Fiberglass Roof
  • Undermount Stainless Steel Kitchen Sink
  • Stainless Steel Faucet w/Pull Out Sprayer
  • Automotive Bonded Front Windshield
  • Fiberglass Front Cap w/Lighted Logo, LED Accent Lights and Automotive, Bonded Front Windshield
  • Slam Latch Side Hinge Baggage Doors
  • Encased Power Patio Awning w/LED Light
  • Slideout Room Awning(s)
  • Stainless Steel Bathroom Sink
  • Washer Dryer Combo Prep

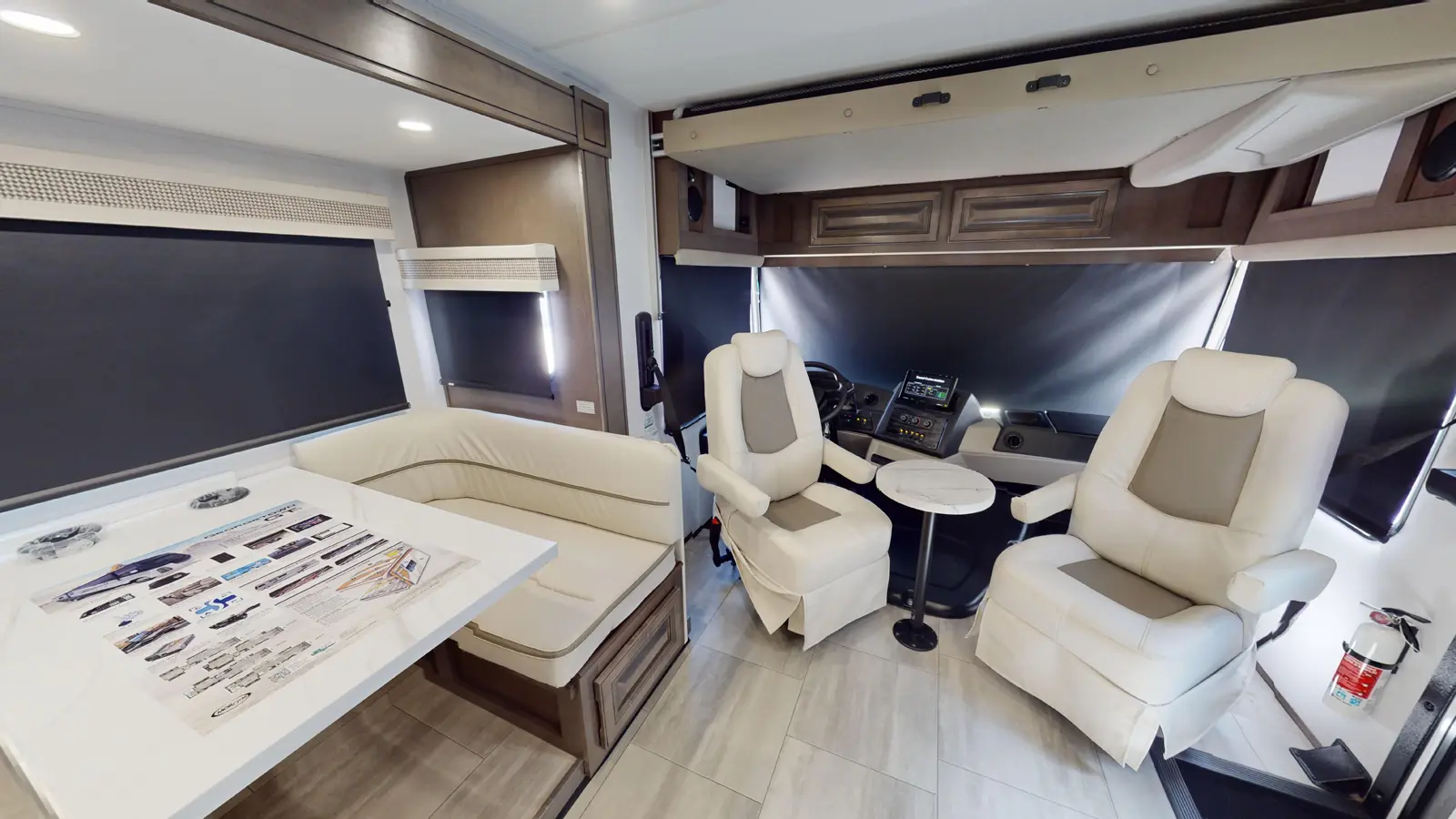

  • Dream Dinette
  • Super Size Dinette (31L5, 31R5)
  • “SUPER STORAGE” Rear Cargo Compartment
  • 30" Wide Entrance Door
  • Outside Shower
  • Flush Floor Construction Throughout
  • Grey Rotocast Storage Compartments w/Drains
  • 2000 Watt Inverter System
  • Rear Roof Ladder
  • Pioneer Dash Entertainment System w/AM/FM/DVD/Bluetooth/USB
  • Rubber Tread Entry Steps
  • Custom Cockpit Dash w/ABS Side Consoles, Drink Holders, 110V Outlet/USB
  • Low Profile Engine Cover w/Drink Holders
  • Adjustable 3 Point Seat Belts
  • Power Driver’s Seat
  • Hide-A-Bed Sofa w/Footrests (31R5, 36B5)

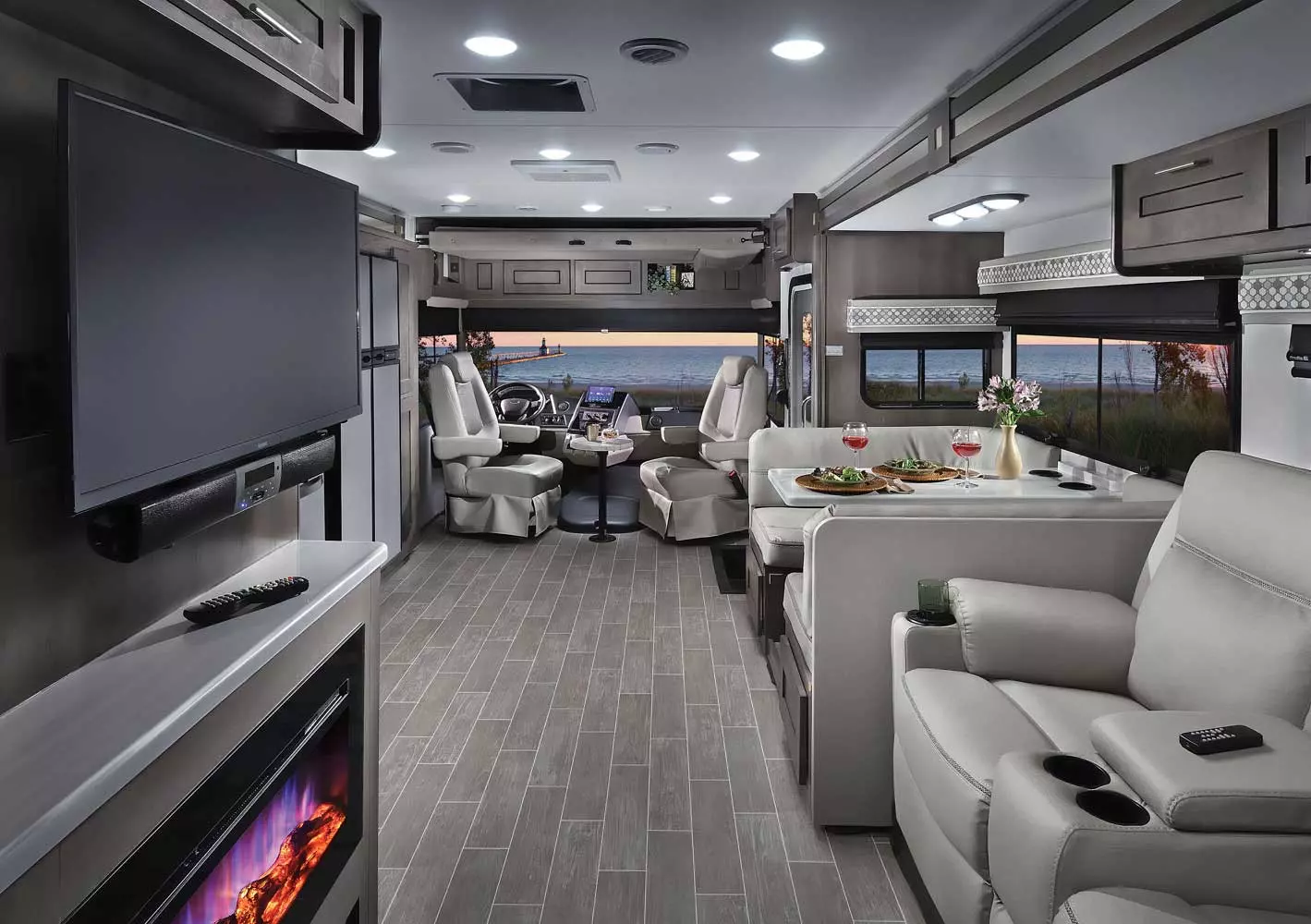

  • Power Theatre Seats (31L5, 34H5)
  • MCD Roller Shades Throughout
  • 40" LED Main TV
  • Full Extension Ball Bearing Drawer Guides
  • Heated and Enclosed Holding Tanks w/Arctic Package
  • Quick Latch Pocket Door To Bedroom
  • 32" LED Bedroom TV w/Flip Up
  • 5000 lbs. Tow Hitch w/7-Way Plug
  • Dual Coach Batteries
  • Electric Battery Disconnect
  • Hydraulic 4-Point Leveling Jacks
  • Color Side and Rear Camera Package
  • One-way Audio on Backup Camera
  • Black Tank Flush
  • LED Map, Bunk and Accent Lights
  • (2) High Output Quiet Air Command™ Ducted Roof A/C w/Chill Construction and (1) Heat Pump
  • KING Jack™ Digital TV Antenna w/Mount & Built-in Signal Meter
  • 6 Gallon Gas/Electric Water Heater (x2 36B5)
  • 5.5 KW Onan Generator
  • Vacuum Bonded Gel Coated Sidewalls w/Graphics and Partial Paint
  • Steel Front Cockpit Cage
  • Triple Electric Entrance Step
  • Rubberized Entry Assist Handle (exterior)
  • Stainless Steel Entry Assist Handle (interior)
  • Power Front Sun Shade
  • Manual Cockpit Side Sun Shades
  • Passenger Side Workstation

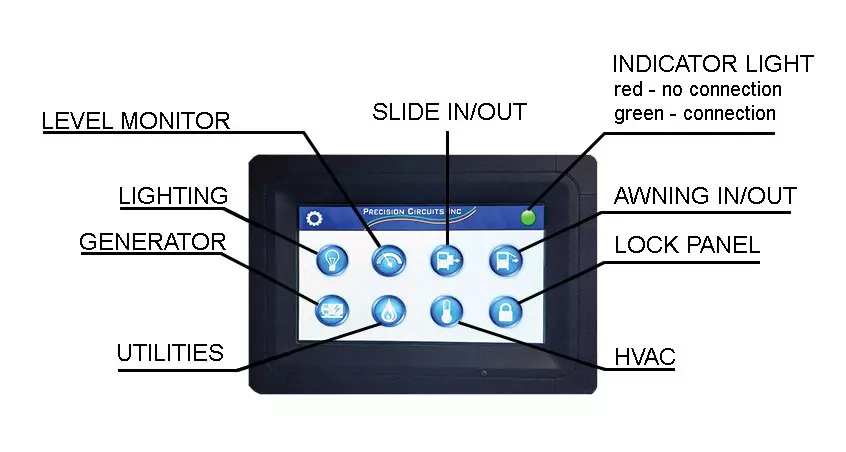

  • MyRV™ Touch Screen w/Wireless Technology
  • Diamond Plate Rubber Floor Covering (driver area)
  • Shaw Residential Vinyl Flooring
  • 18 cu. ft. Stainless Steel Gas/Electric Norcold Refrigerator
  • Stainless Steel 3-Burner Cooktop w/Oven and Flush Mount Glass Stove Cover
  • Solid Surface Countertops
  • Flip-up Solid Surface Countertop Extension
  • Emergency Start Switch
  • Enclosed Quick Connect Exterior LP Fitting
  • King Bed (72" x 80")
  • One Piece Fiberglass Shower

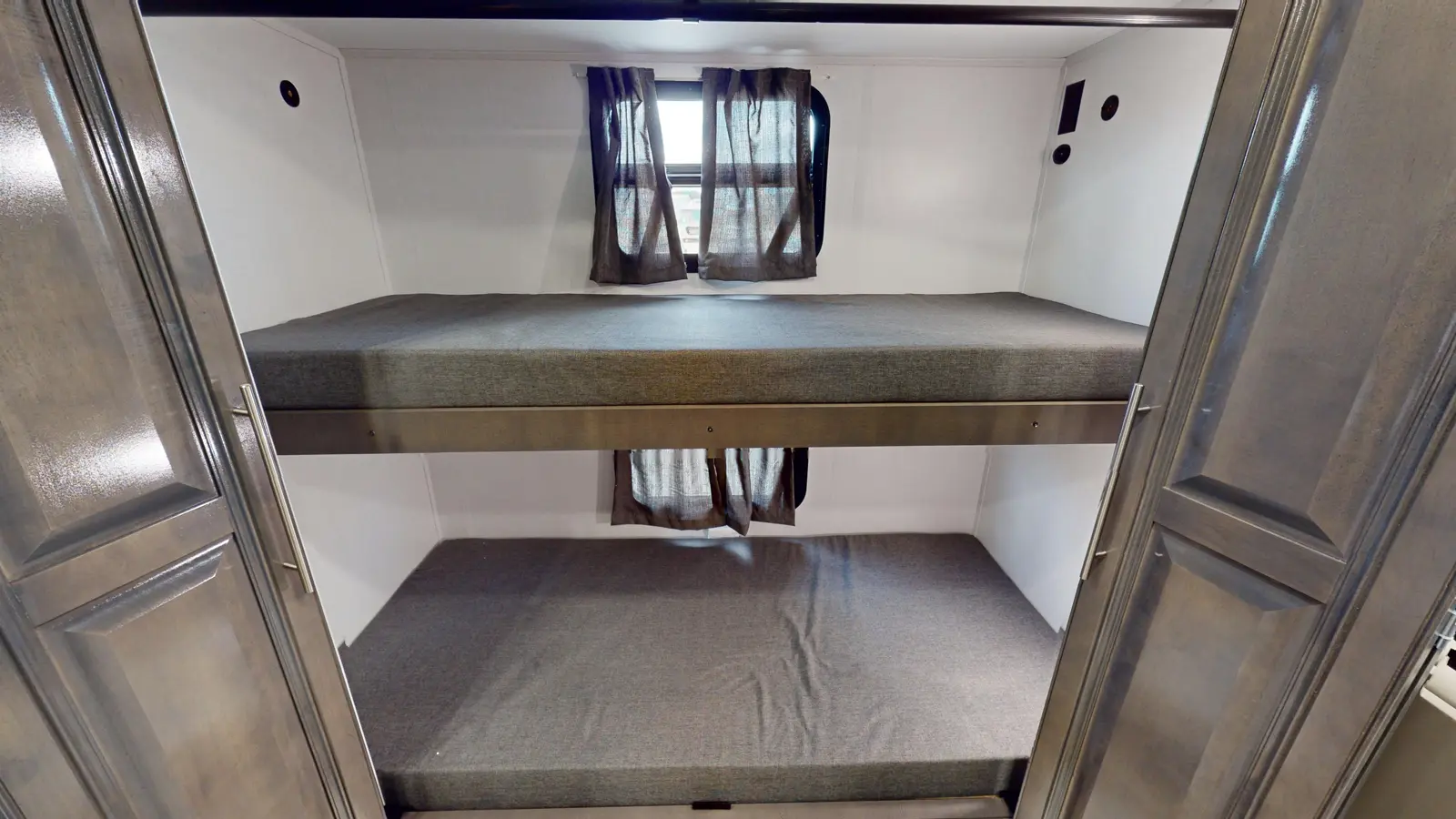

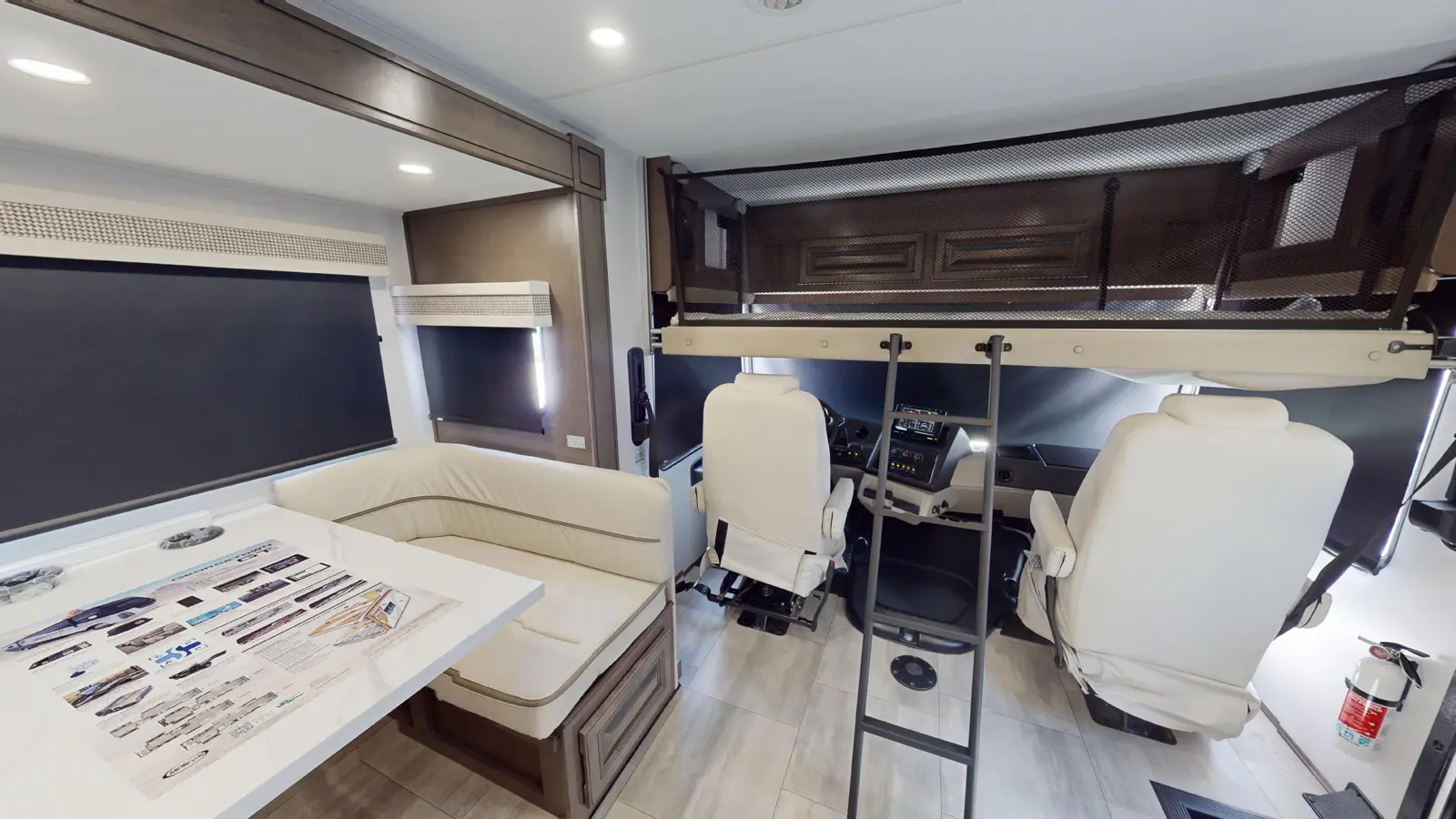

  • Manual Front Overhead Bunk
  • P2K Power Front Overhead Bunk
  • Convection Microwave w/Oven
  • Dual Pane Windows
  • Front Mount TV (N/A w/Front Overhead Bunk)
  • Exterior Cargo Tray

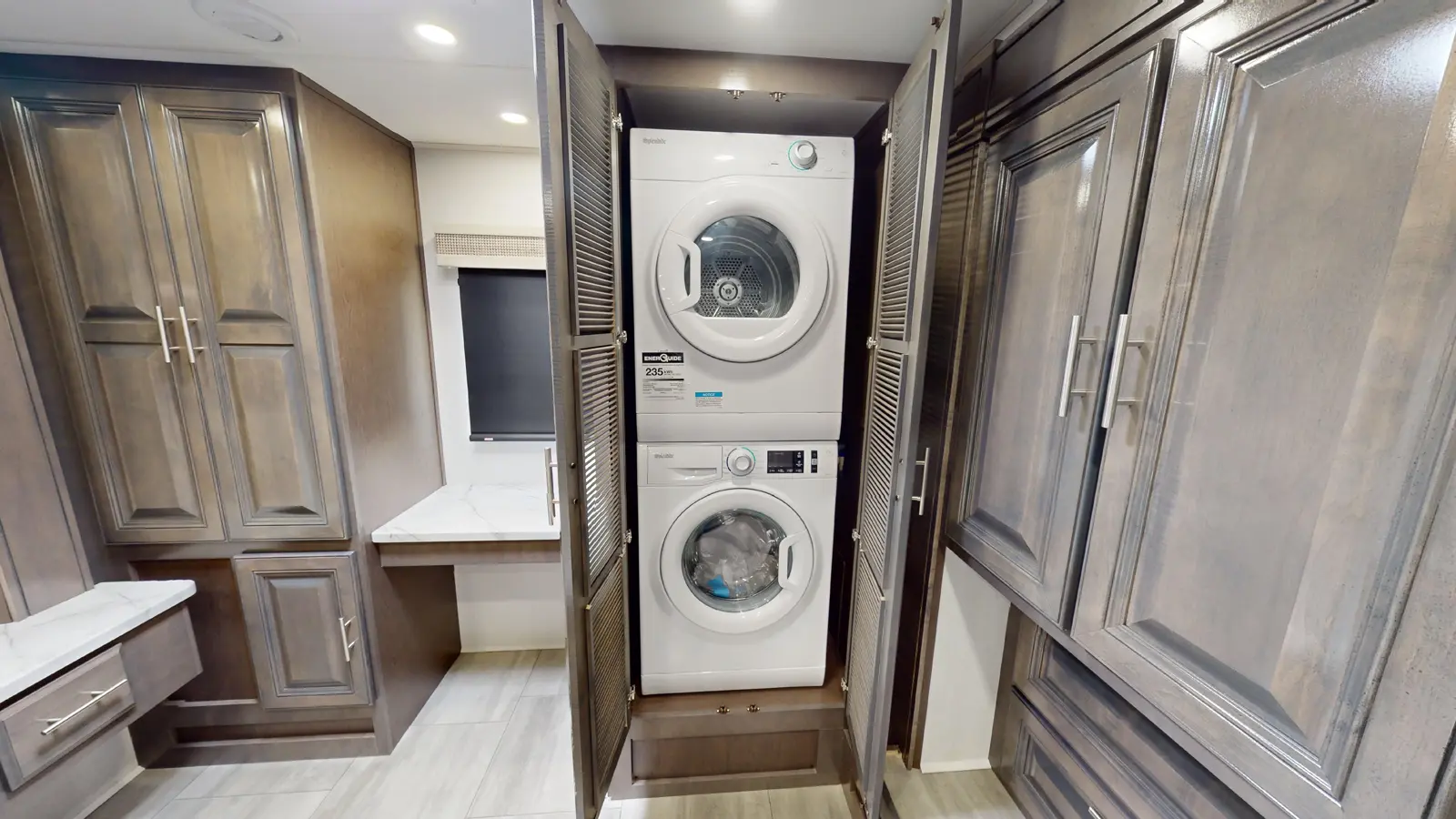

  • Washer Dryer Combo
  • 7.0 KW Onan Generator
  • Full Body Paint
  • Power Theatre Seats (31R5, 36B5) (Standard on 31L5, 34H5)
  • Steel Partial Paint Package
  • Black Partial Paint Package
  • Merlot
  • Solstice
  • Seminole
  • Midnite
  • Landis Ash
  • Raised Panel Solid Wood Cabinet Doors
  • w/Hidden Hinges
  • Café
  • Sand Castle
  • Granite

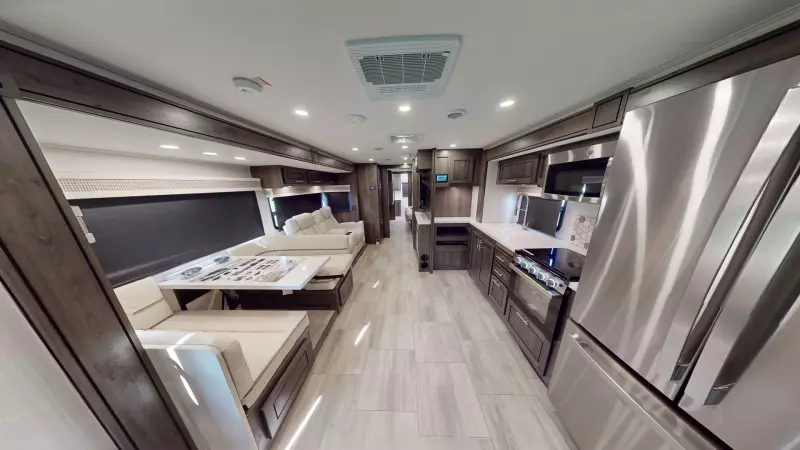

Virtual Tours

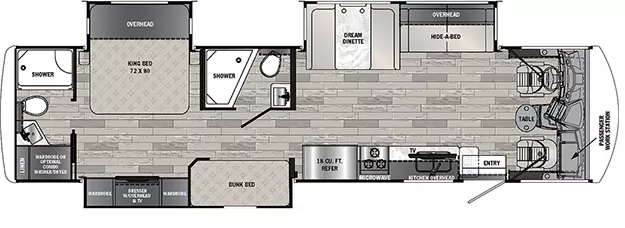

31L5

31R5

34H5

36B5



Videos

Some videos may show features or options not available on all products. Contact our service representatives or your local dealer if you have questions about how your specific RV operates.


Literature


Georgetown 5 Series Flyer
Georgetown 5 Series Flyer
