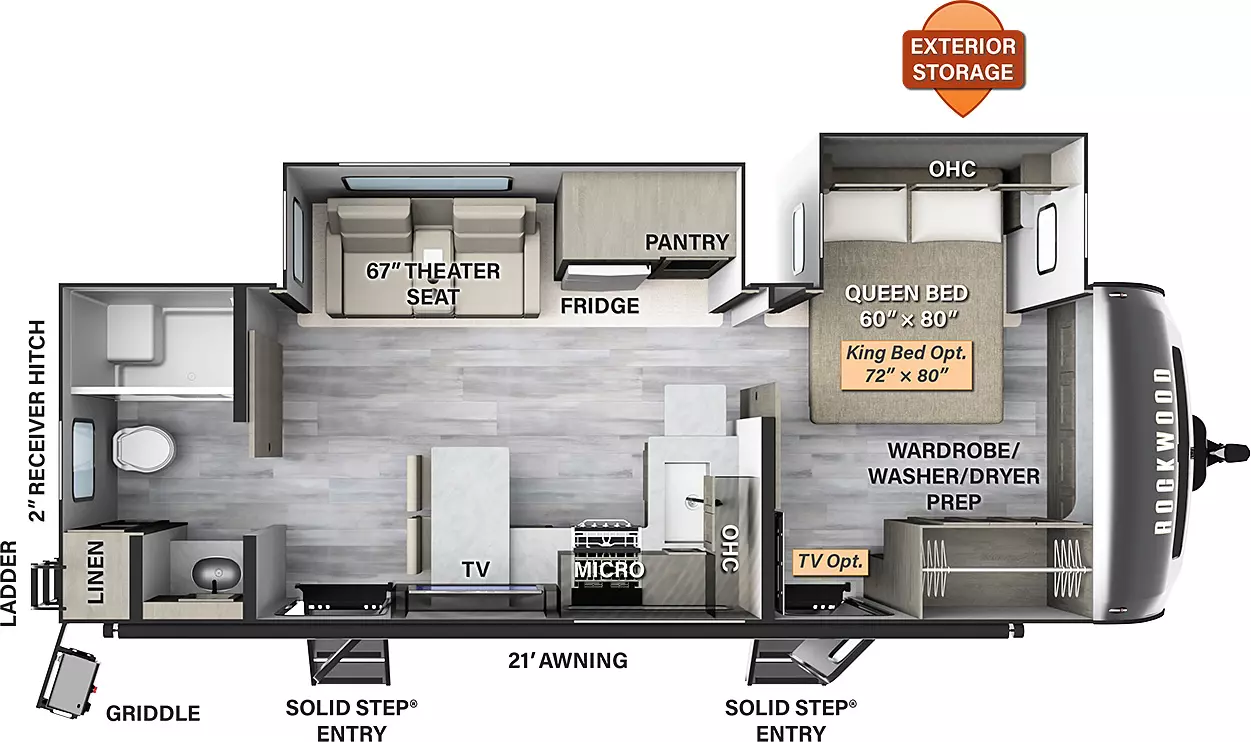

8262RBS Floorplan

Signature Travel Trailers

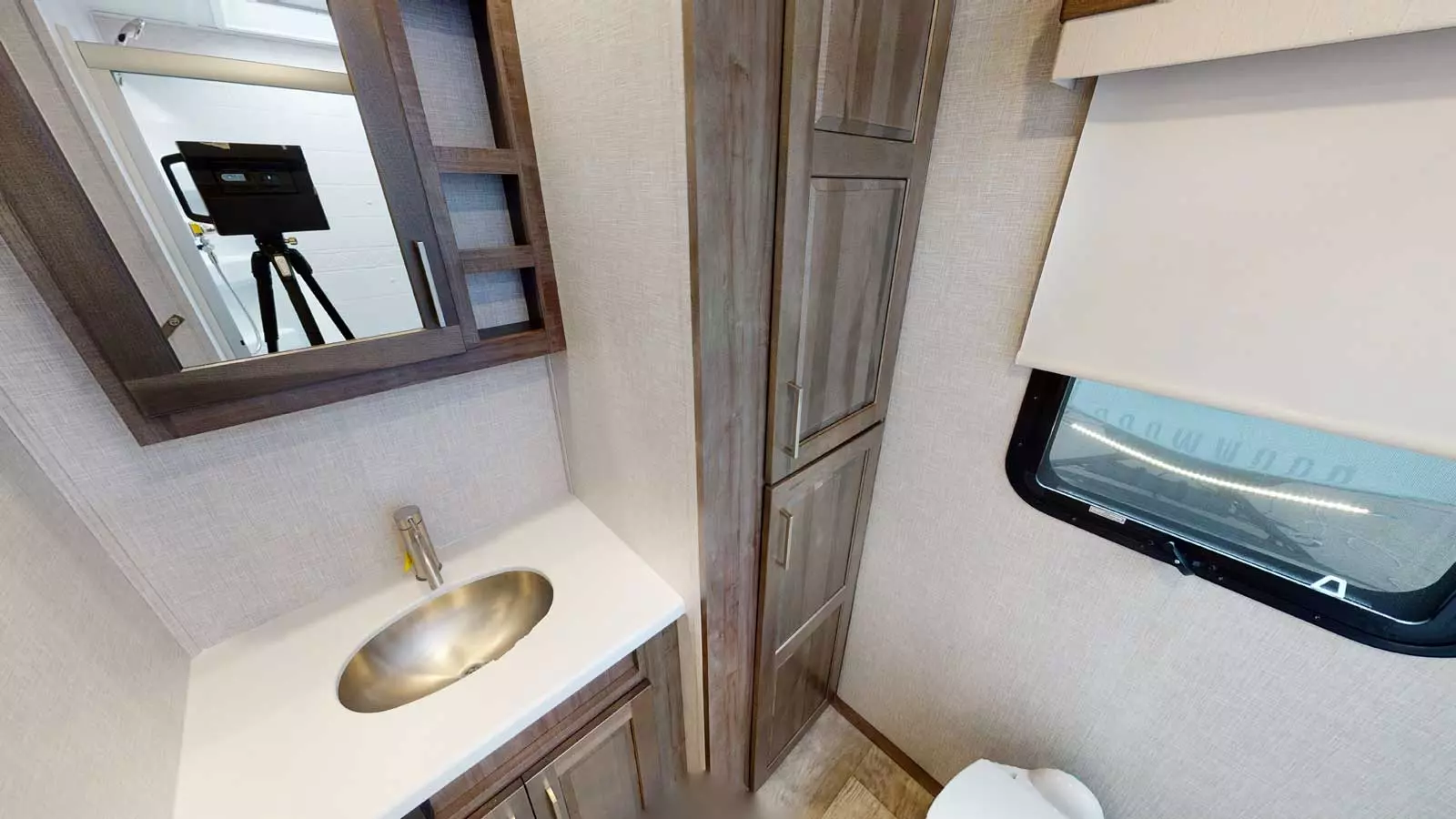

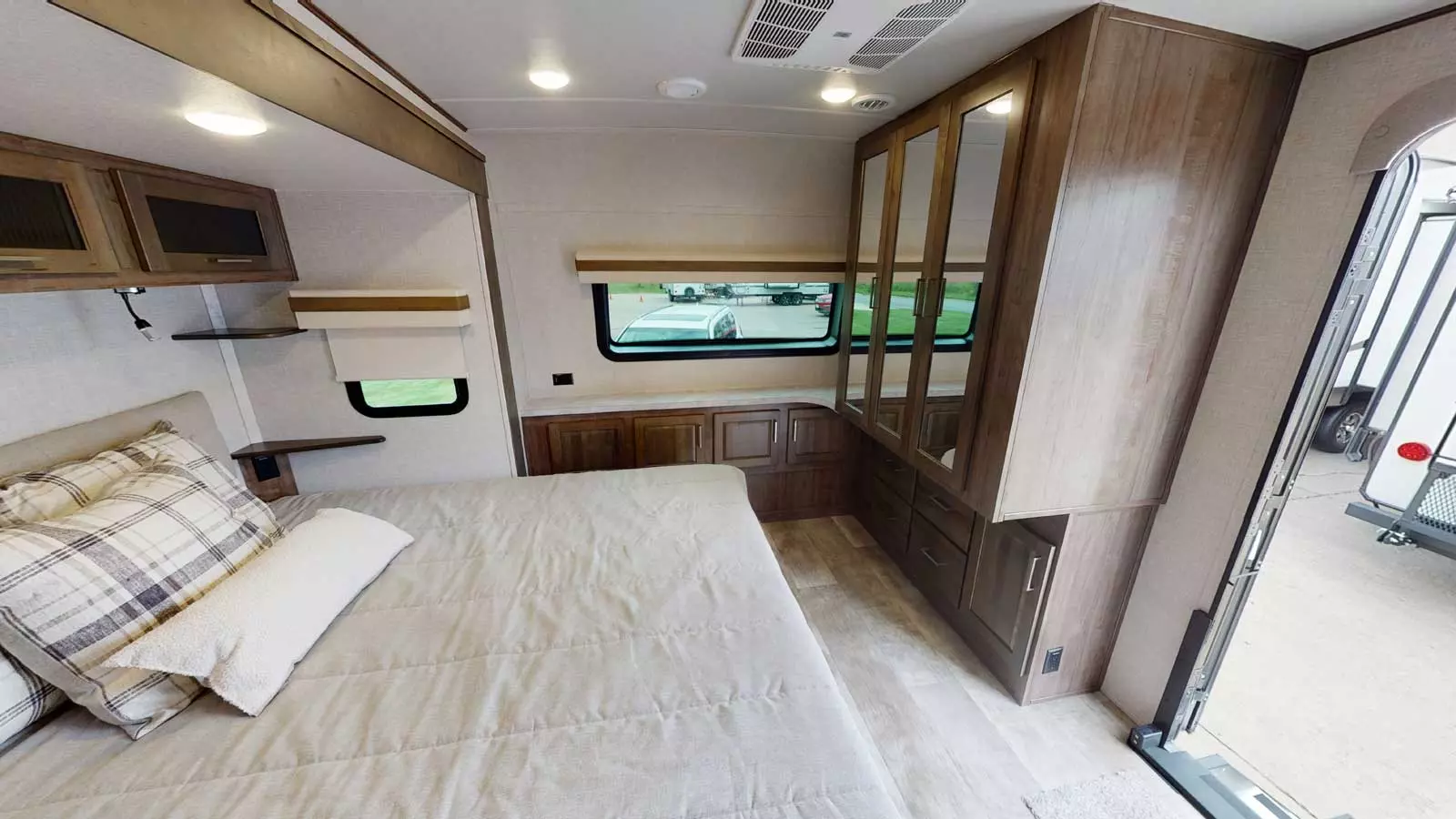

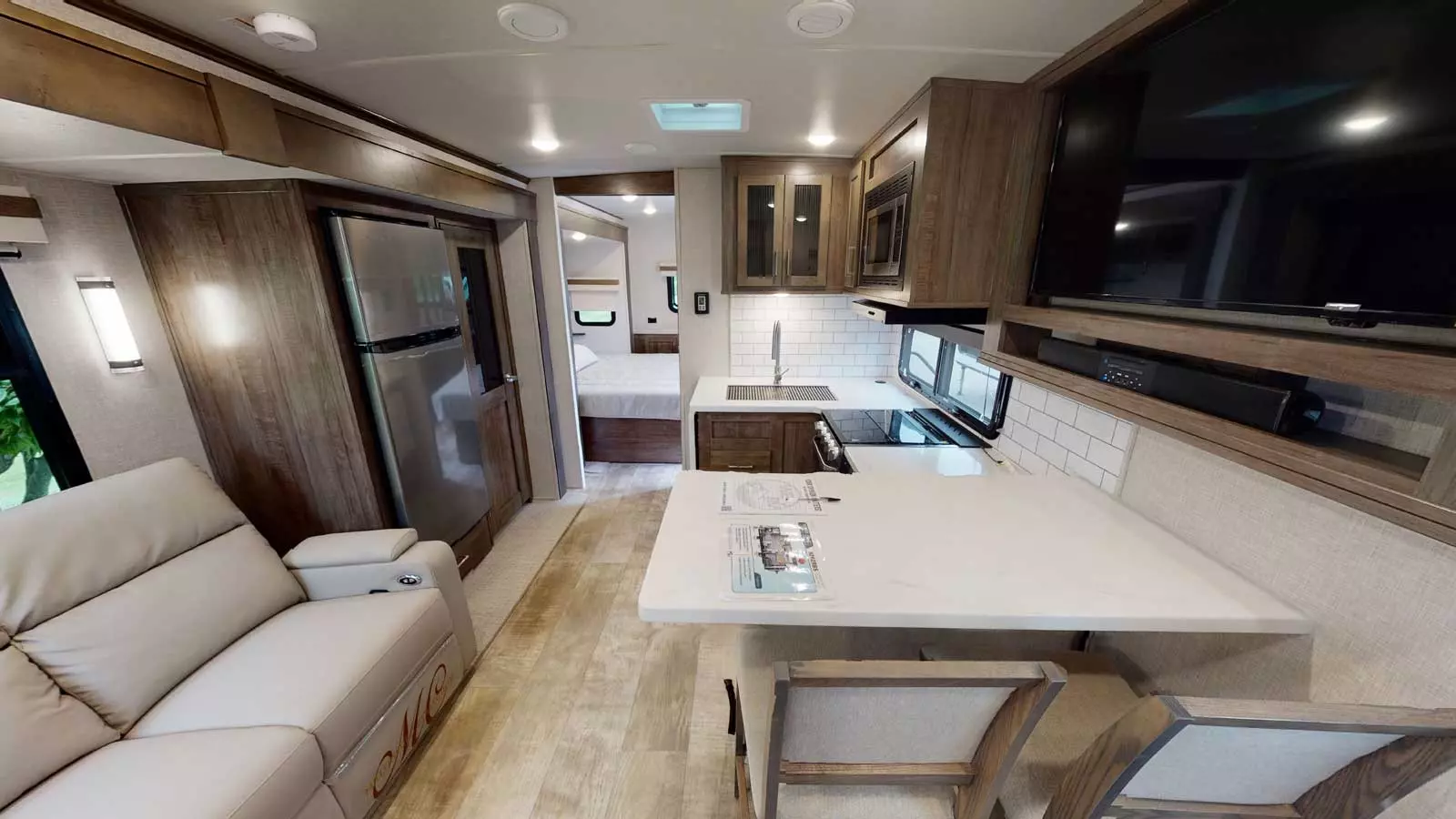

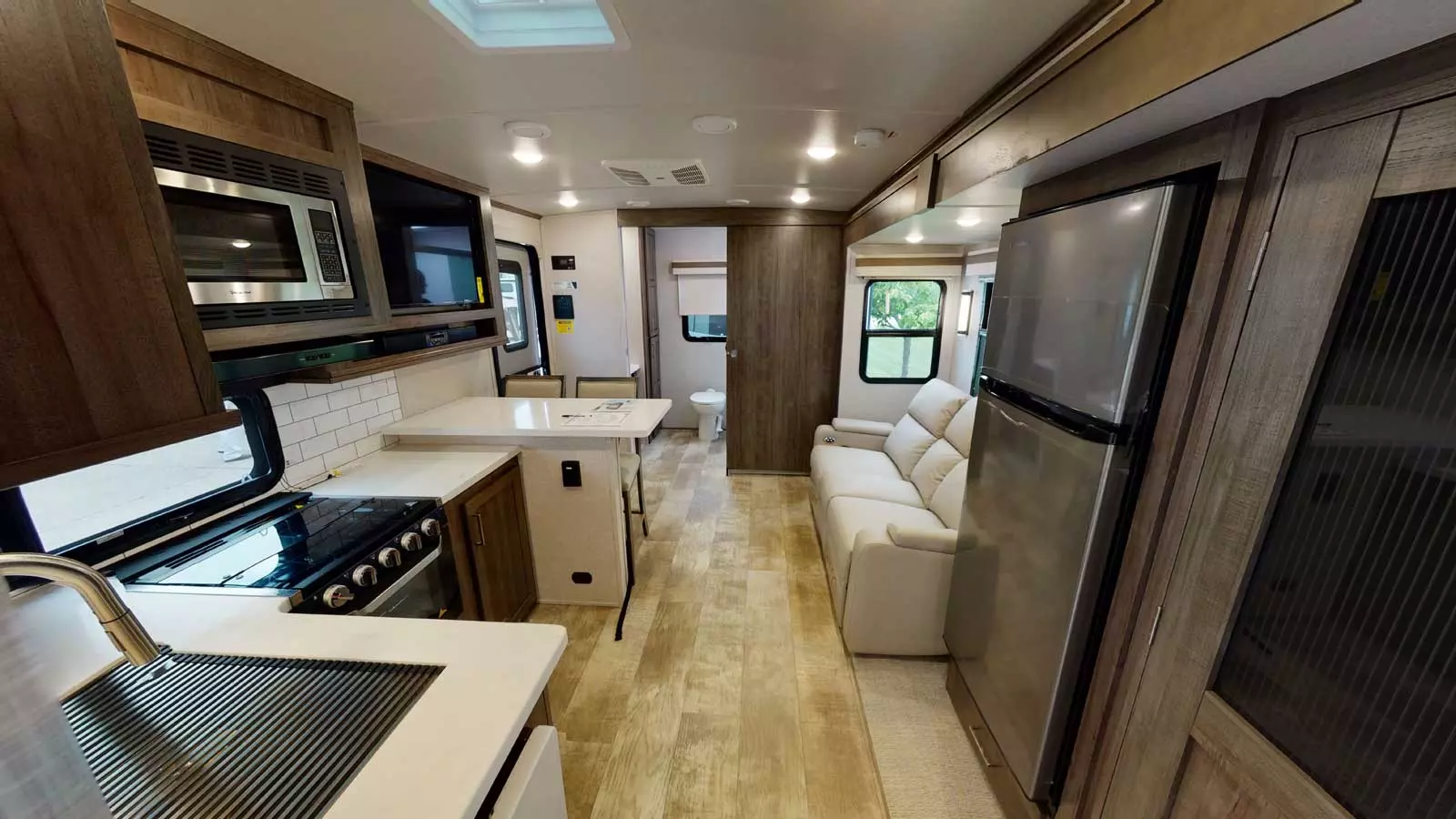

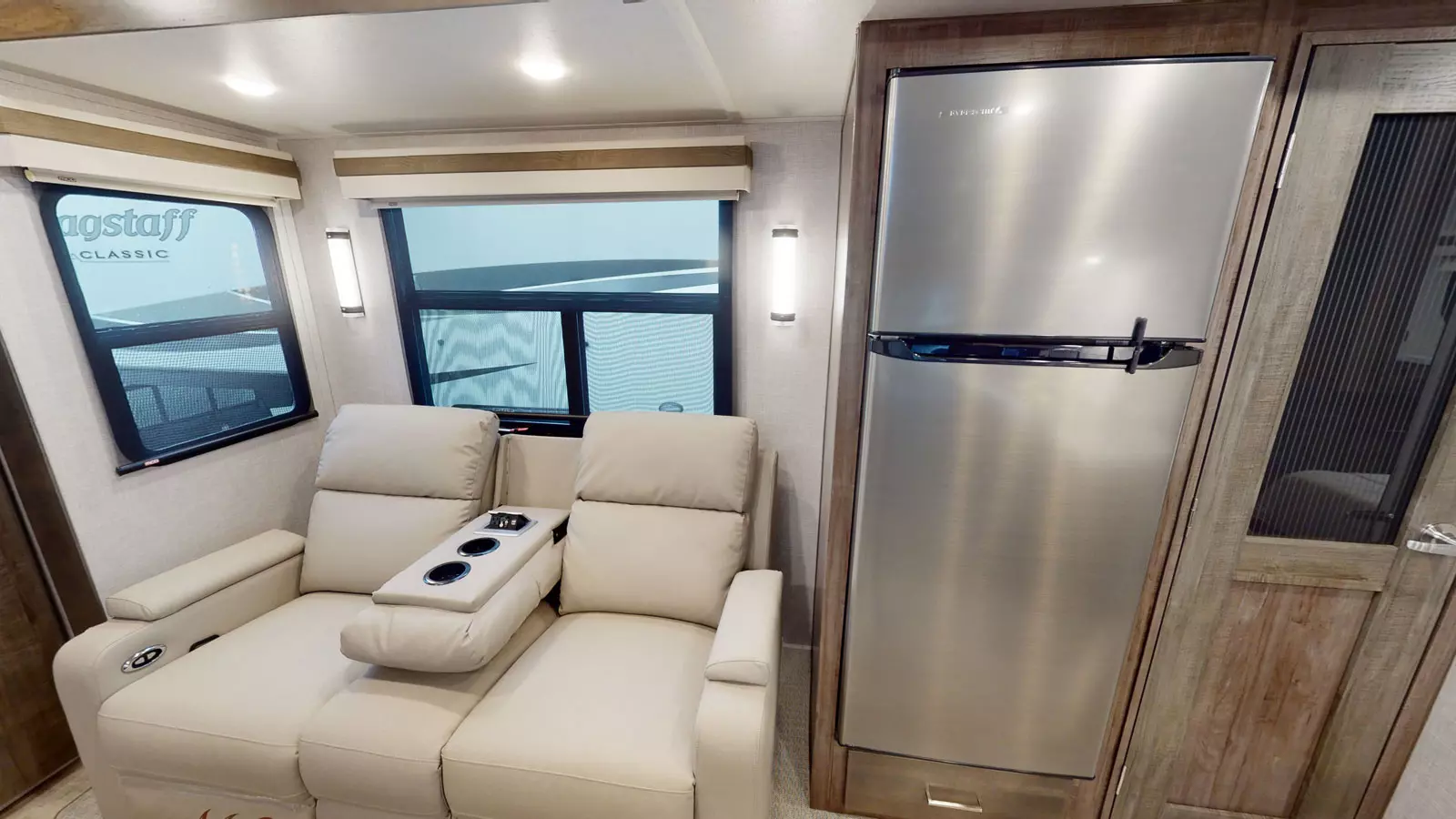

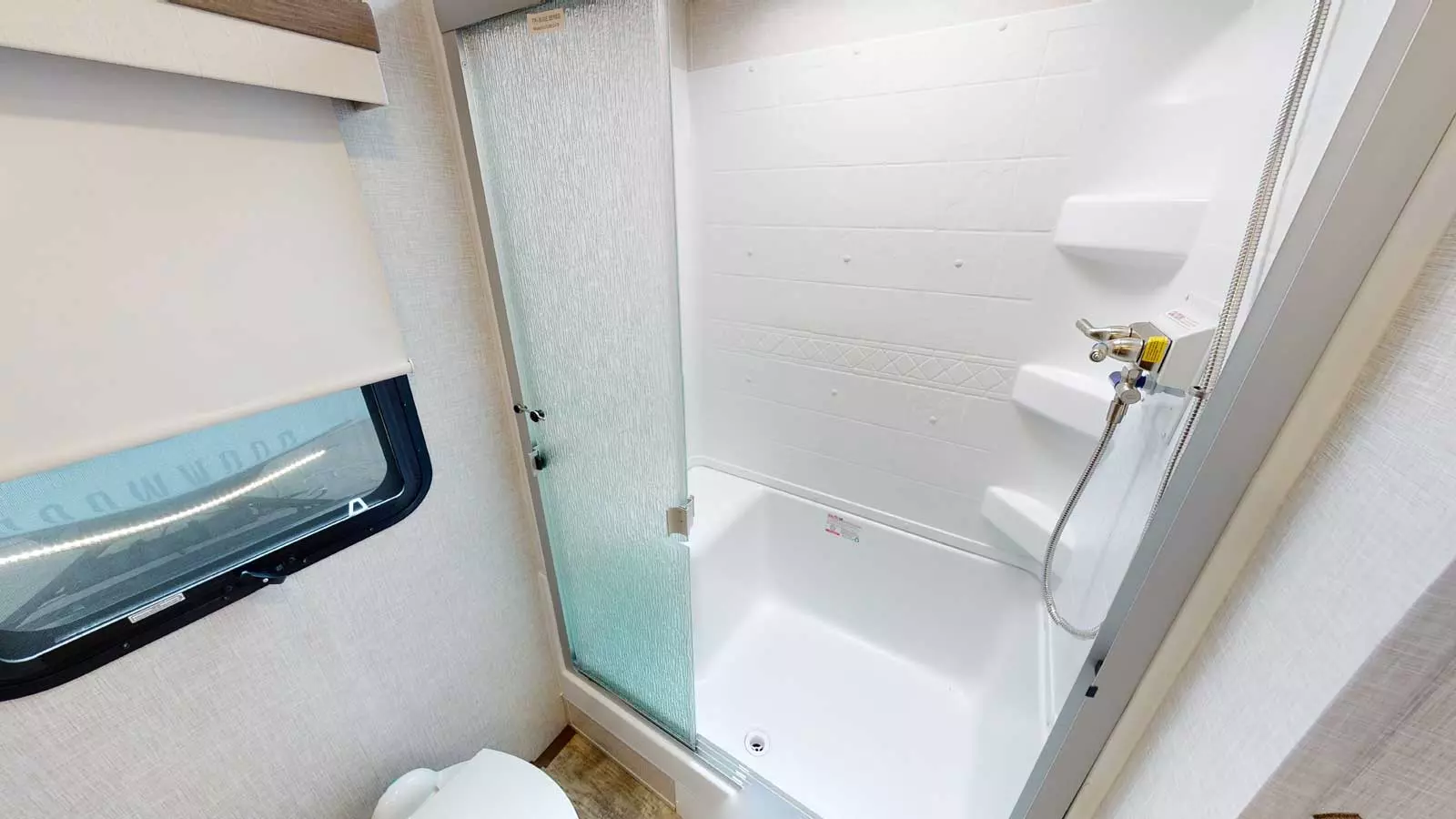

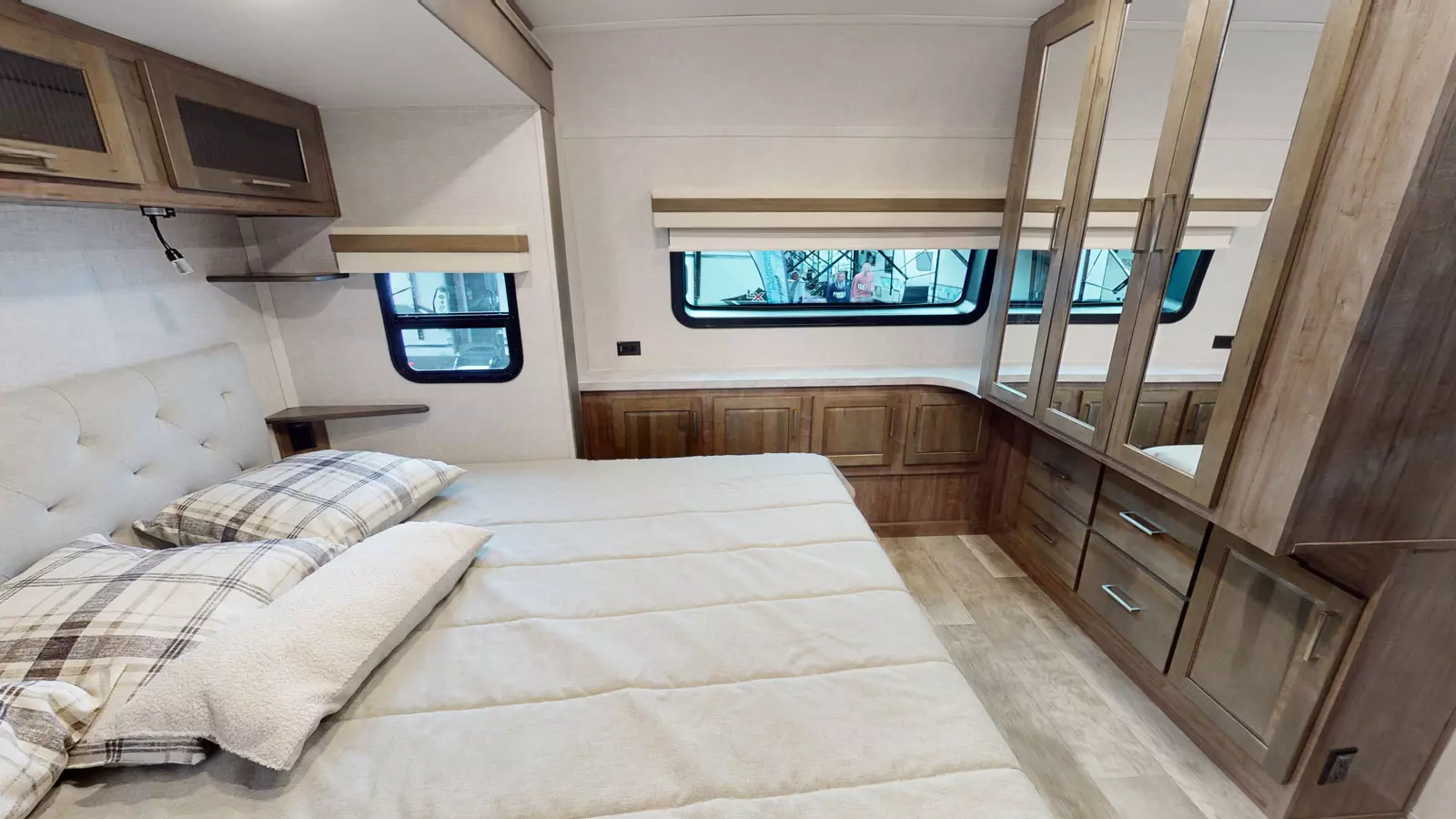

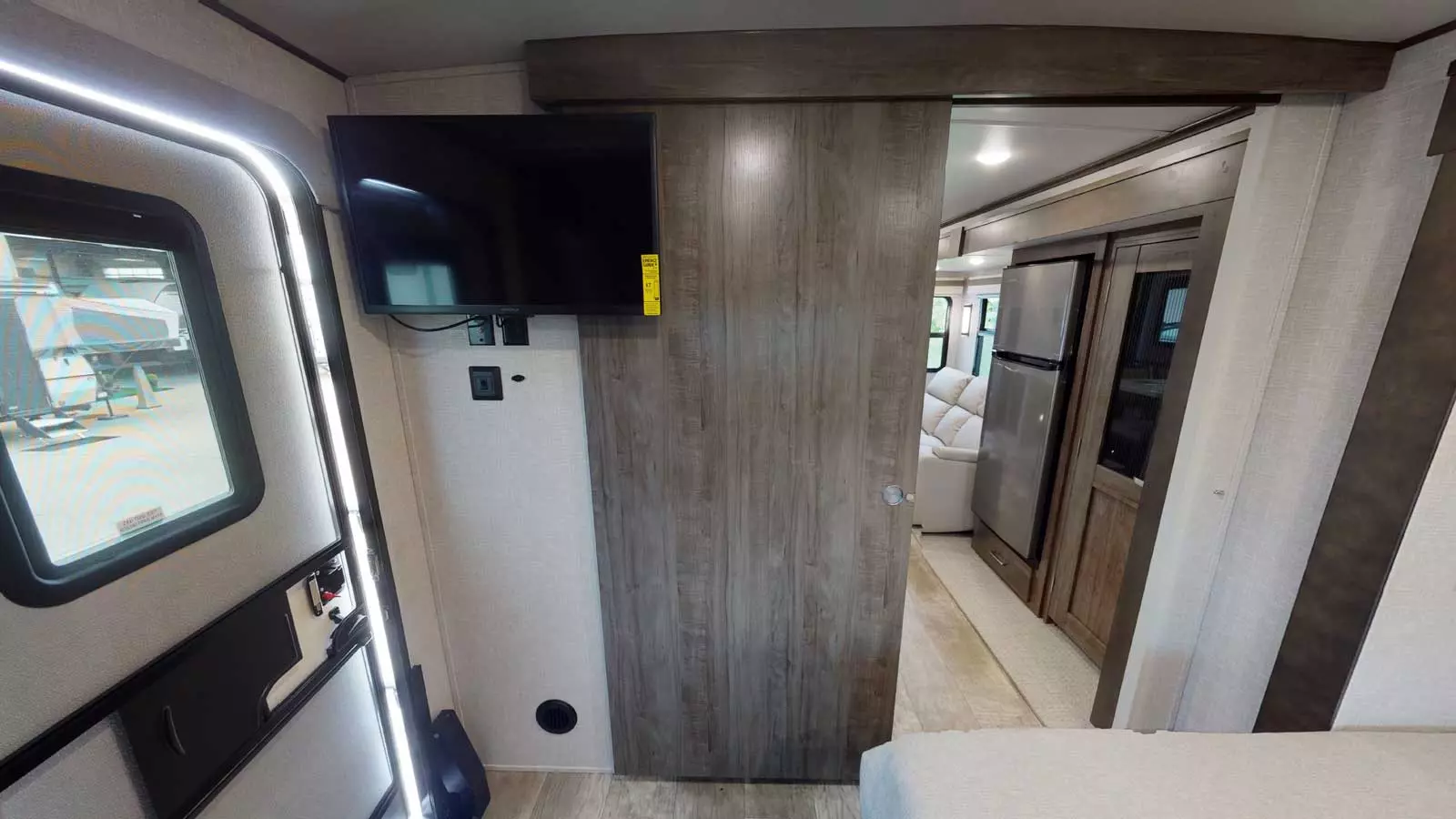

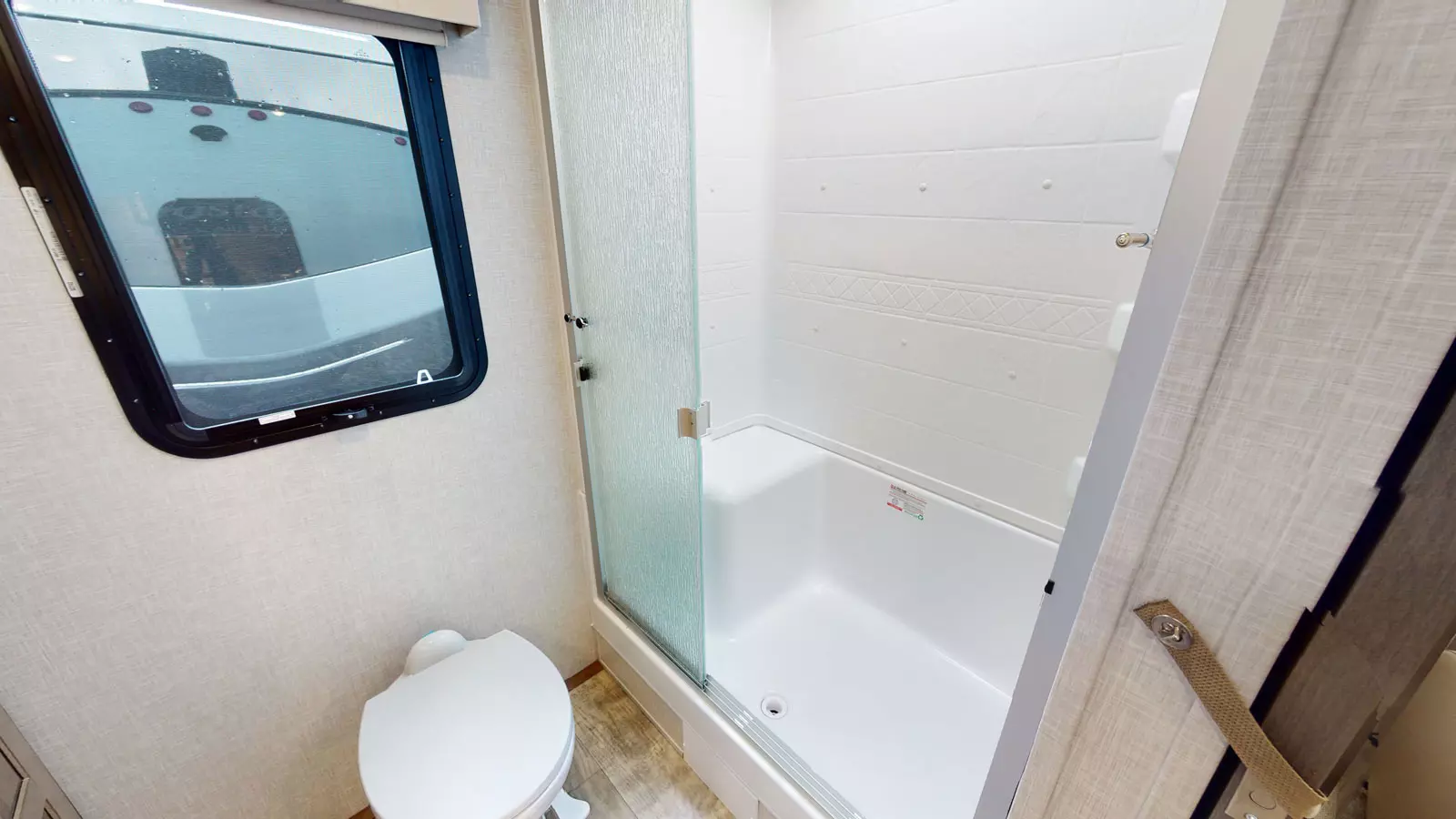

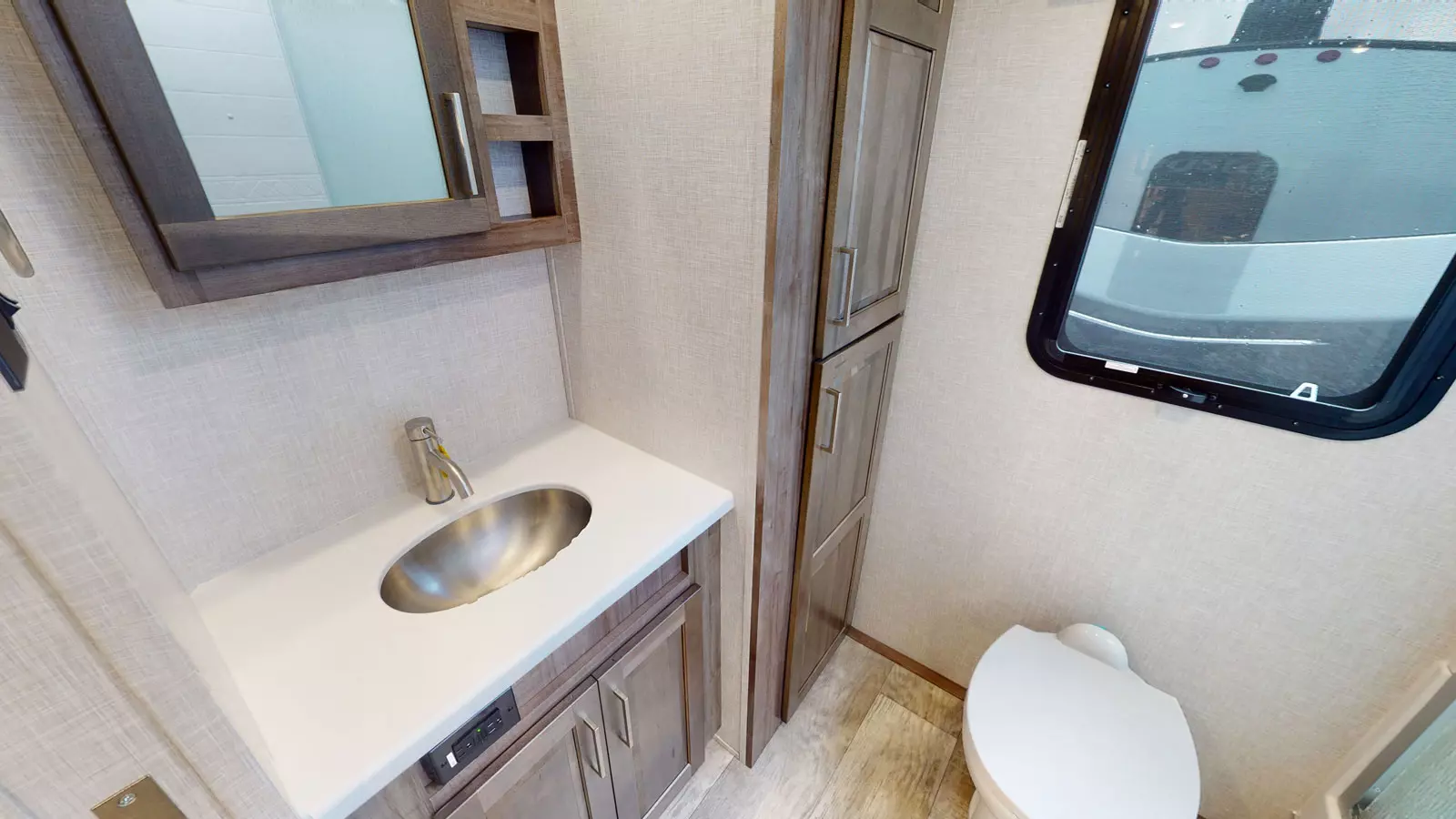

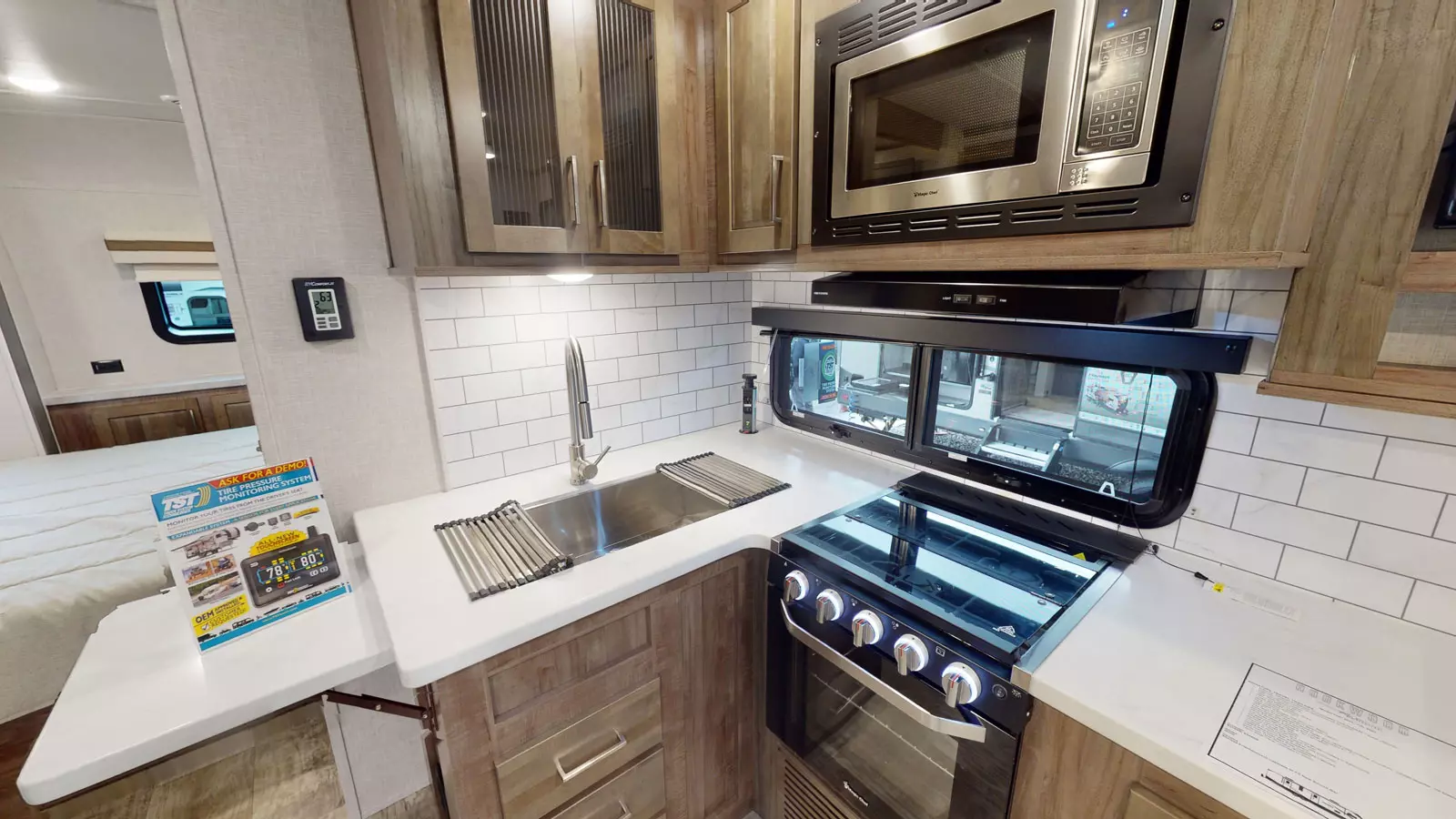

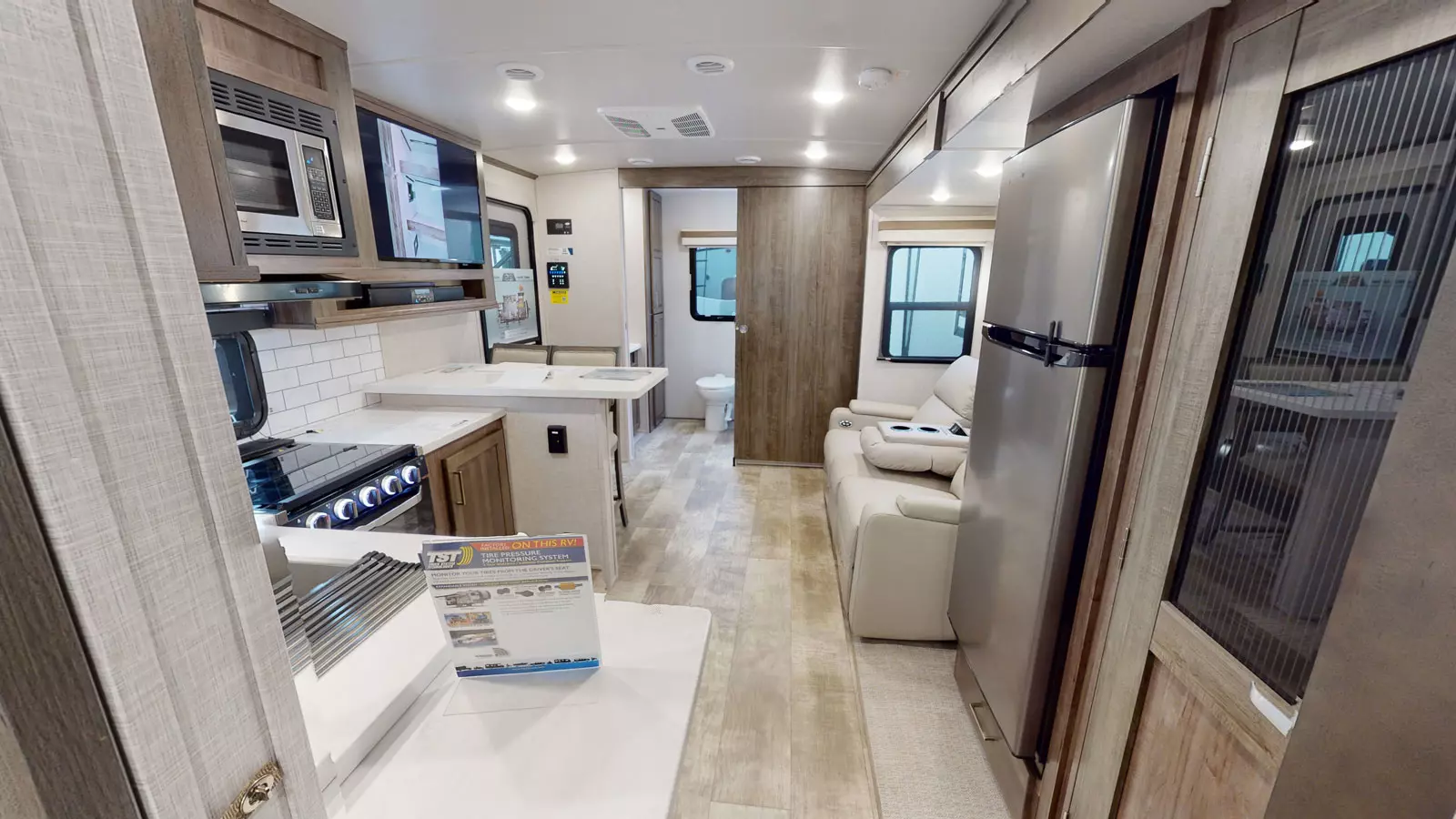

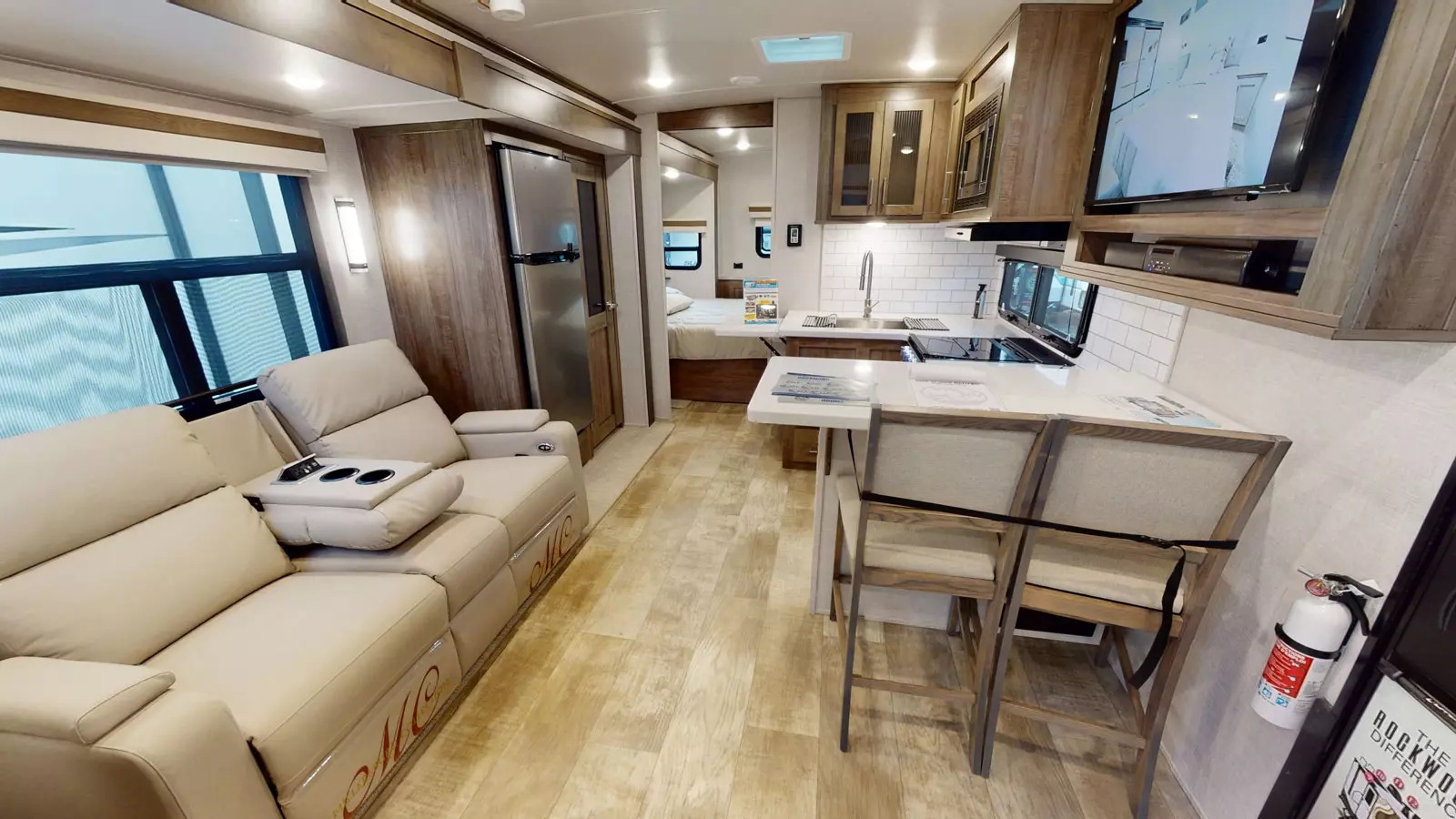

The 8262RBS has two slide outs on the off door side with two entry doors. Exterior features include one 21 foot awning, exterior storage, griddle, rear ladder, and 2 inch receiver hitch. Interior layout from front to back: front bedroom window with storage below, wardrobe with washer and dryer prep inside, one entry door, and off door side queen bed slideout with overhead cabinet; sliding door takes you to off door side slide out with refrigerator, pantry and theater seating, door side kitchen with sink, overhead cabinets, microwave, cooktop, eat in kitchen with barstools and TV above, and second entry; rear full bathroom with linen closet.
Enlarge
This is the second edition in our Rockwood Signature Suite Series. The suite series is a camper under 30 feet that has every available option. This model has a very large bathroom and the door to the bedroom with a king bed option is also very large and user-friendly. This couple's coach has bar-top seating and a very large pantry. This suite series couple’s coach is elegant and will meet every need for cross country travel or just to the local park.

Specifications

Hitch Weight:
1,070 lb.
UVW
7,709 lb.
CCC
2,161 lb.
Exterior Length:
29' 11"
Exterior Height:
11' 7"
Exterior Width:
96"
Fresh Water:
54.00 gal.
Gray Water:
70.00 gal.
Black Water:
40.00 gal.
Awning Size:
19'

GVWR (Gross Vehicle Weight Rating)
– is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.



360 Tour



Video Tour



Features & Options

  • Laminated White OR Champagne Color Fiberglass Sidewalls
  • High Gloss Front Cap with Automotive Windshield (N/A 8332SB)
  • Exterior Battery Disconnect Switch
  • Power Awning w/ Adjustable Rain Dump & LED Lighting
  • Tinted Frameless Windows
  • Slam Latches & Magnetic Compartment Door Catches
  • Cable & Satellite Hookup
  • Teton All In One Wi-Fi Booster/LTE Prep & Antenna
  • Ground Solar Panel Prep
  • Outside Griddle w/ LP Hook Up
  • Friction Hinge Entrance Door with Window Shade & ScreenShot Screen Door
  • Large, Foldable Grab Handles (All Entrance Doors)
  • Outside Shower w/ Hot & Cold Water
  • Outside Antifreeze Station
  • Black Tank Flush
  • 360 Siphon Vent Cap On All Black Tanks
  • Solid Entry, Strut Assist Fold Out Entry Steps
  • Outside Speakers
  • Keyed Alike Locks
  • Rear Ladder
  • Power Stabilizer Jacks
  • 2" Accessory Hitch
  • 200W Roof Solar Panel with 1000W Inverter (1800W Inverter on 8332SB)
  • Shielded Awning Cover
  • Newport Ash Cabinetry
  • Autumn Wood Cabinetry
  • Screwed & Glued, Solid Wood Cabinet Doors & Drawers With Hidden Hinges, Soft Closing Metal Drawer Glides & Residential Hardware
  • 35K BTU Ducted Furnaces
  • Carbon Monoxide Detector
  • Interior 12V Outlet
  • 55 AMP Converter with Charger
  • Ceiling LED 12V Interior Lighting
  • Fireplace (select floor plans)
  • Quick Recovery Water Heater w/ Interior Gas/Electric Switches
  • Multi Zone Soundbar/Stereo Combo w/AM/FM & Bluetooth Control
  • 86" Interior Height
  • 15,000 BTU Ducted A/C w/ 50 AMP Service & Prepped for Second A/C
  • One Control Touch Button Control Panel w/ WeRV App Control
  • Day/Night Roller Shades
  • One Control We RV App Control for Lights/Awnings/Slides/Water Heater/Water Pump/WIFI Pwr
  • Marine Grade Carpet in slides
  • LED TV With Upgraded Speaker System and Subwoofer
  • Multi Zone Soundbar/Stereo Combo w/AM/FM & Bluetooth Control
  • Deluxe Tri-Fold Sleeper Sofa (Opt only on 8263MBR & 8336BH, Std. all others)
  • Deluxe Theater Seating with Adjustable Lumbar Support and USB Outlets
  • 15,000 BTU Ducted Roof Air
  • Washer/Dryer Prep (N/A 8263MBR)
  • Carpetless Main Bedroom Floor
  • Under Bed Storage
  • Designer Headboard & Bedding
  • Individual Reading Lights
  • Two Bed Side Power Outlets
  • 72 x 80 King Beds (Optional on 8336BH, 8262RBS Std. all others))
  • 6 Sided Aluminum Framed (Side Walls, End Wall, Front, Floor & Roof)
  • 5/8" Plywood Tongue & Groove Subfloor
  • Insulation Factors R-7 Side Wall, R-12 Floor & R-14 Ceiling
  • Radiant Foil Insulated Underbelly & Slide Out Floors
  • Enclosed Underbelly
  • Electronically Controlled Heated Holding Tanks
  • Radius Roof w/ Interior Vaulted Ceilings
  • Vinyl/Rubber Composite Roofing Membrane
  • Vacuum Laminated One Piece Roof & Walls
  • Aluminum Cage Dinette & Bed Base
  • Interior & Exterior Azdel Sidewall Construction
  • Rear Observation Camera Prep w/ Molded Mounting Plate
  • Easy Lube Axles & Nev-R Adjust Brakes
  • Torsion Axle, Rubber-Ryde Suspension
  • Spare Tire w/ Carrier & Cover
  • Power Tongue Jack
  • TST Tire Pressure Monitor System w/ Monitor
  • Three Burner High Output Gas Range with Flush Mount Glass Top Cover
  • 21" Gas Oven
  • Under mount Single Bowl Kitchen Sink w/ Residential Style Faucet & Cover
  • Microwave Oven
  • Water-Pur Filtration System
  • Residential Full Extension Soft Close Drawers
  • Residential Solid Surface Kitchen Countertops
  • Designer Kitchen Backsplash
  • 11 cubic foot 12V Refrigerator (N/A for 8332SB)
  • Showermiser Water Saving System
  • Bathroom Skylight
  • Water Heater By-Pass Kit
  • Foot Flush Toilets
  • Maxxair Ventilation Fan & Cover
  • Upgraded Residential Faucet
  • Second Roof 15,000 BTU A/C with Chill Chaser Heat Strip & Digital Dual Control Thermostat
  • Deluxe Tri-Fold Sleeper Sofa (Opt only on 8263MBR & 8336BH, Std. all others)
  • Extra Maxxair® Ventilation and Vent Cover
  • Tongue Mount Bike Rack
  • Slide Toppers
  • ThermoPane Window Upgrade
  • Electric Auto Leveling System
  • LED Bedroom TV
  • Washer/Dryer (N/A 8263MBR)
  • Flip Down Rear Storage Deck (250 lbs. Max Load)
  • 8 Cubic Gas/Electric Refrigerator (N/A 8332SB)
