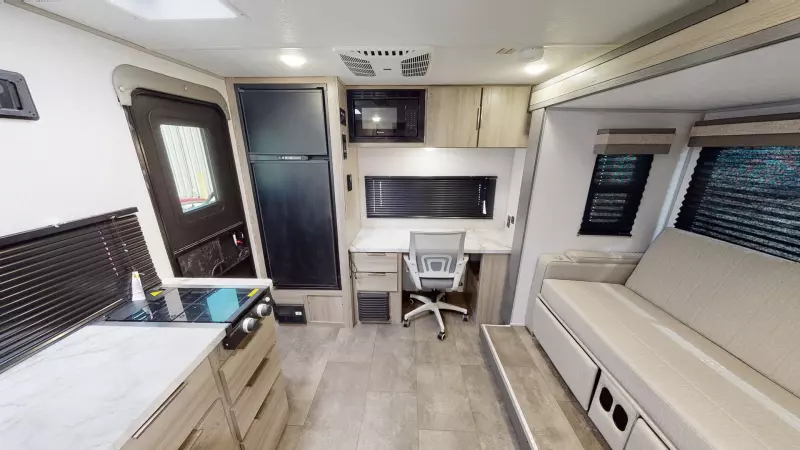

The Salem FSX 163RDSK floorplan features a single slide with theater seating, front bedroom, pass through bath, and kitchen in the rear with a mobile workstation along the back wall. The exterior includes a pullout LP griddle, LP quick connect, and removable underbelly panels.
- Hitch Weight
- 515 lb.
- UVW
- 4,299 lb.
- CCC
- 1,316 lb.
- Exterior Length
- 22' 11"
- Exterior Height
- TBD
- Exterior Width
- 90"
- Fresh Water
- 39 gal.
- Gray Water
- 30 gal.
- Black Water
- 30 gal.
- Awning Size
- 15'
163RDSK
The Salem FSX 163RDSK floorplan features a single slide with theater seating, front bedroom, pass through bath, and kitchen in the rear with a mobile workstation along the back wall. The exterior includes a pullout LP griddle, LP quick connect, and removable underbelly panels.
163RDSK Travel Trailers Features & Options
-
-
Construction Advantages:
- 5/8” Tongue & Groove Plywood Floor Decking
- Full Walk on Roof with SuperFlex Roof Membrane for Longevity w/ 5” Bowed Truss Roof Rafters
- Powder Coated I-Beam Frame w/ Camber for Stiffer Structural Support
- Nitrogen Filled Tires
- 2” Wall Construction, 16” (or less) on Center
- Fiberglass Insulation Throughout
- 13 Ply Cross Micro-Laminated Header Beam Above Slide-Out
- Triple Seal Slide-Out System for Moisture Barrier
- Aerodynamic Front Profile for Easy Towing
- .040 Smooth Aluminum Front Profile for Added Rigidity
- Diamond Plate Rock Guard on Front for Protection Standard Features:
- Waterproof Portable FM / Bluetooth Speaker System
- Extra Thick Luxury Vinyl Flooring - NO CARPET!
- Largest in Class Opening Panoramic Windows
- Large 36x24 Shower Pan w/ Shower Surround + Waterproof Retractable Shower Door (No Curtain)
- 39/30/30 F/G/B Holding Tanks for Extended Camping
- 26" Entrance Doors w/ Friction Hinge to Shut Slow
- 7-Way Plug and Chain Holder
- 4 - 6 USB Ports, Tablet Compatible, in Bedroom and Bunks
- Large Baggage Doors for Exterior Storage
- Residential High Rise Kitchen Faucet
- Backup Camera Ready (Harness and Wiring Installed)
- 30 Amp Service w/ Auto Detect Converter (Works with Multiple Battery Types)
- Dedicated Cable TV Hookup on Exterior of Coach
- Microwave
- 6 Gal. Gas DSI Water Heater
- 2 Burner Cook Top with Glass Cover
- Mirrored Vanity with Medicine Cabinet (available on most models)
- Omni Directional Digital TV Antenna
- Water Heater By-Pass
- Roof Mounted Solar Inlet on Roof
- Side Mounted Solar Inlet on Camp Side Best-In-Class Package:
- Enclosed AccessiBelly (w/ Removable Underbelly Panels)
- Large Capacity 11 CU FT Frost-Free Refrigerator (12-Volt)
- Seamless Countertops (No T-Mold)
- Outside Hot/Cold Shower
- Green Package - Furrion Solar Prep & LED Mushroom Lights
- Power Awning with Adjustable Legs and LED Light Strip
- Black Tank Flush
- Upgraded Appliance Package
- EZ Entrance - Friction Hinge Entrance Door, Double Step + XL Folding Grab Assist Handle
- Wi-Fi Prep in TV Antenna Options:
- Platinum Package - Fiberglass Exterior Walls
- Extended Power Package: Roof Mounted 200W Solar Panel, 30 Amp Controller, and Battery
- Power Tongue Jack
- Solid Entry Step with Triple Stairs All Supported Directly to the Ground
- Color Coded Water Lines
- Seamless Holding Tanks
- 13.5K BTU Roof Mounted Air Conditioner
- 20K BTU Furnace
-
- Dual Group 27 Battery Trays for Extended Camping Power
- Battery Disconnect to Turn Entire Unit Off When Done Camping
- Extra Large Baggage Doors for More Gear Storage
- Backup Camera Ready - Just Plug and Play
- Largest in Class Opening Panoramic Windows
- Exterior Speakers w/ Blue LED Lights
- 7-Way Plug and Chain Holder
- Dedicated Cable TV Hookup on Exterior of Coach
- 6 Gal. Gas DSI Water Heater
- Omni Directional Digital TV Antenna
- Side Mounted Solar Inlet on Camp Side
- Residue Resistant Linoleum (Added Durability Against Oil, Grease, Gas)
- Foot Flush Toilet
- Power Vent Fans to Exhaust Heat, Smells, and Humidity
- LED Interior Lighting for Low Power Draw and Brighter Camping
- LP Quick Connect on Exterior of Unit - Perfect for Griddles, Grills, and More
- Construction Advantages:
- 5/8” Tongue & Groove Plywood Floor Decking
- 2x3” Floor Structure Construction
- Full Walk on Roof with SuperFlex Roof Membrane for Longevity w/ 5” Bowed Truss Roof Rafters
- Powder Coated I-Beam Frame w/ Camber for Stiffer Structural Support
- Nitrogen Filled Tires
- Garage Chassis w/ Full Height Steel Floor Supports Every 24”
- 2” Wall Construction, 16” (or less) on Center
- Fiberglass Insulation Throughout
- 13 Ply Cross Micro-Laminated Header Beam Above Slide-Outs
- Triple Seal Slide-Out System for Moisture Barrier
- Aerodynamic Front Profile for Easy Towing
- .040 Smooth Aluminum Front Profile for Added Rigidity
- Diamond Plate Rock Guard on Front for Protection
- Color Coded Water Lines
- Seamless Holding Tanks
- (2) 20lb Propane Tanks for Extended Camping
- Garage Standard Features
- MAX 84" Interior Height for Toys of All Sizes - Especially Newer Golf Carts and Side by Sides
- MAX Width (Varies by Model) - Specifically Designed to Get You Every Inch of Space for Larger Toys
- MAX Ramp Loading Convenience: Easy open patio kit for full ramp usage when loading toys
- E-Z Ramp Approach Angle (Average 16°)
- 1,500LB Tie Downs for Securing Gear, Strategically Placed Throughout Each Floorplan
- 50% Thicker Floor Structure That Normal Travel Trailers to Accept Heavier Loads
- 2x Chassis Support Throughout Garage Area for Gear
- Carpet Free and Floor Ductwork Free in All Garage and Gear Areas for Easy Cleanup
- Upgraded Full Blackout Window Coverings to Keep Prying Eyes at Bay When Storing Precious Cargo
- Removable Entrance Step to Get Every Last Inch Of Storage
- Interior Standard Features
- 4 - 6 Tablet Compatible USB Ports in Bedroom, Bunks, Living Areas
- MAX 15,000 BTU Air Conditioner for Cool Comfort - 11% Larger Than Normal - Replaces Standard 13,500 BTU Air Conditioner
- Fully Independent Air Conditioning Ductwork for Focused Cooling When Needed
- Large Shower Pans for Adults (No Bathtubs)
- 50 Amp Service w/ Auto Detect Converter (Works with Multiple Battery Types)
- 3 - TV Mounting Areas (Varies by Model)
- Water Heater By-Pass
- 20K BTU Furnace Ducted Through Walls and Cabinets, No Floor Ducting
- Kitchen Standard Features
- MAX Kitchen Storage - Nearly 50% More Cabinetry Than Others Thanks to Space Saving Appliances and Clever Designs
- 3-in-1 Cooker w/ Convection Oven, Microwave, 3 Burner Gas Cooktop
- Dual Swinging 12V Refrigerator for Easy Access on Either Side ((Varies by Model and Date of Build)
- Residential High Rise Kitchen Faucet and Deep Stainless Steel Kitchen Sink with Sink Cover/Cutting Board
- Slim Range Vent Hood over Cooktop
- Seamless Countertops with Waterproof Membrane for Longevity
- Exterior Standard Features
- MAX Extended Power Package: Roof Mounted 200W Solar Panel, 30 Amp Controller, and Single Battery
- Oversized Entrance Doors - 30” Wide Instead of 26” - 15% Larger Than Normal
- Detachable Power Cord
- Oversized 54/40/40 F/G/B Holding Tanks for Extended Camping
- Best-In-Class Package:
- MAX COLD WEATHER Package: 12V Heated Tank Pads on all Holding Tanks (Fresh, Grey, and Black) w/ AutoStart below 48°F + Fully Enclosed Underbelly Using Industry Leading AccessiBelly Panels + Thermofoil Insulative Lining for Heat Capture and Deflection
- AccessiBelly Enclosed Underbelly Panels for Added Protection from Cold and Elements
- Patio Kit for Ramp Door with 1,500lb Capacity as a Patio
- Magnetic Screen Door for Patio Entrance
- Large Capacity 11 CU FT Frost-Free Refrigerator (12-Volt)
- Seamless Countertops (No T-Mold)
- Power Awning with Adjustable Legs and LED Light Strip
- Black Tank Flush for Easy Cleanup After Camping
- EZ Entrance - Friction Hinge Entrance Door, Triple Step + XL Folding Grab Assist Handle
- Slide Topper Prepared for Easy Install (Select Models Only)
- 30” Built-In Electric Fireplace and 5,000BTU Heater (Select Models Only)
- 15 Gallon Stow N Go Storage Containers Under Sofas (Varies By Model)
- Solid Entry Step with Triple Stairs All Supported Directly to the Ground
- Camp Comfort Package
- Power Tongue Jack for Faster Setup
- LCI Quick Drop Stabilizer Jacks for More Solid Camping Experience (Varies by Model and Date of Build)
- Outside Hot/Cold Shower
- Outside Spray Port w/ Extension Hose and Sprayer for Cleaning Gear
- Slim Range Vent Hood over Cooktop
- Options:
- Platinum Package - Fiberglass Exterior with Upgraded Graphics Package, Chrome Wheel Caps and Lug Nuts
- Stow N Load Seating and Sleeping System for MAX Sleeping Capacity in Garage (Select Models Only)
