XLR Boost and Micro Boost Toy Haulers


The Possibilities are endless.

You can do it all with an XLR Boost toy hauler. Weekend camping, motorcycle rally, ski trips, soccer tournaments, dog shows, canoe / kayak water sports, tailgating, or off the grid side by side fun. Our well equipped XLR Boost and Micro Boost Brand of toy haulers is designed for an "Action Camping" lifestyle. You will find the "Xtra Built" features of the 102” wide body XLR Boost or the 96” wide XLR Micro Boost , will give you a fresh sense of what camping is meant to be. It will afford you the opportunity to take the toys that your passionate about on your next camping Trip. Not all Travel Trailers and Fifth Wheels can do that but an XLR Boost Toy Hauler can make it happen!

Care Camps, fighting cancer and making memories

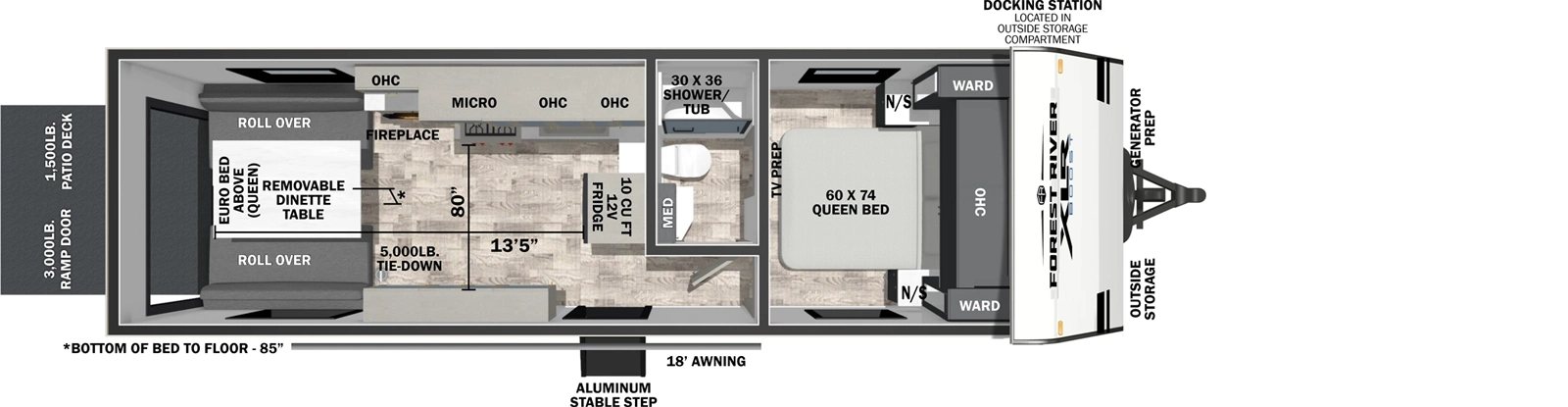

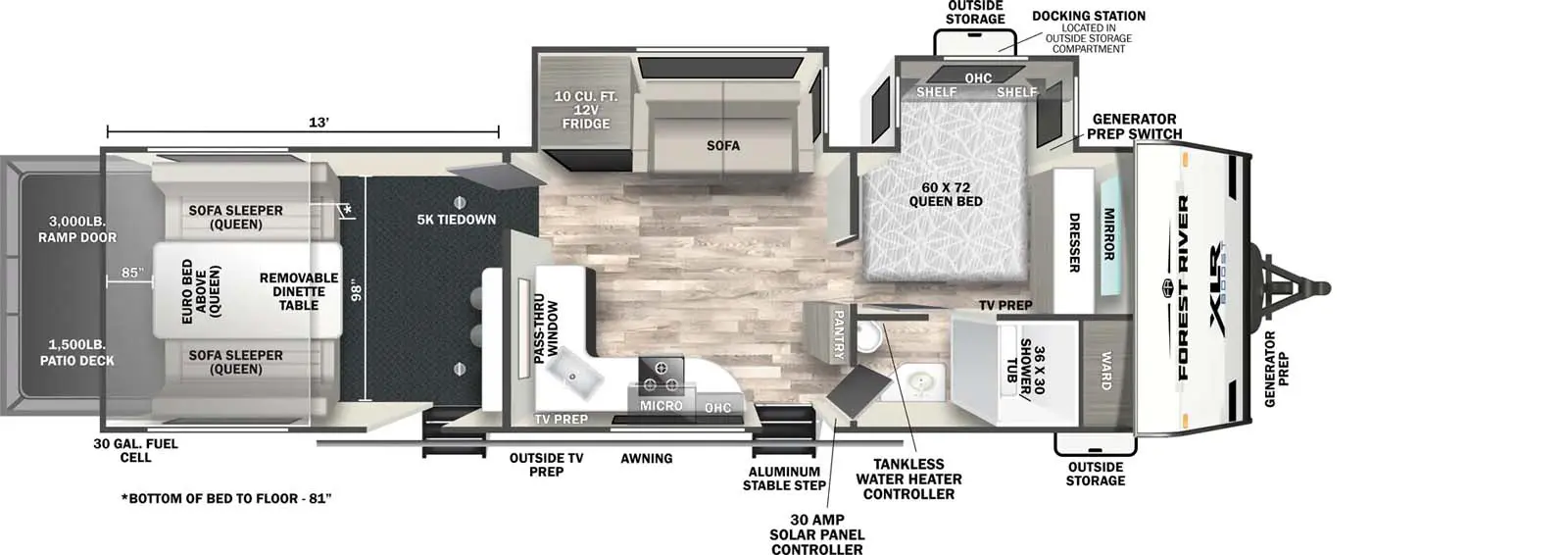

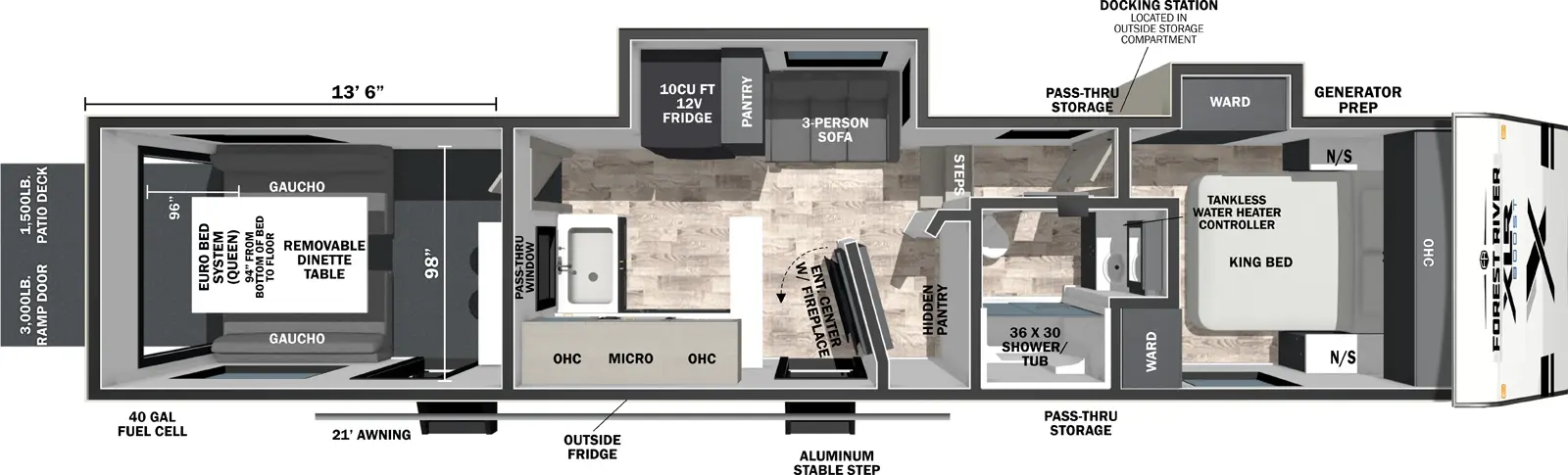

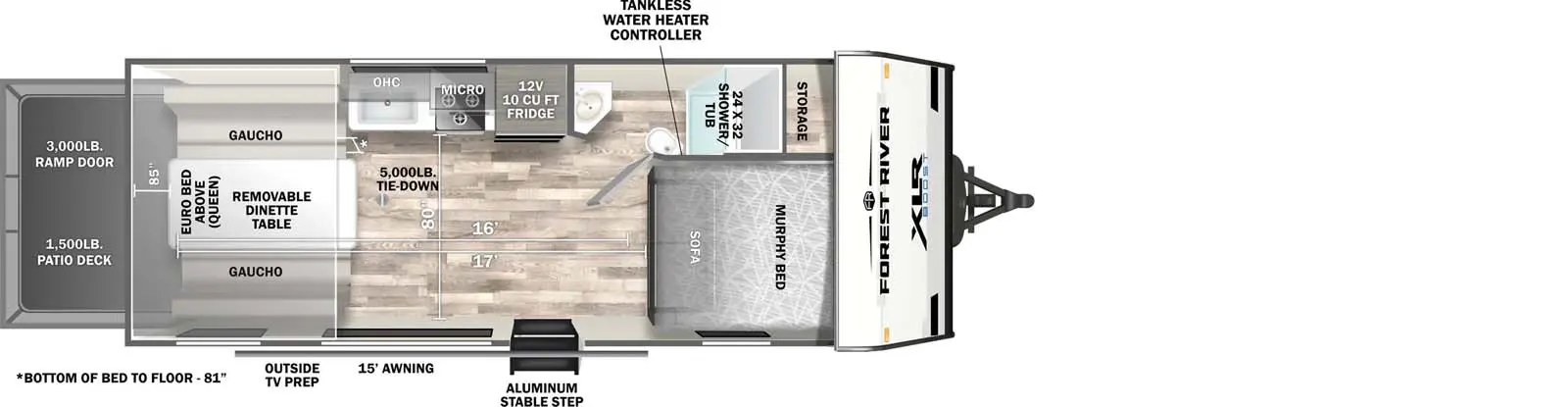

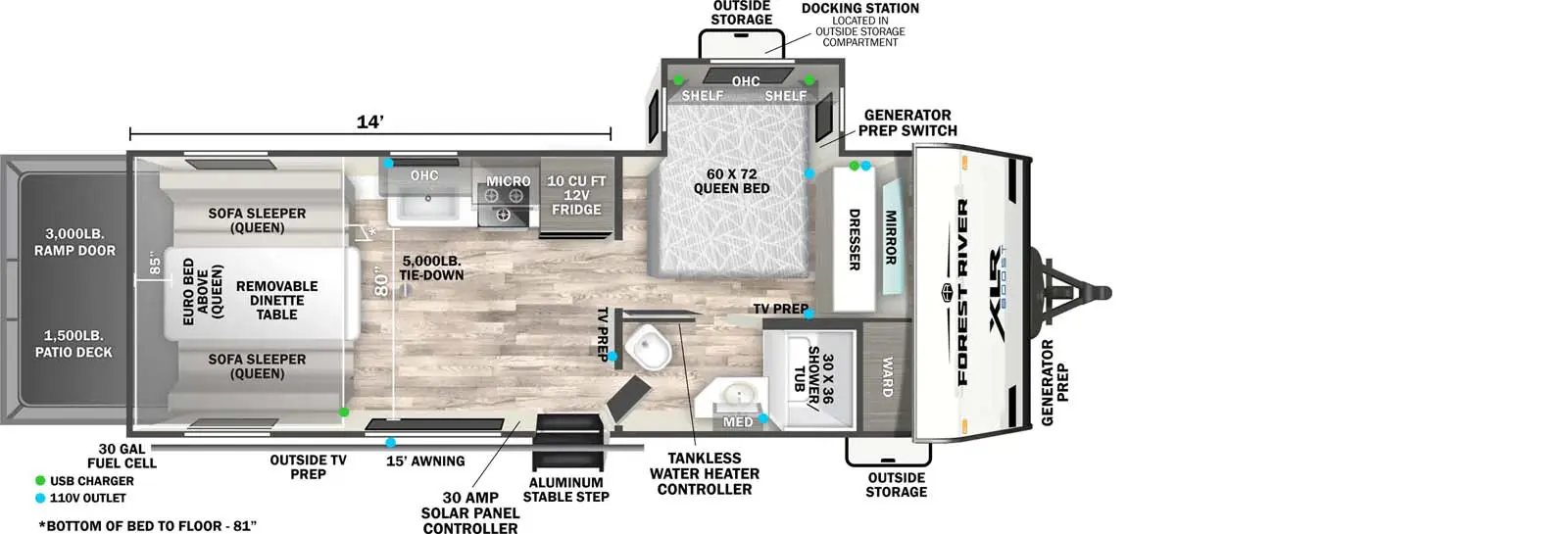

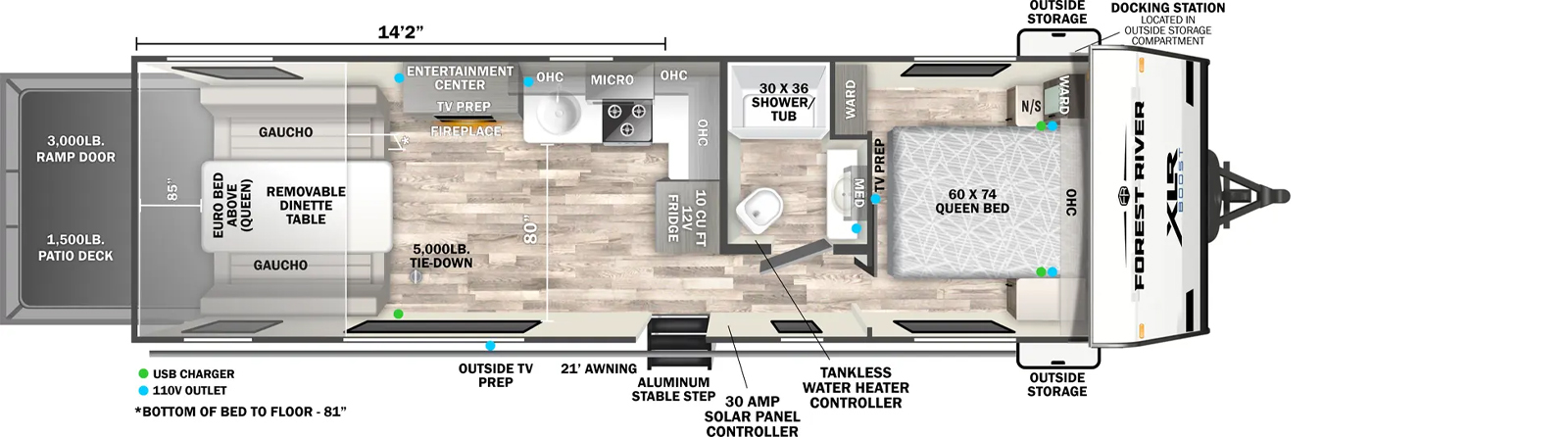

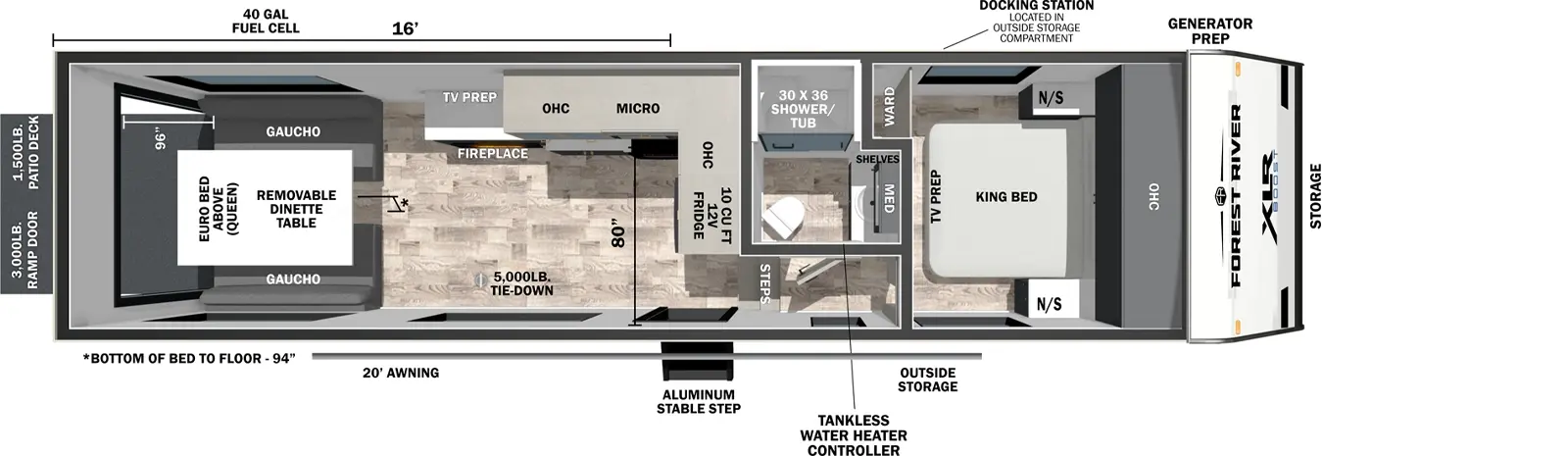

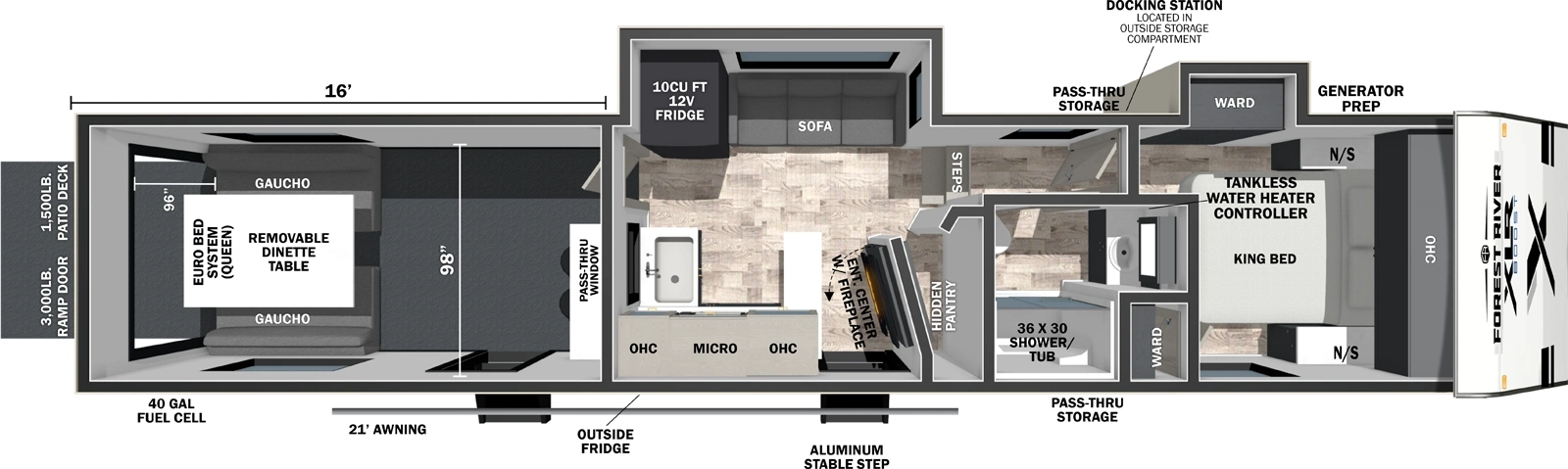

Floorplans

Print

XLR Micro Boost Travel Trailers
XLR Micro Boost Fifth Wheels

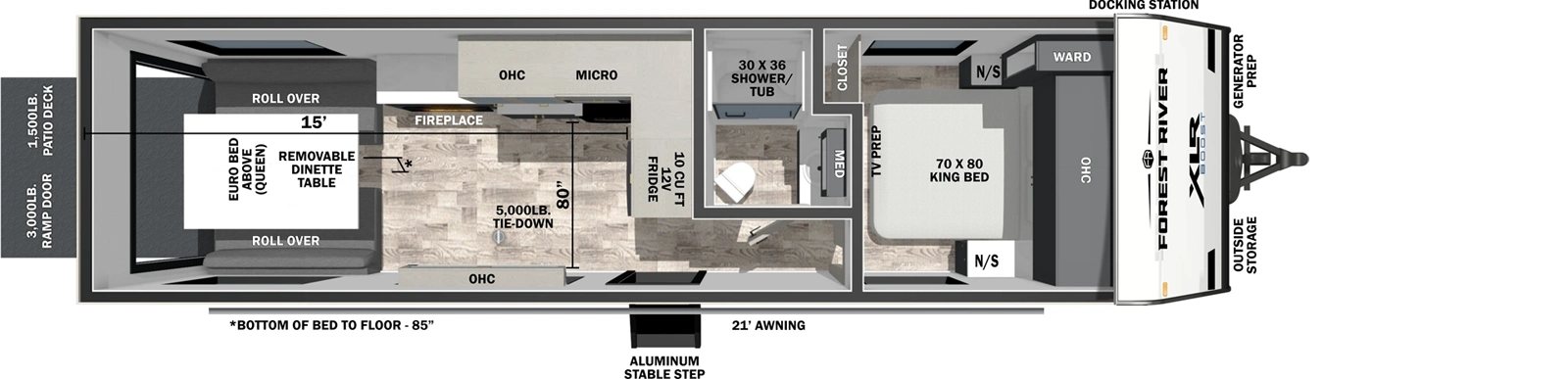

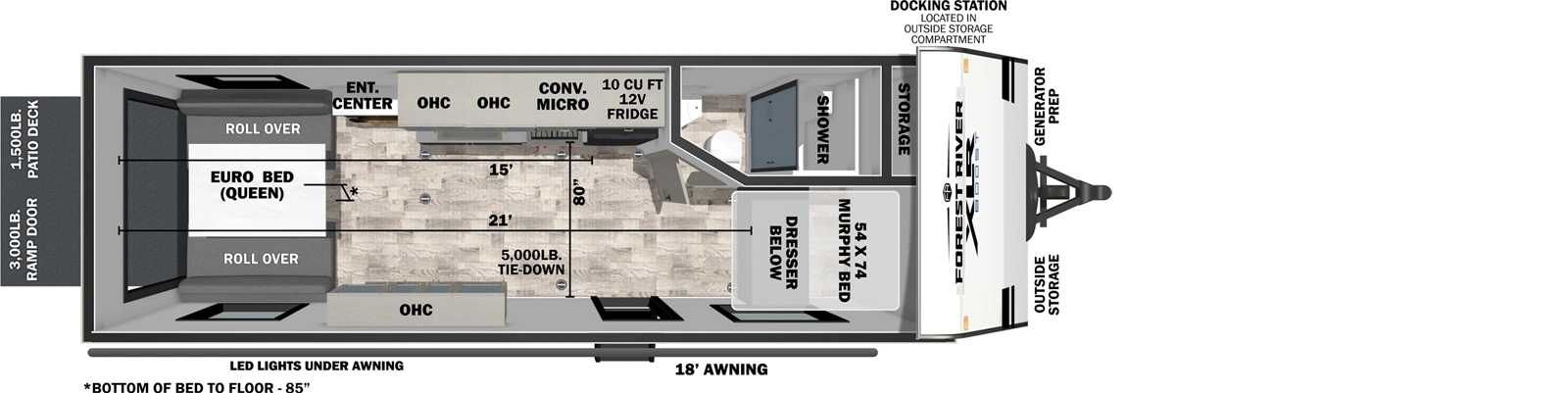

XLR Boost Travel Trailers
XLR Boost Fifth Wheels
Micro Boost Dealer Stock Only

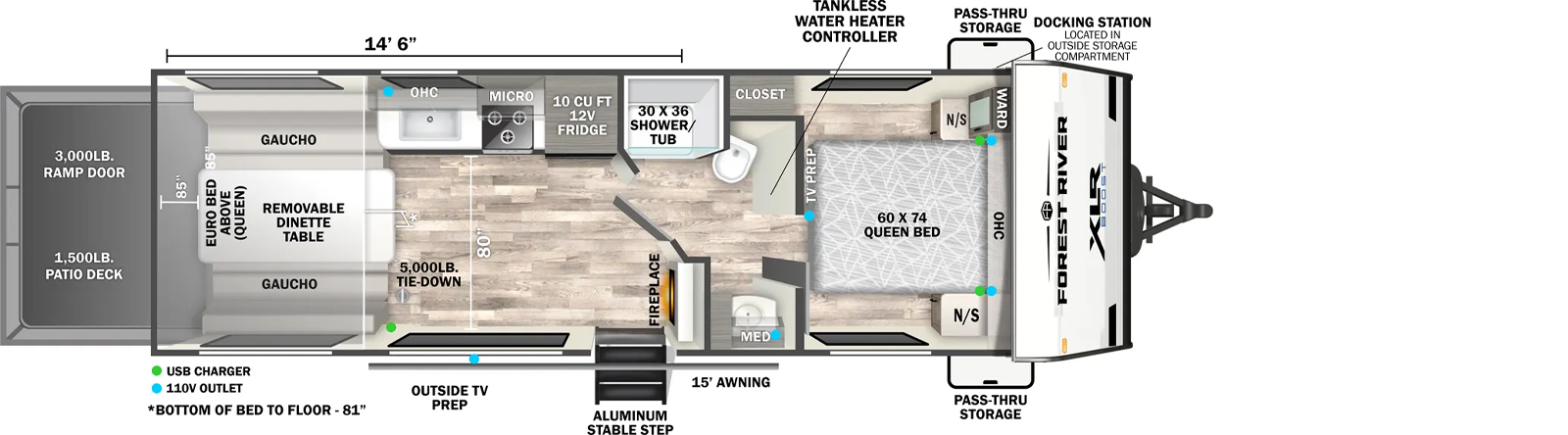

Boost Dealer Stock Only


Specifications

Print

Floorplan: 19XLRE : XLR Micro Boost Travel Trailers 25XLRE : XLR Micro Boost Travel Trailers 27XLRE : XLR Micro Boost Travel Trailers 29XLRE : XLR Micro Boost Travel Trailers 301XLRE : XLR Micro Boost Fifth Wheels 305XLRE : XLR Micro Boost Fifth Wheels 335XLRE : XLR Micro Boost Fifth Wheels 21XLRX : XLR Boost Travel Trailers 27XLRX : XLR Boost Travel Trailers 29XLRX : XLR Boost Travel Trailers 32XLRXF16 : XLR Boost Fifth Wheels 35XLRXF11 : XLR Boost Fifth Wheels 36XLRXF16 : XLR Boost Fifth Wheels 37XLRXF14 : XLR Boost Fifth Wheels 301LRLE - DSO : Micro Boost Dealer Stock Only 335LRLE - DSO : Micro Boost Dealer Stock Only 25LRLE - DSO : Micro Boost Dealer Stock Only 27LRLE - DSO : Micro Boost Dealer Stock Only 29LRLE - DSO : Micro Boost Dealer Stock Only 32RZR14 - DSO : Boost Dealer Stock Only 35DSX11 - DSO : Boost Dealer Stock Only 36TSX16 - DSO : Boost Dealer Stock Only 37TSX13 - DSO : Boost Dealer Stock Only 21QBS - DSO : Boost Dealer Stock Only 27QB - DSO : Boost Dealer Stock Only 29QBX - DSO : Boost Dealer Stock Only 31QB - DSO : Boost Dealer Stock Only
Hitch Weight:TBD884 lb.1,024 lb.1,146 lb.1,456 lb.TBD1,674 lb.1,456 lb.1,252 lb.1,698 lb.TBDTBDTBDTBD1,645 lb.1,725 lb.850 lb.1,135 lb.1,340 lb.2,195 lb.2,325 lb.2,705 lb.2,655 lb.975 lb.1,082 lb.1,505 lb.1,465 lb.
UVW:TBD5,822 lb.6,860 lb.7,112 lb.8,348 lb.TBD8,702 lb.7,014 lb.6,974 lb.9,418 lb.TBDTBDTBDTBD7,938 lb.8,533 lb.5,078 lb.6,363 lb.6,718 lb.9,658 lb.11,038 lb.13,093 lb.11,943 lb.6,273 lb.6,385 lb.8,968 lb.9,320 lb.
CCC:TBD3,062 lb.2,164 lb.4,234 lb.3,308 lb.TBD3,172 lb.4,642 lb.4,478 lb.4,280 lb.TBDTBDTBDTBD3,907 lb.3,392 lb.2,772 lb.1,772 lb.4,822 lb.4,537 lb.3,287 lb.4,800 lb.5,743 lb.4,902 lb.3,600 lb.4,537 lb.4,145 lb.
Exterior Length:TBDTBDTBDTBD32' 6"TBD32' 6"27' 3"30' 5"35' 11"TBD38' 8"TBDTBD32' 6"32' 6"28' 9"33' 4"34' 0"35' 3"40' 3"45' 2"41' 10"26' 11"31' 0"36' 11"39' 3"
Exterior Height:TBD11' 2"11' 2"11' 2"12' 10"TBD12' 10"12' 5"12' 5"12' 5"13' 5"13' 5"13' 5"13' 5"12' 10"12' 10"10' 9"10' 9"10' 9"13' 5"13' 5"13' 5"13' 5"12' 5"12' 5"12' 5"12' 5"
Exterior Width:TBD96"96"96"96"TBD96"102"102"102"TBD102"102"102"96"96"96"96"96"102"102"102"102"102"102"102"102"
Fresh Water:TBD87.00 gal.87.00 gal.87.00 gal.87.00 gal.TBD87.00 gal.87.00 gal.87.00 gal.87.00 gal.87.00 gal.87.00 gal.87.00 gal.87.00 gal.87.00 gal.87.00 gal.87.00 gal.87.00 gal.87.00 gal.87.00 gal.87.00 gal.87.00 gal.87.00 gal.87.00 gal.87.00 gal.87.00 gal.87.00 gal.
Gray Water:TBD38.00 gal.38.00 gal.38.00 gal.38.00 gal.TBD38.00 gal.38.00 gal.38.00 gal.76.00 gal.38.00 gal.38.00 gal.76.00 gal.38.00 gal.38.00 gal.38.00 gal.38.00 gal.38.00 gal.76.00 gal.38.00 gal.38.00 gal.76.00 gal.38.00 gal.38.00 gal.38.00 gal.38.00 gal.38.00 gal.
Black Water:TBD38.00 gal.38.00 gal.38.00 gal.38.00 gal.TBD38.00 gal.38.00 gal.38.00 gal.38.00 gal.38.00 gal.76.00 gal.76.00 gal.76.00 gal.38.00 gal.38.00 gal.38.00 gal.38.00 gal.38.00 gal.38.00 gal.76.00 gal.76.00 gal.76.00 gal.38.00 gal.38.00 gal.76.00 gal.76.00 gal.
Awning Size:15'TBDTBD21'15'21'15'15'15'21'21'21'12' & 15'15' & 12'15'15'15'15'21'15'21'12' & 12'12' & 12'15'15'21'15'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print
  • 15 K A/C Ducted Roof Vent
  • Friction Hinge main entry door/ with large grab handle
  • Smooth metal Front (TT)
  • Fiberglass Front Cap (FW)
  • 48” LED front Fiberglass cap lighting (FW)
  • Body Armor Enclosed & insulated Underbelly
  • Enclosed holding Tanks
  • 1 ½ inch Fresh Water Drain Valve
  • Seamless PVC Roof System
  • NXG Engineered Frames
  • Digital TV Antenna
  • Furrion External Speakers
  • Pet leash Latch
  • 12’-21’ Power Awning with Blue LED lights
  • 5” Radius wood Frame Roof
  • Laminated Weatherproof Ramp door
  • Insulated Storage doors
  • Oversized holding Tanks
  • Battery Disconnect
  • High-capacity Water pump
  • (2) 20lb propane Tanks
  • Tinted safety glass windows
  • Full size Spare tire
  • Black Tank flush
  • Back up Camera Prep
  • Rear LED lights over Ramp door
  • Nitrogen filled Black steel Wheels
  • Quick LP connects
  • Detachable Marine grade power cord
  • MorRyde Main entry stable Step
  • Power tongue Jack or landing Gear
  • Dual Zone/ HDMI/BT Furrion Radio
  • 2 Furrion interior Speakers
  • 17” Black Oven w/ glass cooktop
  • 10 Cu Ft 12VDC Black Stainless-Steel Refrigerator (TT)
  • 16 Cu Ft 12VDC Black refrigerator (FW)
  • 35,000 BTU Forced Air Ducted Furnace
  • Deep-seated Stainless-Steel Kitchen Sink
  • Oval Residential Stainless-Steel Lavvy Sinks
  • Solid Surface countertops
  • Ball Bearing Extensions drawer guides
  • Pre-drilled Cabinets
  • Solid Core Cabinet Stiles
  • LED Interior lighting
  • Tankless Water Heater
  • Skylight over Shower
  • Night Stands/Bedroom shelves
  • Power vent Fan
  • Medicine Cabinet with mirror
  • Foot Flush Toilet
  • Residential walk-in showers
  • USB Chargers
  • RV Queen bed (TT)
  • King bed (FW)
  • Satellite and Cable Hook ups
  • Magnetic Screen Wall
  • Oil and Gas resistant residential linoleum
  • Large Panoramic Windows
  • Solid interior Passage Doors
  • 5,000 BTU Fireplace (N/A 32XLRXF16)
  • TPMS – Tire Pressure monitor system
  • Fiberglass High gloss Exterior Sidewall
  • Industrial Garage Flooring (FW & TT)
  • Ramp Door Patio System
  • Sleep N Store Manual Bed System (FW & TT)
  • Sit N Sleep w/ Quick Release (FW & TT)
  • Renewable Energy 200W Solar Package – 30AMP Monitor/Battery (FW & TT)
  • Roof Ladder – Collapsible (FW & TT)
  • 86 Gallon Fresh Water Tank Capacity (FW & TT)
  • 30 Amp Service w/Detachable Cord (Travel Trailers Only)
  • 50 Amp Service w/Detachable Cord (Fifth Wheels Only)
  • 2nd A/C Prep (N/A 21XLRX)
  • Ducted A/C
  • TV Prep – Backer, Bracket & Hook Ups Bedroom/Living/Exterior (FW & TT)
  • External 30 gallon Fuel Cell w/Pump
  • Generator Prep (FW & TT)
  • External LED Strip Lighting
  • Main Entry Upgraded Step
  • Friction Door Hinge (FW & TT)
  • LED Interior Lights (FW & TT)
  • Outside TV Bracket & Hook Ups
  • Power Awning
  • Power Tongue Jack or Power Landing Gear ( TT or FW)
  • Residential Kitchen Faucet
  • Sink Cover / Dish Rack (FW & TT)
  • Decorative Kitchen Backsplash
  • Decorative Bathroom Wall
  • Decorative Glass Kitchen Upper Cabinet Doors
  • Ramp Light
  • LP Quick Connect (TT & FW)
  • Glass Shower Doors
  • Skylight over Tub (FW & TT)
  • Vent Fan Main Bathroom
  • Black Tank Flush (FW & TT)
  • Decorative Vinyl Flooring (FW & TT
  • Spare Tire (FW & TT)
  • Black Steel Wheels (FW & TT)
  • Battery Disconnect (FW & TT)
  • 5,000 lbs. Tiedowns
  • Pet Leash Latch (FW & TT)
  • Exterior Hot & Cold Shower
  • Magnetic Screen Wall (FW and TT)
  • Rear Beaver Tail Frame (FW & TT)
  • Slide Topper prep
  • Garage Chairs – STD 21XLRX, 27XLRX, 32XLXF16 (2) EACH (TT & FW)
  • Theater Seating Sofa – STD 29XLRX, 36XLRXF16, 35XLRXF11, 37XLRXF14 (TT & FW)
  • Tankless Water Heater
  • 10 CF - 12VDC Black Refrigerator (TT) and 16CF - 12VDC Black Refrigerator(FW)
  • 17” Oven w/ 3 Burner Cooktop w/ Glass Cover
  • 0.9 Microwave
  • Slim Range Hood Vent
  • 2 Zone - HDMI / BT Radio
  • (2) Interior & (2) Exterior Furrion Speakers
  • 30” - 5K BTU Fireplace (N/A 32XLRXF16)
  • 15 BTU STD Main Roof A/C
  • Back Up Camera Ready
  • Digital TV Antenna
  • Tinted Safety Glass Windows
  • (R7) Freon Rigid Urethane Foam Sidewall and (R11) Freon Rigid Urethane Foam Roof Insulation with Alumifoil Insulation Wrapping
  • (R7) Fiberglass Flooring Insulation
  • Alumifoil Insulated Enclosed Underbelly
  • Roof Attic Vents
  • 2nd 15K A/C (Requires 50AMP) (27XLRX & 29XLRX Located In Garage) (N/A 21XLRX)
  • 50AMP Service - 2nd A/C Prep (TT Only / 50AMP Is STD on FW)
  • 4.5 Gen Powered by Yamaha (TT - N/A with 50AMP)
  • 5.5 GEN Powered by Yamaha Requires 50 AMP on TT – N/A 21XLRX)
  • Inverter 2000W – General Purpose Outlets Only
  • Electric Stabilizer Jacks
  • Ultracold Weather Heated Holding Tank 12V Pads
  • Garage Chairs
  • 58” Steel Roll Over Sofa Door Side(21XLRX, 27XLRX, 32XLRXF16 N/A All Other Models)
  • Bench Dinette w/ Table IPO Theater Seat Sofa (29XLRX, 37XLRXF14)
  • Ramp opening 3 Season Door – (W/ Panel Kit for insulation- TT & FW)
  • Hide n Store – optional Drop-down Storage Area (FW ONLY)
  • 15 K A/C Ducted Roof Vent
  • Friction Hinge main entry door/ With large grab handle
  • Smooth metal Front
  • Body Armor Enclosed & insulated Underbelly
  • Enclosed holding Tanks
  • 1 ½ inch Fresh Water Drain Valve
  • Seamless PVC Roof System
  • NXG Engineered Frames
  • Digital TV Antenna
  • Furrion External Speakers
  • Pet leash Latch
  • 12’-21’ Power Awning with Blue LED lights
  • 5” Radius wood Frame Roof
  • Laminated Weatherproof Ramp door
  • Insulated Storage doors
  • Oversized holding Tanks
  • Battery Disconnect
  • High-capacity Water pump
  • (2) 20lb propane Tanks
  • Tinted safety glass windows
  • Full size Spare tire
  • Black Tank flush
  • Back up Camera Prep
  • Rear LED lights over Ramp door
  • Nitrogen filled Black steel Wheels
  • Quick LP connects
  • Detachable Marine grade power cord
  • MorRyde Main entry stable Step
  • Power tongue Jack or landing Gear
  • Dual Zone/ HDMI/BT Furrion Radio
  • 2 Furrion interior Speakers
  • 17” Black Oven w/ glass cooktop
  • 10Cu FT 12VDC Black Stainless-Steel Refrigerator
  • 20,000 BTU Forced Air Ducted Furnace
  • Deep-seated Stainless-Steel Kitchen Sink
  • Oval Residential Stainless-Steel Lavvy Sinks
  • Solid Surface countertops
  • Ball Bearing Extensions drawer guides
  • Pre-drilled Cabinets
  • Solid Core Cabinet Stiles
  • LED Interior lighting
  • Tankless Water Heater
  • Skylight over Shower
  • Power vent Fan
  • Medicine Cabinet with mirror
  • Foot Flush Toilet
  • Residential walk-in showers
  • USB Chargers
  • RV Queen bed
  • Satellite and Cable Hook ups
  • Magnetic Screen Wall
  • Oil and Gas resistant residential linoleum
  • Large Panoramic Windows
  • Solid interior Passage Doors
  • 5,000 BTU Fireplace (N/A 301XLRE)
  • TPMS – Tire Pressure monitor system
  • Sleep N Store Manual Bed System (FW & TT) N/A on the 19XLRE
  • Sit N Sleep w/ Quick Release (FW & TT)
  • Main Entry Upgraded Step (FW & TT)
  • Friction Hinge Entry Door (FW & TT)
  • VIP Patio Deck
  • Industrial Garage Flooring (FW & TT)
  • Magnetic Screen Wall (FW and TT)
  • EXT. LED Strip Scare Light (FW & TT)
  • LED Interior Lights (FW & TT)
  • PWR Awning
  • 50AMP Service FW Only
  • Exterior Hot & Cold Shower
  • Skylight over Tub
  • Vent Fan Main Bathroom
  • Ducted A/C (FW & TT)
  • Black Tank Flush (FW & TT)
  • PWR Tongue Jack or PWR Landing Gear (TT or FW)
  • TV Backer, Bracket & Hook Ups Bedroom/Living/Exterior (FW & TT)
  • Renewable Energy Package – 200W Solar Panel & 30AMP Wall Monitor (FW & TT)
  • Residential Stainless Steel Kitchen & Lavy Sinks (FW & TT)
  • Residential Kitchen Faucet (FW & TT)
  • Sink Cover / Dish Rack (FW & TT)
  • Decorative Kitchen Backsplash (FW & TT)
  • Decorative Glass Cabinets door kitchen
  • Decorative Bathroom Wall
  • Tub Surround (FW & TT)
  • USB Charging Station (FW & TT)
  • TV Antenna (FW & TT)
  • LP Quick Connect (FW & TT)
  • 5,000 lbs. Tiedowns (FW & TT)
  • Black Steel Wheels (FW & TT)
  • Spare Tire (FW & TT)
  • Pet Leash Latch (FW & TT)
  • Rear Beaver Tail Frame (FW & TT)
  • Slide Topper Awning prep
  • Garage Chairs – STD 301XLRE, 335XLRE (2) EACH (FW)
  • Theater Seating Sofa
  • Tankless Water Heater
  • 10 CF - 12V Black Refrigerator
  • 17” Oven w/ 3 Burner Cooktop w/ Glass Cover
  • 0.9 Microwave
  • Slim Range Hood Vent
  • 2 Zone - HDMI / BT Radio
  • (2) Interior & (2) Exterior Marine Grade Speaker
  • 30”– 5K BTU Fireplace (N/A 301XLRE)
  • 15 BTU STD Main Roof A/C
  • Back Up Camera Ready
  • Digital TV Antenna
  • Tinted Safety Glass Windows
  • (R7) Freon Rigid Urethane Foam Sidewall
  • (R11) Fiberglass Roof Insulation with Alumifoil Insulation Wrapping
  • (R7) Fiberglass Flooring Insulation
  • Alumifoil Insulated Enclosed Underbelly
  • Roof Attic Vents
  • 2nd 15K A/C(Requires 50AMP) (N/A 25XLRE)
  • 50AMP Service - 2nd A/C Prep (TT only - 50AMP STD on FW - 27XLRE & 29XLRE Garage)
  • TT Fiberglass EXT Sidewall (includes upgraded graphics package) (TT)
  • FW Fiberglass EXT Sidewall (includes upgraded graphics package) (FW Mandatory) (Not Option)
  • Inverter 2000W – General Purpose Outlets Only
  • Ultracold Weather Heated Holding Tank 12V Pads
  • Electric Stabilizer Jacks (FW Only)
  • Garage Chair (STD 301XLRE & 335XLRE)
  • Bench Dinette w/ Table IPO Theater Seating (27XLRE)
  • 30 Gal Fuel Cell with Pumping Station (No Gen Prep)


Virtual Tours

  • 19XLRE
    19XLRE Main Room
  • 25LRLE - DSO
    25LRLE - DSO Main Room
  • 27LRLE - DSO
    27LRLE - DSO Main Room
  • 27XLRX
    27XLRX Main Room
  • 29LRLE - DSO
    29LRLE - DSO Main Room
  • 29QBX - DSO
    29QBX - DSO Main Room
  • 29XLRE
    29XLRE Main Room
  • 29XLRX
    29XLRX Main Room
  • 301LRLE - DSO
    301LRLE - DSO Main Room
  • 305XLRE
    305XLRE Main Room
  • 31QB - DSO
    31QB - DSO Main Room
  • 32RZR14 - DSO
    32RZR14 - DSO Main Room
  • 32XLRXF16
    32XLRXF16 Main Room
  • 335LRLE - DSO
    335LRLE - DSO Main Room
  • 35DSX11 - DSO
    35DSX11 - DSO Main Room
  • 36TSX16 - DSO
    36TSX16 - DSO Main Room
  • 37TSX13 - DSO
    37TSX13 - DSO Main Room
  • 37XLRXF14
    37XLRXF14 Main Room


Literature



  • XLR Boost and Micro Boost Brochure
    XLR Boost and Micro Boost Brochure

  • XLR Boost and Micro Boost Flyer
    XLR Boost and Micro Boost Flyer
