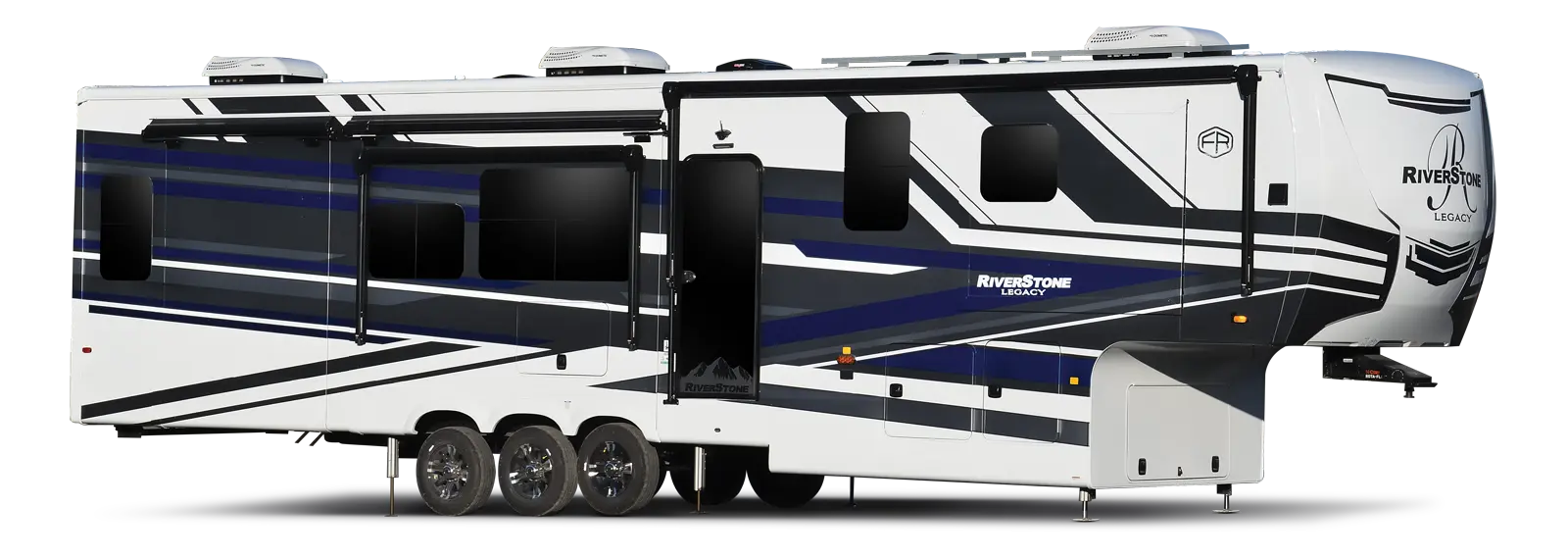

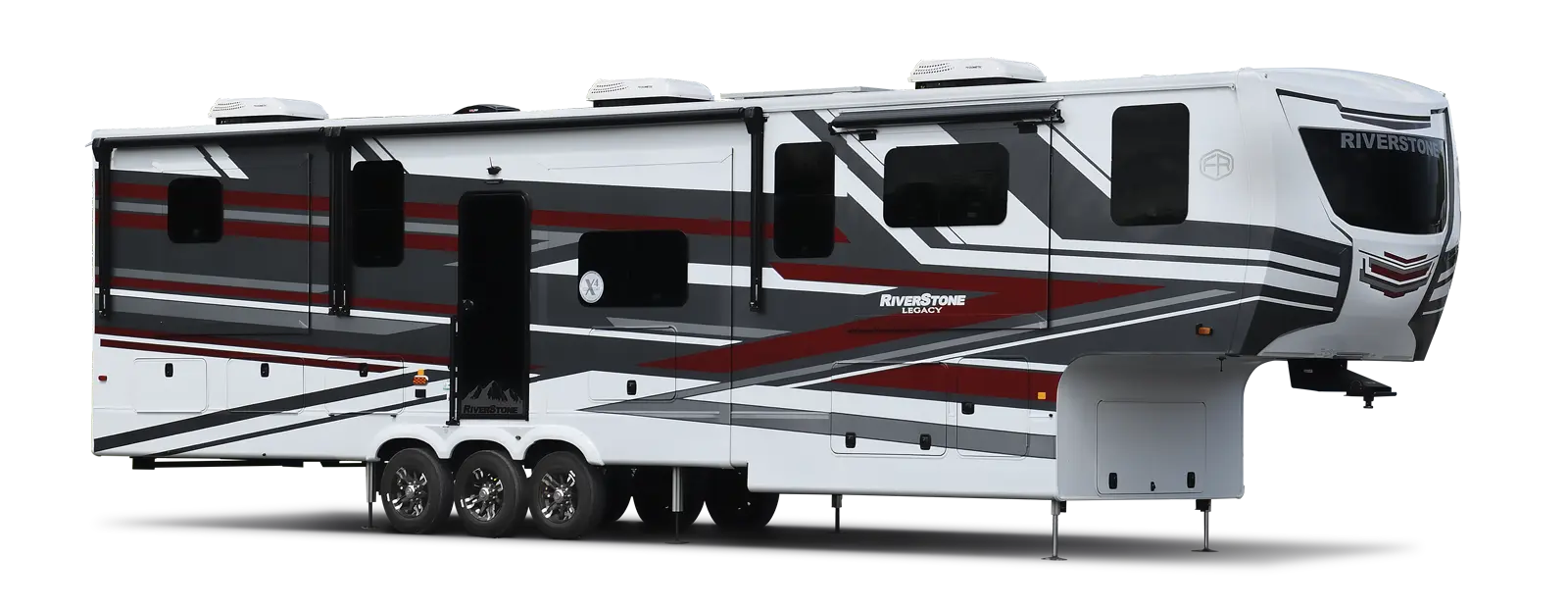

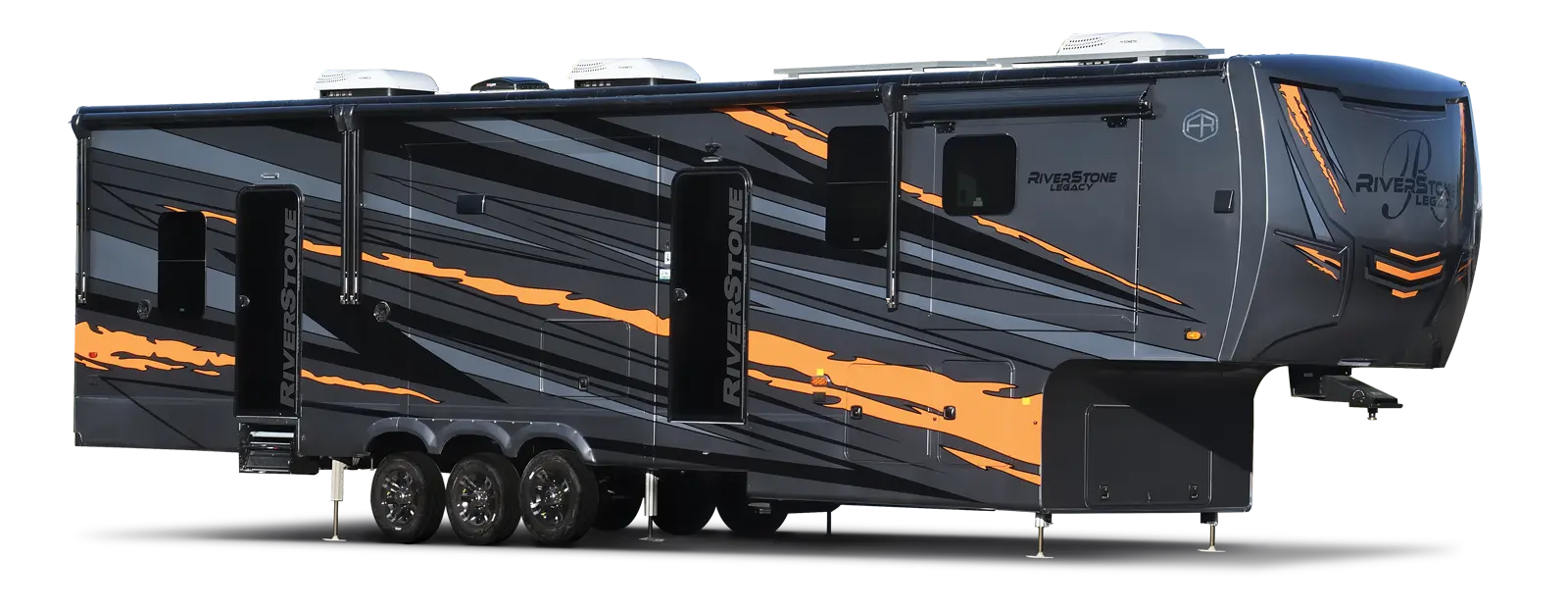

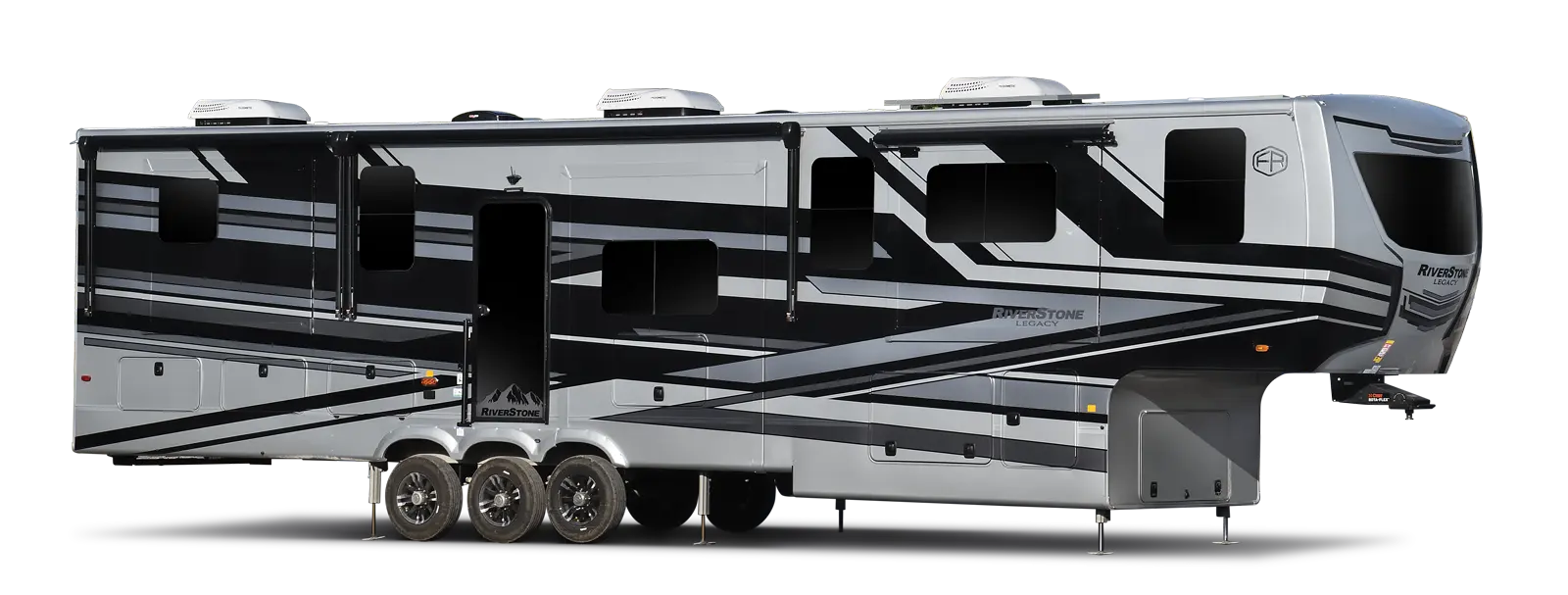

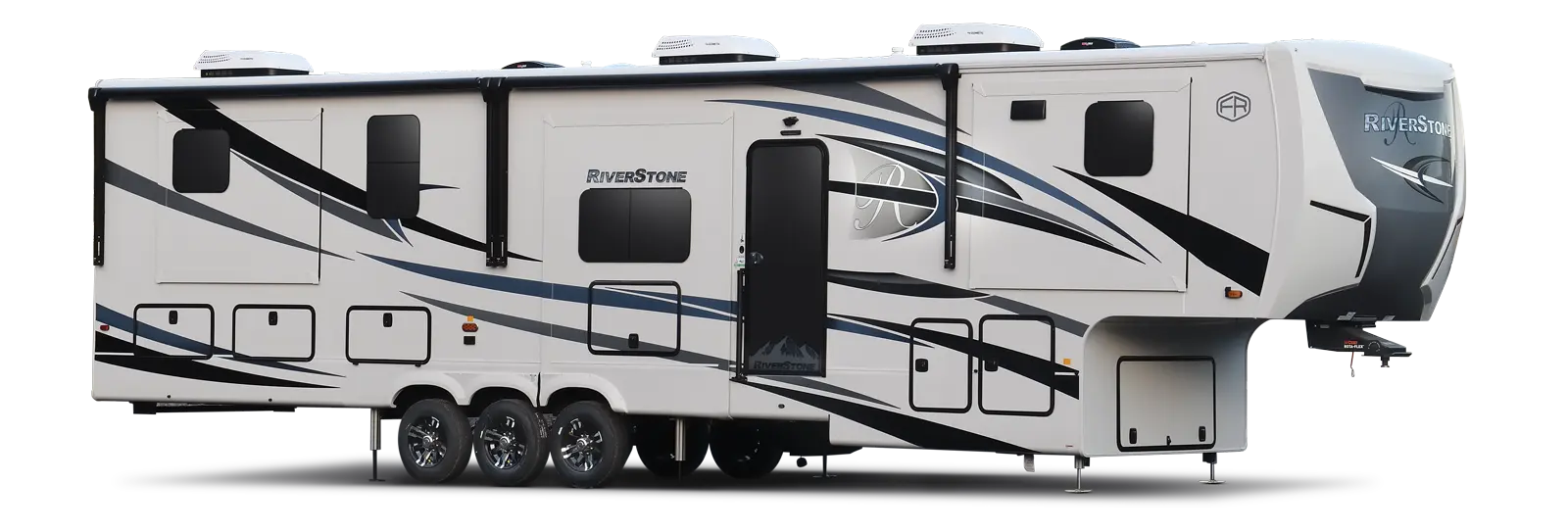

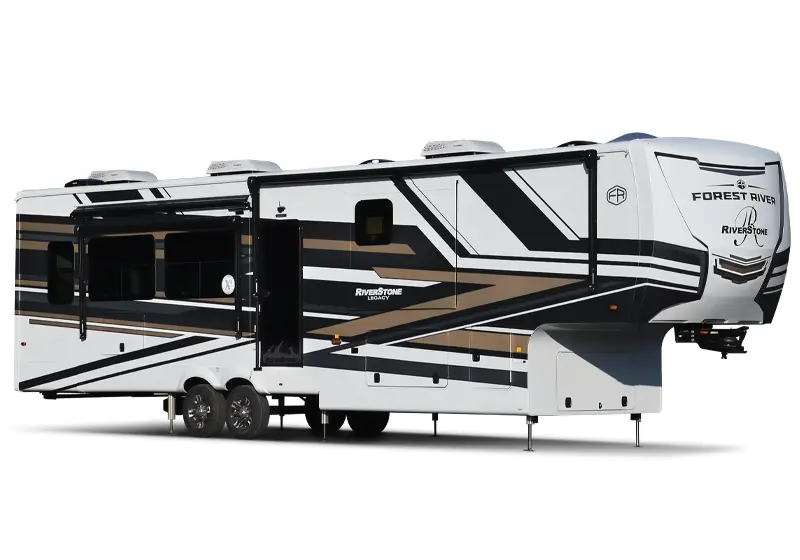

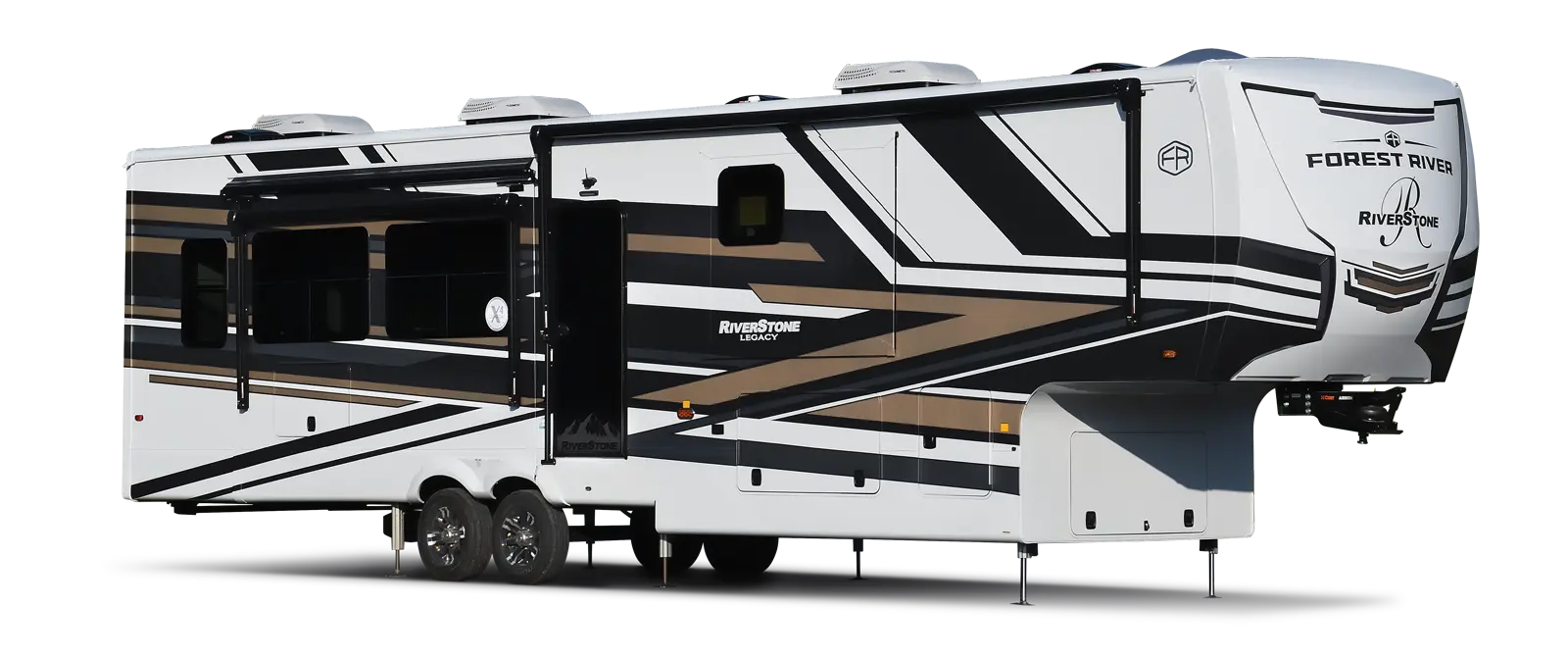

RIVERSTONE Fifth Wheels

RIVERSTONE Luxury Fifth Wheels are offering what luxury is and that is convenience. RIVERSTONE has made almost every competitor's option a standard. After all, if you're ready for a RIVERSTONE Luxury Fifth Wheel then your ready for ultimate convenience.


RV News 2023 Luxury Fifth Wheel of the Year - 41RL RV News 2022 Luxury Fifth Wheel of the Year - 442MC RV Business 2022 Must See RV Care Camps, fighting cancer and making memories

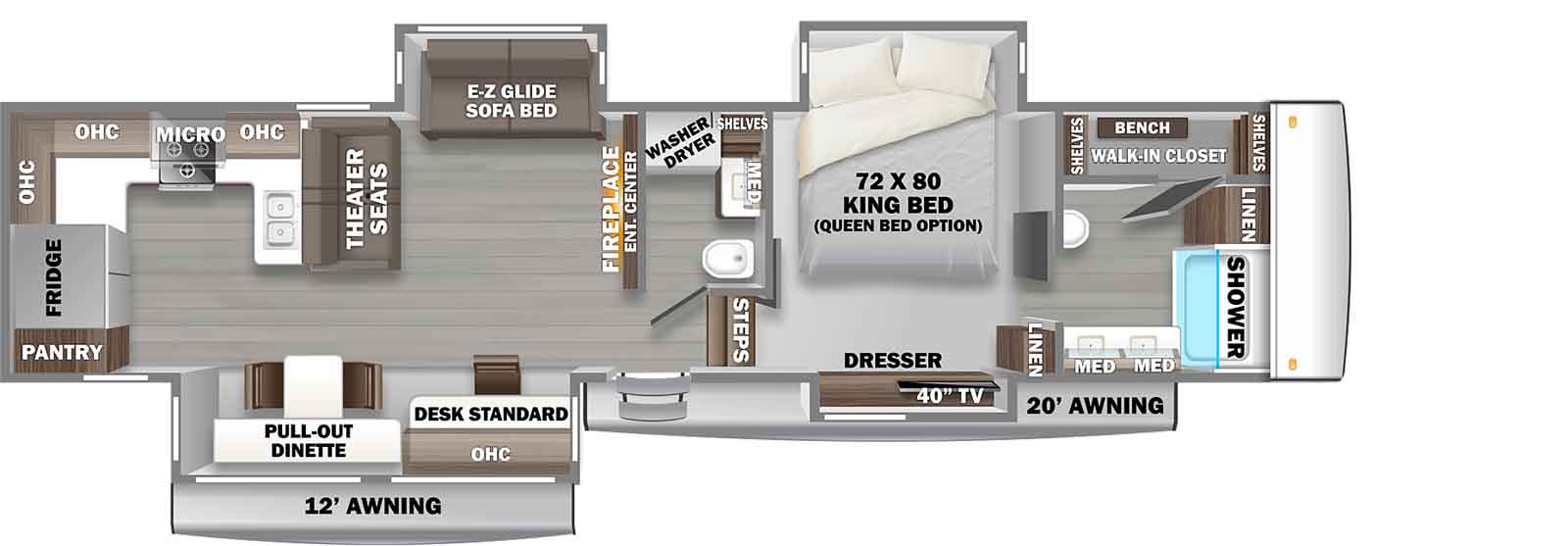

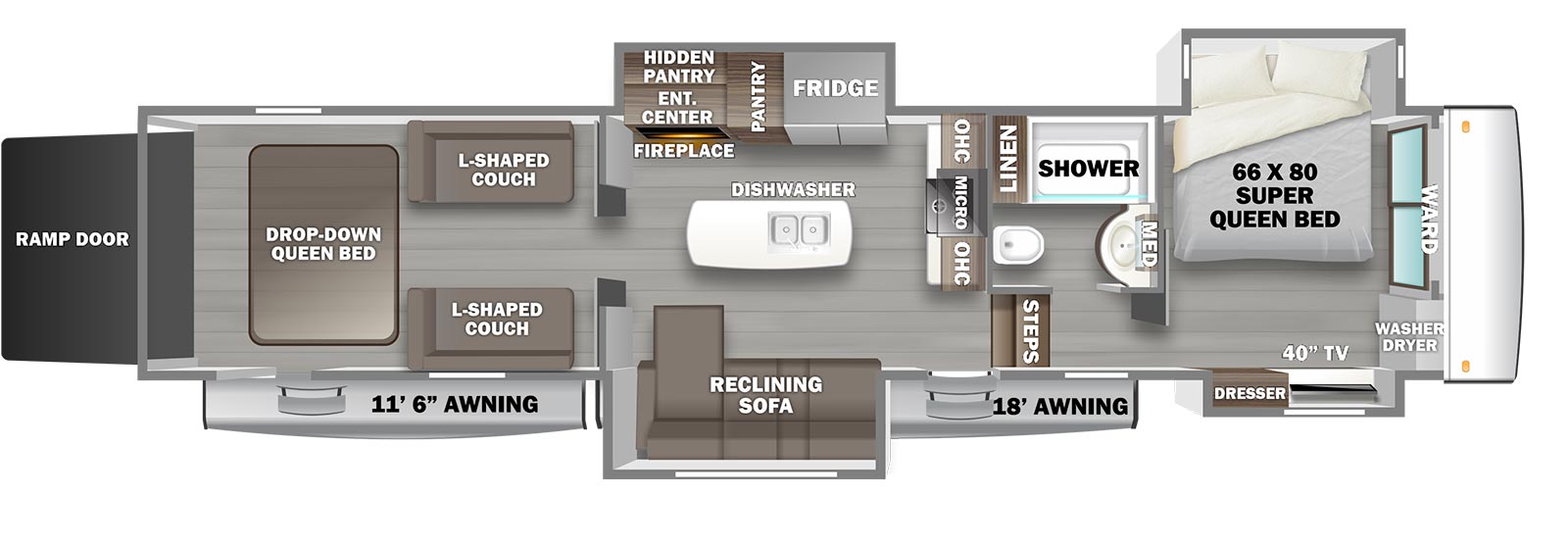

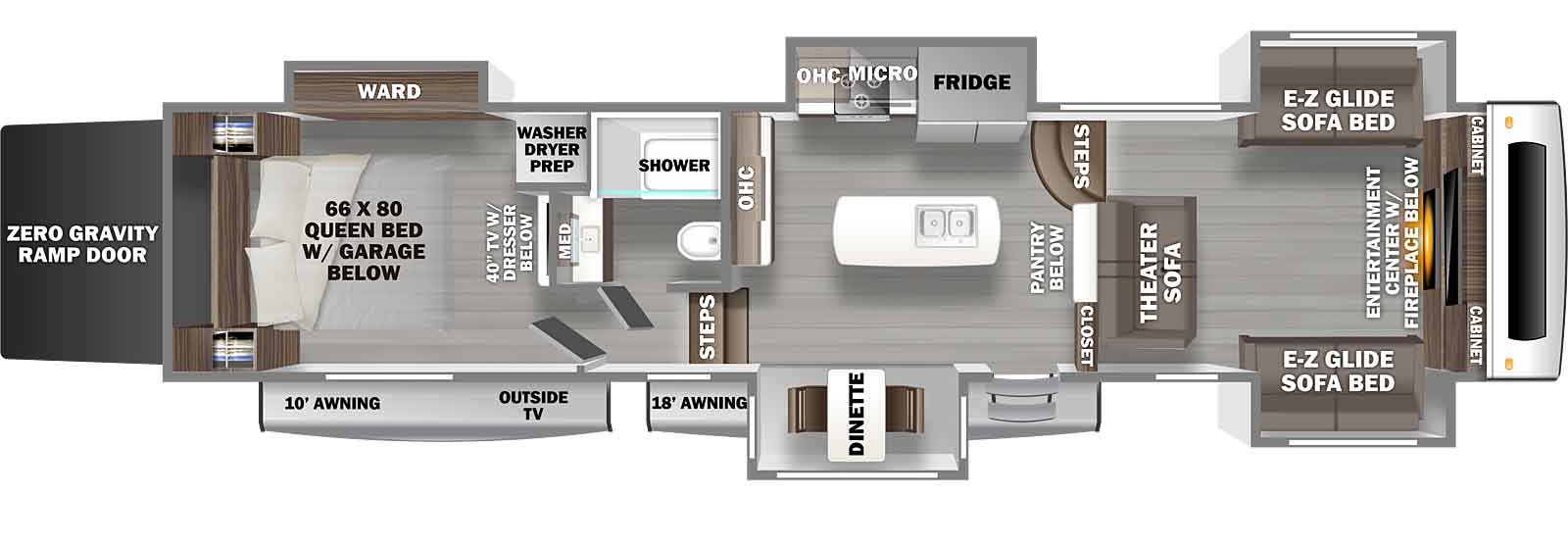

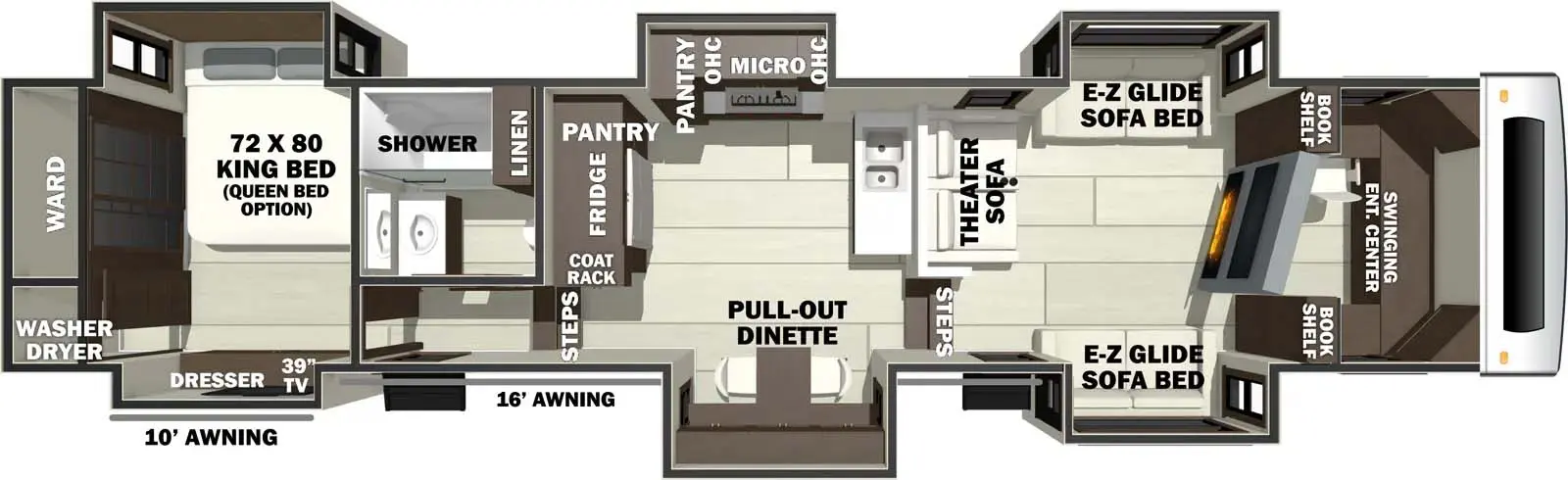

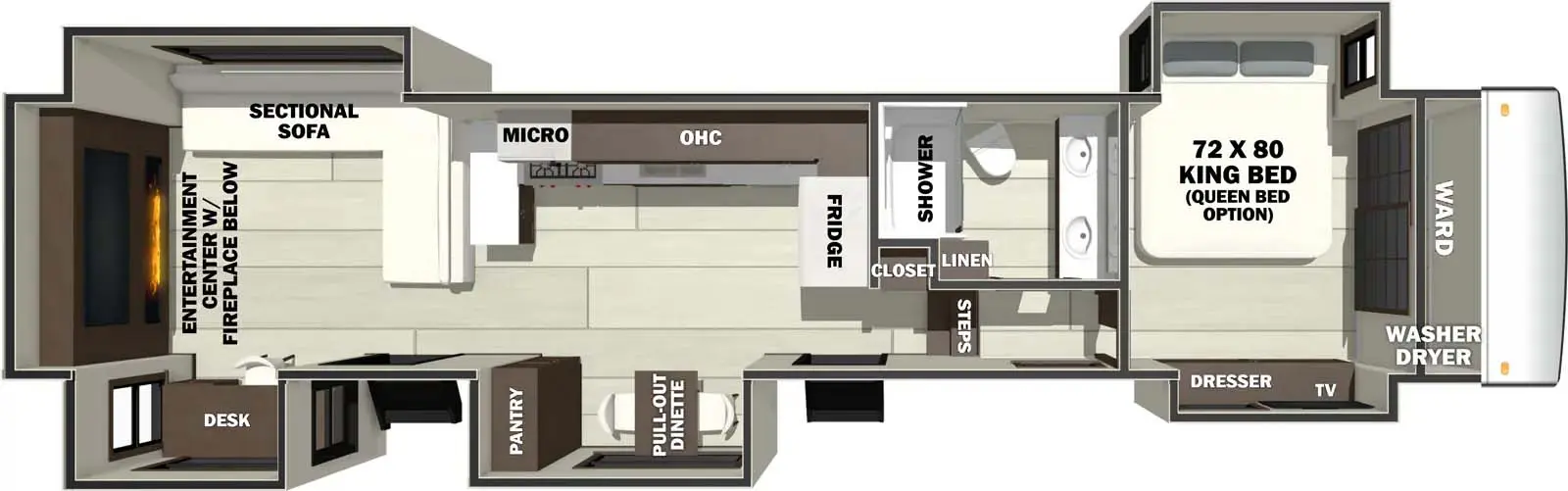

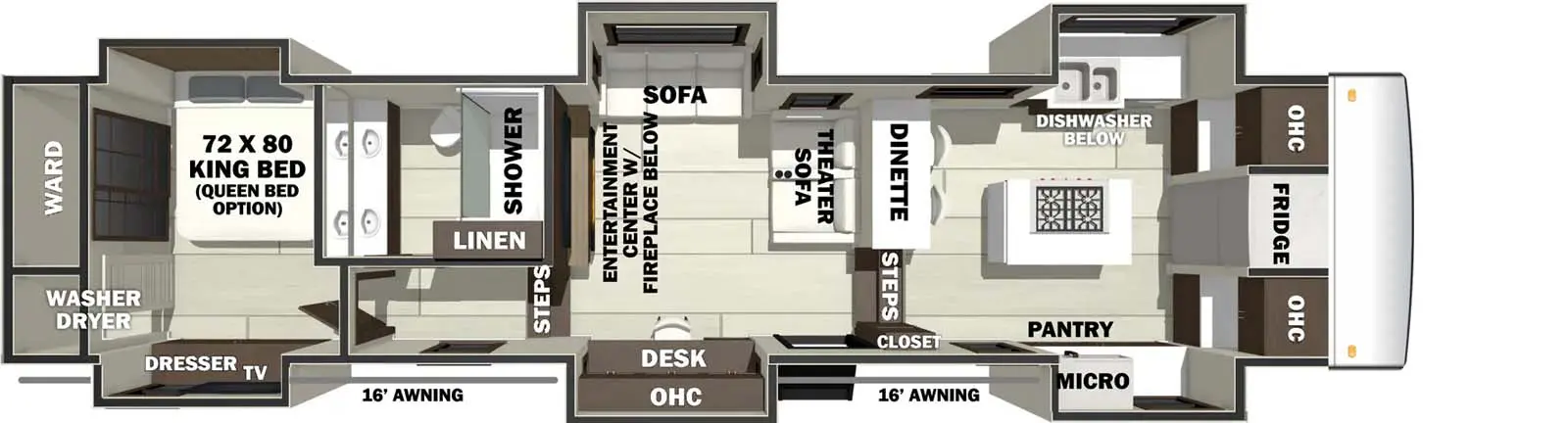

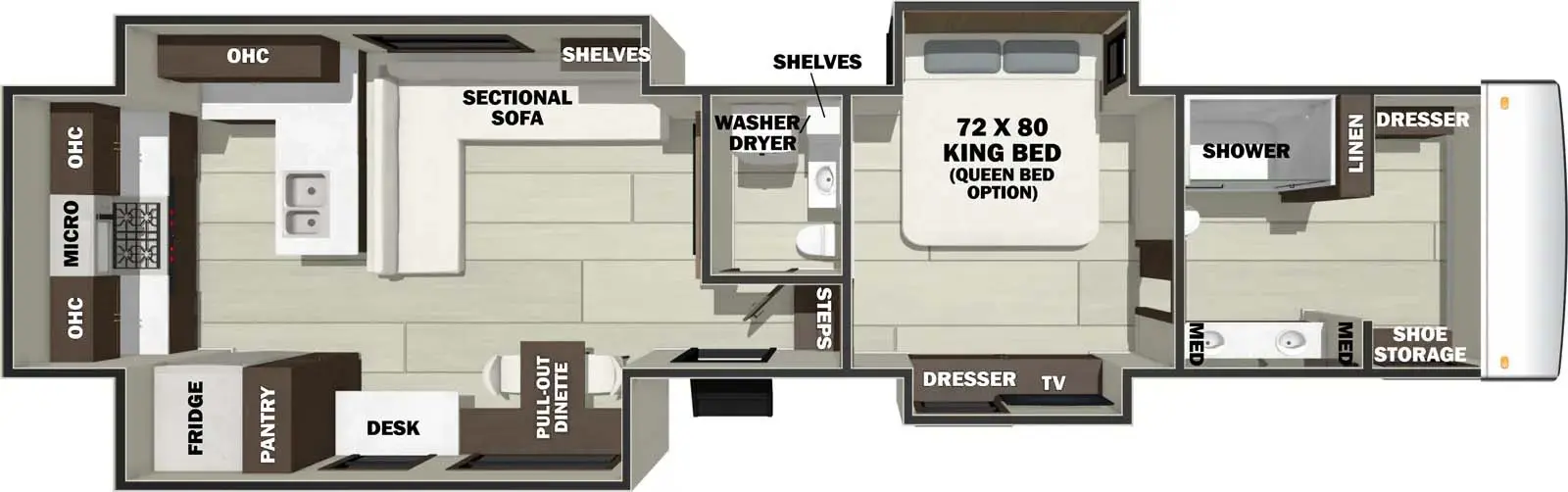

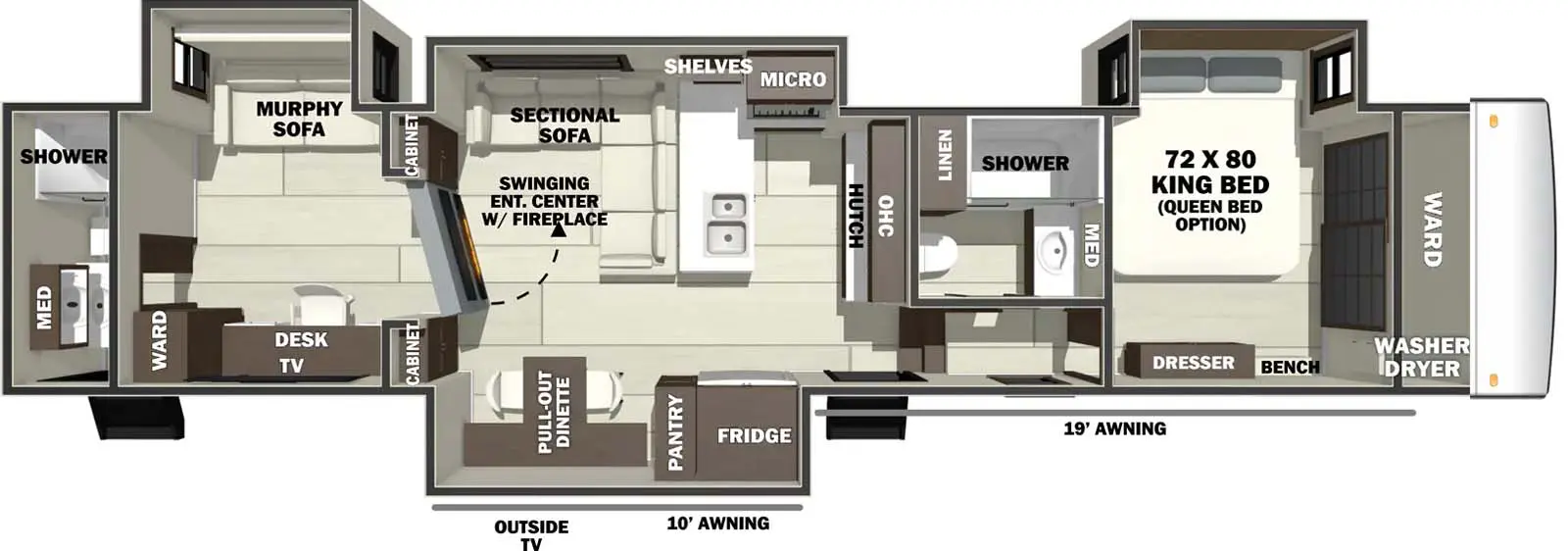

Floorplans

Print

Fifth Wheels
Toy Haulers


Specifications

Print

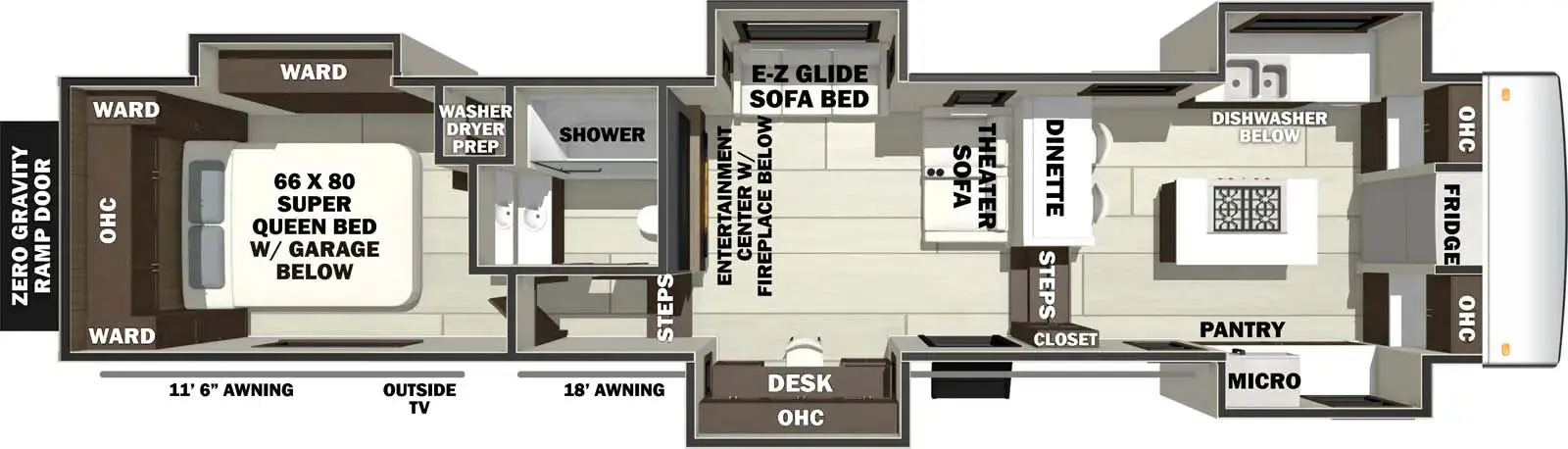

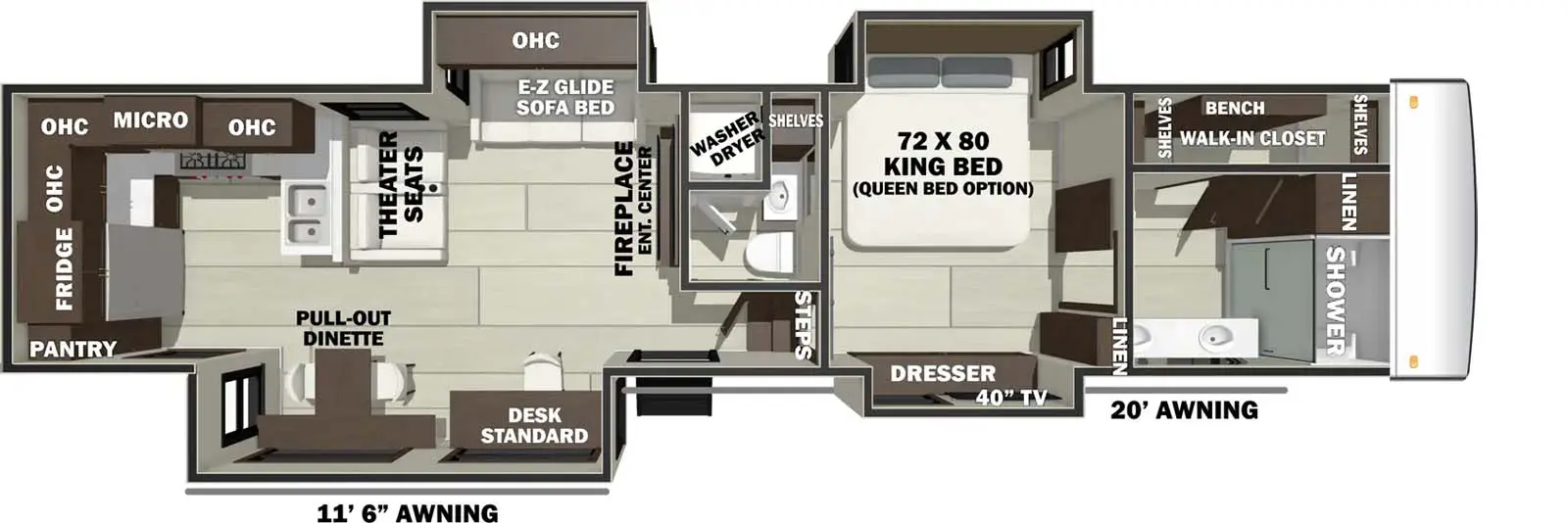

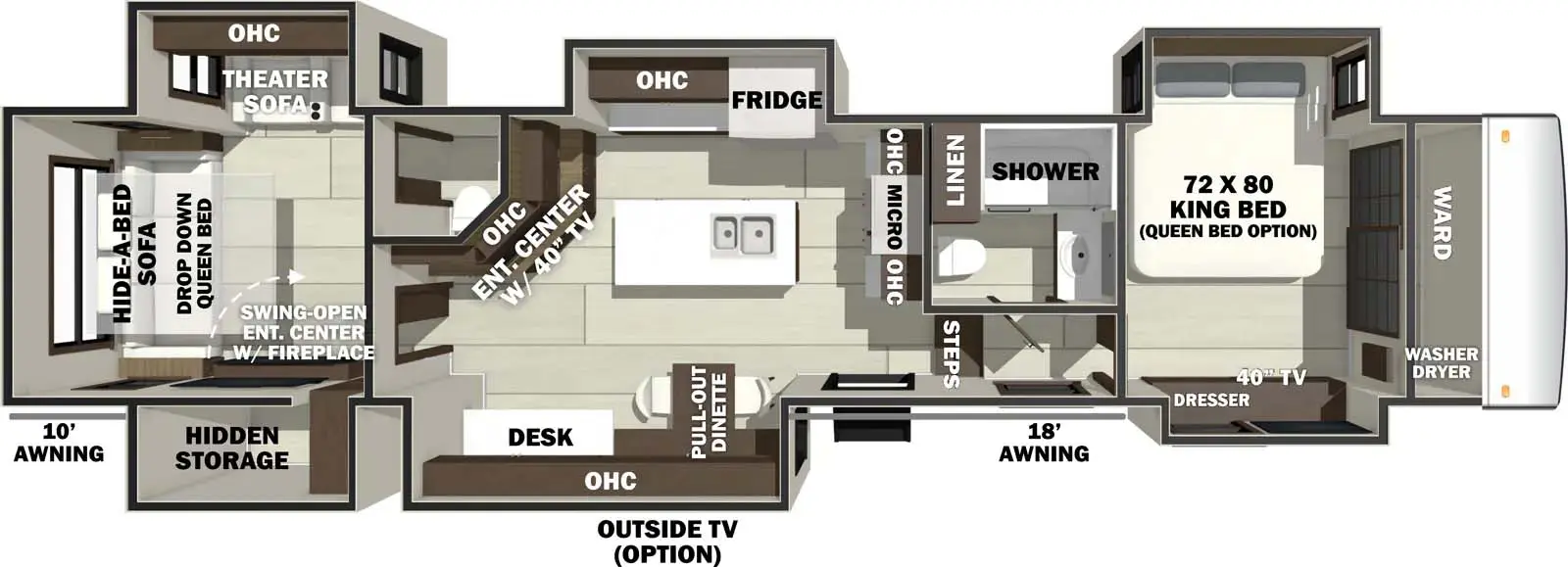

Floorplan: 391FSK : Fifth Wheels 39RBFL : Fifth Wheels 39RKFB : Fifth Wheels 419RD : Fifth Wheels 41RL : Fifth Wheels 442MC : Fifth Wheels 37FLTH : Toy Haulers 42FSKG : Toy Haulers 4514BATH : Toy Haulers
Hitch Weight:2,555 lb.3,085 lb.3,084 lb.2,850 lb.3,715 lb.2,805 lb.3,970 lb.3,950 lb.3,908 lb.
GVWR:18,555 lb.19,085 lb.19,084 lb.21,000 lb.24,000 lb.21,000 lb.21,000 lb.21,000 lb.24,000 lb.
UVW:15,361 lb.16,347 lb.16,292 lb.18,271 lb.19,406 lb.19,131 lb.17,504 lb.17,726 lb.18,129 lb.
CCC:3,194 lb.2,738 lb.2,792 lb.2,729 lb.4,594 lb.1,869 lb.3,496 lb.3,274 lb.5,871 lb.
Exterior Length:42' 8"41' 5"42' 7"43' 2"42' 6"44' 4"42' 2"44' 10"45' 0"
Exterior Height:13' 4"13' 4"13' 4"13' 4"13' 4"13' 4"13' 4"13' 4"TBD
Exterior Width:102"102"102"102"102"102"102"102"102"
Fresh Water:79.00 gal.79.00 gal.79.00 gal.79.00 gal.79.00 gal.79.00 gal.79.00 gal.79.00 gal.158.00 gal.
Gray Water:120.00 gal.80.00 gal.80.00 gal.80.00 gal.80.00 gal.80.00 gal.80.00 gal.80.00 gal.80.00 gal.
Black Water:40.00 gal.80.00 gal.80.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.
Awning Size:12' & 16'12' & 18'12' & 20'11' & 18'10'6" & 12'18'10' & 18'11'6" & 18'10'6" & 18'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print
  • Insignia 3.7 CU. FT. oven with 4-burner range

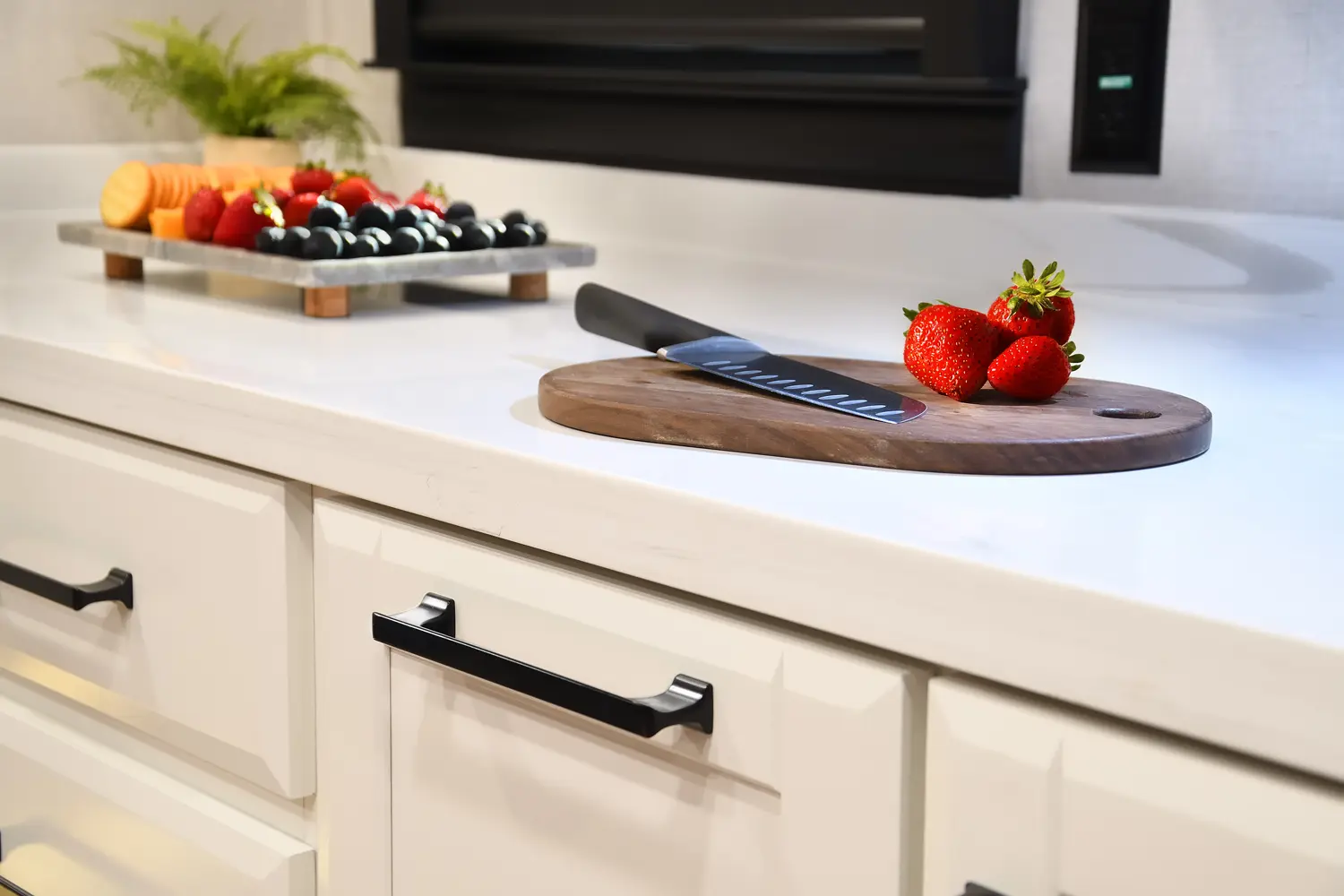

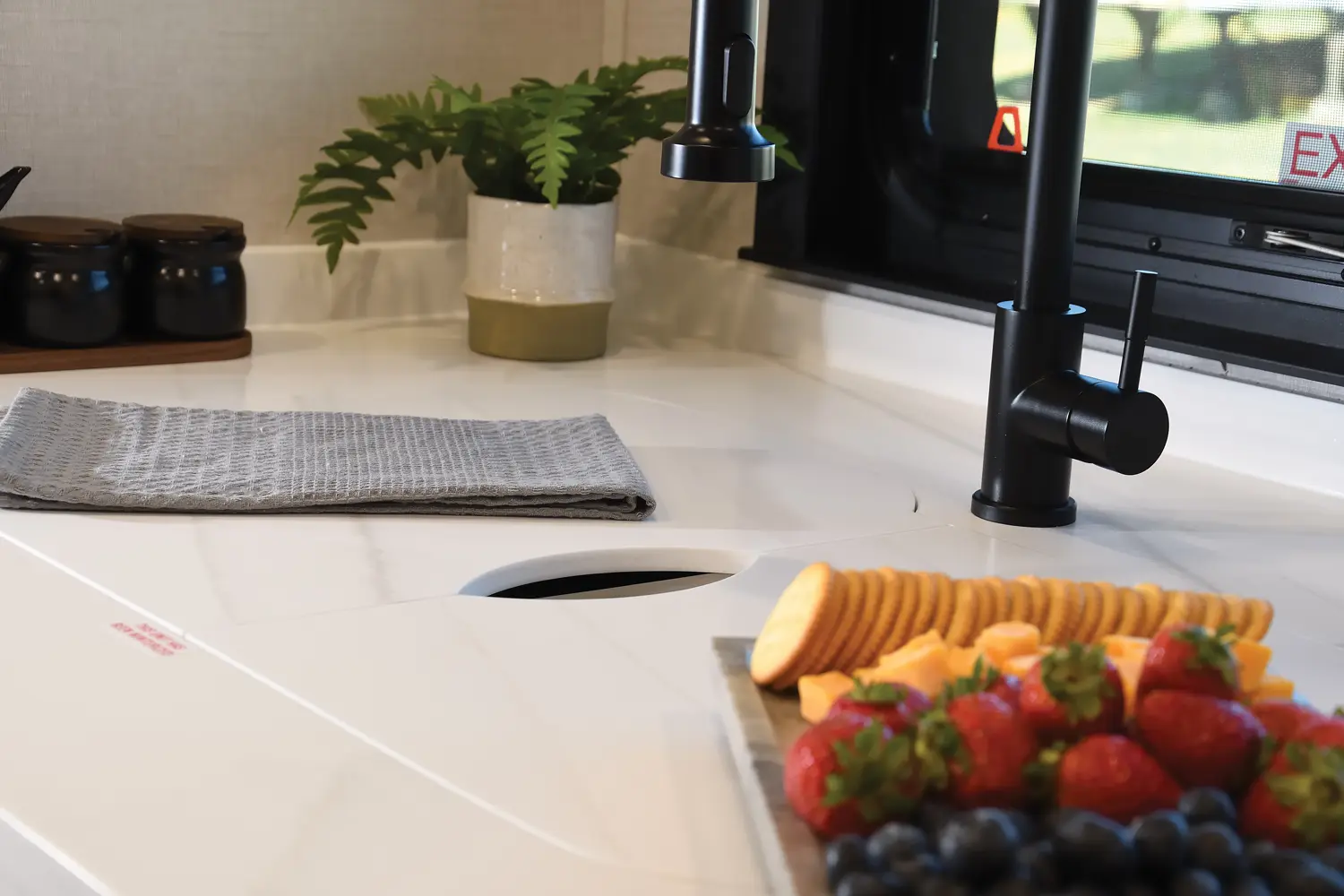

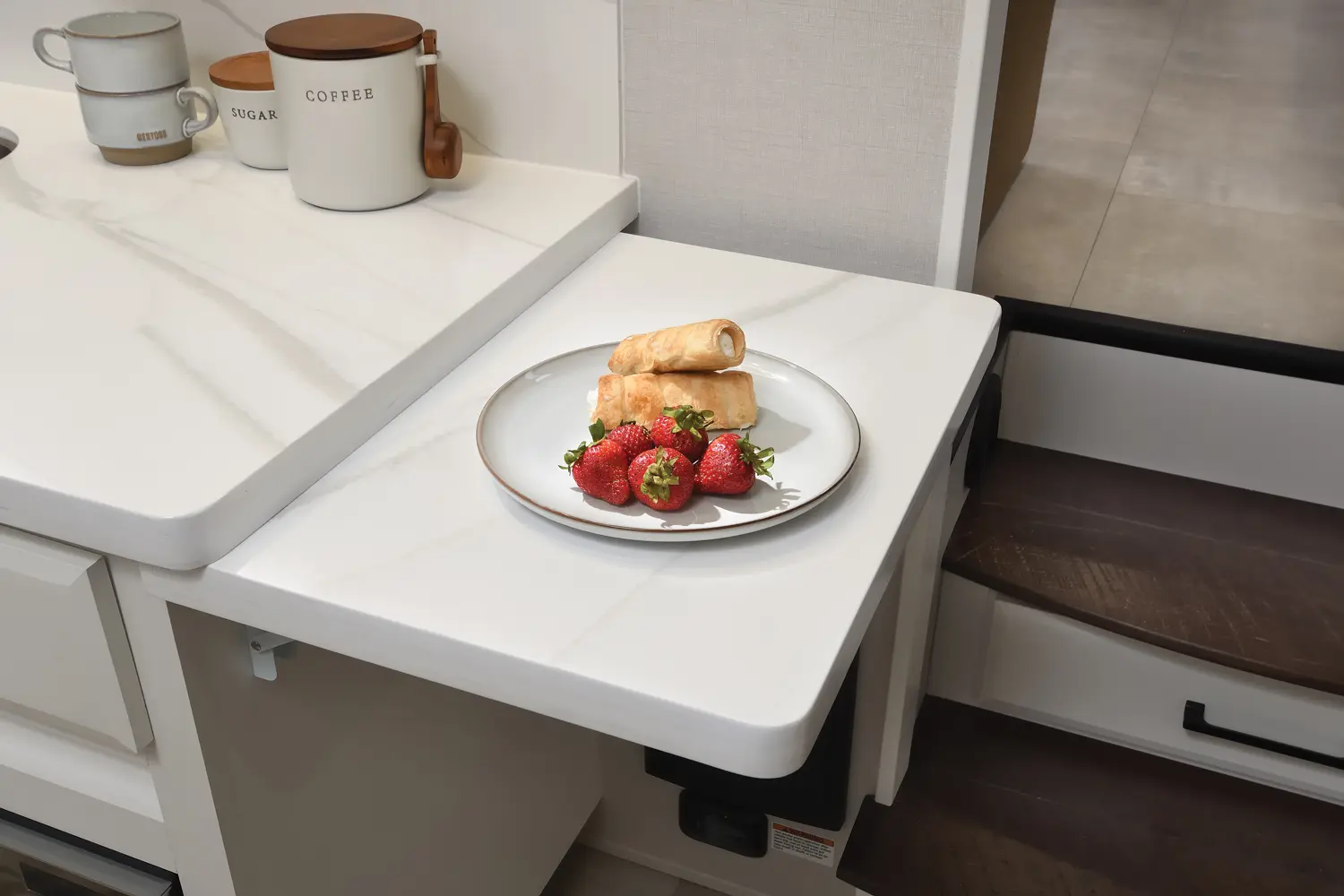

  • Upgraded Calcutta Solid Surface Countertop in Kitchen

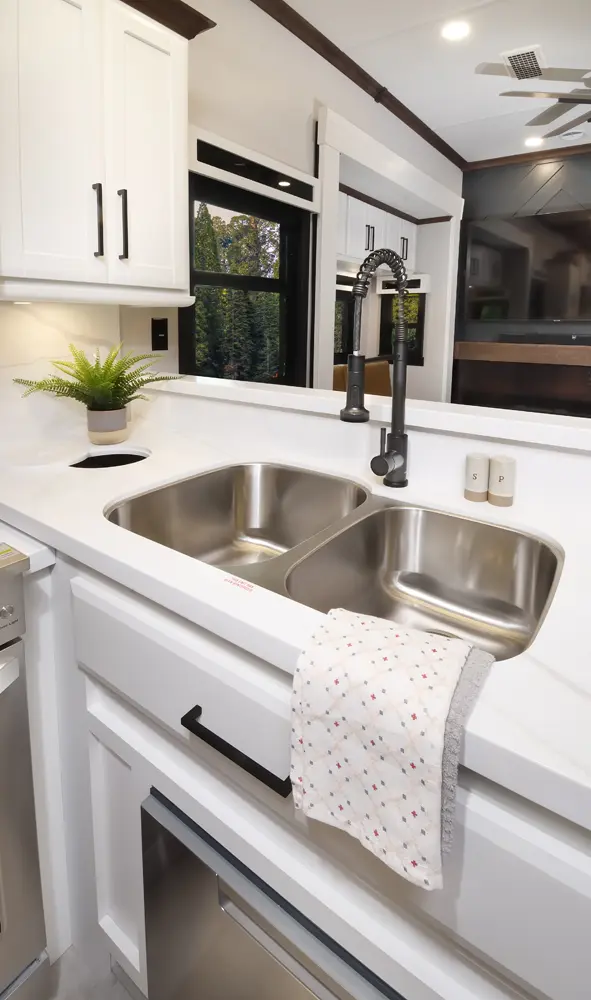

  • Large Stainless Steel Kitchen Sinks with Residential Faucet
  • 18 CU. FT. French Door Refrigerator with Ice Maker

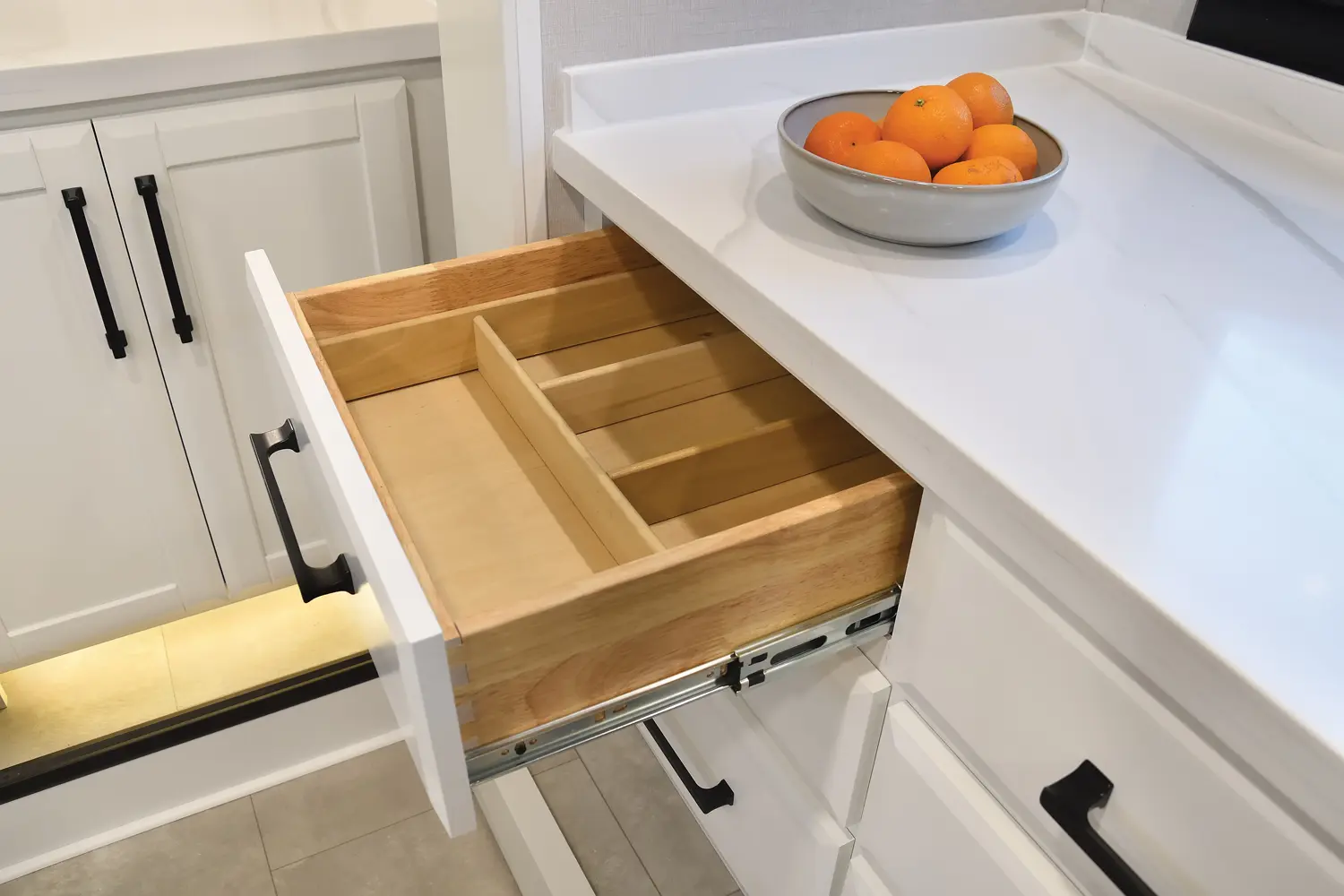

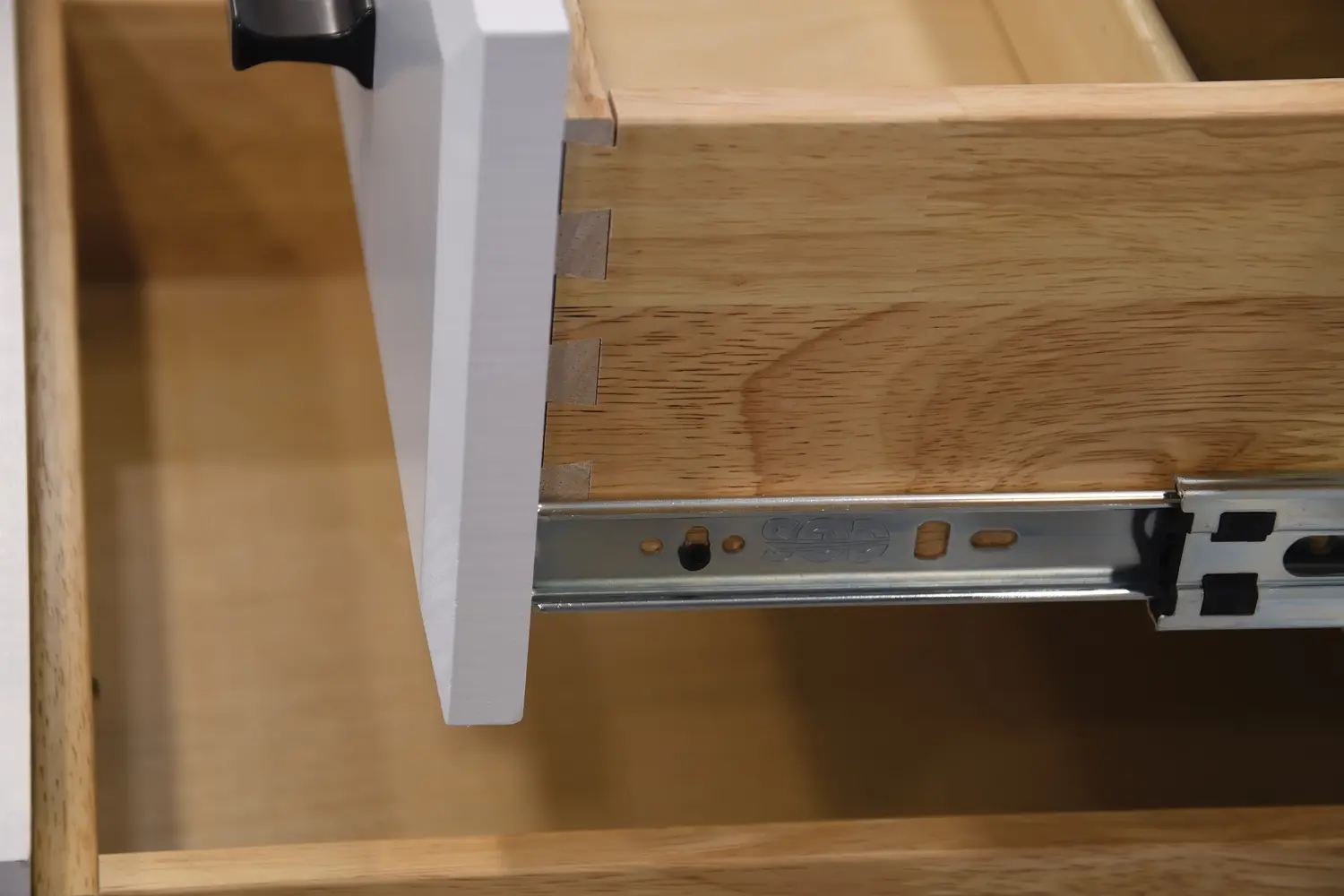

  • Residential Soft Close Drawer Glides
  • Shaw Residential Vinyl Flooring

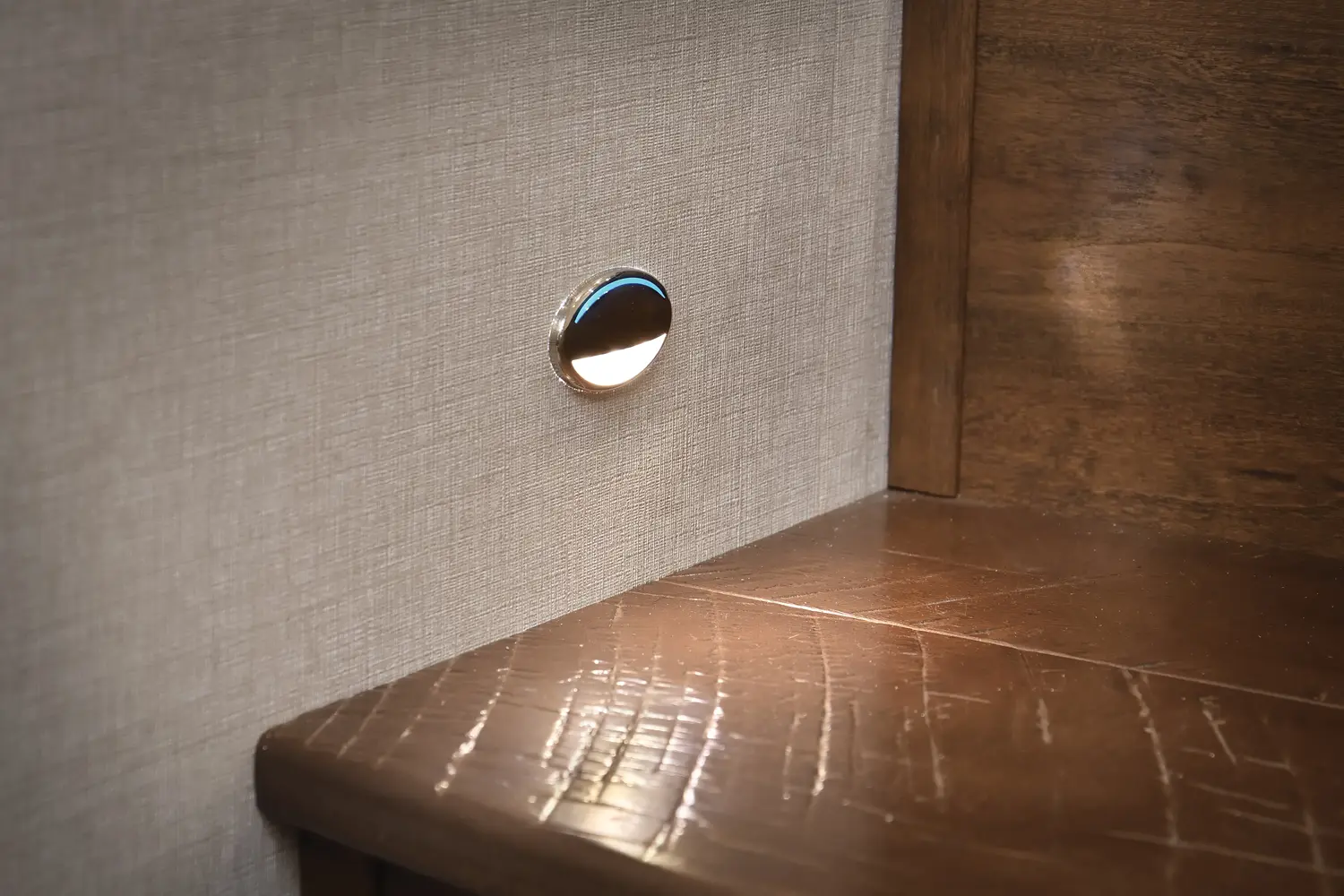

  • LED Lighting Throughout
  • 30” Stainless Steel Microwave
  • Oval Porcelain Toilet with Foot Flush
  • Central Vacuum System
  • 40,000 BTU Furnace
  • 10” Thick Memory Foam Mattress 72”x80” Standard (Toy haulers 66”x80”)
  • Shaw Stain Resistant Carpet (in slide rooms)
  • Day/Night Roller Shades Throughout
  • 5,200 BTU Fireplace in Living Room

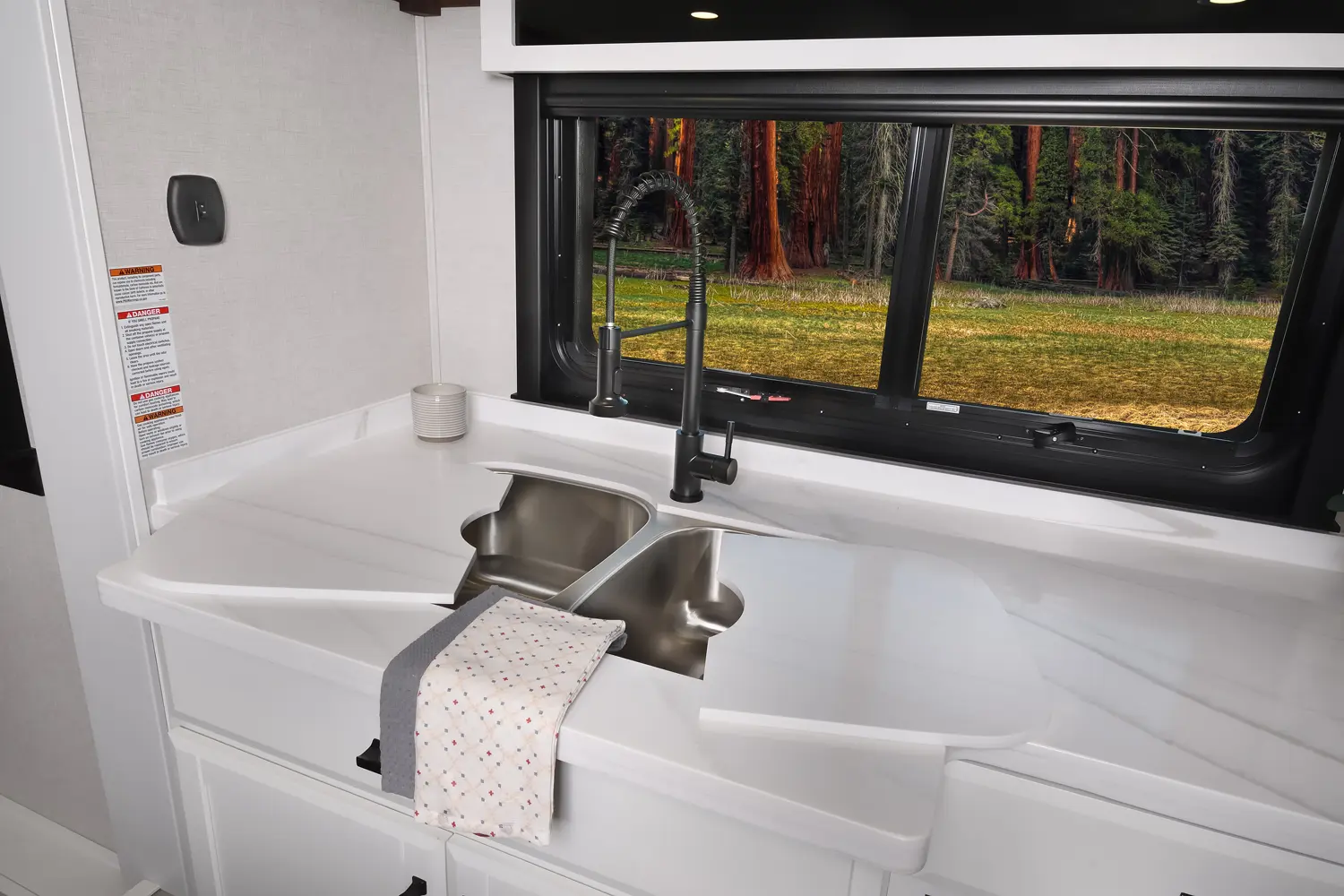

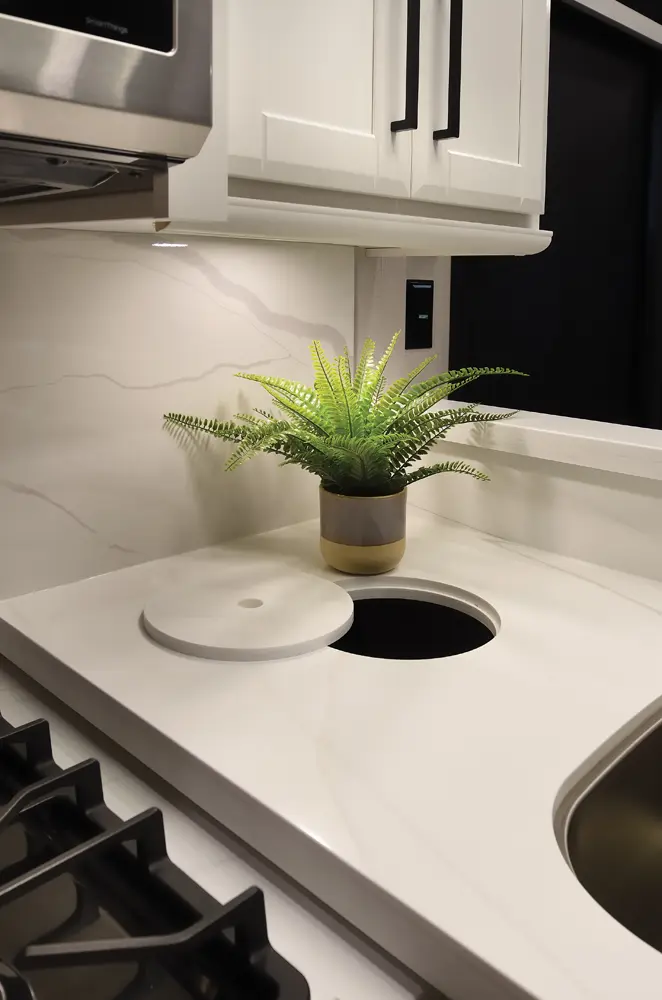

  • Butcher Block Cutting Board Sink Covers
  • Overhead Storage Cabinets in Main Level Living Room
  • Sofa/Desk Slides
  • Residential Soft Close Hinges on Cabinet Doors
  • Under-Bed Storage Compartment
  • Residential Tile Backsplash
  • Residential Insulation: R-16 Insulation Value in Side Walls. Includes Slide Rooms.
  • R-38 Insulation Value in Roof and Flooring
  • ½” Plywood Roof Decking
  • Dicor Full Wrapped Exterior Roof Skin
  • 17.5” H-Rated Cooper Tires with Aluminum Rims
  • Hydraulic Slide-outs on Main Level and Bed Slides
  • Solera Electric Awning with LED Lights
  • Side Turning Lights
  • Trail-Aire Road Armour Suspension System
  • 3” Hung Glass Exterior Walls with High Gloss Gel Coat Exterior
  • Riverstone Tandem 8,000 lb. Axles/7,000 lb. Tri-Axles
  • 32” x78” Entry Door with Friction Hinges
  • Dual Pane Frameless Windows
  • Full Docking Station
  • Two 15,000 BTU High Performance Quiet Cool A/Cs
  • Painted Full Front and Rear Fiberglass Caps (N/A 37FLTH, 42FSKG and 419RD – front caps only)
  • 12V Powered 50 Amp Cord Reel

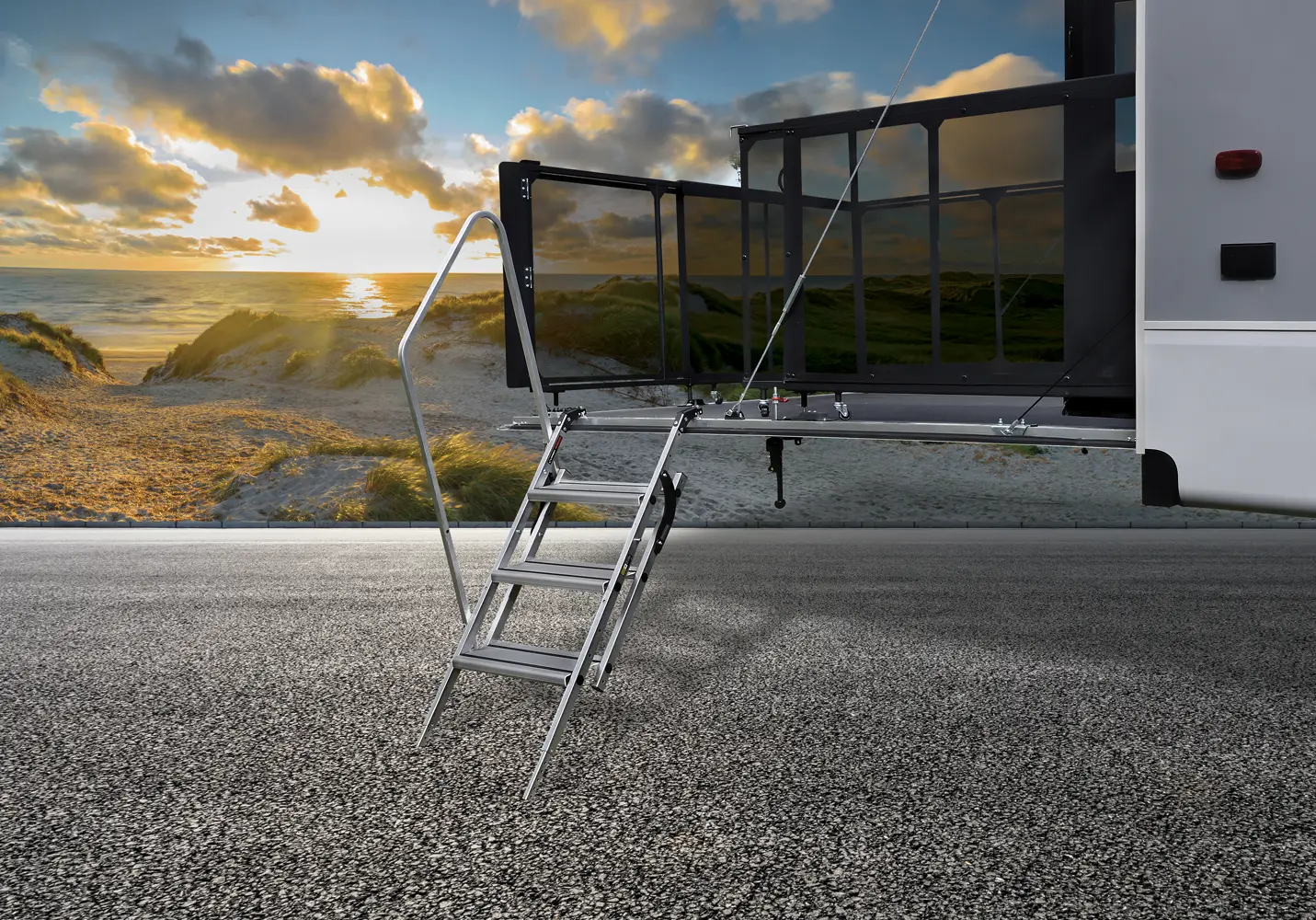

  • MORryde Entry Step at Main Door
  • Two Dual 6V or 12V Slide-Out Battery Trays
  • High Visibility Chrome LED Tail Lights
  • 2” Hitch Receiver for Bike Rack (N/A in Toy Hauler Models)
  • Dual 40 lb. LP Tanks
  • Automatic 6-Point Hydraulic Level-Up System
  • Four Camera Observation System Prep
  • King WiFi Max Router and Omni Directional WiFi Antenna/Extender

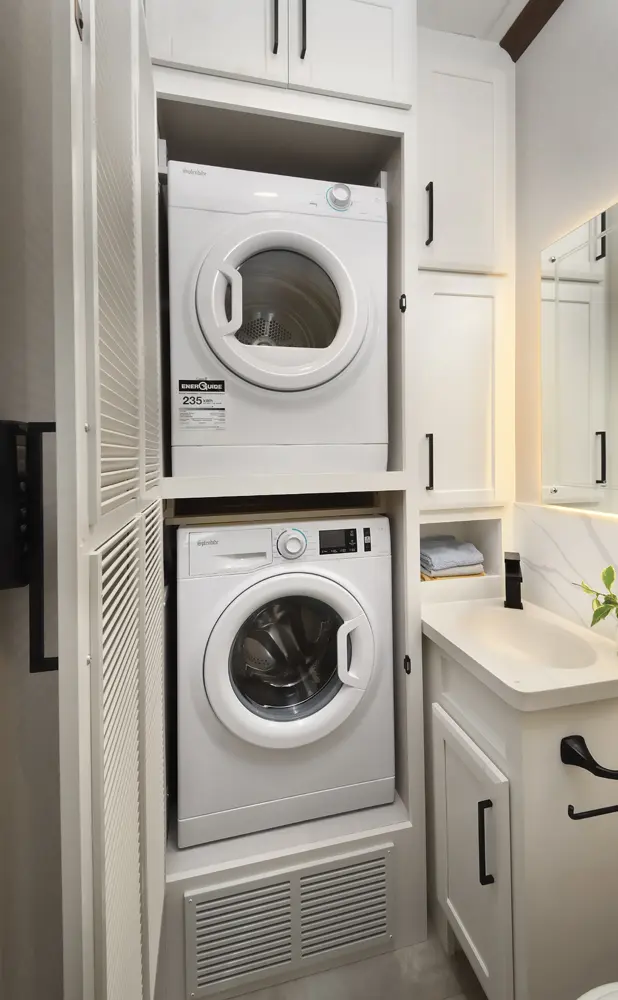

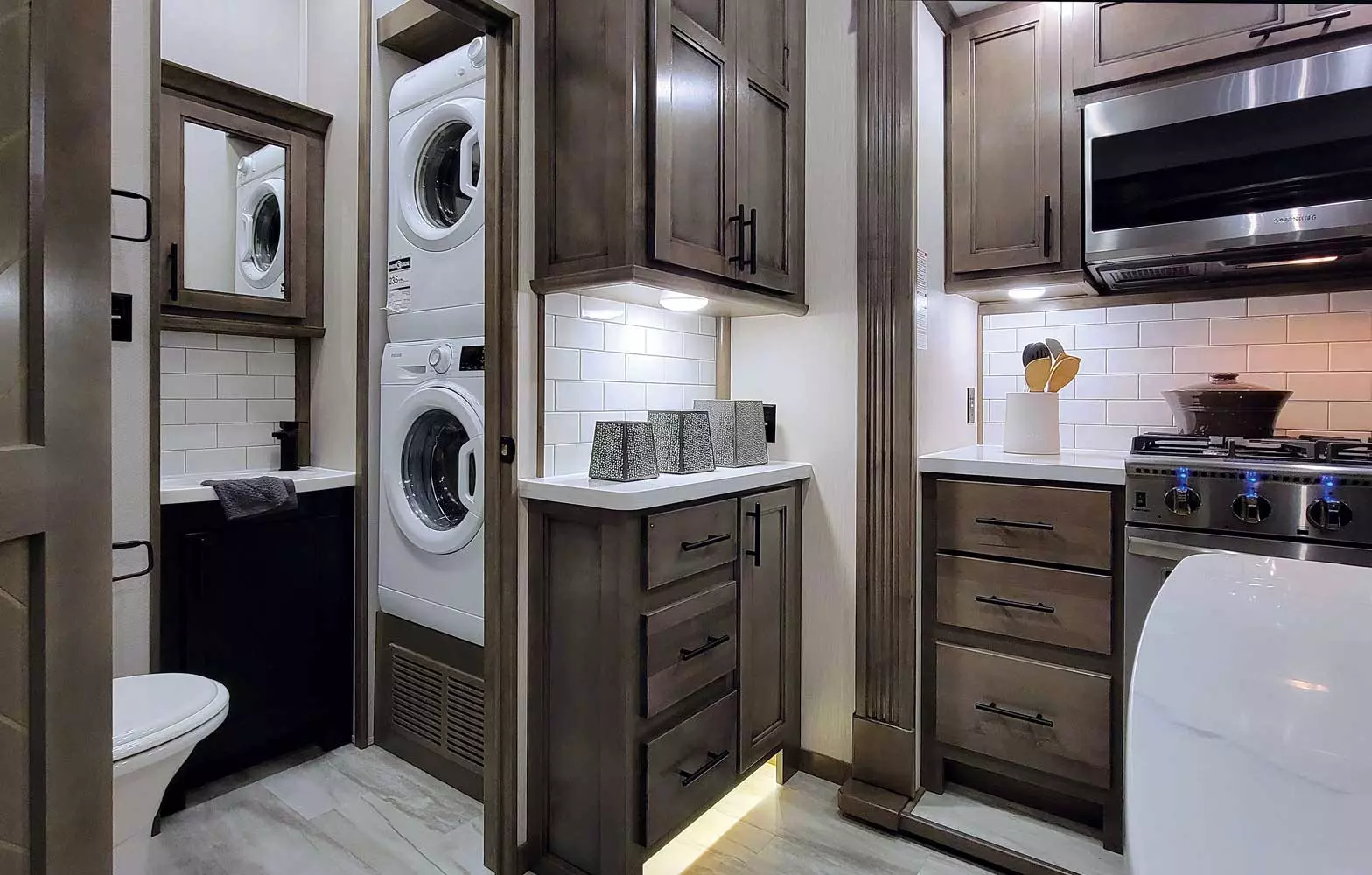

  • Splendid “Astral” Stackable Washer and Dryer
  • 40” LED TV in Bedroom
  • Stained Hardwood Cabinetry and Stiles Throughout
  • 12V Heated Holding Tanks

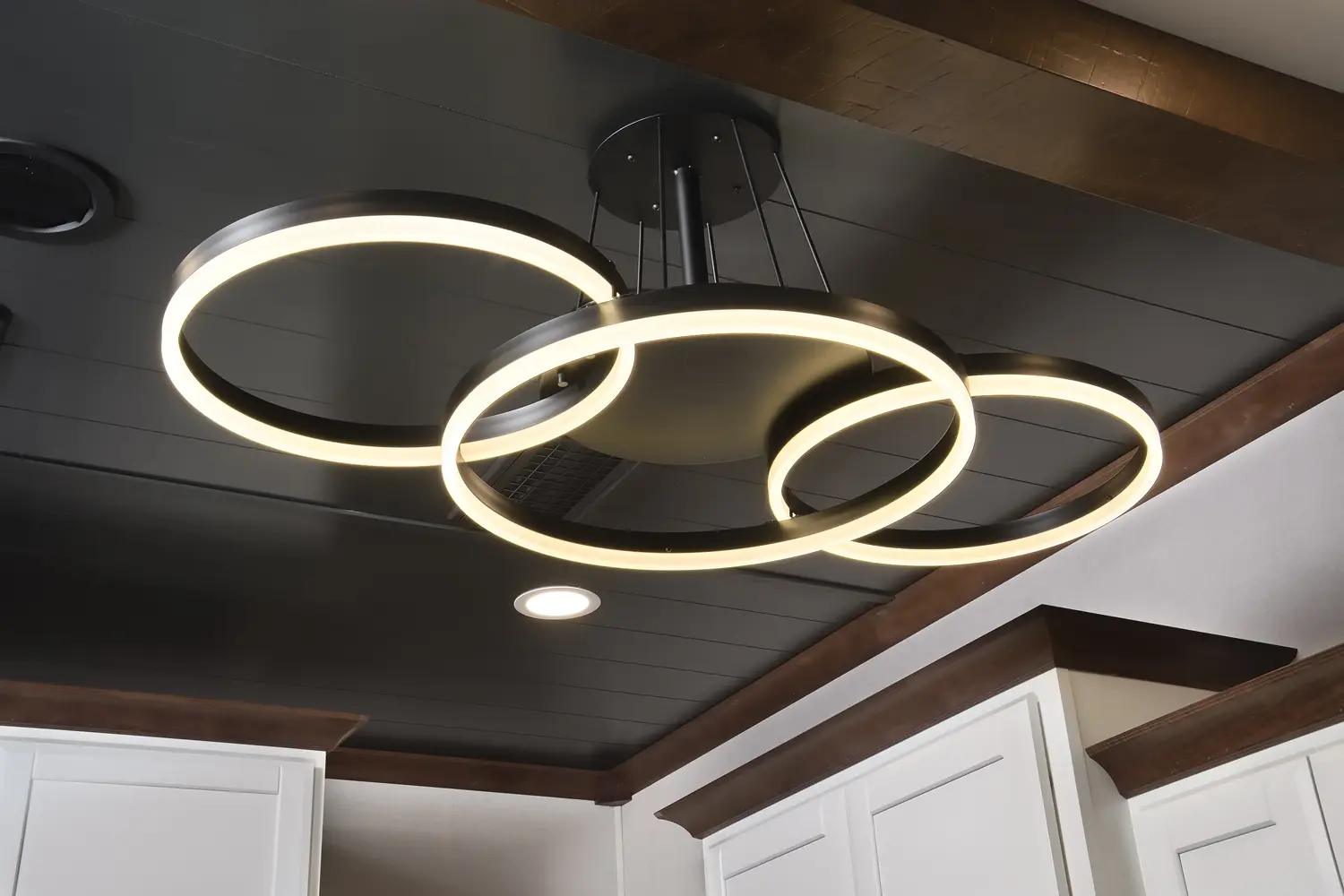

  • Large Infiniti Light over Kitchen Island (NA on 39FSK or 42FSKG)

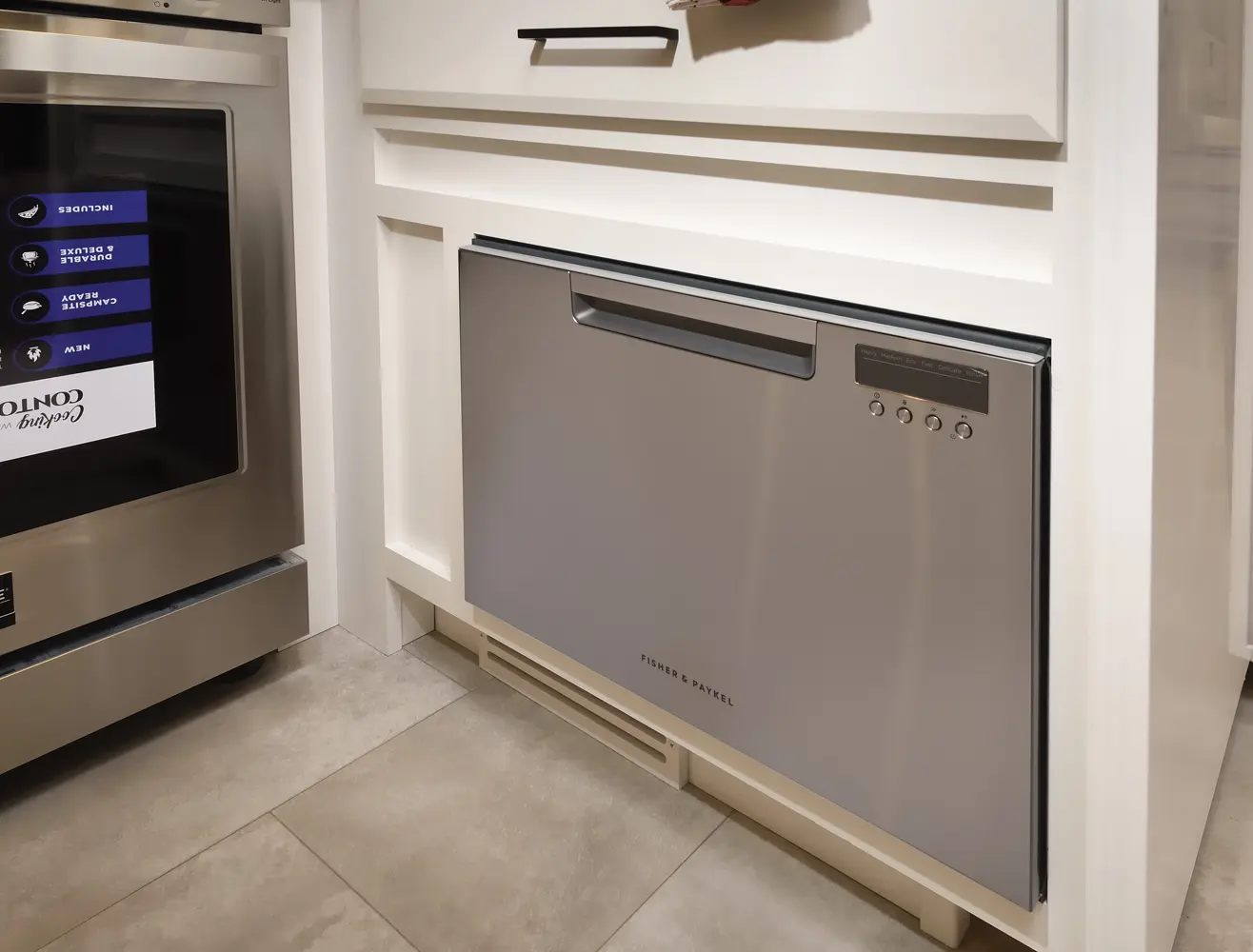

  • Fischer Paykal Dishwasher
  • Ceiling Fan (N/A on 39RBFL)
  • Truma Aqua Go Comfort On-Demand Hot Water Heater
  • LP Generator Prep
  • Energy Management System
  • Tank Sensors Display (Grey, Black and Fresh) Integrated with Firefly Readout
  • Tire Pressure Sensors
  • Additional Campside Awning w/Weathershield
  • Triple 7,000 lb. Axles
  • 66” x 80” Residential 10” Memory Foam Mattress

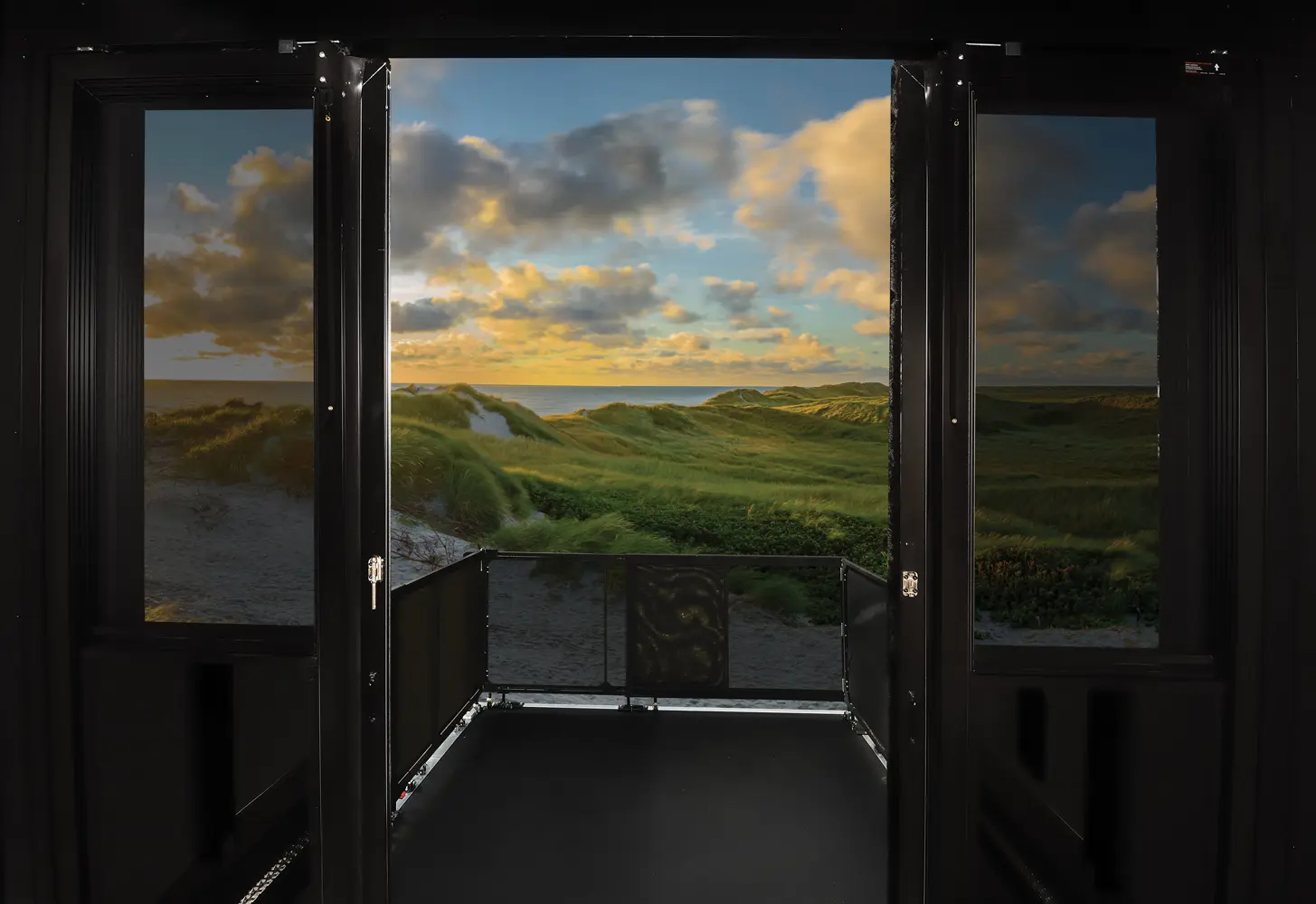

  • MORryde Zero Gravity Ramp Door
  • 100” deep, 64” wide, 82” Tall (bed up) 58” Tall (bed down) Cargo Area
  • 65” Samsung LED Smart TV in Living Room (55” TV in 37FLTH and 39RBFL)
  • JBL Premium Sound System

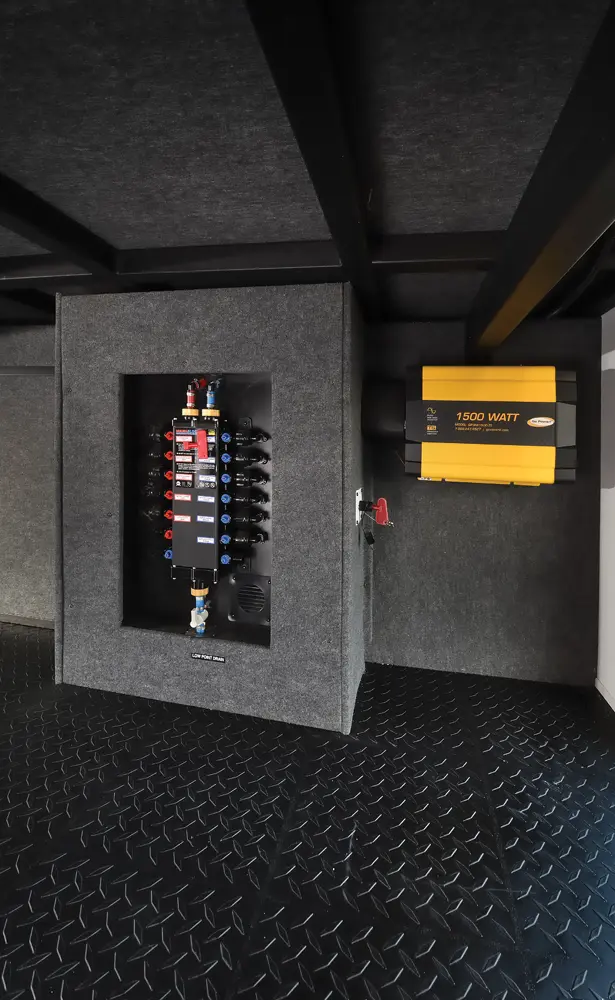

  • 1,500W Inverter

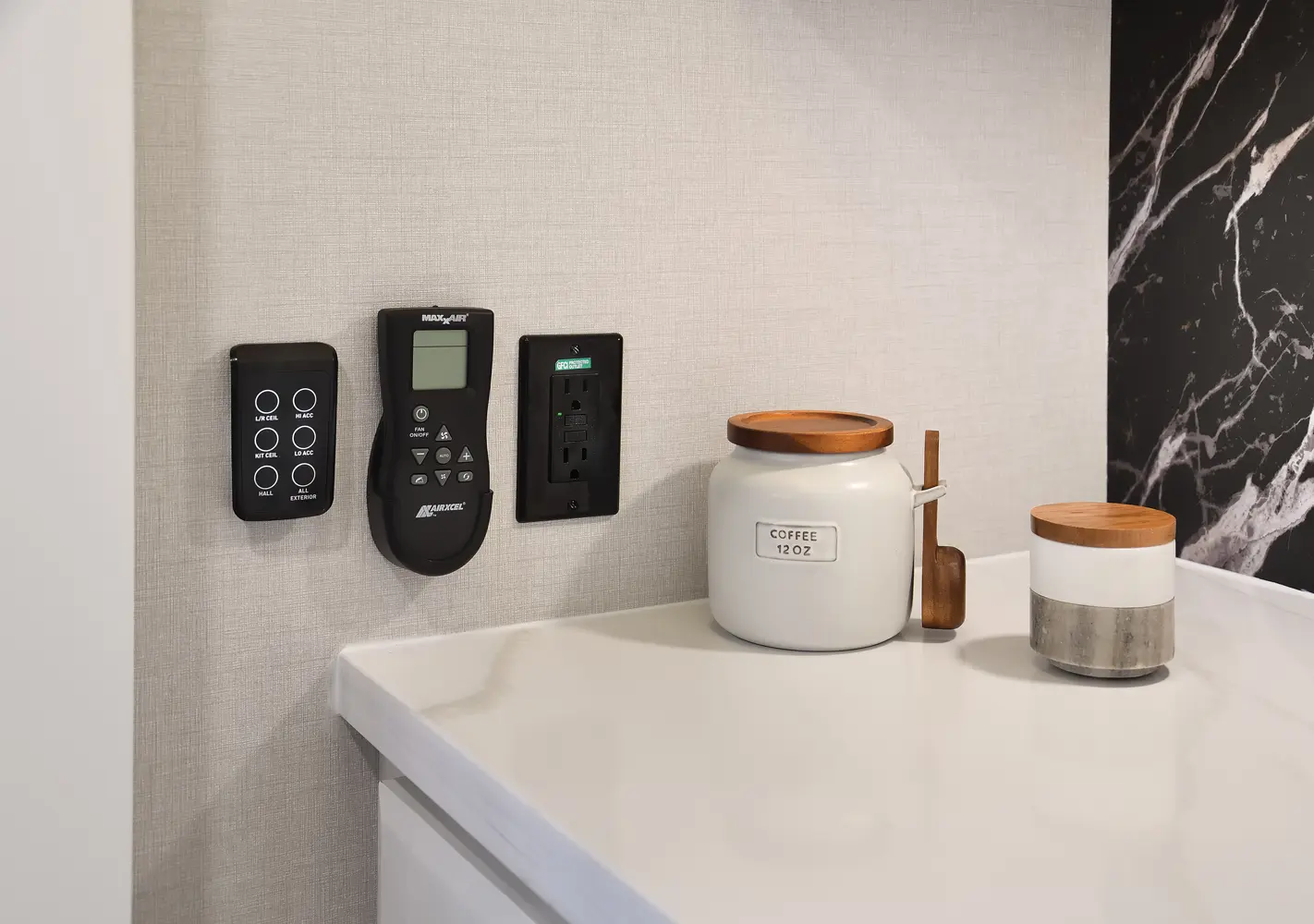

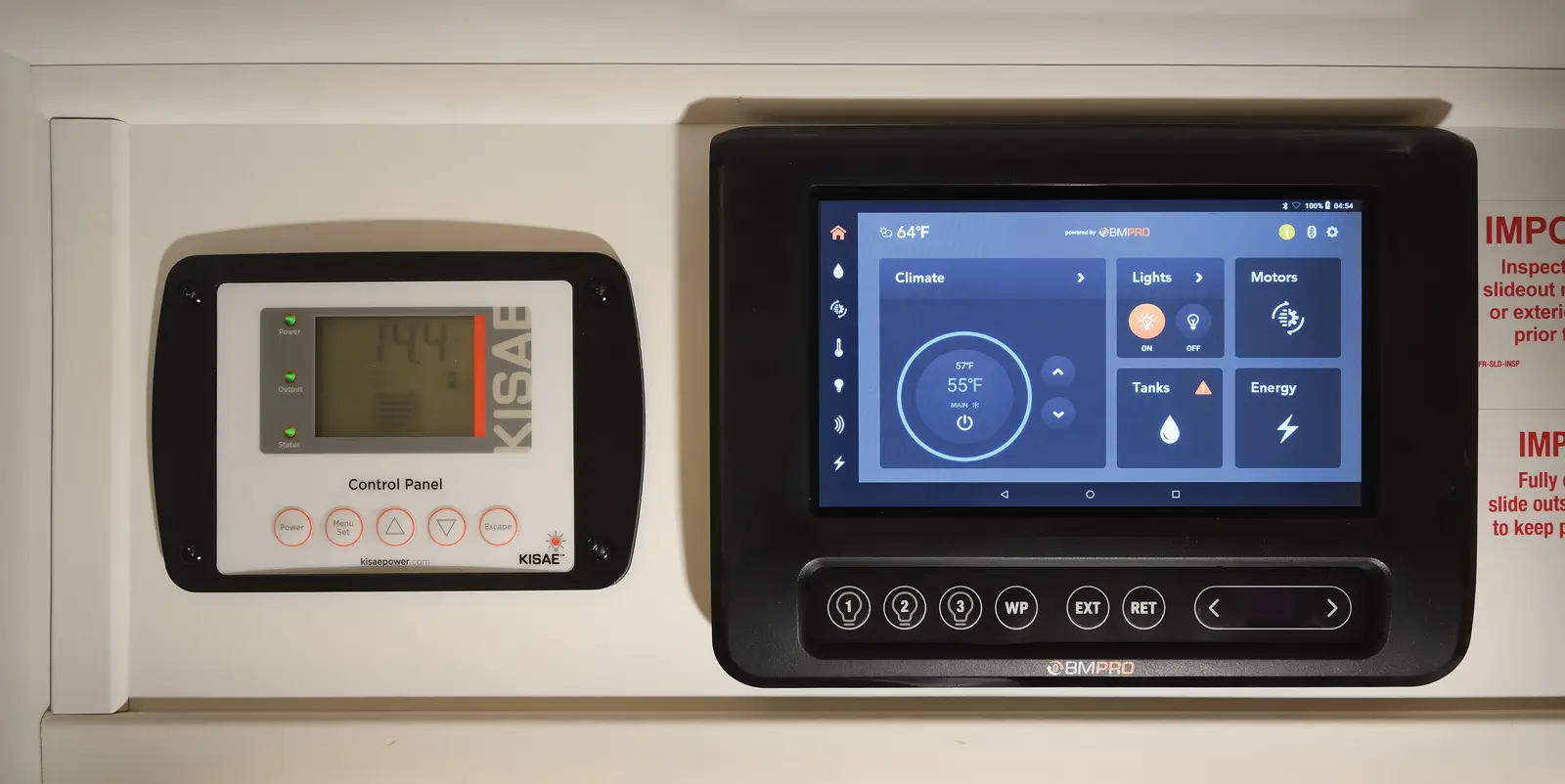

  • Firefly Integrated Touch Control System
  • 190W Solar Panel with 30Amp Controller
  • Pre-Wire Prep for 2 Additional Solar Panels
  • Full Body Paint
  • Disc Brakes
  • Goodyear Tires
  • JBL Subwoofer
  • Dyson Cordless Vacuum
  • Two Folding Chairs
  • LCI Waste Management System
  • Full Unit Water Manifold System
  • Hand Laid Tile Flooring
  • 3rd A/C (15,000BTU) with Heat Pump
  • Heat Pump on Bedroom A/C
  • 5.5 Onan Marquis Gold LP Generator
  • Cadet Wall Mounted Electric Heater in Bedroom
  • Trail Air 21K Hitch
  • Good Year 17.5” H Rated Tires—Tandem Axle
  • Good Year 17.5” H Rated Tires—Triple Axle (Toy Haulers)
  • Four Camera System with 7” Monitor Screen—Rear, Side and Entry Door Views
  • Slide Room Awning Toppers with Metal Weather Shields
  • Two Additional 190W Solar Panels
  • MORryde Independent Suspension System
  • King Tailgater One-Pro Roof Mounted Satellite
  • Full Body Paint
  • Hydraulic Disc Brakes
  • 40” Outside TV (N/A on 42FSKG and 37FLTH)
  • 50” Outside TV (Toy Haulers Only)
  • 13CF Side by Side Gas/Electric Refrigerator with Wood Fronts (N/A in FSK, 42FSKG, 39RKFB)
  • 30” Stainless Steel Convection Microwave Oven
  • Stone Pattern Flooring
  • Two Folding Chairs
  • Queen Bed Suite IPO King Bed Suite
  • Carpet on Bedroom Floor IPO Vinyl
  • 2nd Sofa IPO Desk (39RKFB, 39FSK, 42FSKG)

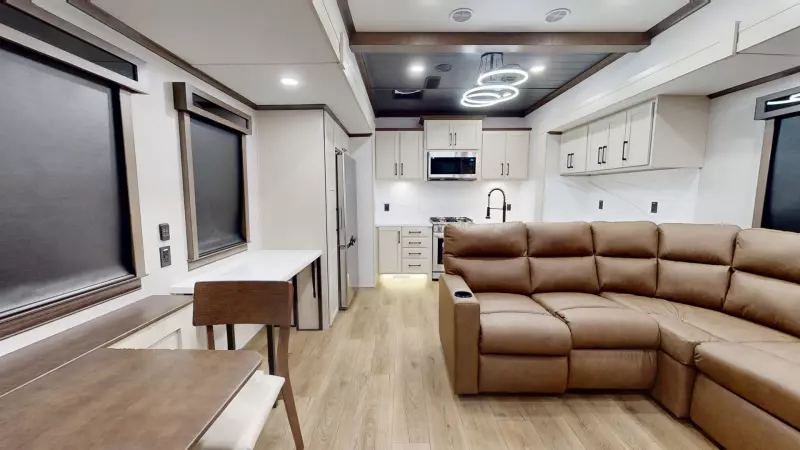

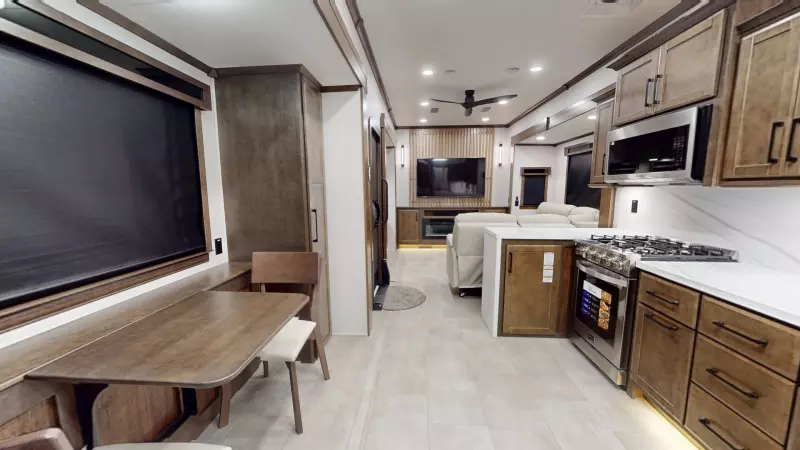

Virtual Tours

  • 37FLTH
    37FLTH Main Room
  • 391FSK
    391FSK Main Room
  • 39RBFL
    39RBFL Main Room
  • 39RKFB
    39RKFB Main Room
  • 419RD
    419RD Main Room
  • 41RL
    41RL Main Room
  • 42FSKG
    42FSKG Main Room
  • 442MC
    442MC Main Room
  • 4514BATH
    4514BATH Main Room


Literature
