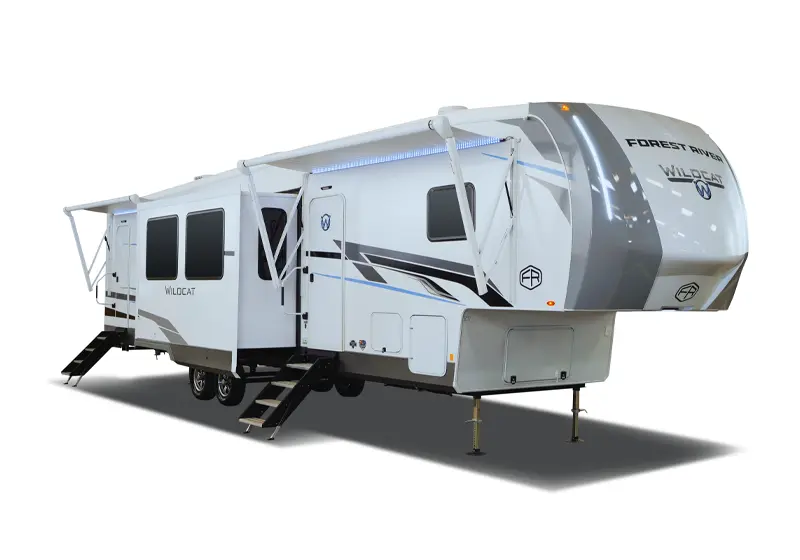

Wildcat Fifth Wheels

Here at Wildcat Fifth Wheels, we’ve built a loyal following of new and returning customers—and it’s easy to see why. Our team takes pride in building each unit to exacting standards for a lifetime of camping memories. This year we’ve unveiled a list of customer-centric features, including hidden lift-up TV storage, arched roofs, Road Armor suspension with Dexter Axles, extra wide entry steps, power theater seating with massage and LED lights, LCI One Control system, Maxx insulation package, 2” receiver hitch, auto leveling, rear/back camera prep, and hitch assist light.


RV Business 2021 Must See RVCare Camps, fighting cancer and making memories

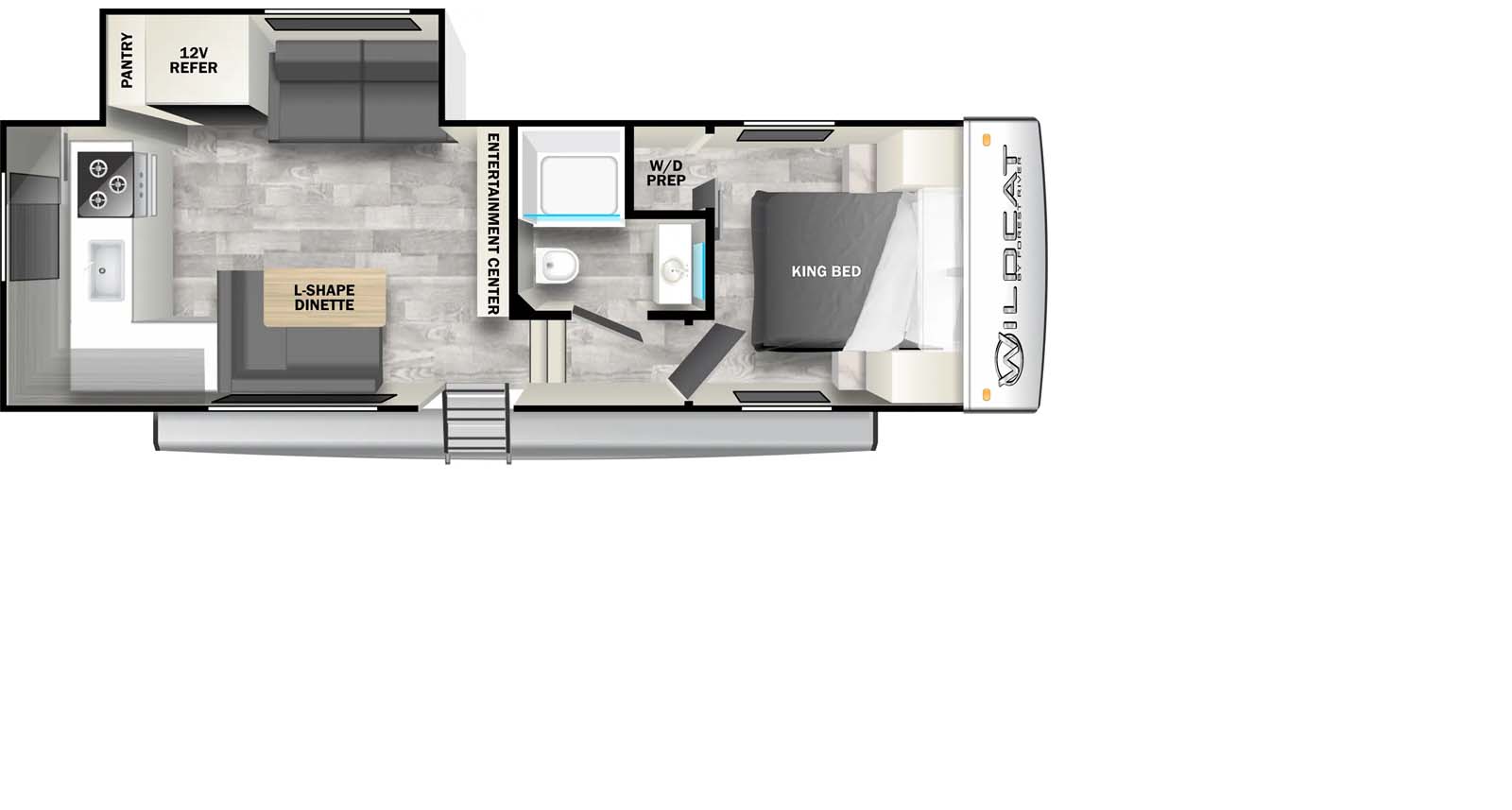

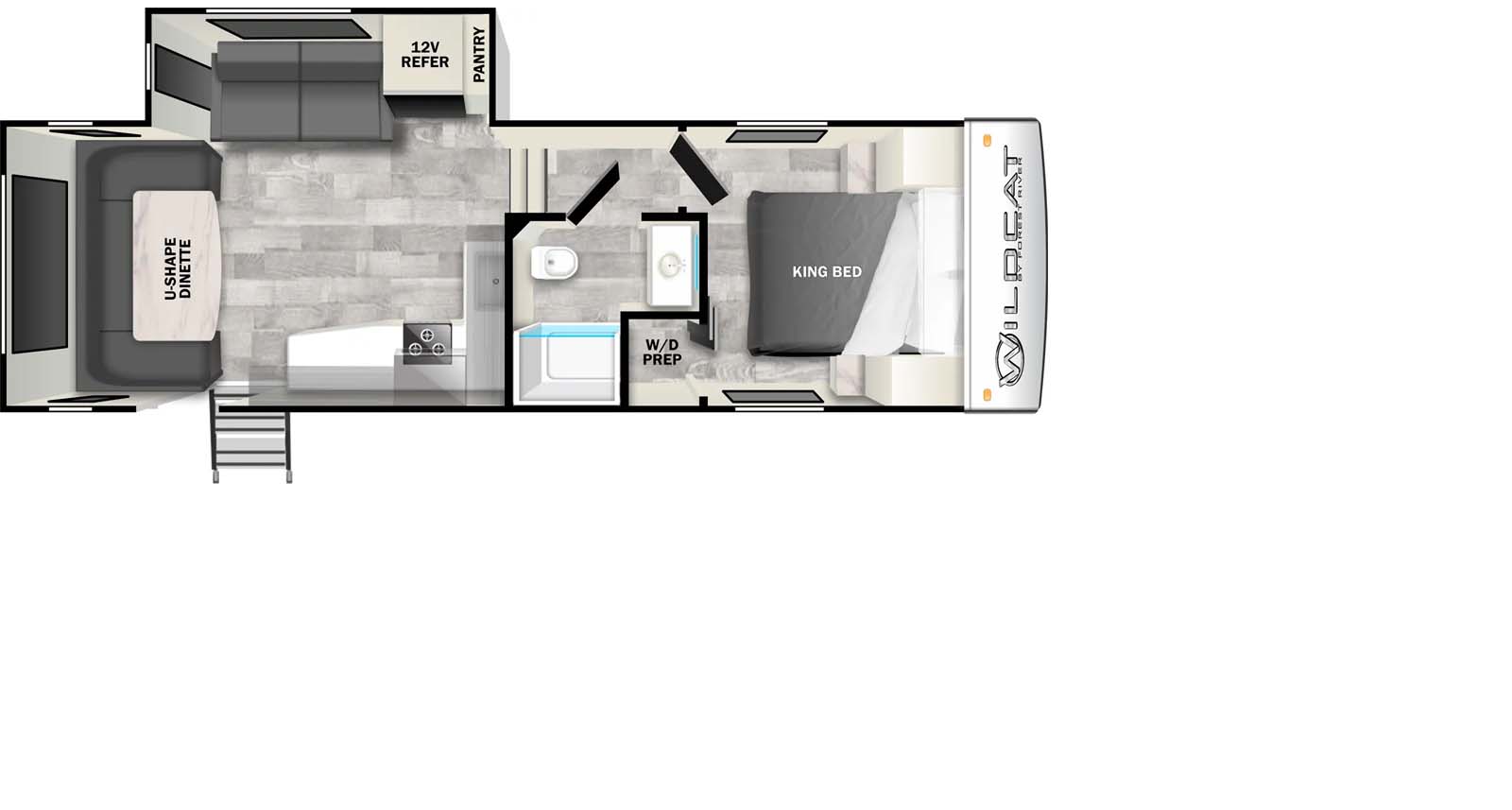

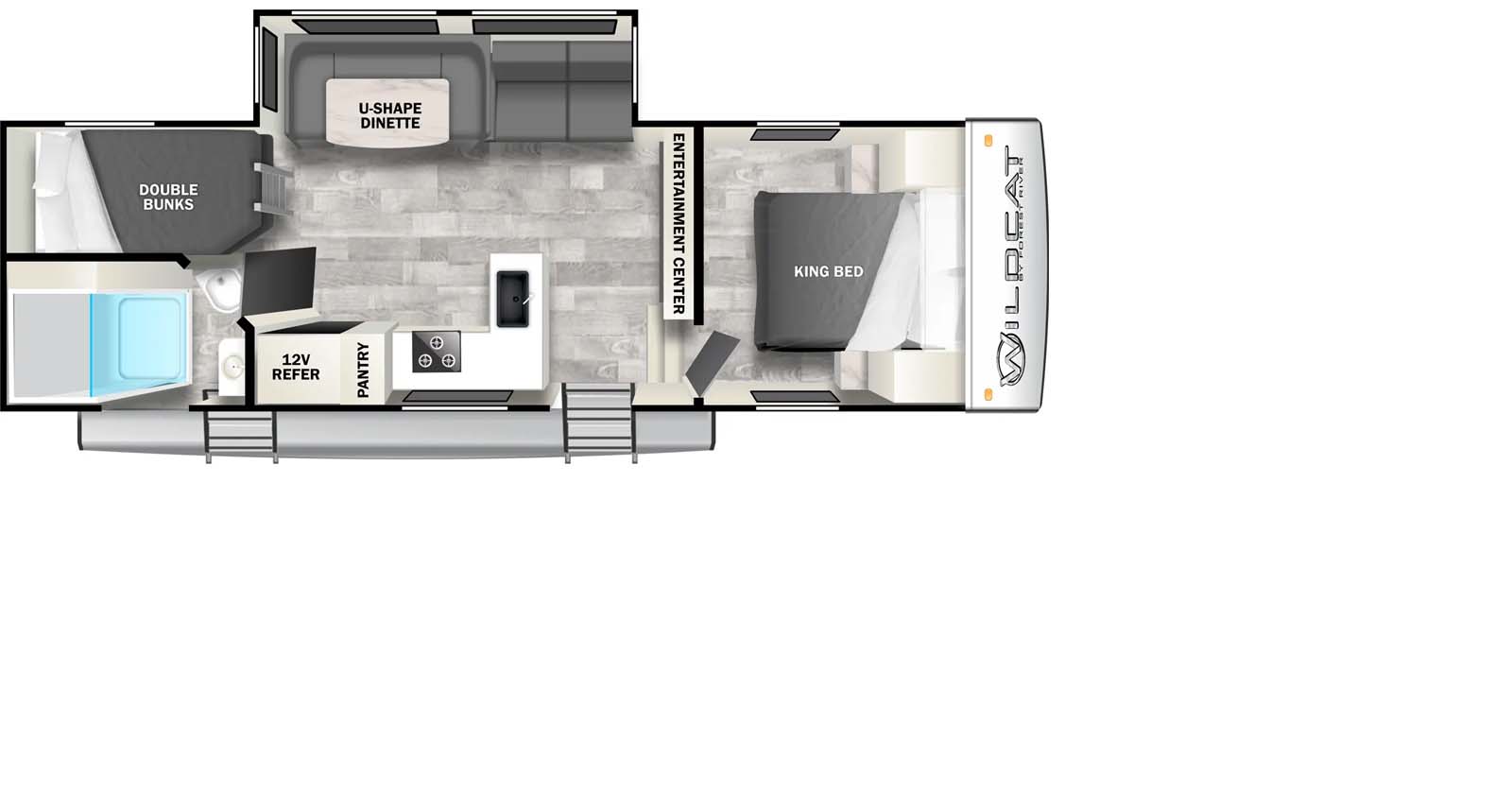

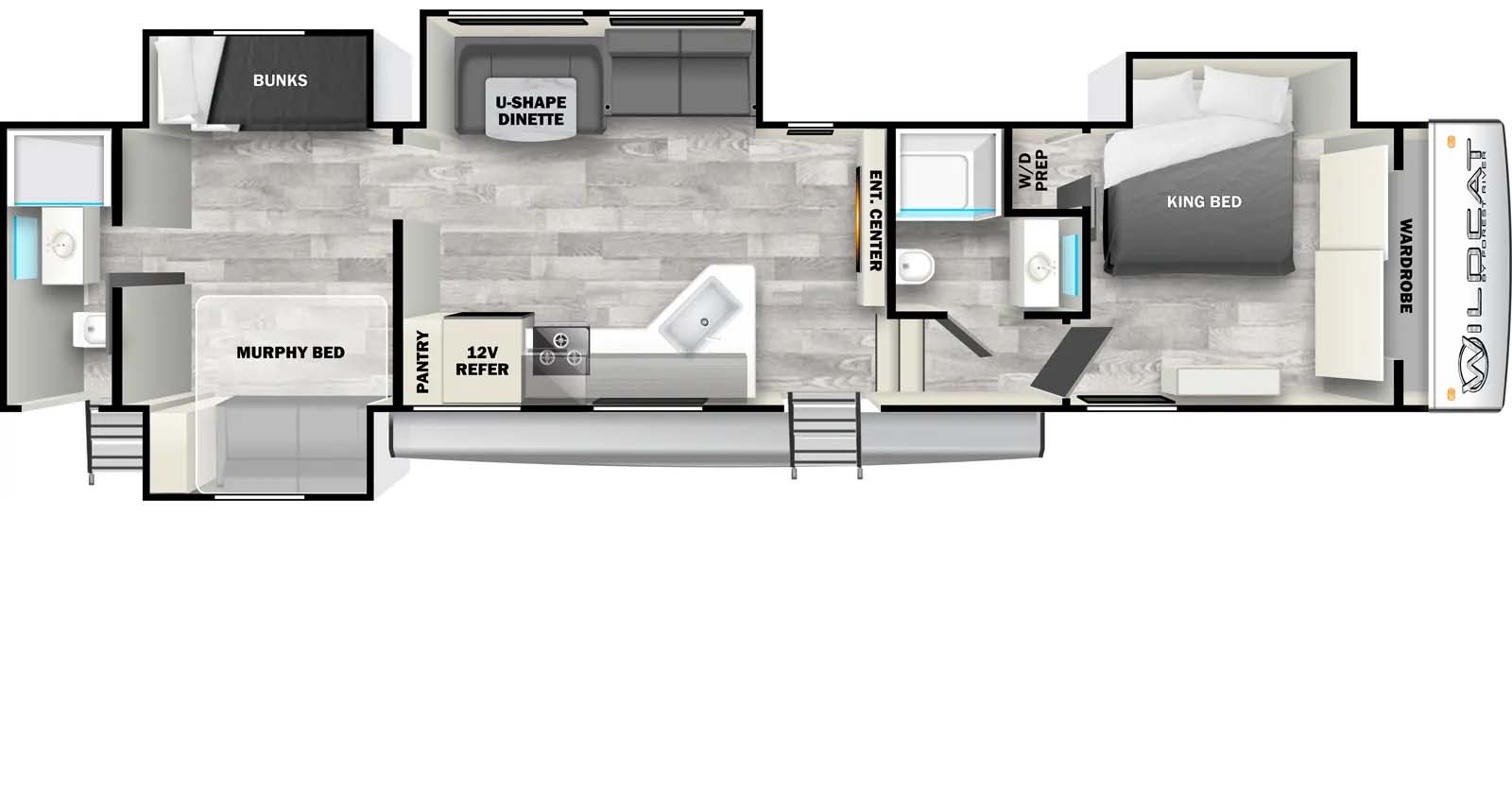

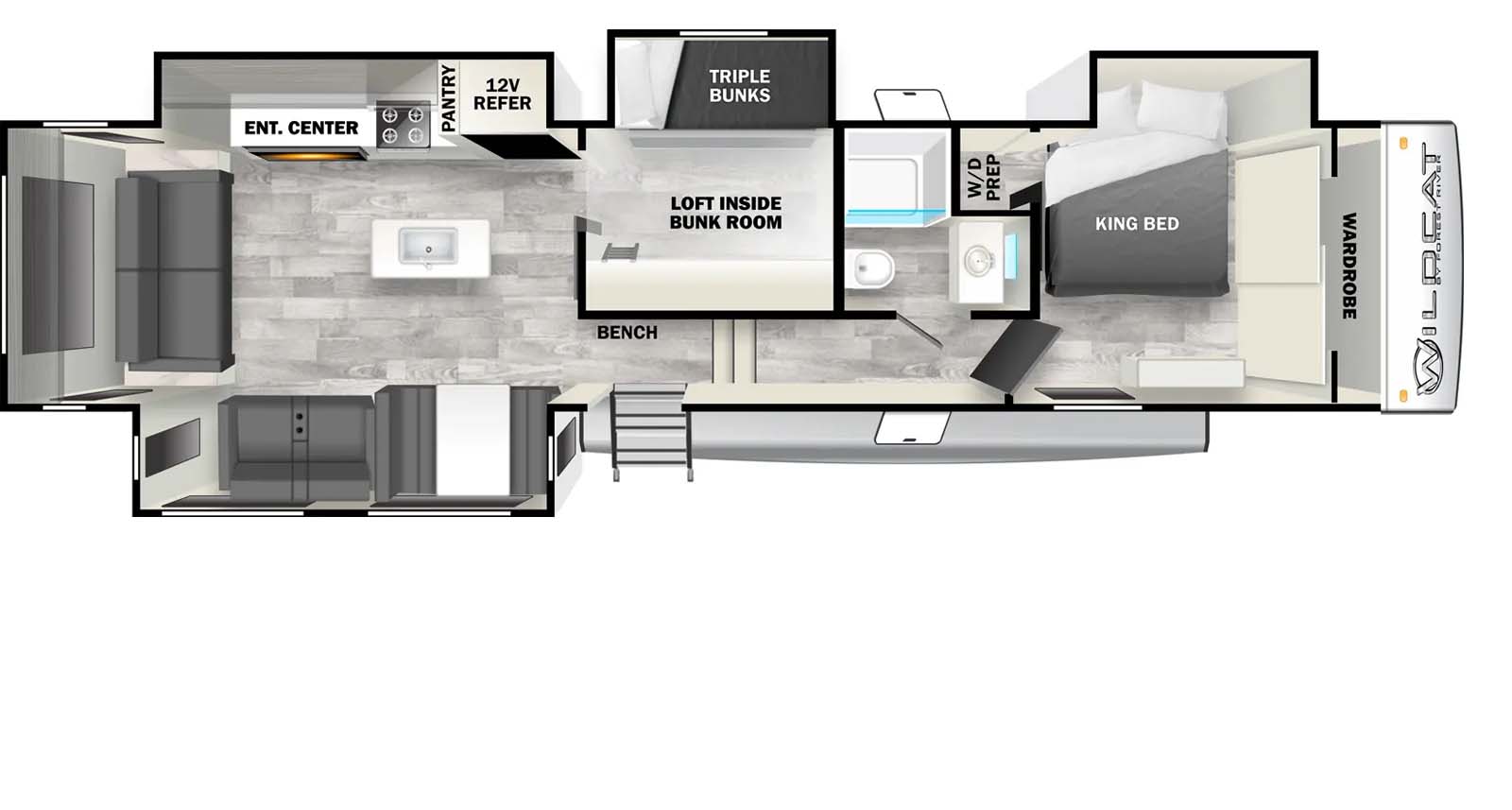

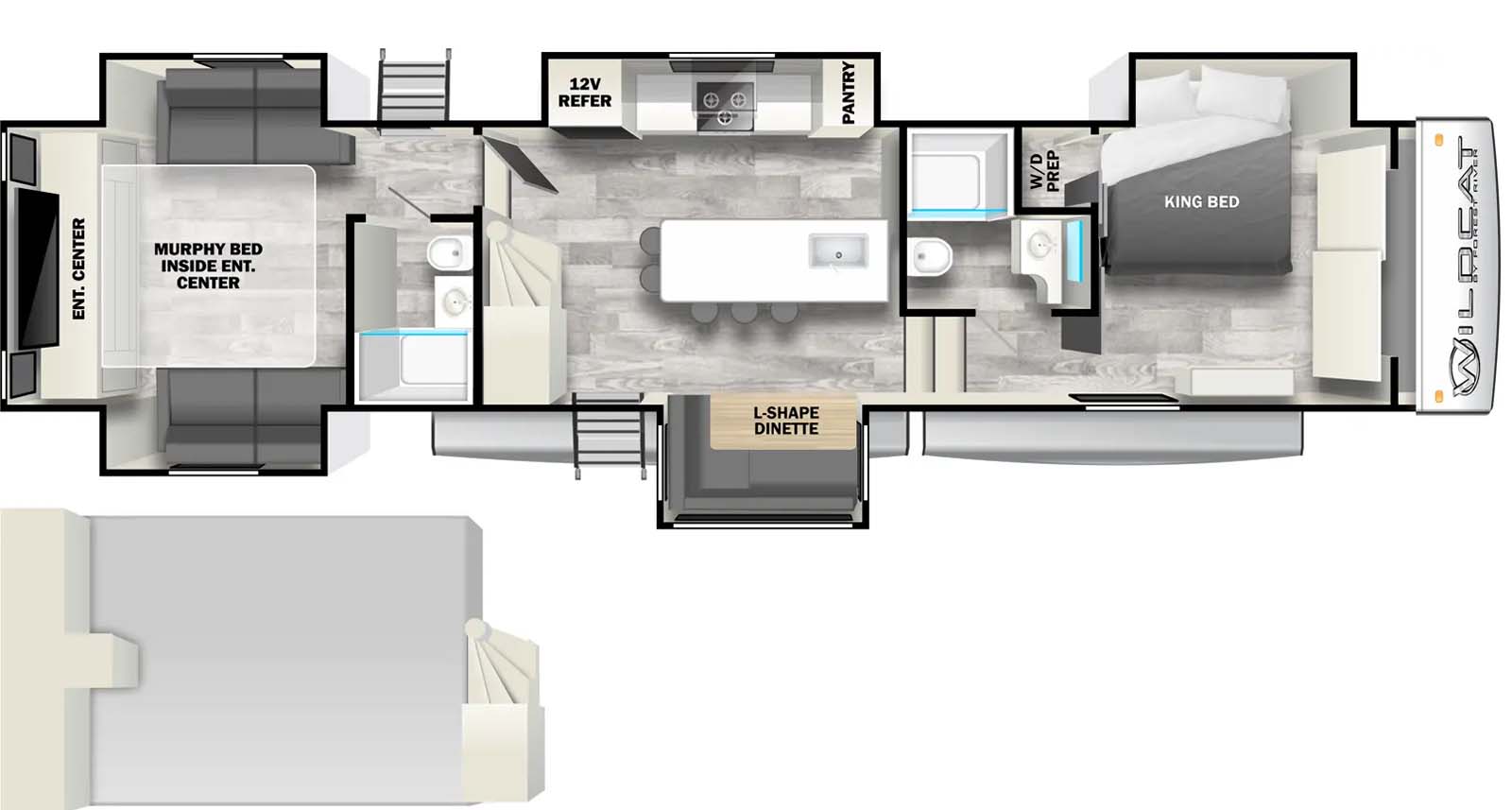

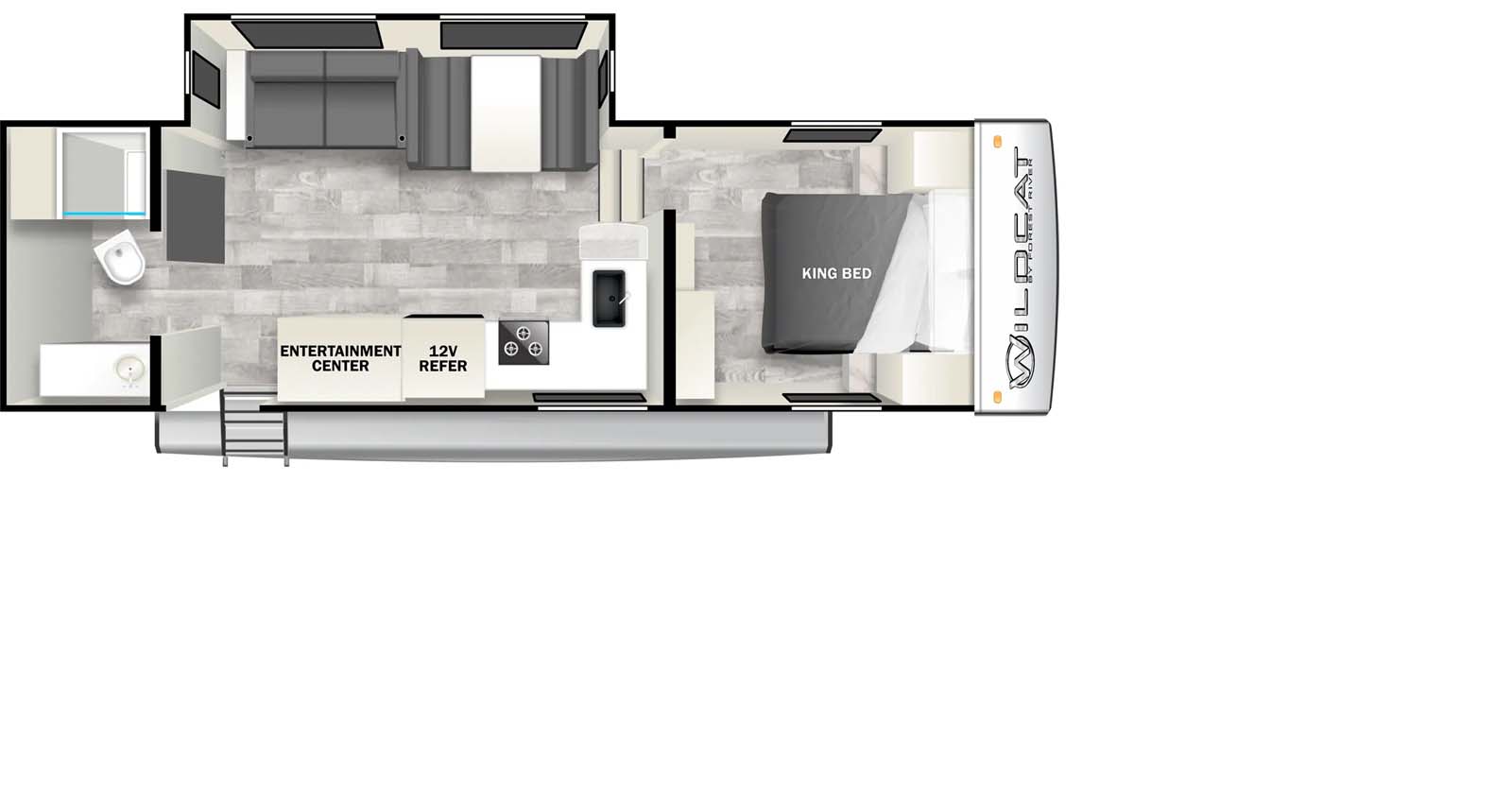

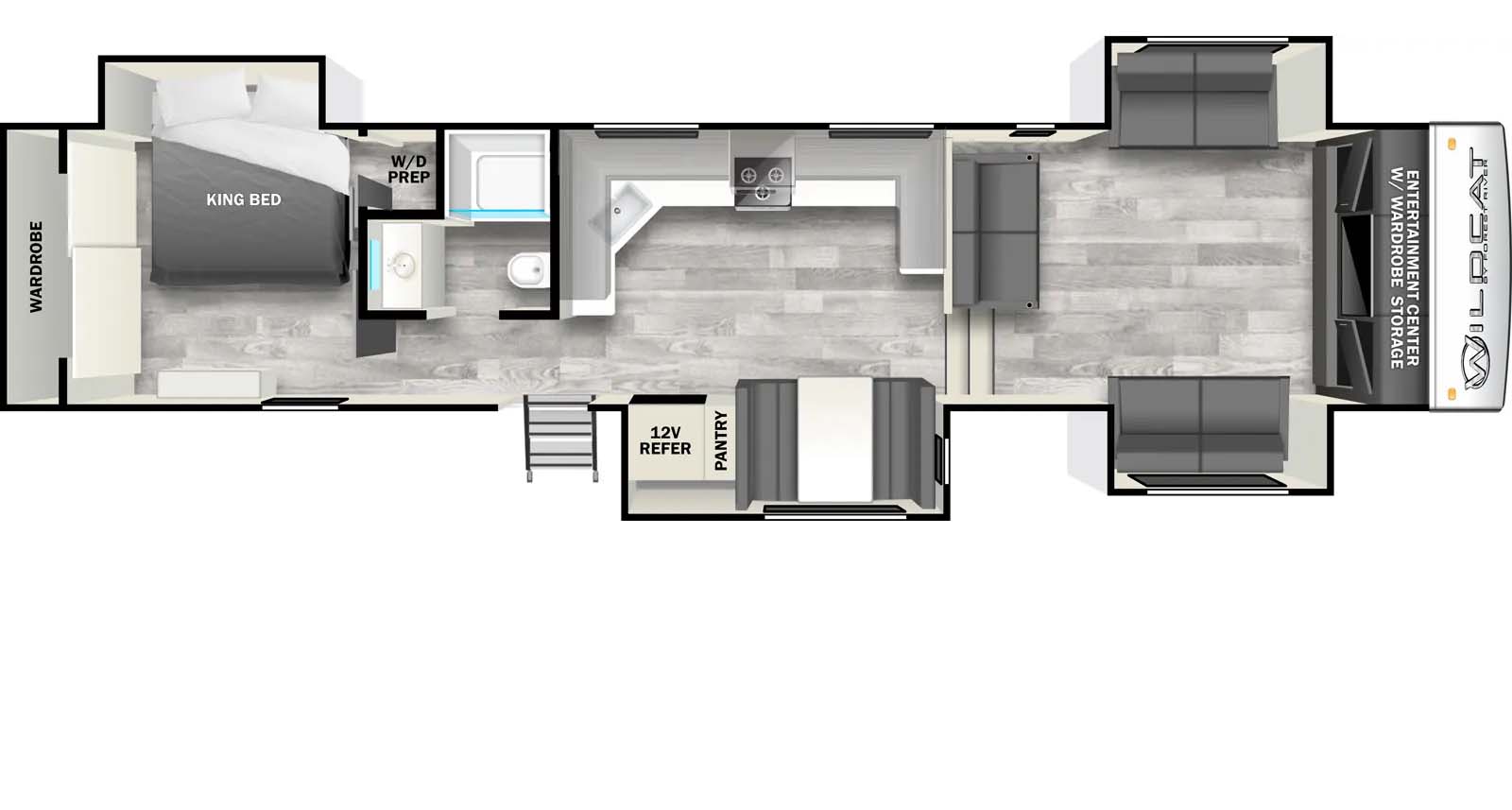

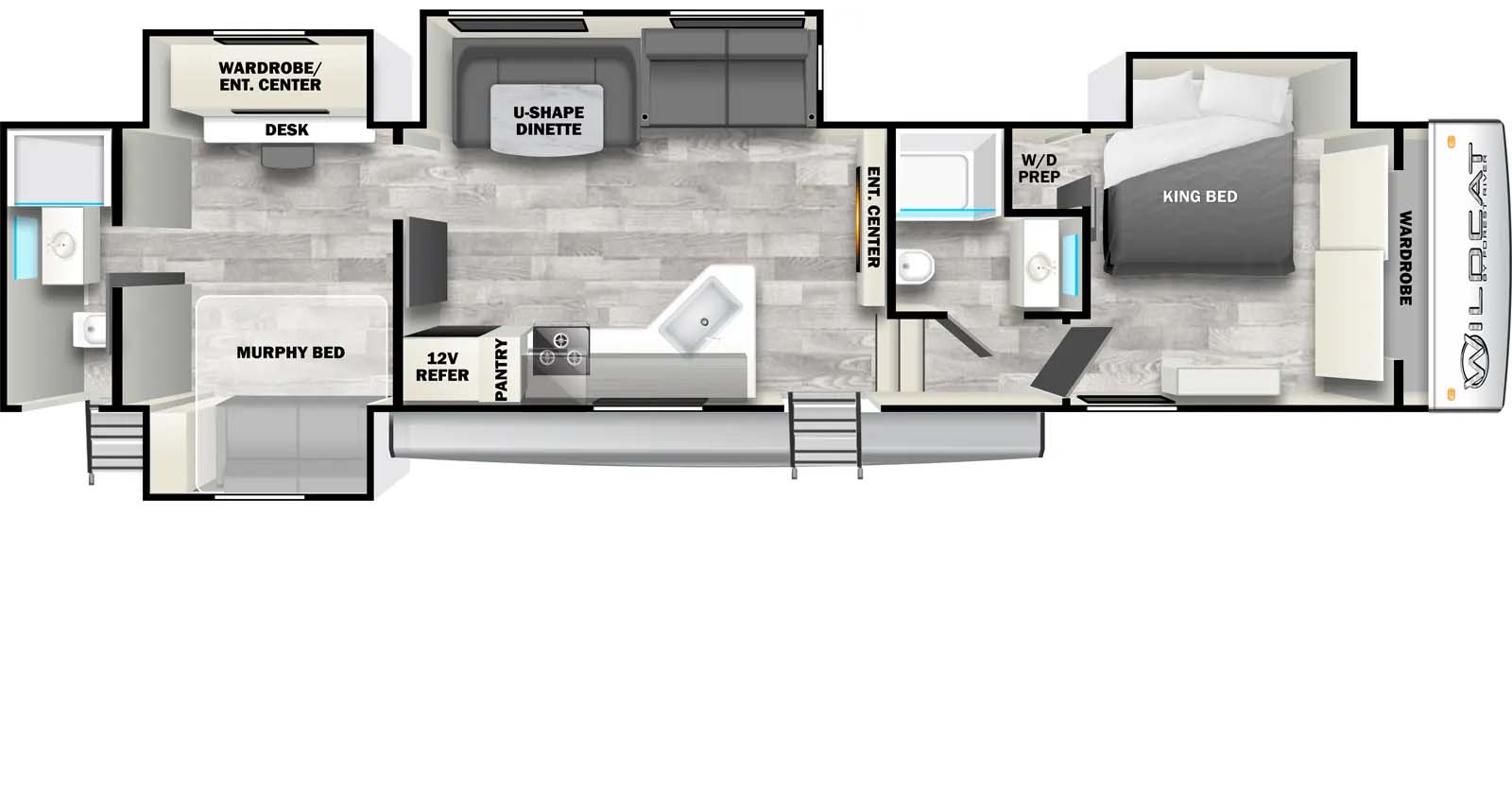

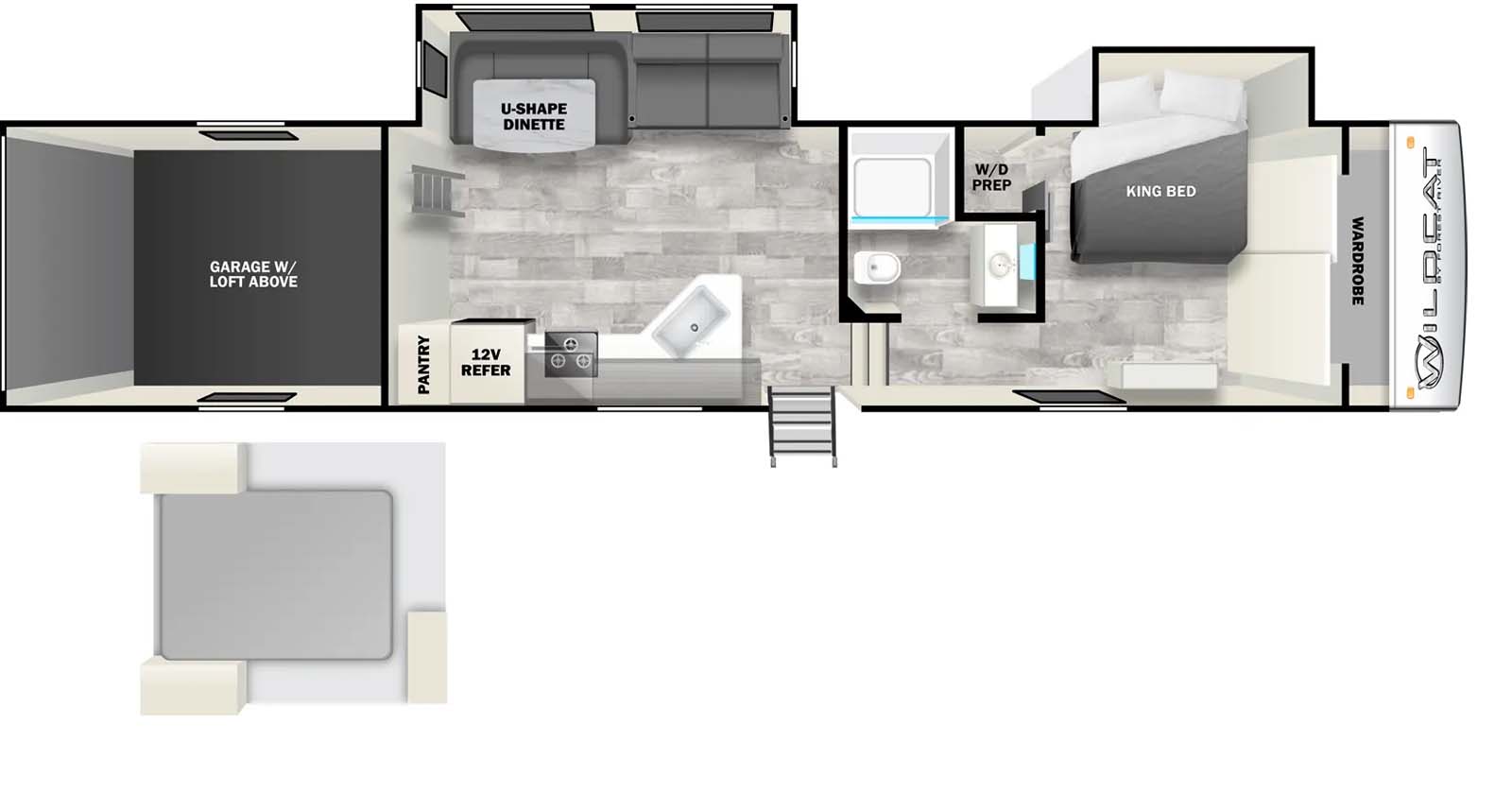

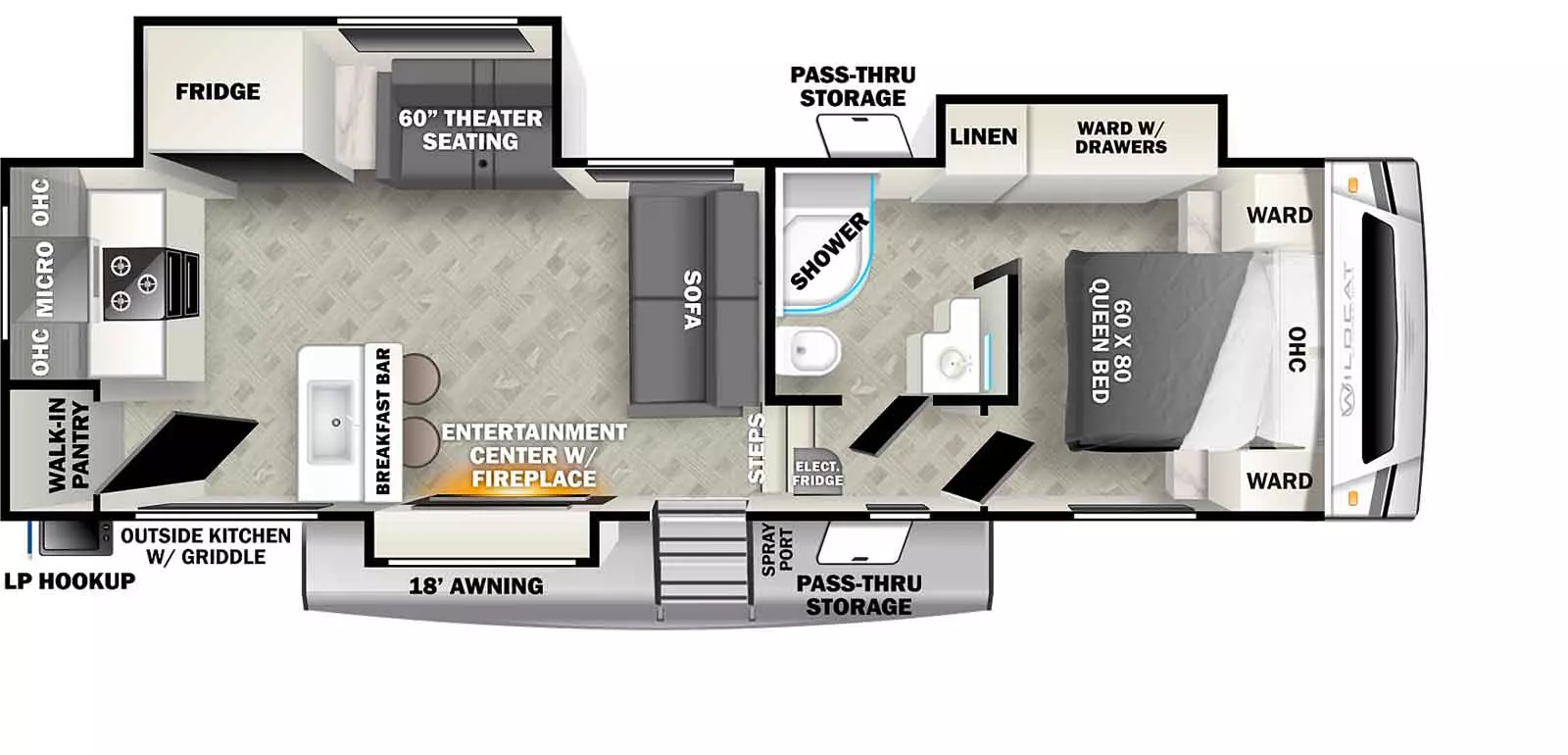

Floorplans

Print

Wildcat Fifth Wheels


Specifications

Print

Floorplan: 260RD : Wildcat Fifth Wheels 263RL : Wildcat Fifth Wheels 271ML : Wildcat Fifth Wheels 290RLW : Wildcat Fifth Wheels 302BH : Wildcat Fifth Wheels 333RLBS : Wildcat Fifth Wheels 336RLS : Wildcat Fifth Wheels 353BHLW : Wildcat Fifth Wheels 363DVW : Wildcat Fifth Wheels 369MBL : Wildcat Fifth Wheels
Hitch Weight:1,660 lb.1,400 lb.1,475 lb.1,710 lb.1,635 lb.1,865 lb.1,940 lb.1,965 lb.2,155 lb.2,135 lb.
UVW:8,369 lb.8,294 lb.8,884 lb.10,129 lb.8,729 lb.10,259 lb.10,459 lb.12,749 lb.11,239 lb.11,509 lb.
CCC:3,491 lb.3,306 lb.2,791 lb.3,581 lb.4,906 lb.3,606 lb.3,481 lb.1,216 lb.2,916 lb.2,626 lb.
Exterior Length:31' 6"31' 9"32' 10"39' 9"35' 10"36' 5"34' 8"43' 7"40' 11"42' 7"
Exterior Height:13' 3"13' 3"13' 3"13' 3"13' 3"13' 3"TBD13' 3"13' 3"13' 3"
Exterior Width:96"96"96"96"96"96"96"96"96"96"
Fresh Water:46.00 gal.49.00 gal.46.00 gal.60.00 gal.46.00 gal.46.00 gal.48.00 gal.60.00 gal.60.00 gal.46.00 gal.
Gray Water:36.00 gal.36.00 gal.66.00 gal.45.00 gal.66.00 gal.66.00 gal.68.00 gal.121.00 gal.45.00 gal.66.00 gal.
Black Water:36.00 gal.36.00 gal.36.00 gal.45.00 gal.36.00 gal.36.00 gal.36.00 gal.83.00 gal.45.00 gal.36.00 gal.
Awning Size:17'18'18'13' & 10'21'14' & 11'11' & 14'15' & 10'17' & 11'19' & 11'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print
  • Large Stainless Steel Sink & Bullet Faucet
  • 2-In-1 Range & Oven
  • Roll-Up Sink Cover
  • 12V Stainless Steel Refrigerator
  • Soft-Closing, Anti-Slam Drawers
  • Hidden-Hinge Cabinet Doors
  • Rose Gold Door & Drawer Hardware
  • Extra Large Pots & Pans Drawer
  • Cutlery Drawer
  • Glass Range Cover
  • Residential Style Range Vent w/ Light & Fan
  • 72" x 80" King Bed (333RLBS, 369MBL)
  • 60" x 80" Queen Bed (260RD, 263RL, 271ML, 302BH, 311RLWS)
  • 6'5" Head Clearance
  • Washer/Dryer Prep (333RLBS, 369MBL)
  • Large Wardrobe Slide-Out (260RD, 263RL, 271ML, 302BH, 311RLWS)
  • C-Cat" Cpap, Cellphone, Nightstand Station
  • Large Under-Bed Storage
  • USB's & 110 Outlets on both sides of bed
  • Bedroom Roof Vent & Pre-Wired for 2nd AC (Ducted)
  • Reading Lights on both sides of bed
  • Pedal-Flush Toilet
  • Built-In TP Holder w/Storage
  • Power Vent Fan
  • Towel Hooks
  • Stainless Sink w/Storage below
  • 6'5" Head Clearance
  • FLOOR: 5/8" Tongue & Groove Plywood Floor
  • ROOF: Dicor Tufflex PVC Roof Membrane (Radius Edge)
  • SIDEWALLS: 2" Vacuum-Bonded, Welded Aluminum Sidewalls
  • Auto-Level: LCI Ground Control 3.0
  • LCI Solid Step Entry Steps (4-Step)
  • Extra-Wide 30" Entry Door
  • 2" Accessory Receiver
  • Winegard 360+ Prep (AM/FM/TV Antenna/4G & WIFI Extender)
  • Rear Observation Camera Prep
  • Roof Mount Solar Panel Prep
  • Exterior Speakers w/TV Hookup & Bracket
  • Battery Disconnect Switch
  • Hitch Light above Pin Box
  • Docking Station w/Outdoor Shower & Black Tank Flush
  • 2 Power Awnings (311RLWS, 333RLBS, 369MBL)
  • 1 Power Awning (260RD, 263RL, 271ML, 302BH)
  • Sectional Composite Underbelly Armor
  • E-Rated Tires w/Aluminum Rims
  • Thomas Payne Theater Seating (N/A 263RL, 302BH)
  • Sleeper Sofa (N/A 260RD)
  • LED HDTV w/Built-In Soundbar (HDMI/BT/FM/USB/Dual Zone)
  • Electric Fireplace w/Heat & Remote
  • 15,000 BTU Ducted AC
  • Mega Lift-Up TV Storage (271ML, 311RLWS, 333RLBS, 369MBL)
  • Black-Out Roller Shades
  • 12V Heat Pads w/Underbelly Ducted Heat
  • 35,000 BTU Furnace
  • 15,000 BTU AC (Prepped for 2nd Ducted AC)
  • 12,000 BTU Rapid Recovery 6 Gal Water Heater (G/E)
  • Exterior Ventilated Attic Vents for Breathable Roof
  • Full Pass Through Front Storage w/Forced Heat
  • 50 Amp Electric
  • Dual 30 lb. LP Tanks
  • Electric Fireplace w/Heat & Remote
  • FLOOR: Residential & Thermofoil Insulation (ER 38)
  • ROOF: Residential & Thermofoil Insulation (ER 38)
  • SIDEWALLS: 2" High-Density Block Foam Insulation (ER 9)
  • 2nd Ducted A/C (15,000 BTU)
  • 8 Cu. Ft. G/E Refrigerator
  • U-Shape Booth Dinette IPO Table & Chairs

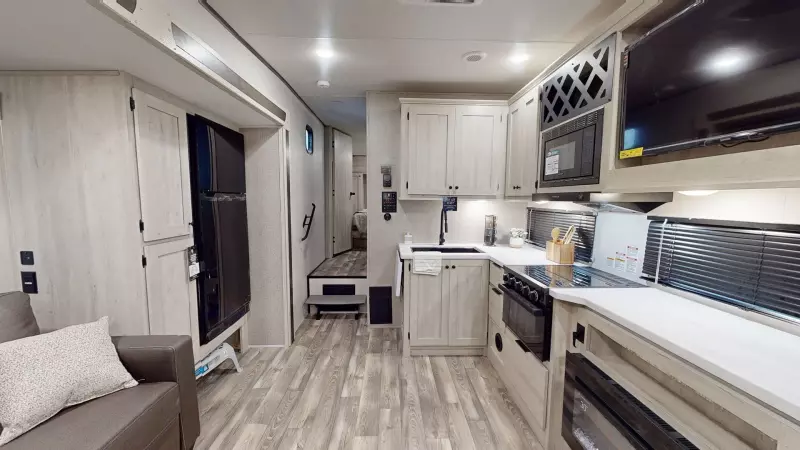

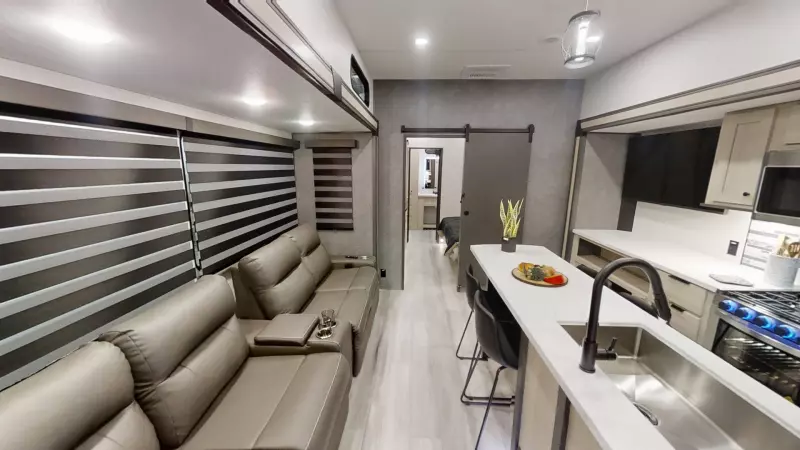

Virtual Tours

  • 260RD
    260RD Main Room
  • 271ML
    271ML Main Room
  • 290RLW
    290RLW Main Room
  • 302BH
    302BH Main Room
  • 333RLBS
    333RLBS Main Room
  • 353BHLW
    353BHLW Main Room
  • 363DVW
    363DVW Main Room
  • 369MBL
    369MBL Main Room


Videos

Some videos may show features or options not available on all products. Contact our service representatives or your local dealer if you have questions about how your specific RV operates.


Literature
