2026 Grand Surveyor 290RLDS Floorplan

The Grand Surveyor 290RLDS floorplan has one entry and two slide outs. Exterior features include: fiberglass exterior, 11' & 12' awning and outside kitchen. Interiors features include: kitchen island and front bedroom.

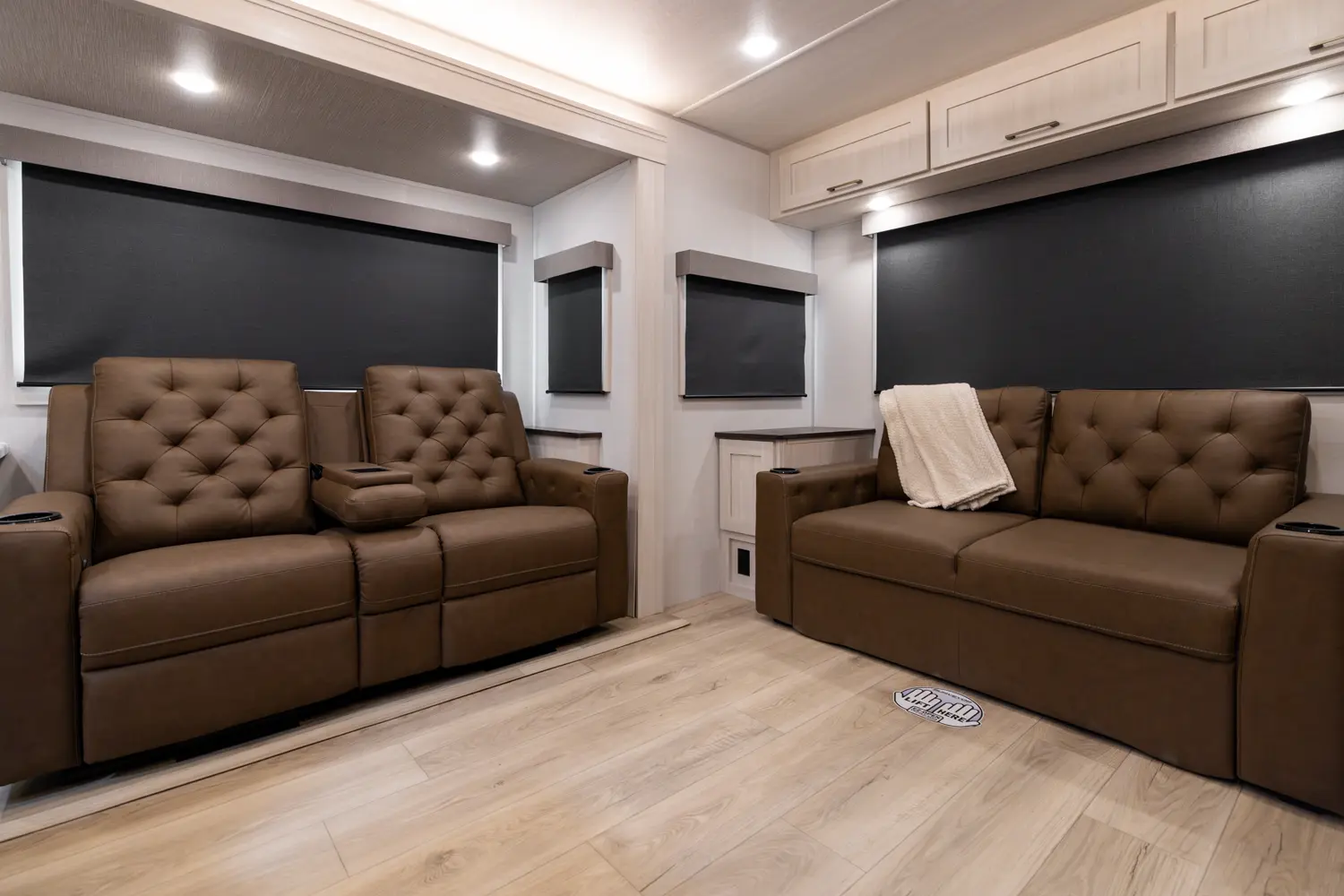

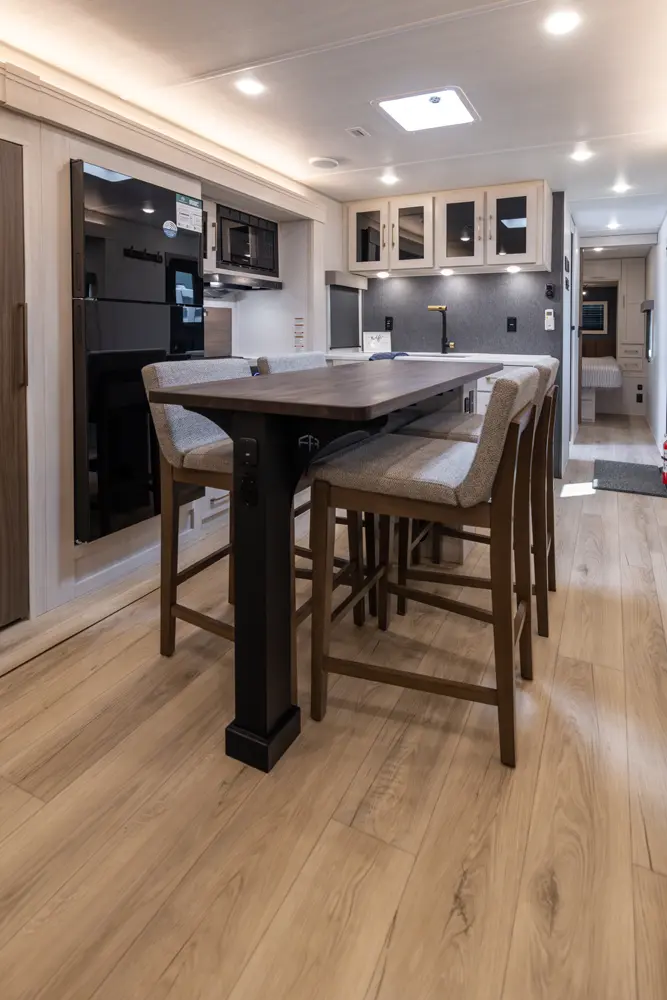

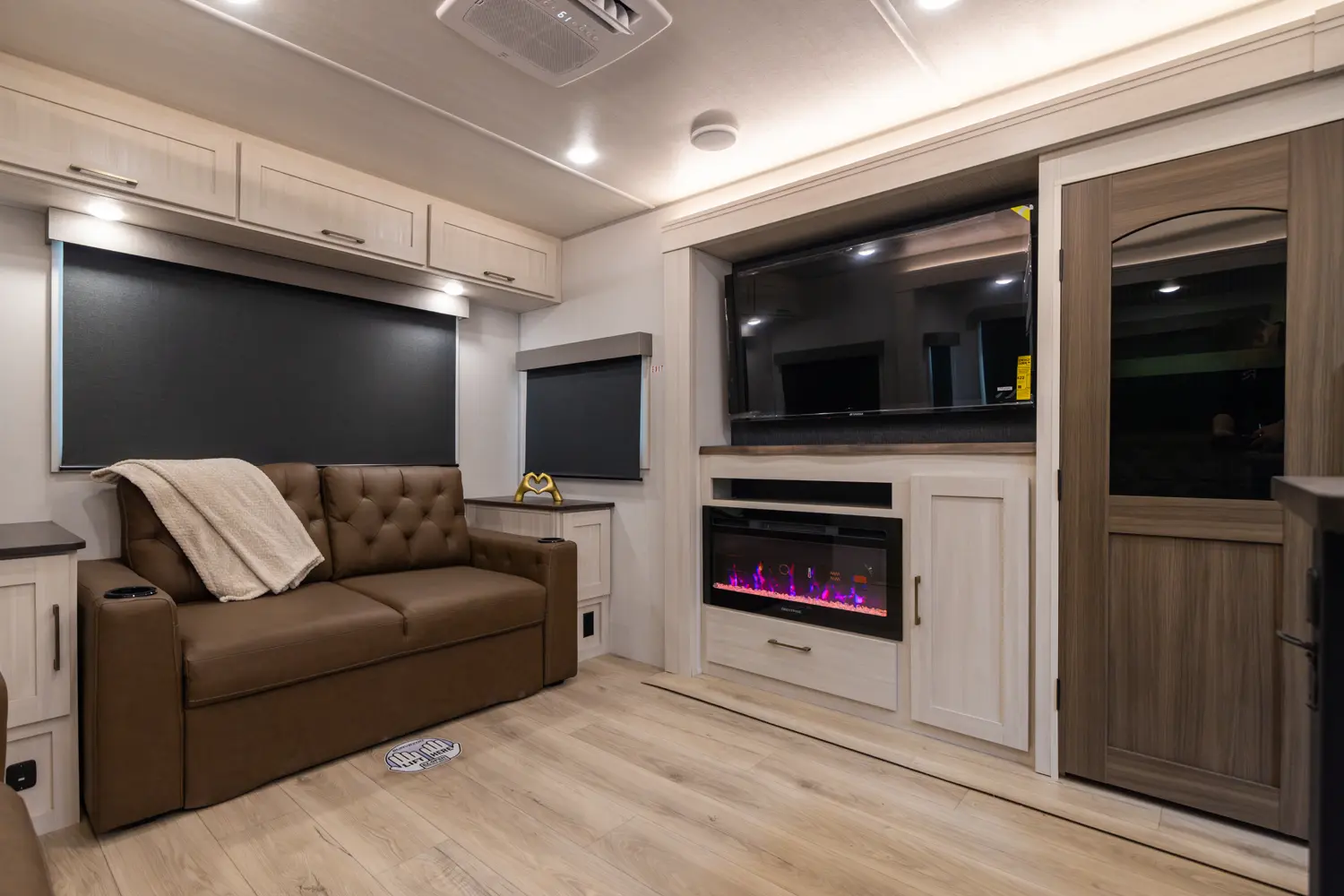

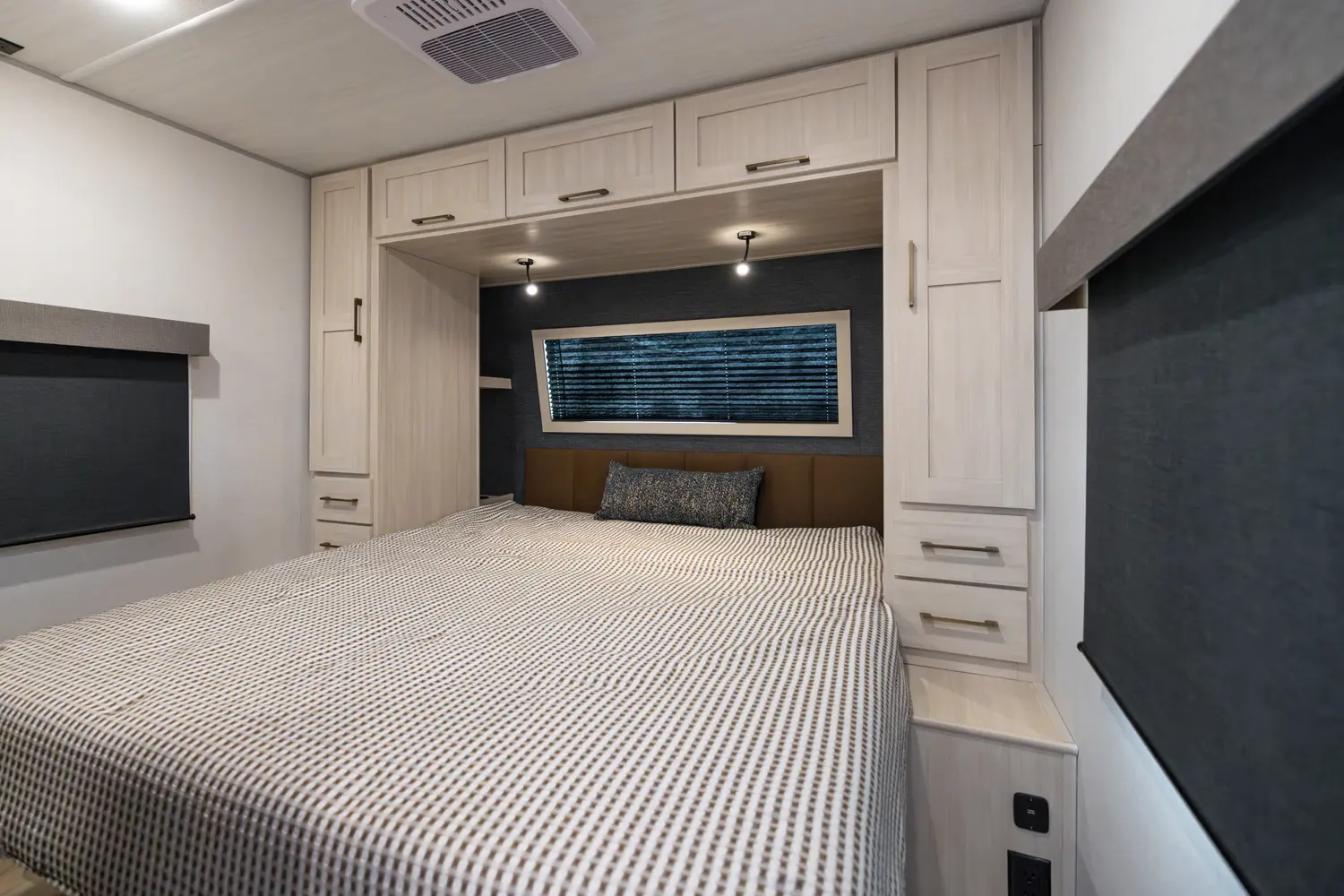

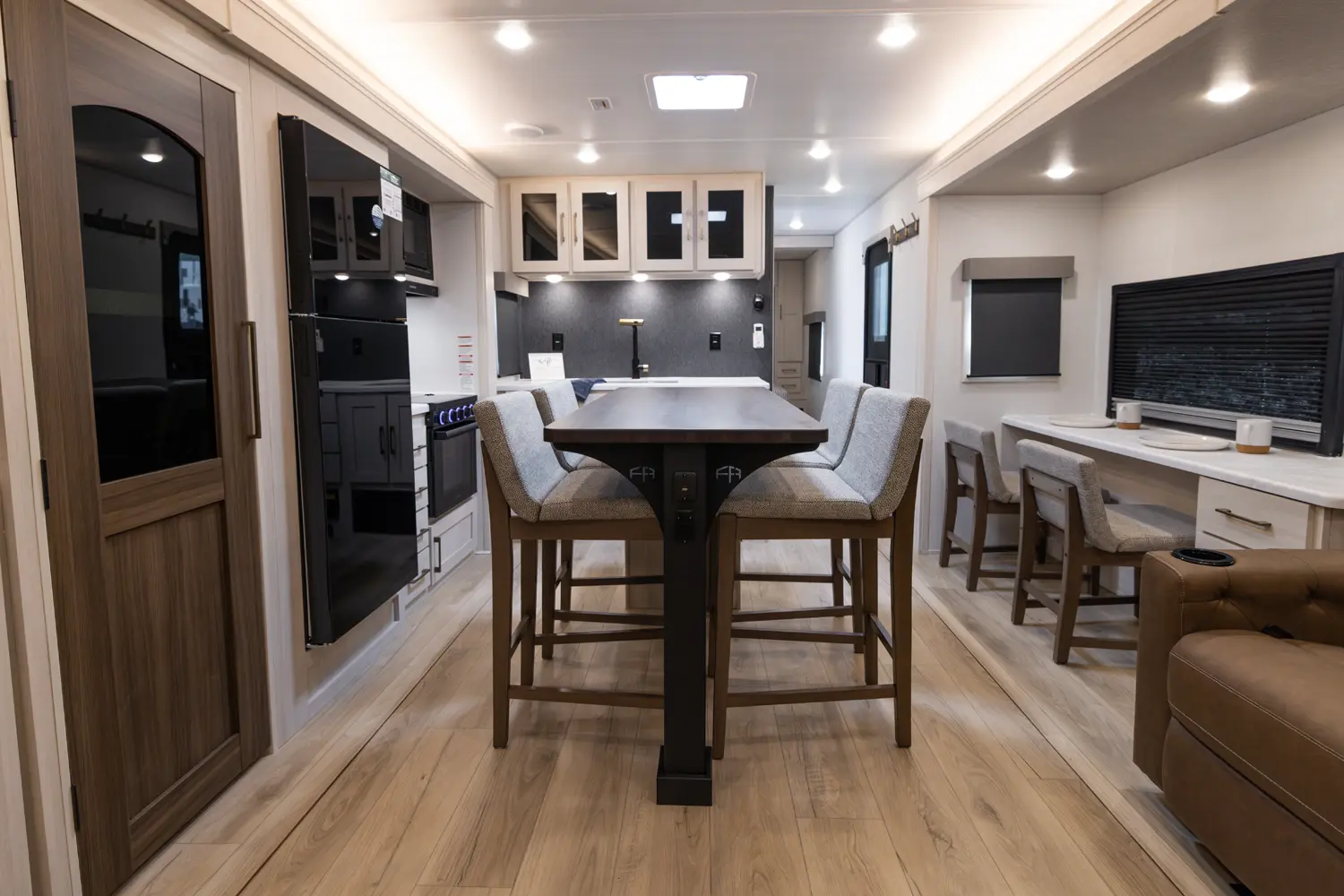

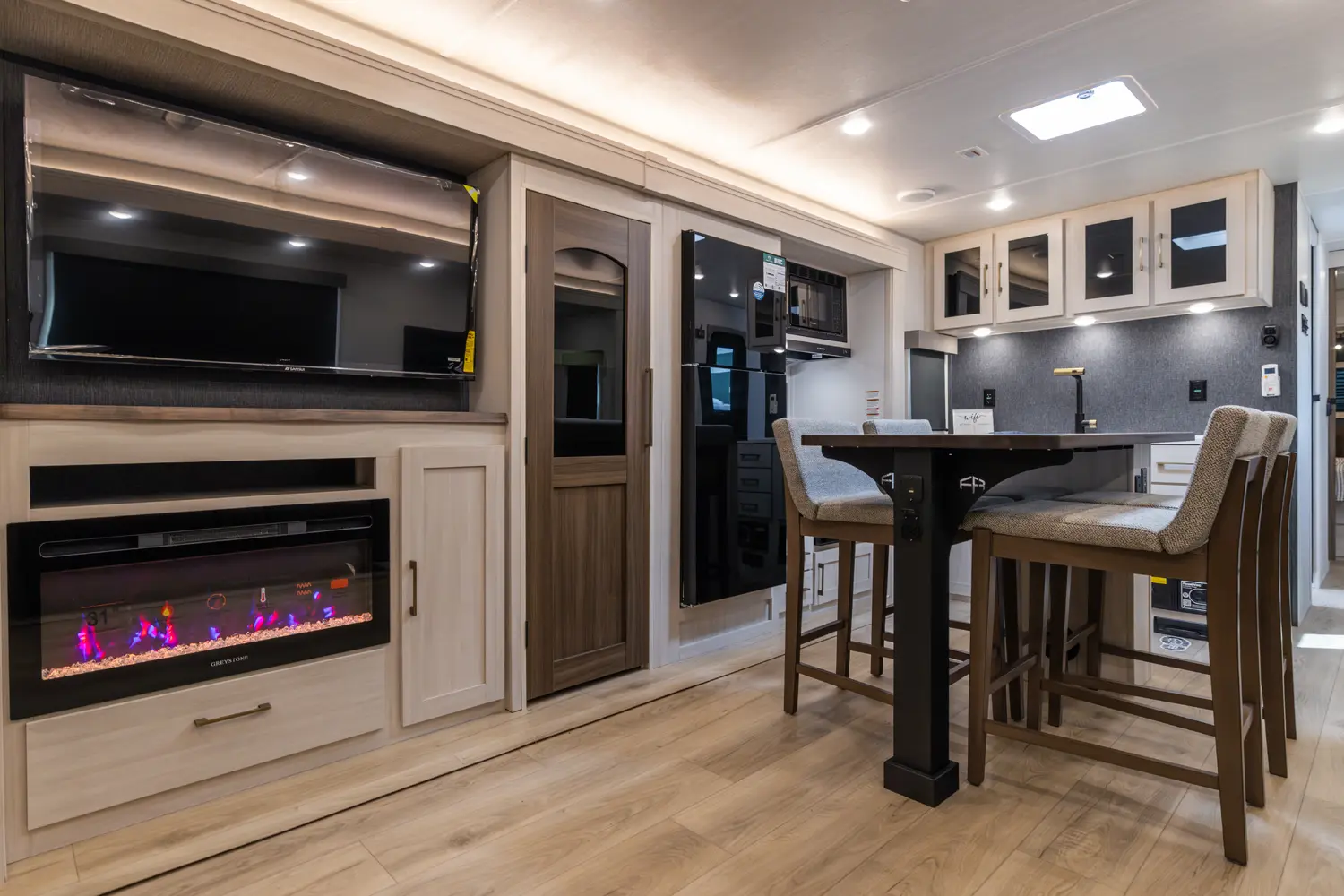

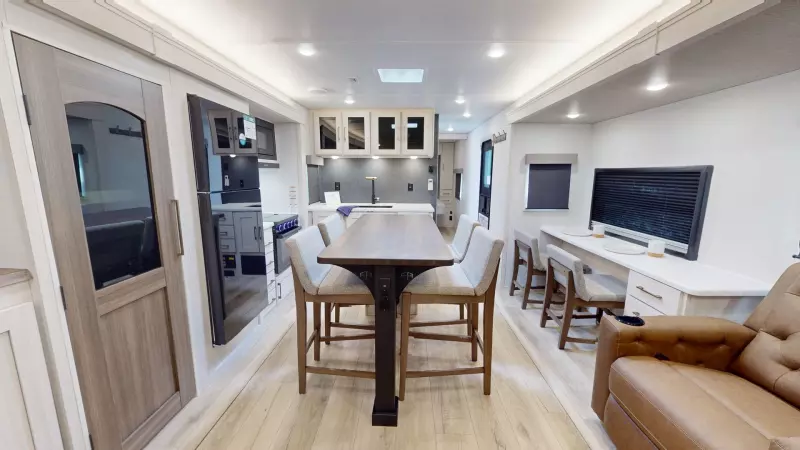

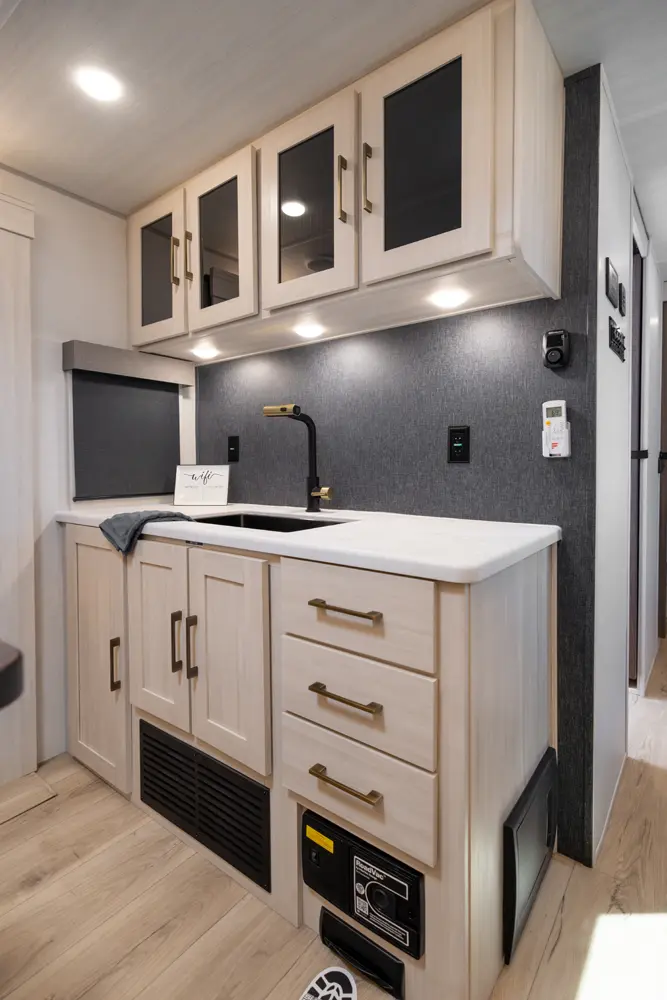

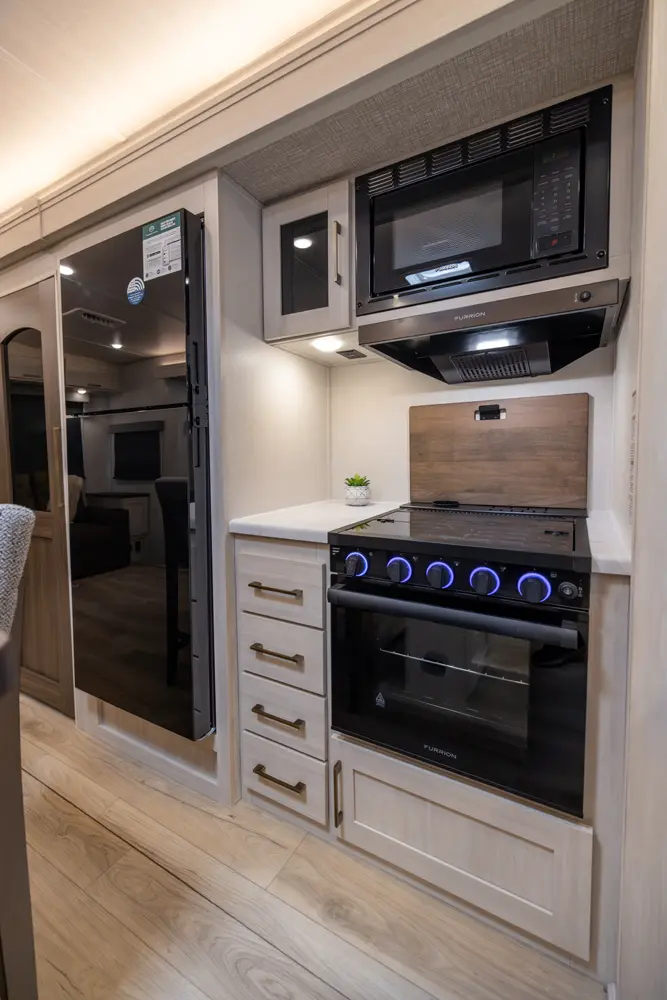

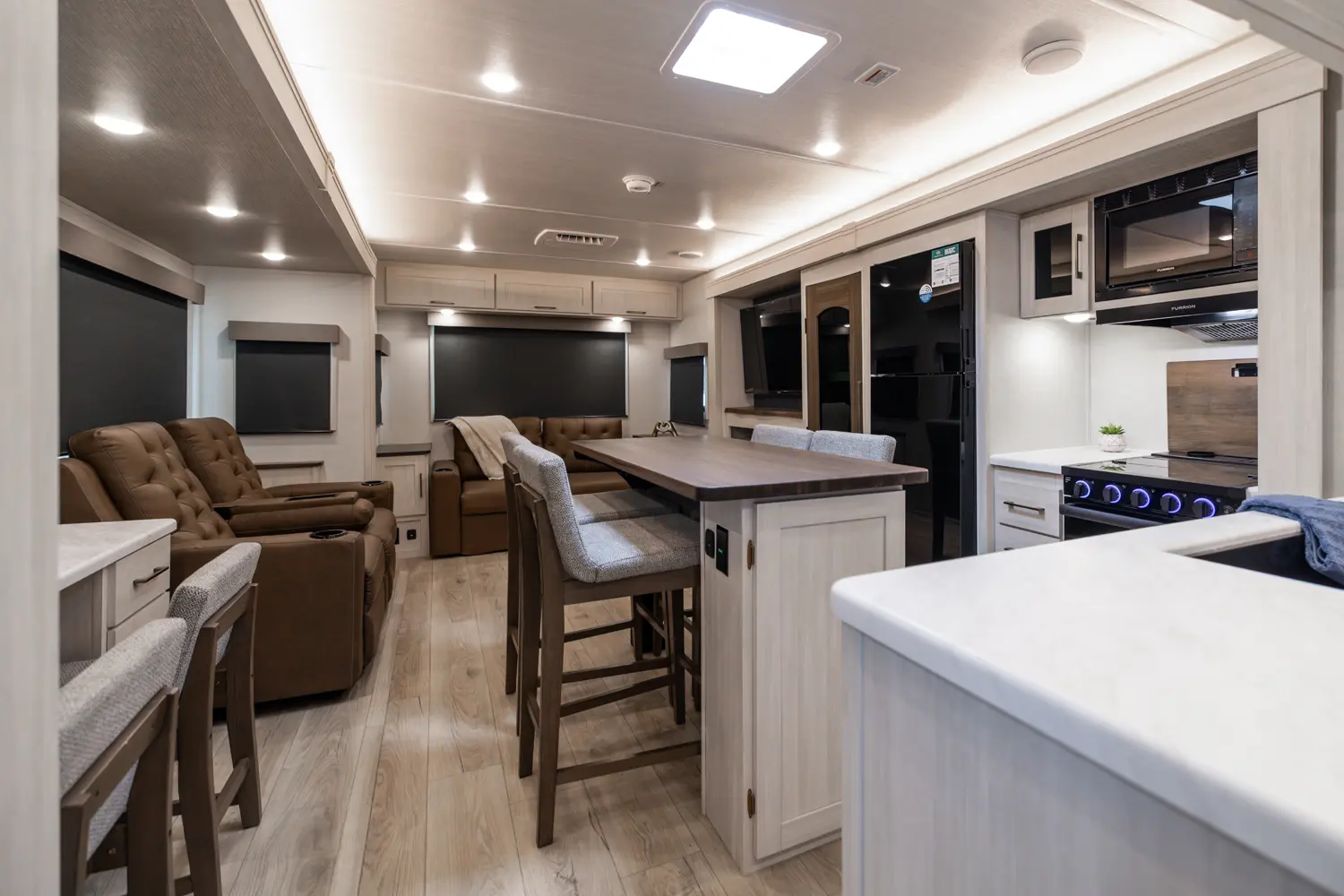

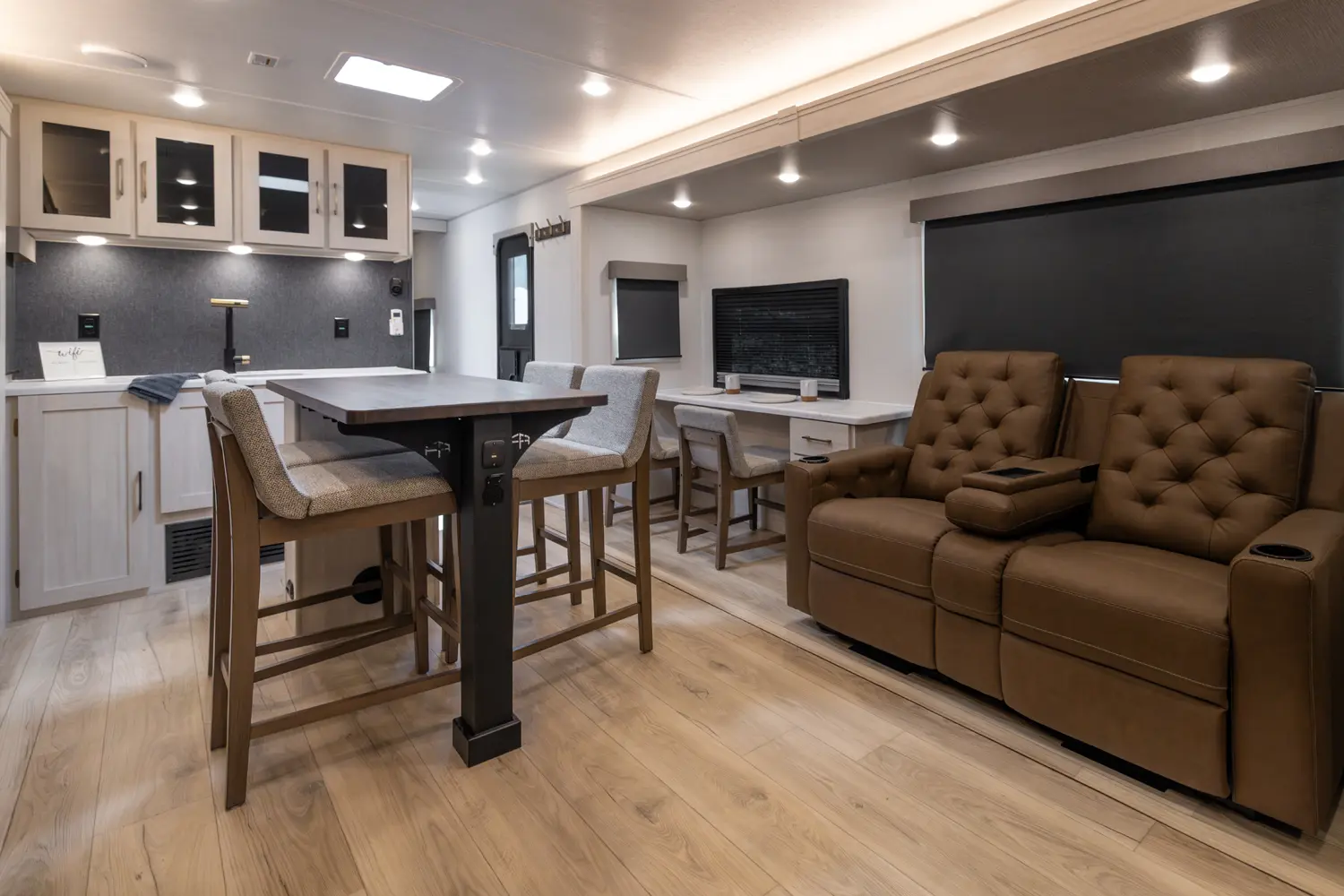

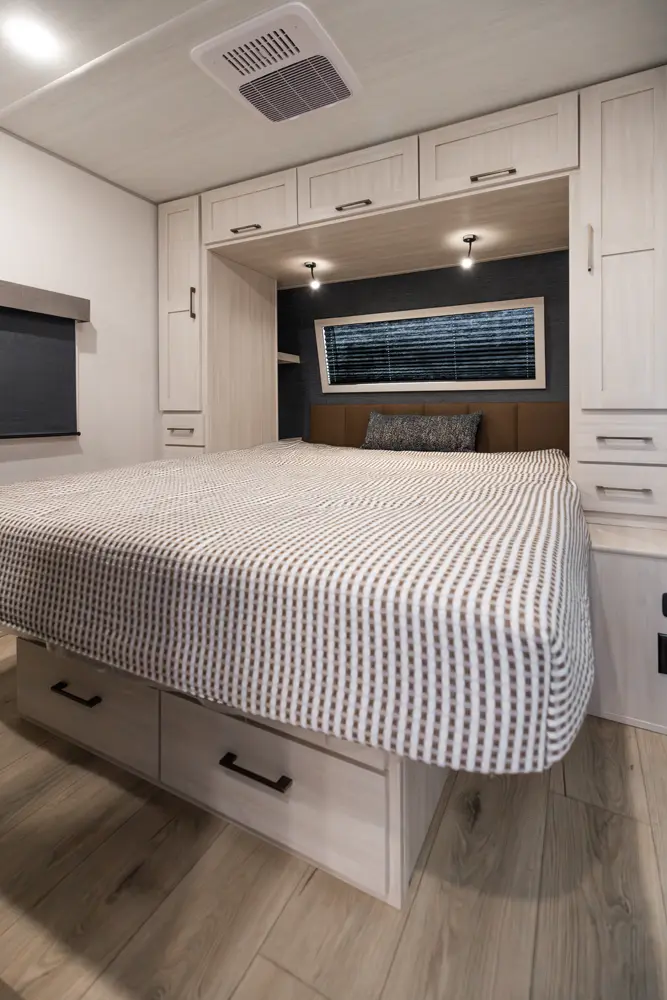

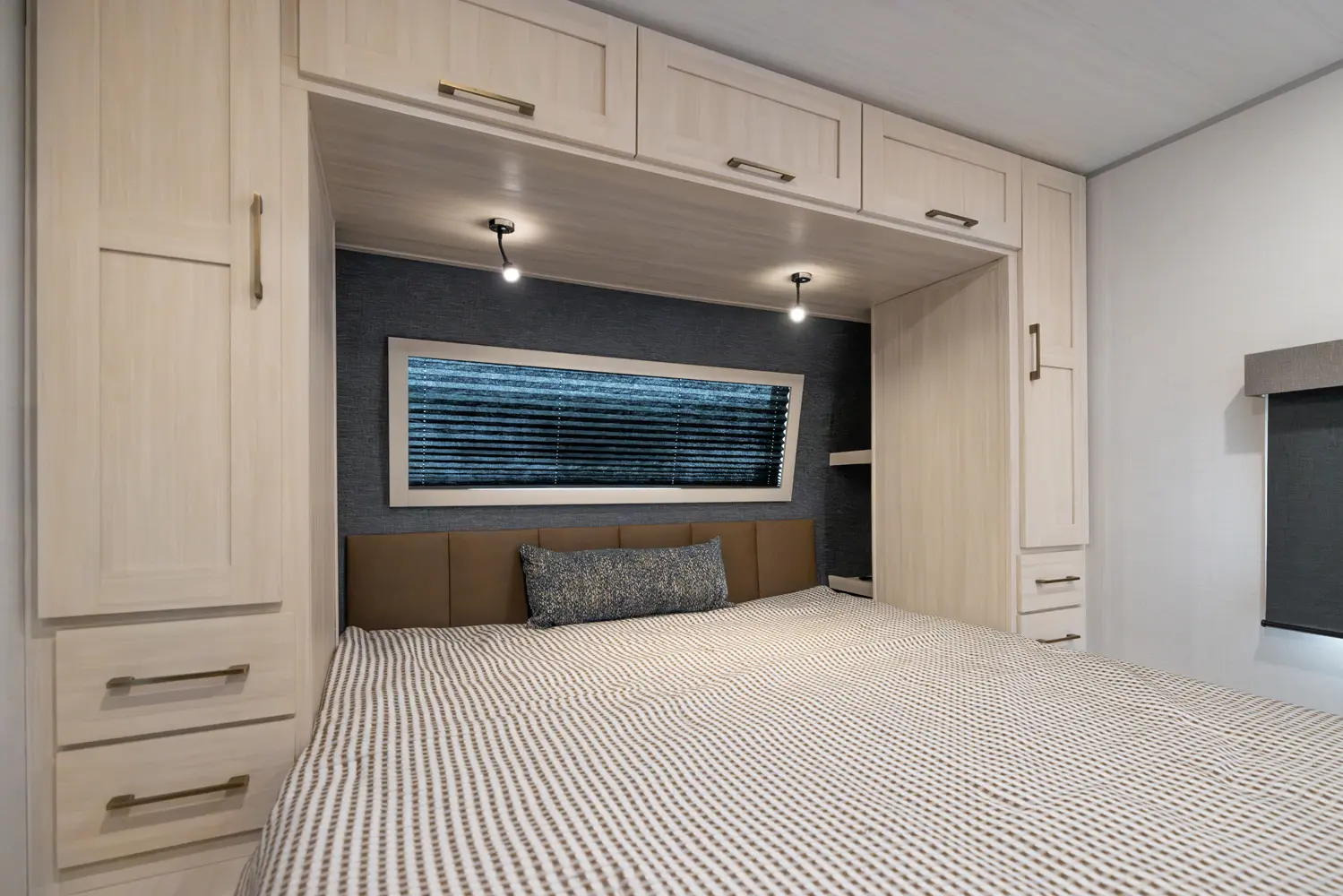

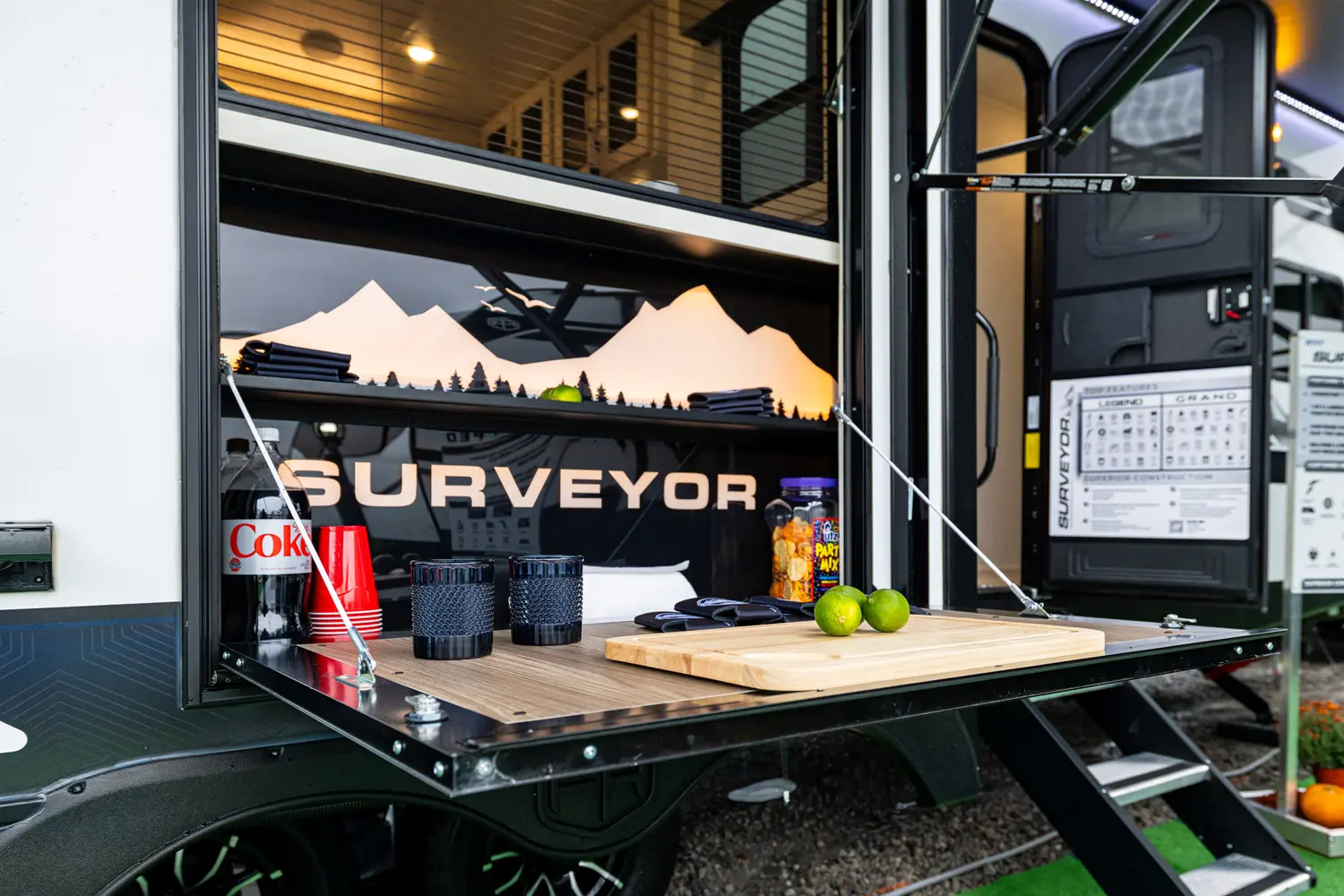

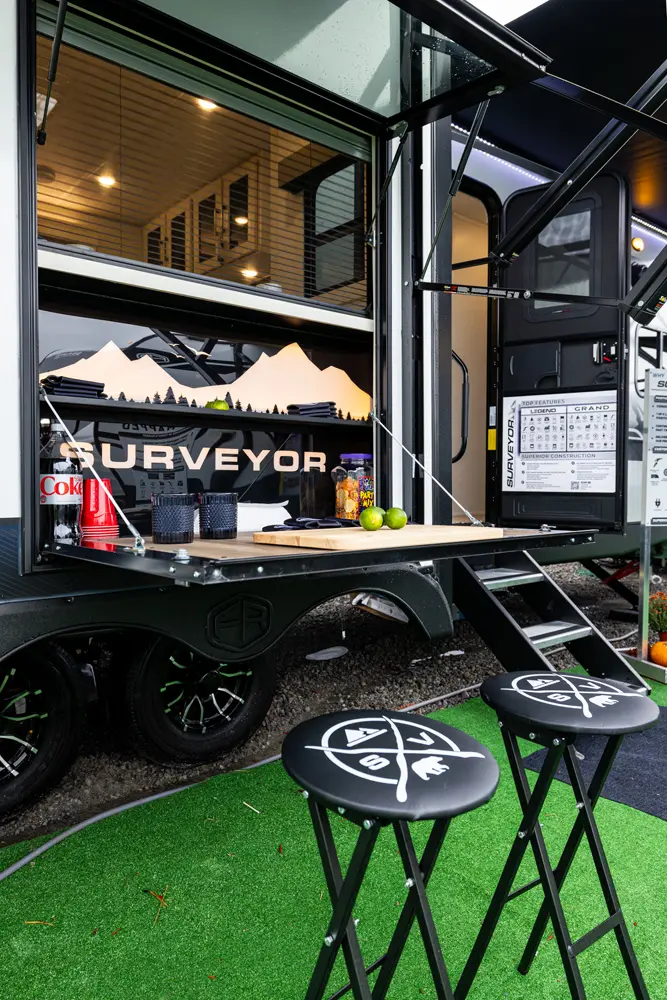

This 36' 7" travel trailer offers a spacious rear living area with dual opposing slides, creating an open, inviting space. The modern kitchen is equipped with a 10 cu. ft. 12V black glass refrigerator and a 3-burner residential-style range with glass cover. The custom king bedroom suite features ample storage, motion lighting, and a privacy wall. Exterior features include a 12' electric awning with LED lights, outdoor camp kitchen, TrailGate outdoor bar, and a hot & cold spray port.

GVWR (Gross Vehicle Weight Rating): – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.
