Explore 2024 2400B MERCEDES BENZ SERIES (MBS)

Home > Sunseeker > Sunseeker MBS > 2400B

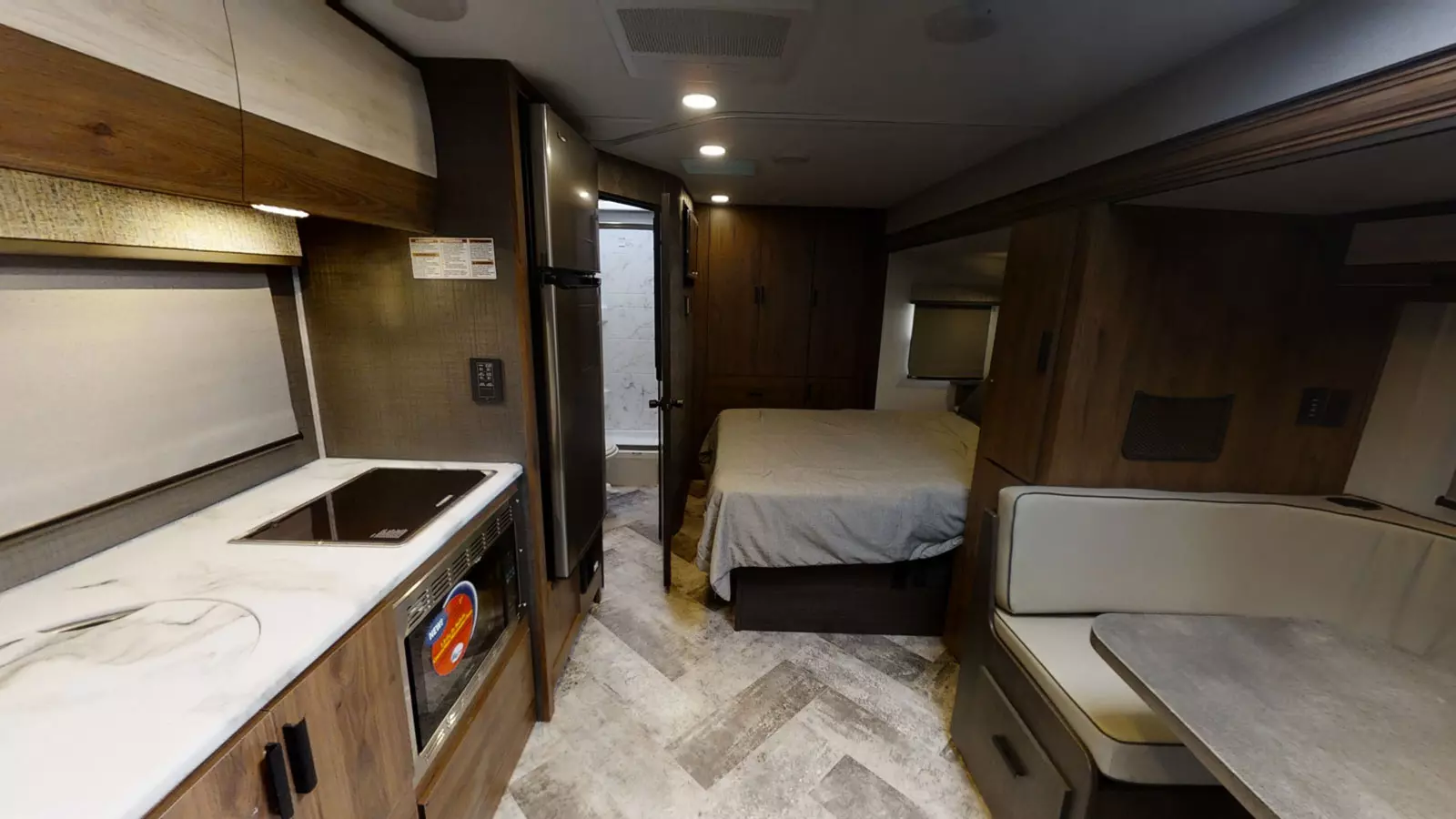

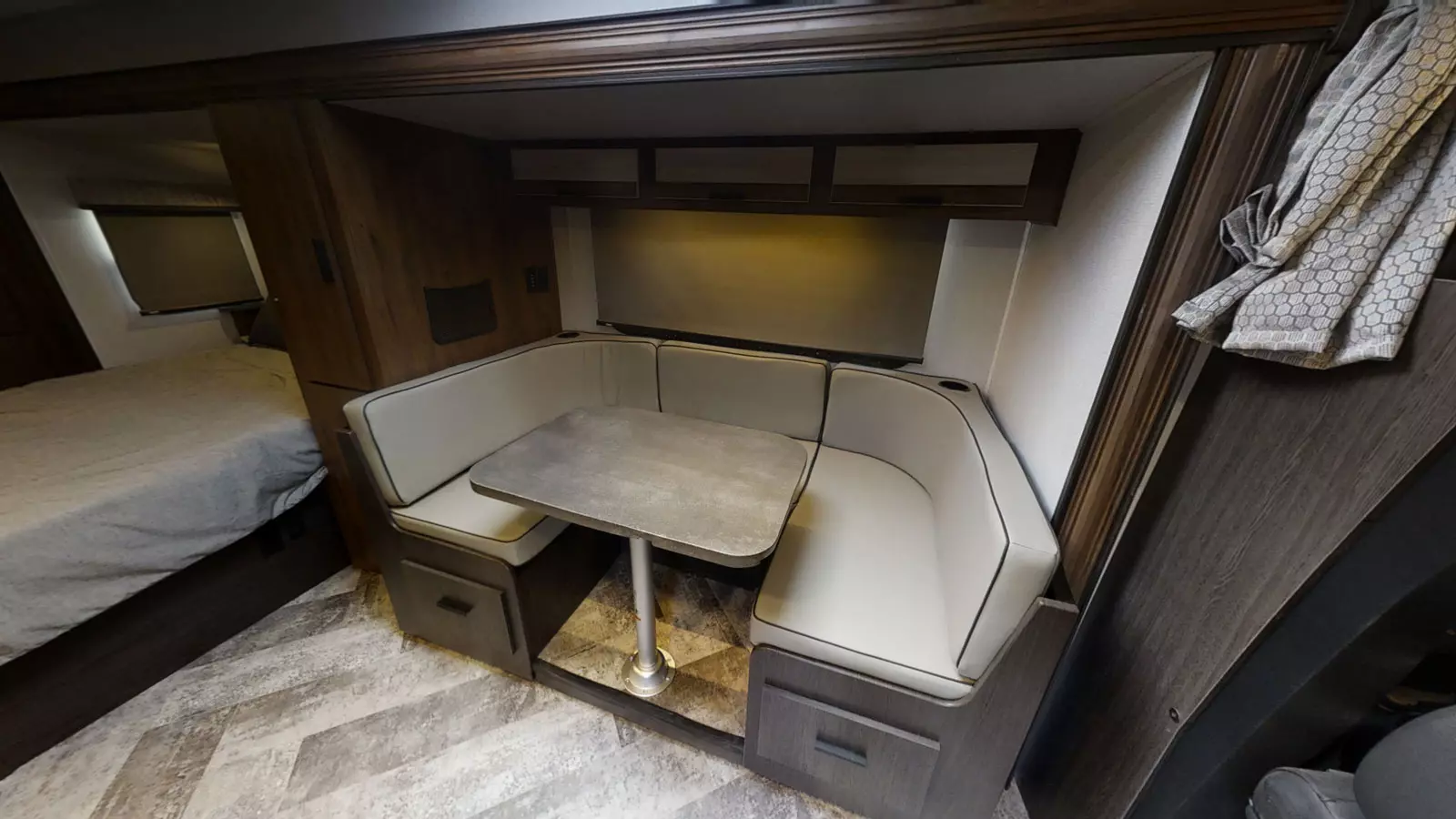

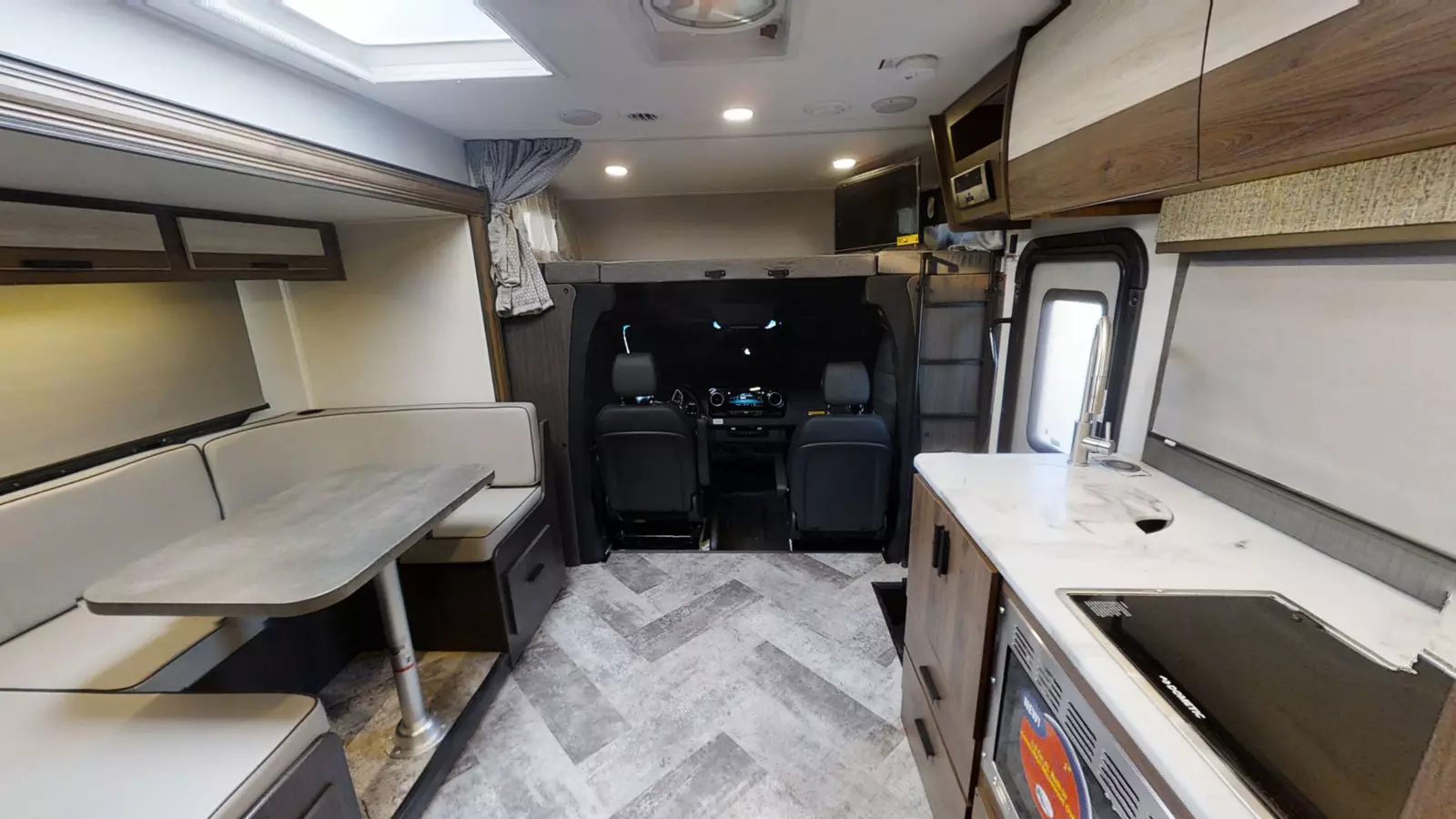

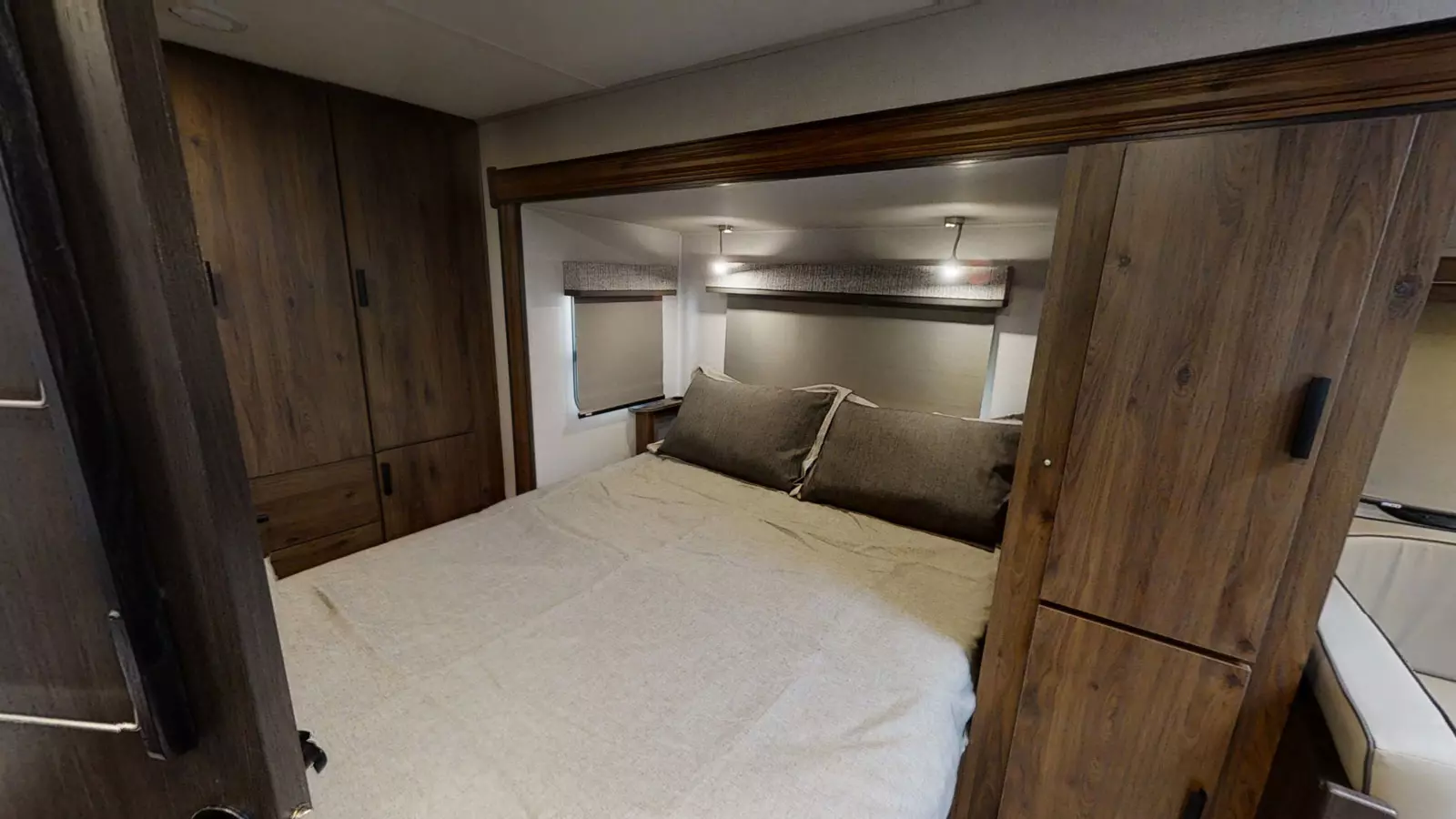

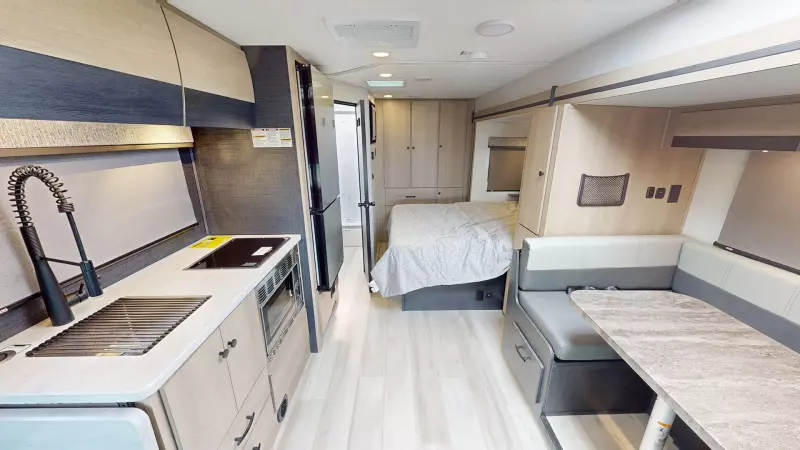

The 2400B was awarded RV Pro's "Best in Show" in 2020, and it's easy to see why! This Class C provides all the comforts of home, and is built on the Mercedes Benz Diesel 3500 chassis. It features the ever-popular U-shaped dinette for mealtime or playing cards. There's a 54" x 80" cab over bunk—or you can choose to add the optional Trekker cap with a built in entertainment center. The rear private bedroom has a queen bed and a closet above the built-in dresser plus a 12V TV for you to watch your favorite movies in true comfort. You can even watch movies outdoors when you add the optional 12V outside TV!

Wheelbase: 170"
GVWR: 11,030 lb.
GCWR: 15,250 lb.
GAWR Front: 4,080 lb.
GAWR Rear: 7,720 lb.
Fuel Capacity: 26 gal.
LP Tank Capacity: 56 lb.
Exterior Length: 25' 5"
Exterior Height: 11' 3"
Exterior Width: 95"
Fresh Water: 35 gal.
Gray Water: 32 gal.
Black Water: 32 gal.
Awning Size: 15'6"

GVWR (Gross Vehicle Weight Rating): – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) - Is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) - is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by each axle.

UVW (Unloaded Vehicle Weight)* - is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s), including full fuel, all fl uids and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, passengers, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before fi lling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

2400B MERCEDES BENZ SERIES (MBS) Features & Options

- 12 Months/12,000 mile basic limited warranty
- Chassis warranty (see owners manual)
- Battery disconnect
- Water heater bypass
- (2) Deep cycle coach batteries
- LED lighting
- Easy Access battery in step-well
- 30 Amp service with power cord
- 60 Amp Progressive Dynamics converter
- 6 Gallon DSI gas/electric water heater
- 30,000 BTU furnace
- Satellite/cable connection
- 15,000 BTU ceiling ducted, ultra quiet roof air with heat pump (N/A w/dual AC option)
- 3.6 KW LP generator (Mercedes only)
- Arctic Package (12V tank heaters)
- CO, LP and smoke detector
- Winegard Air 360+ digital antenna
- Gateway 4G WiFi capability
- Side-mounted solar prep connection (N/A with roof-mounted solar)
- Optional 190 Watt roof-mounted solar powered 12V charging system (IPO side-mounted charger prep)
- 1.5” Aluminum framed laminated sidewalls
- Superlite composite substrate
- Gel Coat exterior fiberglass
- Block foam insulation
- Power patio awning with LED light strip
- Slide-out awnings
- Fiberglass roof
- One-piece fiberglass front cap
- Roto-cast storage compartments
- Driver side security light
- Fiberglass running boards
- Tinted frameless windows
- Heated, remote exterior mirrors
- 4,200 Lbs. hitch, 7-pin connector
- Power entry step
- Optional Automatic leveling system (4-point)
- Stabilizer jacks (2-point)
- LP quick connect
- Optional Full body paint
- Outside shower
- Optional Outside 12V LED TV (See floorplans)
- Black tank flush
- On-The-Go™ Ladder Bracket (most models)
- 10” Touch screen CarPlay/Android radio with USB and Bluetooth
- Power windows and door locks
- Keyless entry
- Backup camera/side view cameras with 3-way monitor

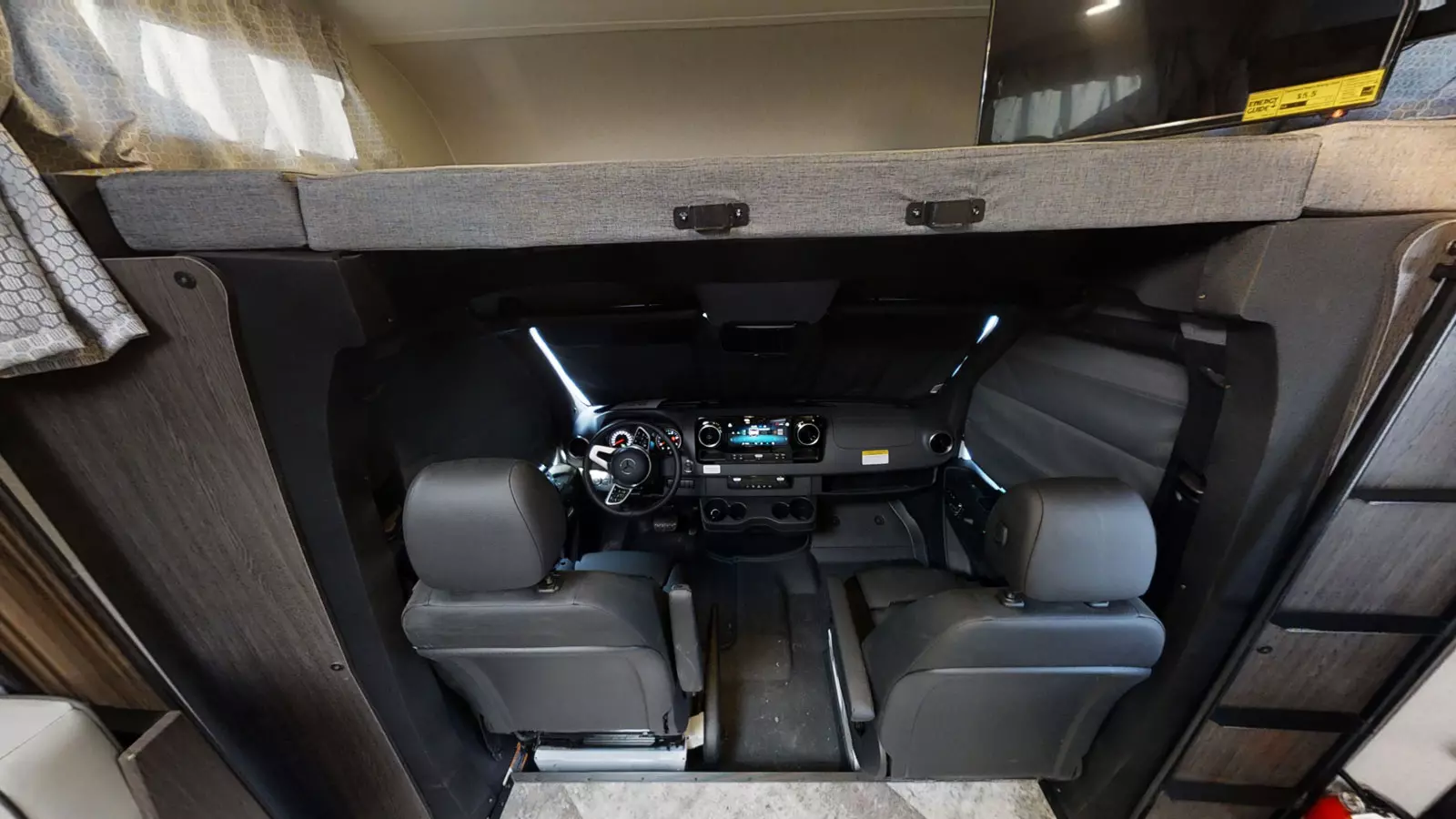

- Power heated leather swivel driver and passenger seats

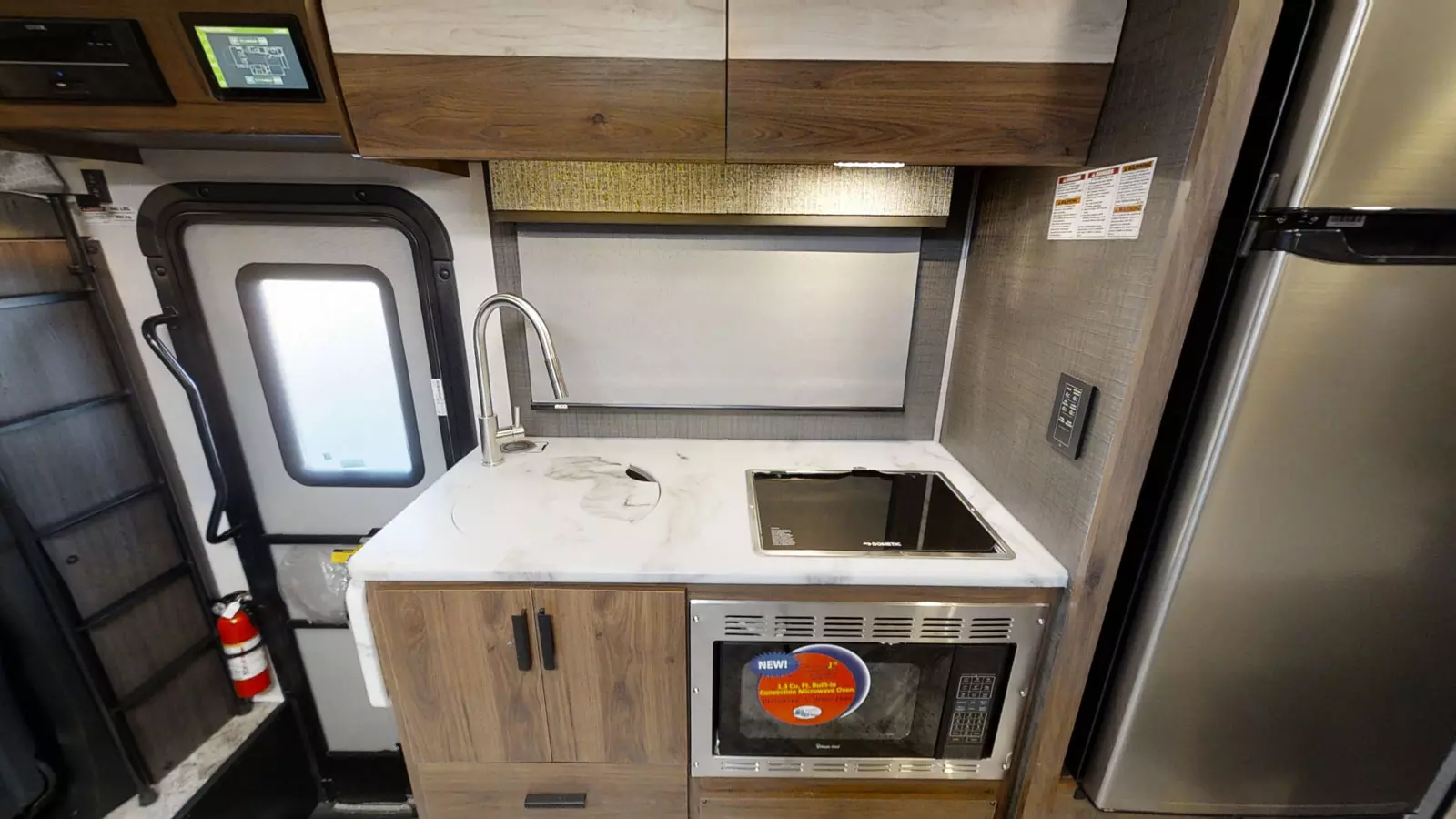

- Recessed 2-burner range with flush glass cover
- 1.3 Cu. ft. convection microwave
- 10.7 Cu. ft. 12V refrigerator
- Soft touch self-closing drawer guides
- Cordless 12V charging plate
- Electric roof fan
- Oxygen-infused shower head with flexible extension
- Motion sensor light

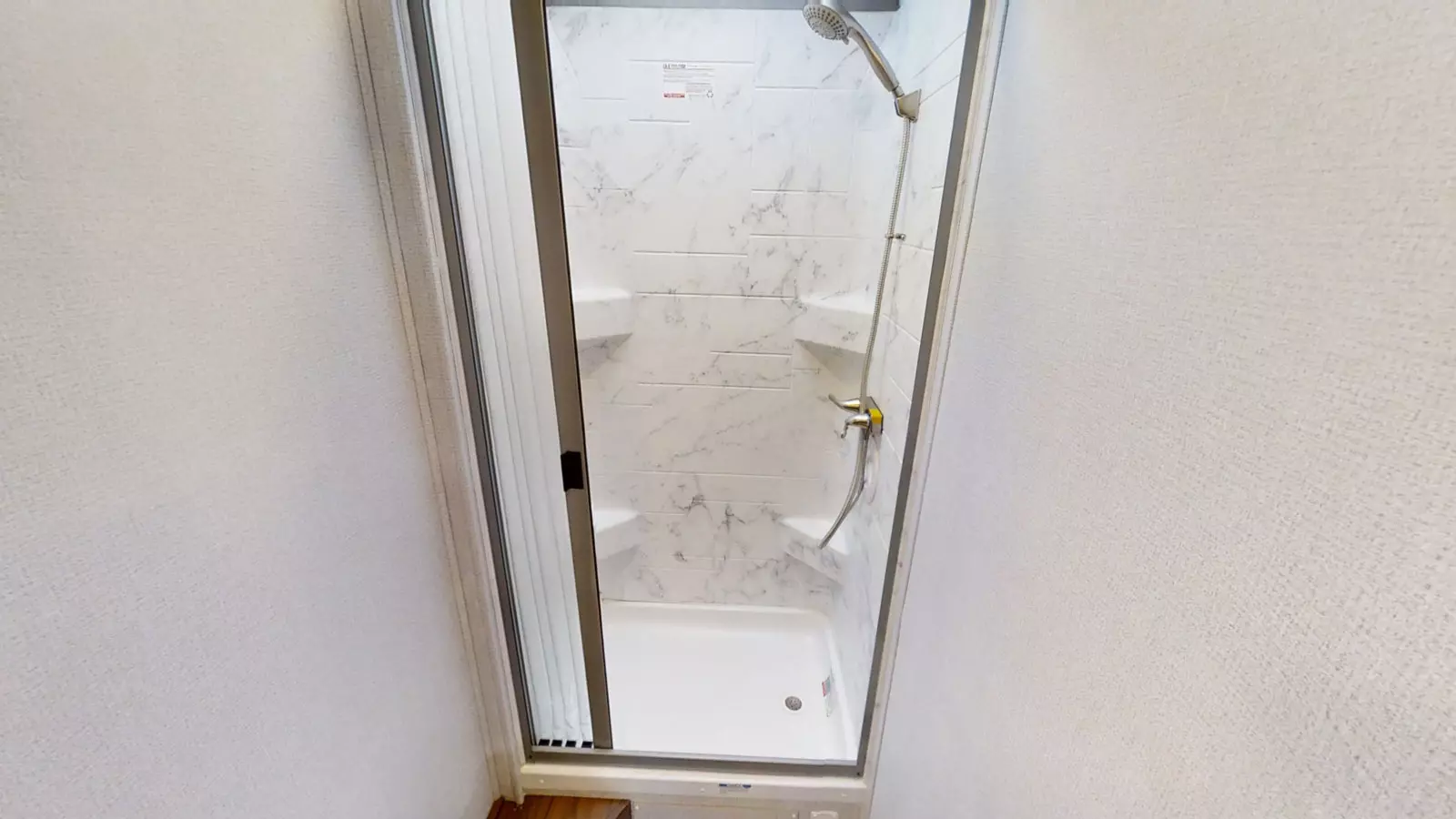

- Shower skylight
- Black-out roller shades
- 12V Bedroom TV
- Convertible dinette for additional sleeping capacity
- Optional Theater seats (Standard on 2400T MBS)
- Black out roller shades
- 12V LED flat panel adjustable side TV
- Child seat head tethers in dinette
- Maxx Air multi-speed power fan with cover
- 12V USB charging station
