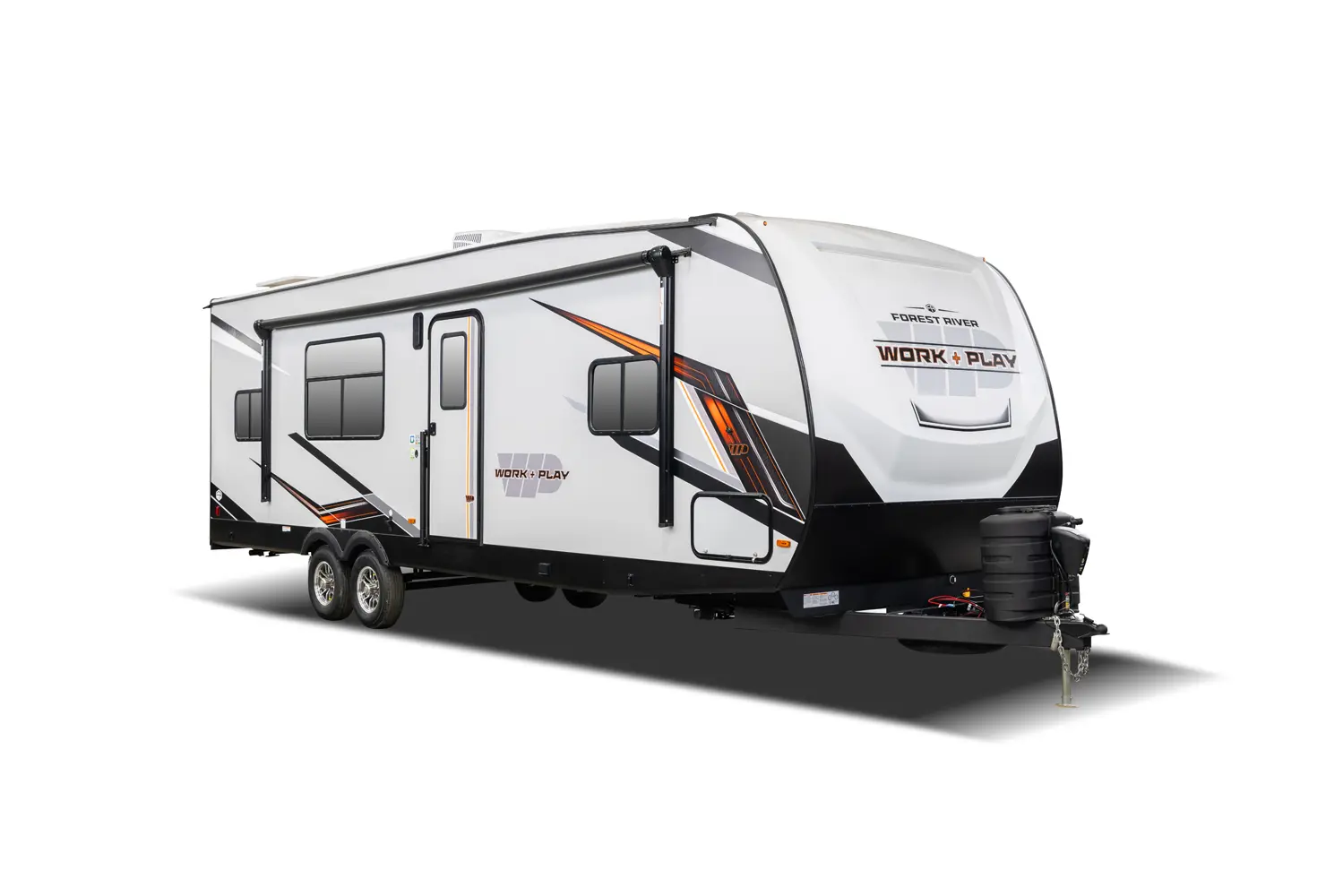

Work and Play Travel Trailer Toy Haulers

Whether you are taking a car to show, or just enjoying the great outdoors with your cycle or ATV, Work and Play has the perfect cargo carrier with living quarters for you.


Filter

Select filters below and then click the Filter Results button to remove non-matching Floorplans and their Specifications










to

to




Specifications

Print


Hitch Weight:
GVWR:
UVW:
CCC:
Exterior Length:
Exterior Height:
Exterior Width:
Fresh Water:
Gray Water:
Black Water:
Awning Size:
815 lb.
9150 lb.
5320 lb.
5830 lb.
26' 11"
10' 8"
TBD
98 gal.
65 gal.
35 gal.
19'
948 lb.
9600 lb.
5812 lb.
3788 lb.
29' 10"
10' 8"
TBD
98 gal.
35 gal.
35 gal.
17'
1198 lb.
11000 lb.
7488 lb.
3512 lb.
32' 9"
11' 9"
TBD
98 gal.
35 gal.
35 gal.
20'
1039 lb.
10500 lb.
6763 lb.
3737 lb.
32' 9"
10' 8"
TBD
98 gal.
70 gal.
35 gal.
20'
1312 lb.
12500 lb.
8642 lb.
3858 lb.
36' 2"
12' 1"
TBD
98 gal.
76 gal.
35 gal.
18'
2160 lb.
14160 lb.
9880 lb.
4280 lb.
33' 5"
12' 8"
102"
98 gal.
84 gal.
39 gal.
18'
TBD
TBD
TBD
TBD
TBD
TBD
TBD
TBD
TBD
TBD
TBD
805 lb.
10961 lb.
6391 lb.
4614 lb.
26' 0"
12' 1"
102"
98 gal.
78 gal.
39 gal.
15'
906 lb.
9999 lb.
5504 lb.
4436 lb.
25' 0"
12' 4"
102"
98 gal.
78 gal.
39 gal.
15'
1158 lb.
9999 lb.
6841 lb.
3158 lb.
32' 9"
12' 4"
102"
98 gal.
78 gal.
39 gal.
18'
927 lb.
11252 lb.
7709 lb.
3418 lb.
32' 9"
12' 5"
102"
98 gal.
78 gal.
39 gal.
18'
705 lb.
10938 lb.
7148 lb.
3757 lb.
33' 2"
12' 4"
102"
98 gal.
78 gal.
39 gal.
18'
1176 lb.
13774 lb.
9609 lb.
4165 lb.
35' 7"
12' 8"
102"
98 gal.
84 gal.
39 gal.
23'
1306 lb.
13306 lb.
8545 lb.
4761 lb.
35' 7"
12' 8"
102"
98 gal.
84 gal.
39 gal.
23'
1264 lb.
13264 lb.
8797 lb.
4467 lb.
38' 11"
12' 4"
102"
98 gal.
84 gal.
39 gal.
23'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Features & Options

Print
  • 102" Wide Body Constuction
  • 5" Crowned Aluminum Reinforced Full Walkable Roof
  • Alumicage Construction
  • Vacuum Bonded Walls with Azdel Composite Panels
  • Aluma Grid HD Reinforced Laminated Floor
  • Heated and Enclosed Underbelly
  • Radius Entrance and Baggage Doors

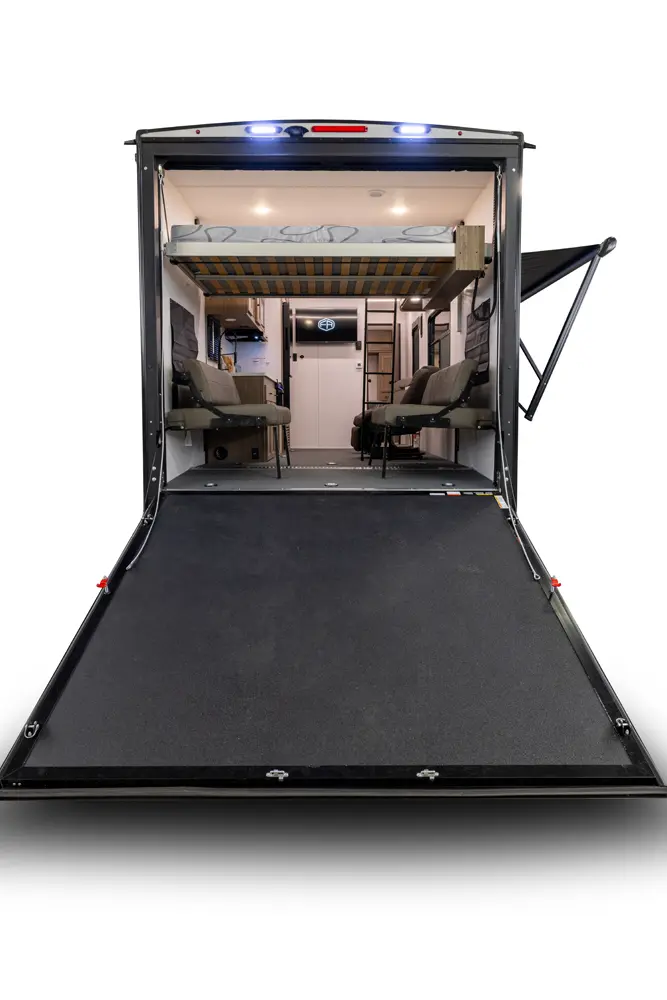

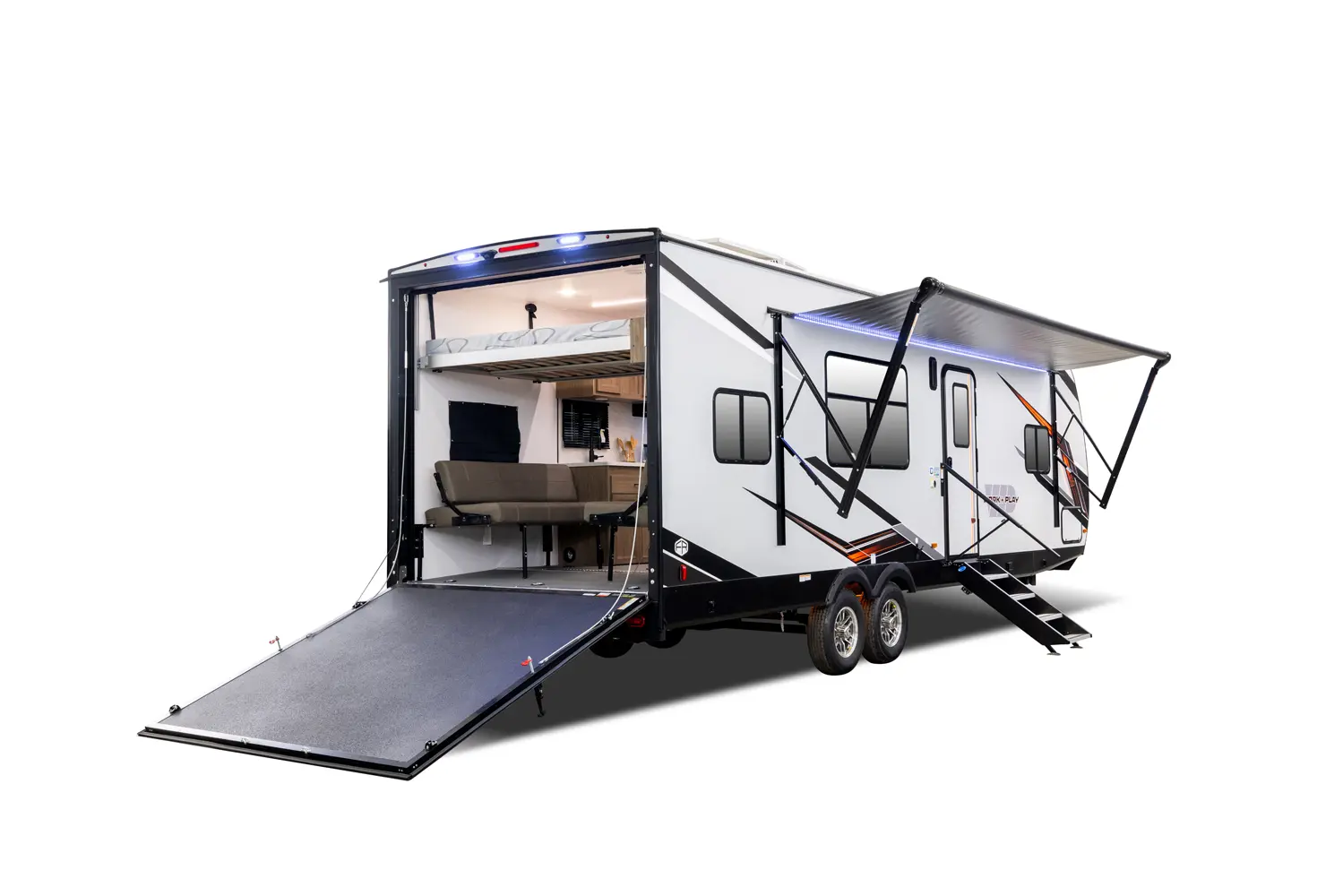

  • Patio Ready Ramp Door
  • Key Lock Ramp Door Latches
  • Power Awning w/LED Light Strip
  • Rain Gutters w/Extended Drip Spouts
  • Power Tongue Jack
  • Dual Battery Rack
  • Front A-Frame Storage Rack
  • Black Tank Flush
  • Exterior Marine Grade Speakers
  • 4 Point Manual Stabilizer Jacks
  • Rear Cargo Loading LED Light
  • Deluxe Entry Door Assist Handle
  • Satellite Prep
  • Outside Spray Port
  • Magnetic Compartment Door Catches
  • 30AMP Service
  • Detachable Power Cord
  • Rear Camera Prep
  • RVIA
  • Shaker Style Cabinets and Doors
  • Soft Close Drawer Guides
  • HD Rubberized Oil/Gas/Moisture Resisant Flooring in Garage Area
  • Easy Glide Full Extension Ball Bearing Drawer Guides
  • Auto-Ignition Furnace w/ Wall Mount Thermostat
  • Medicine Cabinet w/ Shelf
  • Shower w/ Surround + Glass Enclosed Doors
  • Hi-Rise Porcelain Foor Flush Toilet
  • Winterize Ready Kit
  • Oil, Gas, Moisture Resistant Coin Rubber Garage Floor
  • Ducted Furnace
  • Skylight above Shower
  • Utinsel Drawer - Most Models
  • Stainless Steel Sink
  • Flush Mount Sink Covers
  • AM/FM/Bluetooth Stereo
  • Residential Bed Spread

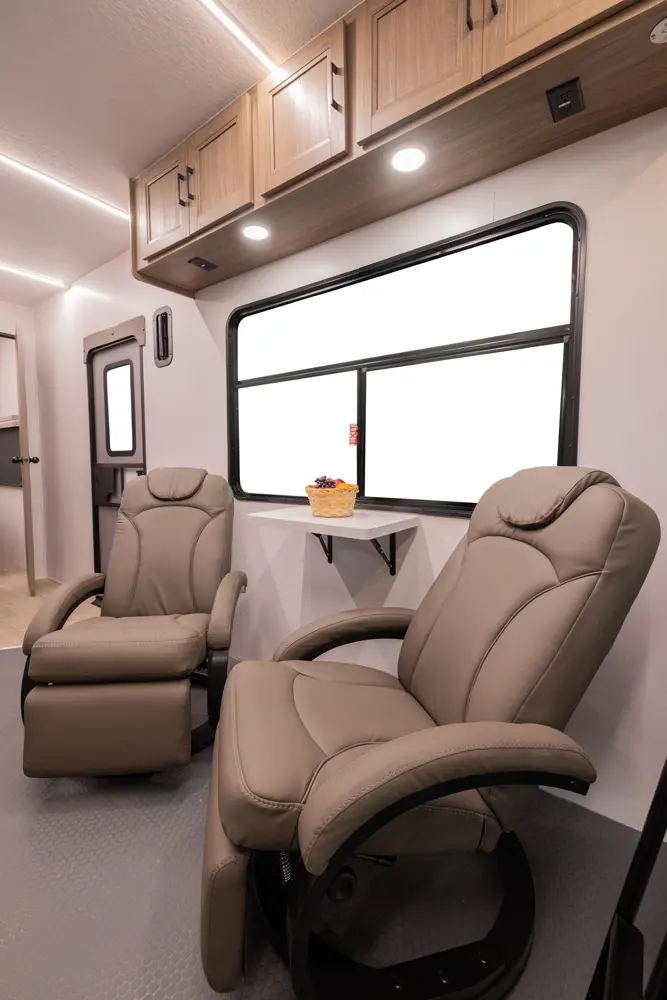

  • Euro Recliners (21LT, 27LT, 27KB, 29SS)
  • 39" LED HD TV
  • Rear detachable Screen
  • King Bed 72" x 80" (Residential Queen 21LT)
  • Bedroom TV Hookups
  • USB Charging Ports - Multiple Locations
  • 12 Volt Power Vent in bath with Wall switch
  • Zero Gravity Ramp Door
  • Aluminum Solid Step
  • 50 Amp Service
  • LED TV
  • AM/FM/DVD Bluetooth Stereo w/ App Control
  • Premium Polk Audio Speakers
  • Spare Tire
  • Generator Prep
  • 30 Gallon Fuel Station
  • Rear Pull Down Screen
  • BAL Electric Stabilizers
  • 265W MPPT Solar Package
  • Queen Size Electric Bed w/ Sofas
  • 8" Mega Rail Powder Coated Chassis (10" on 29SS)
  • Fiber Glass Front Cap w/ Rock Guard
  • One Piece Tufflex PVC Roof Membrane
  • Heavy Duty Dexter Axles w/ Nev-R-Adjust Brakes and E-Z Lube
  • Azdel Laminated Sidewalls
  • 15" Aluminum Wheels w/ E-Rated Radial Tires (21LT, 23LT, 27LT, 27KB)
  • 16" Aluminum Wheels w/ E-Rated Radial Tires (29SS)
  • 15,000 BTU Ducted A/C
  • Tinted Safety Glass Windows
  • Nitrogen Filled Tires
  • LED Lighting
  • 30" Radius Entrance Door
  • 2-30lb LP Tanks w/cover
  • Power Awning w/LED Light Strip
  • Winegard Air 360 + TV Antenna
  • Fantastic Fan w/ Remote Wall Switch
  • Battery Disconnect
  • Saferide RV Roadside Assistance
  • LED Lighting
  • Steel Secured 2500# Rated D-Rings
  • 102" Wide Body Constuction
  • Designer Carefree Flooring in Living Area
  • 8 cu Ft. Refridgerator
  • Furrion Microwave
  • Furrion 3 Burner Cooktop w/17" Oven
  • Back lit Logo Backsplash
  • Sink Covers
  • Seamless Edge Countertops
  • 6 gal. Gas/ Electric Water Heater
  • Hi-Rise Porcelain Foot Flush Toilet
  • Glass Door Inserts
  • Pull Down Roller Night Shades
  • LED Light Strips
  • Electric Queen Bed lift w/ Sofas
  • Jaboni 265W Solar Panel with MPPT Control Charger
  • 30 Gallon Fuel Station
  • 50 AMP Service with 2nd A/C Prep
  • 2nd 13.5K BTU A/C
  • Ramp Door Party Patio Kit
  • CSA
  • 4.0k Onan Generator
  • 5.5k Onan Generator
  • 2nd 13.5K BTU A/C
  • Ramp Door Party Patio Kit
  • CSA

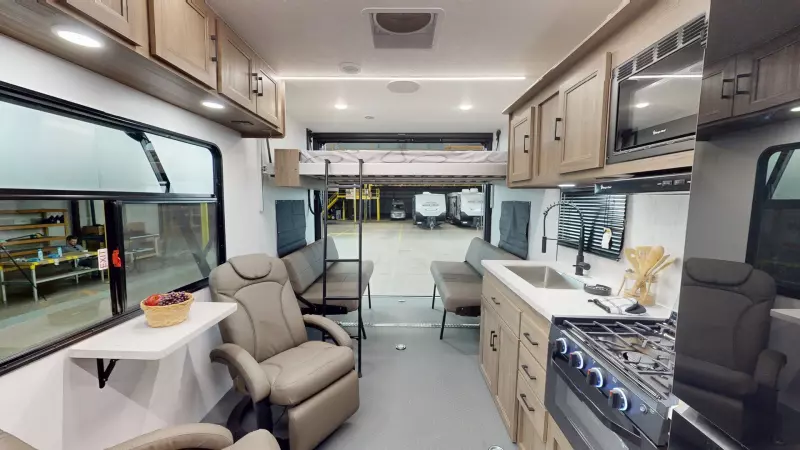

Virtual Tours
