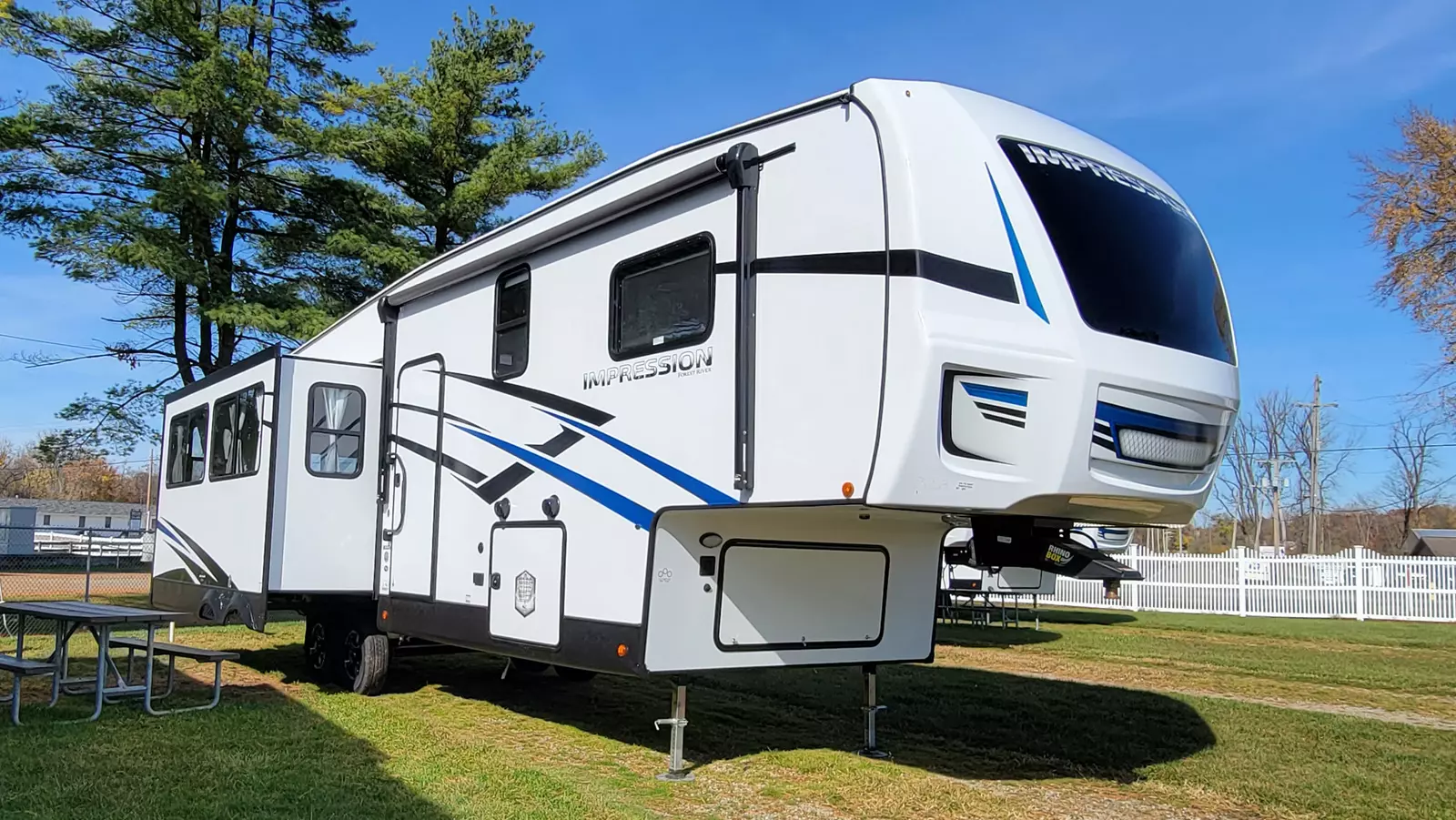

Impression Mid-Profile Fifth Wheels

The Impression mid-profile fifth wheel is designed for comfort through quality craftsmanship and attention to what customers’ desire. Our open floor plans, décor, and high end amenities are designed with you in mind. We are here for you to get the best value in a RV that allows you to vacation with confidence. Impression is all about helping you before, during, and after the sale to get the most out of your new RV. Let’s make your first Impression a lasting one!


RV Business 2021 Top RV DebutCare Camps, fighting cancer and making memories

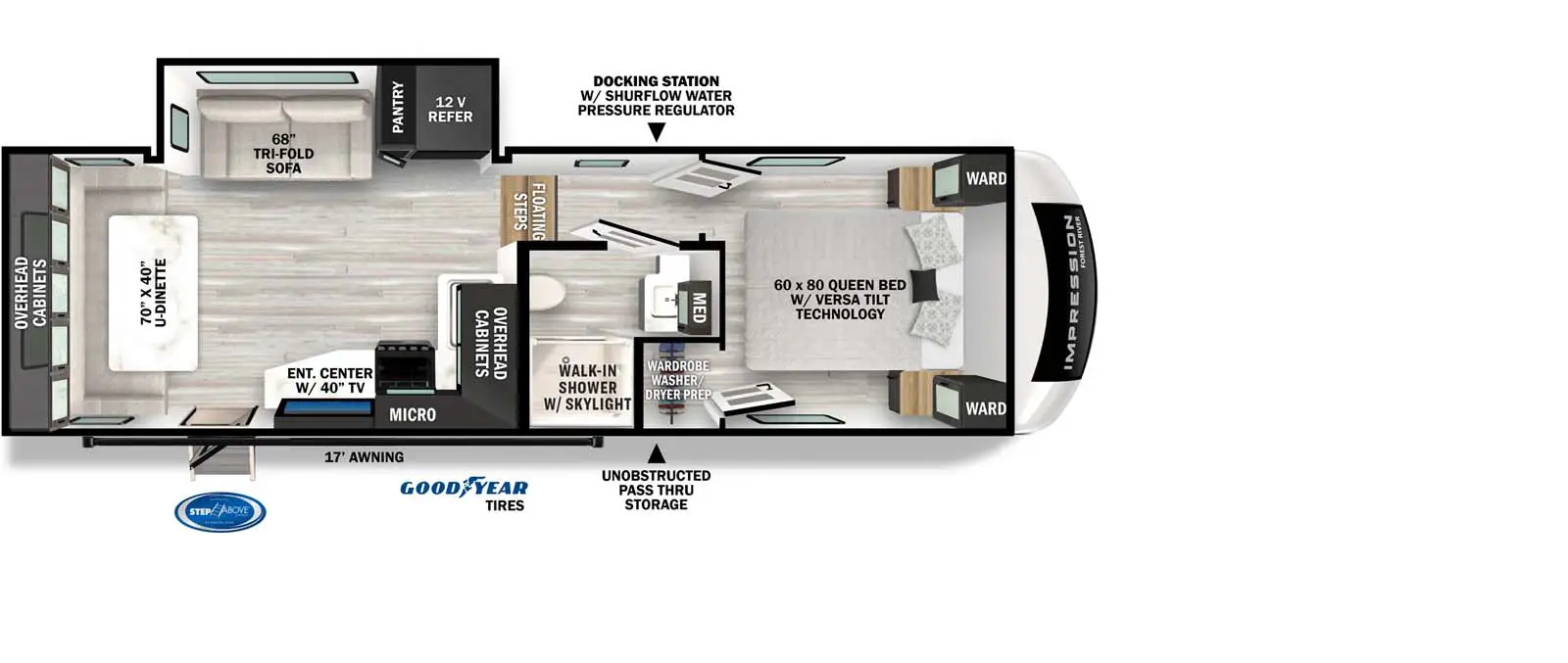

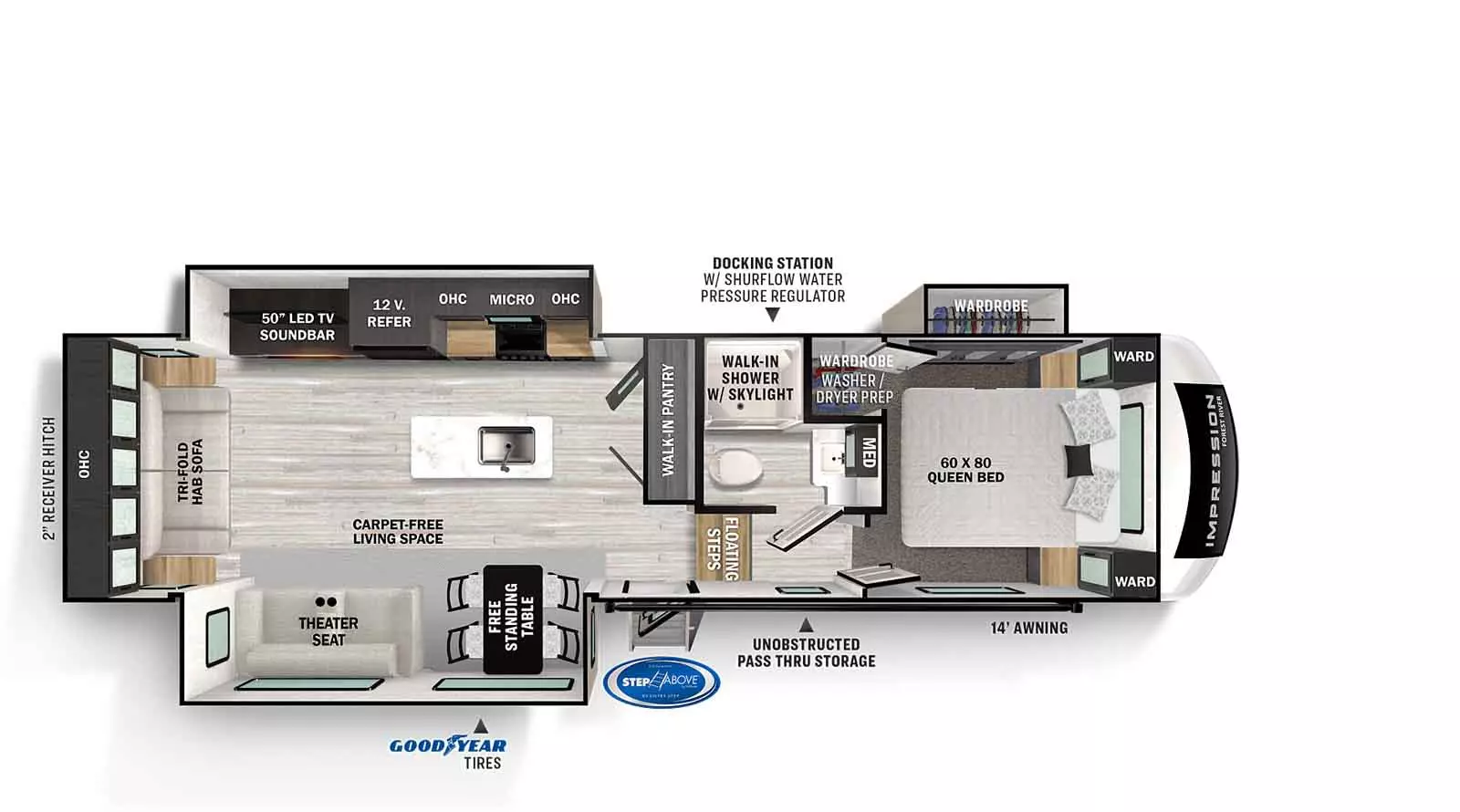

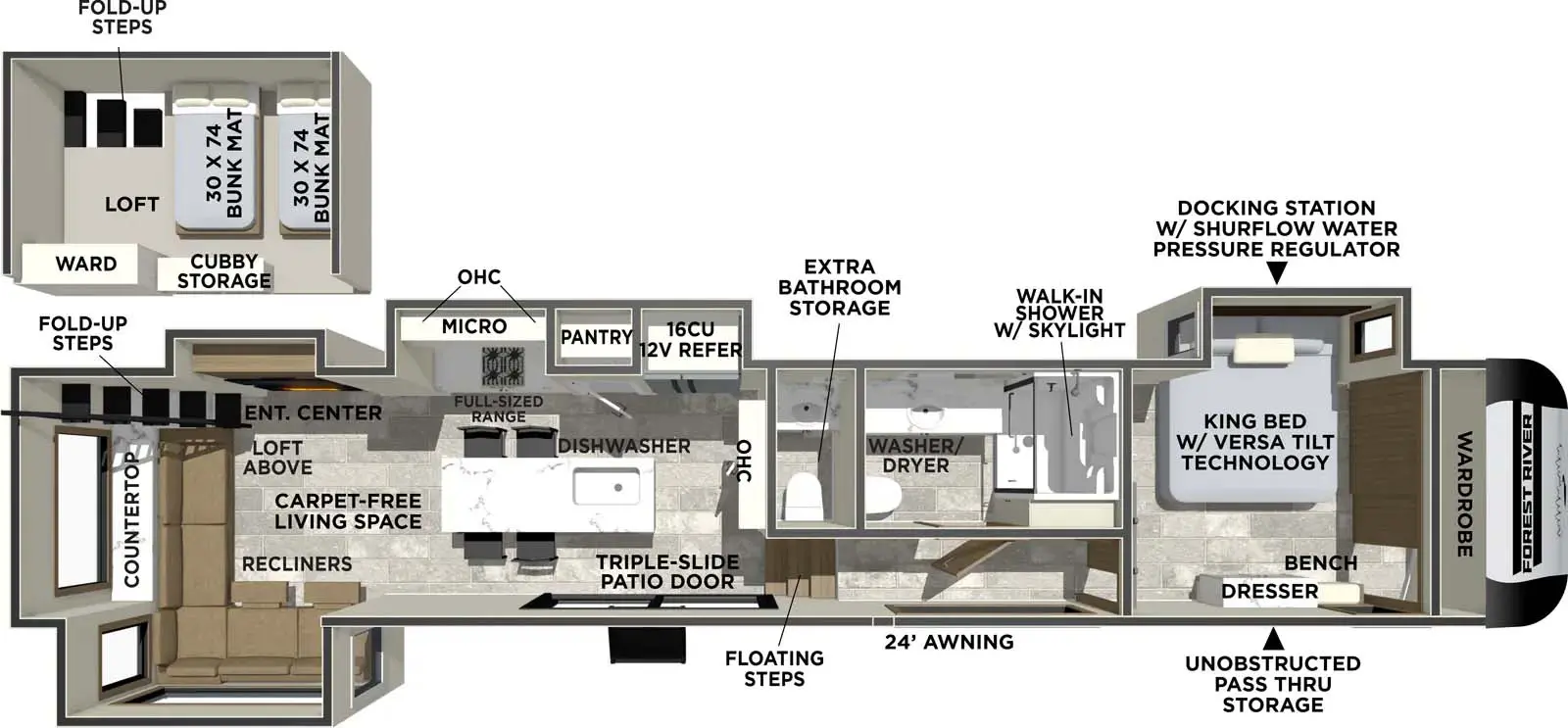

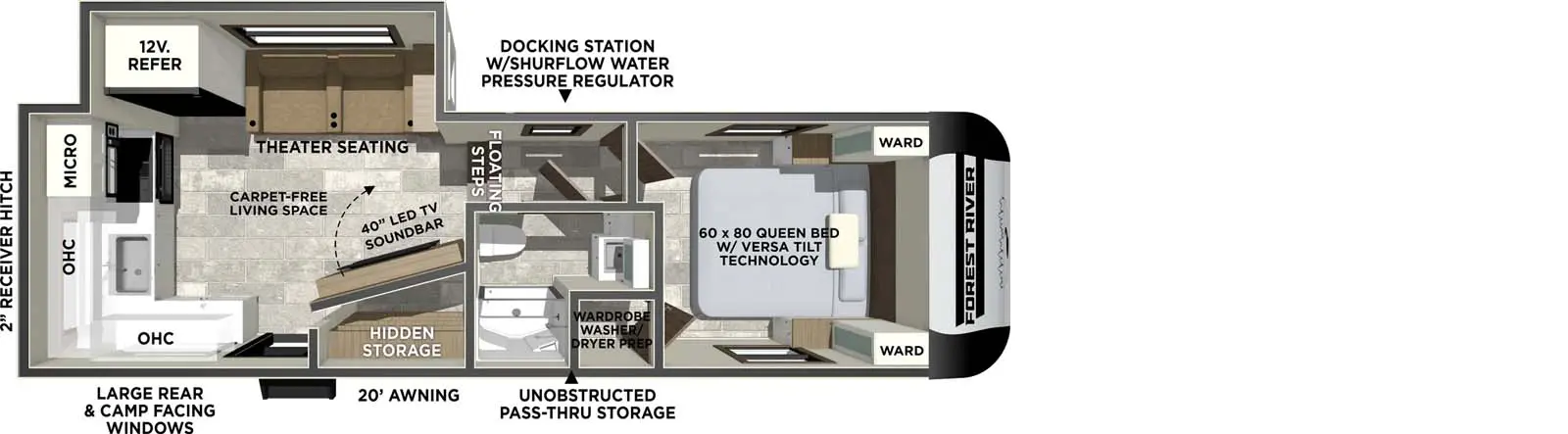

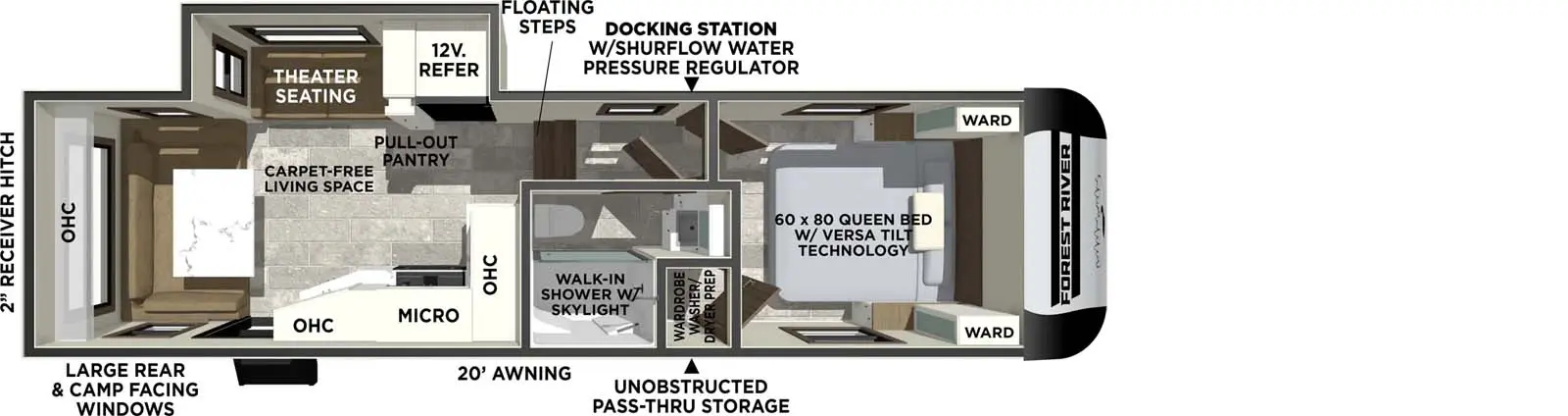

Floorplans

Print

Fifth Wheels


Specifications

Print

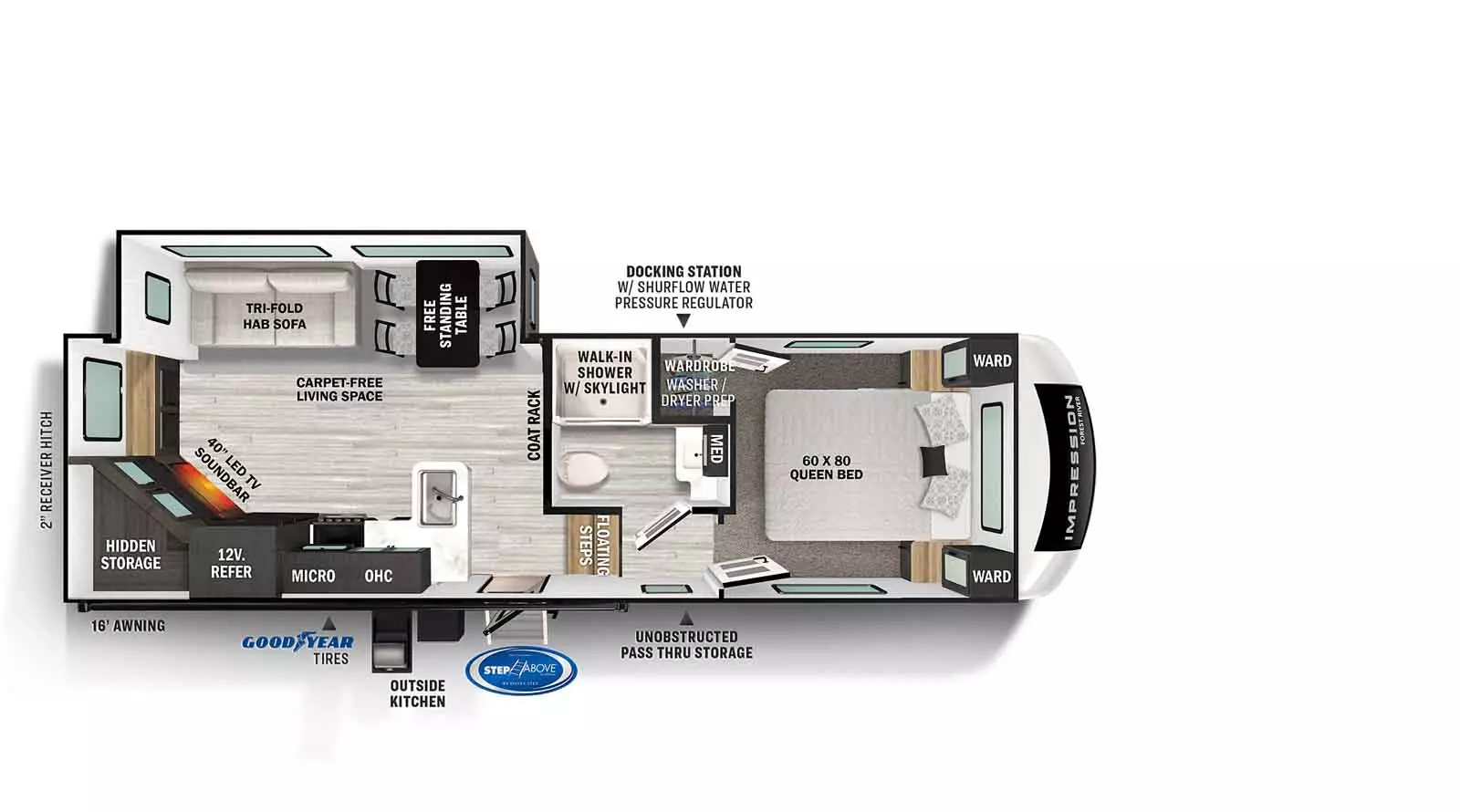

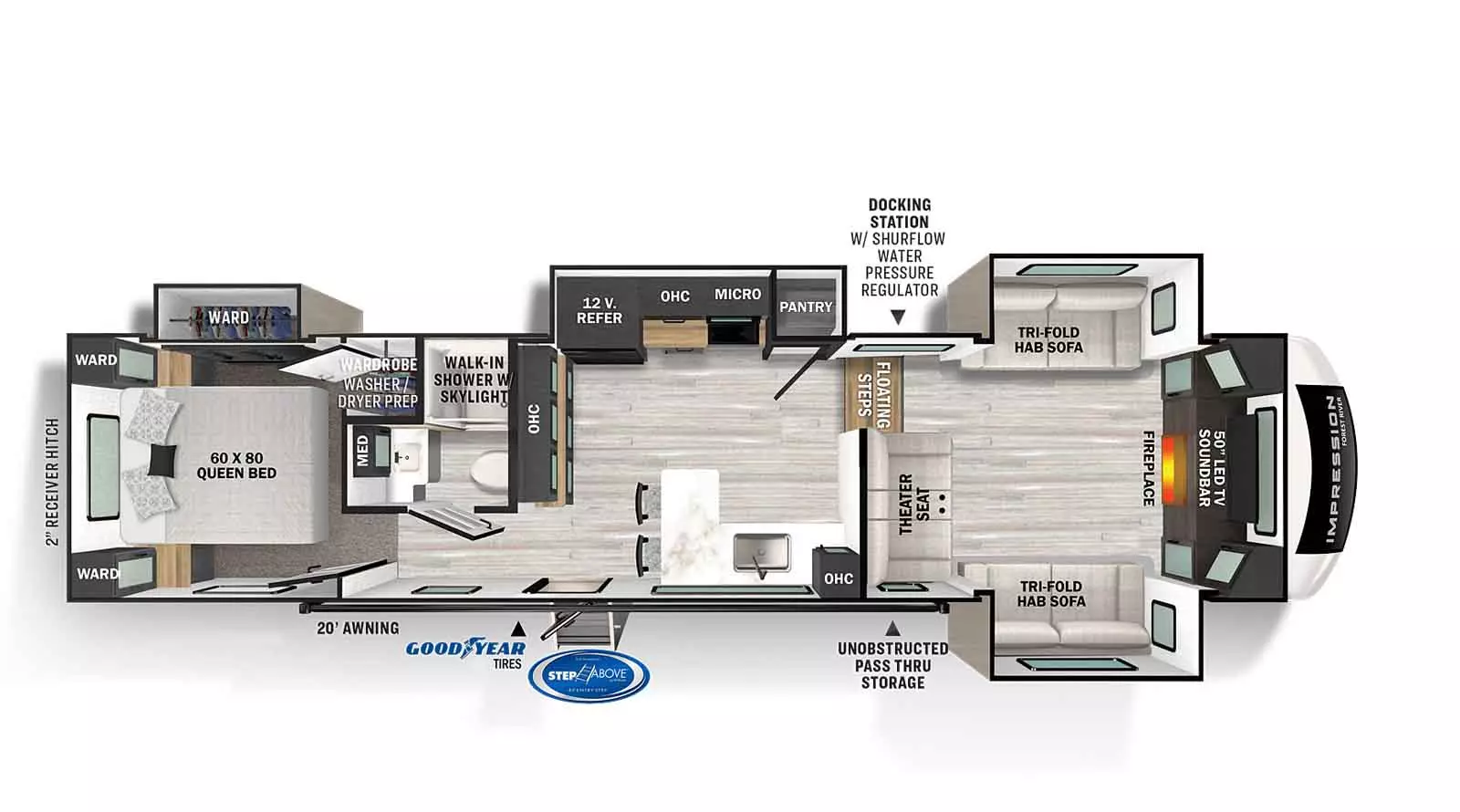

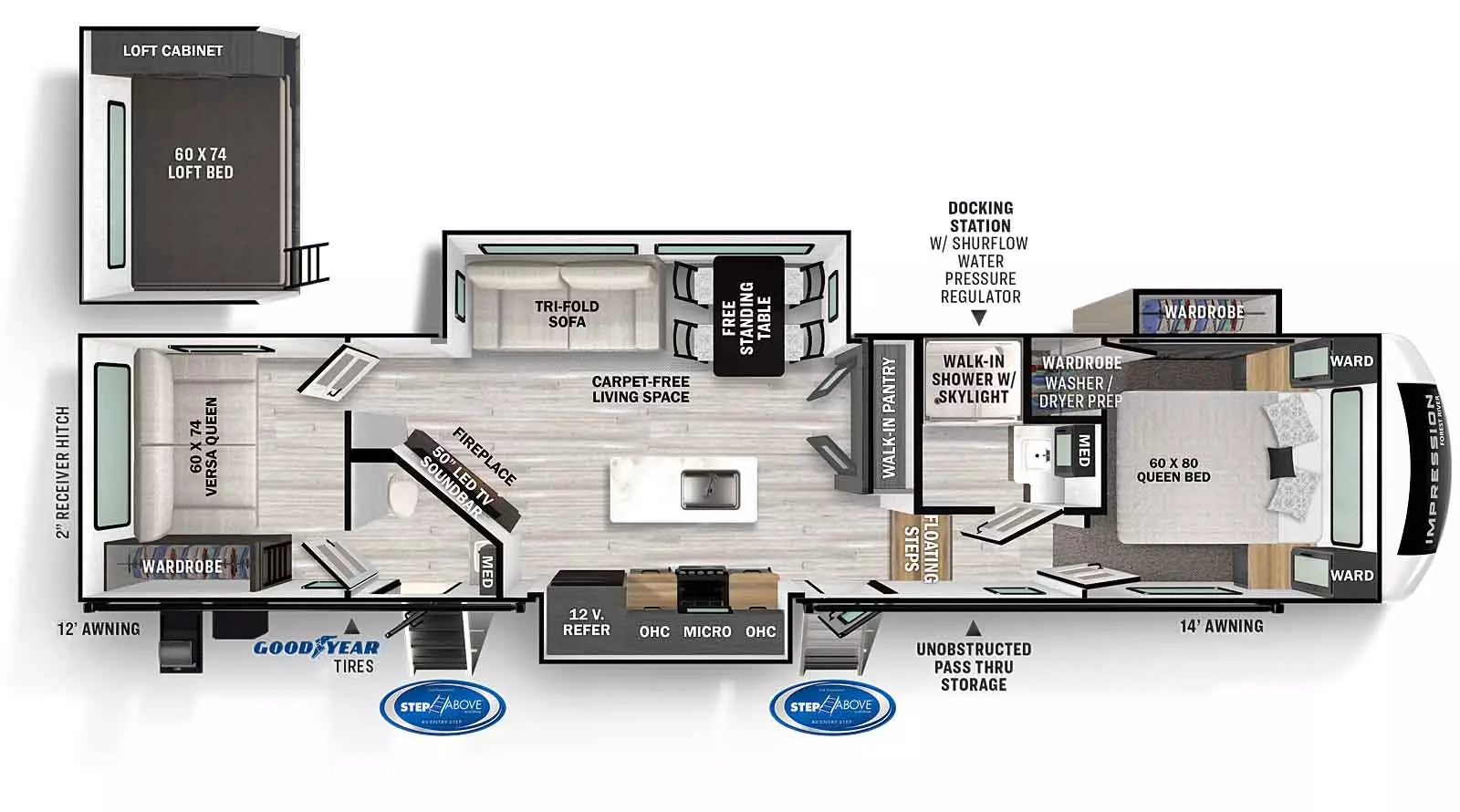

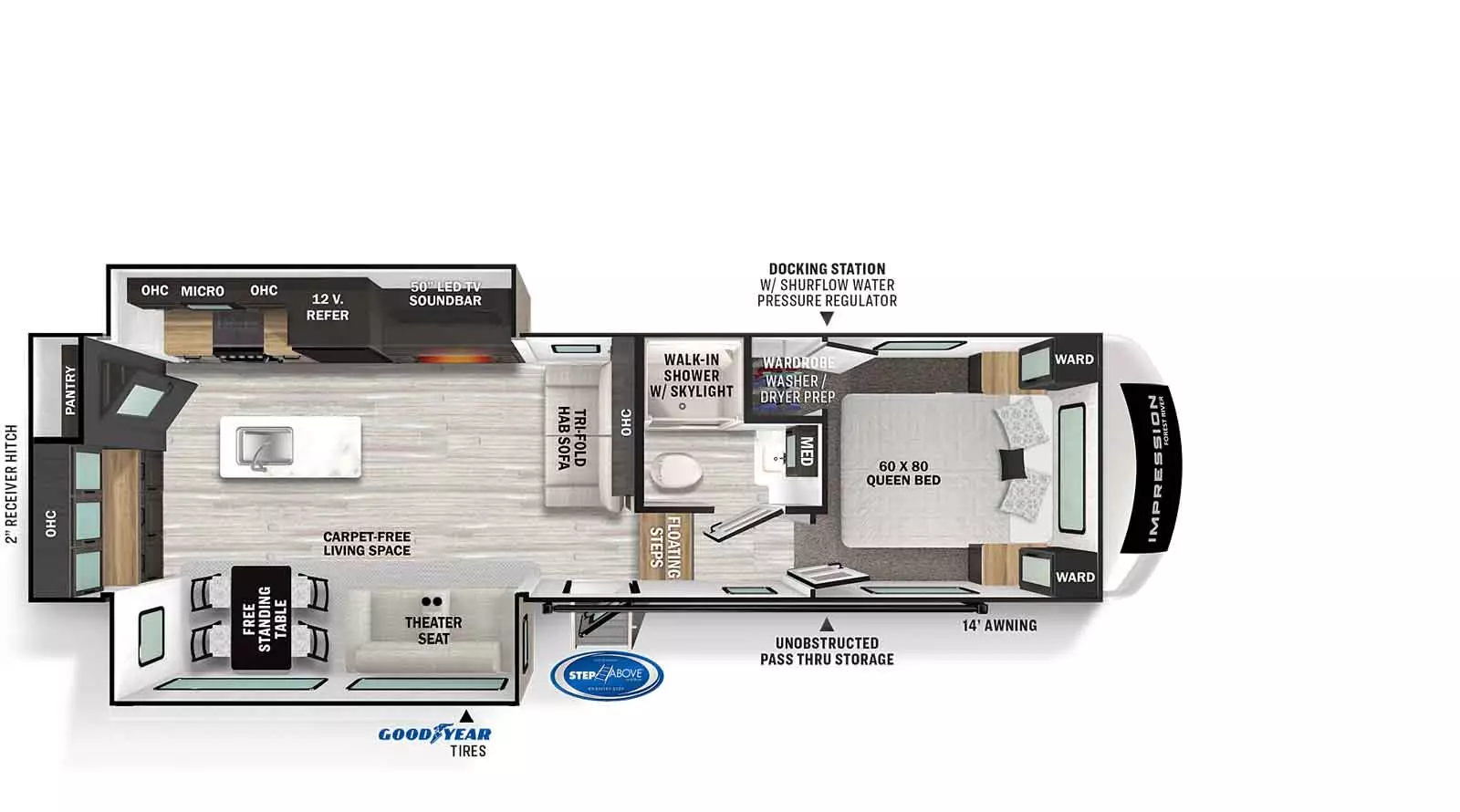

Floorplan: 240RE : Fifth Wheels 270RK : Fifth Wheels 280RL : Fifth Wheels 290VB : Fifth Wheels 315MB : Fifth Wheels 320FL : Fifth Wheels 330BH : Fifth Wheels
Hitch Weight:1,350 lb.1,515 lb.1,825 lb.2,000 lb.1,935 lb.2,535 lb.2,165 lb.
UVW:8,243 lb.8,948 lb.9,549 lb.8,933 lb.10,338 lb.10,303 lb.10,433 lb.
CCC:3,307 lb.2,767 lb.2,476 lb.3,267 lb.3,597 lb.4,232 lb.3,732 lb.
Exterior Length:31' 0"34' 6"35' 3"36' 8"38' 0"40' 2"41' 0"
Exterior Height:13' 2"13' 2"13' 2"13' 2"13' 2"13' 4"13' 4"
Exterior Width:96"96"96"96"96"96"96"
Fresh Water:57.00 gal.57.00 gal.57.00 gal.57.00 gal.57.00 gal.57.00 gal.57.00 gal.
Gray Water:60.00 gal.62.00 gal.60.00 gal.62.00 gal.62.00 gal.60.00 gal.60.00 gal.
Black Water:30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.32.00 gal.62.00 gal.
Awning Size:16'14'14'18'18'20'12' & 14'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print
  • Upgraded E-Rated Goodyear Endurance Tires (Made In The U.S.A.)
  • One Touch Automatic Leveling System
  • Gel Coat Fiberglass Front Cap w/ Automotive Windshield & LED Lights
  • Shurflo Water Pressure Regulator
  • Enclosed Docking Station
  • Black Tank Flush, Winterization & Sanitation
  • Outside Shower
  • Easy Access Water Heater Bypass
  • Off Grid Camping Prep: Solar Roof Prep & Pre-Wired For Invertor
  • Solid Entry Step
  • 2" Receiver Hitch 300 lb. Capacity
  • Enclosed Spare Tire & Carrier (Full Size)
  • Insulated Exterior Slam Latch Baggage Door
  • Battery Disconnect In Pass Through
  • Custom Aluminum Rims
  • Marine Grade Outdoor Speakers
  • Factory Installed Roof Ladder
  • Observation Back Up Camera Prep
  • Adjustable Power Awning w/ LED Lights
  • Slide Topper/Awning Prep
  • Gas/Electric DSI Water Heater
  • Friction Hinge Entry Door
  • Detachable Power Cord
  • LED Exterior Lighting
  • Custom Exterior Graphics Package
  • Blackout Roller Shade Window Covering w/ Reflective Back
  • Ductless Flooring Throughout For Easy Sweeping
  • Centralized Command Center w/ Built In Tank Monitoring
  • USB Port Charging Stations
  • WiFi Prep, Digital TV Antenna
  • Full Extension Drawer Glides
  • Shaw Residential Carpeting w/ Stain Guard Protection
  • Congoleum Residential Linoleum
  • Flex Pex Plumbing
  • Carbon Monoxide/LP Detector
  • LED Interior Lighting Throughout
  • Living Room LED TV (50" or 40")
  • Electric Fireplace/Space Heater (5,500 Watt Heats Up To 400 sq. ft.)
  • Soundbar
  • Oversized Opening Windows
  • Trifold Hide A Bed w/ Residential Sleep Surface

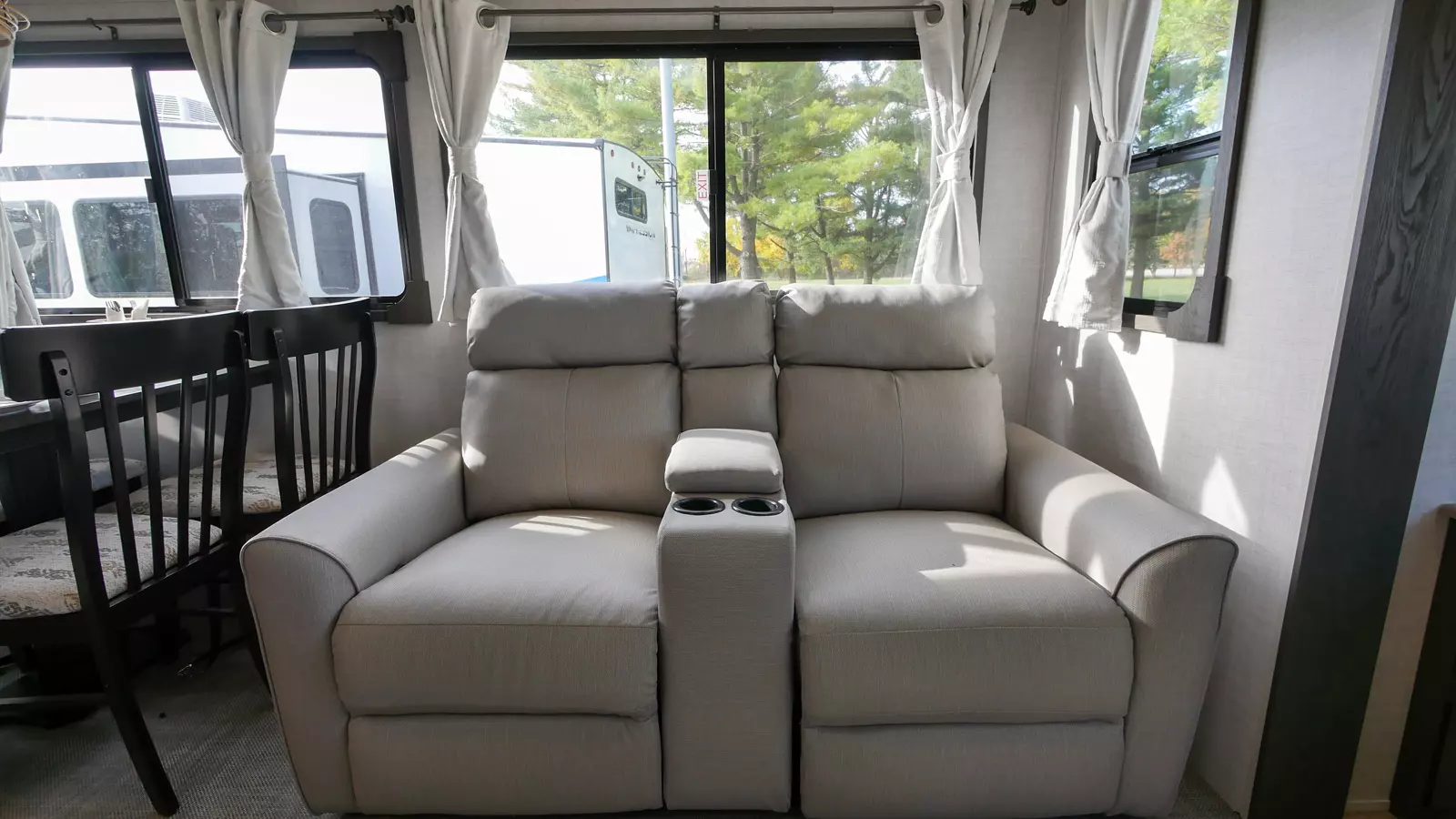

  • Theater Seating w/ USB Charge Ports (Select Models)
  • Free Standing Table w/ Storage Bench/Ottoman Standard
  • 10 cu. ft. 12 Volt Refrigerator

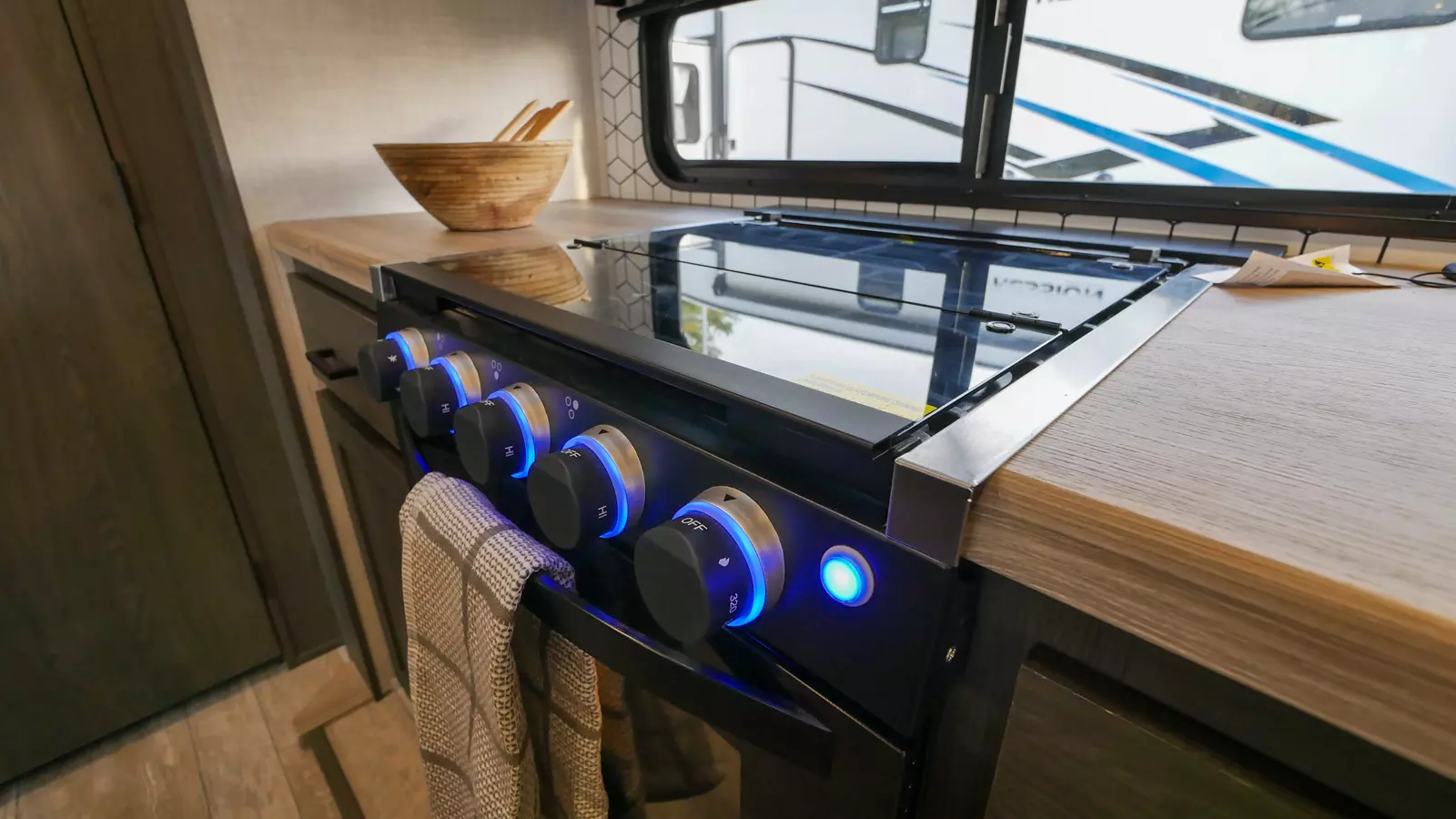

  • Glass Recessed Range w/ Glass Cover
  • Glass Microwave w/ Exhaust Vent
  • Tile Backsplash

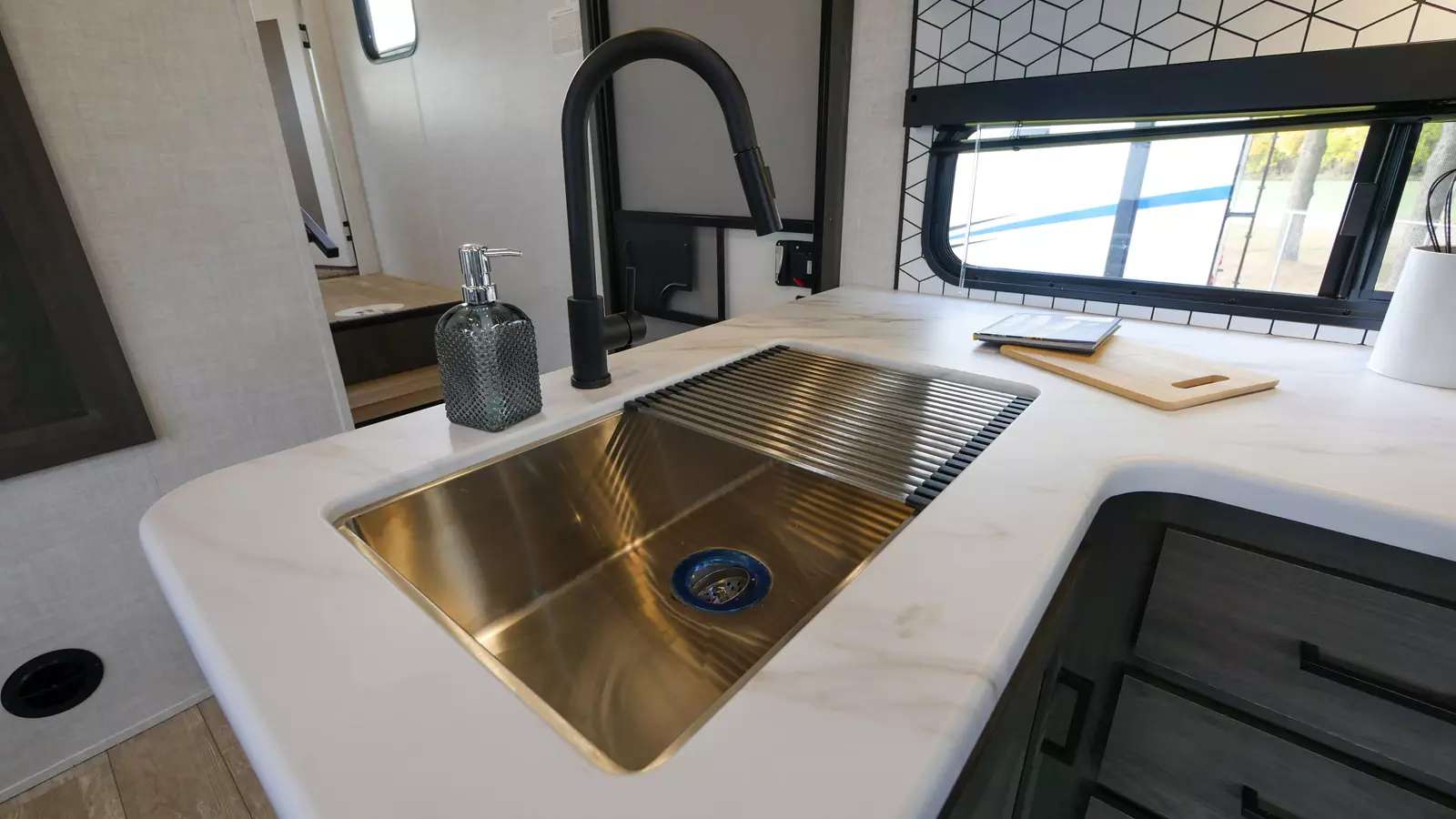

  • Stainless Steel Single Bowl Sink
  • High Rise Faucet w/ Pulldown Sprayer
  • Sink Drying Rack
  • Floor To Ceiling Pantry
  • Natural Lighting From Skylight
  • Porcelain Foot Flush Toilet
  • Walk In Shower w/ Skylight
  • Anti-Bacterial Shower Door
  • Large Medicine Cabinet w/ Mirror
  • 6'3" Bedroom Height

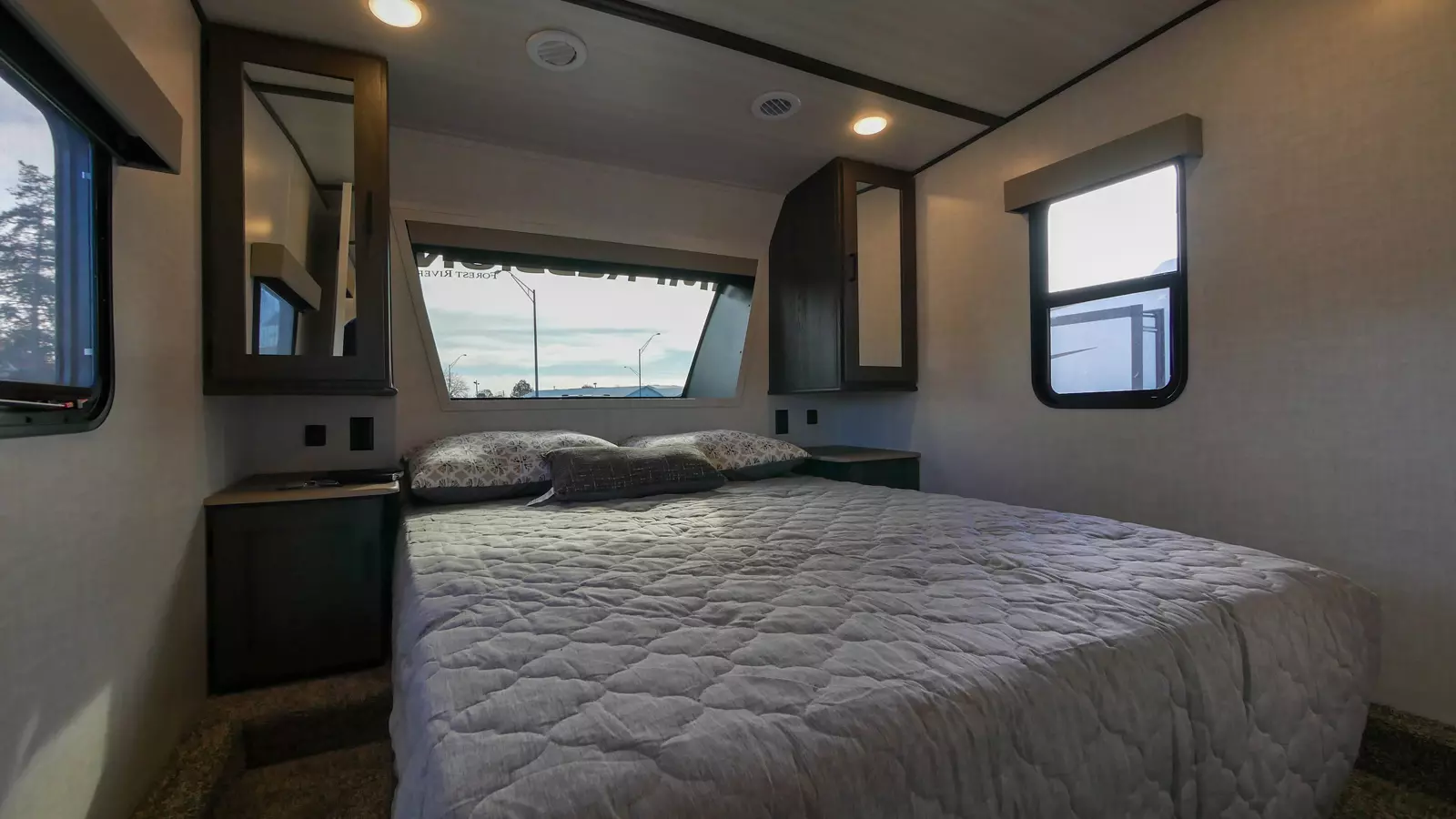

  • 60x80 Mattress w/ Residential Bedspread & Pillows
  • Gas Strut Assisted Bed Lift w/ Storage
  • Full Size Stackable Washer/Dryer Prep
  • Directional & Closable A/C Vents
  • 110 Outlet & 12 Volt Charging Ports Beside Bed
  • CPAP Machine Ready
  • Cable/Sat Prep
  • Industry Leading 15K A/C
  • A/C Larger Return Air Vents w/ Accessible Filters
  • 35K BTU Furnace
  • Maximized A/C Ducting For Best Cooling Efficiency
  • 12 Volt Heat Pads For Holding Tanks
  • Fully Heated & Enclosed AccessiBelly (Removable Underbelly Panels)
  • "Aluma-Frame" Structure
  • Laminated Aluminum Front Wall
  • Laminated Aluminum Sidewalls
  • Laminated Aluminum Slide Boxes
  • Laminated Aluminum Floor
  • 5" Truss Rafters 16" OC
  • One-Piece Tufflex™ PVC Roofing
  • LCI Space Saver Upper Deck™ & LCI Rhino Box™ - Frame Construction Additional Steel In Upper Deck. (Vertical Tubular Frame For Strength, Additional Gussets In Order To Increase Headroom In Bedroom)
  • 100% PDI - Quality Inspection Check Points Throughout The Production Process. Before Any Unit Is Shipped From The Assembly Line To Our Dealer Partners It Goes Through A Separate Stand Alone Inspection
  • One Touch Automatic Leveling System
  • Upgraded E-Rated Goodyear Tires
  • 50 AMP w/ 2nd A/C Prep & W/D Prep
  • Gel Coat Fiberglass Front Cap w/ Automotive Windshield
  • "Aluma-Frame" Structure
  • LED TV
  • Soundbar
  • Electric Fireplace/Space Heater (5500 Watt Heats up to 400 sq. ft.)
  • Industry Leading 15K A/C
  • 10 cu. ft. 12 Volt Refrigerator
  • Superior Insulation w/ Astrofoil & 12 Volt Tank Heat Pads
  • Heated & Enclosed AccessiBelly (w/ Removable Underbelly Panels)
  • Oversized Opening Windows
  • 2" Receiver Hitch For Storage Rack
  • Solid Entry Step
  • Enclosed Convenient Docking Station
  • Shurflo Water Pressure Regulator
  • Insulated Exterior Slam Latch Door
  • Solar Roof Prep For Off Grid Camping
  • 2nd 13.5K Ducted A/C
  • 8 cu. ft. Gas/Elec Refrigerator IPO 12 Volt 10 cu. ft. Refrigerator
  • Off Grid Solar (30 AMP Charge Control, 100 Watt Roof Panel, Battery)
  • Booth Dinette


Virtual Tours

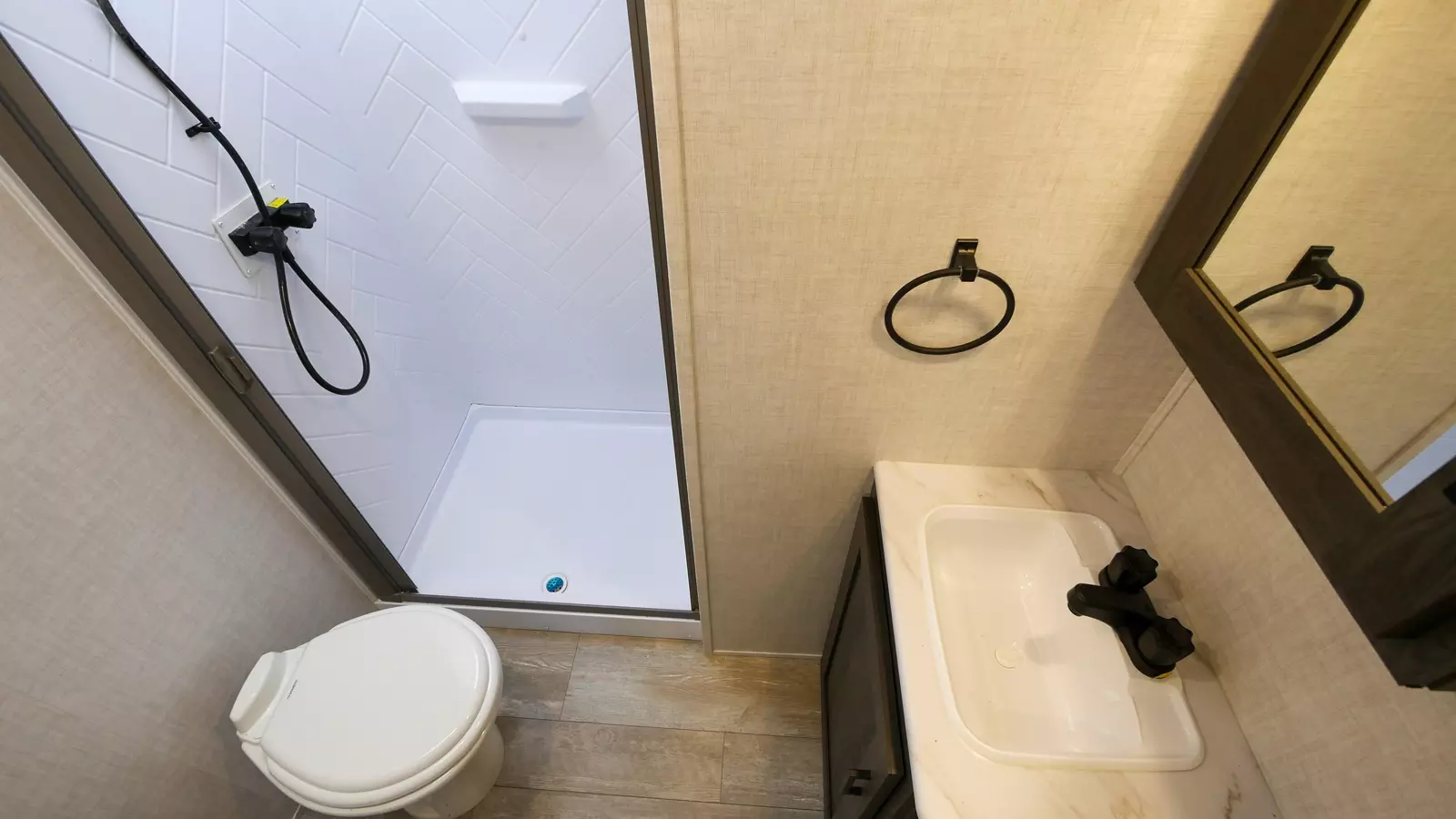

  • 240RE

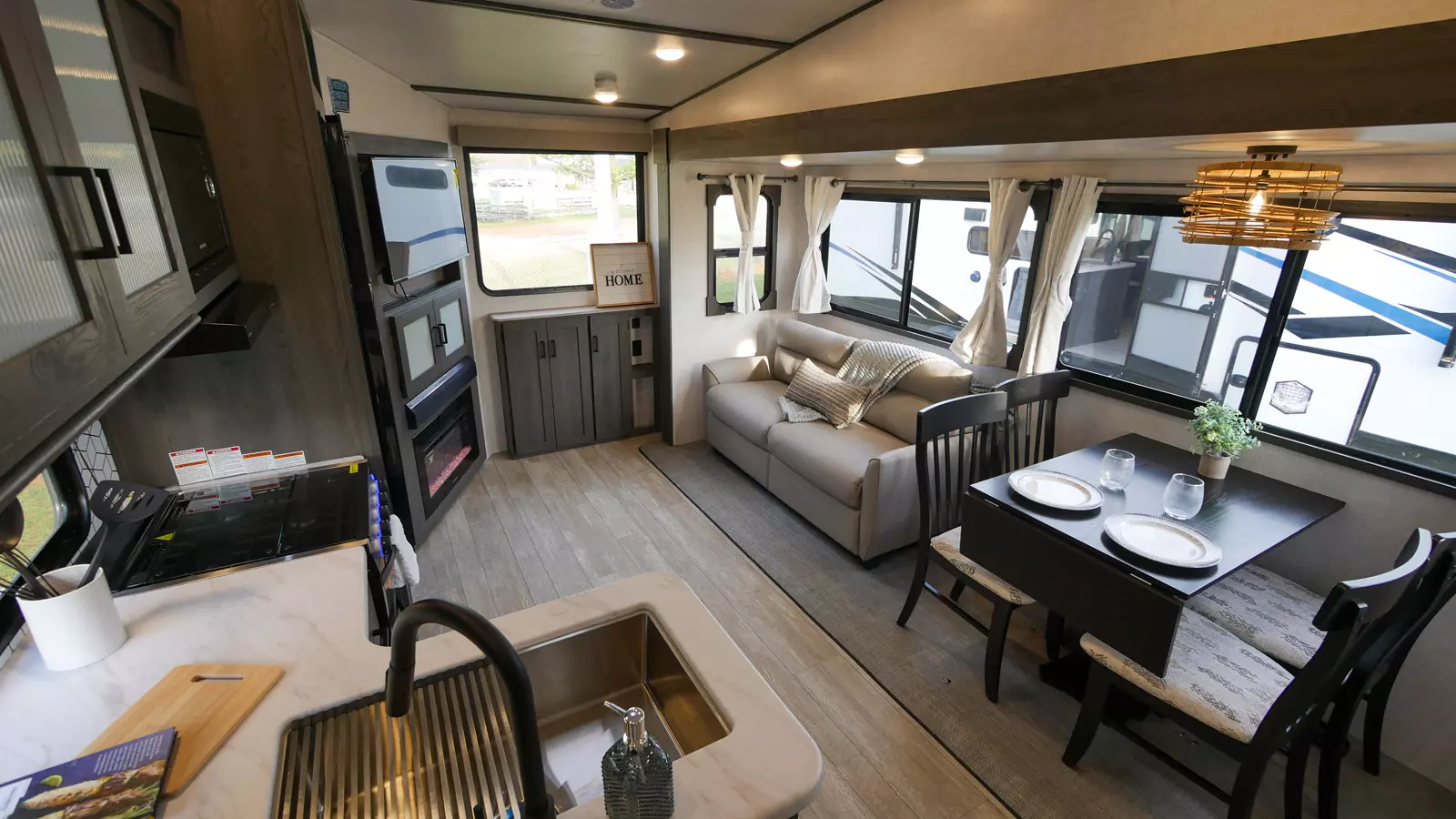

    240RE Main Room

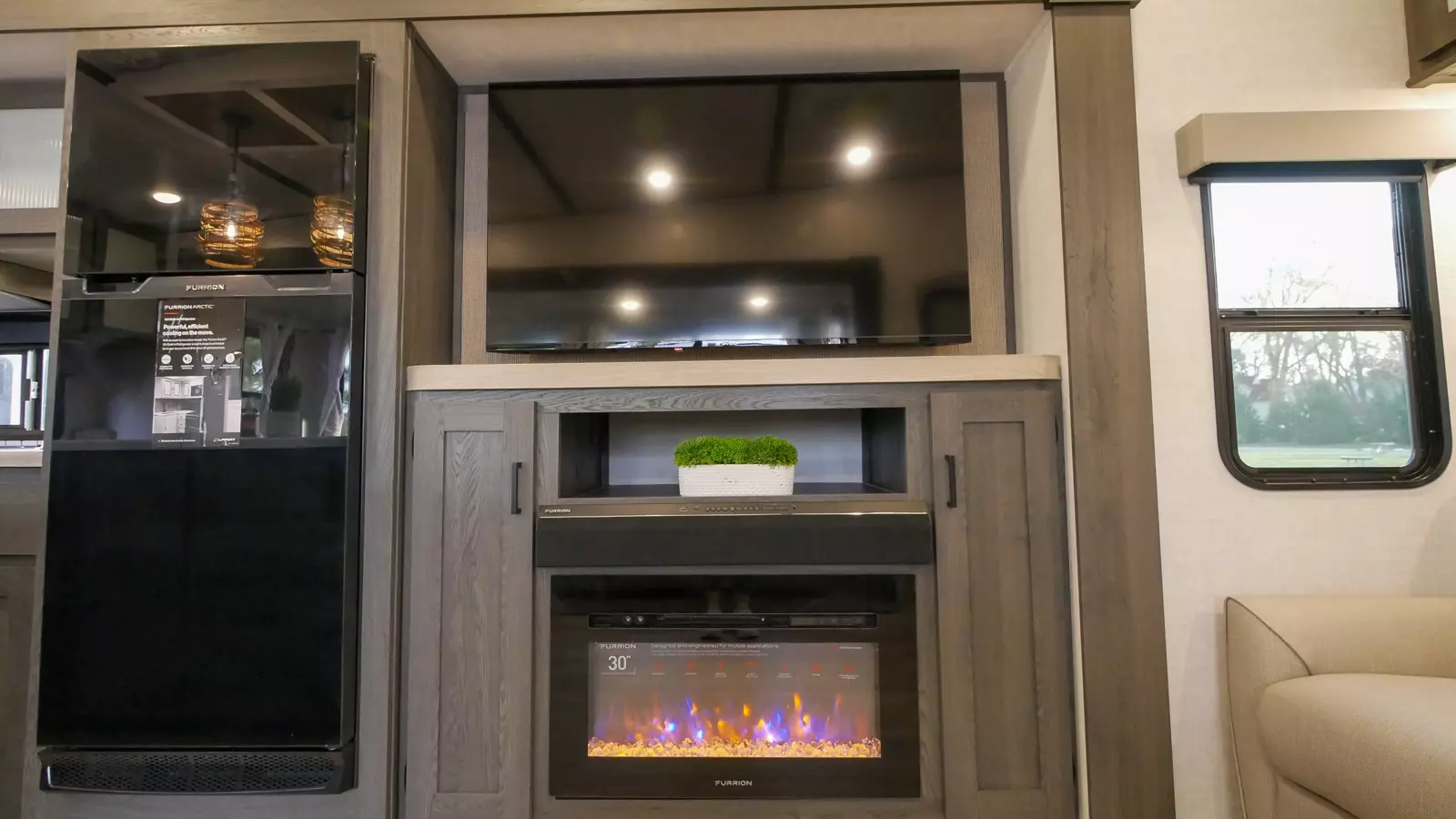

  • 270RK
    270RK Main Room
  • 280RL
    280RL Main Room

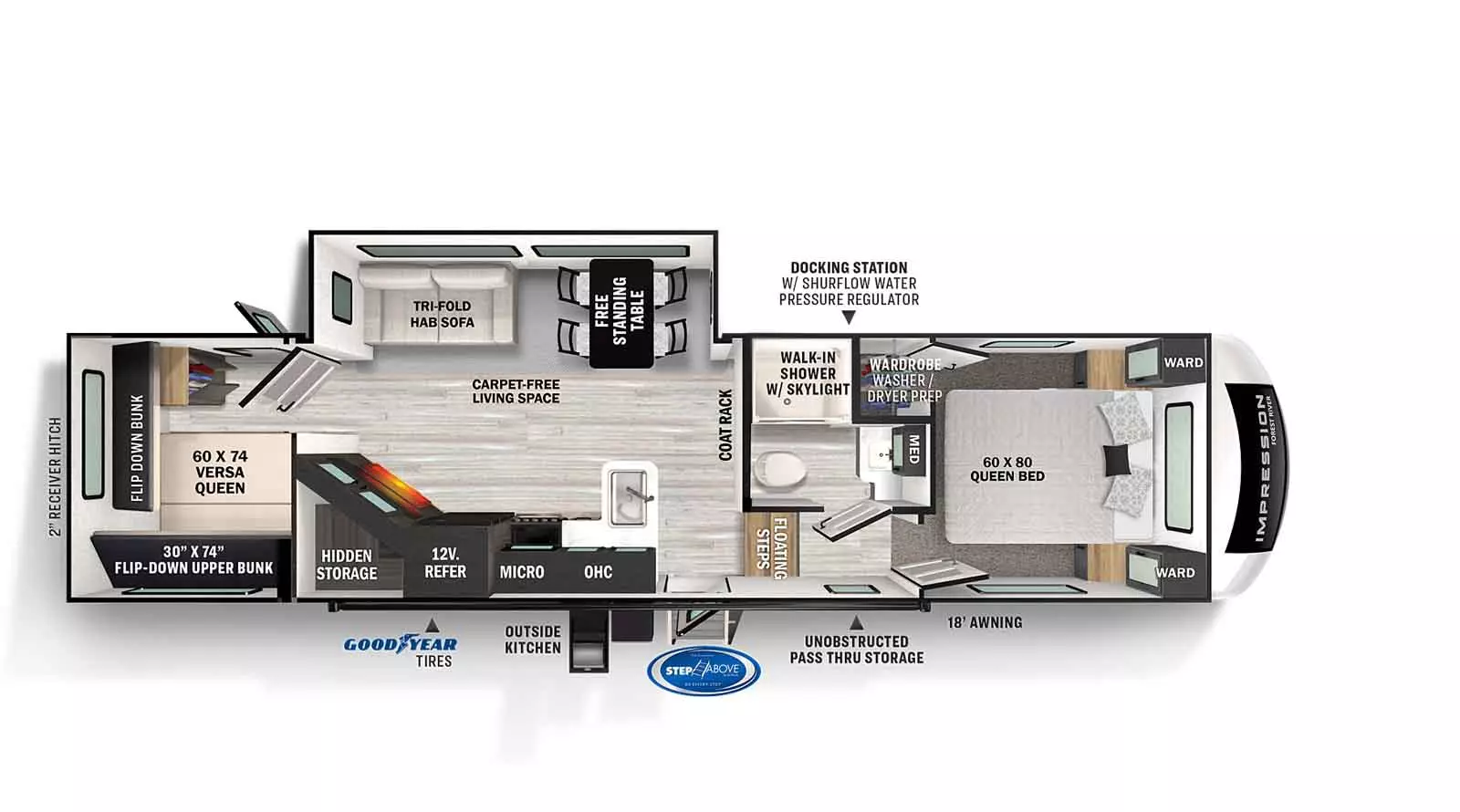

  • 290VB
    290VB Main Room

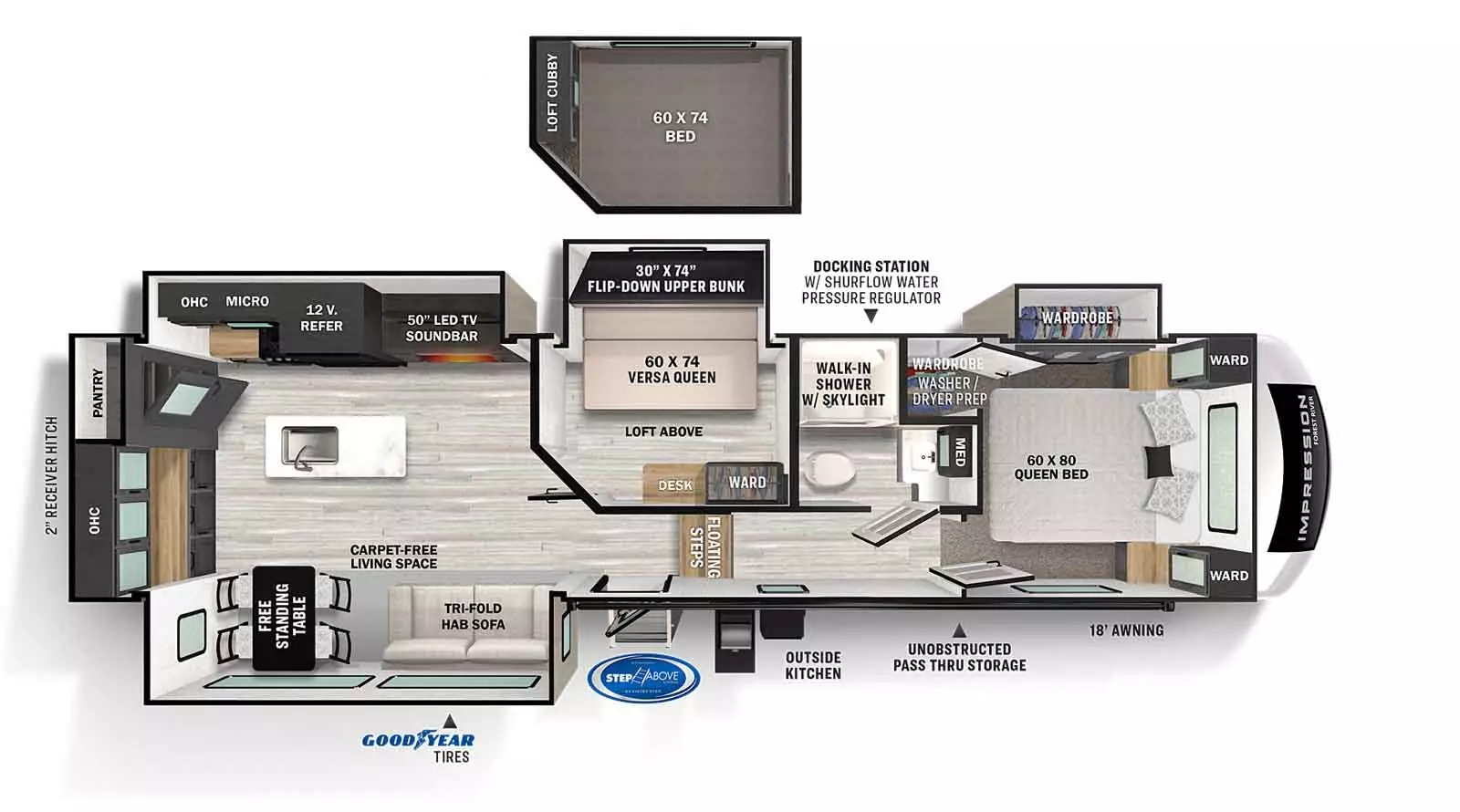

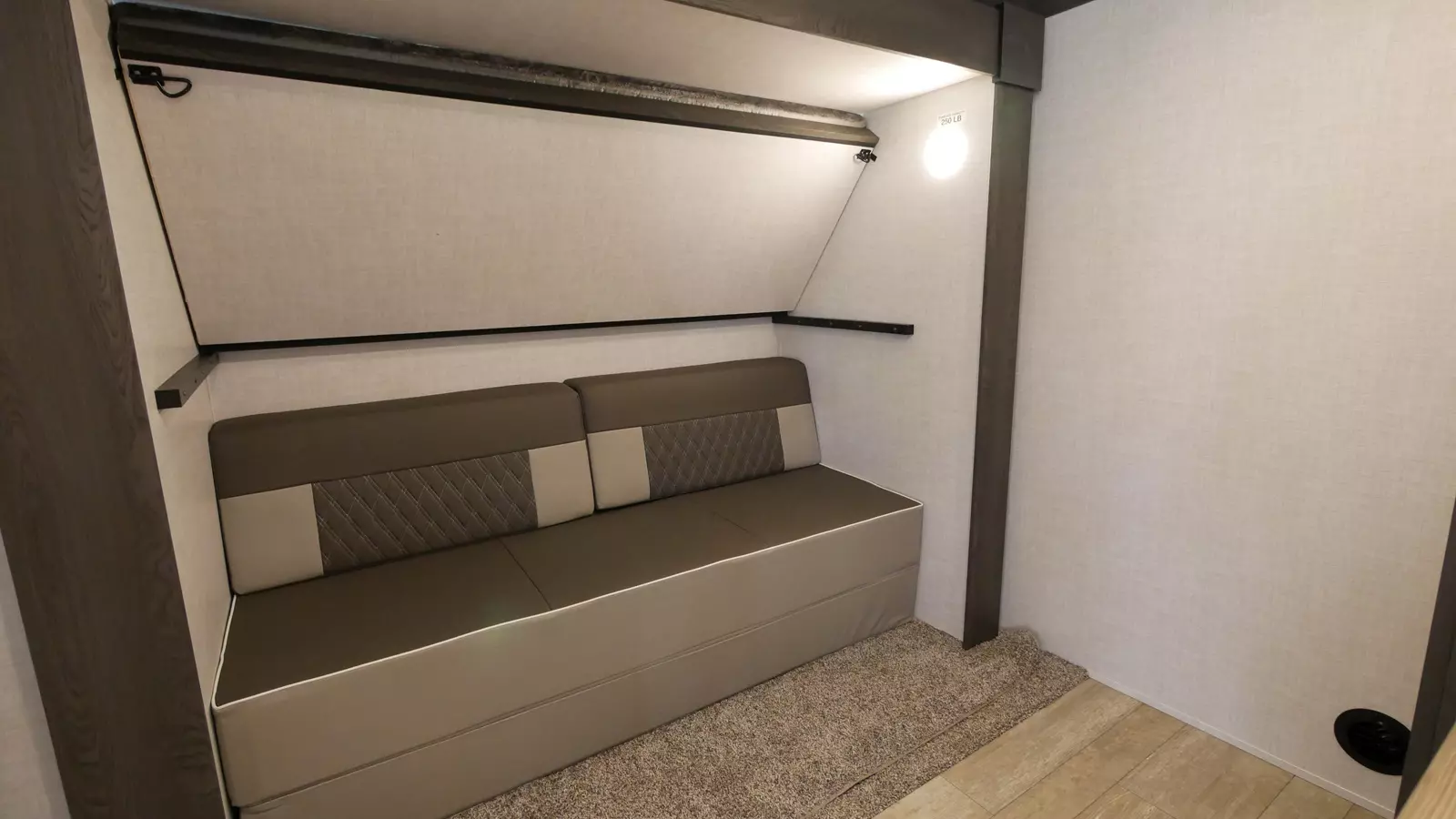

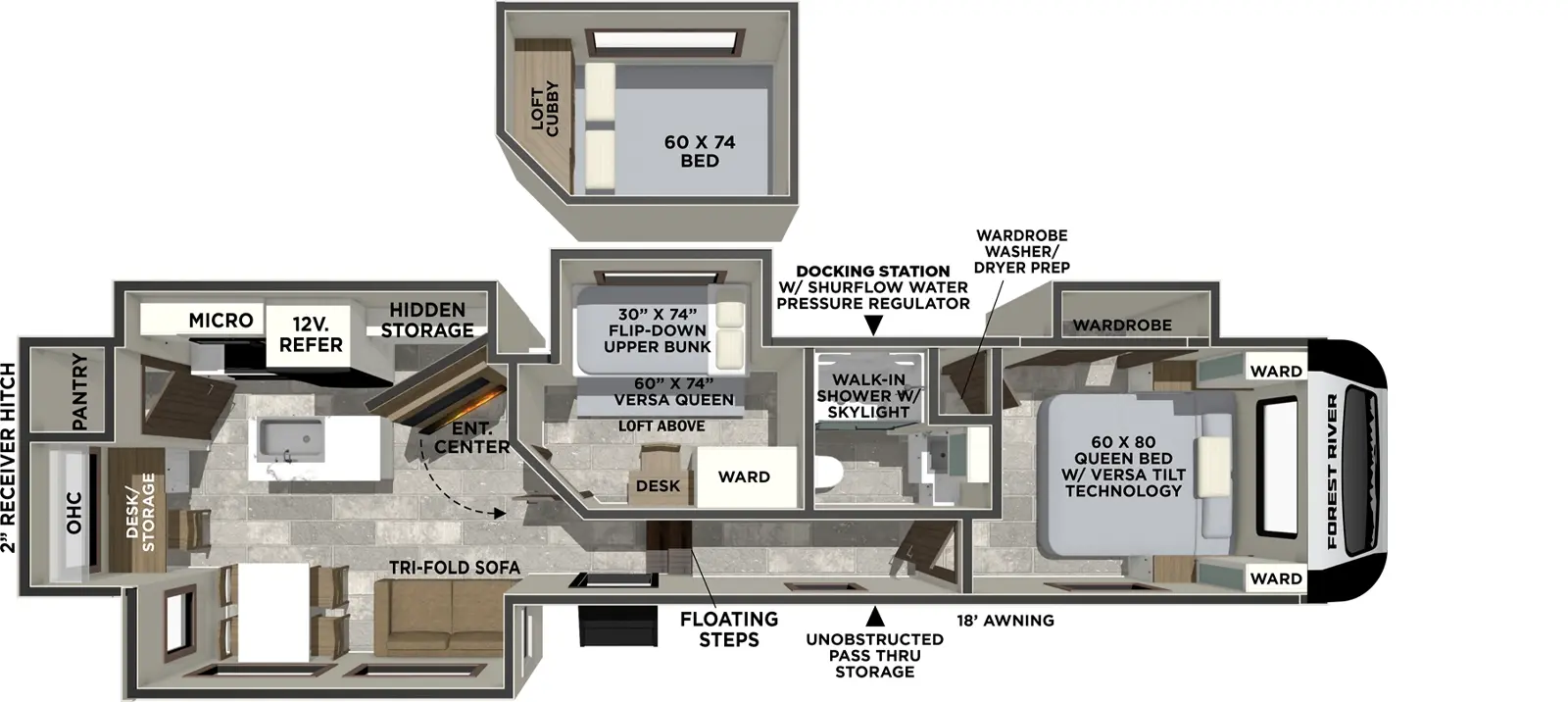

  • 315MB
    315MB Main Room
  • 320FL
    320FL Main Room


Videos

Some videos may show features or options not available on all products. Contact our service representatives or your local dealer if you have questions about how your specific RV operates.


Literature
