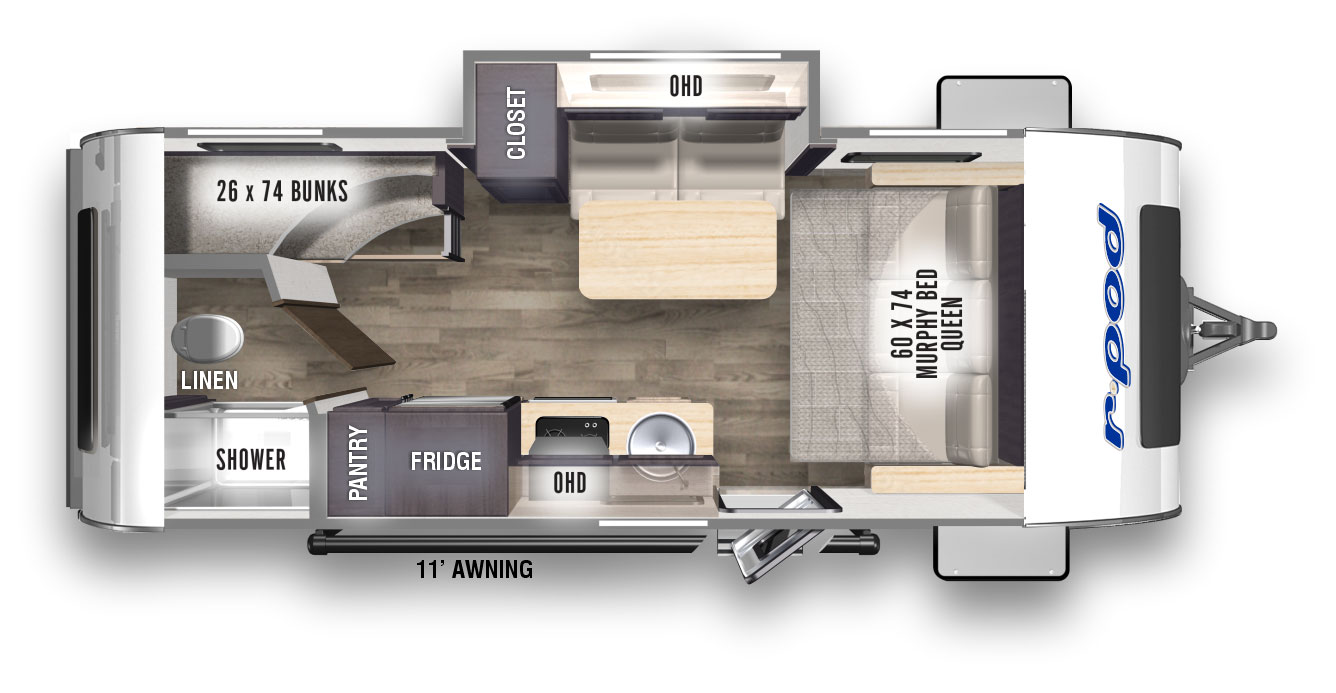

RP-193 Floorplan

Ultra Lite Travel Trailer

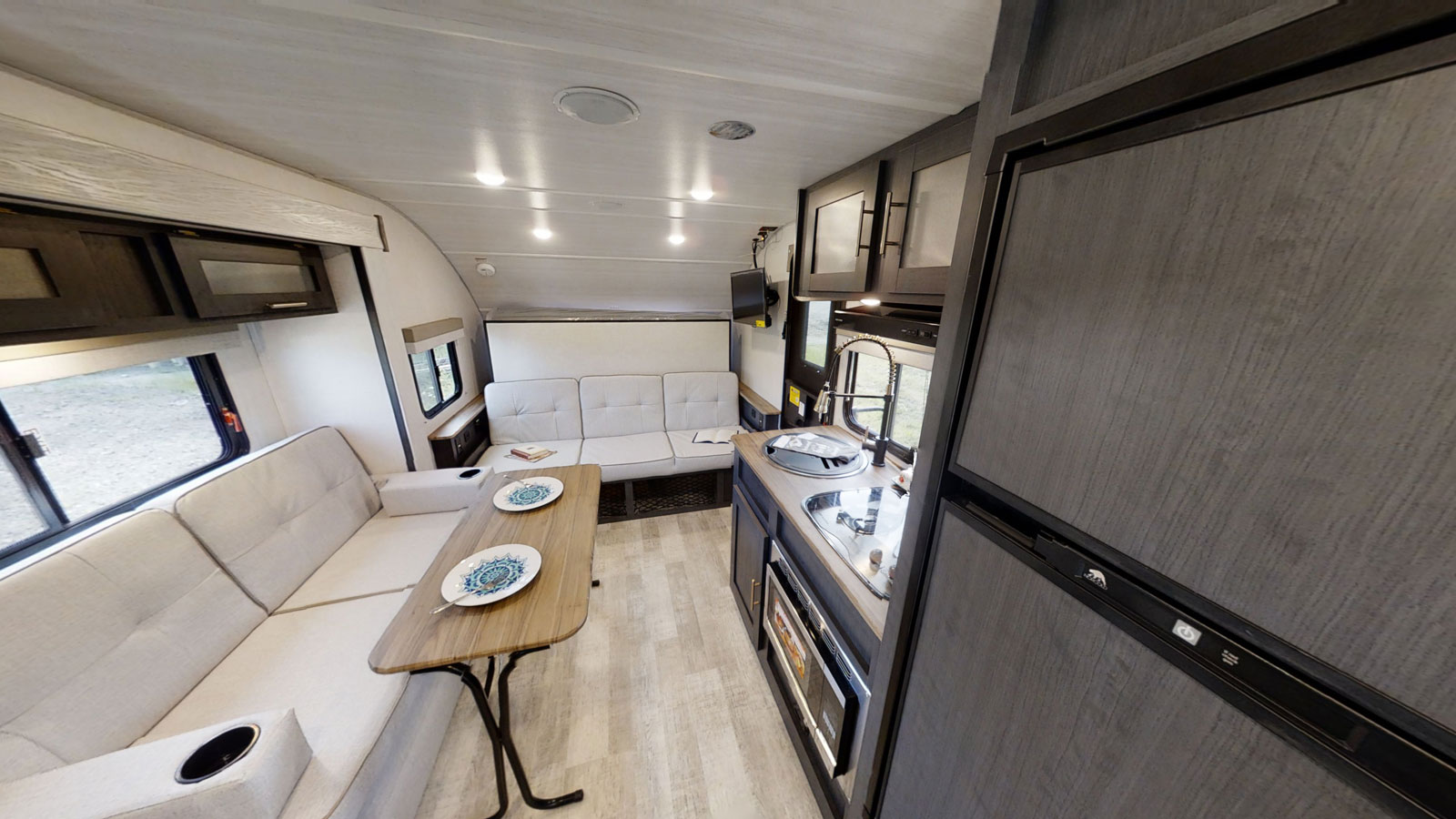

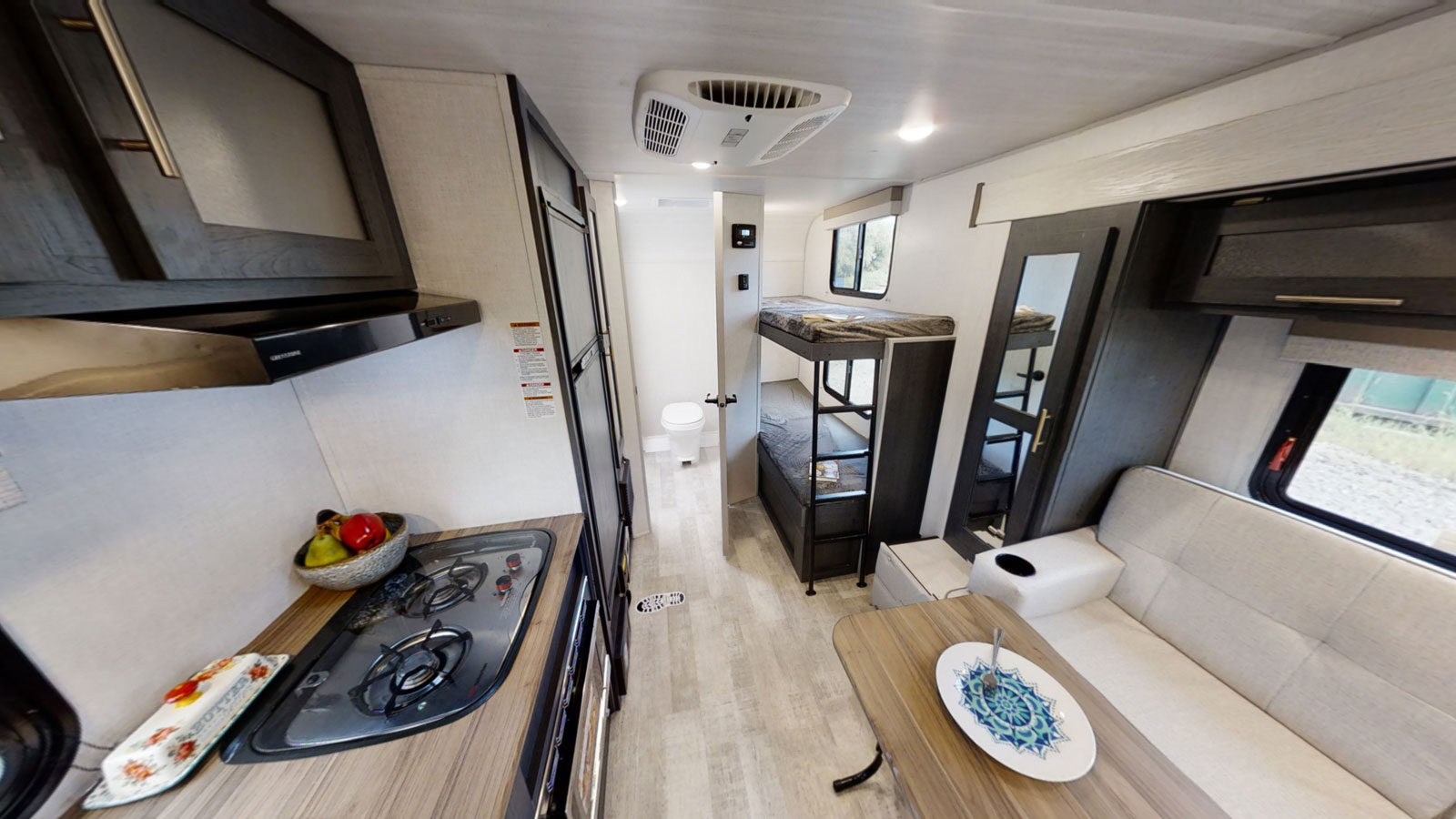

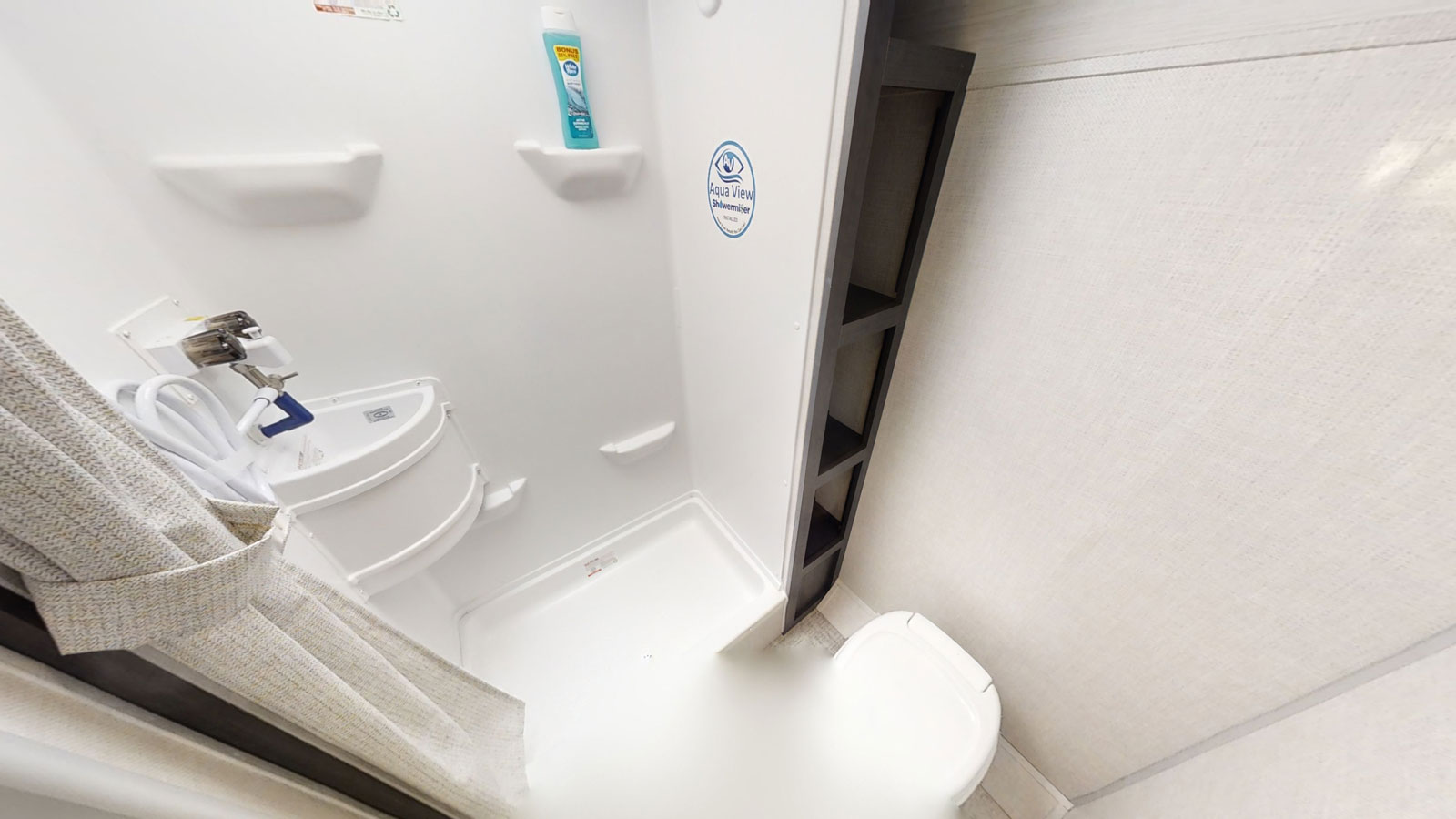

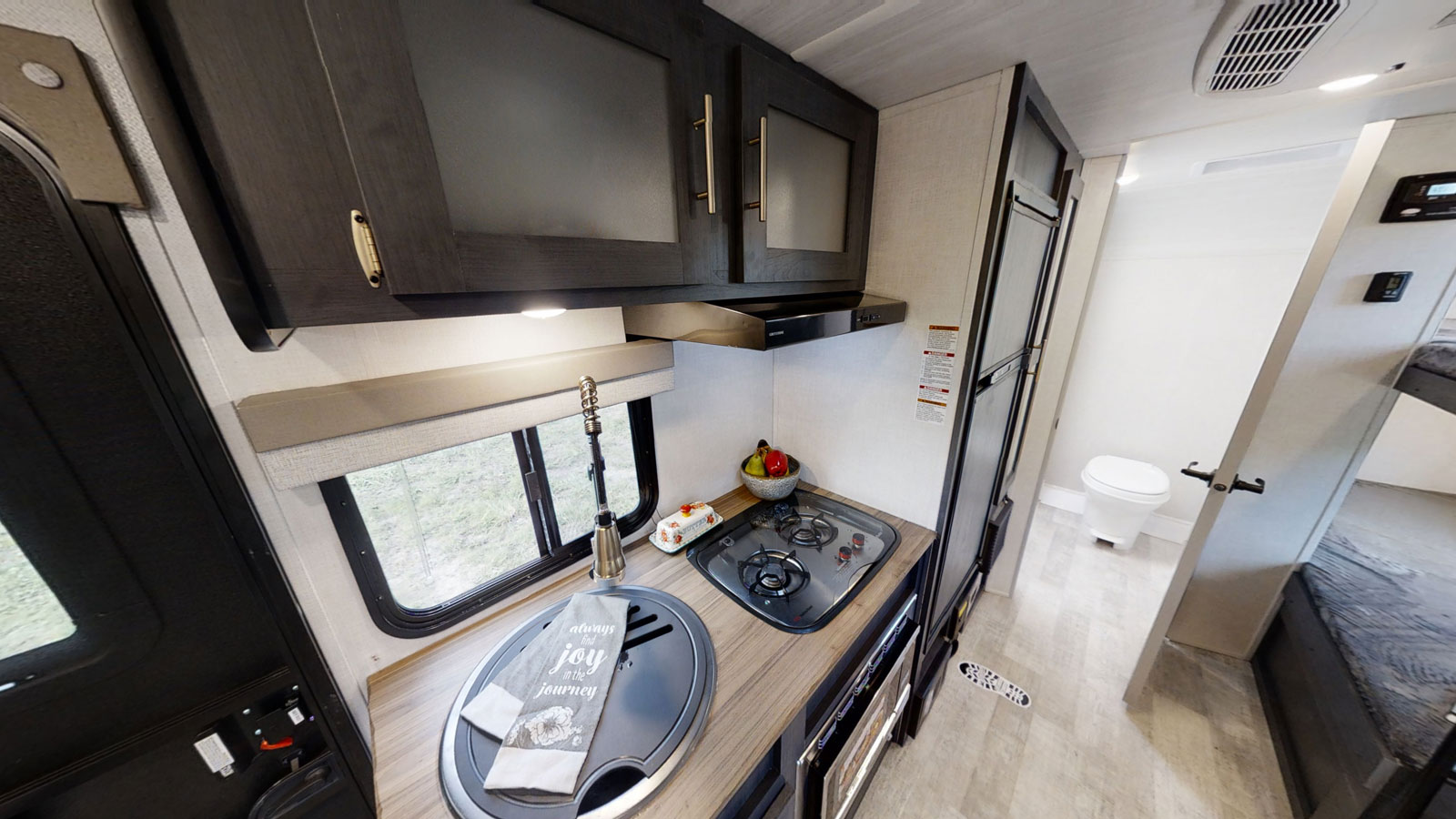

The RP193 has one entry door, front pass-through storage, a slide room on the off-door side, and a 10' awning on the exterior. Inside, there is a 60" x 74" murphy-type folding bed at the front of the unit, with a sofa beneath. Looking toward the rear of the unit, you have a slideout on the right-hand wall with theater seats, a closet, and overhead cabinets. A removable dining table can be placed in front of the seating. The kitchen is located along the left wall, with a single basin sink, cooktop, convection microwave, refrigerator, pantry, and overhead cabinets. The left rear corner contains the bathroom, with shower, linen cabinet, and commode. The right rear corner is a bunk room with two 26" x 74" bunks.
Murphy bed and two twin bunk beds, sofa seating for 5 and the largest bathroom layout of any model make this floorplan perfect to go make family memories. Unique kitchen design with large pantry, 6 cu ft gas/electric refrigerator, huge sink & tons of interior storage make packing a breeze while the central vacuum will make clean up stress free. Take advantage of outdoor cooking on the optional griddle while taking the smell and mess out of the indoor living space.


Hitch Weight:
435 lb.
3,654 lb.
1,181 lb.
Exterior Length:
22' 11"
Exterior Height:
9' 10"
Exterior Width:
Fresh Water:
30.00 gal.
Gray Water:
30.00 gal.
Black Water:
30.00 gal.
Awning Size:
GVWR (Gross Vehicle Weight Rating)
– is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.
