Salem FSX Travel Trailers

Fully featured, light weight, and easy to tow, Salem FSX offers convenience in a tiny package. Perfect for first time and seasoned campers alike, a modern residential living space is easy to call your home away from home.

Care Camps, fighting cancer and making memories

Floorplans

Print

Travel Trailers
Limited Edition Value Travel Trailers
MAX Series: Toy Haulers and Versatile Cargo Travel Trailers


Specifications

Print

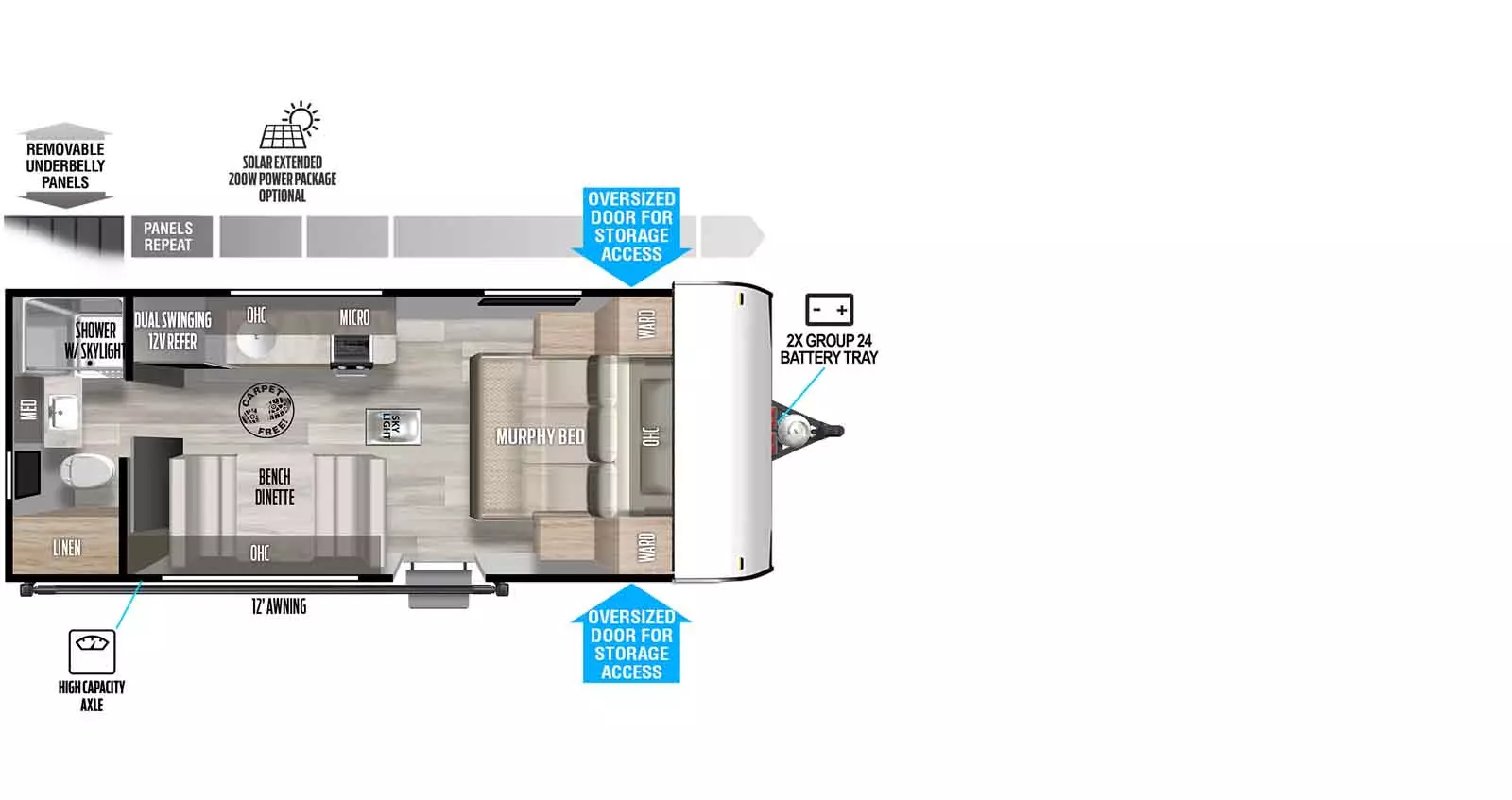

Floorplan: 161QK : Travel Trailers 163RDSK : Travel Trailers 167RBK : Travel Trailers 169RSK : Travel Trailers 170SS : Travel Trailers 176QBHK : Travel Trailers 177BH : Travel Trailers 178BHSK : Travel Trailers 179DBK : Travel Trailers 174BHLE : Limited Edition Value Travel Trailers 175RTK : MAX Series: Toy Haulers and Versatile Cargo Travel Trailers 190RTK : MAX Series: Toy Haulers and Versatile Cargo Travel Trailers 210RTK : MAX Series: Toy Haulers and Versatile Cargo Travel Trailers 245VC : MAX Series: Toy Haulers and Versatile Cargo Travel Trailers 260RTK : MAX Series: Toy Haulers and Versatile Cargo Travel Trailers 262VC : MAX Series: Toy Haulers and Versatile Cargo Travel Trailers 265RTK : MAX Series: Toy Haulers and Versatile Cargo Travel Trailers 270RTK : MAX Series: Toy Haulers and Versatile Cargo Travel Trailers 275VC : MAX Series: Toy Haulers and Versatile Cargo Travel Trailers 290RTK : MAX Series: Toy Haulers and Versatile Cargo Travel Trailers
Hitch Weight:508 lb.415 lb.350 lb.555 lb.445 lb.520 lb.405 lb.430 lb.465 lb.TBD625 lb.595 lb.593 lb.TBD610 lb.TBD870 lb.1,051 lb.TBD1,220 lb.
UVW:3,691 lb.4,079 lb.3,084 lb.4,024 lb.3,819 lb.3,944 lb.3,074 lb.3,749 lb.3,219 lb.TBD4,413 lb.4,488 lb.4,997 lb.TBD4,728 lb.TBD5,708 lb.5,877 lb.TBD7,743 lb.
CCC:1,217 lb.736 lb.766 lb.931 lb.1,026 lb.976 lb.831 lb.1,081 lb.1,646 lb.TBD3,212 lb.3,107 lb.2,596 lb.TBD2,882 lb.TBD2,162 lb.3,974 lb.TBD2,277 lb.
Exterior Length:23' 6"23' 0"21' 2"22' 11"22' 9"21' 8"22' 0"22' 11"22' 6"TBD21' 9"25' 0"28' 8"TBD28' 8"TBD30' 9"32' 3"TBD36' 6"
Exterior Height:TBDTBD10' 2"10' 4"10' 4"10' 4"10' 2"10' 4"10' 2"TBDTBD10' 6"10' 6"TBD10' 6"TBD11' 2"11' 2"TBDTBD
Exterior Width:90"90"90"90"90"90"90"90"90"TBD96"96"96"TBD96"TBD96"96"TBD96"
Fresh Water:39.00 gal.39.00 gal.43.00 gal.43.00 gal.43.00 gal.43.00 gal.43.00 gal.43.00 gal.43.00 gal.TBD54.00 gal.43.00 gal.43.00 gal.TBD43.00 gal.TBD54.00 gal.54.00 gal.TBD54.00 gal.
Gray Water:40.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.TBD40.00 gal.30.00 gal.30.00 gal.TBD30.00 gal.TBD40.00 gal.40.00 gal.TBD40.00 gal.
Black Water:40.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.TBD40.00 gal.30.00 gal.30.00 gal.TBD30.00 gal.TBD40.00 gal.40.00 gal.TBD40.00 gal.
Awning Size:15'15'12'15'12'15'12'12'14'TBD15'15'15'19'15'15'15'18'19'21'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print
Construction Advantages:
  • 5/8” Tongue & Groove Plywood Floor Decking
  • Full Walk on Roof with SuperFlex Roof Membrane for Longevity w/ 5” Bowed Truss Roof Rafters
  • Powder Coated I-Beam Frame w/ Camber for Stiffer Structural Support
  • Nitrogen Filled Tires
  • 2” Wall Construction, 16” (or less) on Center
  • R-7 Fiberglass Insulation Throughout
  • 13 Ply Cross Micro-Laminated Header Beam Above Slide-Out
  • Triple Seal Slide-Out System for Moisture Barrier
  • Aerodynamic Front Profile for Easy Towing
  • .040 Smooth Aluminum Front Profile for Added Rigidity
  • Diamond Plate Rock Guard on Front for Protection
  • Color Coded Water Lines
  • Seamless Holding Tanks
Standard Features:
  • Waterproof Portable FM / Bluetooth Speaker System
  • Extra Thick Luxury Vinyl Flooring - NO CARPET!
  • Largest in Class Opening Panoramic Windows
  • Large 36x24 Shower Pan w/ Shower Surround + Waterproof Retractable Shower Door (No Curtain)
  • 39/30/30 F/G/B Holding Tanks for Extended Camping
  • 26" Entrance Doors w/ Friction Hinge to Shut Slow
  • 7-Way Plug and Chain Holder
  • 4 - 6 USB Ports, Tablet Compatible, in Bedroom and Bunks
  • Large Baggage Doors for Exterior Storage
  • Residential High Rise Kitchen Faucet
  • Backup Camera Ready (Harness and Wiring Installed)
  • 30 Amp Service w/ Auto Detect Converter (Works with Multiple Battery Types)
  • 13.5K BTU Roof Mounted Air Conditioner
  • 20K BTU Furnace
  • Dedicated Cable TV Hookup on Exterior of Coach
  • Microwave
  • 6 Gal. Gas DSI Water Heater
  • 2 Burner Cook Top with Glass Cover
  • Mirrored Vanity with Medicine Cabinet (available on most models)
  • Omni Directional Digital TV Antenna
  • Water Heater By-Pass
  • Roof Mounted Solar Inlet on Roof
  • Side Mounted Solar Inlet on Camp Side
Best-In-Class Package:
  • Enclosed AccessiBelly (w/ Removable Underbelly Panels)
  • Large Capacity 11 CU FT Frost-Free Refrigerator (12-Volt)
  • Seamless Countertops (No T-Mold)
  • Outside Hot/Cold Shower
  • Green Package - Furrion Solar Prep & LED Mushroom Lights
  • Power Awning with Adjustable Legs and LED Light Strip
  • Black Tank Flush
  • Upgraded Appliance Package
  • EZ Entrance - Friction Hinge Entrance Door, Double Step + XL Folding Grab Assist Handle
  • Wi-Fi Prep in TV Antenna
Options:
  • Platinum Package - Fiberglass Exterior Walls
  • Extended Power Package: Roof Mounted 200W Solar Panel, 30 Amp Controller, and Battery
  • Power Tongue Jack
  • Solid Entry Step with Triple Stairs All Supported Directly to the Ground
Valued Customer Upgrades:
  • FREE - 12V Power Awning IPO No Awning
  • FREE - 13,500 BTU Roof Mounted Air Conditioner IPO Side Mount 8,000BTU AC
  • FREE - Full Size Spare Tire for Peace of Mind
  • FREE - Walk-On Roof w/ 3/8" Roof Decking + Ladder Prepped
  • FREE - 4.5 Cu. Ft. Refrigerator - 36% Larger Than Normal!
Construction Advantages:
  • 5/8” Tongue & Groove Plywood Floor Decking
  • Full Walk on Roof with SuperFlex Roof Membrane for Longevity w/ 5” Bowed Truss Roof Rafters
  • Powder Coated I-Beam Frame w/ Camber for Stiffer Structural Support
  • Nitrogen Filled Tires
  • 2” Wall Construction, 16” (or less) on Center
  • R-7 Fiberglass Insulation Throughout
  • 13 Ply Cross Micro-Laminated Header Beam Above Slide-Out
  • Triple Seal Slide-Out System for Moisture Barrier
  • Aerodynamic Front Profile for Easy Towing
  • .040 Smooth Aluminum Front Profile for Added Rigidity
  • Diamond Plate Rock Guard on Front for Protection
  • Color Coded Water Lines
  • Seamless Holding Tanks
Standard Features:
  • Extra Thick Luxury Vinyl Flooring - NO CARPET!
  • Large 36x24 Shower Pan
  • 39/30/30 F/G/B Holding Tanks for Extended Camping
  • 26" Entrance Doors
  • 7-Way Plug and Chain Holder
  • Large Baggage Door for Exterior Storage
  • Residential High-Rise Kitchen Faucet
  • Backup Camera Ready (Harness and Wiring Installed)
  • 30 Amp Service w/ Auto Detect Converter (Works with Multiple Battery Types)
  • Dedicated Cable TV Hookup on Exterior of Coach
  • 6 Gal. Gas DSI Water Heater
  • 2 Burner Cook Top with Glass Cover
  • Water Heater By-Pass
Limited Edition Camp Ready Package:
  • Lite Weight Towing Approved w/ 7.5' Aerodynamic Width + Smooth Front Profile
  • 2 Burner Cooktop with Glass Stove Cover
  • 5,000 BTU Fireplace for Heating
  • 6 Gallon DSI Gas Water Heater
  • Microwave Prepped with 110 Outlet and Shelf
  • Backup Camera Prep
  • Roof Vents
  • Sofa Seating In Place of Dinette
  • Teddy Bear Mattress in Bunks and Queen Bed
  • 5/8" Tongue and Groove Flooring
  • Carpet Free with One Piece Linoleum
  • Power Coated I-Beam Chassis for Longevity
  • 3500# lb. Axle for Cargo Carrying Capability
  • Dual Stab Jacks on Rear of Coach
  • Dual Deep Cycle Battery Capable Holding Tray
  • Single 20 lb. LP Bottle
Construction Advantages:
  • 5/8” Tongue & Groove Plywood Floor Decking
  • 2x3” Floor Structure Construction
  • Full Walk on Roof with SuperFlex Roof Membrane for Longevity w/ 5” Bowed Truss Roof Rafters
  • Powder Coated I-Beam Frame w/ Camber for Stiffer Structural Support
  • Nitrogen Filled Tires
  • Garage Chassis w/ Full Height Steel Floor Supports Every 24”
  • 2” Wall Construction, 16” (or less) on Center
  • R-7 Fiberglass Insulation Throughout
  • 13 Ply Cross Micro-Laminated Header Beam Above Slide-Outs
  • Triple Seal Slide-Out System for Moisture Barrier
  • Aerodynamic Front Profile for Easy Towing
  • .040 Smooth Aluminum Front Profile for Added Rigidity
  • Diamond Plate Rock Guard on Front for Protection
  • Color Coded Water Lines
  • Seamless Holding Tanks
  • (2) 20lb Propane Tanks for Extended Camping
Garage Standard Features
  • MAX 84" Interior Height for Toys of All Sizes - Especially Newer Golf Carts and Side by Sides
  • MAX Width (Varies by Model) - Specifically Designed to Get You Every Inch of Space for Larger Toys
  • MAX Ramp Loading Convenience: Easy open patio kit for full ramp usage when loading toys
  • E-Z Ramp Approach Angle (Average 16°)
  • 1,500LB Tie Downs for Securing Gear, Strategically Placed Throughout Each Floorplan
  • 50% Thicker Floor Structure That Normal Travel Trailers to Accept Heavier Loads
  • 2x Chassis Support Throughout Garage Area for Gear
  • Carpet Free and Floor Ductwork Free in All Garage and Gear Areas for Easy Cleanup
  • Upgraded Full Blackout Window Coverings to Keep Prying Eyes at Bay When Storing Precious Cargo
  • Removable Entrance Step to Get Every Last Inch Of Storage
Interior Standard Features
  • 4 - 6 Tablet Compatible USB Ports in Bedroom, Bunks, Living Areas
  • MAX 15,000 BTU Air Conditioner for Cool Comfort - 11% Larger Than Normal - Replaces Standard 13,500 BTU Air Conditioner
  • Fully Independent Air Conditioning Ductwork for Focused Cooling When Needed
  • Large Shower Pans for Adults (No Bathtubs)
  • 50 Amp Service w/ Auto Detect Converter (Works with Multiple Battery Types)
  • 3 - TV Mounting Areas (Varies by Model)
  • Water Heater By-Pass
  • 20K BTU Furnace Ducted Through Walls and Cabinets, No Floor Ducting
Kitchen Standard Features
  • MAX Kitchen Storage - Nearly 50% More Cabinetry Than Others Thanks to Space Saving Appliances and Clever Designs
  • 3-in-1 Cooker w/ Convection Oven, Microwave, 3 Burner Gas Cooktop
  • Dual Swinging 12V Refrigerator for Easy Access on Either Side ((Varies by Model and Date of Build)
  • Residential High Rise Kitchen Faucet and Deep Stainless Steel Kitchen Sink with Sink Cover/Cutting Board
  • Slim Range Vent Hood over Cooktop
  • Seamless Countertops with Waterproof Membrane for Longevity
Exterior Standard Features
  • MAX Extended Power Package: Roof Mounted 200W Solar Panel, 30 Amp Controller, and Single Battery
  • Oversized Entrance Doors - 30” Wide Instead of 26” - 15% Larger Than Normal
  • Detachable Power Cord
  • Oversized 54/40/40 F/G/B Holding Tanks for Extended Camping
  • Dual Group 27 Battery Trays for Extended Camping Power
  • Battery Disconnect to Turn Entire Unit Off When Done Camping
  • Extra Large Baggage Doors for More Gear Storage
  • Backup Camera Ready - Just Plug and Play
  • Largest in Class Opening Panoramic Windows
  • Exterior Speakers w/ Blue LED Lights
  • 7-Way Plug and Chain Holder
  • Dedicated Cable TV Hookup on Exterior of Coach
  • 6 Gal. Gas DSI Water Heater
  • Omni Directional Digital TV Antenna
  • Side Mounted Solar Inlet on Camp Side
Best-In-Class Package:
  • MAX COLD WEATHER Package: 12V Heated Tank Pads on all Holding Tanks (Fresh, Grey, and Black) w/ AutoStart below 48°F + Fully Enclosed Underbelly Using Industry Leading AccessiBelly Panels + R38 Thermofoil Insulative Lining for Heat Capture and Deflection
  • AccessiBelly Enclosed Underbelly Panels for Added Protection from Cold and Elements
  • Patio Kit for Ramp Door with 1,500lb Capacity as a Patio
  • Magnetic Screen Door for Patio Entrance
  • Large Capacity 11 CU FT Frost-Free Refrigerator (12-Volt)
  • Seamless Countertops (No T-Mold)
  • Power Awning with Adjustable Legs and LED Light Strip
  • Black Tank Flush for Easy Cleanup After Camping
  • EZ Entrance - Friction Hinge Entrance Door, Triple Step + XL Folding Grab Assist Handle
  • Slide Topper Prepared for Easy Install (Select Models Only)
  • 30” Built-In Electric Fireplace and 5,000BTU Heater (Select Models Only)
  • 15 Gallon Stow N Go Storage Containers Under Sofas (Varies By Model)
  • Solid Entry Step with Triple Stairs All Supported Directly to the Ground
Camp Comfort Package
  • Power Tongue Jack for Faster Setup
  • LCI Quick Drop Stabilizer Jacks for More Solid Camping Experience (Varies by Model and Date of Build)
  • Outside Hot/Cold Shower
  • Outside Spray Port w/ Extension Hose and Sprayer for Cleaning Gear
  • Slim Range Vent Hood over Cooktop
  • Residue Resistant Linoleum (Added Durability Against Oil, Grease, Gas)
  • Foot Flush Toilet
  • Power Vent Fans to Exhaust Heat, Smells, and Humidity
  • LED Interior Lighting for Low Power Draw and Brighter Camping
  • LP Quick Connect on Exterior of Unit - Perfect for Griddles, Grills, and More
Options:
  • Platinum Package - Fiberglass Exterior with Upgraded Graphics Package, Chrome Wheel Caps and Lug Nuts
  • Stow N Load Seating and Sleeping System for MAX Sleeping Capacity in Garage (Select Models Only)


Virtual Tours

  • 161QK
    161QK Main Room

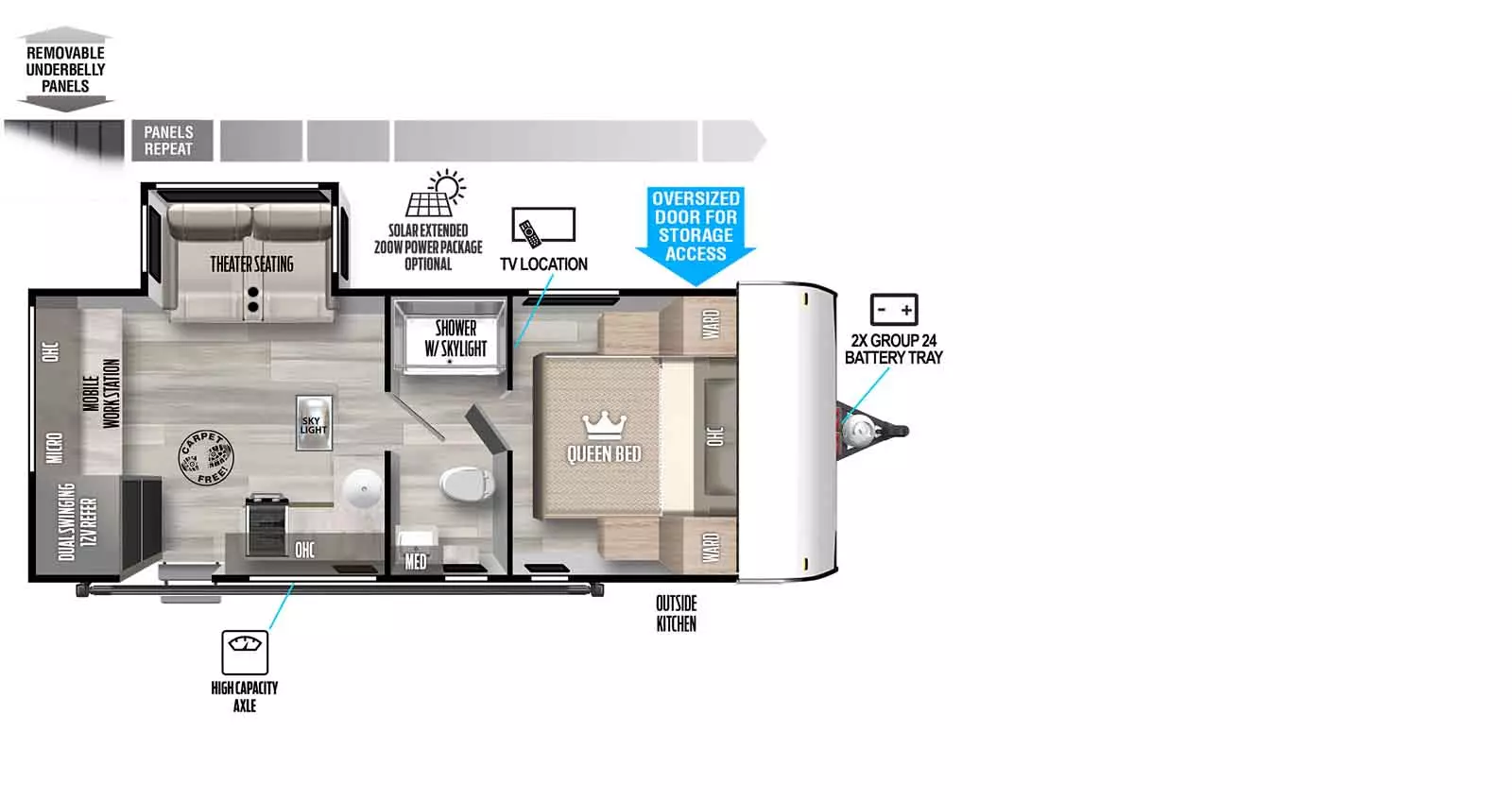

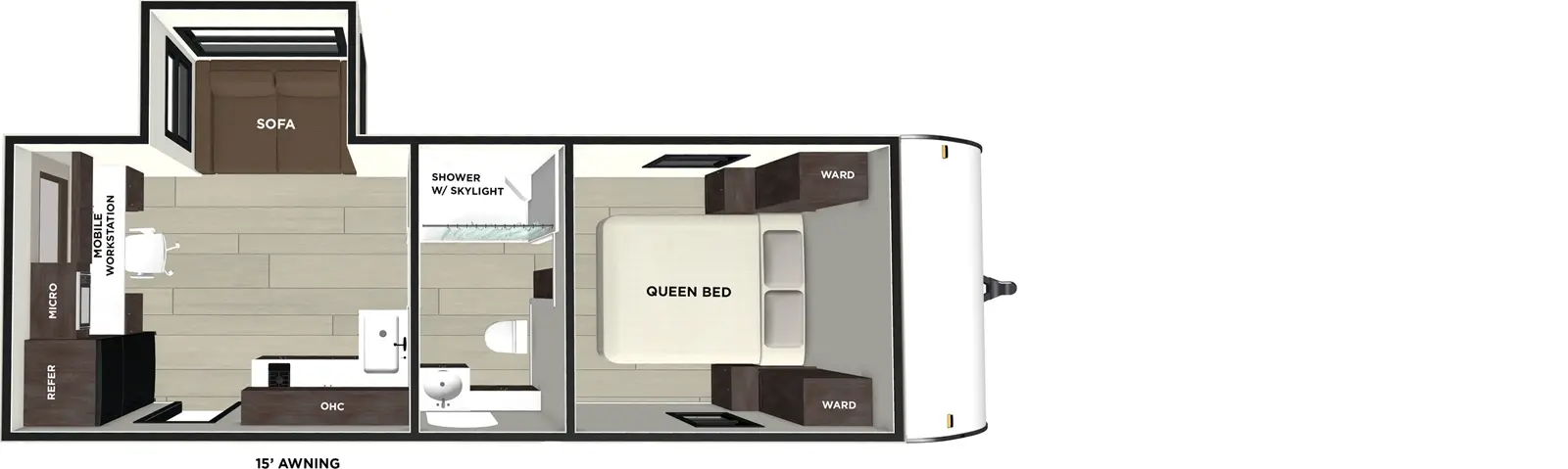

  • 163RDSK
    163RDSK Main Room
  • 167RBK
    167RBK Main Room

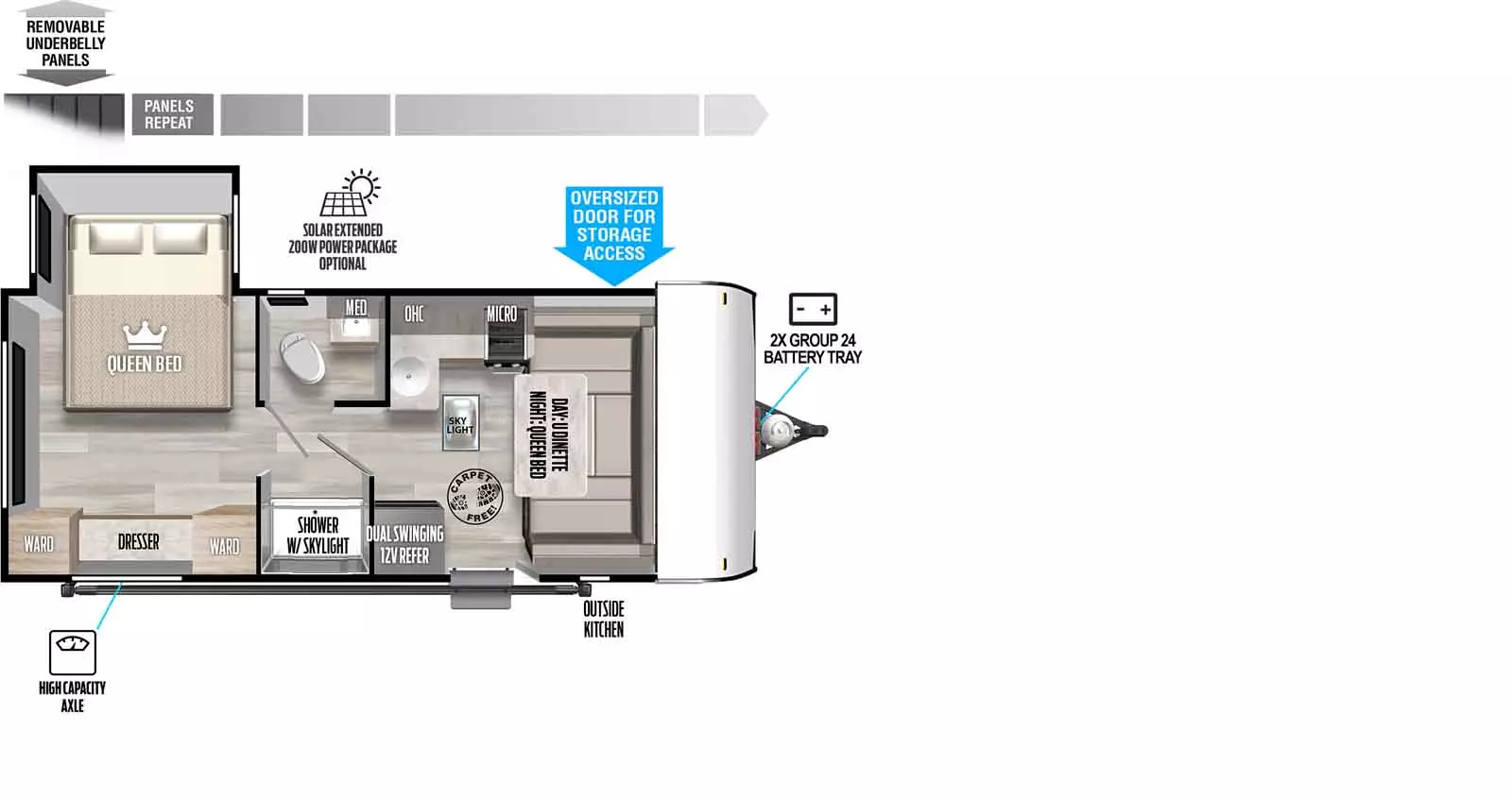

  • 169RSK
    169RSK Main Room

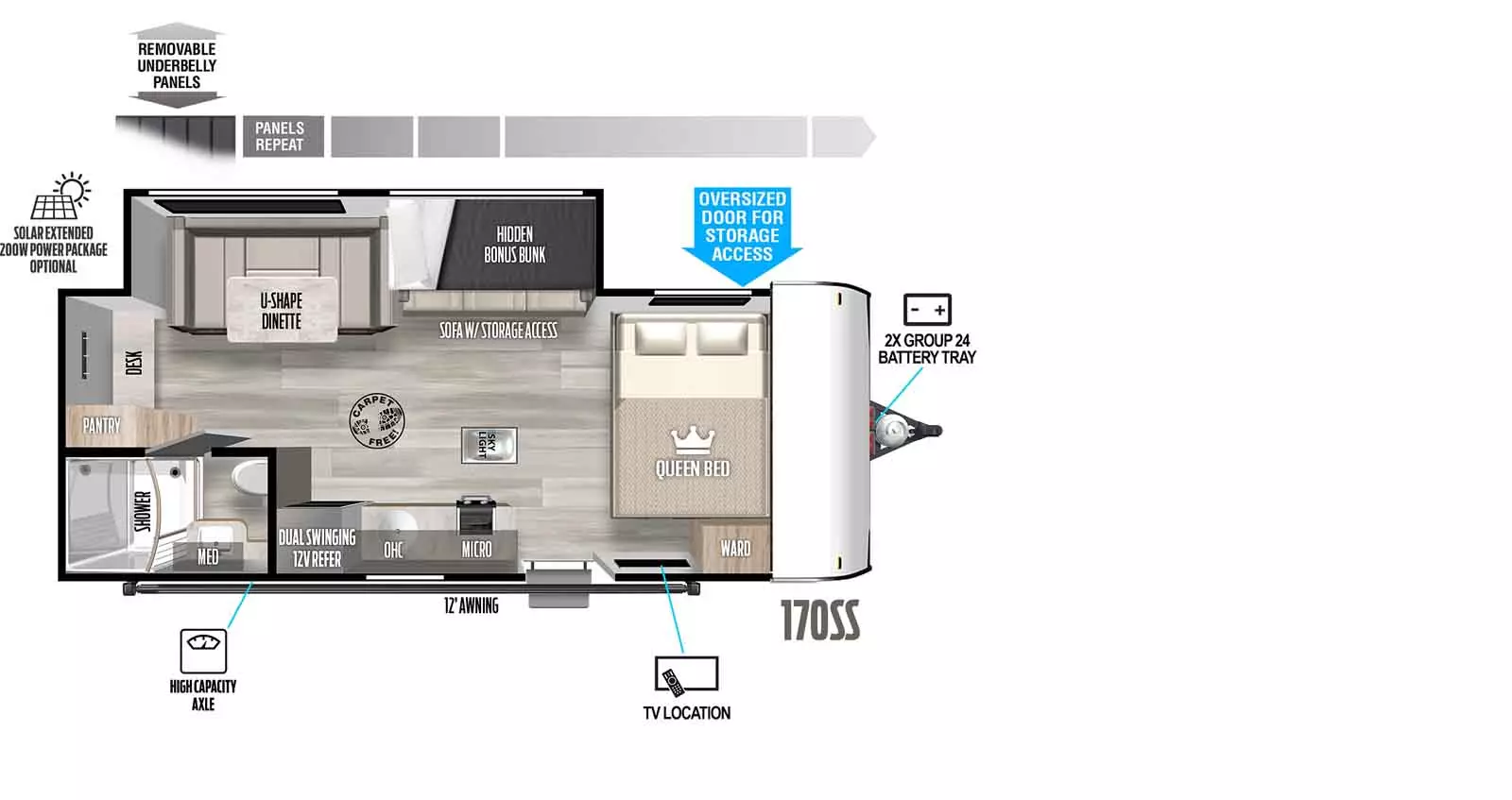

  • 170SS
    170SS Main Room

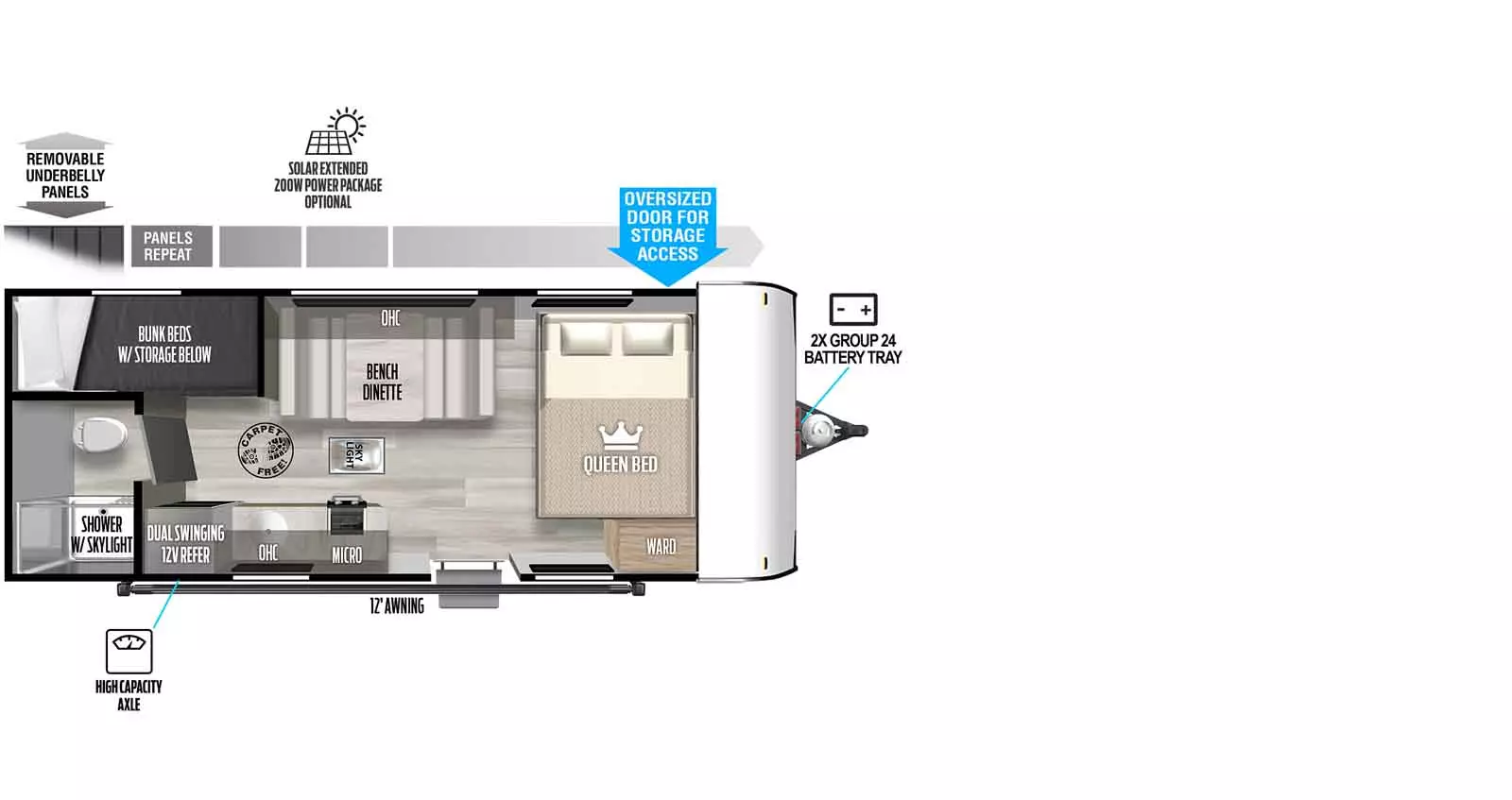

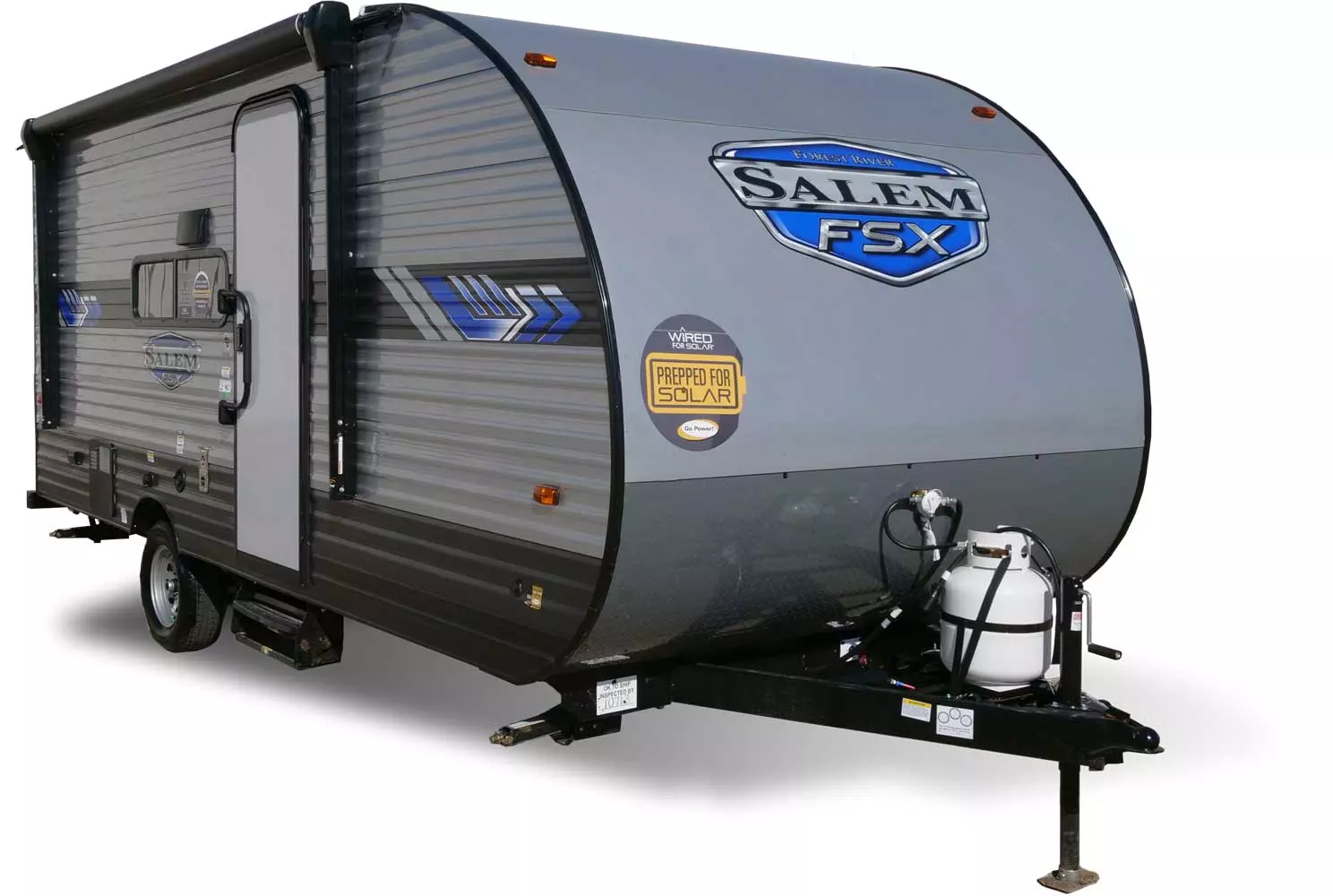

  • 177BH
    177BH Main Room

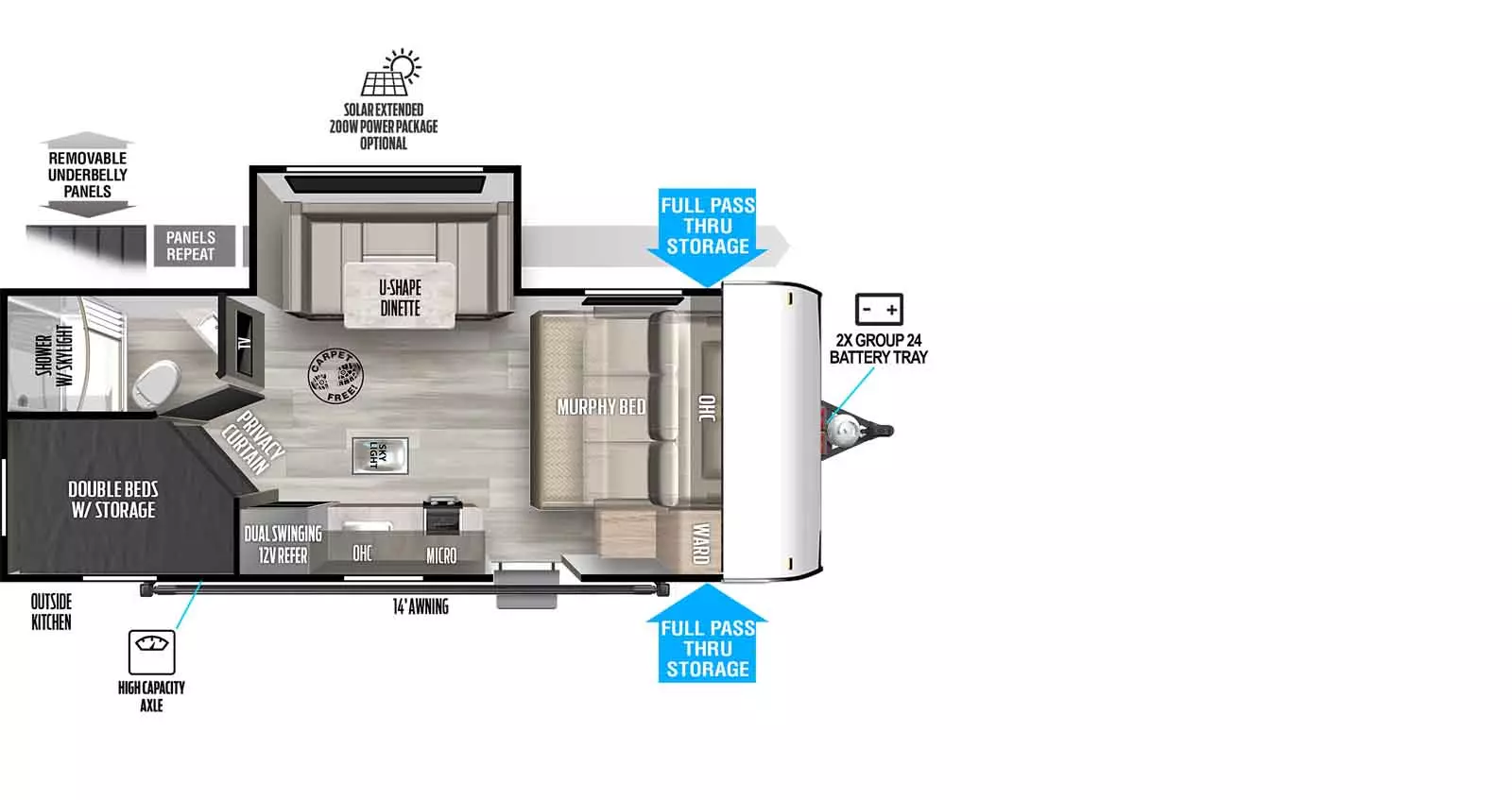

  • 178BHSK
    178BHSK Main Room

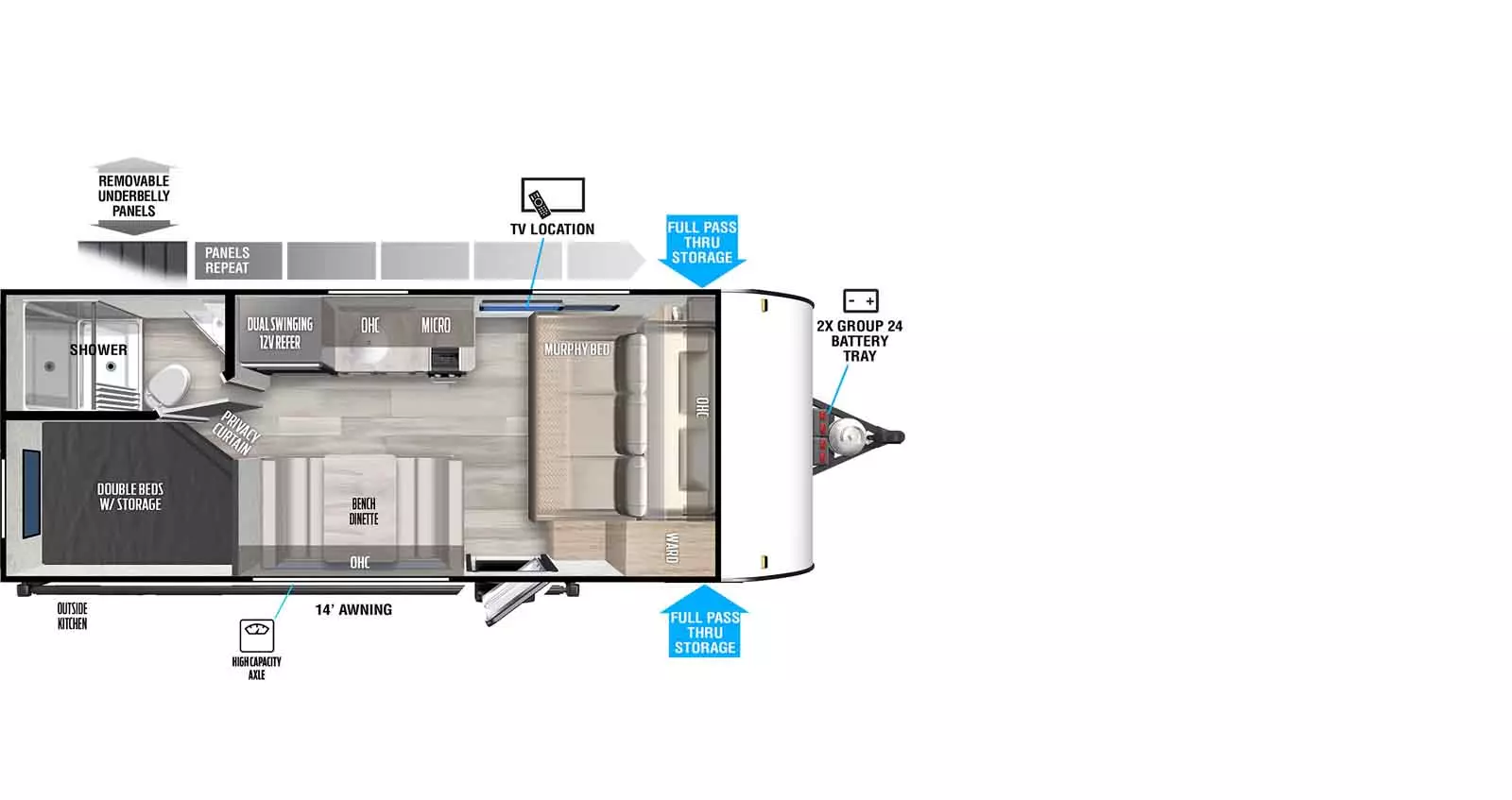

  • 179DBK
    179DBK Main Room

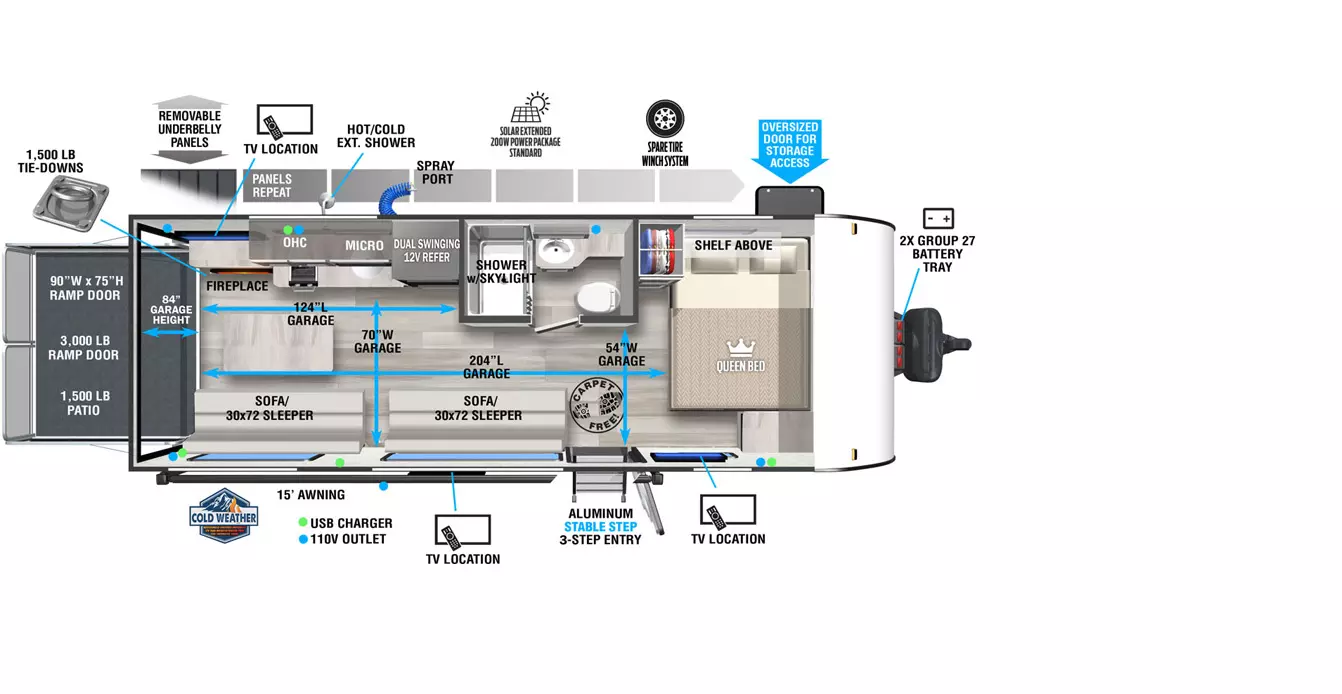

  • 190RTK
    190RTK Main Room

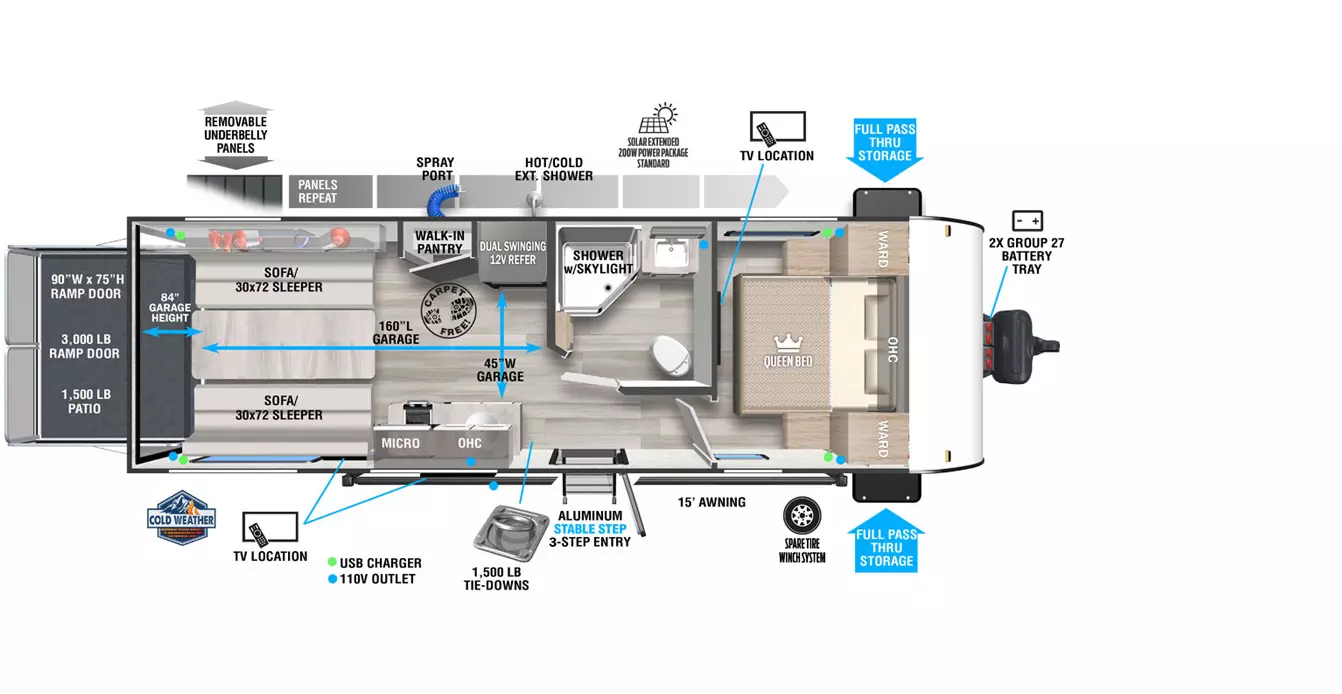

  • 210RTK
    210RTK Main Room

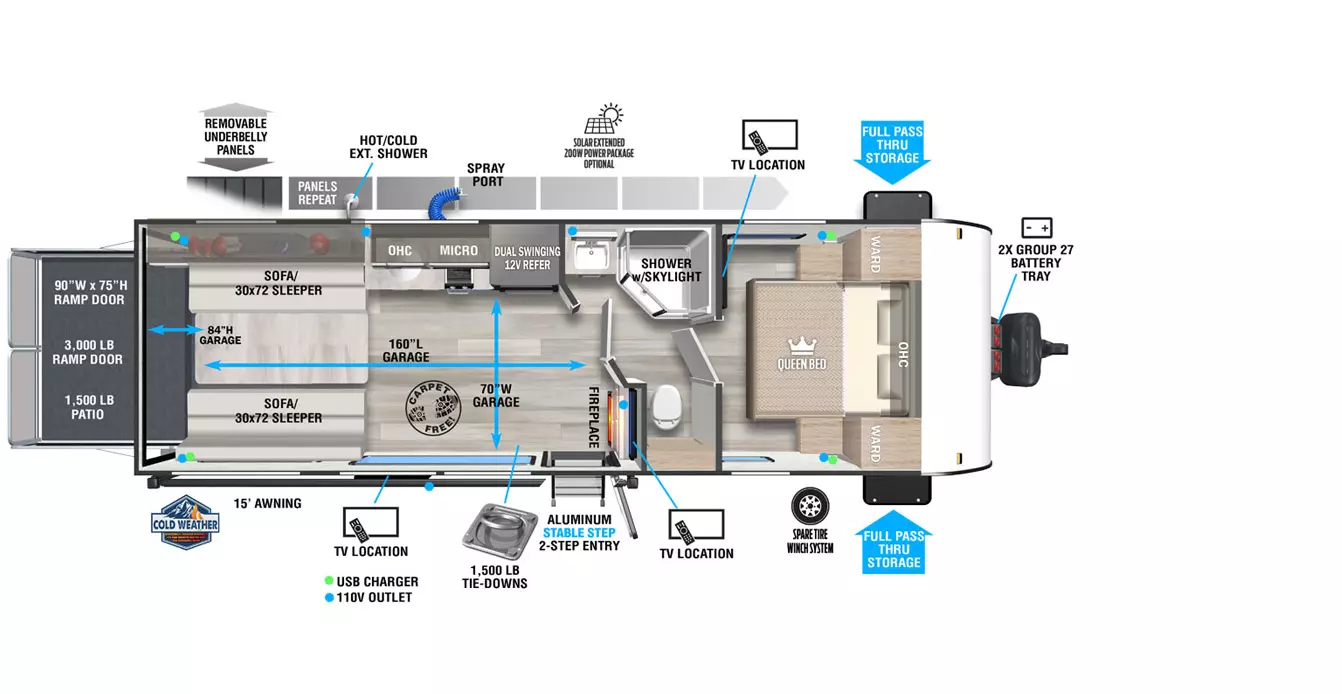

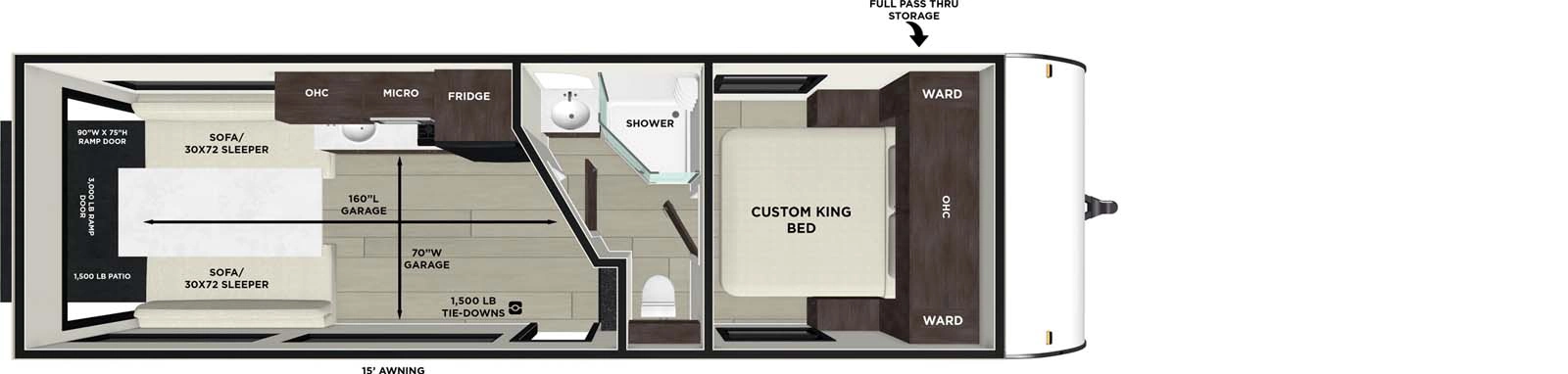

  • 260RTK
    260RTK Main Room

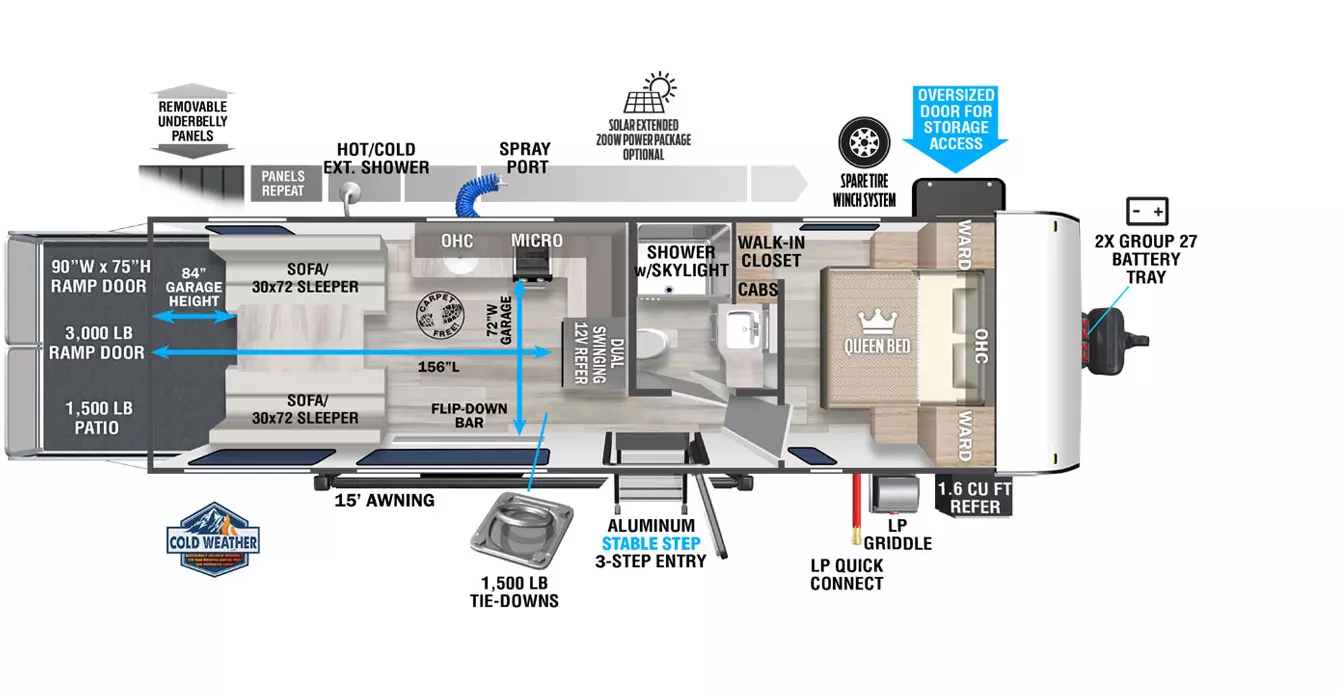

  • 265RTK
    265RTK Main Room

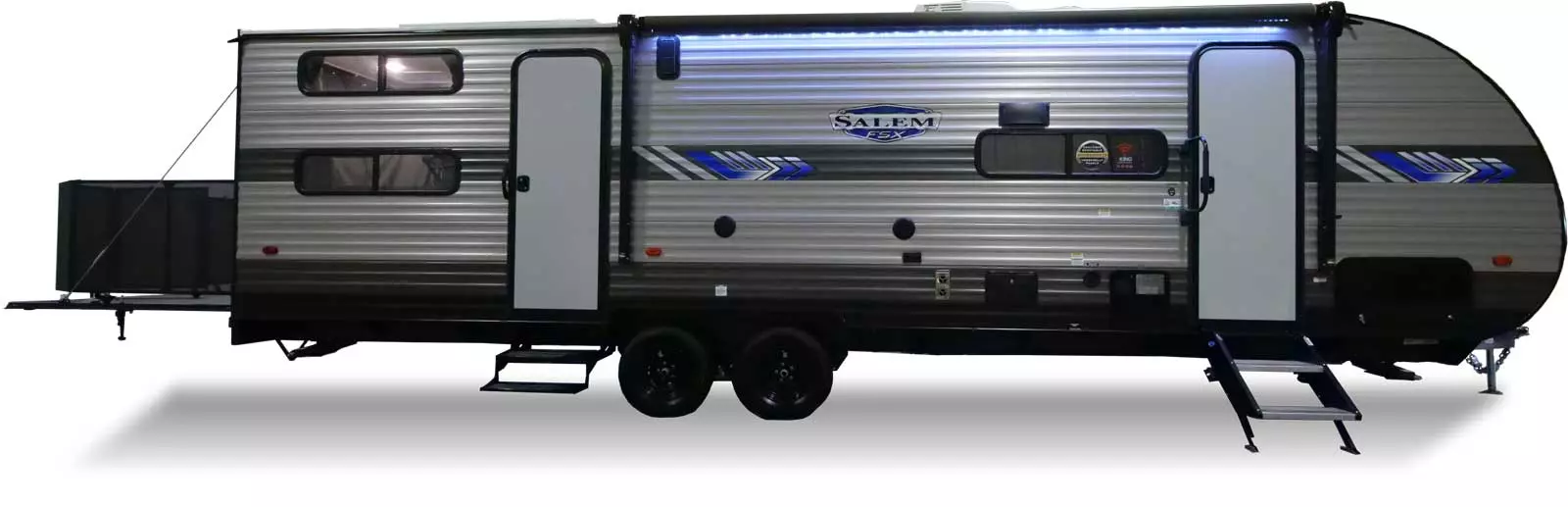

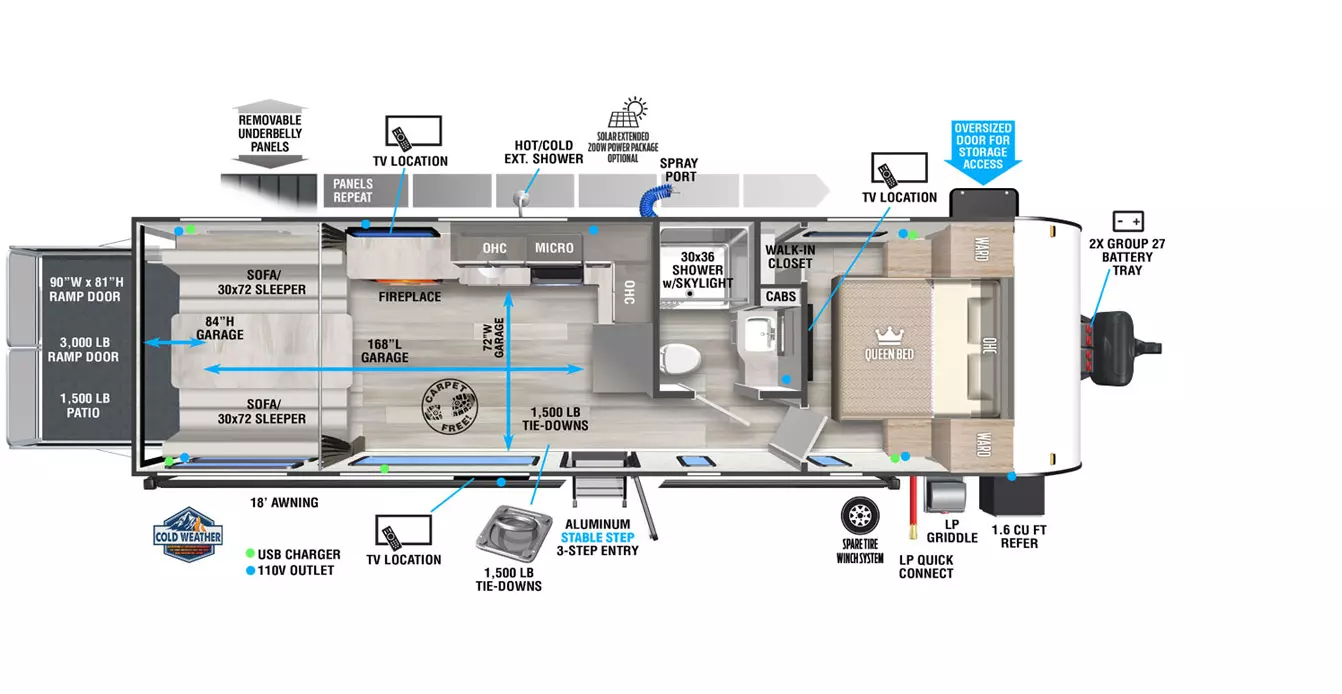

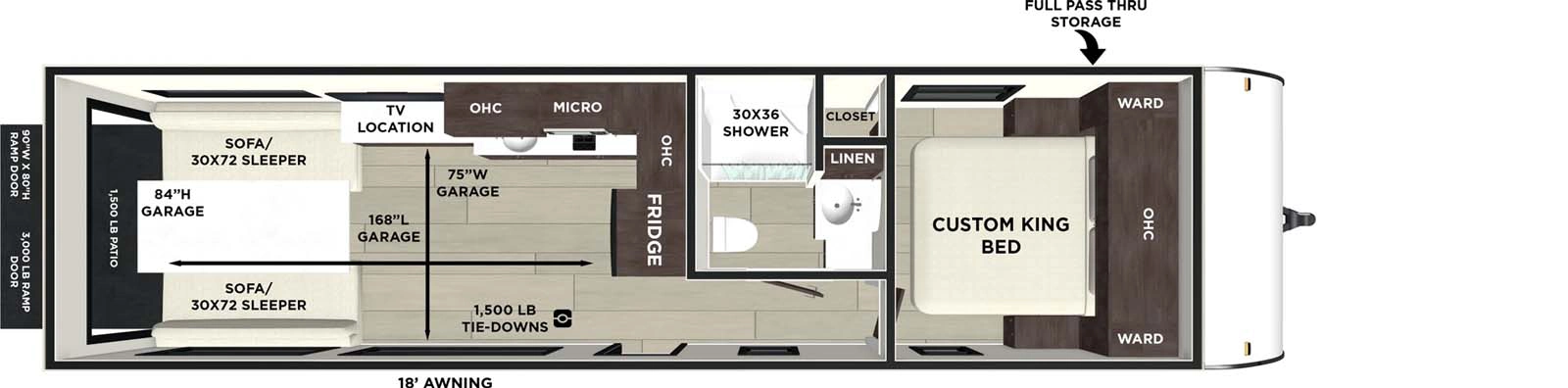

  • 270RTK
