176QBHK Floorplan

Travel Trailers

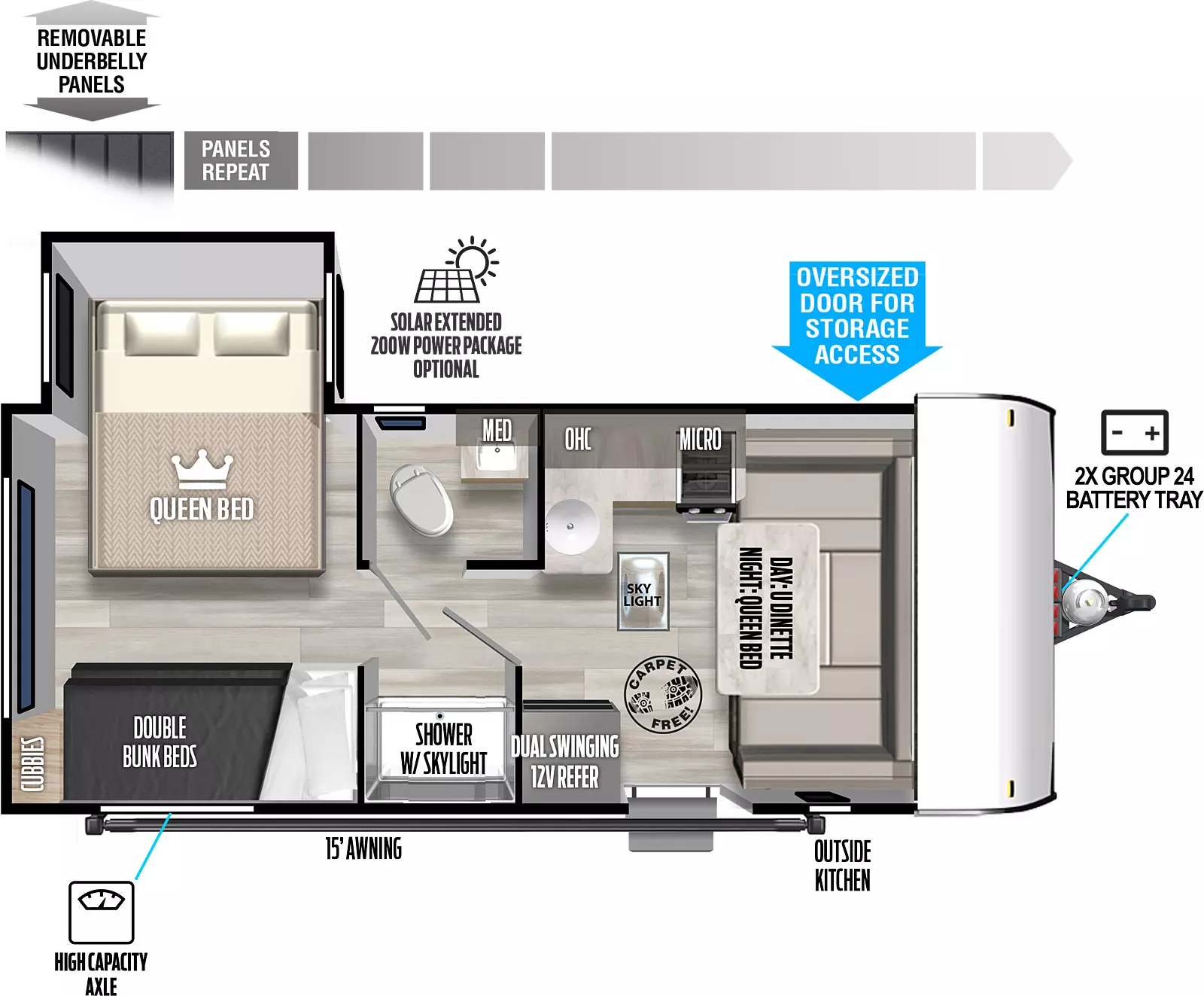

the 176QBHK has one slideout and one entry. Exterior features removeable underbelly panels, optional solar extended 200W power package, storage, high capacity axle, 15 foot awning, outside kitchen, and front 2X group 24 battery tray. Interior layout front to back: carpet-free RV; u-dinette converts to queen bed; kitchen counter with cooktop wraps along inner wall with sink, microwave, and overhead cabinet; door side entry, dual swinging 12V refrigerator, and skylight; pass-through full bathroom with toilet, sink and medicine cabinet on off-door side, and shower with skylight on door side; rear off-door side queen bed slideout; rear door side double bunk beds with cubbies.


Hitch Weight:
520 lb.
3,944 lb.
976 lb.
Exterior Length:
21' 8"
Exterior Height:
10' 4"
Exterior Width:
Fresh Water:
43.00 gal.
Gray Water:
30.00 gal.
Black Water:
30.00 gal.
Awning Size:
GVWR (Gross Vehicle Weight Rating)
– is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.
