Vibe West Travel Trailers

STYLE, COMFORT, QUALITY, VALUE. YES, YOU CAN HAVE IT ALL. The Vibe is among the most popular West Coast built aluminum framed fiberglass sided trailers in the market place. Packed with more features than comparable units in its class, the Vibe gives you the best value for your dollar. Whether you are looking for a small light weight single axle or a longer tandem axle, the Vibe has a model that will fit your tow vehicle, your needs, and your budget.

Because the Vibe is built in the West it is designed to handle the extreme climates from the desert heat of the Southwest in the summer to the frigid Northwest in the winter. So go ahead and take your trip any time of year and take advantage of the Vibe’s standard features like the fully enclosed and heated underbelly, largest in class air conditioners and furnaces, larger carrying capacities, larger water capacities, and more. You can count on the reliability of the Vibe trip after trip and year after year creating memories that will last a lifetime. The Vibe won’t let you down.

Care Camps, fighting cancer and making memories

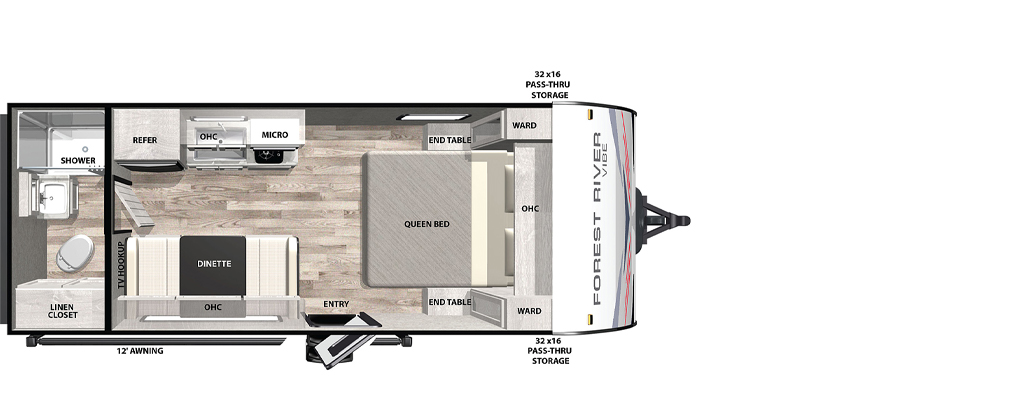

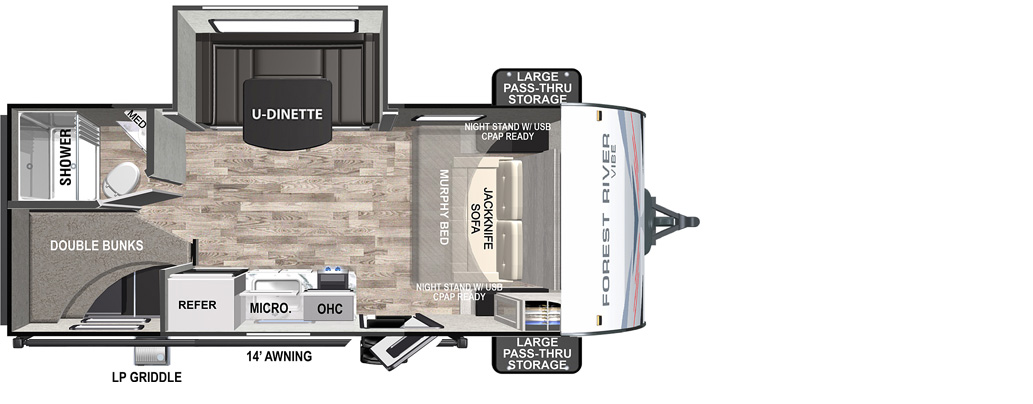

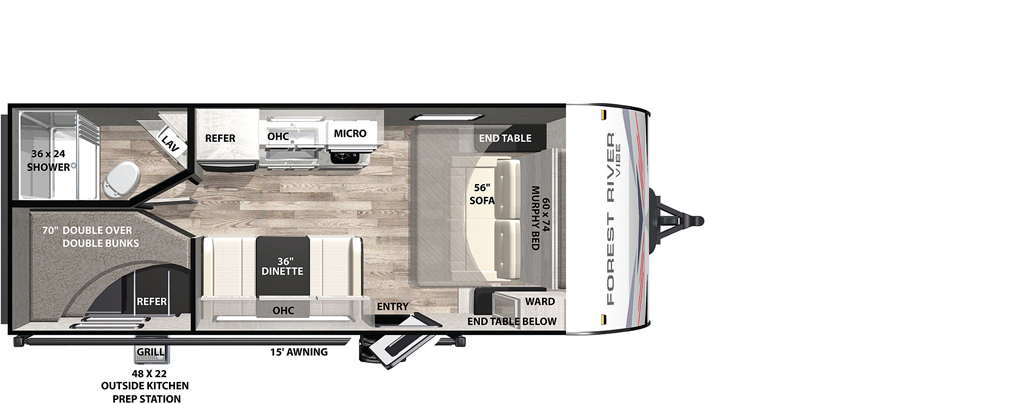

Floorplans

Print

Vibe Single Axle Travel Trailers
Vibe Double Axle Travel Trailers


Specifications

Print

Floorplan: 16RB : Vibe Single Axle Travel Trailers 17DB : Vibe Single Axle Travel Trailers 17RS : Vibe Single Axle Travel Trailers 18DB : Vibe Single Axle Travel Trailers 18QB : Vibe Single Axle Travel Trailers 22RB : Vibe Double Axle Travel Trailers 24DB : Vibe Double Axle Travel Trailers 25RK : Vibe Double Axle Travel Trailers 26DB : Vibe Double Axle Travel Trailers 26RK : Vibe Double Axle Travel Trailers 27FK : Vibe Double Axle Travel Trailers 28QB : Vibe Double Axle Travel Trailers
Hitch Weight:390 lb.538 lb.582 lb.518 lb.527 lb.606 lb.759 lb.634 lb.686 lb.748 lb.1,003 lb.915 lb.
UVW:3,379 lb.3,817 lb.4,068 lb.4,113 lb.3,992 lb.5,372 lb.5,741 lb.5,800 lb.6,640 lb.6,796 lb.7,227 lb.6,893 lb.
CCC:1,411 lb.1,121 lb.914 lb.805 lb.935 lb.2,234 lb.2,018 lb.1,834 lb.2,846 lb.2,752 lb.2,576 lb.2,822 lb.
Exterior Length:21' 11"22' 5"3' 1"22' 11"23' 1"25' 10"28' 6"29' 7"34' 2"34' 5"32' 5"35' 3"
Exterior Height:10' 8"10' 8"10' 8"10' 8"10' 8"10' 11"10' 11"10' 11"11' 2"11' 2"11' 2"11' 2"
Exterior Width:90"90"90"90"90"96"96"96"96"96"96"96"
Fresh Water:38.00 gal.39.00 gal.38.00 gal.39.00 gal.39.00 gal.38.00 gal.38.00 gal.38.00 gal.39.00 gal.39.00 gal.38.00 gal.39.00 gal.
Gray Water:30.00 gal.27.00 gal.30.00 gal.27.00 gal.27.00 gal.64.00 gal.64.00 gal.66.00 gal.96.00 gal.64.00 gal.64.00 gal.64.00 gal.
Black Water:30.00 gal.27.00 gal.30.00 gal.32.00 gal.27.00 gal.32.00 gal.32.00 gal.33.00 gal.32.00 gal.32.00 gal.32.00 gal.32.00 gal.
Awning Size:12'14'15'15'15'16'17'16'20'20'19'18'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print
  • 2 ¼ INCH BONDED FLOOR WITH ½" DYNASPAN® DECKING (25 YEAR WARRANTY)
  • ALUMINUM FRAMED LAMINATED SIDEWALLS AND SLIDES
  • SCREWED AND GLUED CABINETS WITH RESIDENTIAL STEEL BALL BEARING DRAWER GUIDES ON ALL OF OUR DRAWERS
  • 200W EXPANDABLE SOLAR WITH 30 AMP CONTROLLER. (EXPANDABLE UP TO 600 WATTS)
  • BEST IN CLASS PANORAMIC WINDOWS
  • “EXTREME BARRIER” INSULATION: FURNACE HEAT TO BASEMENT; HOLDING TANKS COMES STANDARD WITH R-7 FIBERGLASS INSULATION & R-38 REFLECTIVE ASTRO FOIL INSULATION; FULLY ENCLOSED UNDERBELLY; 12V THERMOSTATICALLY CONTROLLED HEAT PADS ON ALL HOLDING TANKS; VACUUM-BONDED & PINCH ROLLED SIDEWALLS WITH R-10 HIGH-DENSITY BLOCK FOAM INSULATION IN SLIDES; REFLECTIVE ASTRO-FOIL IN ROOF; FRONT WALL, SLIDE-OUT FLOOR AND UNDER EACH HOLDING TANK; DOUBLE R-7 FIBERGLASS INSULATION IN ROOF AND UNDER EACH HOLDING TANK; 30,000 BTU FURNACE; EXTERIOR VENTED ATTIC FOR BREATHABLE ROOF; ELECTRIC FIREPLACE W/THERMOSTAT
  • WIDE STANCE AXLES – BEST TOWING PERIOD!
  • JT STRONG ARM JACK STABILIZERS – BECAUSE MOTION SICKNESS BELONGS IN THE OCEAN! (Dual Axle Only)
  • 12 VOLT OVERSIZED REFRIGERATOR
  • WALK ON TRUSS ROOF WITH XTRM-PLY PVC ROOFING - 86% Solar Reflectance
Single Axle Floorplans(SA)
  • Walk On Truss Roof(SA)
  • XTRM-PLY PVC Roofing with 86% Solar Reflectance  (NO MAINTENANCE – STRONGEST RV ROOF ON THE MARKET)(SA)
  • Aerodynamic Aluminum Front Cap(SA)
  • E-Z Lube Axles(SA)
  • Cable & Satellite Prep(SA)
  • Digital TV Antenna w/Booster(SA)
  • Extra Large, Aluminum Framed, Pass-thru Storage(SA)
  • Gel Coat Fiberglass w/ Contemporary Graphics Package(SA)
  • Heated and Fully-Enclosed Underbelly(SA)
  • Hyper Lyte Construction - Amazingly Light!!(SA)
  • Laminated “Aluma Frame” Side Walls. Rear Wall,  Slide Out boxes and 2¼" Laminated Floor(SA)
  • LED Lighted Exterior Speakers (2)(SA)
  • One Touch Electric Awning(SA)
  • Roadside Assistance(SA)
  • Stabilizer Jacks(SA)
  • XL Grab Handle(SA)
  • 13.5 BTU Air Conditioning(SA)
  • 1-20 lb. LP Bottle(SA)
Double Axle Floorplans(DA)
  • Walk On Truss Roof(DA)
  • XTRM-PLY PVC Roofing with 86% Solar Reflectance  (NO MAINTENANCE – STRONGEST RV ROOF ON THE MARKET)(DA)
  • Aerodynamic Fiberglass Front Cap(DA)
  • Cable & Satellite Prep(DA)
  • Digital TV Antenna w/Booster(DA)
  • Ducted 13.5 BTU Air Conditioning(DA)
  • E-Z Lube Axles(DA)
  • Extra Large, Aluminum Framed, Pass-thru Storage(DA)
  • Gel Coat Fiberglass w/ Contemporary Graphics Package(DA)
  • Heated and Enclosed Underbelly(DA)
  • Hyper Lyte Construction - Amazingly Light!!(DA)
  • Laminated “Aluma Frame” Side Walls, Rear Wall, Slide Out boxes, and 2¼" Laminated Floor(DA)
  • Led Lighted Exterior Speakers (2)(DA)
  • High Efficiency A/C Cooling System (larger duct work)(DA)
  • One Touch Electric Awning(DA)
  • Roadside Assistance(DA)
  • Stabilizer Jacks(DA)
  • XL Grab Handle(DA)
  • 2- 20 lb. LP Bottles(DA)
Single Axle Floorplans(SA)
  • Decorative Kitchen Backsplash(SA)
  • Deluxe Wood Booth Table Top(SA)
  • Double Door 10+ cu. ft. 12V Refrigerator(SA)
  • Dometic Pedal Flush Toilet(SA)
  • Fantastic Fan in Bathroom(SA)
  • Full Extension Ball Bearing Drawer Guides(SA)
  • Full 80” Ceiling(SA)
  • LED Lighting(SA)
  • Solid Surface - Thermofoil Wrapped Kitchen Countertops(SA)
  • Upgraded Residential Style Carpet(SA)
  • Stainless Microwave(SA)
  • 6 Gal. G/E DSI Water Heater(SA)
  • Hard Doors to bedrooms for privacy (Not Curtains)(SA)
Double Axle Floorplans(DA)
  • Decorative Kitchen Backsplash(DA)
  • Deluxe Wood Booth Table Top(DA)
  • Double Door 10+ cu. Ft. 12V Refrigerator(DA)
  • Fantastic Fan in the Bathroom(DA)
  • Dometic Pedal Flush Toilet(DA)
  • Full Extension Ball Bearing Drawer Guides(DA)
  • LED Lighting(DA)
  • Full 80" Ceiling(DA)
  • Glass in Kitchen Cabinets(DA)
  • Hard Doors to Bedrooms for Privacy (not curtains)(DA)
  • Large Trash Can w/Designated Out-Of-The-Way Area(DA)
  • Solid Surface - Thermofoil Wrapped Kitchen Countertops(DA)
  • Upgraded Residential Style Carpet(DA)
  • 3-Burner Cook Top w/Black Oven(DA)
  • Stainless Microwave(DA)
  • 6 Gal. G/E DSI Water Heater(DA)
Single Axle Floorplans(SA)
  • Aluminum Wheels(SA)
  • Battery Disconnect(SA)
  • Black Tank Flush(SA)
  • Coat Rack(SA)
  • Enclosed Holding Tanks w/12V Heat Pads(SA)
  • Flip-Up Countertop Extension (not available on all floorplans)(SA)
  • Flush-Mount Kitchen Sink Cover(SA)
  • Outside Hot and Cold Shower(SA)
  • Radial Tires(SA)
  • Second Bunk Window (not available on all floorplans)(SA)
  • Sink Cover(SA)
  • Skylight Over Tub/Shower(SA)
  • Spare Tire & Carrier(SA)
  • Teddy Bear Bunk Mats (not available on all floorplans)(SA)
  • Upgraded Hidden Hinges on Cabinet Doors(SA)
Double Axle Floorplans(DA)
  • Aluminum Wheels(DA)
  • Battery Disconnect(DA)
  • Black Tank Flush(DA)
  • Coat Rack(DA)
  • Fantastic Fan(DA)
  • Flip-Up Countertop Extension (not available on all floorplans)(DA)
  • Flush-Mount Kitchen Sink Cover(DA)
  • Outside Hot and Cold Shower(DA)
  • Radial Tires(DA)
  • Second Bunk Window (not available on all floorplans)(DA)
  • Skylight Over Tub(DA)
  • Spare Tire & Carrier(DA)
  • Teddy Bear Bunk Mats (not available on all floorplans)(DA)
  • Upgraded Hidden Hinges on Cabinet Doors(DA)
  • 2 - Pots/Pans Drawers(DA)
Single Axle Floorplans(SA)
  • Backup Camera Prep(SA)
  • Portable Bluetooth Stereo Speaker(SA)
  • Decorative Window Treatments (dinette only)(SA)
  • LED Awning Light(SA)
  • Magnetic Latches On Access Doors(SA)
  • Roller Shades With Automatic Stop(SA)
  • Recessed 2-Burner Cooktop w/Glass Cover(SA)
  • Seamless Countertop w/Undermount Single Bowl Stainless Steel Sink(SA)
  • Solar Prep(SA)
  • USB Port Package(SA)
  • Upgraded Designer Kitchen Faucet(SA)
Double Axle Floorplans(DA)
  • Backup Camera Prep(DA)
  • Bluetooth MP3/DVD/CD/FM w/Sound Bar(DA)
  • Decorative Window Treatments (Livingroom only)(DA)
  • Electric Fireplace w/Crystals (not available on all floorplans)(DA)
  • LED Awning Light(DA)
  • Flat Screen SMART TV (sizes vary by model)(DA)
  • LED Lights(DA)
  • Magnetic Latches On Access Doors(DA)
  • Outside Kitchen (n/a on some models)(DA)
  • Power Tongue Jack(DA)
  • Roller Shades With Automatic Stop(DA)
  • Seamless Countertop w/Undermount Single Bowl Stainless Steel Sink & Designer Pull-Out Kitchen Faucet(DA)
  • Solar Prep(DA)
  • Solidstep Triple Step (main entrance only)(DA)
  • True Stabilizer Jacks w/JT Strong Arms(DA)
  • Upgraded Appliance Package(DA)
  • USB Port Package(DA)
  • Upgraded Pillowtop Mattress(DA)
  • Friction Hinge Entry Door(DA)
  • 200W Solar with 30amp Controller  (Expandable up to 600watts)
  • Back Pack Rack
  • Recliners in place of Dinette
  • Free-Standing Table & Chairs
  • Tri-Fold Sofa Sleeper
  • 2nd 13.5k A/C In Bedroom w/50 AMP Service
  • 15k BTU Ducted A/C IPO 13.5k
  • 30 lb. LP Bottles w/Cover
  • 50 AMP Service w/Wire & Brace for 2nd A/C
