247RKX Floorplan

Wildcat Travel Trailers

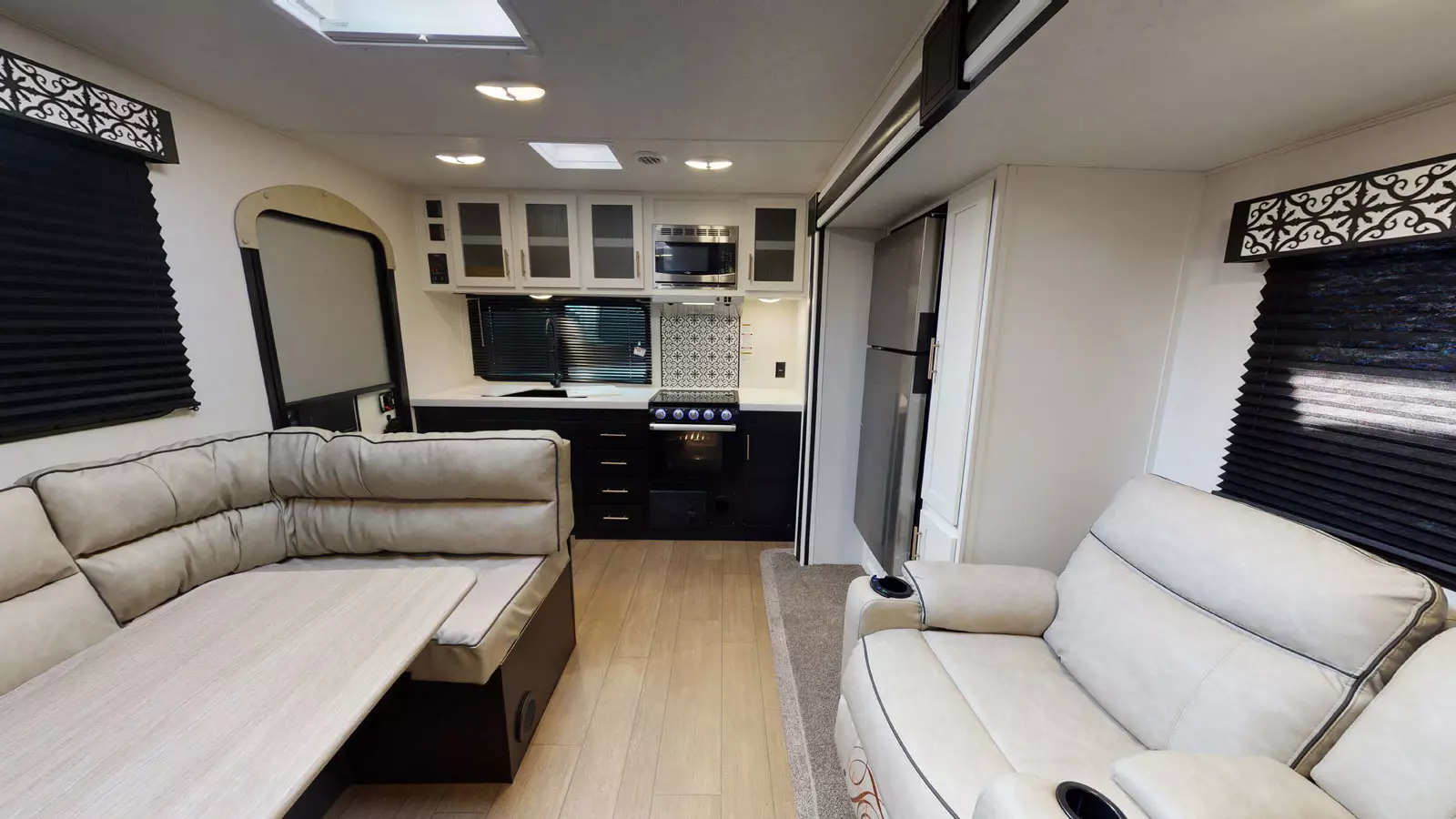

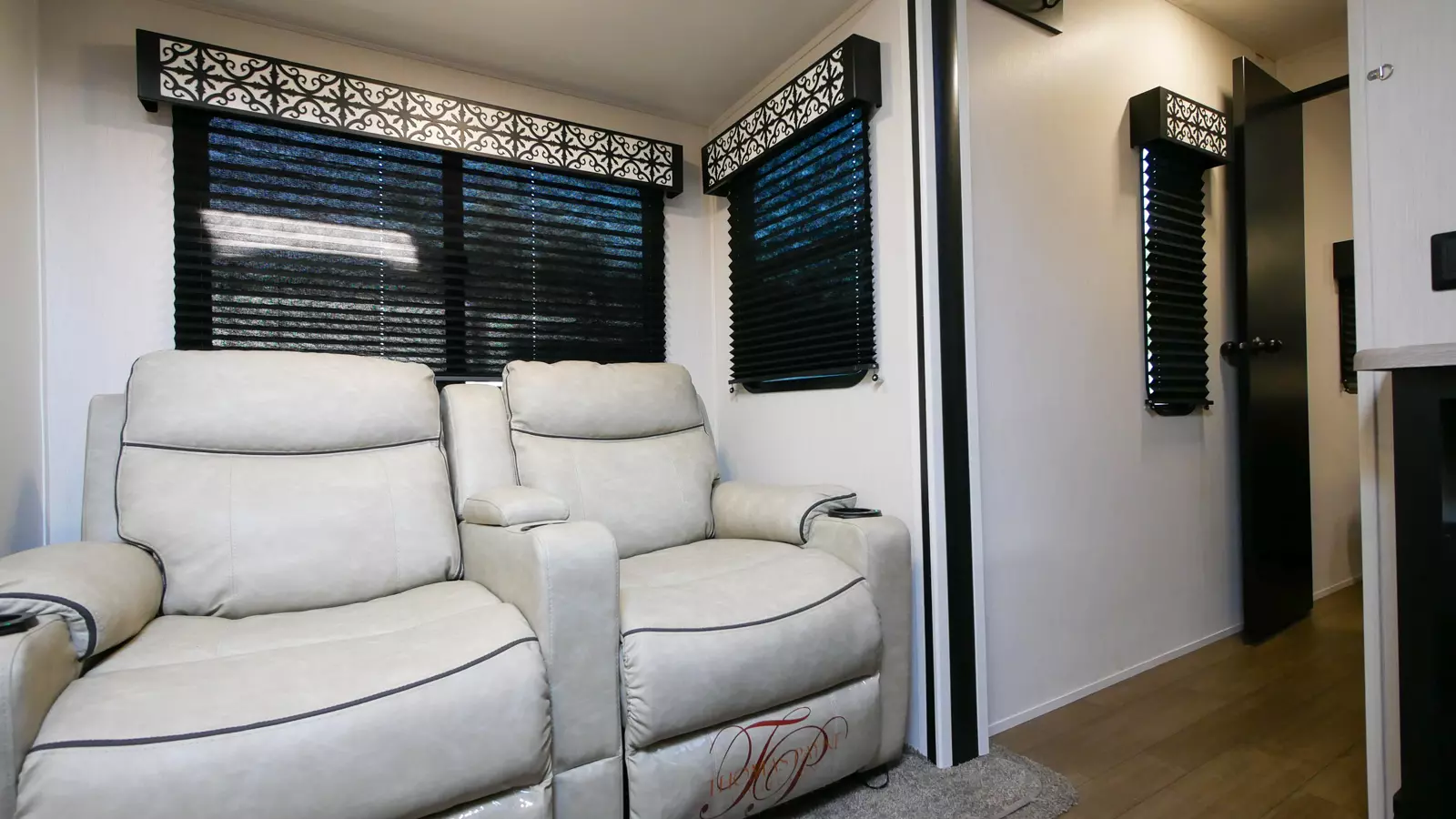

The 247RKX has one slideout and one entry. Exterior features front pass through storage, 19 foot awning, LP hookup, outside kitchen with griddle, and CTS access. Interior layout front to back: maxx king bed with overhead cabinet and wardrobes on each side, shelf/shoe storage, and wardrobe; door side full bathroom; TV with storage and fireplace below along inner wall, and door side fold-down party lounge dinette; off-door side slideout with tri-fold sofa, pantry, and 12V refrigerator; rear entry, kitchen counter with CTS, sink, drawers, overhead cabinet, microwave and cooktop. Optional theater seats available in place of tri-fold sofa.
Large in amenities, small in size! From the full width rear counter with huge window to the Maxx King bed and 3 closets, the 247RKX has everything you need, yet in a small package for towing and maneuverability. A champion makeover of a traditional top selling floor plan.


Hitch Weight:
680 lb.
6,747 lb.
2,733 lb.
Exterior Length:
30' 11"
Exterior Height:
11' 5"
Exterior Width:
Fresh Water:
61.00 gal.
Gray Water:
64.00 gal.
Black Water:
32.00 gal.
Awning Size:
GVWR (Gross Vehicle Weight Rating)
– is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.
