Wildwood FSX Travel Trailers

Fully featured, light weight, and easy to tow, Wildwood FSX offers convenience in a tiny package. Perfect for first time and seasoned campers alike, a modern residential living space is easy to call your home away from home.

RV Pro 2022 Best New ModelCare Camps, fighting cancer and making memories

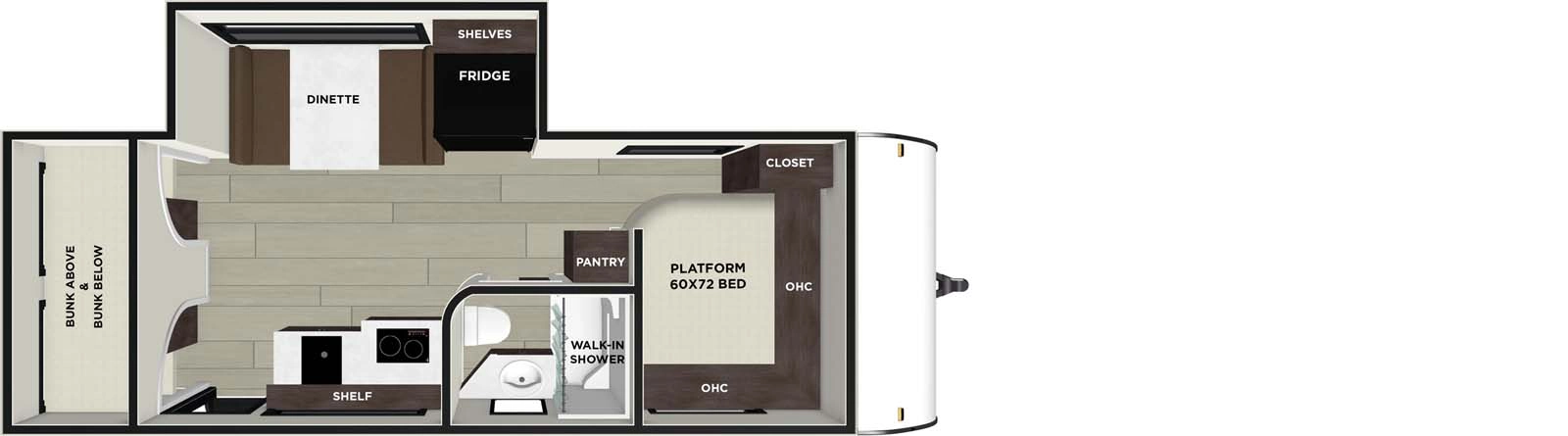

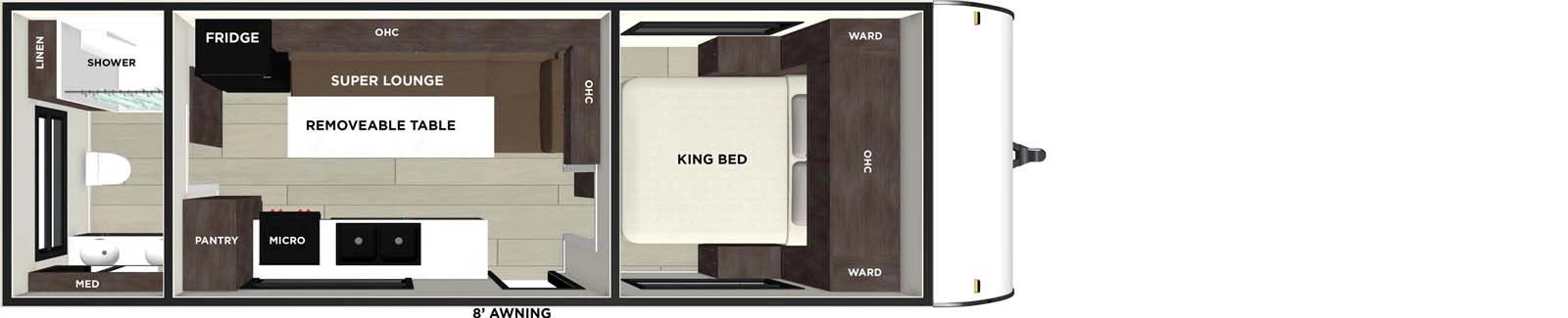

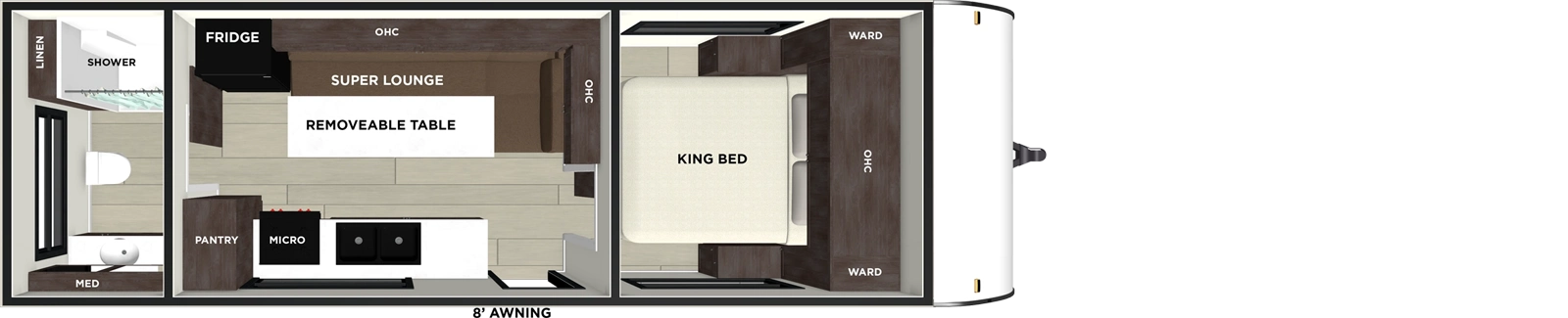

Floorplans

Print

Travel Trailers

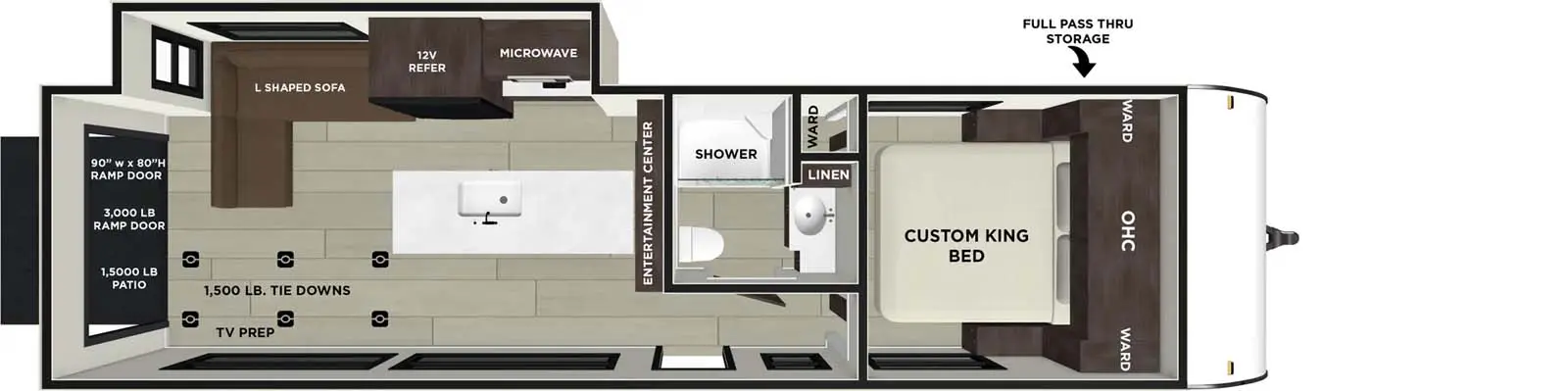

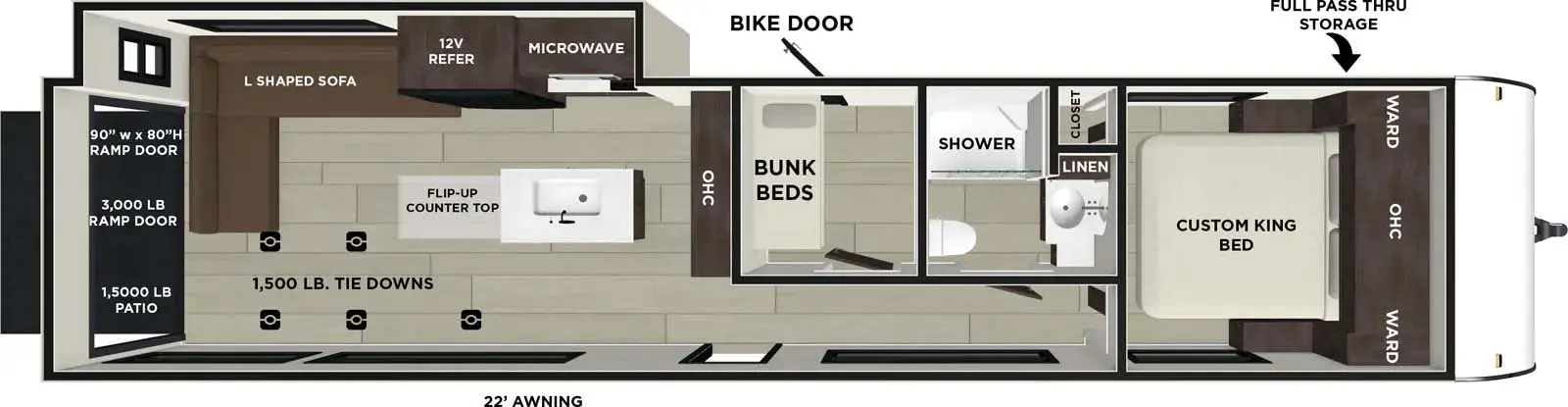

MAX Series: Toy Haulers and Versatile Cargo Travel Trailers


Specifications

Print

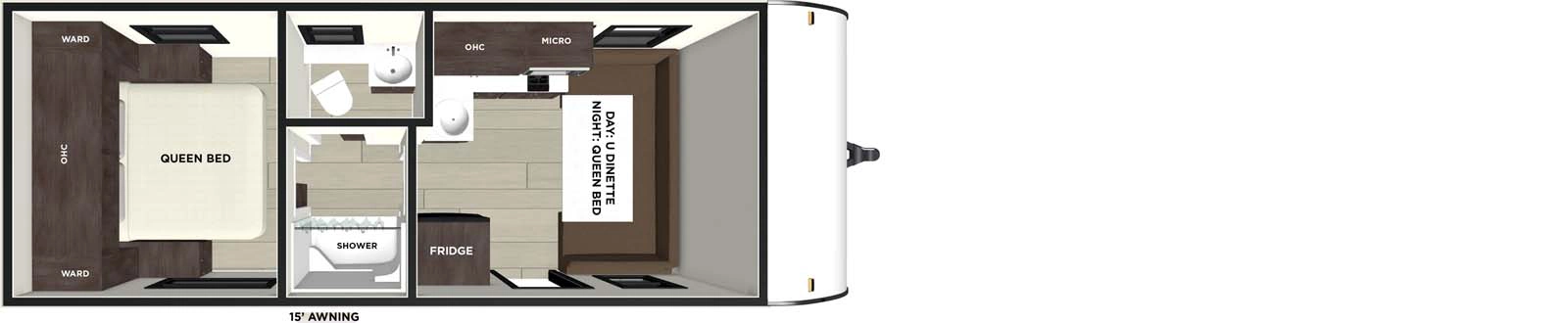

Floorplan: 161QK : Travel Trailers 163RDSK : Travel Trailers 167RBK : Travel Trailers 169RSK : Travel Trailers 170SS : Travel Trailers 174BHLE : Travel Trailers 176QBHK : Travel Trailers 177BH : Travel Trailers 178BHSK : Travel Trailers 179DBK : Travel Trailers 175RTK : MAX Series: Toy Haulers and Versatile Cargo Travel Trailers 190RTK : MAX Series: Toy Haulers and Versatile Cargo Travel Trailers 210RTK : MAX Series: Toy Haulers and Versatile Cargo Travel Trailers 245VC : MAX Series: Toy Haulers and Versatile Cargo Travel Trailers 260RTK : MAX Series: Toy Haulers and Versatile Cargo Travel Trailers 262VC : MAX Series: Toy Haulers and Versatile Cargo Travel Trailers 265RTK (Coming Soon) : MAX Series: Toy Haulers and Versatile Cargo Travel Trailers 270RTK : MAX Series: Toy Haulers and Versatile Cargo Travel Trailers 275VC : MAX Series: Toy Haulers and Versatile Cargo Travel Trailers 290RTK : MAX Series: Toy Haulers and Versatile Cargo Travel Trailers
Hitch Weight:508 lb.415 lb.350 lb.555 lb.445 lb.TBD520 lb.405 lb.430 lb.465 lb.TBD595 lb.593 lb.TBD610 lb.TBDTBD1,051 lb.TBDTBD
UVW:3,691 lb.4,079 lb.3,084 lb.4,024 lb.3,819 lb.TBD3,944 lb.3,074 lb.3,749 lb.3,219 lb.TBD4,488 lb.4,997 lb.TBD4,728 lb.TBDTBD5,877 lb.TBDTBD
CCC:1,217 lb.736 lb.766 lb.931 lb.1,026 lb.TBD976 lb.831 lb.1,081 lb.1,646 lb.TBD3,107 lb.2,596 lb.TBD2,882 lb.TBDTBD3,974 lb.TBDTBD
Exterior Length:23' 6"23' 0"21' 2"22' 11"22' 9"TBD21' 8"22' 0"22' 11"22' 6"TBD25' 0"28' 8"TBD28' 8"TBDTBD32' 3"TBDTBD
Exterior Height:TBDTBD10' 2"10' 4"10' 4"TBD10' 4"10' 2"10' 4"10' 2"TBD10' 6"10' 6"TBD10' 6"TBDTBD11' 2"TBDTBD
Exterior Width:90"90"90"90"90"TBD90"90"90"90"TBD96"96"TBD96"TBDTBD96"TBDTBD
Fresh Water:39.00 gal.39.00 gal.43.00 gal.43.00 gal.43.00 gal.TBD43.00 gal.43.00 gal.43.00 gal.43.00 gal.TBD43.00 gal.43.00 gal.TBD43.00 gal.TBDTBD54.00 gal.TBDTBD
Gray Water:40.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.TBD30.00 gal.30.00 gal.30.00 gal.30.00 gal.TBD30.00 gal.30.00 gal.TBD30.00 gal.TBDTBD40.00 gal.TBDTBD
Black Water:40.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.TBD30.00 gal.30.00 gal.30.00 gal.30.00 gal.TBD30.00 gal.30.00 gal.TBD30.00 gal.TBDTBD40.00 gal.TBDTBD
Awning Size:15'15'12'15'12'TBD15'12'12'14'15'15'15'19'15'15'18'18'19'21'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print
Construction Advantages:
  • 5/8” Tongue & Groove Plywood Floor Decking
  • SuperFlex One Piece Roof
  • Powder Coated I-Beam Frame
  • Cambered Chassis on Dexter Axles
  • Nitrogen Filled Tires
  • 2” Wall Construction, 16” (or less) on Center
  • R-7 Fiberglass Insulation Throughout
  • 13 Ply Cross Micro-Laminated Header Beam Above Slide-Out
  • Triple Seal Slide-Out System
  • Aerodynamic front radius profile
  • .040 Smooth Aluminum Front Cap
  • TUFFCOAT Scratch Resistant Exterior Paint
  • Diamond Plate Rock Guard on Front
Standard Features:
  • Waterproof Portable FM / Bluetooth Speaker System
  • Herringbone Pattern Luxury Extra Thick Vinyl Flooring
  • Largest in Class Opening Panoramic Windows
  • Large 36x24 Shower Pan
  • 44/30/30 F/G/B Holding Tanks
  • Fitted Sheet in Bedroom w/ Evergreen Mattress
  • 26" Entrance Doors
  • 7-Way Plug and Chain Holder
  • Shower Surround
  • 4 - 6 Tablet Compatible USB Ports in Bedroom and Bunks
  • Large 32x16 Baggage Doors for Exterior Storage
  • Residential High Rise Kitchen Faucet
  • Backup Camera Ready
  • 30 Amp Service with 13.5K BTU AC
  • Dedicated Cable TV Hookup on Exterior of Coach
  • Microwave
  • 6 Gal. Gas DSI Water Heater
  • 2 Burner Cook Top with Glass Cover
  • Mirrored Vanity with Medicine Cabinet (except 177BH)
  • Omni Directional Digital TV Antenna
  • Water Heater By-Pass
  • 20K BTU Furnace
  • Solar Power Prep Kit on Camp Side
Best-In-Class Package:
  • Enclosed AccessiBelly (w/ Removable Underbelly Panels)
  • Large Capacity 11 CU FT Frost-Free Refrigerator (12-Volt)
  • Seamless Countertops (No T-Mold)
  • Outside Hot/Cold Shower
  • Green Package - Furrion Solar Prep & LED Mushroom Lights
  • Power Awning with Adjustable Legs and LED Light Strip
  • Black Tank Flush
  • Upgraded Appliance Package
  • EZ Entrance - Friction Hinge Entrance Door, Double Step +
  • XL Folding Grab Assist Handle
  • SOLERA Slide Topper Prep
  • WiFi Prep
New 2021 Features:
  • NEW Bright Interior Decor - CARBON - Contains: Light Grey Wood Tones, Light Grey Walls, New Herringbone Ultra Durable - Congoleum Floors, with Crisp White Ceilings and Trim
  • NEW! Additional 5.5 SqFt of Countertop Space - With Recessed Under mount Sink and Dual Sink Covers Made from Matching Countertop Material
  • NEW! 11 CU FT Frost Free Double Door 12-Volt Refrigerator
  • AccessiBelly Enclosed Underbelly Panels for Added Protection from Cold and Elements
  • NEW! Dual Group 24 Battery Tray
  • NEW! Plug and Chain Holder: No longer in the way for hitches
  • NEW! Exhaust Hood over Cooktop
Options:
  • Platinum Package - Fiberglass Exterior Walls with Chrome Wheel Caps and Lug Nuts
  • Extended Power Package: Roof Mounted 190W Solar Panel, 30 Amp Controller, and Battery
  • Outside Kitchen Griddle (179DBK Only)
  • Power Tongue Jack
  • Morryde Stable Step (Double Step)
Construction Advantages:
  • 5/8” Tongue & Groove Plywood Floor Decking
  • SuperFlex One-Piece Roof
  • Powder Coated I-Beam Frame w/ Camber
  • Garage Chassis w/ Full Height Steel Floor Supports Every 24”
  • Nitrogen Filled Tires
  • 2” Wall Construction, 16” (or less) on Center
  • R-7 Fiberglass Insulation Throughout
  • 13 Ply Cross Micro-Laminated Header Beam Above Slide-Out
  • Triple Seal Slide-Out System
  • Aerodynamic front radius profile
  • .040 Smooth Aluminum Front Cap
  • TUFFCOAT Scratch Resistant Exterior Paint
  • Diamond Plate Rock Guard on Front
Standard Features:
  • Exterior Speakers w/Blue LED Lights
  • Herringbone Pattern Luxury Extra Thick Vinyl Flooring
  • Shiplap Wall Board Above Bed
  • Largest in Class Opening Panoramic Windows
  • Large 36x24 Shower Pan
  • 44/30/30 F/G/B Holding Tanks
  • Fitted Sheet in Bedroom w/ Evergreen Mattress
  • 26" Entrance Doors
  • 7-Way Plug and Chain Holder
  • Shower Surround With Skylight
  • 4 - 6 Tablet Compatible USB Ports in Bedroom and Bunks
  • Large 32x16 Baggage Doors with Magnetic Catch for Exterior Storage
  • Residential High Rise Kitchen Faucet
  • Backup Camera Ready
  • 30 Amp Service with 13.5K BTU AC
  • 3 - TV Mounting Areas
  • Dedicated Cable TV Hookup on Exterior of Coach
  • Microwave
  • 6 Gal. Gas DSI Water Heater
  • 3 Burner Cook Top with Glass Cover
  • Pass Thru Storage with Large 32x16 Baggage Doors
  • Mirrored Vanity with Medicine Cabinet (except 177BH)
  • Omni Directional Digital TV Antenna
  • Water Heater By-Pass
  • 20K BTU Furnace Ducted Through Walls, No Floor Ducts
  • Solar Power Prep Kit on Camp Side
Best-In-Class Package:
  • AccessiBelly Enclosed Underbelly Panels for Added Protection from Cold and Elements
  • Patio Kit for Ramp Door with 1,500 lb. Capacity
  • Magnetic Screen Door for Patio Entrance
  • Large Capacity 11 CU FT Frost-Free Refrigerator (12-Volt)
  • Rear Table Converts to Super King Bed 67 X 93
  • Seamless Countertops (No T-Mold)
  • Outside Hot/Cold Shower
  • Green Package - Furrion Solar Prep & LED Mushroom Lights
  • Power Awning with Adjustable Legs and LED Light Strip
  • Black Tank Flush
  • Upgraded Appliance Package
  • EZ Entrance - Friction Hinge Entrance Door, Double Step +
  • XL Folding Grab Assist Handle
  • SOLERA Slide Topper Prep
  • 30” Built-In Electric Fireplace and 5,000 BTU Heater (Not available in all models)
  • 5,000 lb. Stabilizer Jacks
  • 6 X Stow N Go Storage Containers (14 CuFt) Under Sofas (3 per sofa, may vary by model)
  • Morryde Stable Step (Double Step)
  • WiFi Prep
New 2021 Features:
  • NEW Bright Interior Decor - CYBER - Contains: Light Grey Wood Tones, Light Grey Walls, New Herringbone Ultra Durable - Congoleum Floors, with Crisp White Ceilings and Trim
  • Accent Graphite Woven Vinyl on Seats and Accents
  • Additional 5.5 SqFt of Countertop Space - With Recessed, Under mount Sink Seamless No Lip and Dual Sink Covers Made from Countertop Material for Professional Look.
  • New 11 CU FT Frost Free Double Door 12-Volt Refrigerator
  • Dump Hose Holder on Exterior
  • AccessiBelly Enclosed Underbelly Panels
  • Double Battery Tray with Battery Disconnect
  • New Plug and Chain Holder: No longer in the way for hitches
Options:
  • Platinum Package - Fiberglass Exterior with Chrome Wheel Caps and Lug Nuts
  • Extended Power Package: Roof Mounted 190W Solar Panel, 30 Amp Controller, and Battery
  • 15,000 BTU A/C IPO Standard 13,500 BTU
Construction Advantages:
  • MAX 84" Interior Height for Toys of All Sizes
  • MAX 74" Wide in Tightest Areas for Toys of all Sizes
  • MAX Cargo Carry Capacity with 4,400 lb. Axles (26% larger than normal)
  • 96" Wide - Fits all the toys of a 102" WIDE BODY without added weight and size
  • 5/8” Tongue & Groove Plywood Floor Decking
  • SuperFlex One-Piece Roof
  • Powder Coated I-Beam Frame w/ Camber
  • Garage Chassis w/ Full Height Steel Floor Supports Every 24”
  • Nitrogen Filled Tires
  • 2” Wall Construction, 16” (or less) on Center
  • R-7 Fiberglass Insulation Throughout
  • 13 Ply Cross Micro-Laminated Header Beam Above Slide-Out
  • Triple Seal Slide-Out System
  • Aerodynamic front radius profile
  • .040 Smooth Aluminum Front Cap
  • TUFFCOAT Scratch Resistant Exterior Paint
  • Diamond Plate Rock Guard on Front
Standard Features:
  • MAX Extended Power Package: Roof Mounted 190W Solar Panel, 30 Amp Controller, and Single Battery
  • MAX 15,000 BTU A/C IPO Standard 13,500 BTU
  • MAX Outside Kitchen w/ LP Griddle + Quick Connect, 1.6 CuFt Refrigerator
  • MAX Ramp Loading Convenience: Easy open patio kit for full ramp usage when loading toys
  • Dual Group 27 Battery Trays for Extended Camping
  • Exterior Speakers w/Blue LED Lights
  • Herringbone Pattern Luxury Extra Thick Vinyl Flooring
  • Shiplap Wall Board Above Bed
  • Largest in Class Opening Panoramic Windows
  • Large 36x24 Shower Pan
  • 44/30/30 F/G/B Holding Tanks
  • Fitted Sheet in Bedroom w/ Evergreen Mattress
  • 26" Entrance Doors
  • Large 32x16 Baggage Doors
  • 7-Way Plug and Chain Holder
  • Shower Surround With Skylight
  • 4 - 6 Tablet Compatible USB Ports in Bedroom and Bunks
  • Large 32x16 Baggage Doors with Magnetic Catch for Exterior Storage
  • Residential High Rise Kitchen Faucet
  • Backup Camera Ready
  • 30 Amp Service with 15K BTU AC
  • 3 - TV Mounting Areas
  • Dedicated Cable TV Hookup on Exterior of Coach
  • Microwave
  • 6 Gal. Gas DSI Water Heater
  • 3 Burner Cook Top with Glass Cover
  • Mirrored Vanity
  • Omni Directional Digital TV Antenna
  • Water Heater By-Pass
  • 20K BTU Furnace Ducted Through Walls, No Floor Ducts
  • Solar Power Prep Kit on Camp Side
Best-In-Class Package:
  • AccessiBelly Enclosed Underbelly Panels for Added Protection from Cold and Elements
  • Patio Kit for Ramp Door with 1,500 lb. Capacity
  • Magnetic Screen Door for Patio Entrance
  • Large Capacity 11 CU FT Frost-Free Refrigerator (12-Volt)
  • Rear Table Converts to Super King Bed 67 X 93
  • Seamless Countertops (No T-Mold)
  • Outside Hot/Cold Shower
  • Green Package - Furrion Solar Prep & LED Mushroom Lights
  • Power Awning with Adjustable Legs and LED Light Strip
  • Black Tank Flush
  • Upgraded Appliance Package
  • EZ Entrance - Friction Hinge Entrance Door, Double Step +
  • XL Folding Grab Assist Handle
  • SOLERA Slide Topper Prep
  • 30” Built-In Electric Fireplace and 5,000 BTU Heater
  • 5,000 lb. Stabilizer Jacks
  • 6 X Stow N Go Storage Containers (14 CuFt) Under Sofas (3 per sofa, may vary by model)
  • Morryde Stable Step (Triple Step)
  • WiFi Prep
Options:
  • Platinum Package - Fiberglass Exterior with Chrome Wheel Caps and Lug Nuts
  • Morryde Bunk Above System for MAX Sleeping Capacity in Garage


Virtual Tours

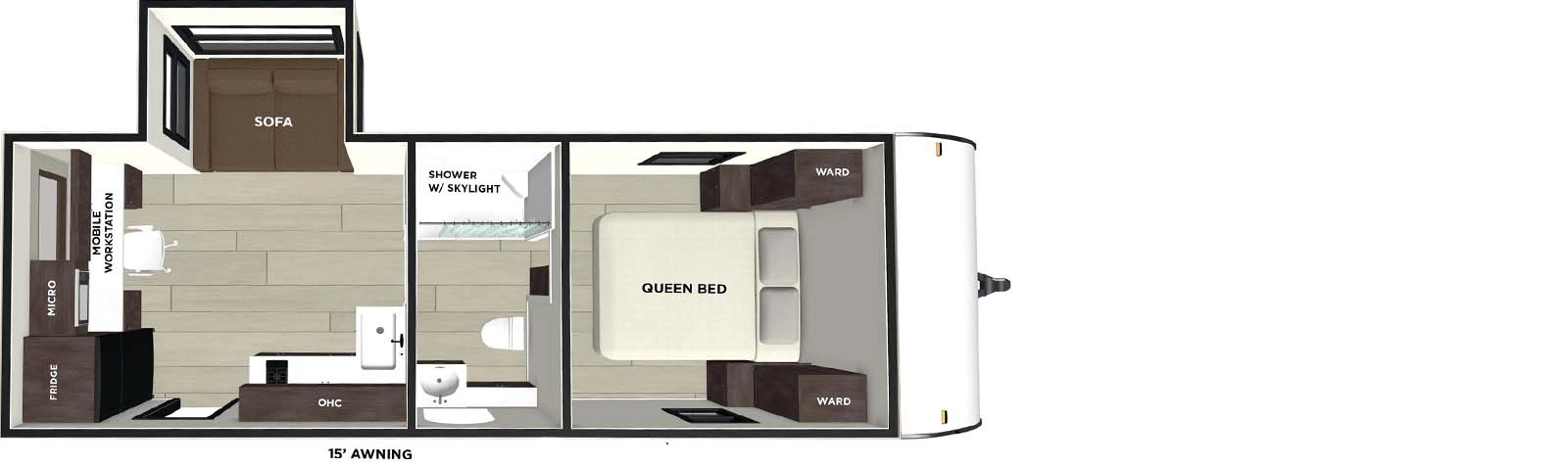

  • 163RDSK
    163RDSK Main Room

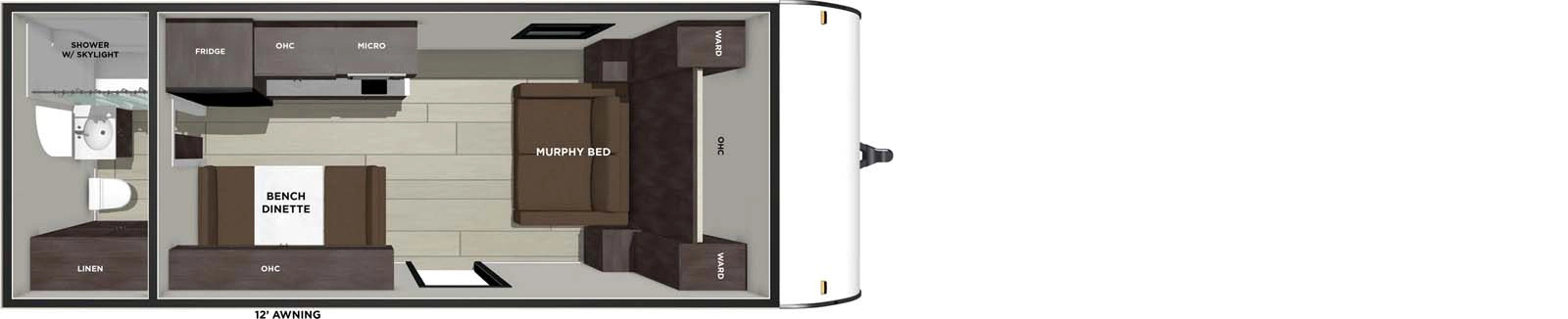

  • 167RBK
    167RBK Main Room
  • 169RSK
    169RSK Main Room
  • 170SS
    170SS Main Room
  • 177BH
    177BH Main Room

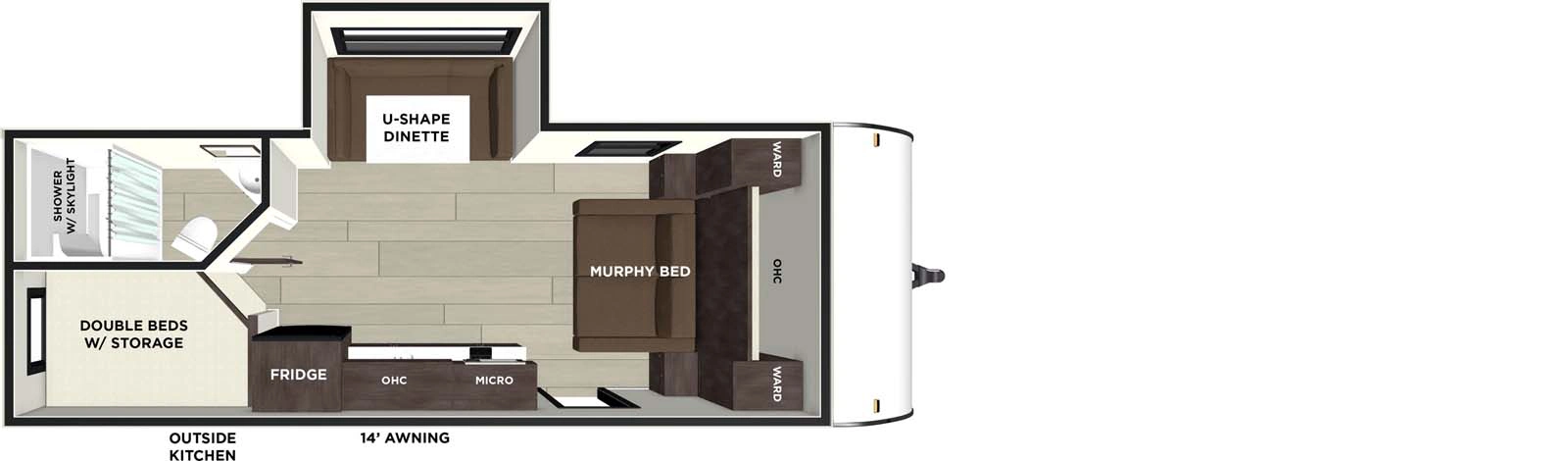

  • 178BHSK
    178BHSK Main Room
  • 179DBK
    179DBK Main Room
  • 190RTK
    190RTK Main Room
  • 210RTK
    210RTK Main Room

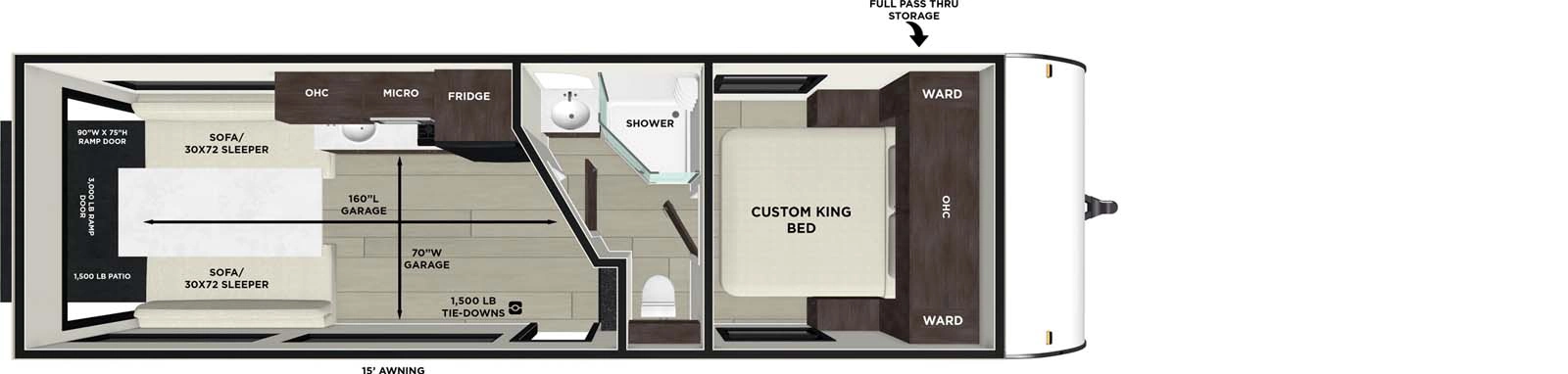

  • 260RTK
    260RTK Main Room
  • 265RTK (Coming Soon)
    265RTK (Coming Soon) Main Room

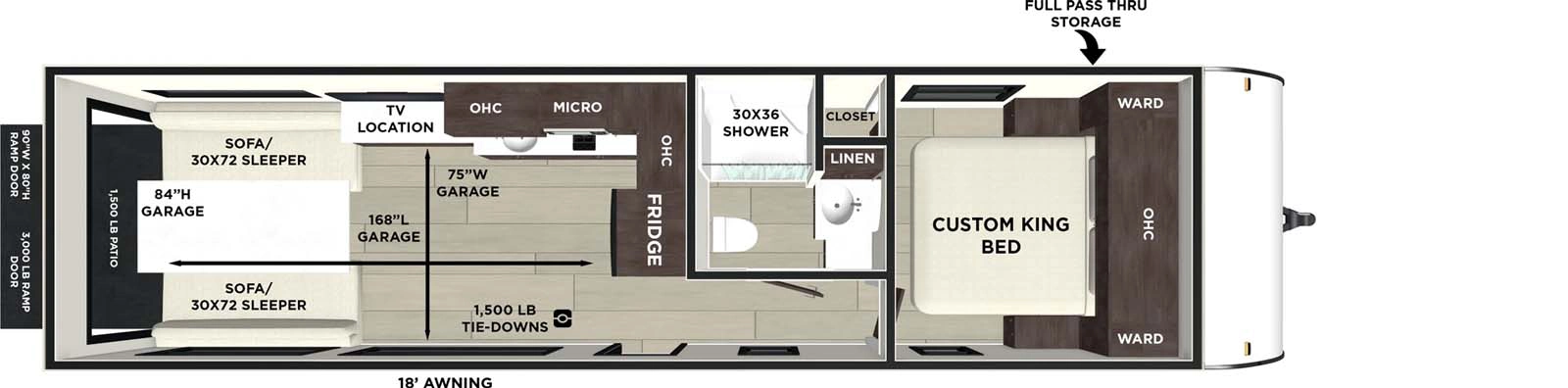

  • 270RTK
