Work and Play Travel Trailer Toy Haulers

Whether you are taking a car to show, or just enjoying the great outdoors with your cycle or ATV, Work and Play has the perfect cargo carrier with living quarters for you.


Certified Green by TRA Certification™ Care Camps, fighting cancer and making memories

Well done, lots of room the Work and Play 23LT has everything required my for our dirt bike weekends! - Jocelyn S.

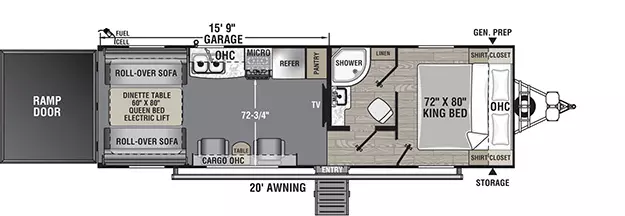

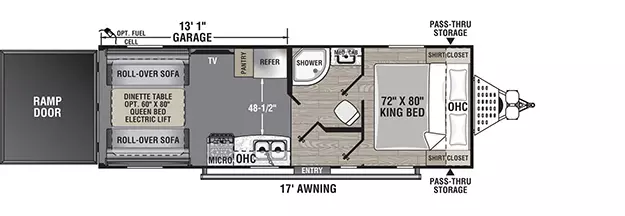

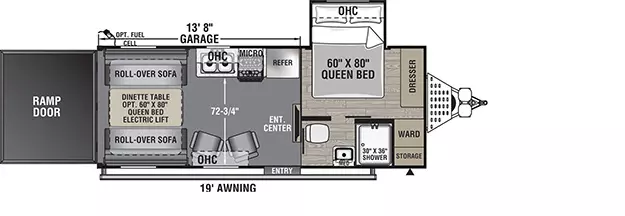

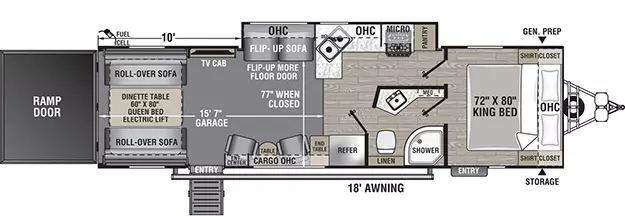

Floorplans

Print

Travel Trailer Toy Haulers


Specifications

Print

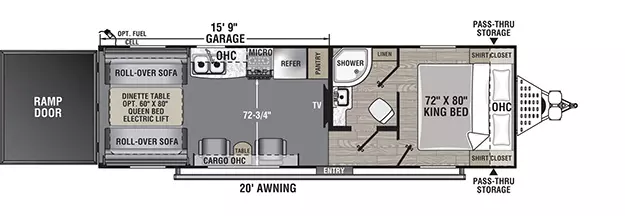

Floorplan: 21LT : Travel Trailer Toy Haulers 23LT : Travel Trailer Toy Haulers 27KB : Travel Trailer Toy Haulers 27LT : Travel Trailer Toy Haulers 29SS : Travel Trailer Toy Haulers
Hitch Weight:935 lb.948 lb.1,072 lb.1,072 lb.1,312 lb.
GVWR:9,735 lb.9,600 lb.10,500 lb.10,500 lb.12,500 lb.
UVW:5,750 lb.5,812 lb.6,790 lb.6,790 lb.8,642 lb.
CCC:3,985 lb.3,788 lb.3,710 lb.3,710 lb.3,858 lb.
Exterior Length:27' 5"29' 7"32' 11"32' 11"36' 4"
Exterior Height:11' 5"11' 3"11' 3"11' 3"12' 3"
Exterior Width:102"102"102"102"102"
Fresh Water:98.00 gal.98.00 gal.98.00 gal.98.00 gal.98.00 gal.
Gray Water:70.00 gal.35.00 gal.35.00 gal.35.00 gal.50.00 gal.
Black Water:35.00 gal.35.00 gal.35.00 gal.35.00 gal.35.00 gal.
Awning Size:19'17'20'20'18'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print
  • 102" Wide Body Construction
  • 5" Crowned Aluminum Reinforced Full Walkable Roof
  • Alumicage Construction

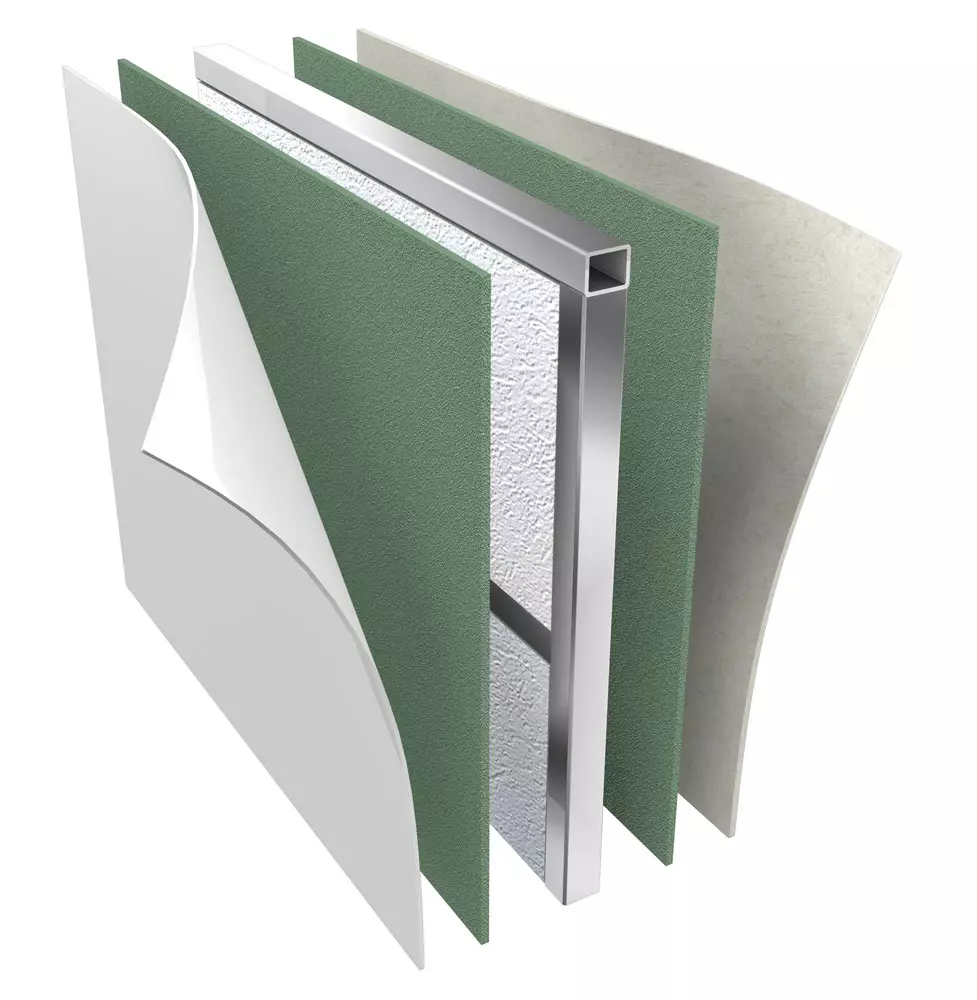

  • Vacuum Bonded Walls w/AZDEL Composite Panels (Interior and Exterior)
  • Aluma Grid HD Reinforced Laminated Floor

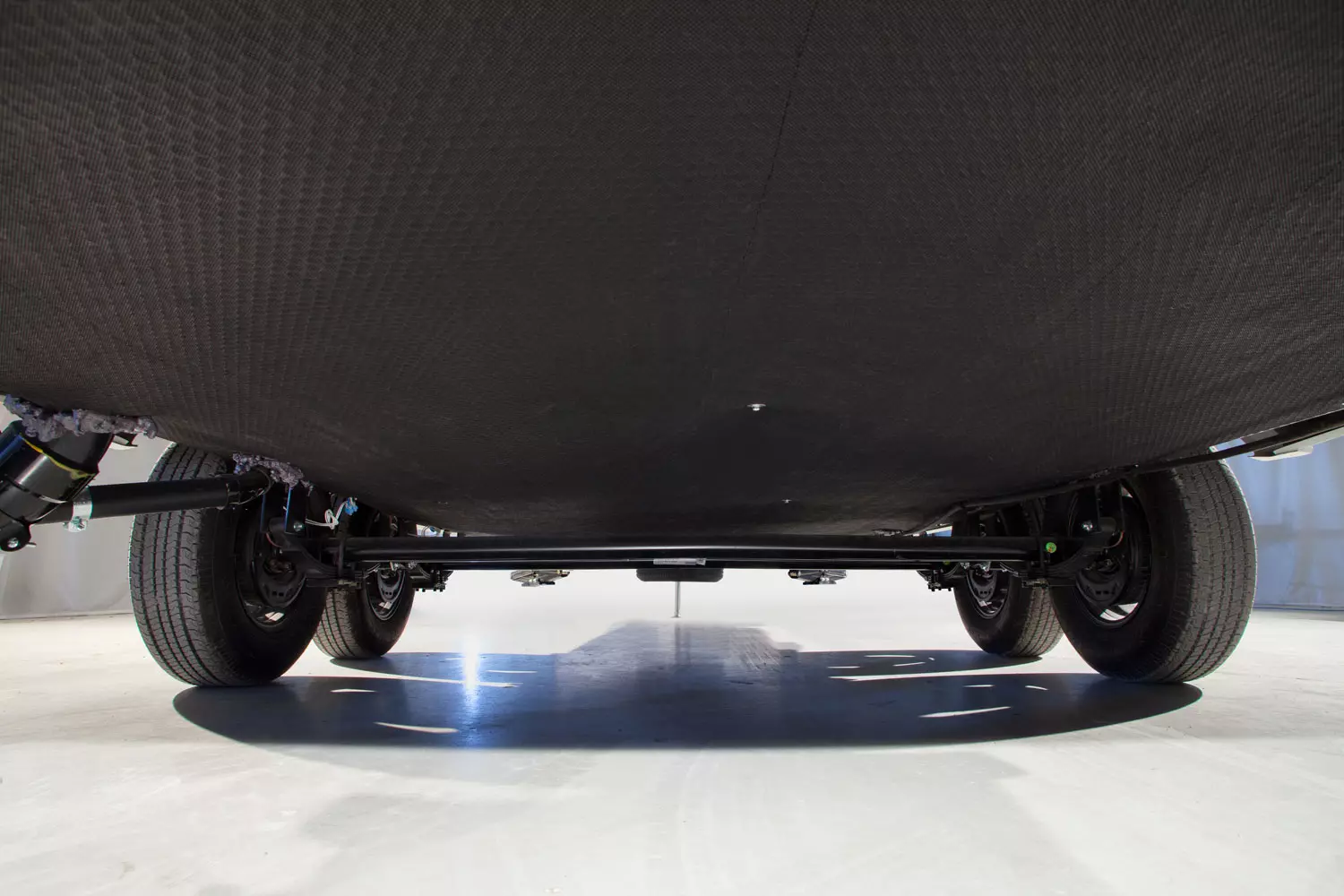

  • Heated and Enclosed Underbelly
  • Radius Entrance and Baggage Doors

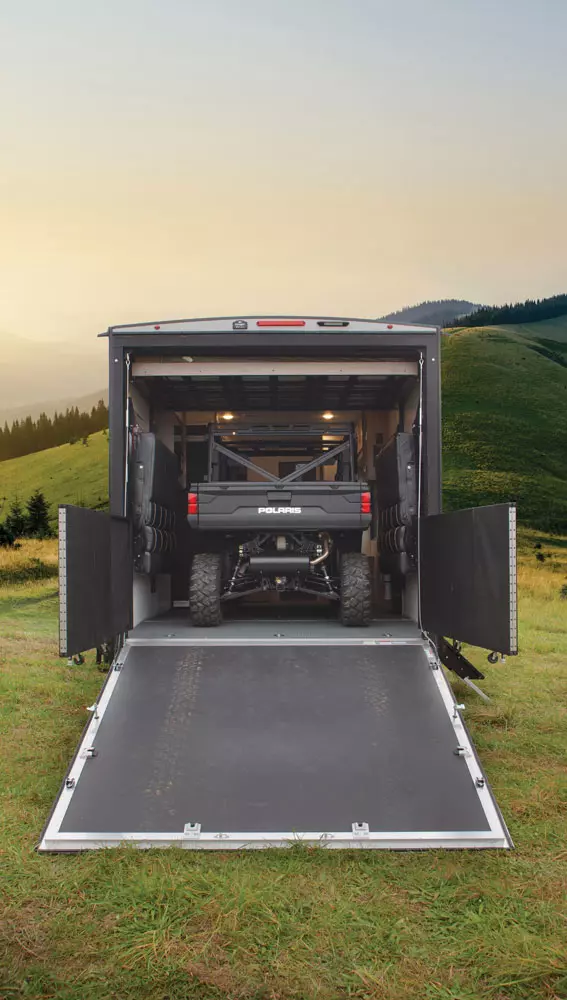

  • Patio Ready Ramp Door w/Cables
  • Key Lock Ramp Door Latches
  • Power Awning w/LED Light Strip
  • Rain Gutters w/Extended Drip Spouts
  • Power Tongue Jack
  • Dual Battery Rack
  • Black Tank Flush

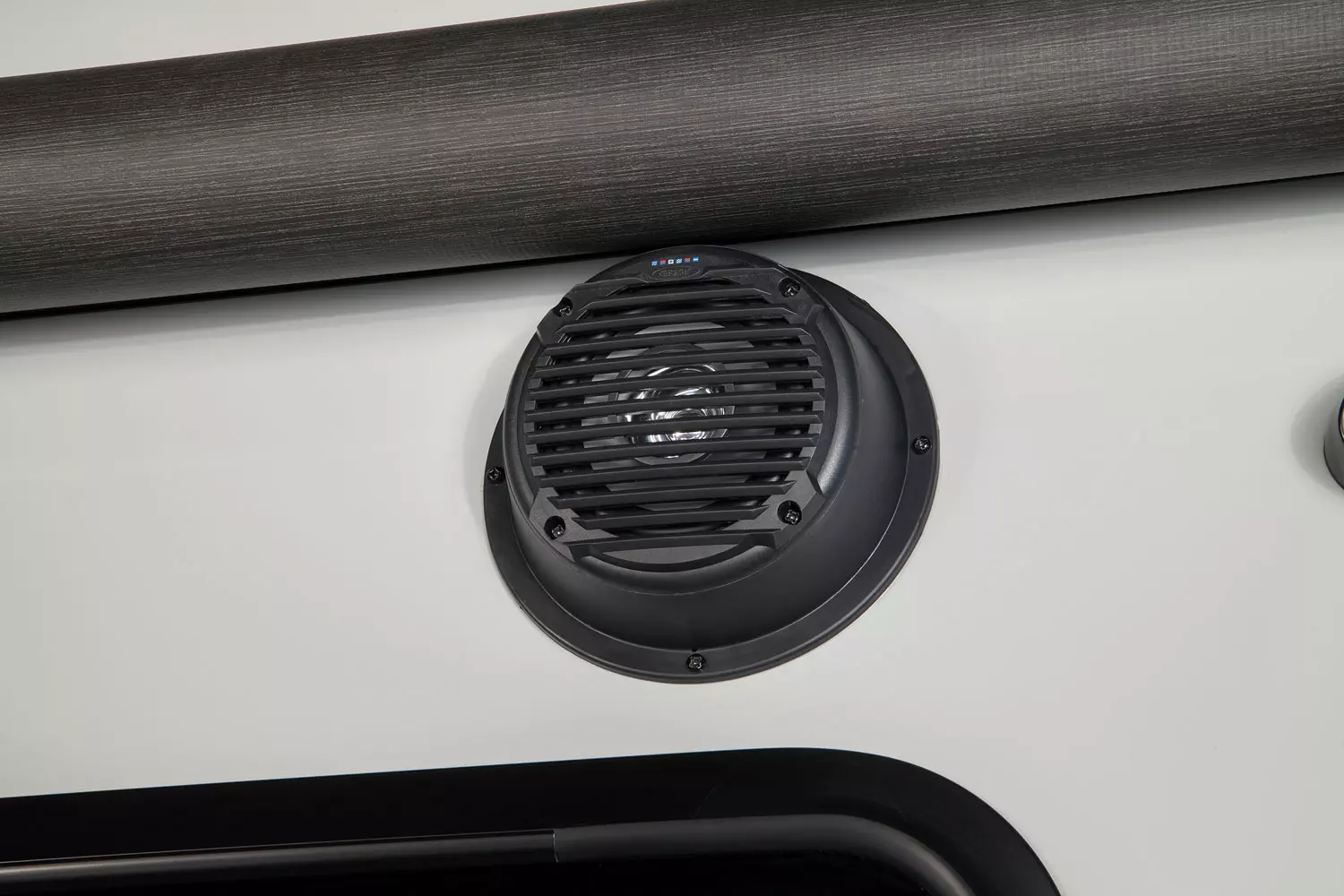

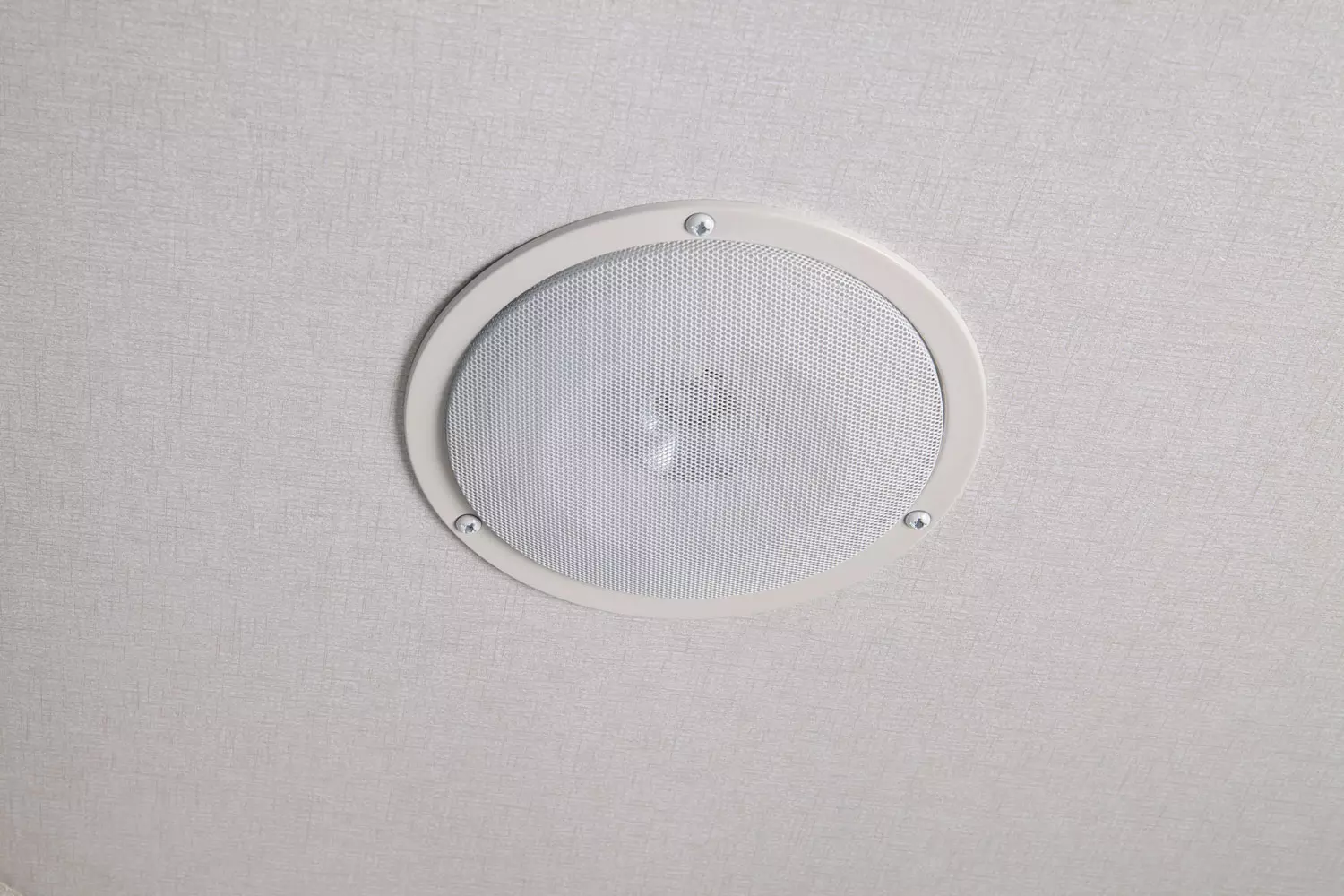

  • Exterior Marine Grade Speakers
  • 4-Point Manual Stabilizer Jacks

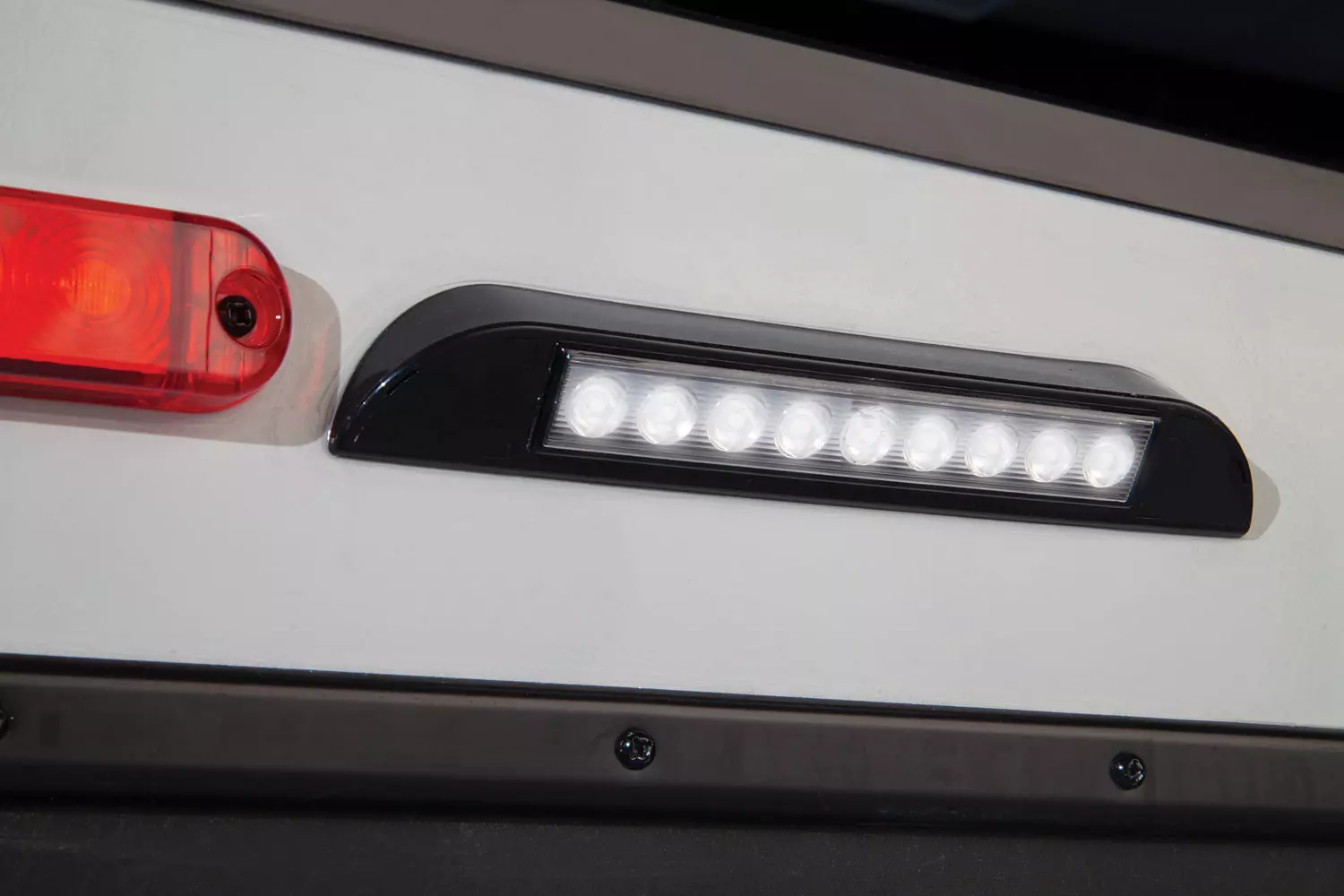

  • Rear Cargo Loading LED Light
  • Deluxe Entry Door Assist Handle
  • Satellite Prep

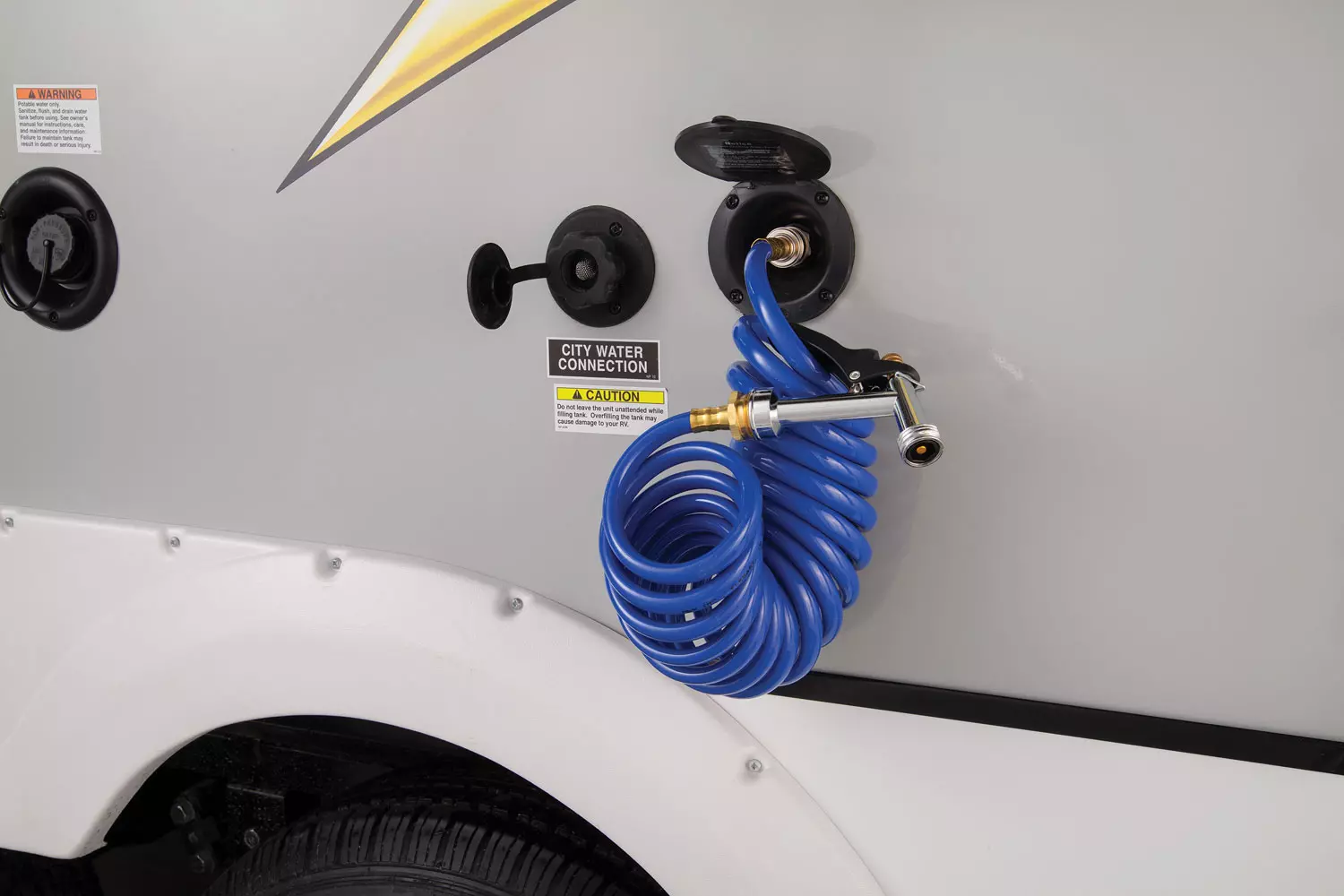

  • Outside Spray Port
  • Magnetic Compartment Door Catches
  • 30 AMP Service
  • Detachable Power Cord

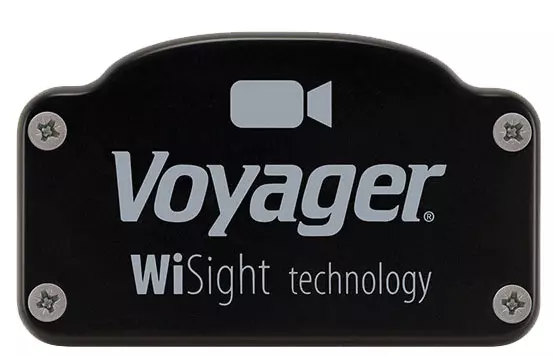

  • Rear Camera Prep
  • Keyed-Alike
  • RVIA

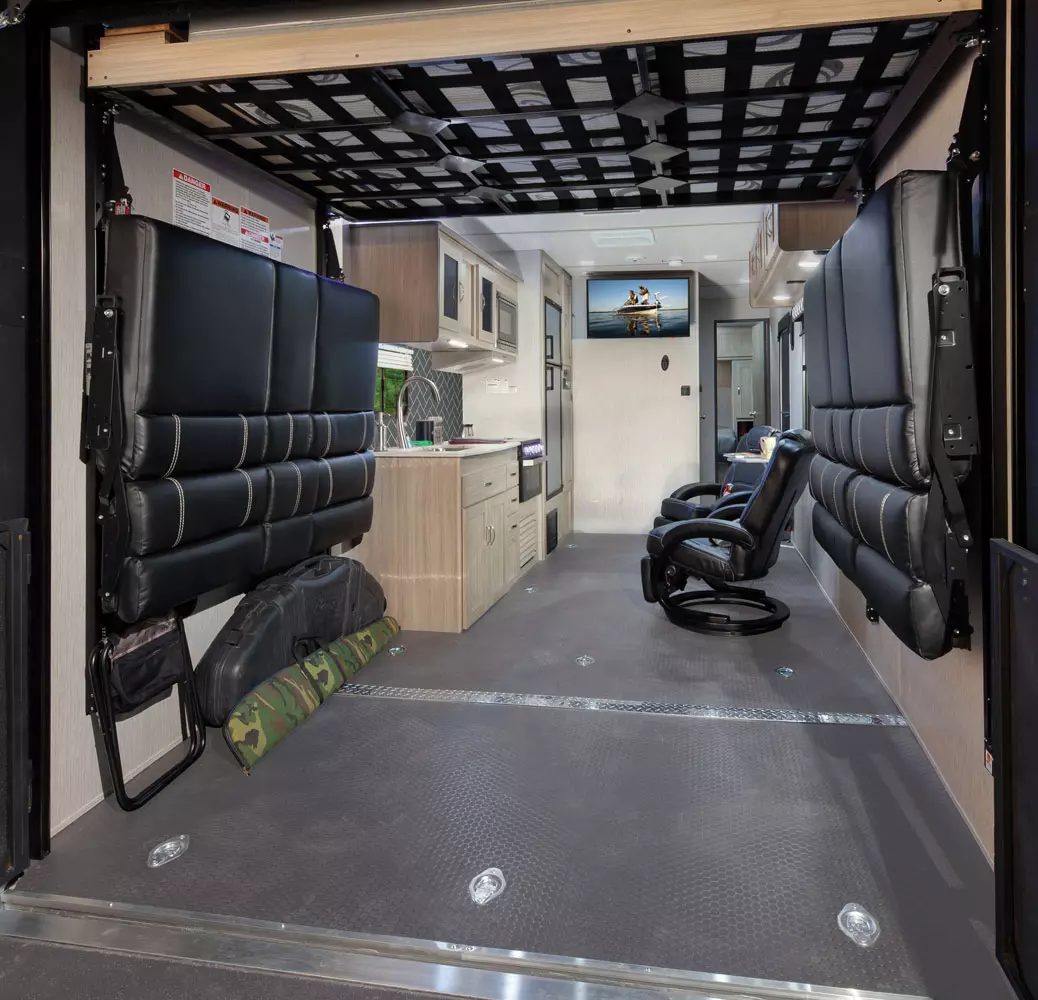

  • HD Rubberized Oil/Gas/Moisture Resistant Flooring in Garage Area
  • Shaker Style Cabinets and Doors
  • Easy Glide Full Extension Ball Bearing Drawer Guides
  • Auto-Ignition Furnace w/Wall Mount Thermostat

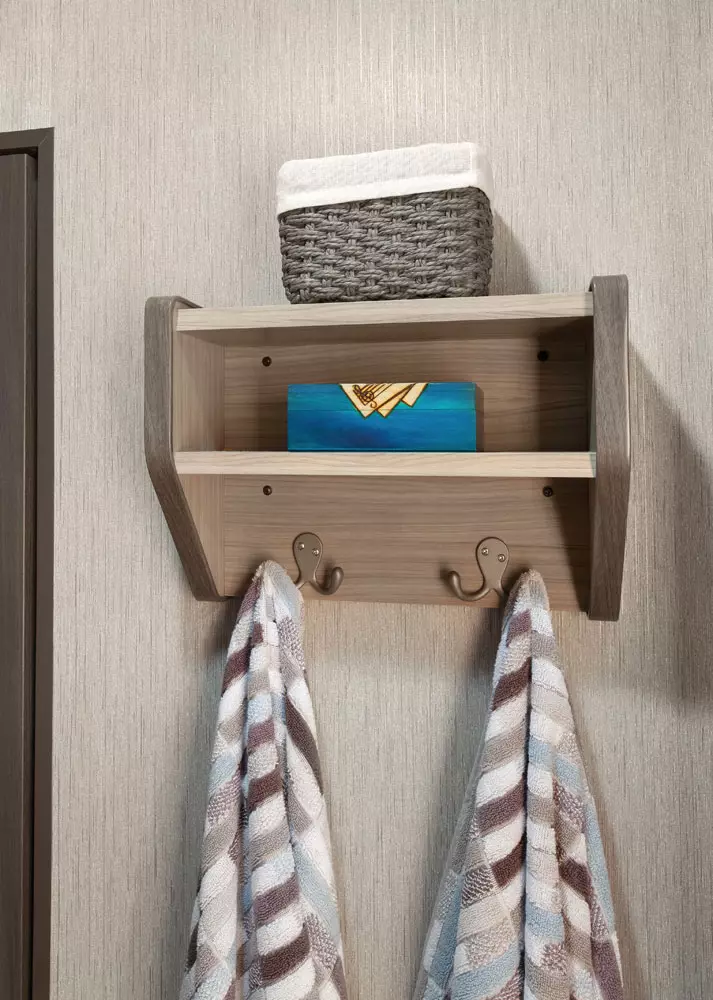

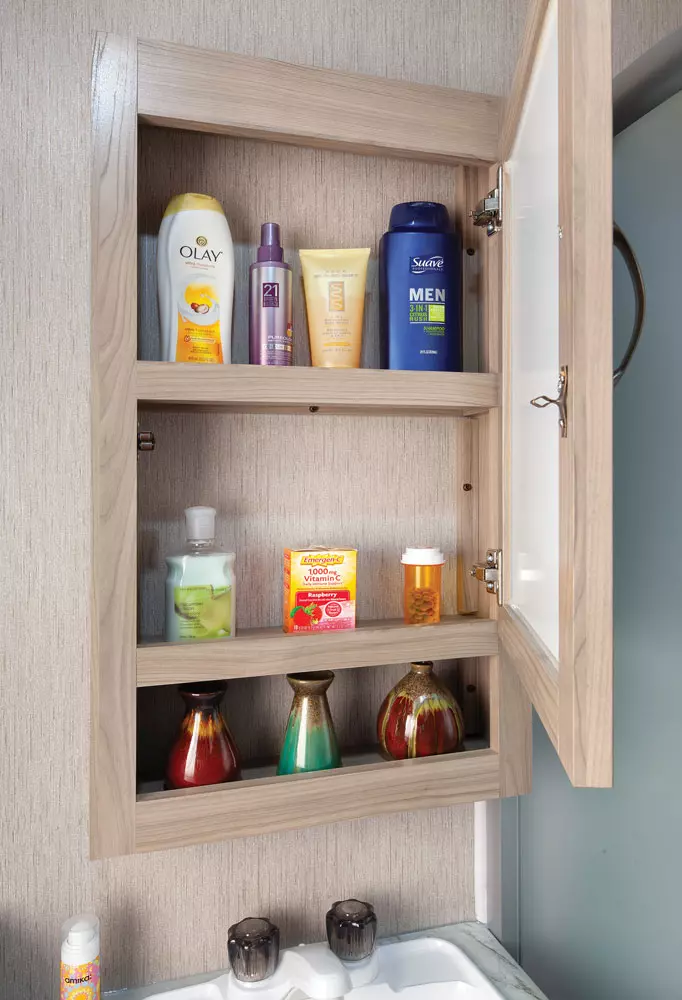

  • Medicine Cabinet w/Shelf

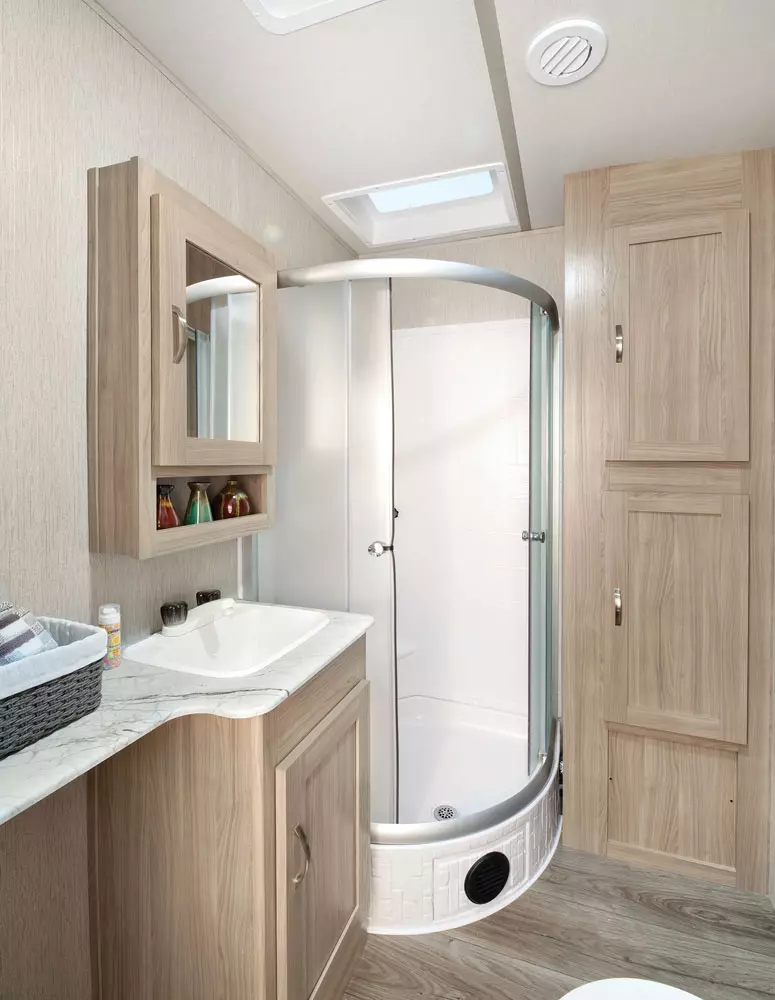

  • Shower w/Surround and Glass Enclosed Doors
  • Hi-Rise Porcelain Foot Flush Toilet
  • Winterize Ready Kit
  • Ducted Furnace
  • Skylight above Shower (N/A 21 LT)

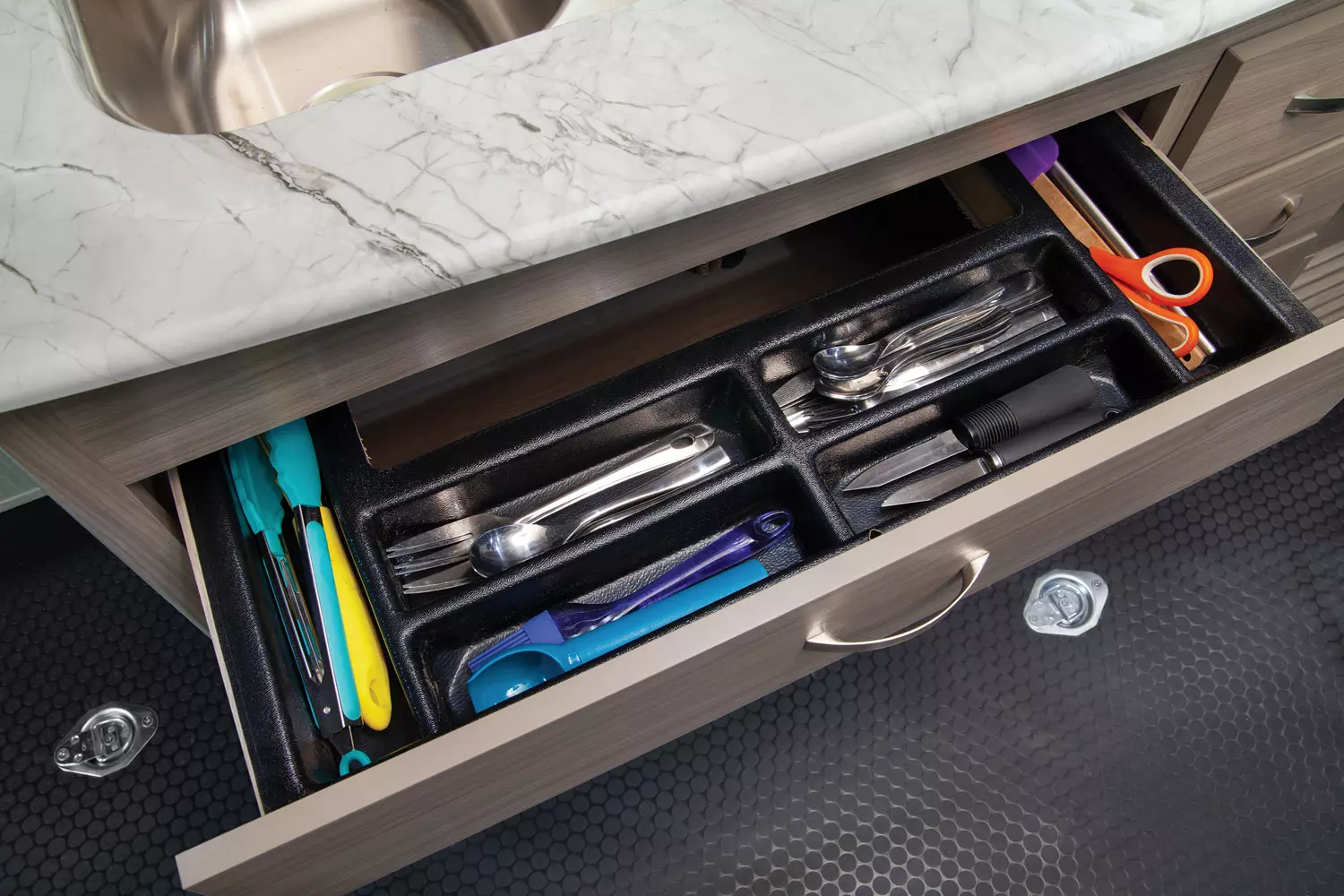

  • Utensil Drawer - Most Models
  • Dual Basin American Stonecast Sink
  • AM/FM/Bluetooth Stereo
  • Residential Bed Spread

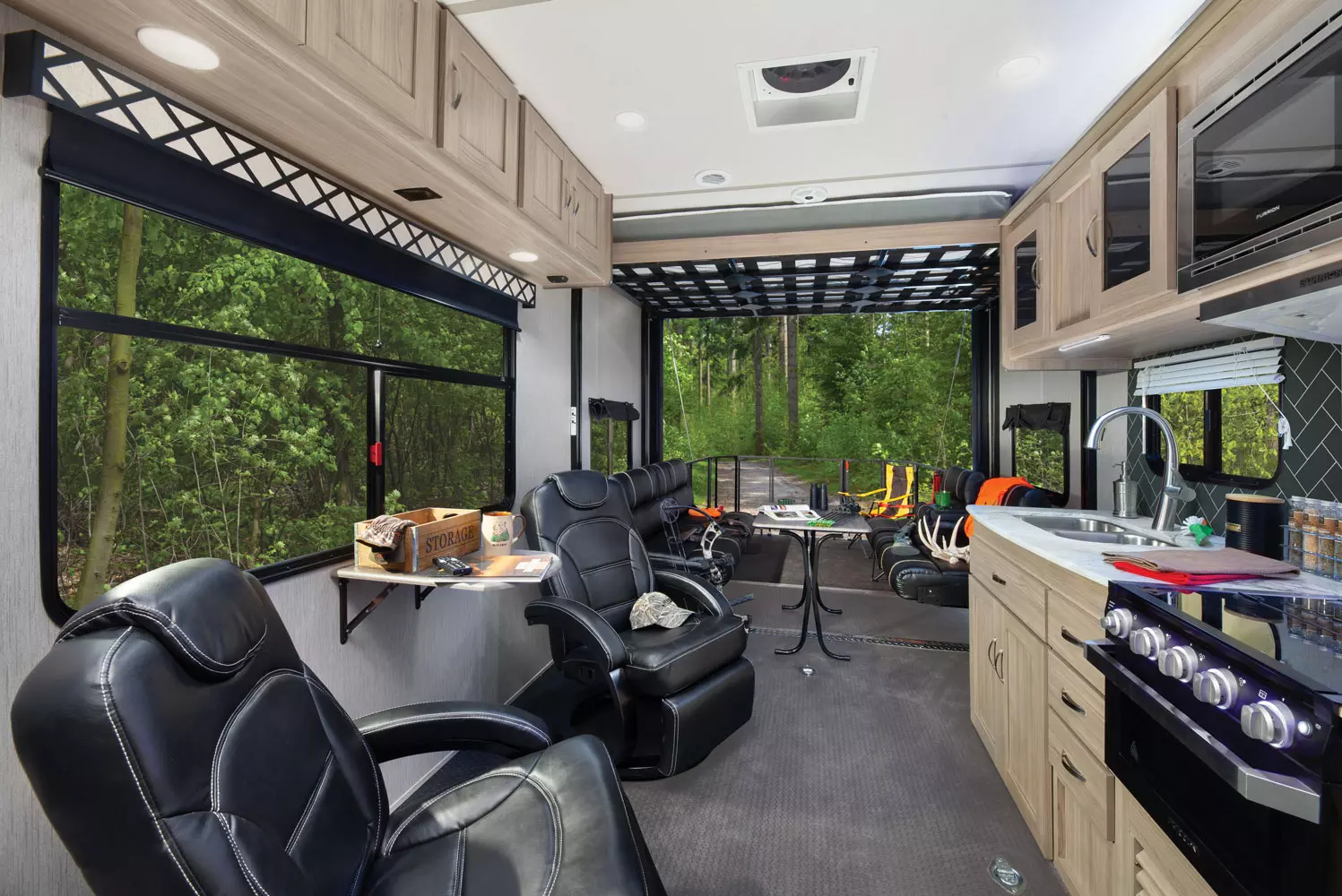

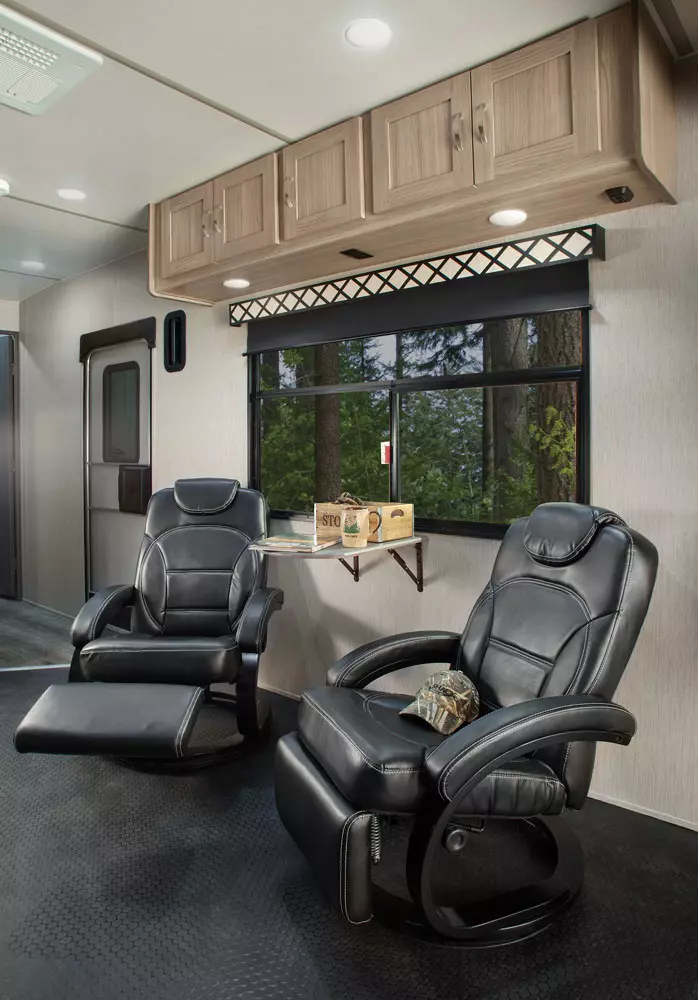

  • Euro Recliners (21 LT, 27 LT, 27 KB, 29 SS)
  • 39" LED HD TV

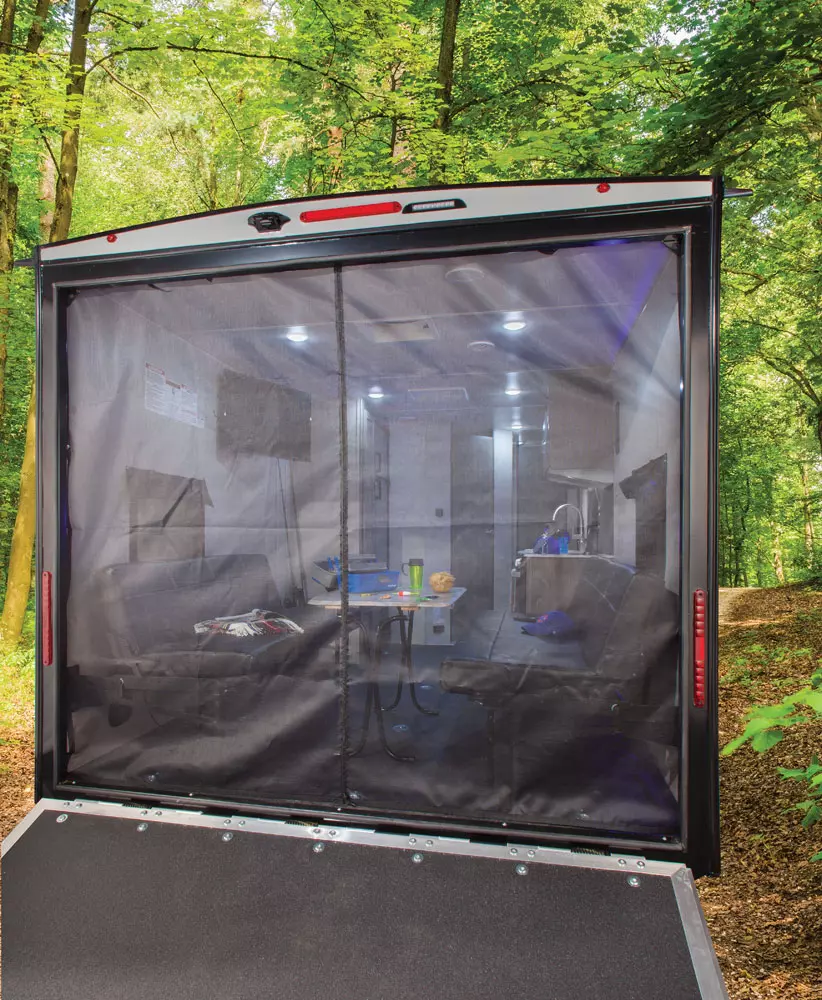

  • Rear Detachable Screen
  • King Bed 72" x 80" w/Cover (Residential Queen 21 LT)
  • Bedroom TV Hookups
  • USB Charging Ports - Multiple Locations
  • 12 Volt Power Vent in bath w/Wall Switch
  • 8" Mega Rail Powder Coated Chassis (10" on 29 SS)
  • One Piece Tufflex PVC Roof Membrane
  • Fiberglass Front Cap w/Rock Guard
  • Heavy Duty Dexter® Axles w/Nev-R-Adjust® Brakes and E-Z Lube®
  • Spare Tire
  • 15" Aluminum Wheels w/E-Rated Radial Tires (21 LT, 23 LT, 27 LT, 27 KB)
  • 16" Aluminum Wheels w/E-Rated Radial Tires (29 SS)
  • 15,000 BTU Ducted A/C
  • Tinted Safety Glass Windows
  • Nitrogen Filled Tires
  • LED Lighting
  • 30" Radius Entrance Door

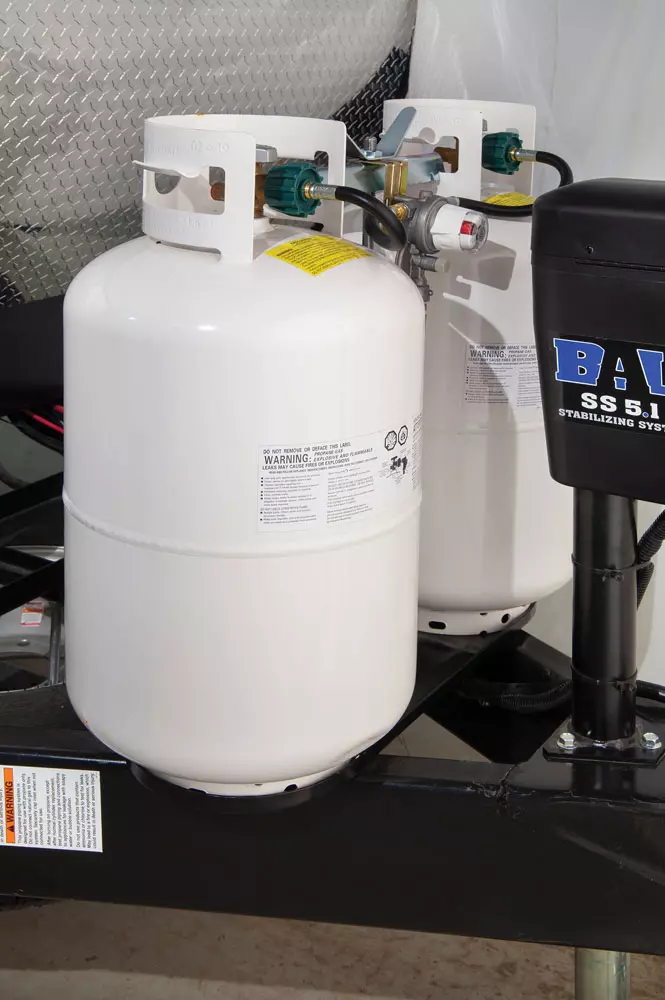

  • 2-30 lb. LP Tanks w/Cover
  • Power Awning w/LED Light Strip
  • Winegard Air 360 and TV Antenna

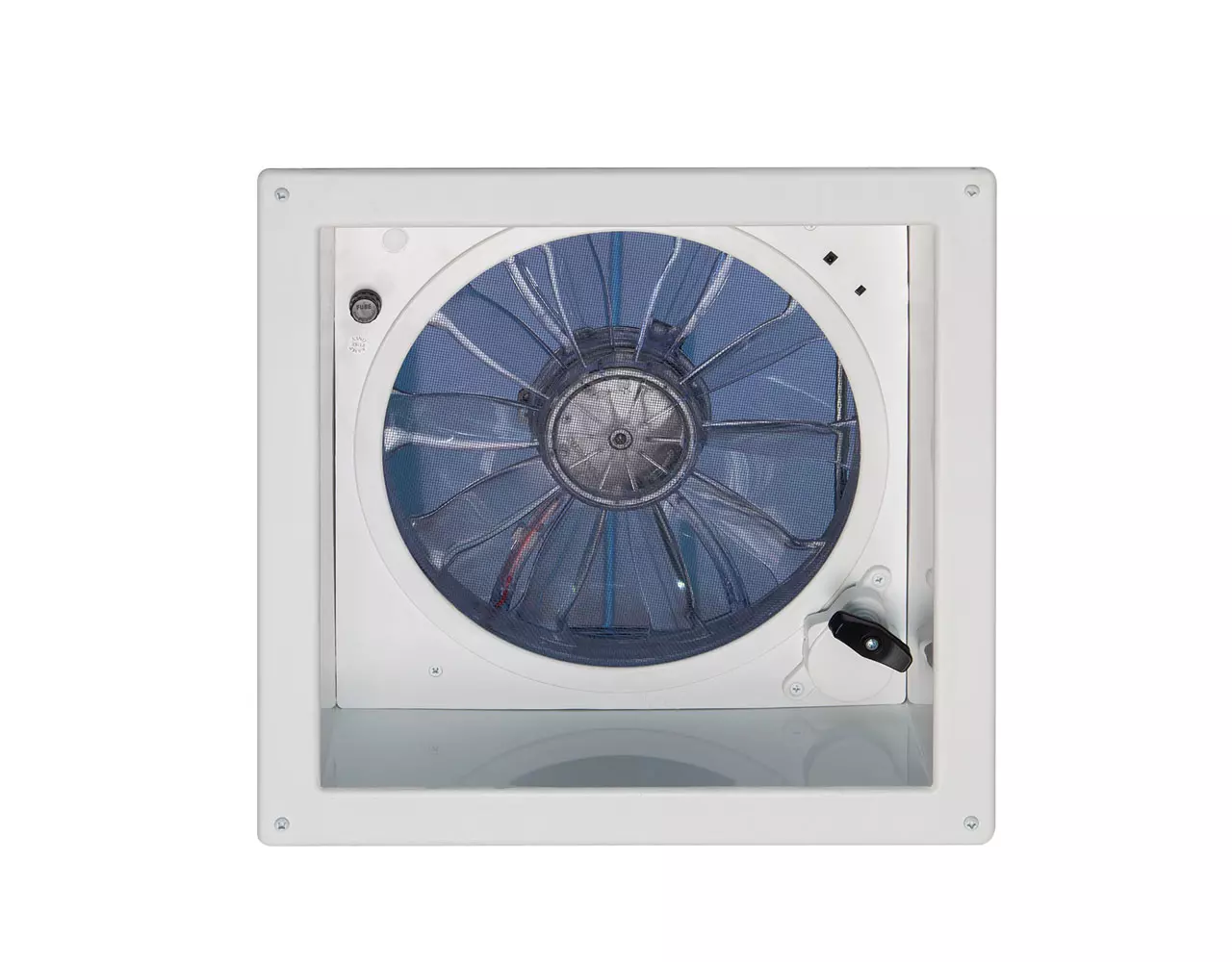

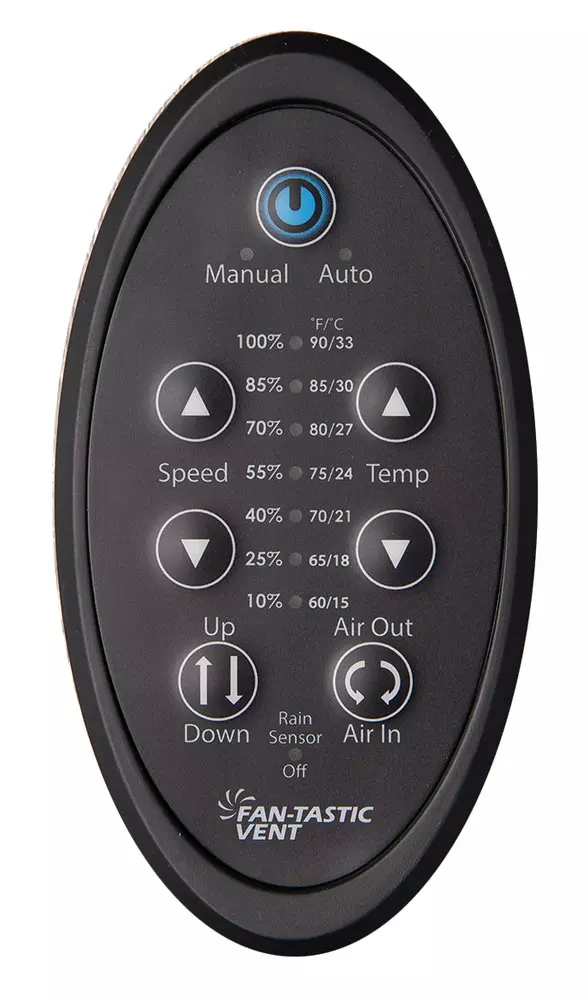

  • Fantastic Fan w/Remote Wall Switch

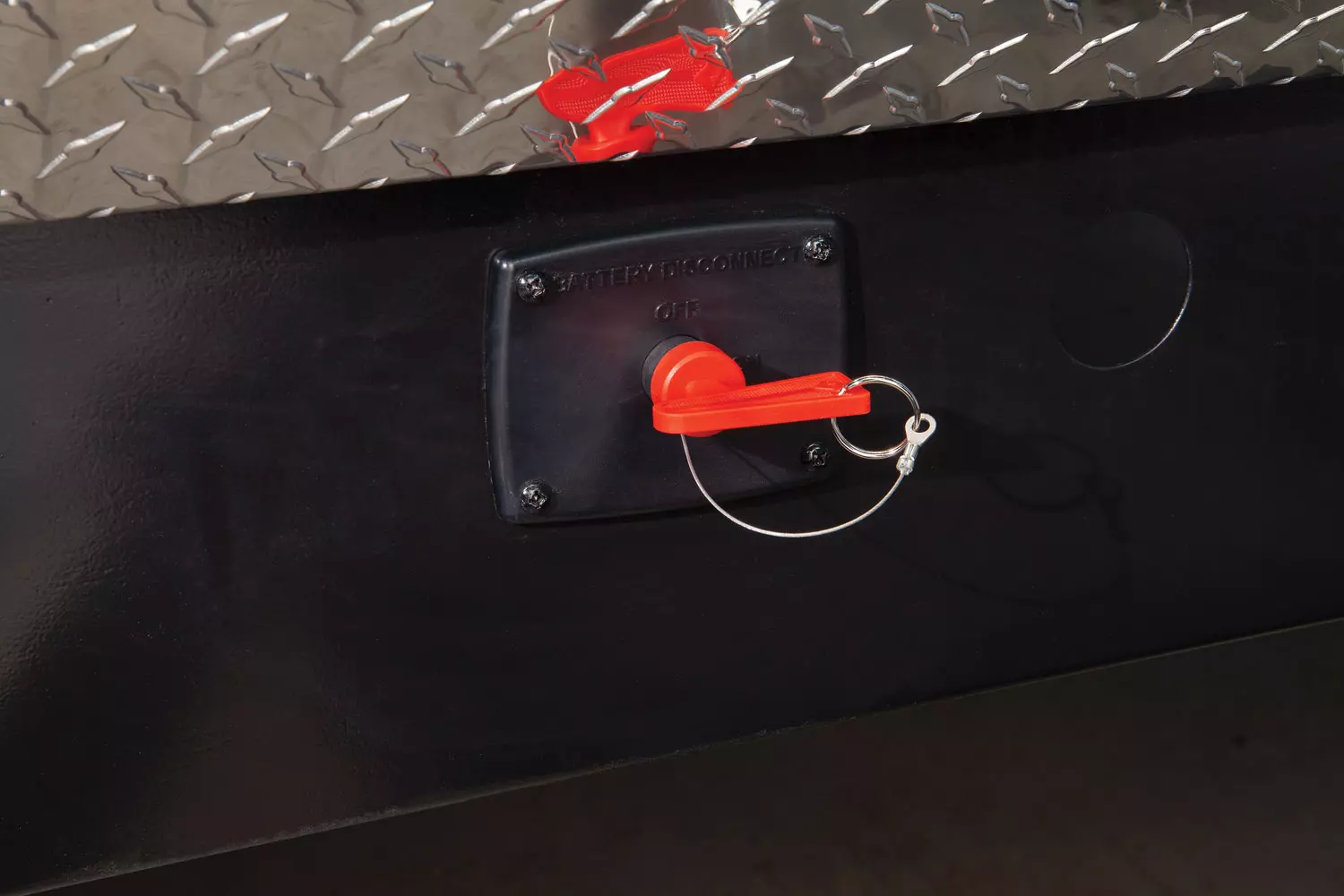

  • Battery Disconnect
  • SafeRide RV Roadside Assistance
  • LED Lighting

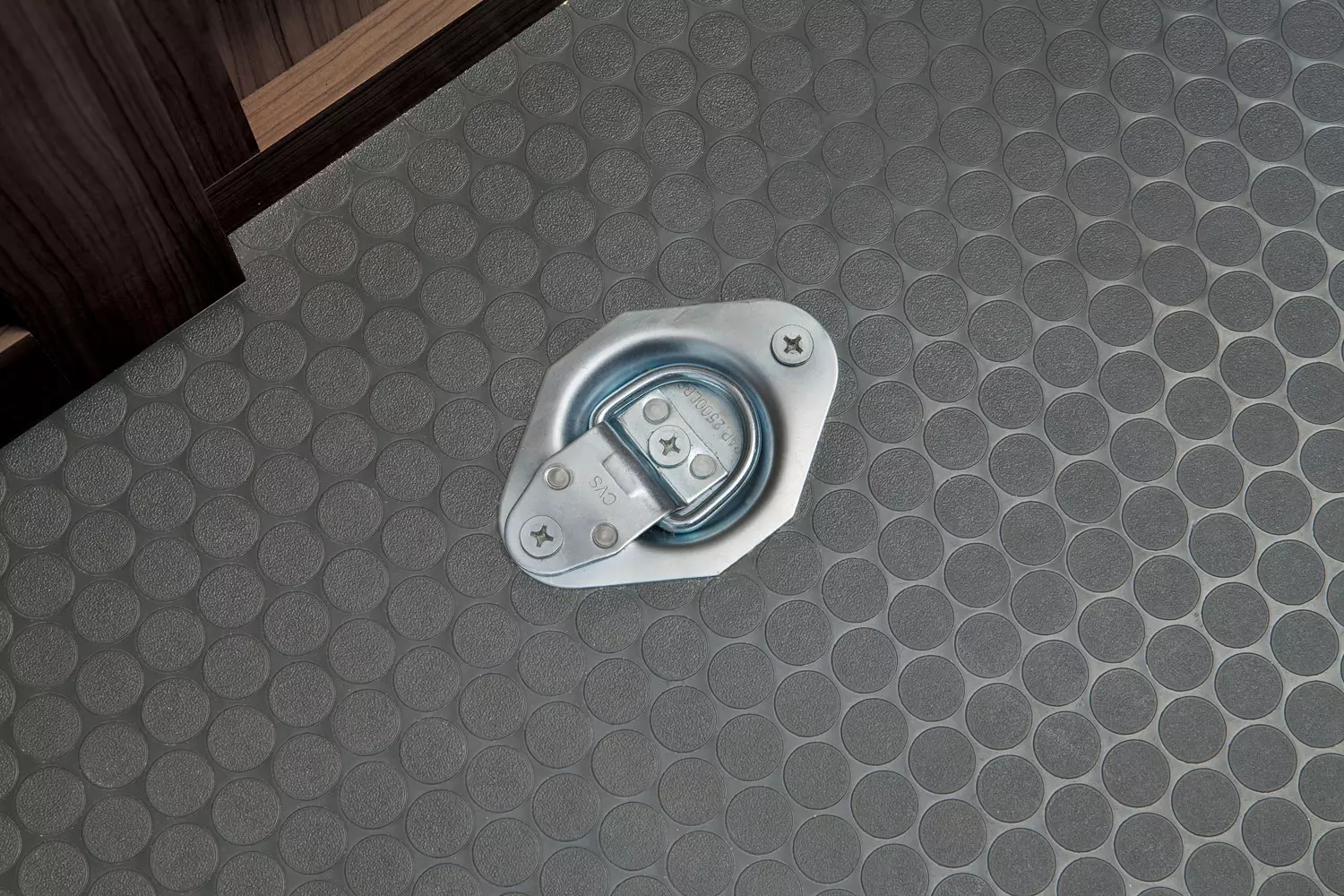

  • Steel Secured 2,500 lb. Rated D-Rings
  • Designer Carefree Flooring in Living Area
  • 8 Cu. Ft. Refrigerator
  • Microwave
  • 3 Burner Cooktop w/Oven
  • Sink Covers

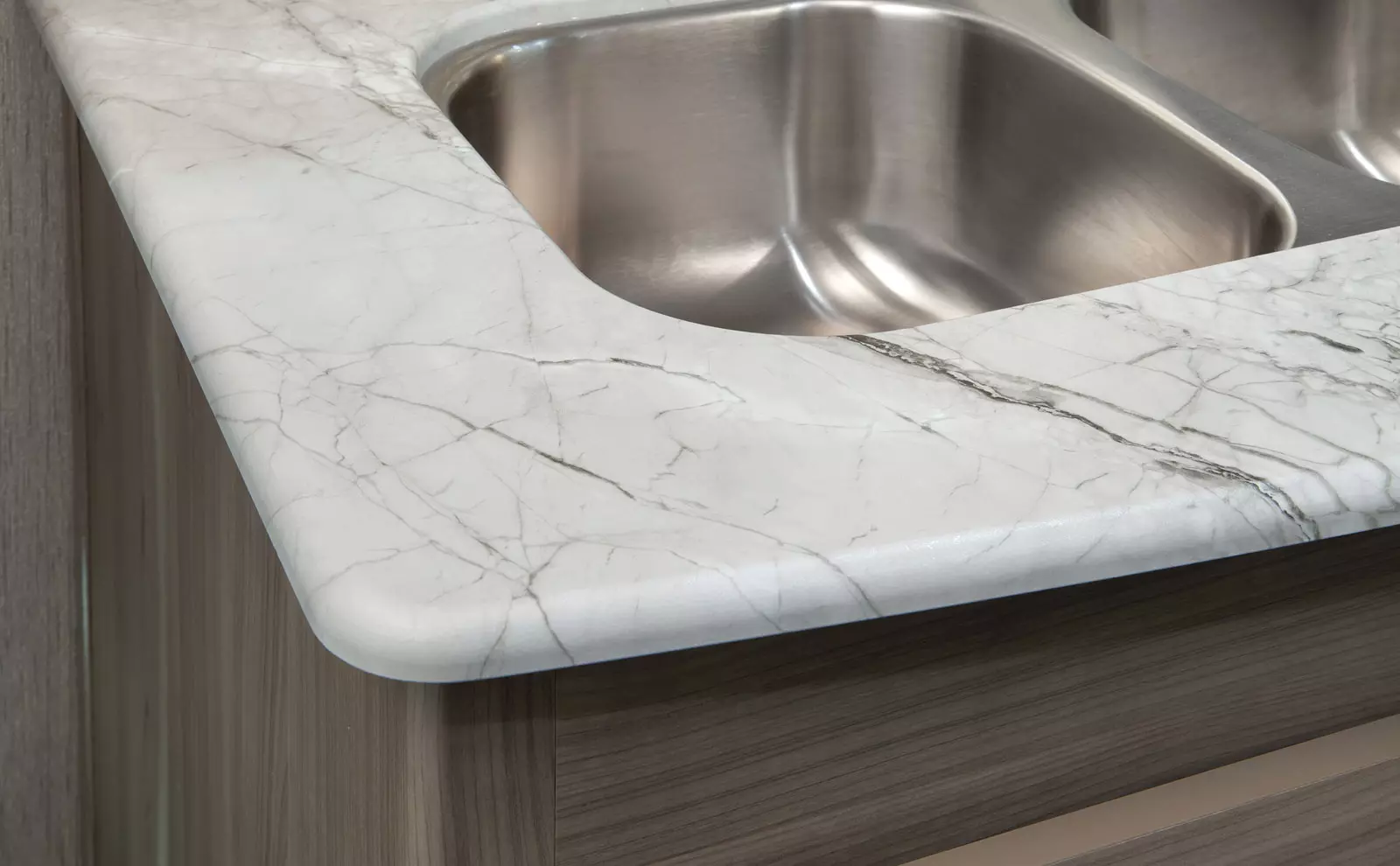

  • Seamless Edge Countertops
  • 6 Gal. Gas/Electric Water Heater
  • Glass Door Inserts

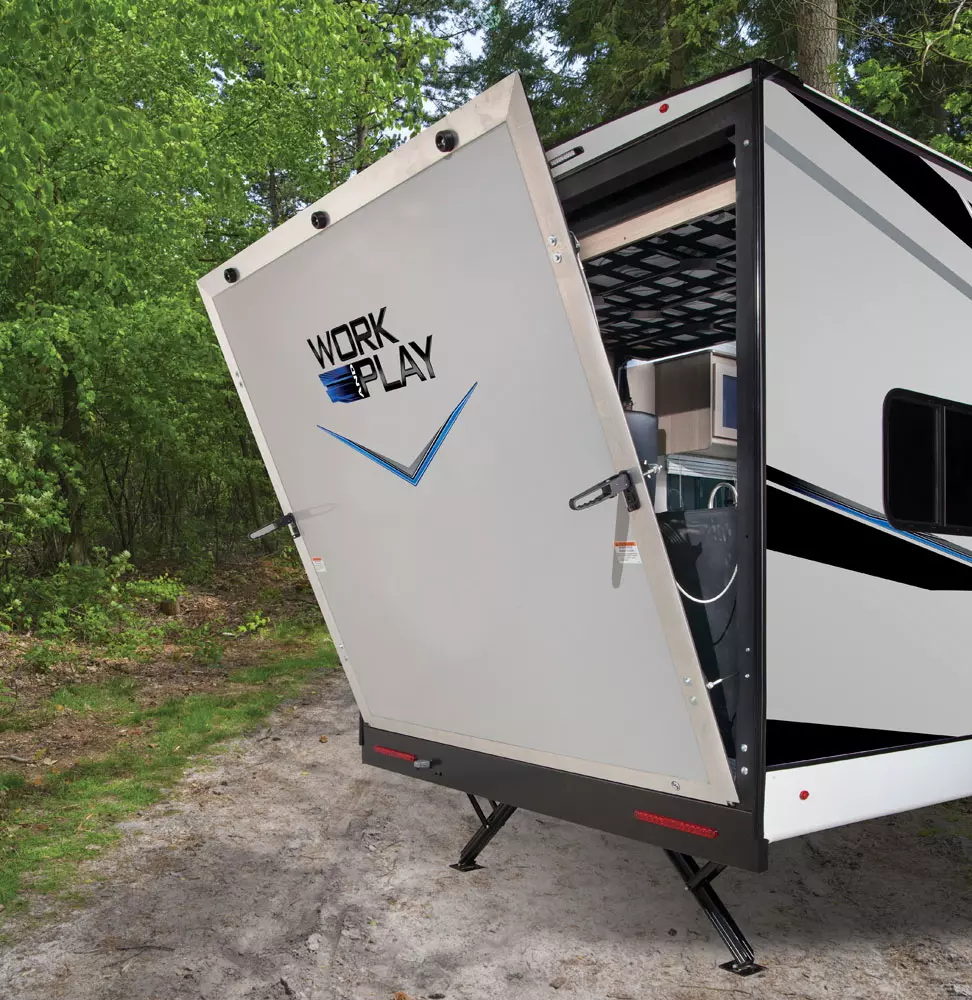

  • Zero Gravity Ramp Door
  • Aluminum Solid Step
  • 50 AMP Service

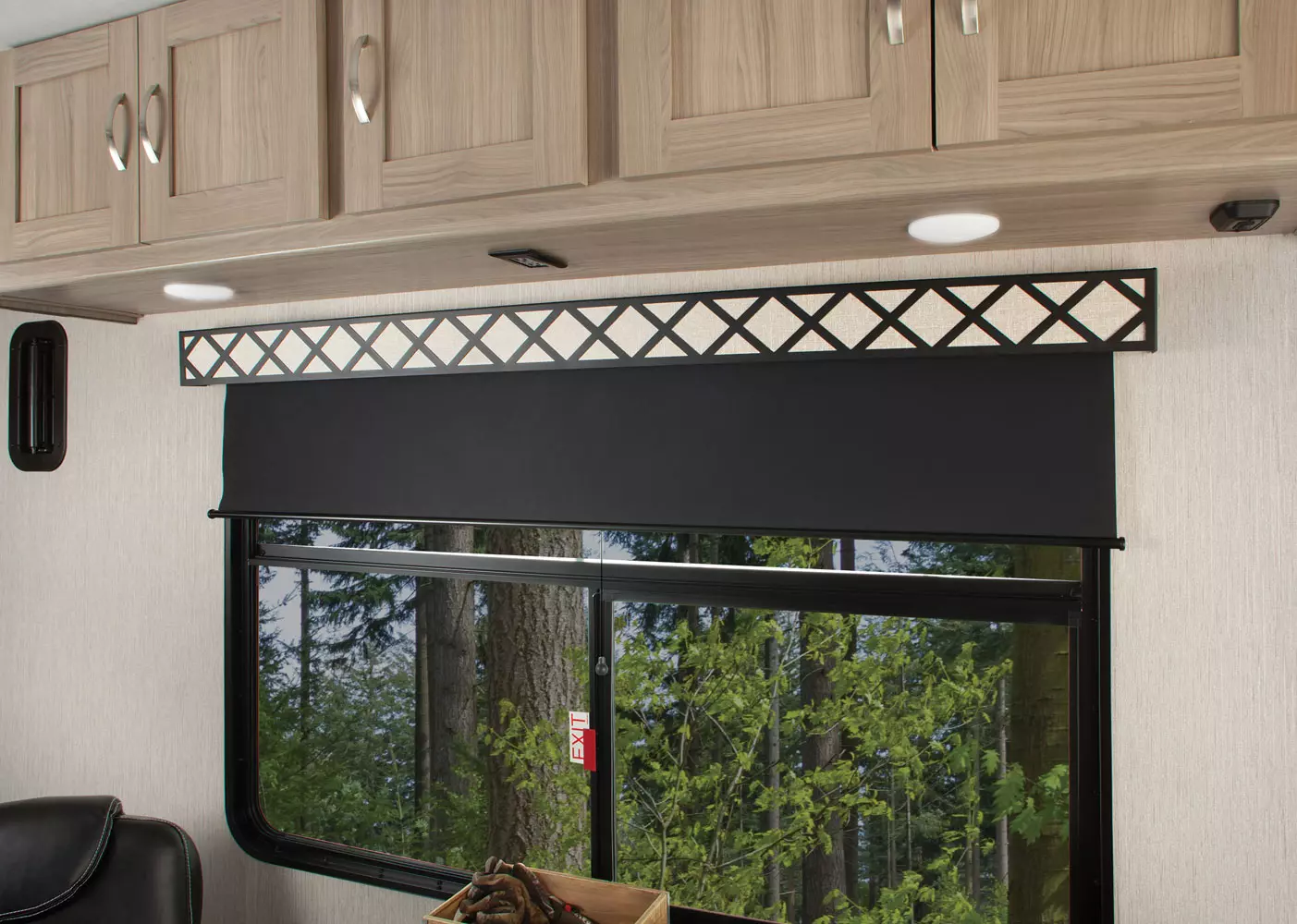

  • Pull-down Roller Night Shades
  • LED Light Strips

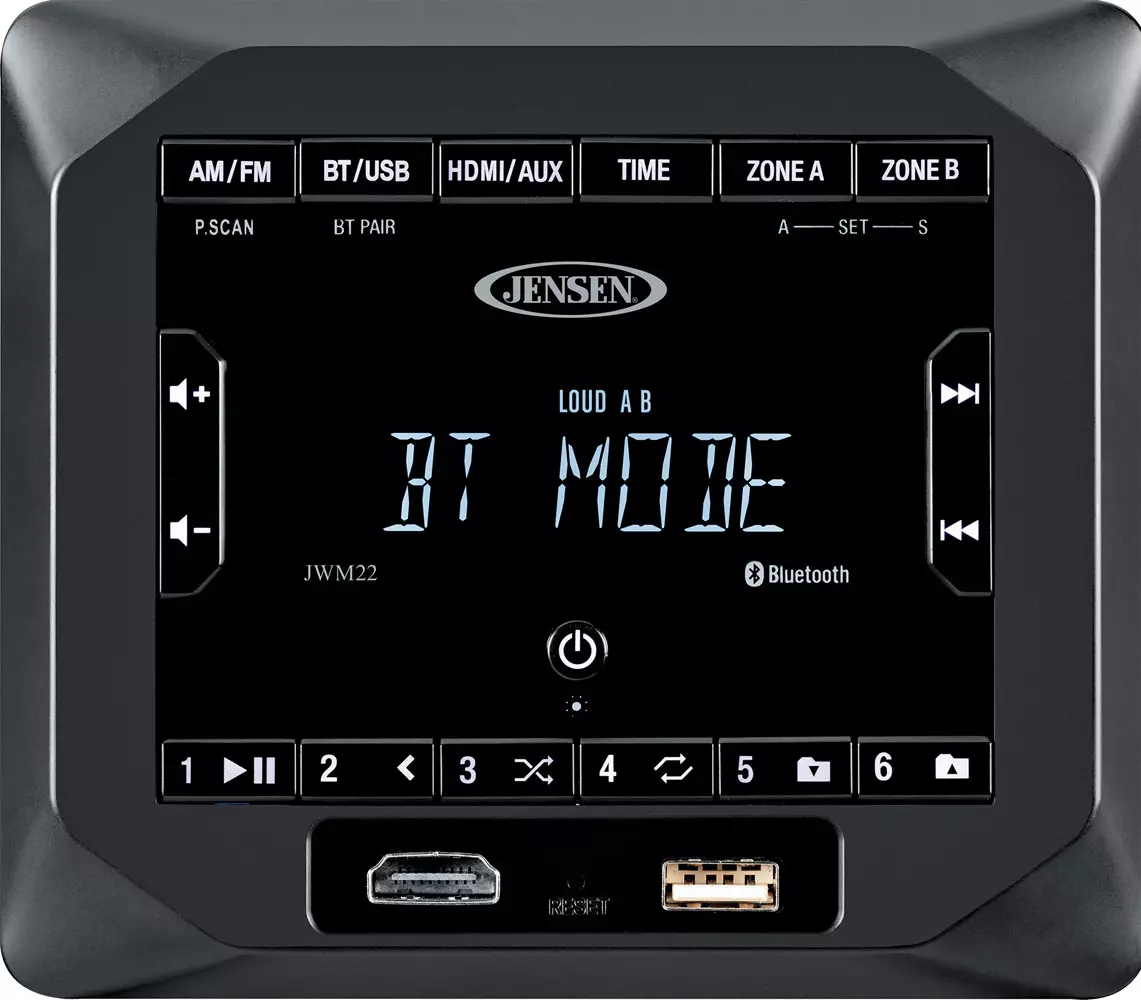

  • AM/FM/DVD Bluetooth Stereo w/App Control

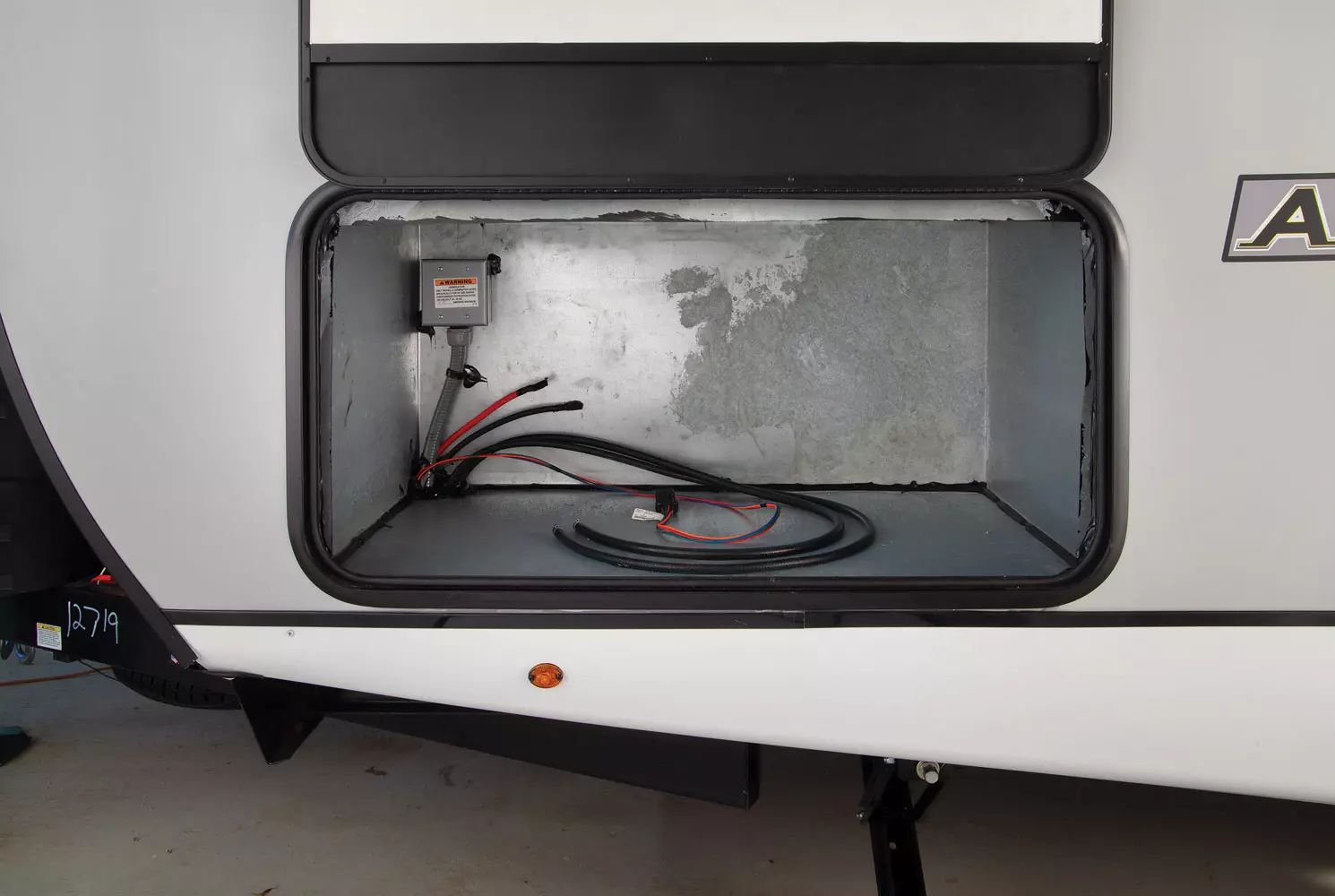

  • Generator Prep

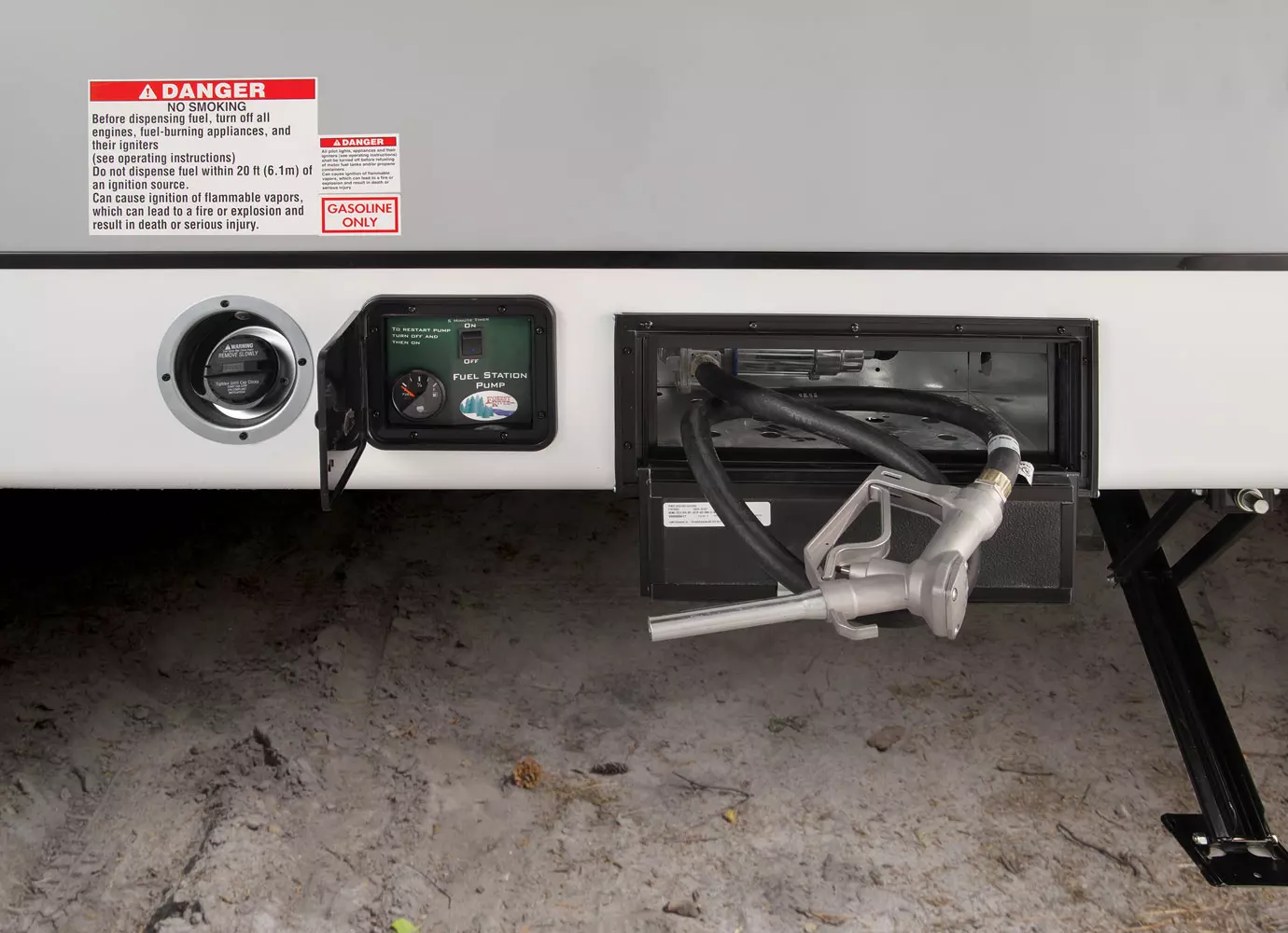

  • 30 Gallon Fuel Station
  • Rear Pull-down Screen
  • Electric Stabilizers and Power Tongue Jack

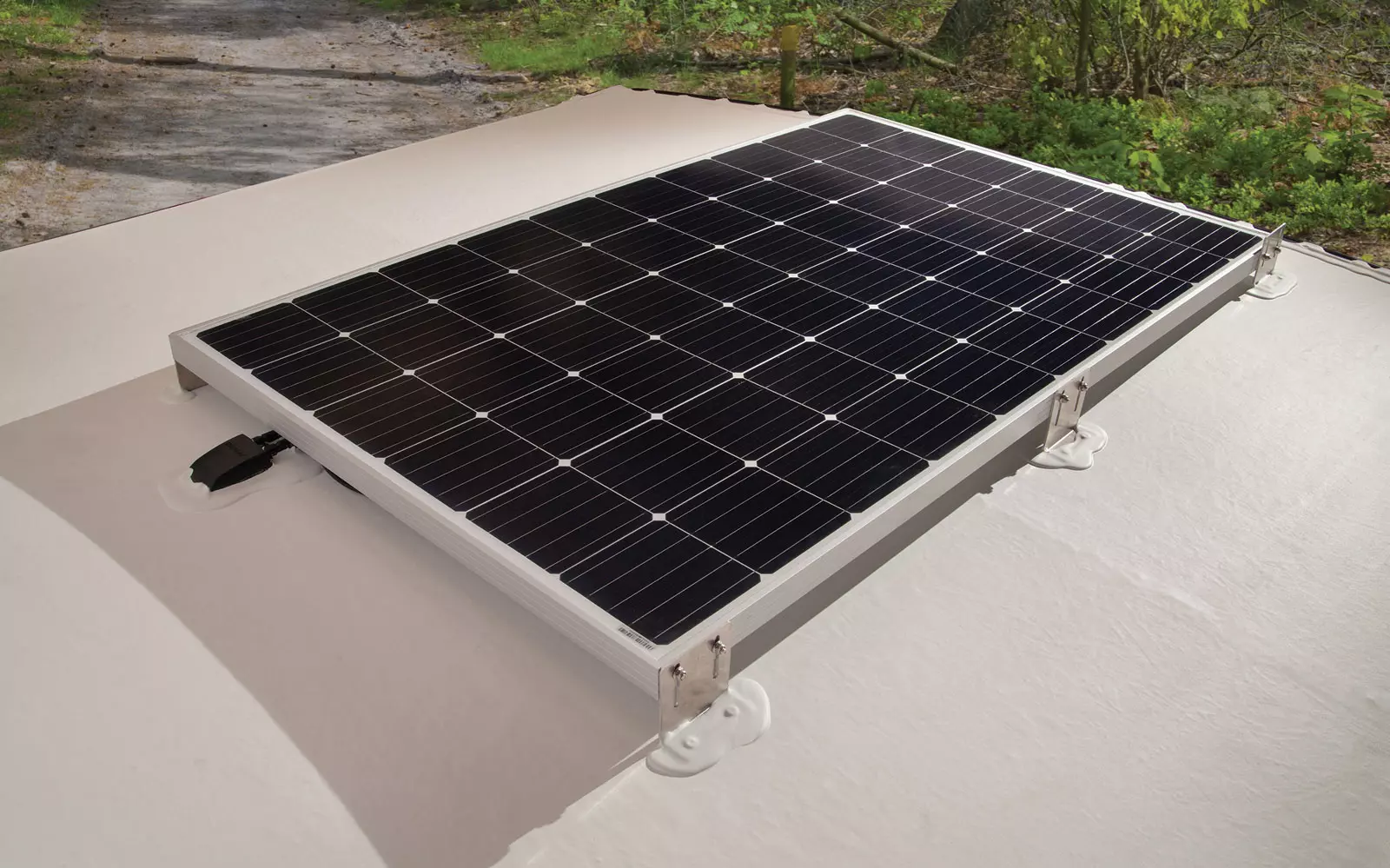

  • 300W Solar Panel w/MPPT Control Charger
  • Queen Size Electric Bed w/Sofas

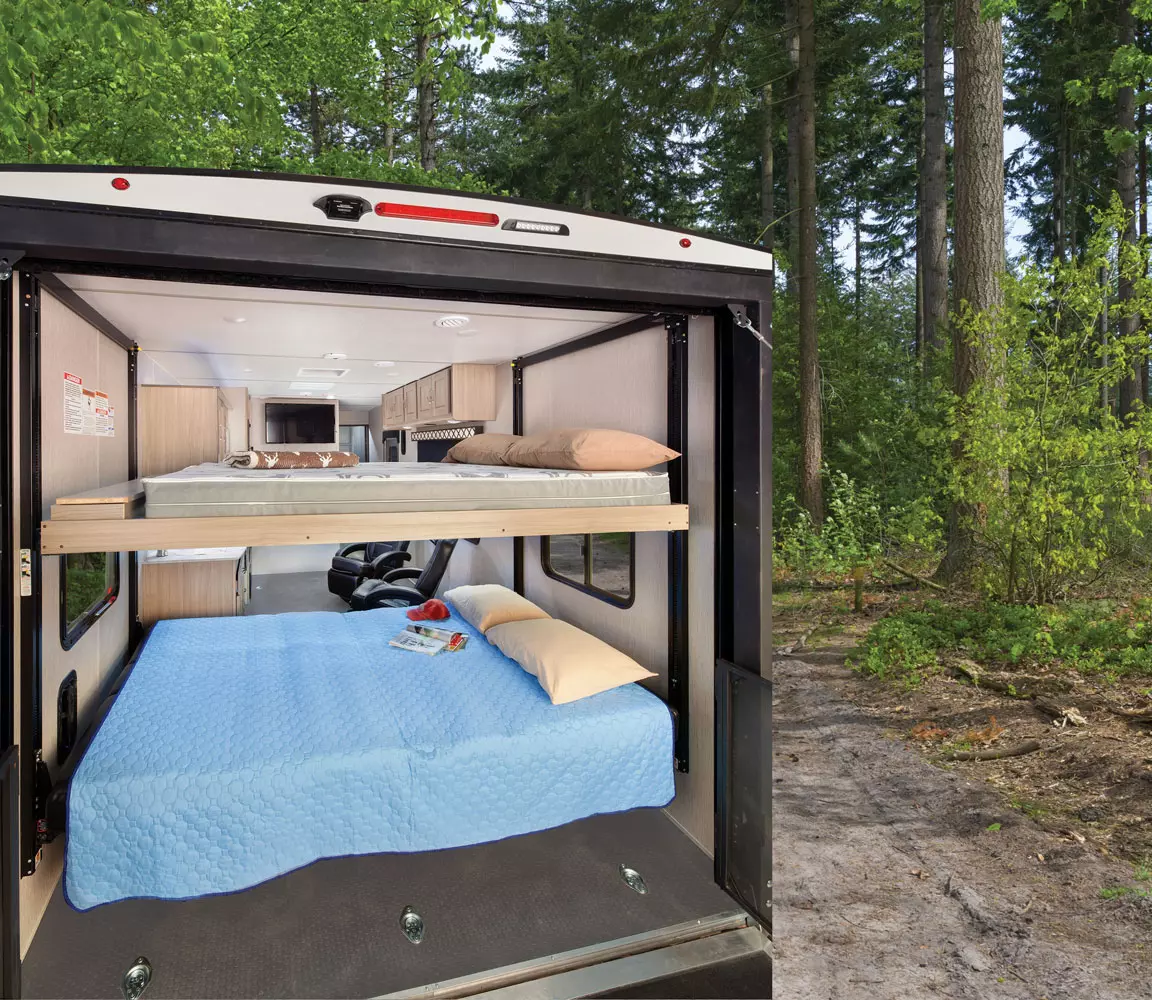

  • Electric Queen Bed lift w/Sofas
  • 300W Solar Panel w/MPPT Control Charger
  • 30 Gallon Fuel Station
  • 50 AMP Service w/Second A/C Prep
  • Second 15K BTU A/C

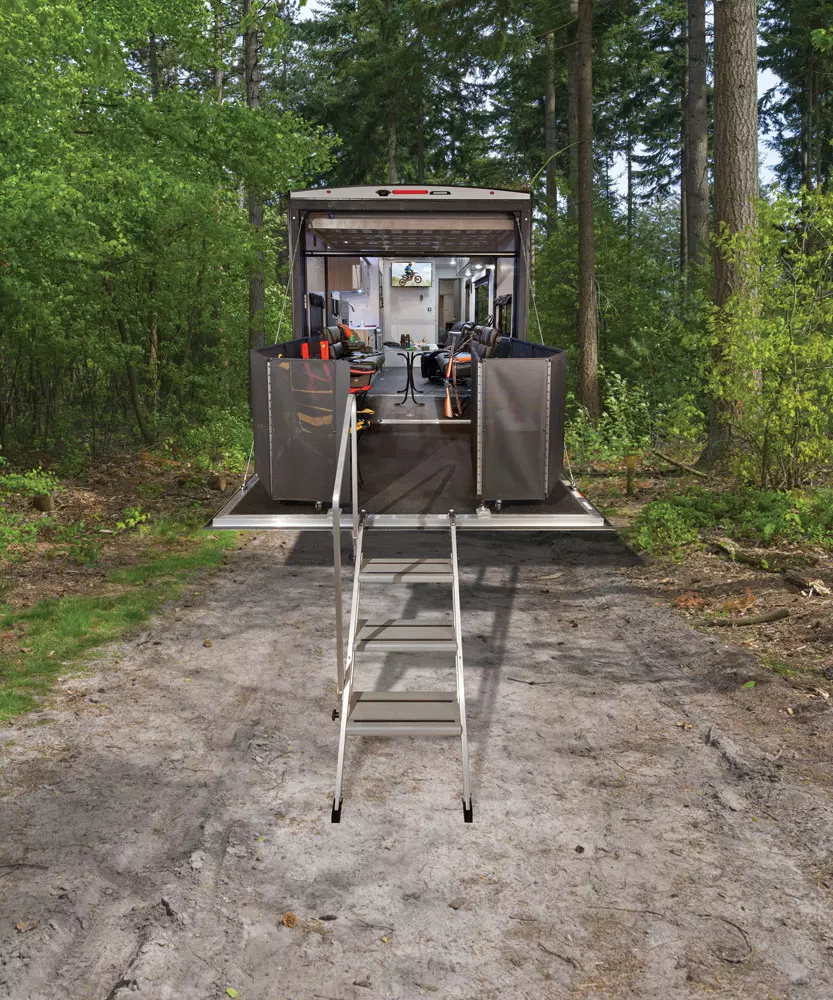

  • Ramp Door Party Patio Kit
  • 10 Cu. ft. 10V Refrigerator
  • CSA
  • 5.5K Onan Generator
  • Second 15K BTU A/C
  • Ramp Door Party Patio Kit
  • 10 Cu. ft. 10V Refrigerator
  • CSA


Virtual Tours

  • 21LT

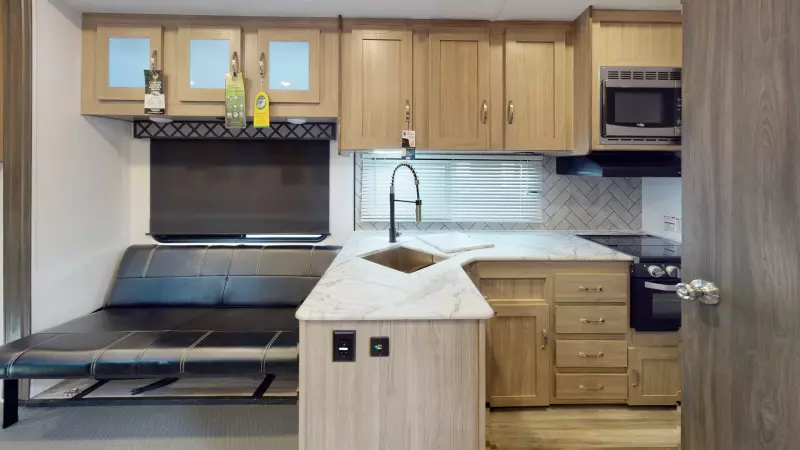

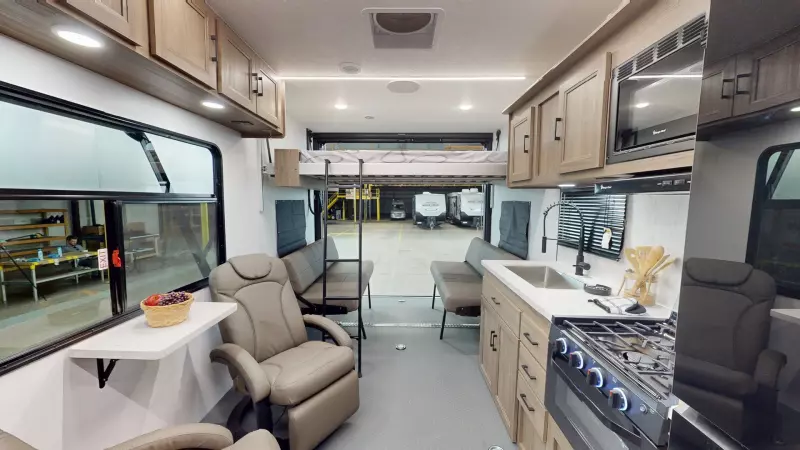

    21LT Main Room
  • 23LT

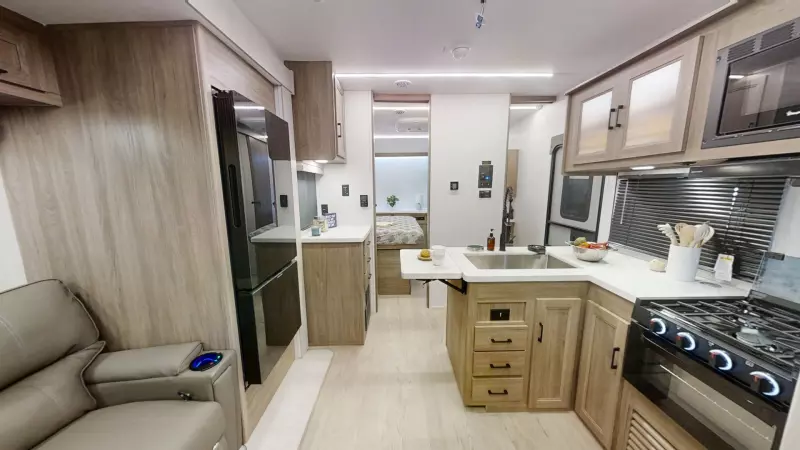

    23LT Main Room
  • 27KB
    27KB Main Room
  • 27LT
    27LT Main Room


Videos

Some videos may show features or options not available on all products. Contact our service representatives or your local dealer if you have questions about how your specific RV operates.
